Limiting Reactants

Continuing Stoichiometry …. Limiting Reactants. The idea. In every chemical reaction, there is one reactant that will be run out (called the limiting reactant ) . This will limit the amount of product that can form. The reaction will stop at that point.

cyndi
Télécharger la présentation

Limiting Reactants

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

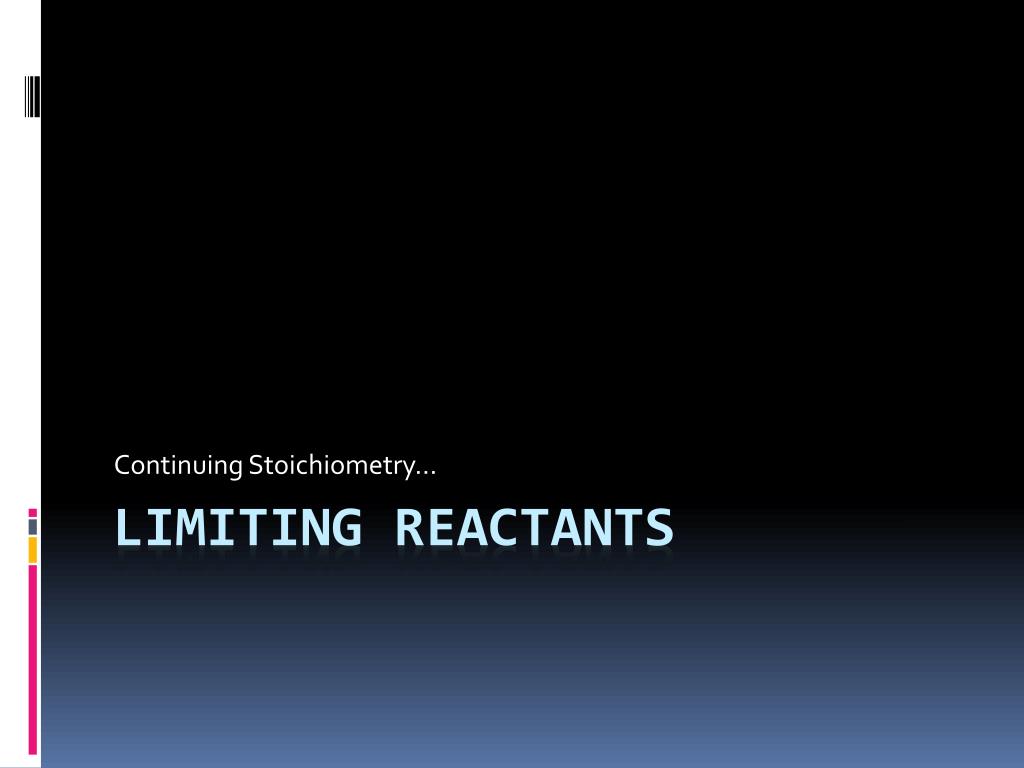

  1. Continuing Stoichiometry… Limiting Reactants

  2. The idea. • In every chemical reaction, there is one reactant that will be run out (called the limiting reactant) . • This will limit the amount of product that can form. • The reaction will stop at that point. • There are then also excess reactants.

  3. Sample Problem • S8 + 4 Cl2  4 S2Cl2 If you have 200.0 g S8 and 100.0 g Cl2, what is the limiting reactant?

  4. Step 1 • First, find the moles of each reactant. • Amount of each reactant will be given • Usually it will be in grams. This is a gram to mole conversion.

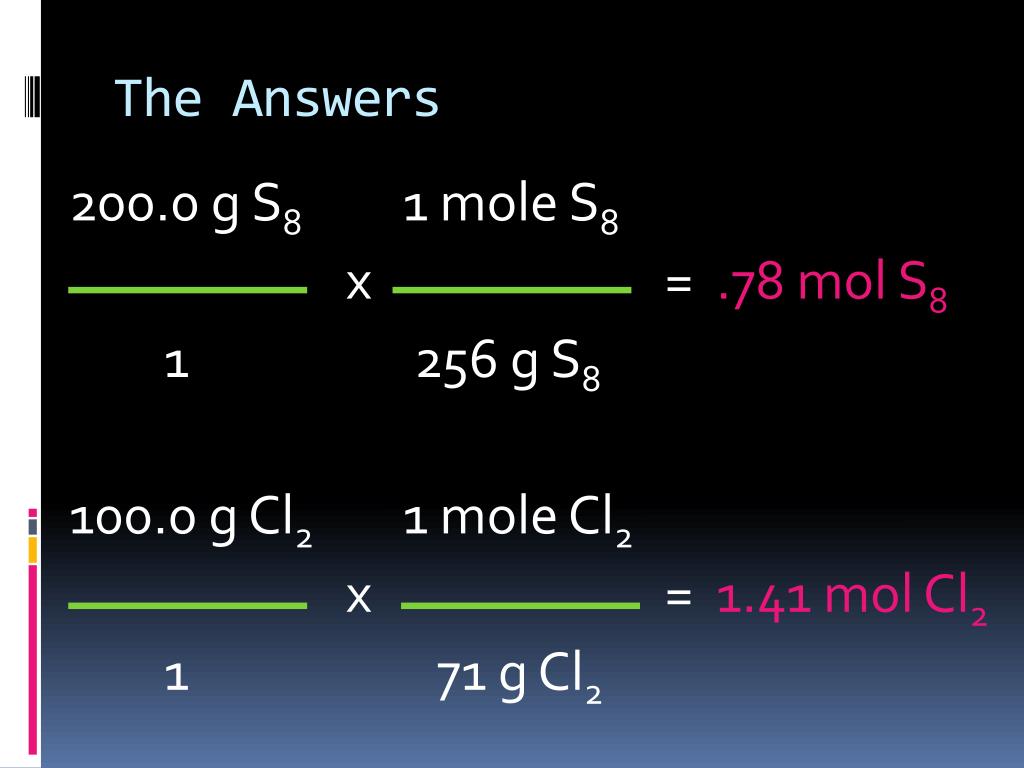

  5. The Answers 200.0 g S8 1 mole S8 x = .78 mol S8 1 256 g S8 100.0 g Cl2 1 mole Cl2 x = 1.41 mol Cl2 1 71 g Cl2

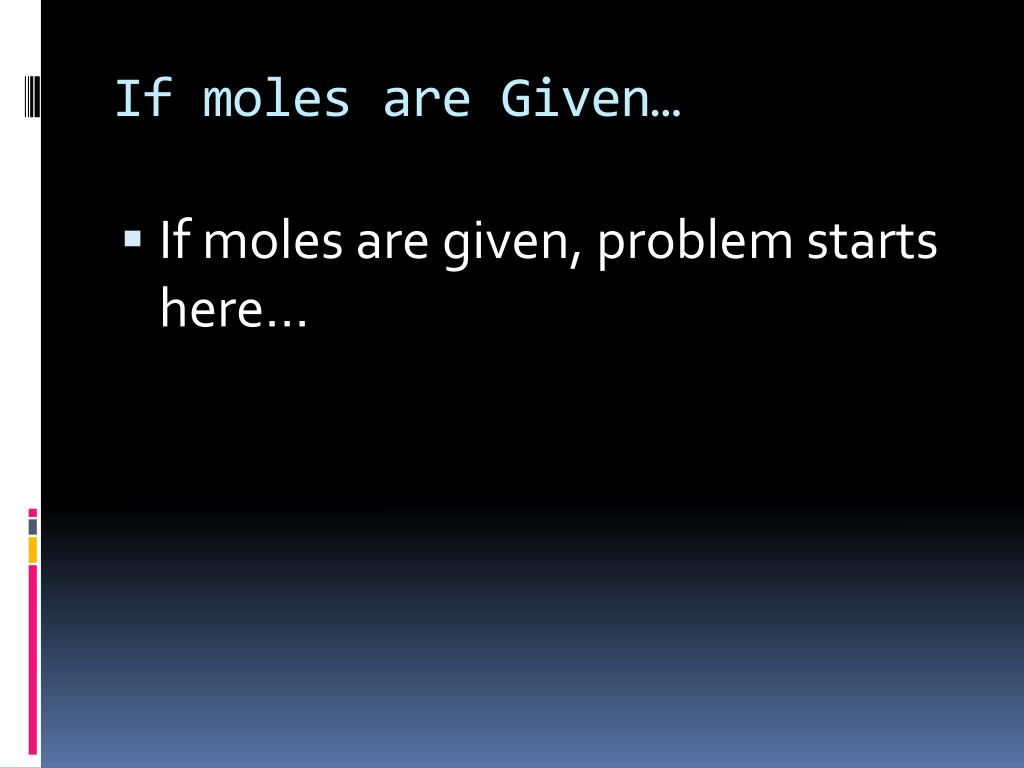

  6. If moles are Given… • If moles are given, problem starts here…

  7. Step 2: Compare Mole Ratios • A) What is the mole to mole ratio from the balanced chemical equation? • S8 + 4 Cl2  4 S2Cl2 Moles S8 = 1 Moles Cl2 = 4 Need 4 Cl2 for each S8!

  8. Step 2 cont’d • B) What is the mole to mole ratio calculated from the starting conditions? Moles S8 = .78 mol S8 Moles Cl2 = 1.41 mol Cl2 1.41 mol Cl2 = 1.81 mol Cl2 for 1 mol S8 .78 mol S8

  9. Is this enough? • NO! • Therefore, Cl2 is the limiting reactant Now practice some LR calculations!

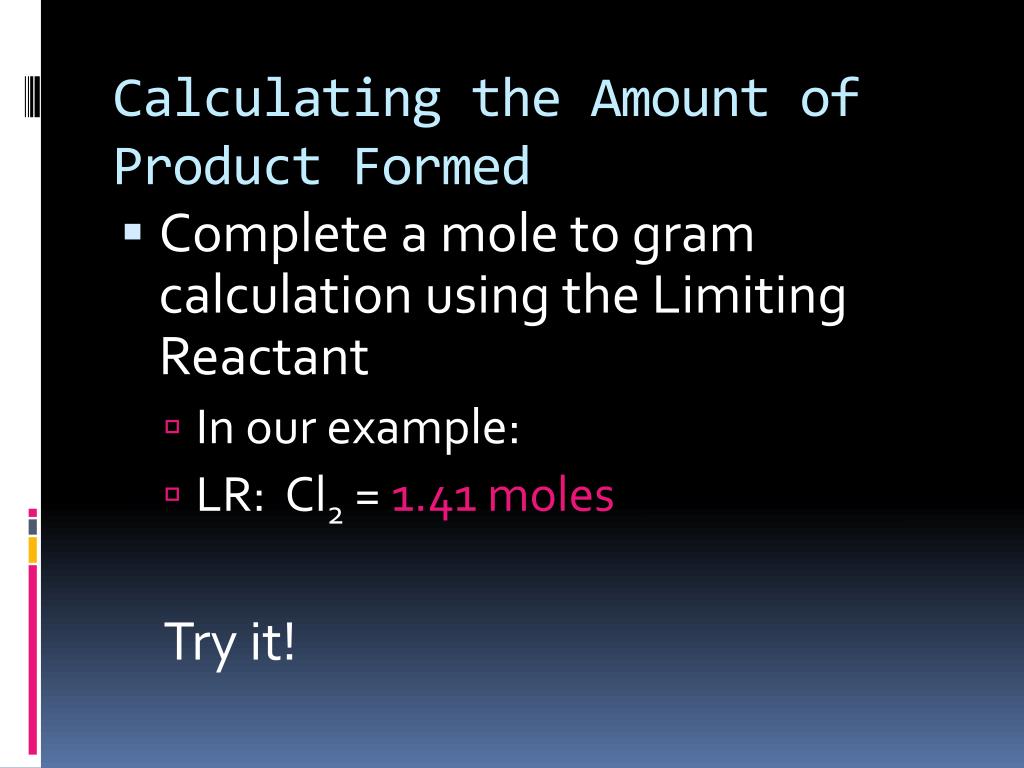

  10. Calculating the Amount of Product Formed • Complete a mole to gram calculation using the Limiting Reactant • In our example: • LR: Cl2 = 1.41 moles Try it!

  11. The Answer • S8 + 4 Cl2  4 S2Cl2 1.41 mol Cl2 4 mol S2Cl2 135 g S2Cl2 x x 1 4 mol Cl2 1 mol S2Cl2 = 190.35 g S2Cl2

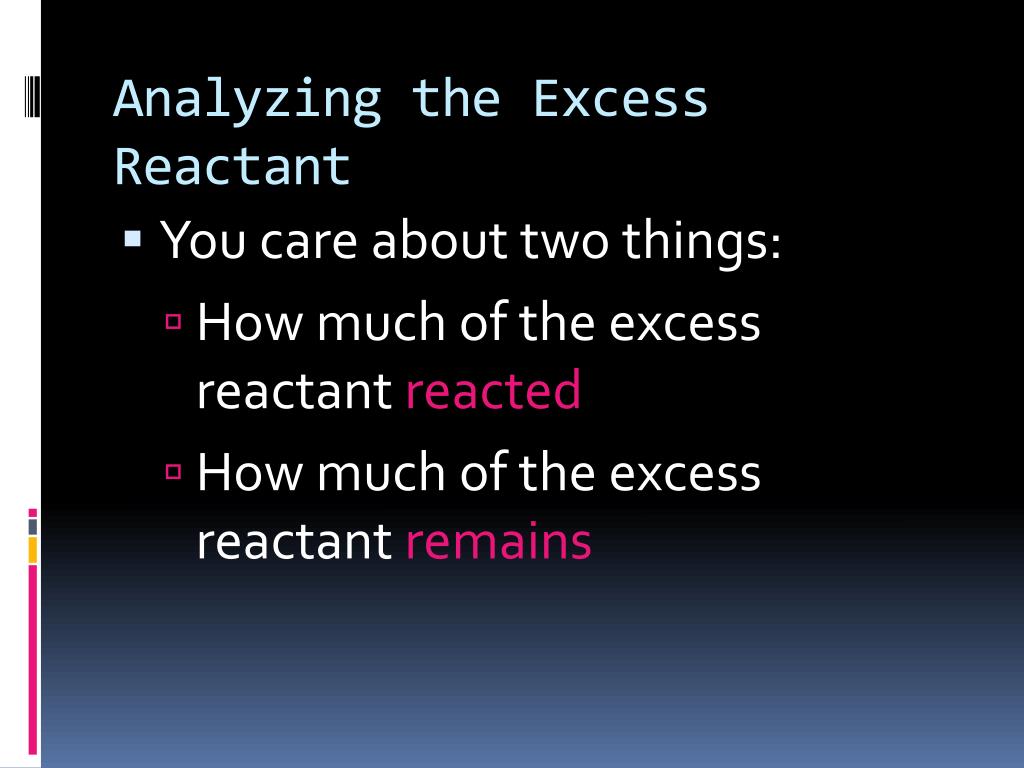

  12. Analyzing the Excess Reactant • You care about two things: • How much of the excess reactant reacted • How much of the excess reactant remains

  13. Excess that Reacted • Complete a mole to gram calculation using the limited and excess reactants • In our example: • Limiting Reactant: Cl2 = 1.41 mol • Excess Reactant: S8

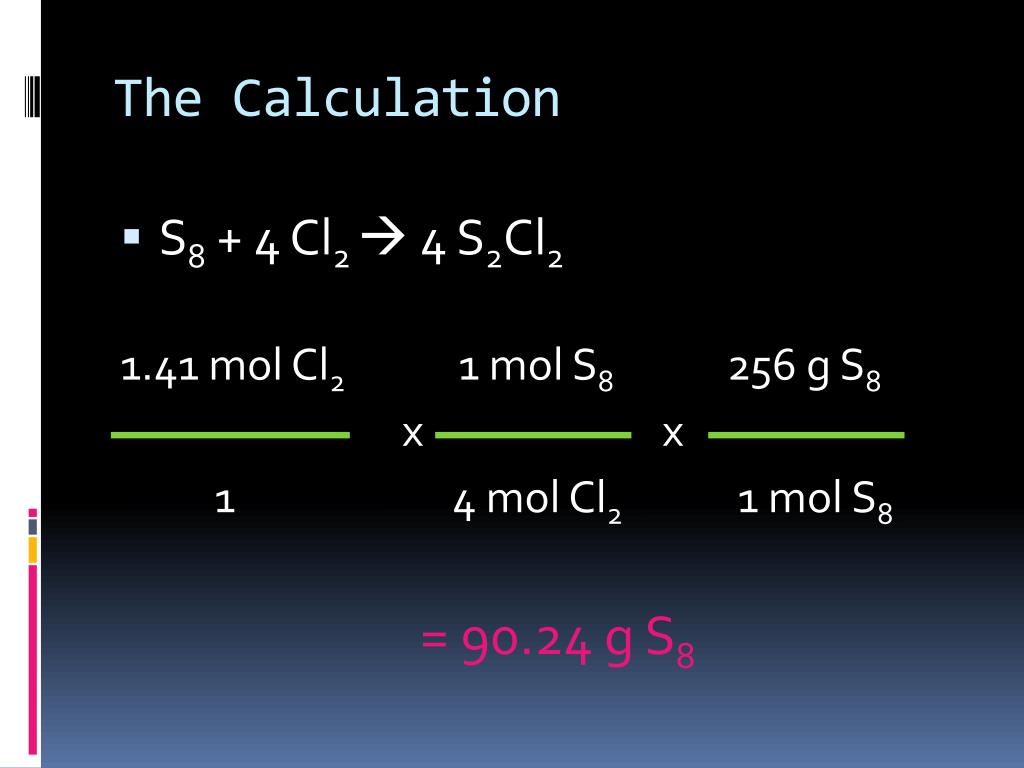

  14. The Calculation • S8 + 4 Cl2  4 S2Cl2 1.41 mol Cl2 1 mol S8 256 g S8 x x 1 4 mol Cl2 1 mol S8 = 90.24 g S8

  15. Excess Remaining • Subtract amount that reacted from the amount that you started with • In example: • Amount Reacted = 90.24 g S8 • Amount Starting With = 200.0 g S8

  16. The Answer 200.0 g - 90.24 g = 109.76 g S8 in excess
