  1. Solaris Containers Research Design Team Leading The Way

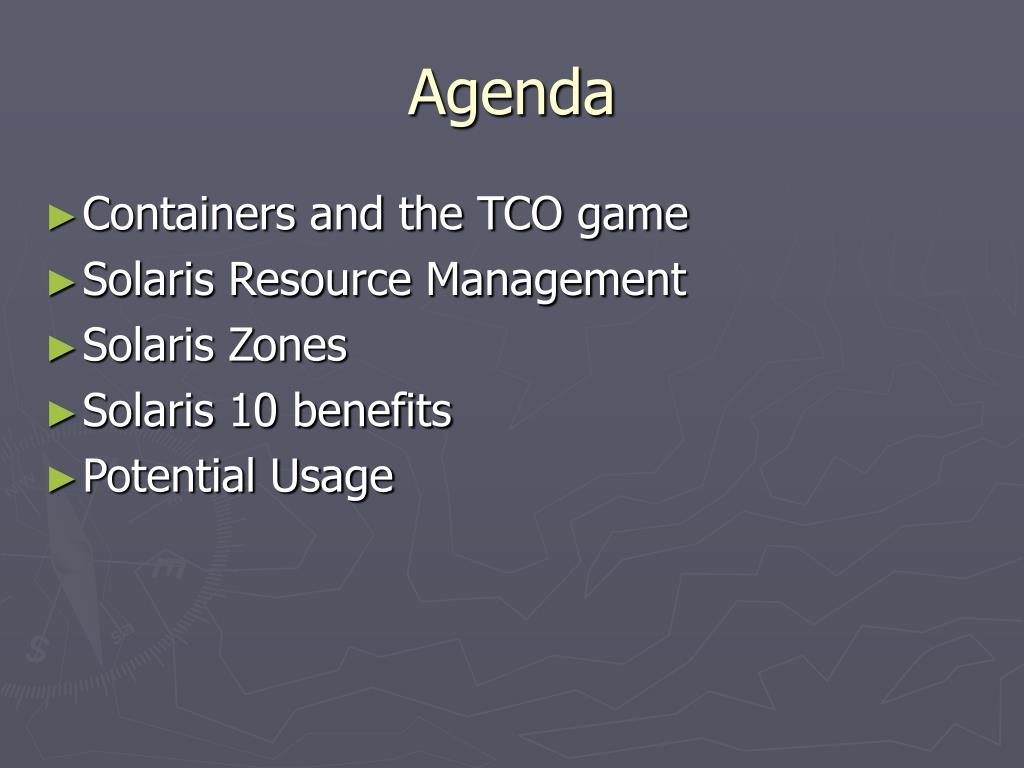

  2. Agenda • Containers and the TCO game • Solaris Resource Management • Solaris Zones • Solaris 10 benefits • Potential Usage

  3. Consolidation and the TCO shell game • “Consolidate” • What constitutes consolidation? • Factors to consider • “Work Smarter……..”

  4. Solaris Containers • Build customized, isolated containers—each with their own IP address, file system, users, and assigned resources—to safely and easily consolidate systems • Guarantee sufficient CPU and memory resource allocation to applications while retaining the ability to use idle resources as needed • Reserve and allocate a specific CPU or group of CPUs for the exclusive use of the container • Automatically recover from potentially catastrophic system problems by leveraging the combined functionality of Predictive Self Healing and Solaris Containers

  5. Solaris Resource Management • All features are included in Solaris • Fair Share scheduler • Controls allocation of CPU • Meet application SLA • Real time allocation based on what else is running • Dynamic Resource Pools • Extended Accounting

  6. In the Zone……. • Virtualized O/S layer • File System • Network Processes • Devices • Privacy - can’t see other zones on same host • Security – Can’t affect activity outside zone • Failure Isolation – application failure in one zone does not affect other zones

  7. Failure Isolation • Each process is associated with one zone • From within a zone, only processes in the same zone can be seen or affected • “root” in a zone has authority for that zone only!

  8. Security • Each zone has a security boundary • Processes running in a zone are unable to affect activity in the global zone or other zones • A compromised zone can not escalate its privileges

  9. File Systems • Each zone is allocated its own root / • File systems can be inherited in read-only, copied into zone, mounted read-write: • /usr, /lib /sbin and /platform are read-only • /etc and /opt are copied into zones • Sections of a file system can be mounted into one or more zones (read-only)

  10. Patch and Package ManagementNetwork and Identity • Global system admin can administer software on every zone • Global zones use Solaris packaging and patch tools • Each zone has its own identity • Node name, RPC domain name, time zone, • Separate /etc/passwd • Private IP addresses

  11. Only one TCP/IP stack per kernel • Each zone is shielded from stack specifics • Each zone is prohibited from view of other zones traffic • Each zone has its own logical network interfaces

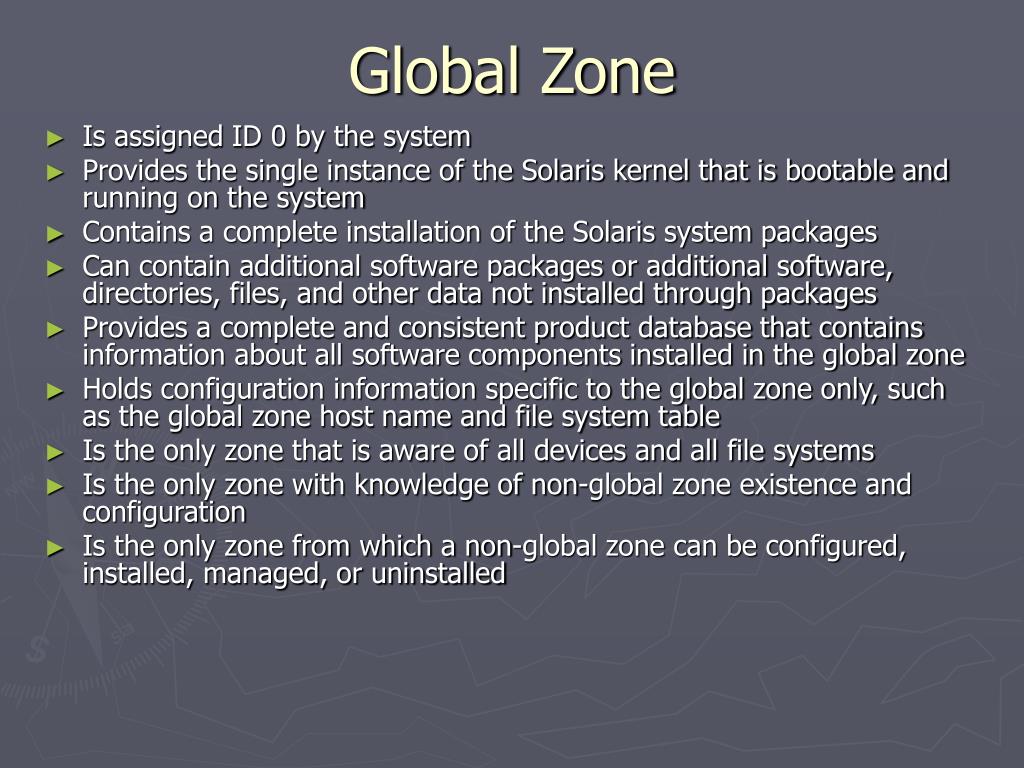

  12. Global Zone • Is assigned ID 0 by the system • Provides the single instance of the Solaris kernel that is bootable and running on the system • Contains a complete installation of the Solaris system packages • Can contain additional software packages or additional software, directories, files, and other data not installed through packages • Provides a complete and consistent product database that contains information about all software components installed in the global zone • Holds configuration information specific to the global zone only, such as the global zone host name and file system table • Is the only zone that is aware of all devices and all file systems • Is the only zone with knowledge of non-global zone existence and configuration • Is the only zone from which a non-global zone can be configured, installed, managed, or uninstalled

  13. Non-global or Local zone • Is assigned a zone ID by the system when the zone is booted • Shares operation under the Solaris kernel booted from the global zone • Contains an installed subset of the complete Solaris Operating System software packages • Contains Solaris software packages shared from the global zone • Can contain additional installed software packages not shared from the global zone • Can contain additional software, directories, files, and other data created on the non-global zone that are not installed through packages or shared from the global zone • Has a complete and consistent product database that contains information about all software components installed on the zone • Is not aware of the existence of any other zones • Cannot install, manage, or uninstall other zones, including itself • Has configuration information specific to that non-global zone only

  14. Solaris 10 Benefits • Dynamic Tracing (DTrace) • Predictive Self Healing • Services • The Least Privilege Model • Linux Application Environment (allow users on x86 systems to take existing, unmodified Linux binaries and run them on the Solaris platform )

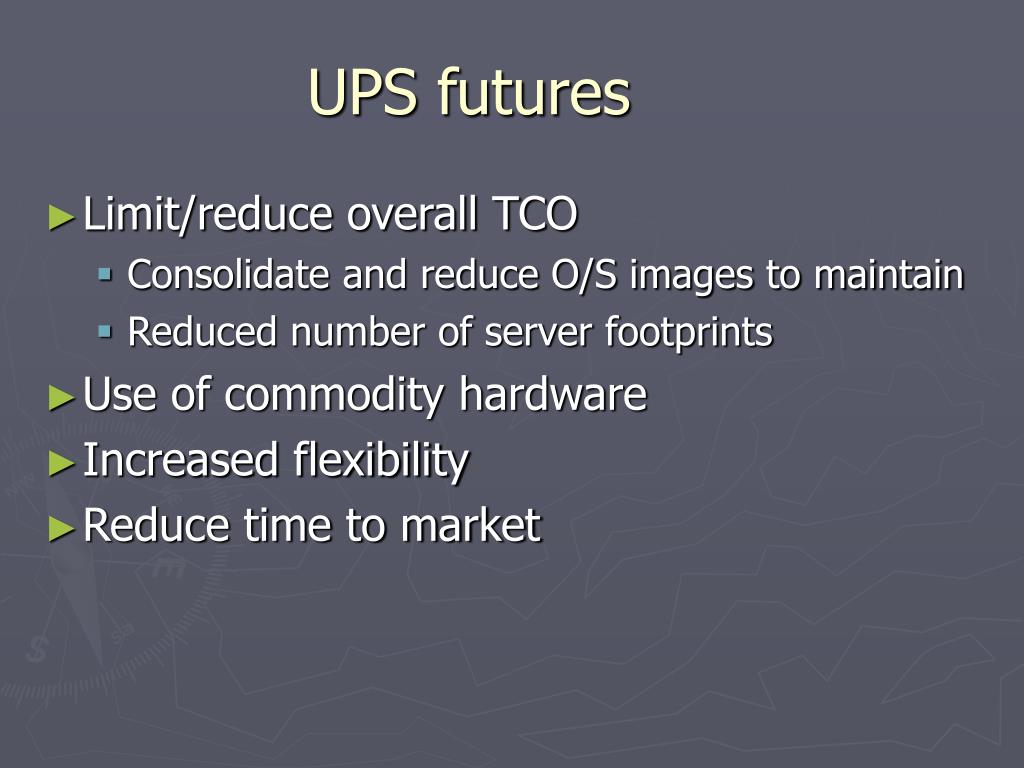

  15. UPS futures • Limit/reduce overall TCO • Consolidate and reduce O/S images to maintain • Reduced number of server footprints • Use of commodity hardware • Increased flexibility • Reduce time to market

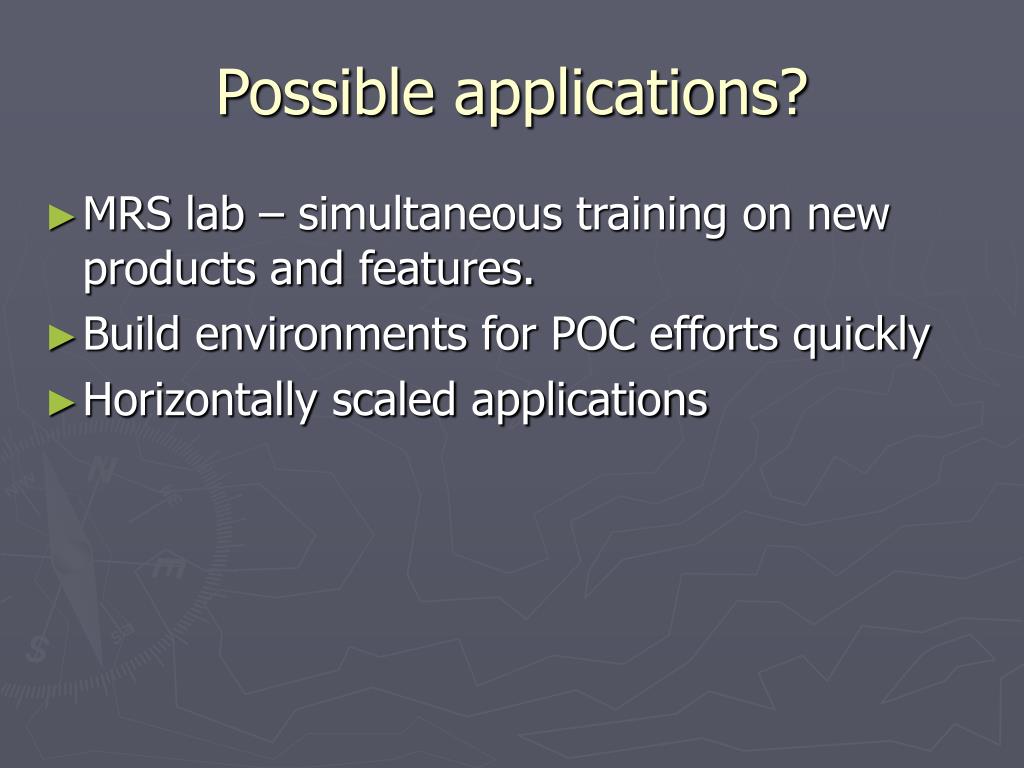

  16. Possible applications? • MRS lab – simultaneous training on new products and features. • Build environments for POC efforts quickly • Horizontally scaled applications

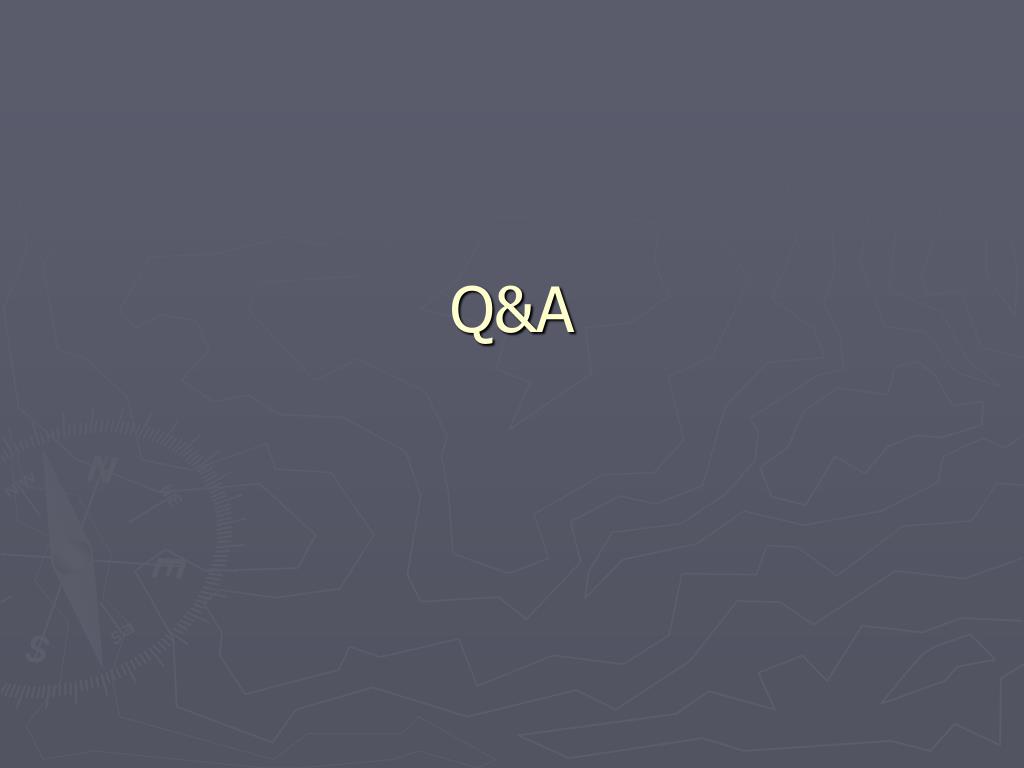

  17. Q&A
