U T D C S G Module 0x01: Forensics

1. U T D C S GModule 0x01: Forensics Kevin ‘Hexstr Morgan’ Dickinson Josh ‘HoboBeard’ Hammond Christ ‘PossibleSloth’ Walz

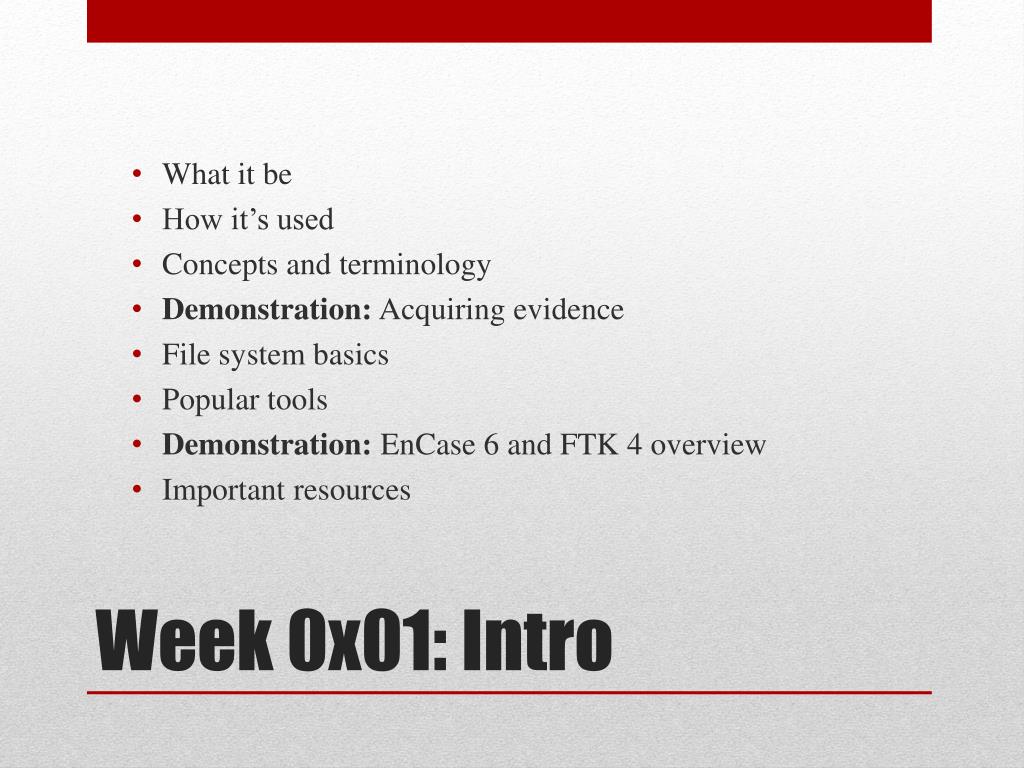

2. What it be • How it’s used • Concepts and terminology • Demonstration:Acquiring evidence • File system basics • Popular tools • Demonstration: EnCase 6 and FTK 4 overview • Important resources Week 0x01: Intro

3. File carving and data recovery • Application artifacts • Web browsers, Dropbox • Windows forensics • Registry, prefetch, hiberfil/pagefile, VSS, LNK files, USB activity, shellbags, thumbs.db • Mobile forensics • SQLite DBs, user dictionary, vulnerabilities Week 0x02: In-Depth

4. Investigative techniques • Activity timeline, keyword searches, hash matching, skintoneanalysis • Physical memory • Encryption keys, system activity (processes, network connections), etc. • Anti-forensics • Encryption, steganography, timestamp manipulation • Anti-anti-forensics • Breaking encryption, password cracking, timestamp manipulation detection Week 0x02: In-Depth

5. Week 0x03: Examination

6. Week 0x01: Intro

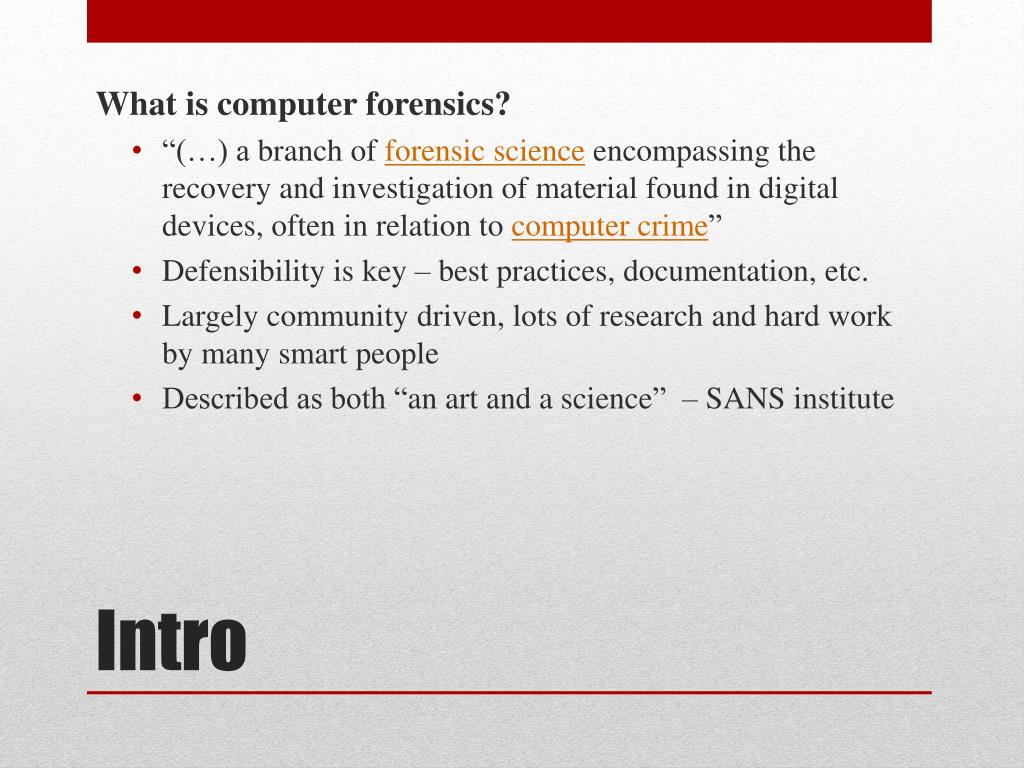

7. What is computer forensics? • “(…) a branch of forensic science encompassing the recovery and investigation of material found in digital devices, often in relation to computer crime” • Defensibility is key – best practices, documentation, etc. • Largely community driven, lots of research and hard work by many smart people • Described as both “an art and a science” – SANS institute Intro

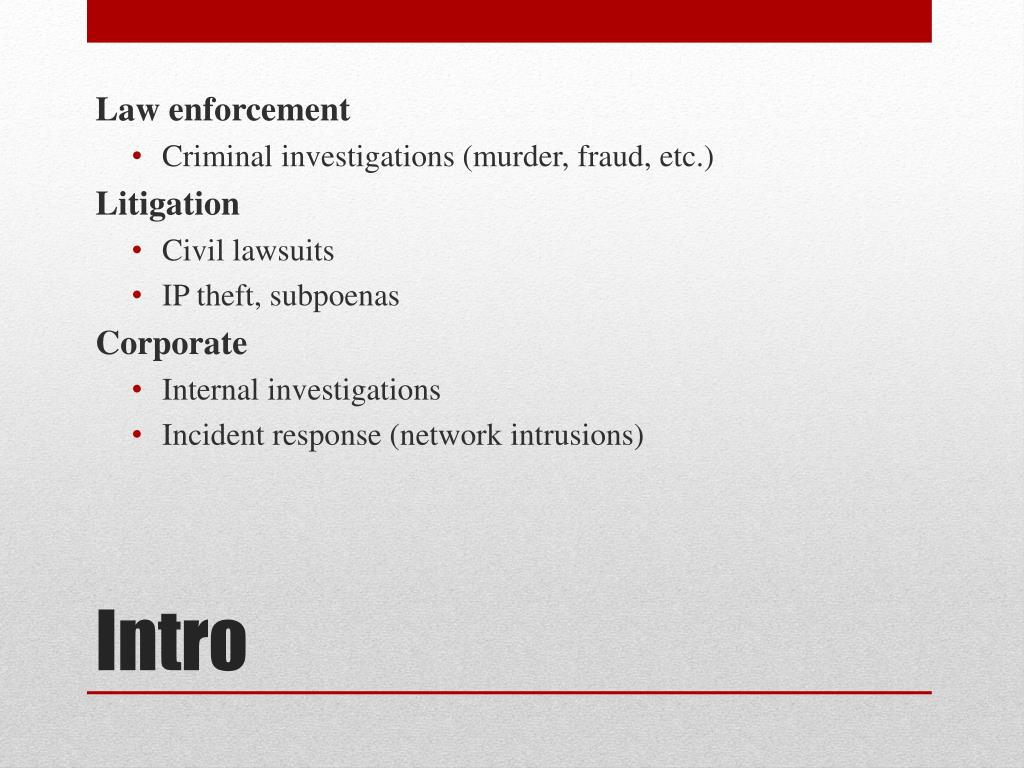

9. Law enforcement • Criminal investigations (murder, fraud, etc.) Litigation • Civil lawsuits • IP theft, subpoenas Corporate • Internal investigations • Incident response (network intrusions) Intro

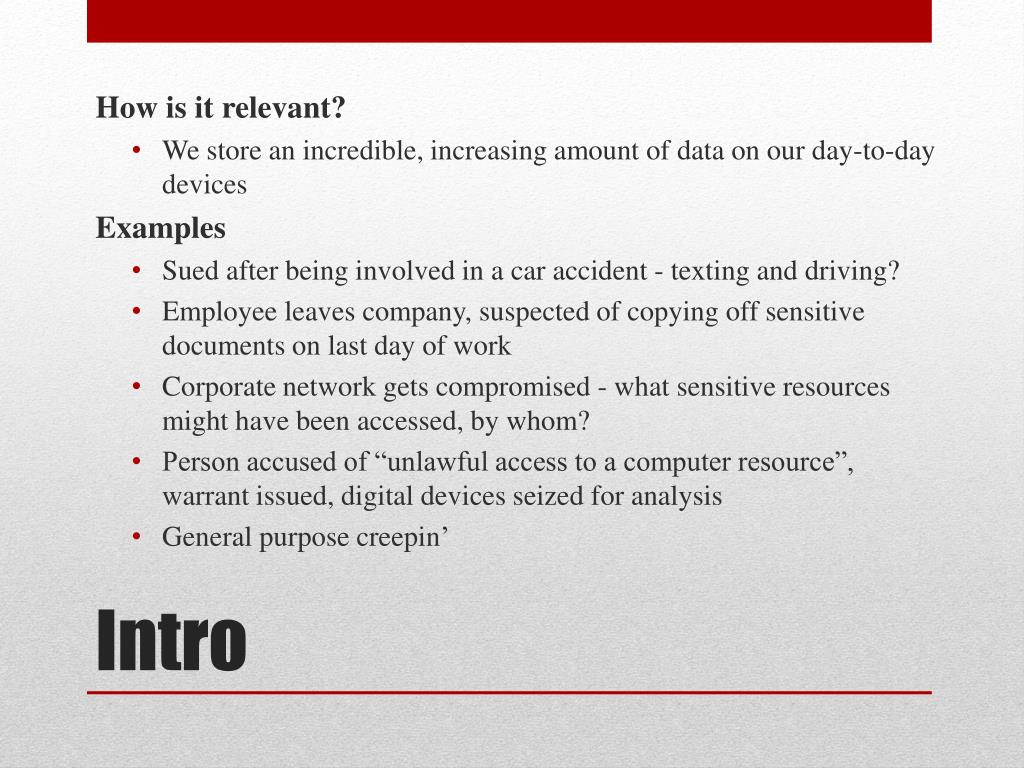

10. How is it relevant? • We store an incredible, increasing amount of data on our day-to-day devices Examples • Sued after being involved in a car accident - texting and driving? • Employee leaves company, suspected of copying off sensitive documents on last day of work • Corporate network gets compromised - what sensitive resources might have been accessed, by whom? • Person accused of “unlawful access to a computer resource”, warrant issued, digital devices seized for analysis • General purpose creepin’ Intro

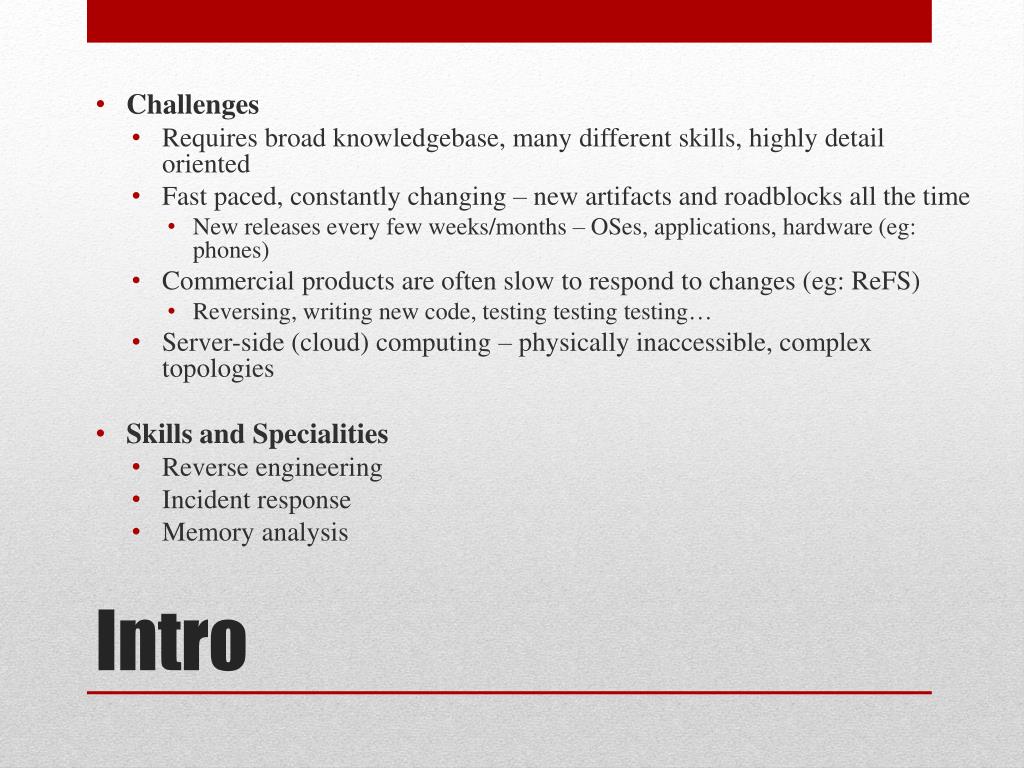

11. Challenges • Requires broad knowledgebase, many different skills, highly detail oriented • Fast paced, constantly changing – new artifacts and roadblocks all the time • New releases every few weeks/months – OSes, applications, hardware (eg: phones) • Commercial products are often slow to respond to changes (eg: ReFS) • Reversing, writing new code, testing testingtesting… • Server-side (cloud) computing – physically inaccessible, complex topologies • Skills and Specialities • Reverse engineering • Incident response • Memory analysis Intro

12. What it means to be ‘forensically sound’ • Difficult to define as it is situationaland discretionary • Ideally speaking, an exact 1:1 unaltered representation of an original data source • Physical data – bitstream representation of a device’s entire contents (including unallocated space) • eg: /dev/sdaor \\.\PhysicalDrive0 • Considered the most ‘forensically sound’ but not always possible • Logical data – a specific‘logical’ subset of data such as a partition or volume • eg: /dev/sda1 or \Device\Harddisk0\Partition0 Terminology

13. Conceptually broad – basically ‘data about data’ • Used in file systems to provide file info independently of files • MAC (Modified/Accessed/Created times), ownership info, etc. • Various file formats use specific metadata • OLE– MS Office • ID3v1/2 – Audio • EXIF data - Images • Used to convict the BTK Killer Metadata

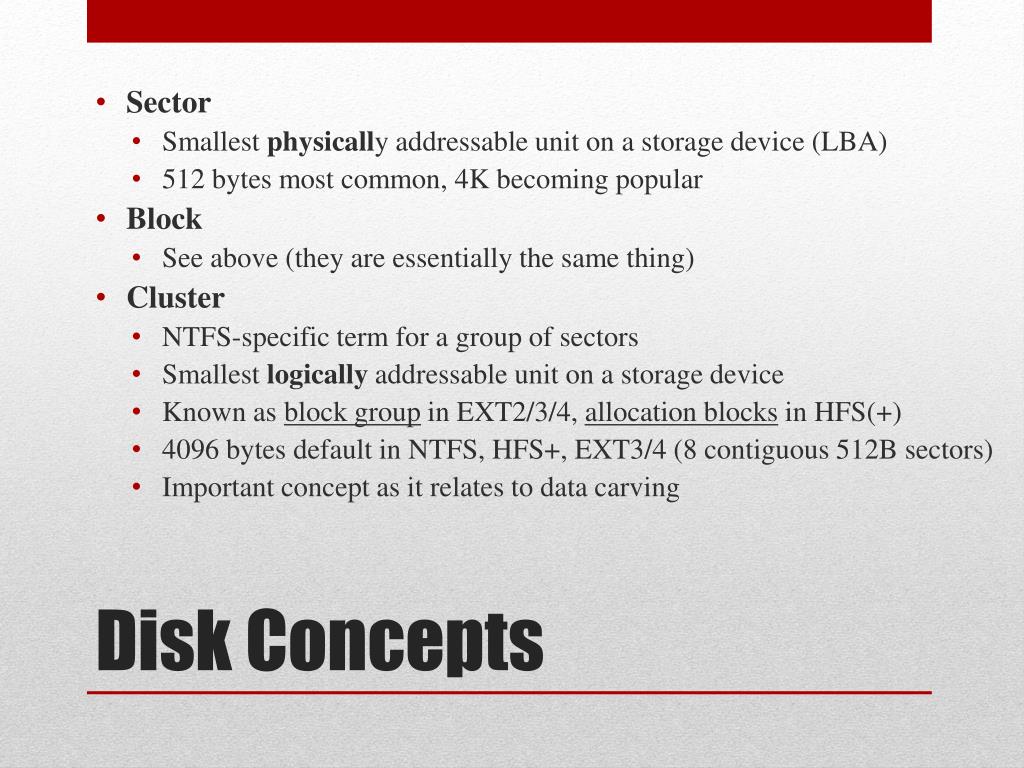

14. Sector • Smallest physically addressable unit on a storage device (LBA) • 512 bytes most common, 4K becoming popular • Block • See above (they are essentially the same thing) • Cluster • NTFS-specific term for a group of sectors • Smallest logically addressable unit on a storage device • Known as block group in EXT2/3/4, allocation blocks in HFS(+) • 4096 bytes default in NTFS, HFS+, EXT3/4 (8 contiguous 512B sectors) • Important concept as it relates to data carving Disk Concepts

15. Disk Concepts

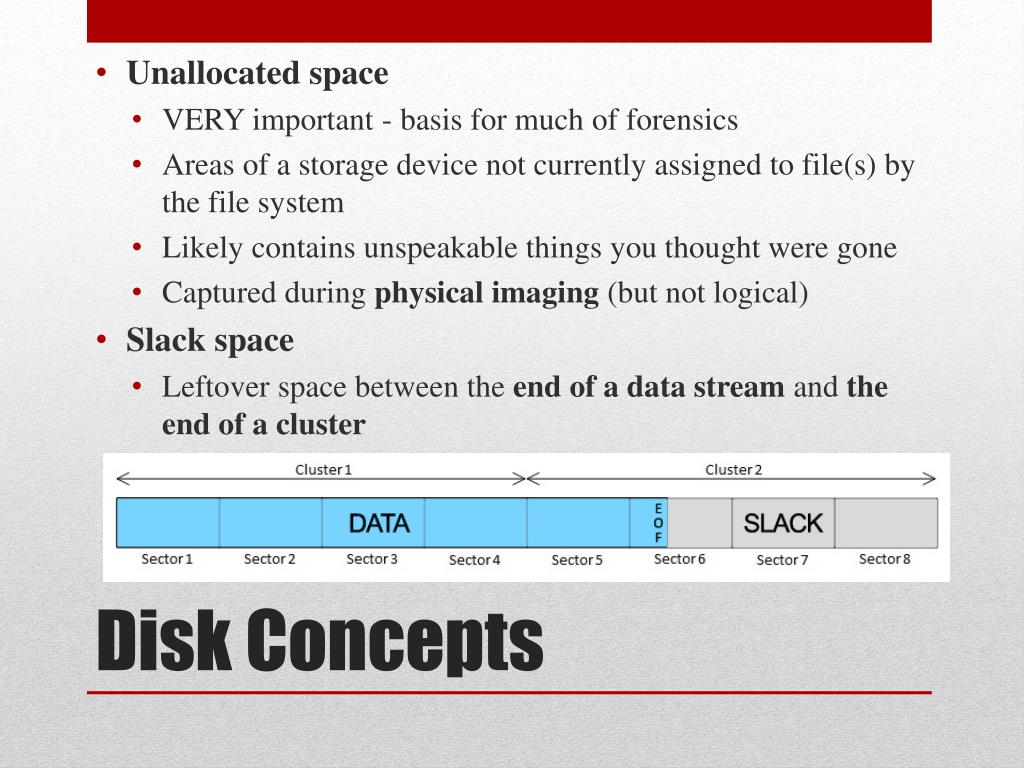

16. Unallocated space • VERY important - basis for much of forensics • Areas of a storage device not currently assigned to file(s) by the file system • Likely contains unspeakable things you thought were gone • Captured during physical imaging (but not logical) • Slack space • Leftover space between the end of a data stream and the end of a cluster Disk Concepts

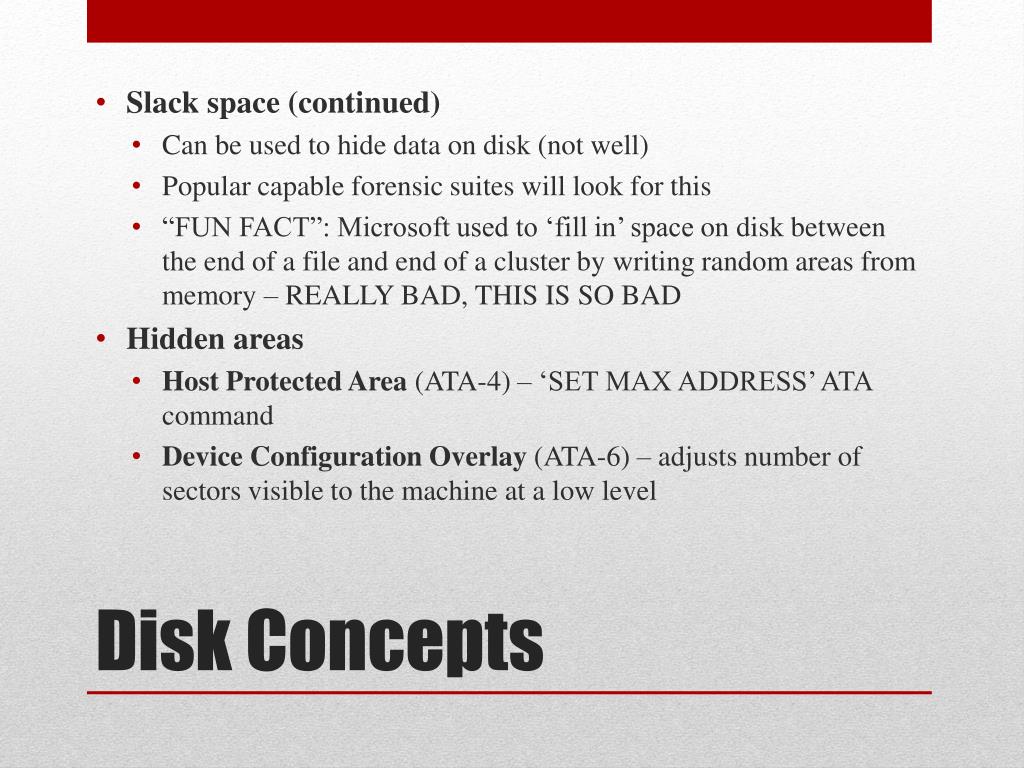

17. Slack space (continued) • Can be used to hide data on disk (not well) • Popular capable forensic suites will look for this • “FUN FACT”: Microsoft used to ‘fill in’ space on disk between the end of a file and end of a cluster by writing random areas from memory – REALLY BAD, THIS IS SO BAD • Hidden areas • Host Protected Area (ATA-4) – ‘SET MAX ADDRESS’ ATA command • Device Configuration Overlay (ATA-6) – adjusts number of sectors visible to the machine at a low level Disk Concepts

18. Hashes • Described as (mostly) unique ‘digital fingerprint’ • Important basis for much of forensics • One-way function • Used to uniquely match individual files, evaluate integrity of evidence (disk images), etc. • MD5/SHA1/SHA256 - most common • hexstr@here/#: md5sum –b /tmp/disk0.001 Cryptographic Hashes

19. Hash Sets • Lists of known hashes for system files, popular programs, etc. • Similar to a rainbow table – reverse lookup • Largest repository maintained by NIST (http://www.nsrl.nist.gov/Downloads.htm) • Extremely useful for filtering out irrelevant data or quickly identifying known files • Law enforcement agencies will use privately maintained hash sets for easily identifying contraband files (eg: child pornography) Cryptographic Hashes

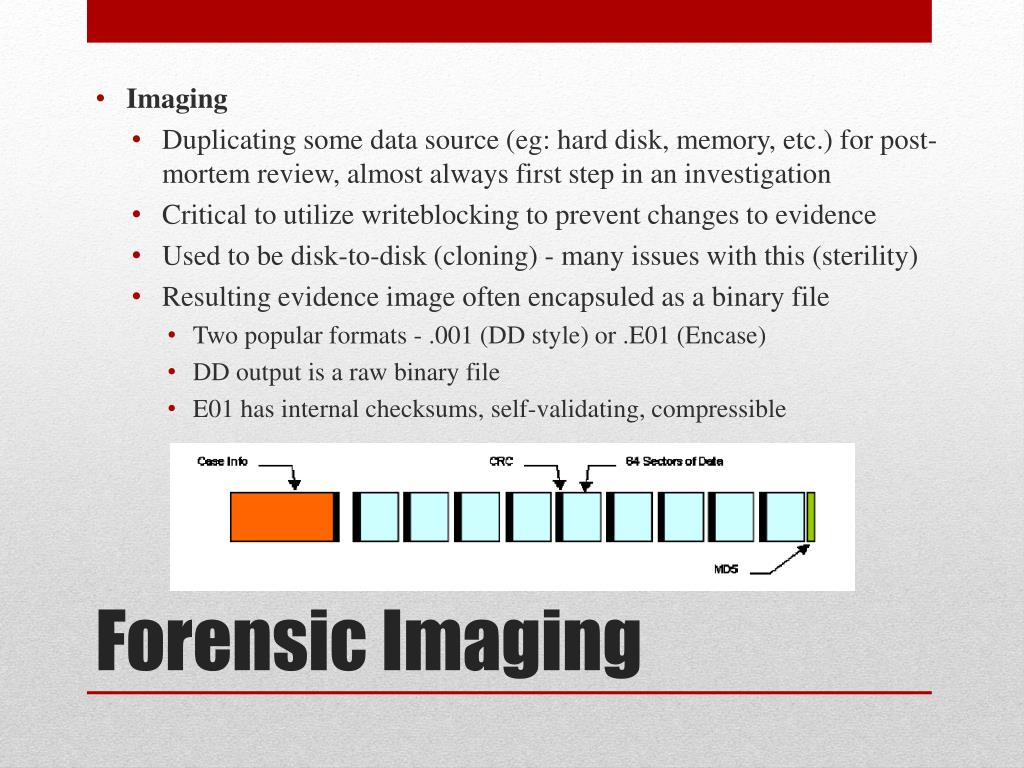

20. Imaging • Duplicating some data source (eg: hard disk, memory, etc.) for post-mortem review, almost always first step in an investigation • Critical to utilize writeblocking to prevent changes to evidence • Used to be disk-to-disk (cloning) - many issues with this (sterility) • Resulting evidence image often encapsuled as a binary file • Two popular formats - .001 (DD style) or .E01 (Encase) • DD output is a raw binary file • E01 has internal checksums, self-validating, compressible Forensic Imaging

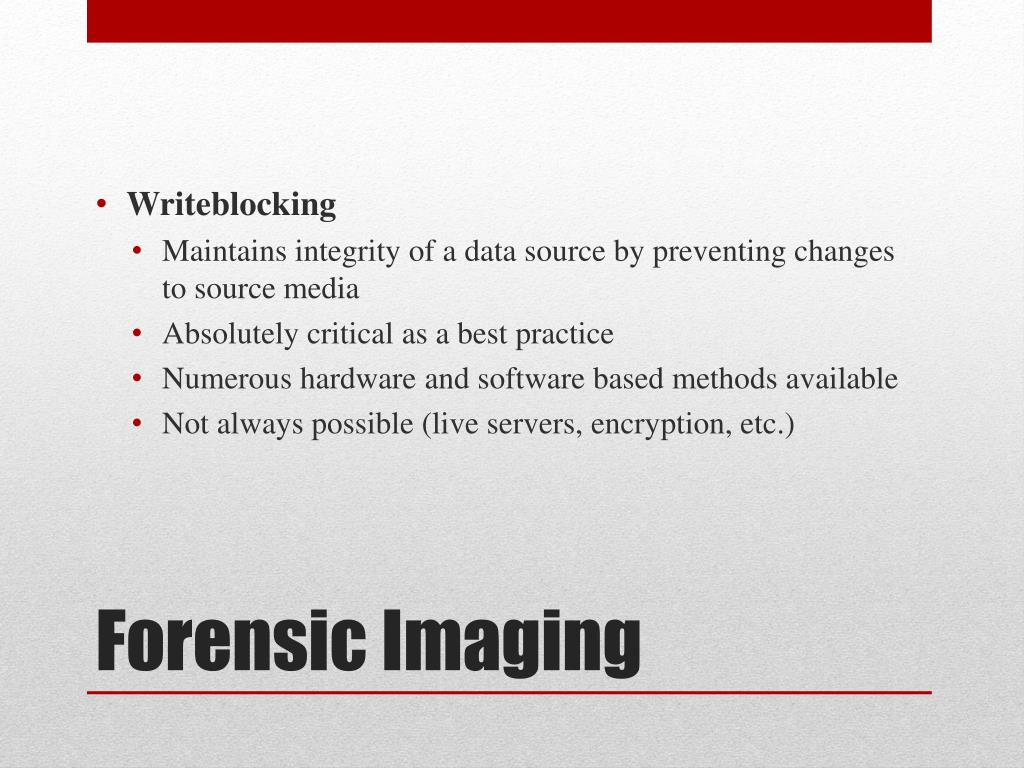

21. Writeblocking • Maintains integrity of a data source by preventing changes to source media • Absolutely critical as a best practice • Numerous hardware and software based methods available • Not always possible (live servers, encryption, etc.) Forensic Imaging

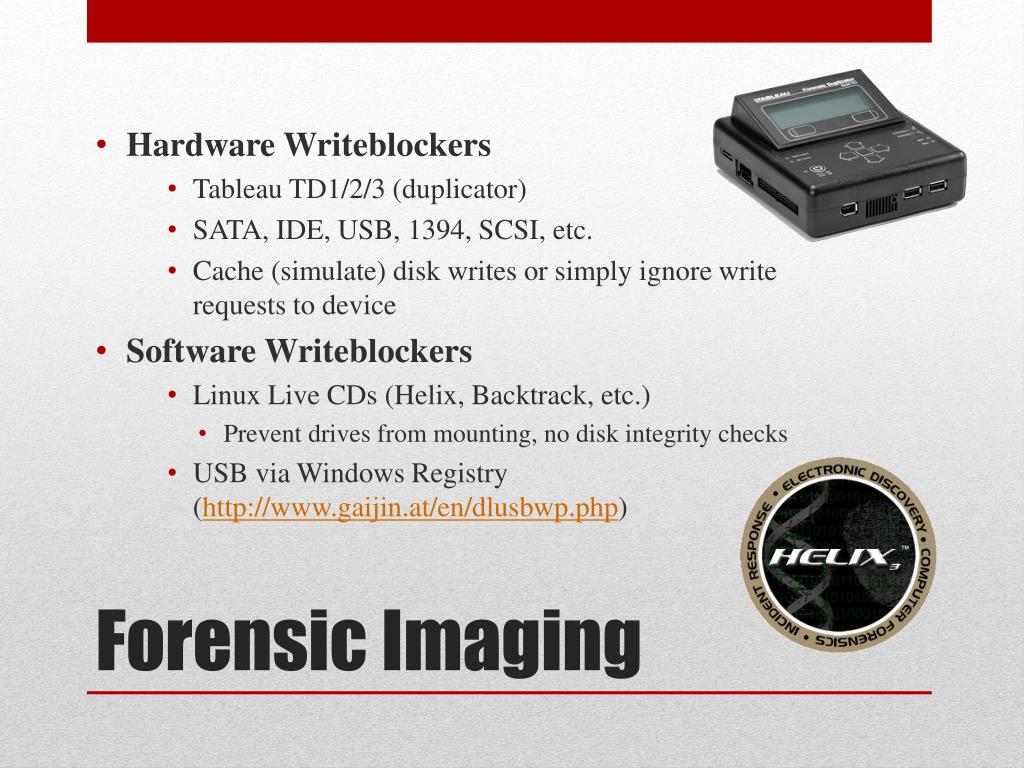

22. Hardware Writeblockers • Tableau TD1/2/3 (duplicator) • SATA, IDE, USB, 1394, SCSI, etc. • Cache (simulate) disk writes or simply ignore write requests to device • Software Writeblockers • Linux Live CDs (Helix, Backtrack, etc.) • Prevent drives from mounting, no disk integrity checks • USB via Windows Registry (http://www.gaijin.at/en/dlusbwp.php) Forensic Imaging

23. Software Imagers • AccessData FTK Imager – Windows, OSX, Linux http://www.accessdata.com/support/product-downloads • DD, DCFLDD, DDRescue… • What is an image • hexstr@here /#: dd if=/dev/sda of=/tmp/disk0.001 bs=512 • What is not an image • Symantec Ghost (alters timestamps) • Other uses • General purpose backups – mount, restore, etc.. Forensic Imaging

24. Demo: Acquiring Evidence

25. Two copies of FAT stored for redundancy • Divided into equal-sized clusters (previous slide) • Simple: files stored as a singly linked list of clusters • Table entry marked as one of following (FAT16 shown): • Allocated (value is the next cluster in the chain) • End of chain marker (0xFFF8 - 0xFFFF) • Unused (0x0000) • Bad cluster (0xFFF7) • Source: http://www.forensicswiki.org/wiki/FAT#FATs File System: FAT

26. Directory table • Special kind of file • Each file/subdir listed as 32byte entry • Contains name, extension, attribute • Last modified time, address of first cluster, size File System: FAT

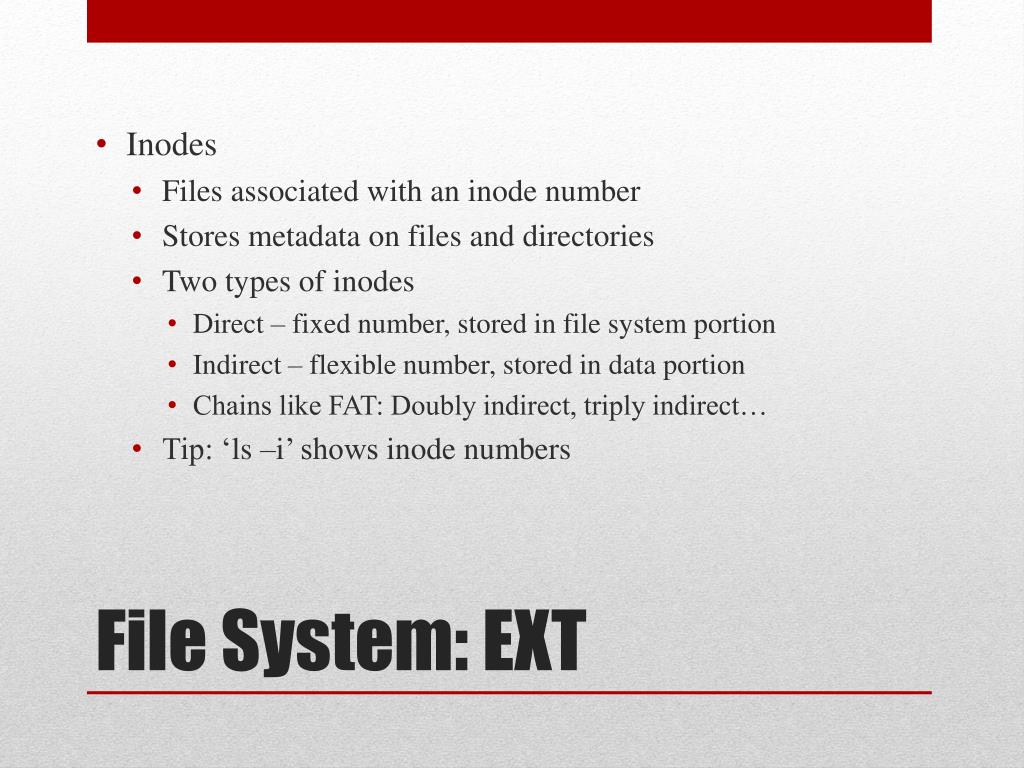

27. Inodes • Files associated with an inode number • Stores metadata on files and directories • Two types of inodes • Direct – fixed number, stored in file system portion • Indirect – flexible number, stored in data portion • Chains like FAT: Doubly indirect, triply indirect… • Tip: ‘ls –i’ shows inode numbers File System: EXT

28. File System: EXT

29. Keeps track of changes to be made in a circular log • On crash, system reads journal and makes changes to regain consistent state • All entries are checksummed, if they don’t match - don’t replay File System: Journaling

30. Basic file carving • Typically uses predictable file headers/signatures to independently identify files without the use of other (file system) information • Cornerstone of forensics - restore deleted files • Generally limited to contiguous clusters, cannot find data fragmented across a disk unless the format is predictable (eg: SQLite) • Advanced file carving • Interesting research being done on this • Based on very complex statistics to predict likely file chains File Carving

31. Guidance Software EnCase • Industry standard, highly extensible • AccessData Forensic Toolkit (FTK) • Cellebrite UFED • Open source • Scalpel – file carving • Volatility – powerful memory analysis Forensic Suites

32. Demo: EnCase 6 and FTK 4

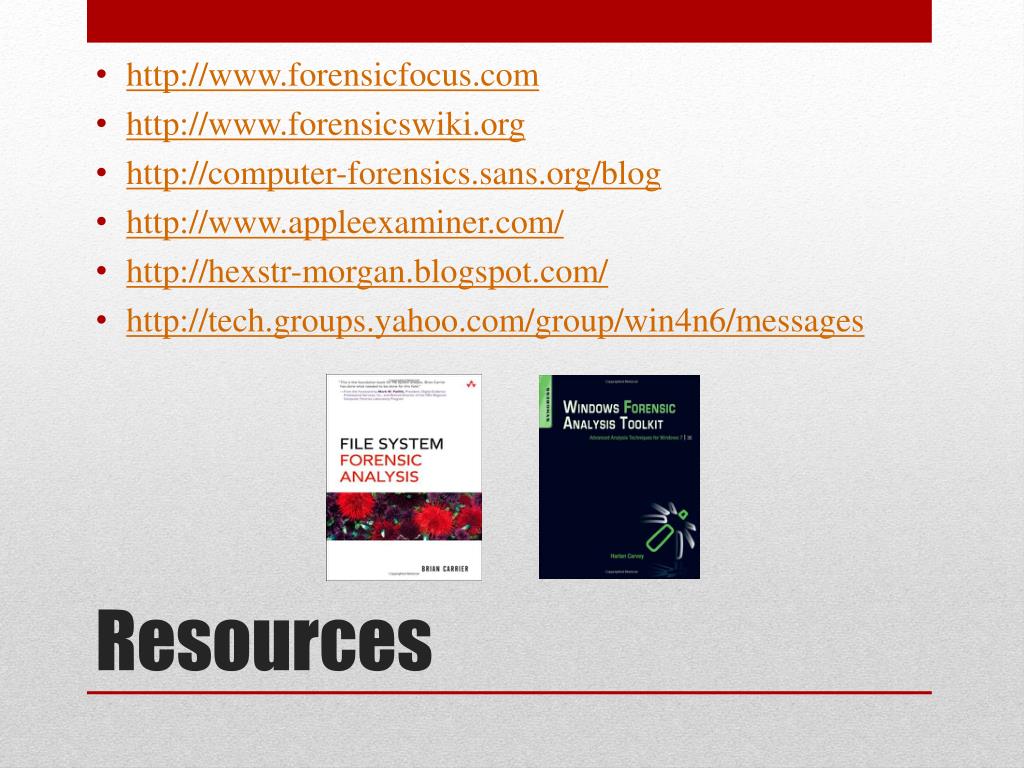

33. http://www.forensicfocus.com • http://www.forensicswiki.org • http://computer-forensics.sans.org/blog • http://www.appleexaminer.com/ • http://hexstr-morgan.blogspot.com/ • http://tech.groups.yahoo.com/group/win4n6/messages Resources
