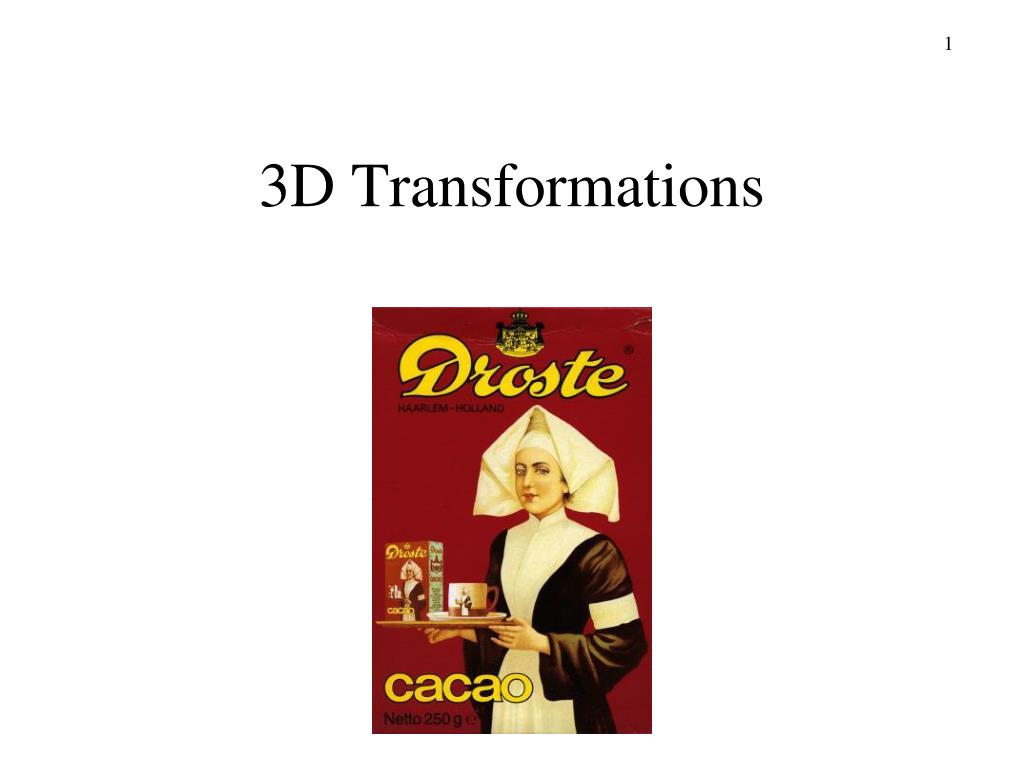

  1. CS 234 Jeff Parker 3D Transformations

  2. Objectives • Notifications • Homework • Gallery • Pen and Paper • Review transformations • Apply these ideas to 3D movement

  3. Notifications • I've figured out how to get notified by iSite:

  4. Notifications • I've figured out how to get notified by iSite:

  5. Notifications • I've figured out how to get notified by iSite:

  6. Gallery & Three Requests • We will look at three examples: I have posted the code for each • Please include a .jpg of your project • A jpg makes it easy for me to include your screenshot • We do like .pdfs, but don't want to tear them apart • Please include your name in all your files • Makes it easier for us to match you to your work • Please mimic Angel's organization • Create a folder with your name on it. • Develop your source in folder. Zip the folder and submit. • Root • Common • JohnDoeHw4 • <Your .html and .js files>

  7. Gallery Charles

  8. Gallery Dan

  9. Dan • // set up the tic tac toe board • drawRectP(0.32, 1, 0.34, -1); • drawRectP(-0.32, 1, -0.34, -1); • drawRectP(-1, 0.32, 1, 0.34); • drawRectP(-1, -0.32, 1, -0.34); • canvas.addEventListener("mousedown", function(e) • { • if ( moves >8) return; • // we'll say that the first player is X, then O • // Get the x/y index of where the user clicked • ... • var clickedBox = getClickedBox(e);

  10. Dan • function getClickedBox(e) • { • var x = e.offsetX==undefined?e.layerX:e.offsetX; • var y = e.offsetY==undefined?e.layerY:e.offsetY; • var p = vec2(2*x/canvas.width-1, • 2*(canvas.height-y)/canvas.height-1); • var yIndex; • var xIndex; • if (p[0] < -0.32) { • xIndex = 0; • } • else if (p[0] > -0.34 && p[0] < 0.32) { • xIndex = 1; ...

  11. Dan • // we'll say that the first player is X, then O • // first we get the x/y index of where the user • ... • var clickedBox = getClickedBox(e); • var xIndex = clickedBox[0]; • var yIndex = clickedBox[1]; • // if user clicked in a box • if (typeof xIndex != 'undefined' && • typeof yIndex != 'undefined') { • var boxIndex = (xIndex * 3) + yIndex; • if (usedBoxes.indexOf(boxIndex) > -1) • return; • usedBoxes.push(boxIndex);

  12. Dan • // we draw in that location, 0,0 bottom left, 2,2 • moves++; • var xCenter = -1 + ((xIndex * 0.66) + .165); • var yCenter = -1 + ((yIndex * 0.66) + .165); • if (first) { • // draw "X" as first player • drawX(xCenter, yCenter); • first = false; • } • else { • // draw "O" as second player • first = true; • drawO(xCenter, yCenter); • }

  13. Gallery Polina Note the instructions The checkers are lovely

  14. Gallery Polina Note the instructions The checkers are lovely

  15. Gallery Polina • Two colors • Selected & User • Selected is • Black or white • Interpolate between Note the instructions The checkers are lovely

  16. Gallery Alexander Multiple instances of same shape Move the object before rasterizing Output of the program: caught and missed

  17. Alex • <!DOCTYPE html> • <html> • <head> • <meta http-equiv="Content-Type" content="text/html;charset=utf-8" > • <title>2D Sierpinski Gasket</title> • <script id="vertex-shader" type="x-shader/x-vertex"> • attribute vec3 vPosition; • attribute vec3 vColor; • uniform float dgrs; • uniform vec3 trnsX; • varying vec4 color;

  18. Alex • <!DOCTYPE html> • <html> • <head> • <meta http-equiv="Content-Type" content="text/html;charset=utf-8" > • <title>2D Sierpinski Gasket</title> • <script id="vertex-shader" type="x-shader/x-vertex"> • attribute vec3 vPosition; • attribute vec3 vColor; • uniform float dgrs; • uniform vec3 trnsX; • varying vec4 color; Please include your name in all files Check title

  19. Alex • <script id="vertex-shader" type="x-shader/x-vertex"> • ... • uniform float dgrs; • uniform vec3 trnsX; • ... • void • main(){ • mat4 rotateMat = mat4( 1, 0, 0, 0, • 0, cos(dgrs), sin(dgrs), 0, • 0, -sin(dgrs), cos(dgrs), 0, • 0, 0, 0, 1); • mat4 translationMat = mat4( 1, 0, 0, 0, • 0, 1, 0, 0, • 0, 0, 1, 0, • trnsX[0], trnsX[1], trnsX[2], 1); • gl_Position = translationMat * rotateMat * vec4(vPosition, 1.0); • color = vec4(vColor, 1.0); • } </script>

  20. Alex's JS • // Renders the circle which represents the hole • function renderHole(){ • gl.uniform1f(rotateDegrees, 0.95); • gl.uniform3fv(translateVector, [holePosition[0], • holePosition[1], holePosition[2]]); • gl.drawArrays( gl.TRIANGLE_FAN, spherePoints, circlePoints ); • } • // Renders the sphere(s) • function renderCphere(){ • gl.uniform1f(rotateDegrees, 0.55); • for(var i = 0; i < spheresPositions.length; i++){ • gl.uniform3fv(translateVector, spheresPositions[i]); • gl.drawArrays( gl.TRIANGLE_STRIP, 0, spherePoints ); • } • } Draw multiple copies of same thing

  21. Gallery Derrick Thoughts?

  22. Gallery Derrick "I downloaded a picture of a go board from the internet and then used an eye dropper tool from Pixelmator to choose the color with the rgb values." - Derrick

  23. Gallery Derrick var baseColors = [ vec4(0.77, 0.64, 0.39, 1.0), //background vec4(0.0, 0.0, 0.0, 1.0), //black vec4(1.0, 1.0, 1.0, 1.0) //white ]; Multiple instances of same shape Move the object before rasterizing

  24. Derrick • function render() • { • gl.clear( gl.COLOR_BUFFER_BIT ); • // board grid lines • for (var i=0; i < 80; i=i+2) • gl.drawArrays(gl.LINE_LOOP, i, 2); • // render go stones • for (var i=80; i < index; i=i+numOfCirclePoints) • gl.drawArrays(gl.TRIANGLE_FAN, i, numOfCirclePoints); • window.requestAnimFrame(render); • } Uses same buffer to hold lines and triangles

  25. Derrick • for (var j=0; j < boardDimension; j++) • { • for (var i=0; i < boardDimension; i++) • { • vertPos=((j*boardDimension) + i)*4; • if ((i % 2)==(j % 2)) • { • square (vertices[vertPos], vertices[vertPos+1], vertices[vertPos+2], vertices[vertPos+3], 0); • } • else • { • square (vertices[vertPos], vertices[vertPos+1], vertices[vertPos+2], vertices[vertPos+3], 1); • } • if ((i==(boardDimension-1)) && (j != (boardDimension-1))) • { • triangle (vertices[vertPos+2], vertices[vertPos+3], vertices[vertPos+3], 0 ); • triangle (vertices[vertPos+3], vertices[vertPos+3], vertices[vertPos+4], 0 ); • } • } • }

  26. Review: Pipeline Implementation v T frame buffer u T(u) transformation rasterizer T(v) T(v) T(v) v T(u) u T(u) vertices pixels vertices

  27. Affine Transformations • We want our transformations to be Line Preserving • Characteristic of many physically important transformations • Rigid body transformations: • Rotation, Translation • Non-Rigid transformations: Scaling, Shear • We need only transform endpoints of line segments • Let GPU connect transformed endpoints

  28. Rotations • Matrices provide a compact representation for rotations, and many other transformation • T (x, y) = (x cos(a) - y sin(a), x sin(a) + y cos(a)) • To multiply matrices, multiply the rows of first by the columns of second

  29. Euler Angles • Rotations about x, y, or z axis • Perform the rotations in fixed order • Any rotation is the produce of three of these rotations • Euler Angles • Not unique • Not obvious how to find the angles • Different order would give different angles Euler Angles Wikipedia

  30. Determinant • If the length of each column is 1, the matrix preserves the length of vectors (1, 0) and (0, 1) • We also will look at the Determinant • Determinant of a rotation is 1 • But determinant == 1 does not imply a rotation

  31. Scaling Expand or contract along each axis (fixed point of origin) S = S(sx, sy, sz) = x’=sxx y’=syx z’=szx p’=Sp user.xmission.com/~nate/tutors.html

  32. Reflection Reflection corresponds to negative scale factors Has determinant == -1 Example below sends (x, y, z)  (-x, y, z) Note that the product of two reflections is a rotation sx = -1 sy = 1 original sx = -1 sy = -1 sx = 1 sy = -1

  33. Order of Transformations • Note that matrix on the right is the first applied to the point p • Mathematically, the following are equivalent p’ = ABCp = A(B(Cp)) • We use column matrices to represent points. In terms of row matrices p’T = pTCTBTAT • That is, the "last" transformation is applied first. • We will see that the implicit transformations have the same order property

  34. Rotation About a Fixed Point other than the Origin Move fixed point to origin Rotate Move fixed point back M = T(pf) R(q) T(-pf)

  35. Instancing • In modeling, we often start with a simple object centered at the origin, oriented with the axis, and at a standard size • We apply an instance transformation to its vertices to Scale Orient (rotate) Locate (translate) TRS

  36. Shear • Helpful to add one more basic transformation • Equivalent to pulling faces in opposite directions

  37. Shear Matrix Consider simple shear along x axis x’ = x + y cot q y’ = y z’ = z H(q) =

  38. Translations • We cannot define a translation in 2D space with a 2x2 matrix • No choice for a, b, c, and d that moves the origin, (0, 0), to some other point, such as (5, 3) in the equation above

  39. Translation • To address this, we consider 2D movements in 3D • We pick a representative – we let (x, y, 1) represent (x, y) • Like coasters on glass coffee table one unit above the floor • Track the movement of these representatives

  40. Translation • We use a shear transformation T(x, y, z) in 3D • Note that T(0, 0, 0) = (0, 0, 0) • However, T(0, 0, 1) = (5, 3, 1) • Combines with scaling, reflection, and rotation

  41. Translation • We use a shear transformation T(x, y, z) in 3D • Note that T(0, 0, 0) = (0, 0, 0) - Vector • However, T(0, 0, 1) = (5, 3, 1) - Point • Combines with scaling, reflection, and rotation

  42. Projective Space • What happens if transformation moves point (x, y, 1) off the plane z = 1? • We rescale - divide by the z value • For example, the point (9, 21, 3)  (3, 7, 1) • We may reduce to "lowest form" – when z = 1 • Project onto the plane z = 1 • We have many representatives of the form: (3t, 7t, t) • There are all equivalent in our Projective Model

  43. Projective Space • The same trick works to perform 3D Translations • Represent triples (x, y, z) as (x, y, z, 1) in 4D • Harder to visualize this • Mathematicians reason by analogy to lower dimensions

  44. GLSL uses col major form • <script id="vertex-shader" type="x-shader/x-vertex"> • ... • uniform float dgrs; • uniform vec3 trnsX; • ... • void • main(){ • mat4 rotateMat = mat4( 1, 0, 0, 0, • 0, cos(dgrs), sin(dgrs), 0, • 0, -sin(dgrs), cos(dgrs), 0, • 0, 0, 0, 1); • mat4 translationMat = mat4( 1, 0, 0, 0, • 0, 1, 0, 0, • 0, 0, 1, 0, • trnsX[0], trnsX[1], trnsX[2], 1); • gl_Position = translationMat * rotateMat * vec4(vPosition, 1.0); • color = vec4(vColor, 1.0); • } </script>

  45. Inverses • We can find inverses for all of our transformations • Focus on the basic moves we have studied – • Translation – translate back in the opposite direction • Rotation – rotate the the same angle, backwards • Reflection – reflect a second time in the same plane • Scale – rescale by the reciprocal: If you doubled x, halve x.

  46. Rotating Cube • Angel gives us two versions • They look the same • Difference is in how we send traingles to GPU • "All problems in computer science can be solved by another level of indirection" – David Wheeler

  47. HTML files • $ diff cube.html cubev.html • 43c43,45 • < precision mediump float; • --- • > #ifdef GL_ES • > precision highp float; • > #endif • 57c59 • < <script type="text/javascript" src="cube.js"></script> • --- • > <script type="text/javascript" src="cubev.js"></script> • ...

  48. HTML files • The first difference can be removed • The versions on iSite have been edited to align them • Changes to html and js files • $ diff cube.html cubev.html • 57c59 • < <script type="text/javascript" src="cube.js"></script> • --- • > <script type="text/javascript" src="cubev.js"></script>

  49. cube.js • var NumVertices = 36; • var points = []; • var colors = []; • var xAxis = 0; • var yAxis = 1; • var zAxis = 2; • var axis = 0; • var theta = [ 0, 0, 0 ];

  50. cube.js // Euler Angles • var axis = 0; • var theta = [ 0, 0, 0 ]; • function render() • { • gl.clear( gl.COLOR_BUFFER_BIT | • gl.DEPTH_BUFFER_BIT); • theta[axis] += 2.0; • gl.uniform3fv(thetaLoc, theta); • gl.drawArrays( gl.TRIANGLES, 0, NumVertices ); • requestAnimFrame( render ); • }
