  1. Electrocardiography:Basics Of Interpretation B. Sonnenberg, MD adapted from talk by Jonathan B. Choy, MD, FRCPC, FACC May 2014

  2. Disclosure of Commercial Support • This program has received no financial support from any source for this presentation. • Potential for conflict(s) of interest: • Brian Sonnenberg has received no funding from industry for research studies, but participates as unfunded co-investigator in multi-center drugs studies (TeCos comparing Sitagliptin to placebo, Odyssey PCKS-9 inhibitor vs. placebo for LDL lowering). • No product will be discussed in this program.

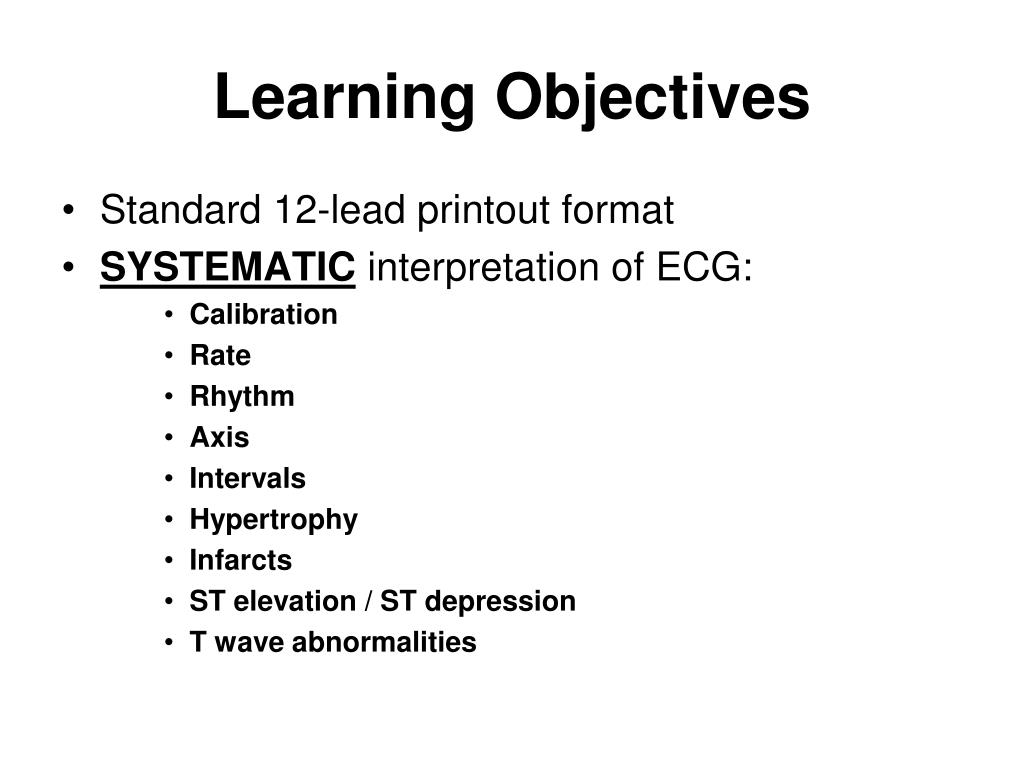

  3. Learning Objectives • Standard 12-lead printout format • SYSTEMATIC interpretation of ECG: • Calibration • Rate • Rhythm • Axis • Intervals • Hypertrophy • Infarcts • ST elevation / ST depression • T wave abnormalities

  4. If you memorize and practice using this SYSTEMATIC ECG reading approach, NOTHING can stump you in reading ECG’s!

  5. Willem Einthoven (1860-1927)

  6. ECG Machine

  7. Limb Leads

  8. Correlation of Leads & Areas of Left Ventricle • Leads looks at current flow generated by ‘battery’ of heart  P-QRS-T • Limb leads are vectors (I+III = II), can add to generate 3 more • Chest leads use the electrical center of limb leads as one pole, chest wall electrode as other • Leads pick up signal mostly from LV, mostly from LV closest to chest where vector points I …lead I signal generated mostly by high lateral LV Pictures partly from Clip-Art

  9. Chest Leads s

  10. Components Of The ECG

  11. Standard 12-lead ECG format Limb leads Chest leads each 1mm width = 40ms, 25mm = 1s each 1mm height = 0.1mVolt

  12. Interpretation Sequence • Calibration • Rate • Rhythm • Axis • Intervals • Hypertrophy • Infarcts = Q-waves • ST/T wave abnormalities • (Comparison with previous ECG’s)

  13. Interpretation Sequence • Calibration • Rate • Rhythm • Axis • Intervals • Hypertrophy • Infarcts = Q-waves • ST/T wave abnormalities • (Comparison with previous ECG’s)

  14. Basic Interpretation:(1) Check Calibration • each 25 mm represents one second • each 10 mm represents 1 mV • aVR should be mostly -ve

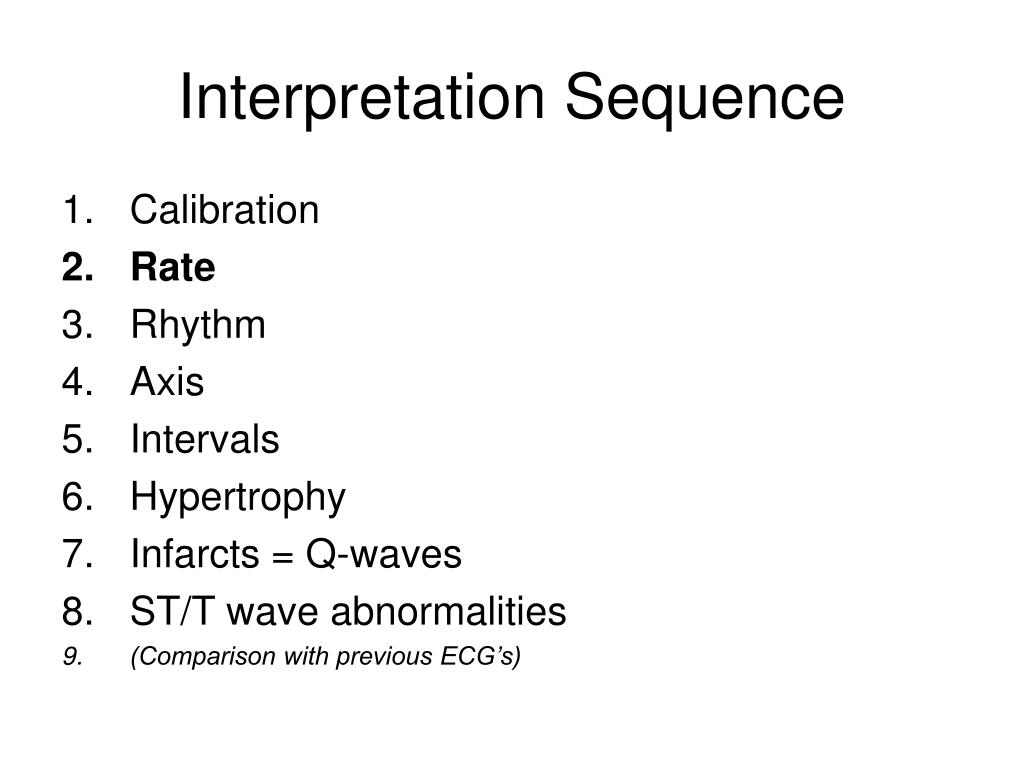

  15. Interpretation Sequence • Calibration • Rate • Rhythm • Axis • Intervals • Hypertrophy • Infarcts = Q-waves • ST/T wave abnormalities • (Comparison with previous ECG’s)

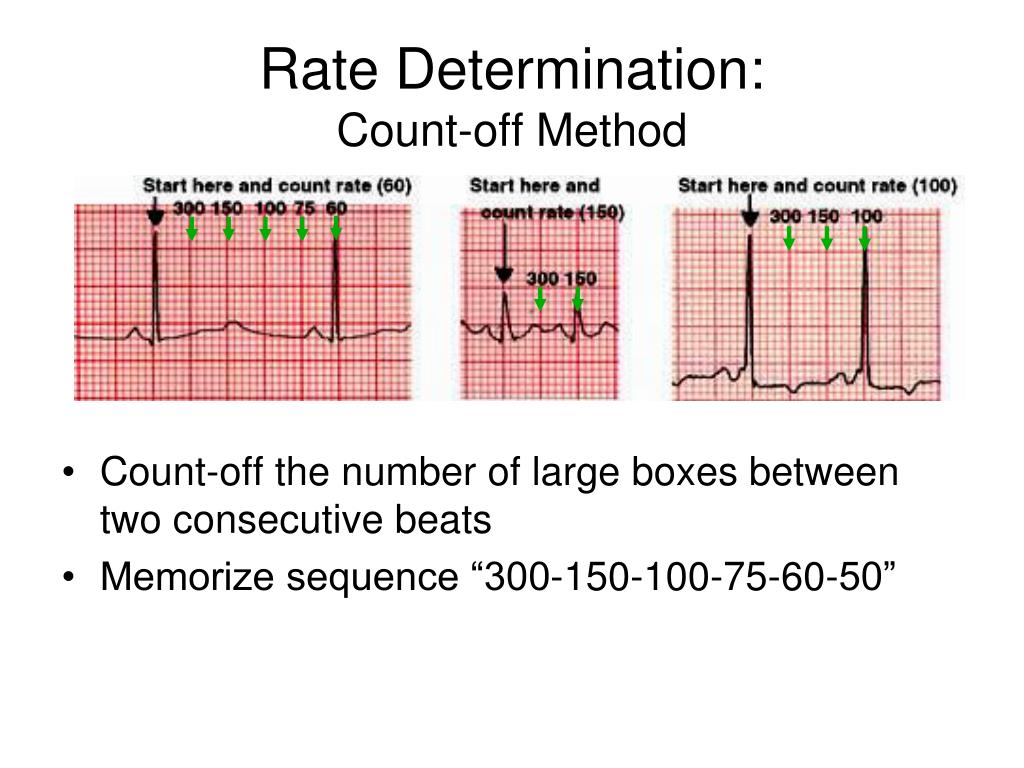

  16. Rate Determination:Count-off Method • Count-off the number of large boxes between two consecutive beats • Memorize sequence “300-150-100-75-60-50”

  17. Analogy… • think of rate as a speedometer… 75 100 60 150 50 300

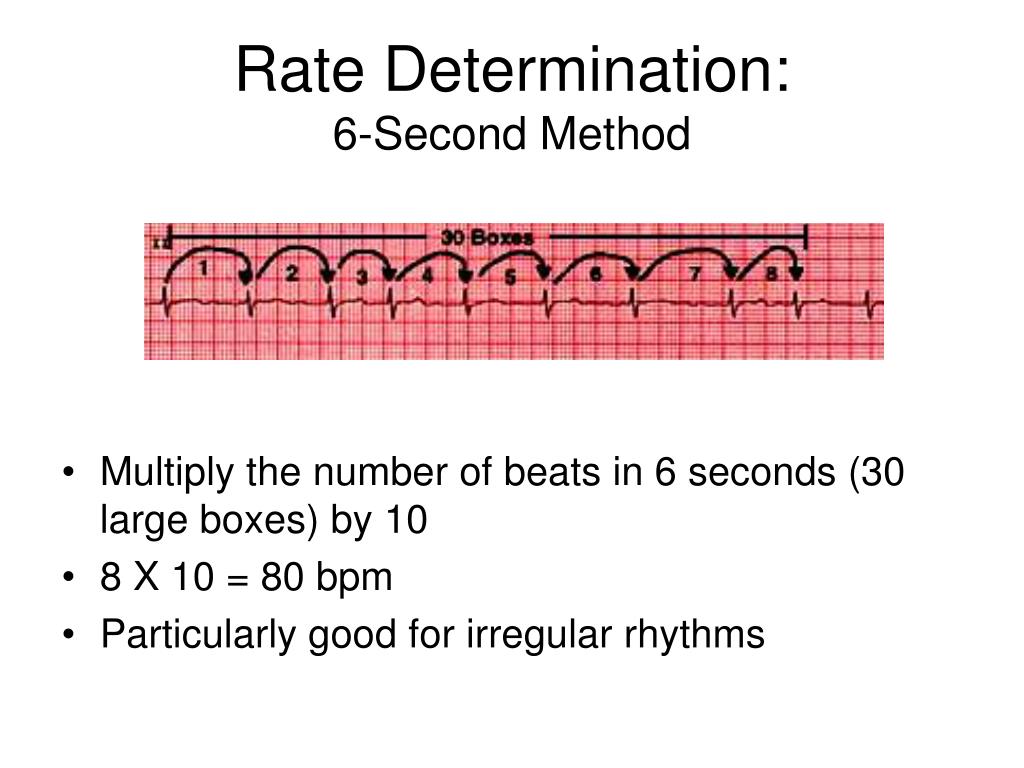

  18. Rate Determination:6-Second Method • Multiply the number of beats in 6 seconds (30 large boxes) by 10 • 8 X 10 = 80 bpm • Particularly good for irregular rhythms

  19. Example 1 6.0s

  20. Example 2 5.0s

  21. Example 3 5.0s

  22. Interpretation Sequence • Calibration • Rate • Rhythm • Axis • Intervals • Hypertrophy • Infarcts = Q-waves • ST/T wave abnormalities • (Comparison with previous ECG’s)

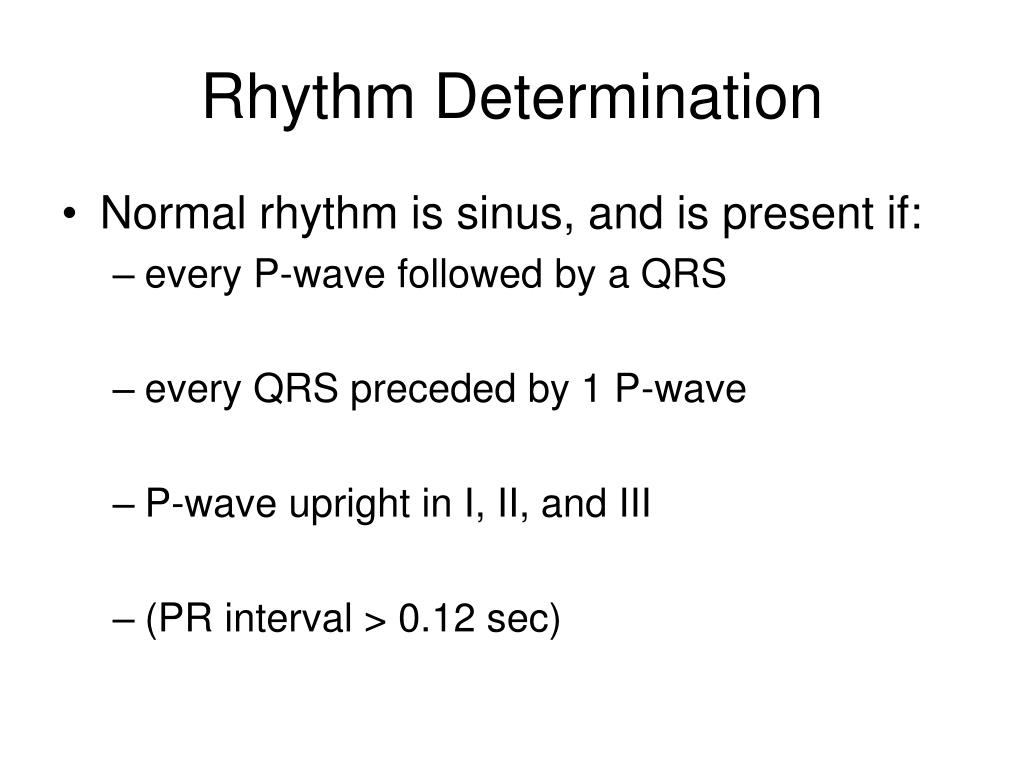

  23. Rhythm Determination • Normal rhythm is sinus, and is present if: • every P-wave followed by a QRS • every QRS preceded by 1 P-wave • P-wave upright in I, II, and III • (PR interval > 0.12 sec)

  24. Atrial Depolarization Sino-atrial node P wave

  25. Rhythm Determination normal P wave starts top RA  down & to left  best leads to see P-waves: Inferior (II, III, aVF) V1 (closest to RA forces)

  26. Rhythm Determination • Normal HR 60-100 bpm • < 60 bpm: sinus bradycardia • > 100 bpm: sinus tachycardia

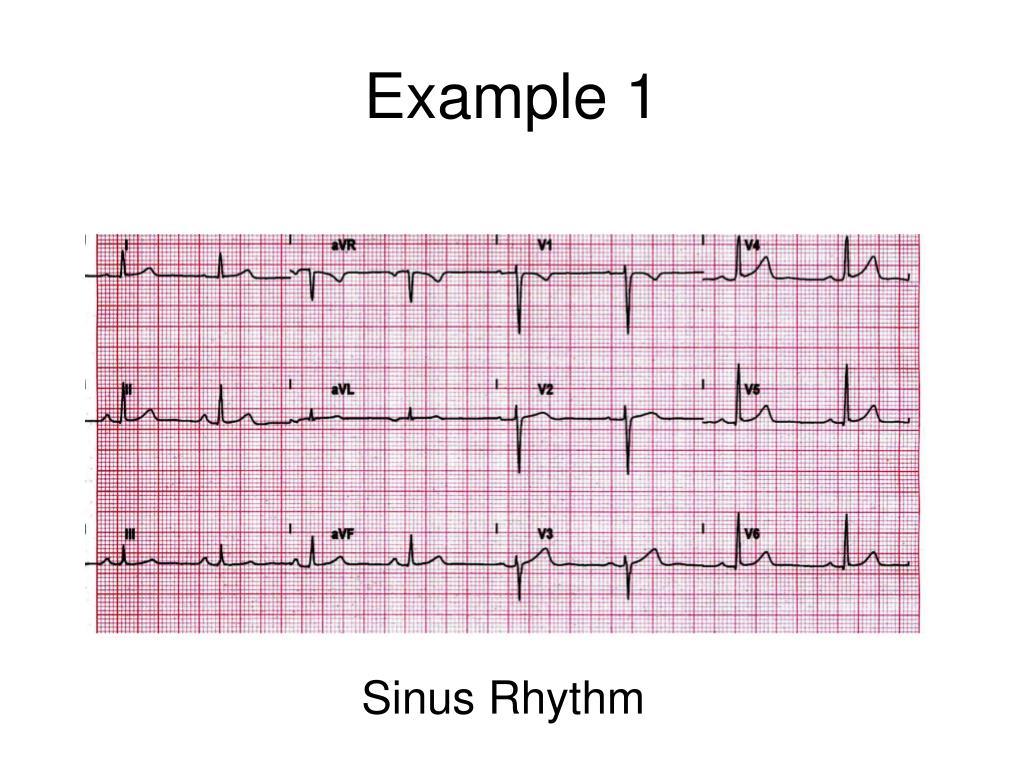

  27. Example 1 Sinus Rhythm

  28. Example 2 Ectopic Atrial Rhythm

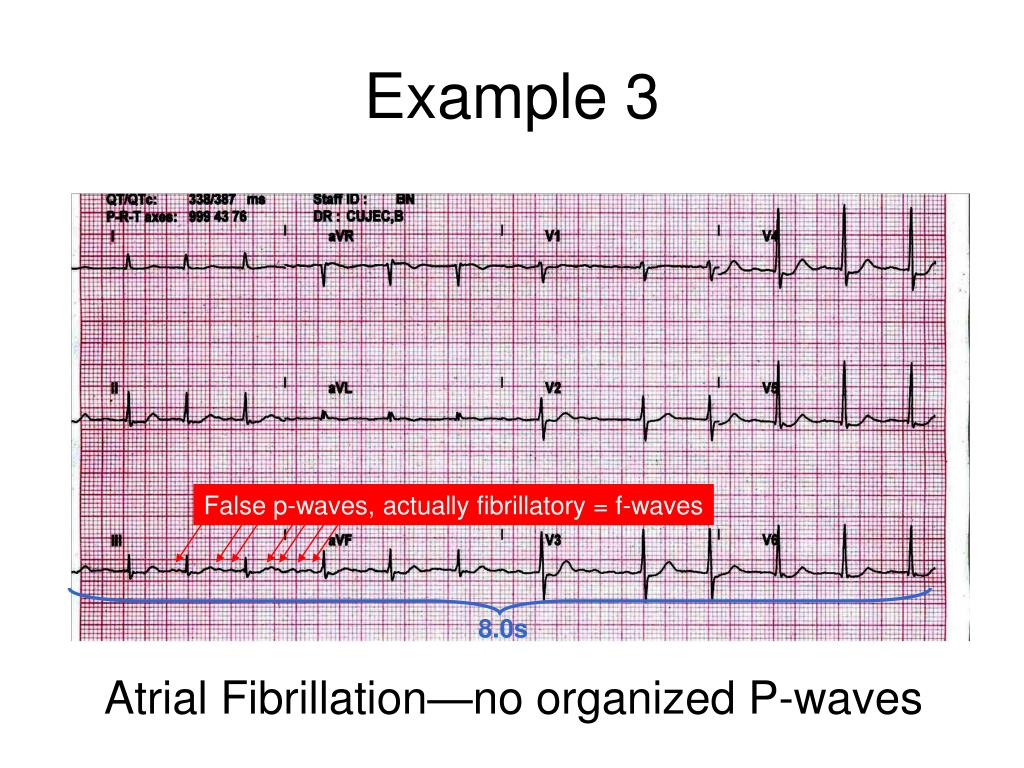

  29. Example 3 False p-waves, actually fibrillatory = f-waves 8.0s Atrial Fibrillation—no organized P-waves

  30. Interpretation Sequence • Calibration • Rate • Rhythm • Axis • Intervals • Hypertrophy • Infarcts = Q-waves • ST/T wave abnormalities • (Comparison with previous ECG’s)

  31. QRS Axis Determination Normal … if leads I + II are +ve, normal axis!

  32. One Method • Axis = average QRS vector in limb leads • ECG is a summation of vector forces • Look at leads I and aVF • Count number of net squares in each lead (either positive or negative) • Plot on an X,Y graph • Estimate angle visually

  33. Example 1 Net 3 mm positive Net 5 mm positive - 90o ± 180o + 0o I +ve + 60o + 90o aVF +ve

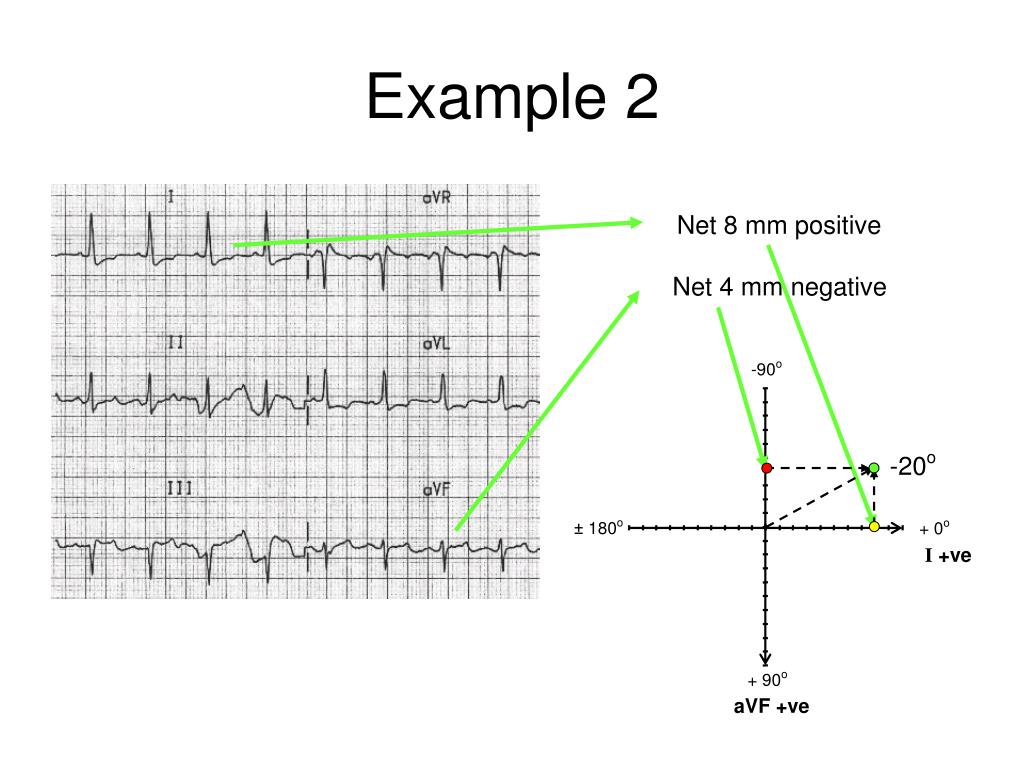

  34. Example 2 Net 8 mm positive Net 4 mm negative -90o -20o ± 180o + 0o I +ve + 90o aVF +ve

  35. ( - 90º ) ( - 90º ) ( - 30º ) ( - 30º ) ( - 150º ) ( - 150º ) -ve aVL aVL aVR aVR -ve +ve  180º  180º ( 0º ) ( 0º ) I I +ve I I I I I I I I I I aVF aVF ( +60º ) ( +60º ) ( +120º ) ( +120º ) ( +90º ) ( +90º ) 2nd Method • put QRS axis into 90º sector easily • 1st check I & aVF  locate QRS quadrant check if QRS is +ve in lead I check if QRS is +ve in lead aVF

  36. 2nd Method • once locate quadrant, check other leads to see if +ve or -ve • Iso-electric QRS  ~90º to lead direction • with other leads, can locate 30º sector ( - 90º ) ( - 90º ) ( - 30º ) ( - 150º ) I -ve aVF-ve I +ve aVF-ve aVL aVR  180º  180º ( 0º ) ( 0º ) I I I -ve aVF+ve I +ve aVF+ve I I I I I aVF aVF ( +60º ) ( +120º ) ( +90º ) ( +90º )

  37. Example 1 Net positive (more) net positive ( - 90º ) I -ve aVF-ve I +ve aVF-ve  180º ( 0º ) I I -ve aVF+ve I +ve aVF+ve aVF ( +90º )

  38. Example 2 (more) net positive net negative ( - 90º ) I -ve aVF-ve I +ve aVF-ve  180º ( 0º ) I I -ve aVF+ve I +ve aVF+ve aVF ( +90º )

  39. Interpretation Sequence • Calibration • Rate • Rhythm • Axis • Intervals • Hypertrophy • Infarcts = Q-waves • ST/T wave abnormalities • (Comparison with previous ECG’s)

  40. Normal Intervals • PR 0.12 - 0.20 sec • QRS ≤ 0.12 sec • Corrected QT* ≤ 0.46 sec

  41. PR interval

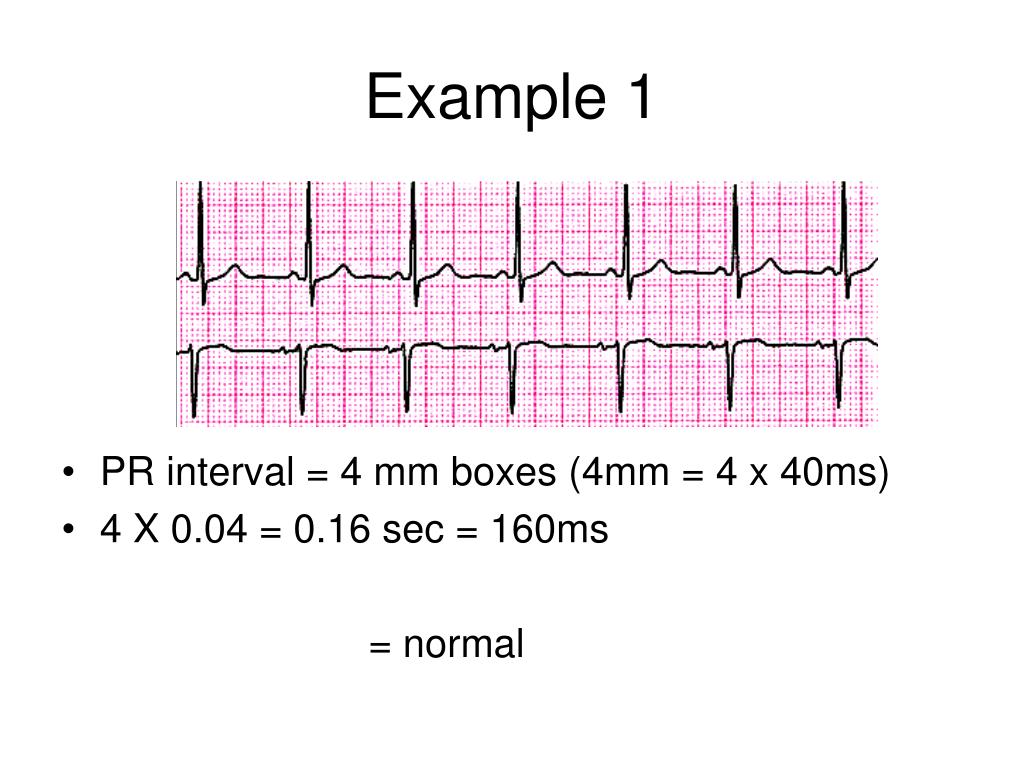

  42. Example 1 • PR interval = 4 mm boxes (4mm = 4 x 40ms) • 4 X 0.04 = 0.16 sec = 160ms = normal

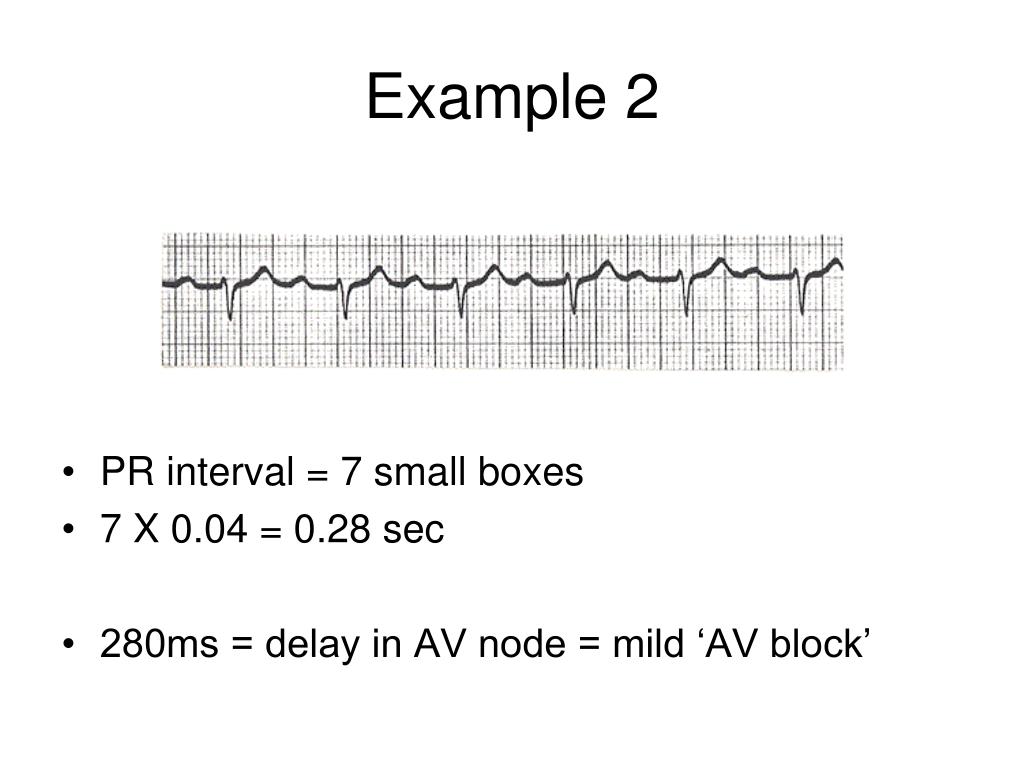

  43. Example 2 • PR interval = 7 small boxes • 7 X 0.04 = 0.28 sec • 280ms = delay in AV node = mild ‘AV block’

  44. QRS interval

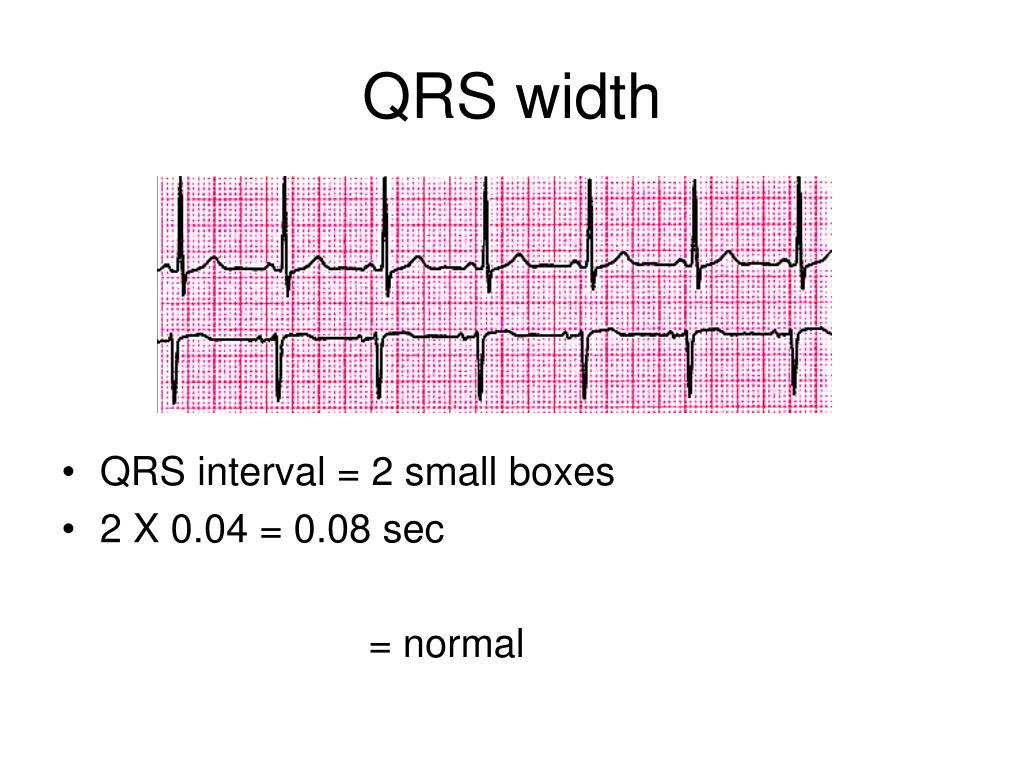

  45. QRS width • QRS interval = 2 small boxes • 2 X 0.04 = 0.08 sec = normal

  46. Schematic Diagram OfCardiac Conduction Pathways

  47. Causes of long QRS • Right bundle branch block • Left bundle branch block • Accessory = bypass tracts • Non-specific QRS widening

  48. Right Bundle Branch Block

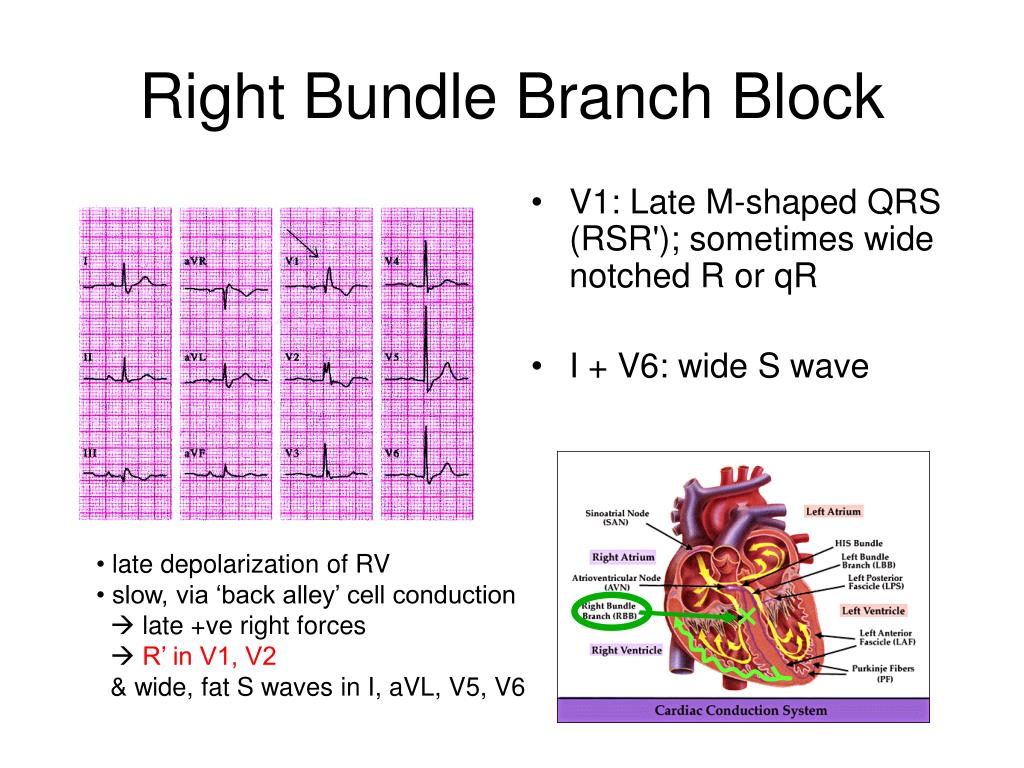

  49. RBBB • ‘bunny ears’ on right = right bundle branch • late RV firing = late forces coming toward V1  R’ • also  fat, wide S wave on left leads I, aVL, V6 V1: Rs R’ V6: R S

  50. Right Bundle Branch Block • V1: Late M-shaped QRS (RSR'); sometimes wide notched R or qR • I + V6: wide S wave • late depolarization of RV • slow, via ‘back alley’ cell conduction •  late +ve right forces •  R’ in V1, V2 • & wide, fat S waves in I, aVL, V5, V6
