Polar coordinates to rectangular coordinates

Polar coordinates to rectangular coordinates. Polar coordinates to rectangular coordinates. r. y. x. Example. Find the rectangular coordinates of the point (6, 210 ). x = 6 cos 210 . y = 6 sin 210 . y = -3. Rectangular coordinates to polar coordinates. r. y. …if x > 0. x.

damon-england
Télécharger la présentation

Polar coordinates to rectangular coordinates

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Polar coordinates to rectangular coordinates

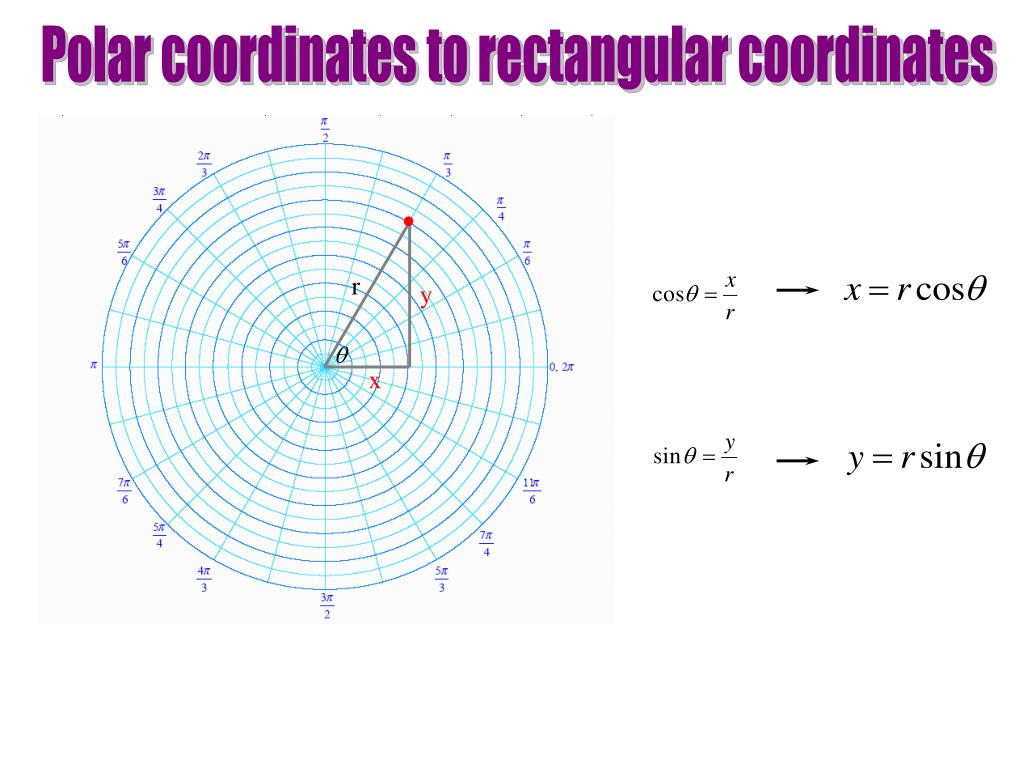

  2. Polar coordinates to rectangular coordinates r y x

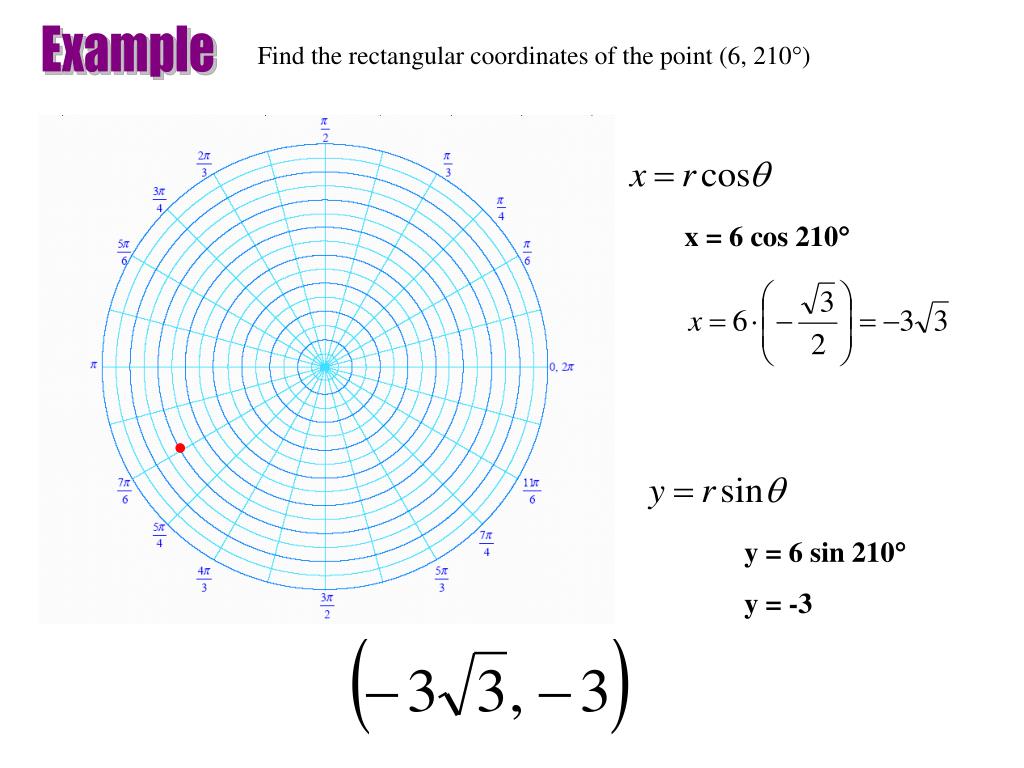

  3. Example Find the rectangular coordinates of the point (6, 210) x = 6 cos 210 y = 6 sin 210 y = -3

  4. Rectangular coordinates to polar coordinates r y …if x > 0 x …if x < 0

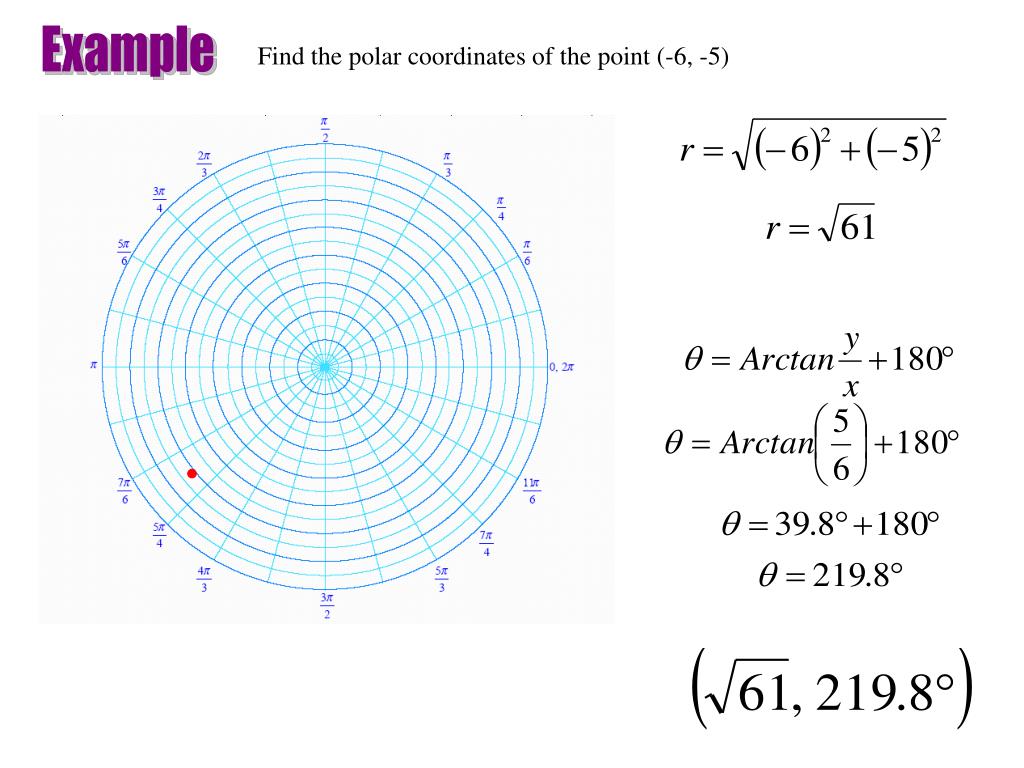

  5. Example Find the polar coordinates of the point (-6, -5)

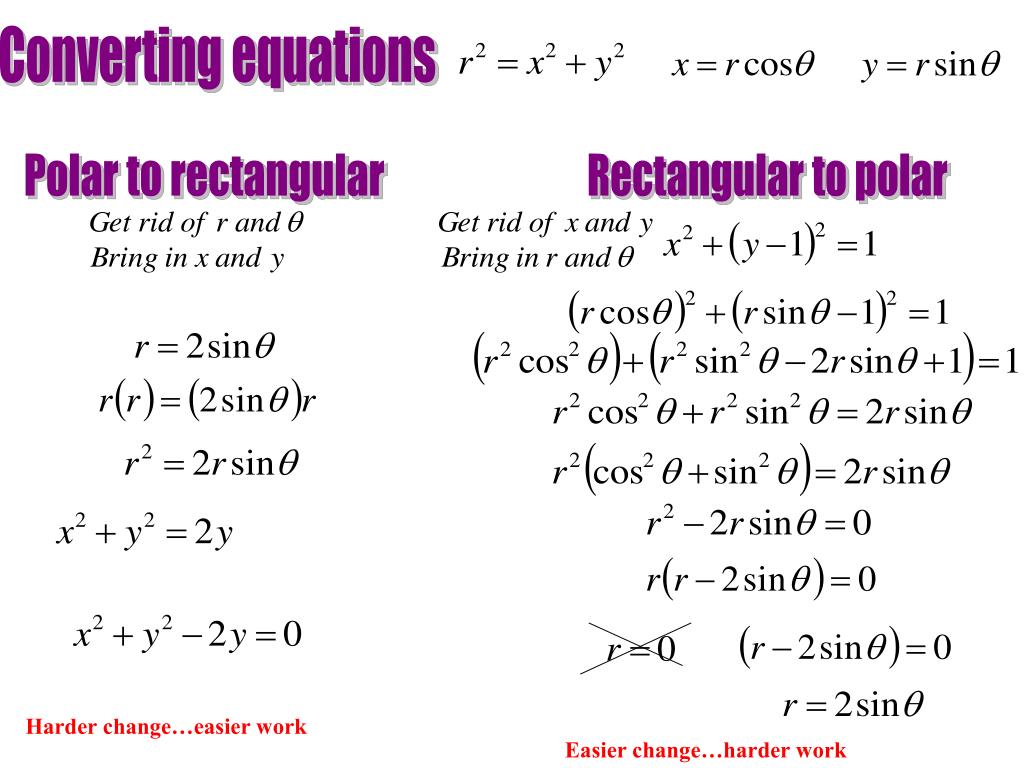

  6. Converting equations Polar to rectangular Rectangular to polar Harder change…easier work Easier change…harder work
