Polar Coordinates. Lesson 10.5. •. θ. r. Points on a Plane. Rectangular coordinate system Represent a point by two distances from the origin Horizontal dist, Vertical dist Also possible to represent different ways Consider using dist from origin, angle formed with positive x-axis.

Télécharger la présentation
## Polar Coordinates

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

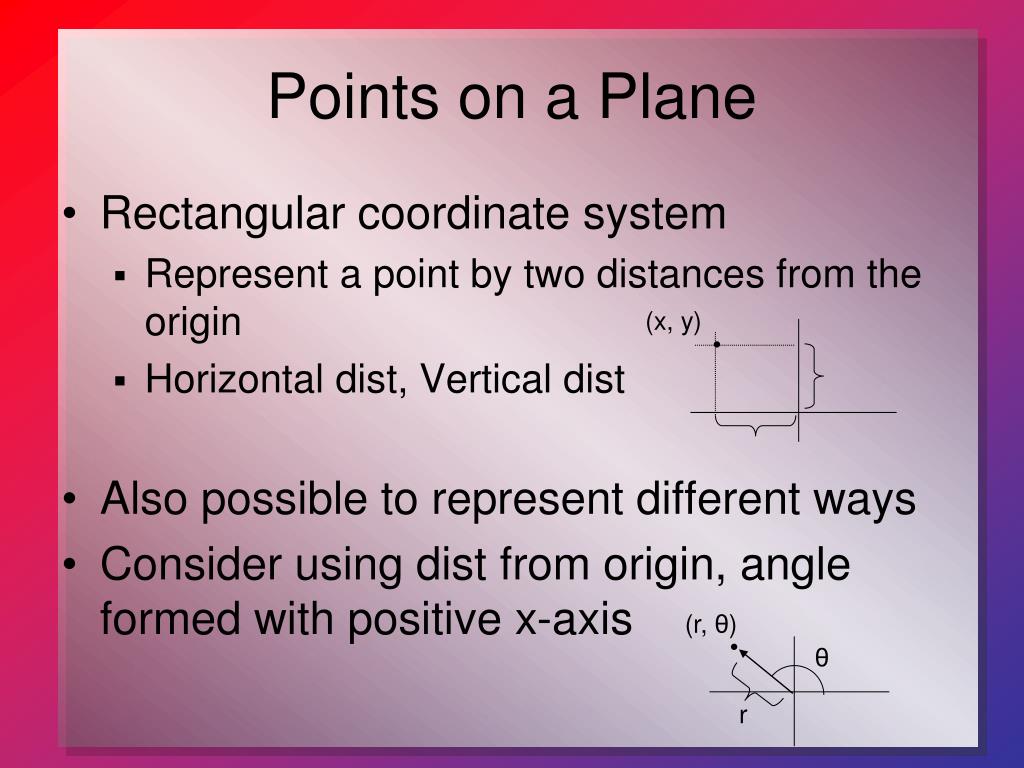

**Polar Coordinates**Lesson 10.5**•**θ r Points on a Plane • Rectangular coordinate system • Represent a point by two distances from the origin • Horizontal dist, Vertical dist • Also possible to represent different ways • Consider using dist from origin, angle formed with positive x-axis (x, y) • (r, θ)**Plot Given Polar Coordinates**• Locate the following**Find Polar Coordinates**• What are the coordinates for the given points? • A • A = • B = • C = • D = • B • D • C**Converting Polar to Rectangular**• Given polar coordinates (r, θ) • Change to rectangular • By trigonometry • x = r cos θy = r sin θ • Try = ( ___, ___ ) • r y θ x**Converting Rectangular to Polar**• • Given a point (x, y) • Convert to (r, θ) • By Pythagorean theorem r2 = x2 + y2 • By trigonometry • Try this one … for (2, 1) • r = ______ • θ = ______ r y θ x**Polar Equations**• States a relationship between all the points (r, θ) that satisfy the equation • Example r = 4 sin θ • Resulting values Note: for (r, θ) It is θ (the 2nd element that is the independent variable θ in degrees**Graphing Polar Equations**• Set Mode on TI calculator • Mode, then Graph => Polar • Note difference of Y= screen**Graphing Polar Equations**• Also best to keepangles in radians • Enter function in Y= screen**Graphing Polar Equations**• Set Zoom to Standard, • then Square**Try These!**• For r = A cos Bθ • Try to determine what affect A and B have • r = 3 sin 2θ • r = 4 cos 3θ • r = 2 + 5 sin 4θ**Assignment**• Lesson 10.5A • Page 433 • Exercises 1 – 45 odd • Lesson 10.5B • Page 433 • Exercises 47 – 61 odd
