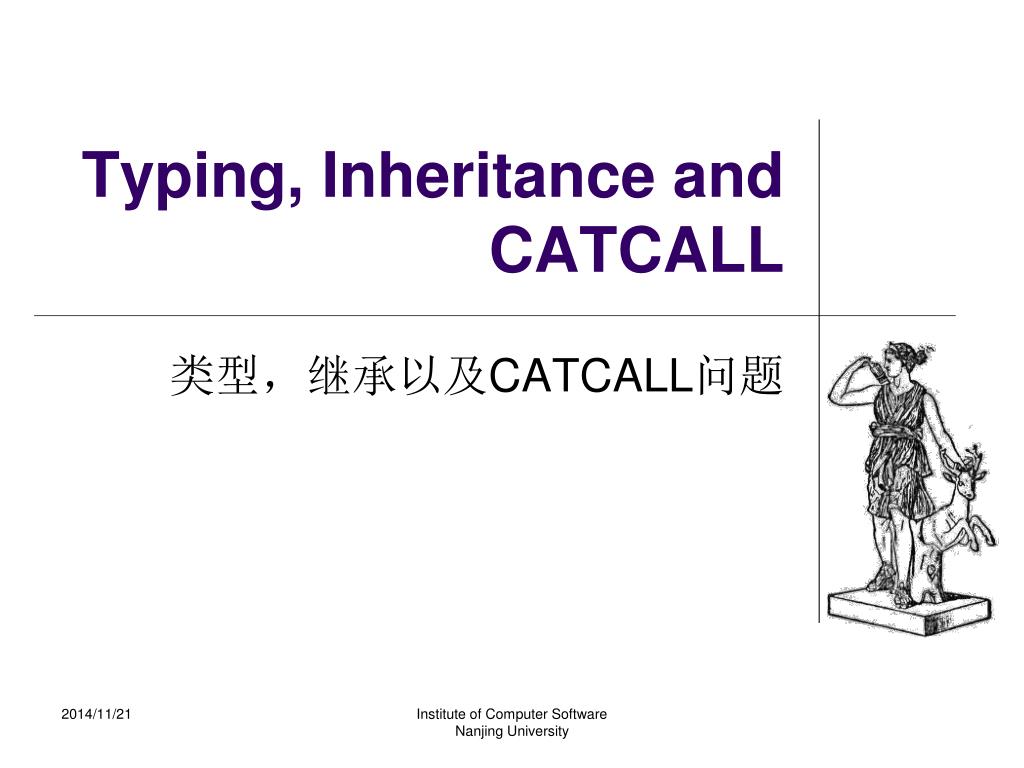

  1. Typing, Inheritance and CATCALL 类型，继承以及CATCALL问题 Institute of Computer Software Nanjing University

  2. 摘要 • 类型 • 继承及其它 • Deferred Class • 单继承与多继承 • 协变与反变 Institute of Computer Software Nanjing University

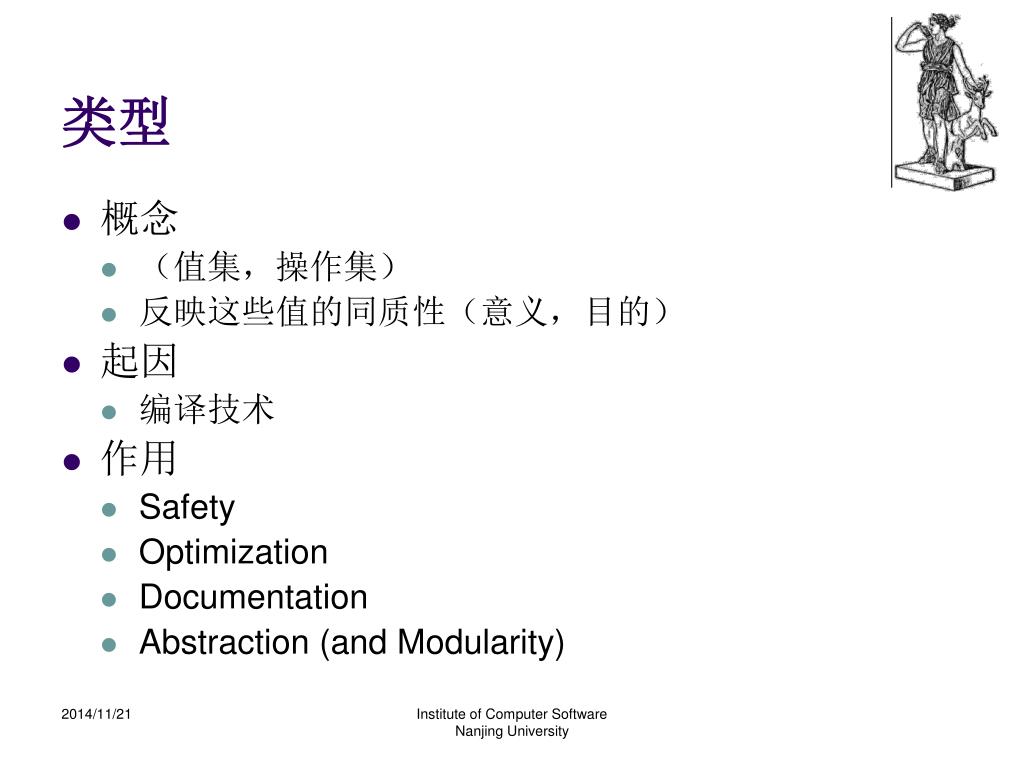

  3. 类型 • 概念 • （值集，操作集） • 反映这些值的同质性（意义，目的） • 起因 • 编译技术 • 作用 • Safety • Optimization • Documentation • Abstraction (and Modularity) Institute of Computer Software Nanjing University

  4. 关于程序设计语言的类型系统 • Typing • Type checking • The process of verifying and enforcing the constraints of types • Static vs. Dynamic • “Strong” vs. weak • Weak typing means that a language will implicitly convert (or cast) types when used. • Strong: Safe, Static, strong grantees … Institute of Computer Software Nanjing University

  5. 关于程序设计语言的类型系统 • 关于范型 • Java 枚举类型 • Ref： http://www.javaeye.com/a/6556.html Enum<E extends Enum<E>> Institute of Computer Software Nanjing University

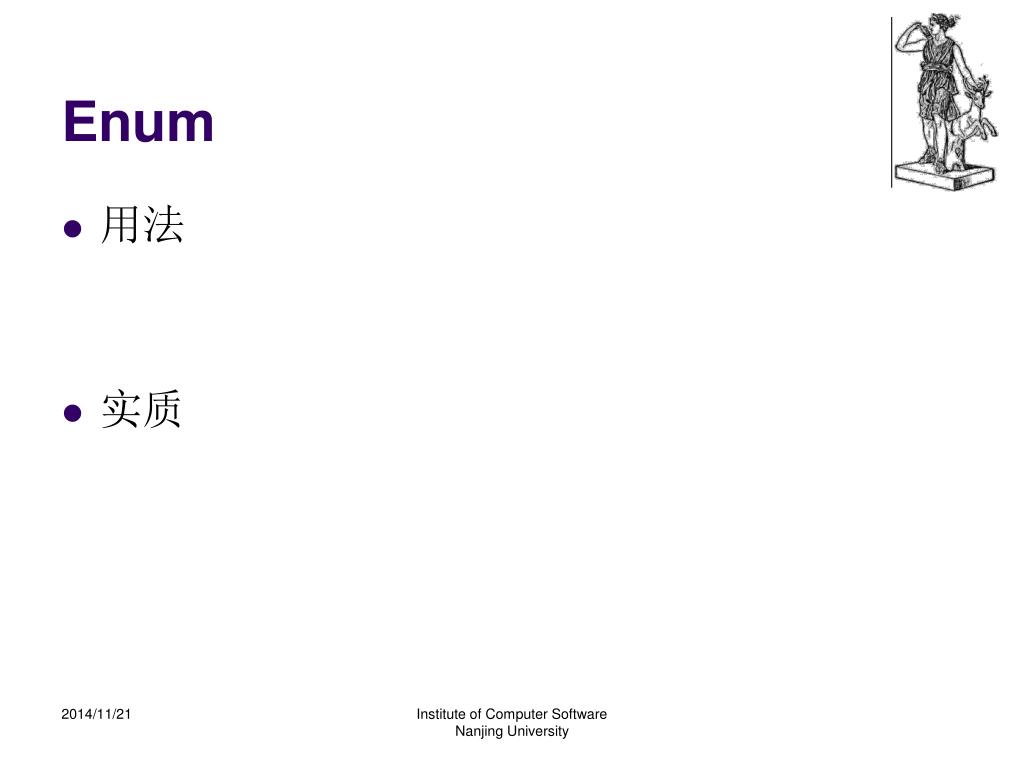

  6. Enum • 用法 • 实质 Institute of Computer Software Nanjing University

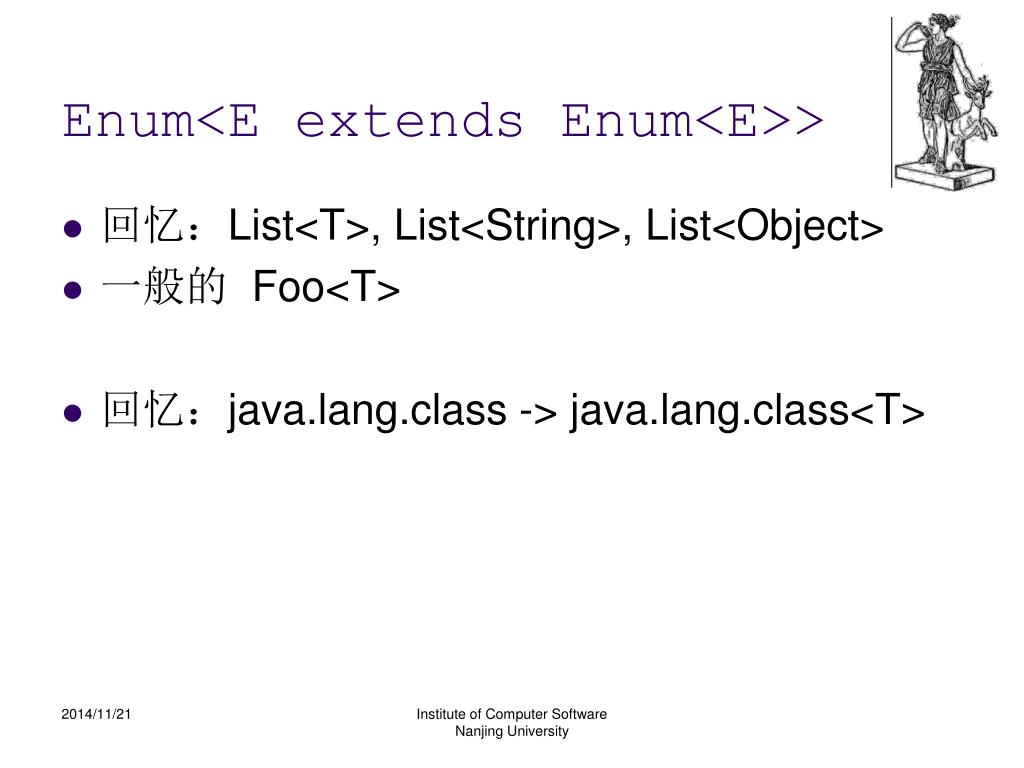

  7. Enum<E extends Enum<E>> • 回忆：List<T>, List<String>, List<Object> • 一般的 Foo<T> • 回忆：java.lang.class -> java.lang.class<T> Institute of Computer Software Nanjing University

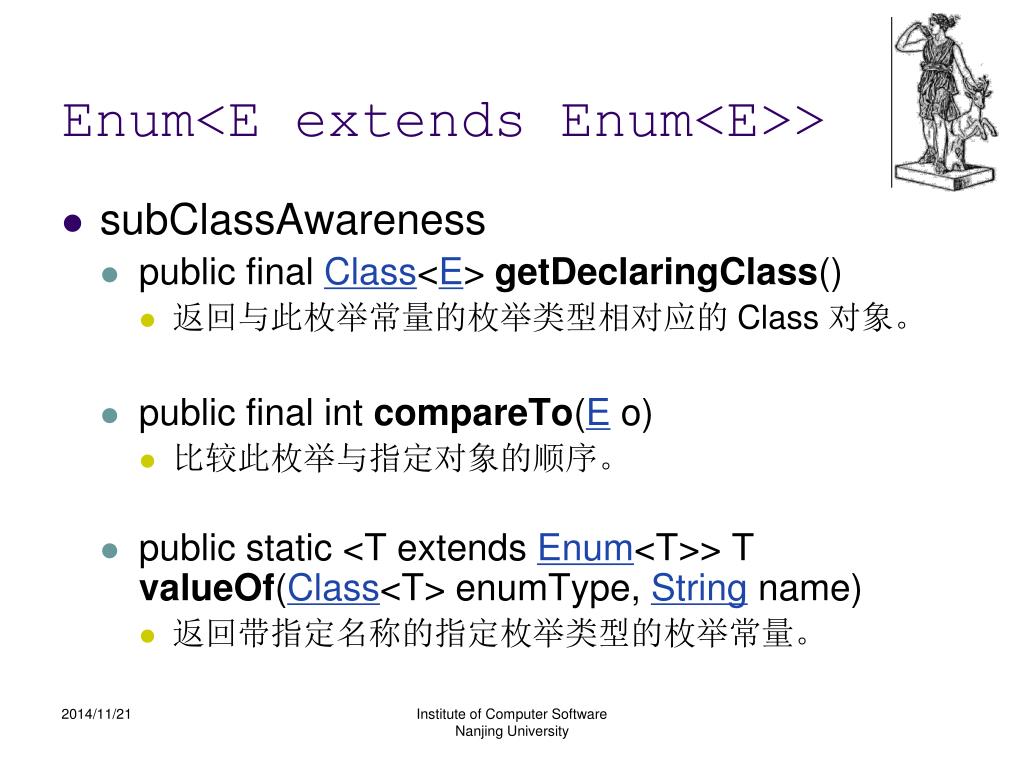

  8. Enum<E extends Enum<E>> • subClassAwareness • public final Class<E> getDeclaringClass() • 返回与此枚举常量的枚举类型相对应的 Class 对象。 • public final int compareTo(E o) • 比较此枚举与指定对象的顺序。 • public static <T extends Enum<T>> T valueOf(Class<T> enumType, String name) • 返回带指定名称的指定枚举类型的枚举常量。 Institute of Computer Software Nanjing University

  9. 继承与类型 • 子类型 • 可替换性：Let q(x) be a property provable about objects x of type T. Then q(y) should be true for objects y of type S where S is a subtype of T. (Liskov substitution principle) • 对于面向对象的计算来说 • 子类型对象须能接收所有父类型对象能接收的消息 Institute of Computer Software Nanjing University

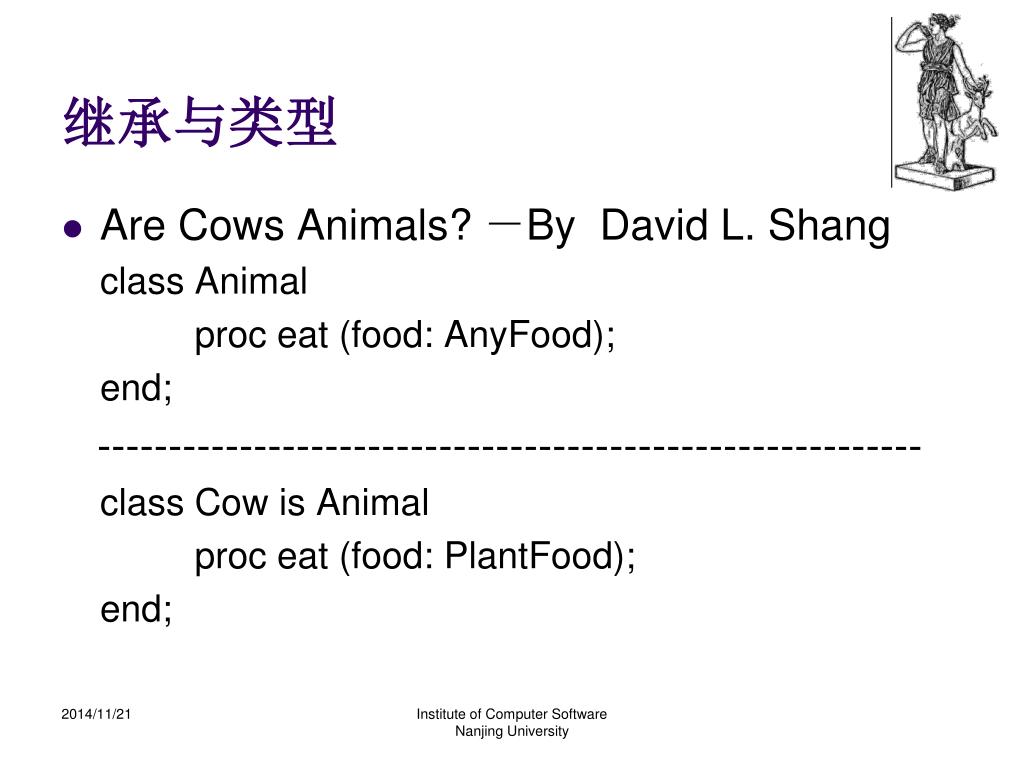

  10. 继承与类型 • Are Cows Animals? －By David L. Shang class Animal proc eat (food: AnyFood); end; ---------------------------------------------------------- class Cow is Animal proc eat (food: PlantFood); end; Institute of Computer Software Nanjing University

  11. 继承及其它 • 何谓继承？ • 特征（方法、成员函数）重定义 • 多态与动态绑定 • Inheritance and Design by Contract • 继承 与 泛型 • Assignment attempt Institute of Computer Software Nanjing University

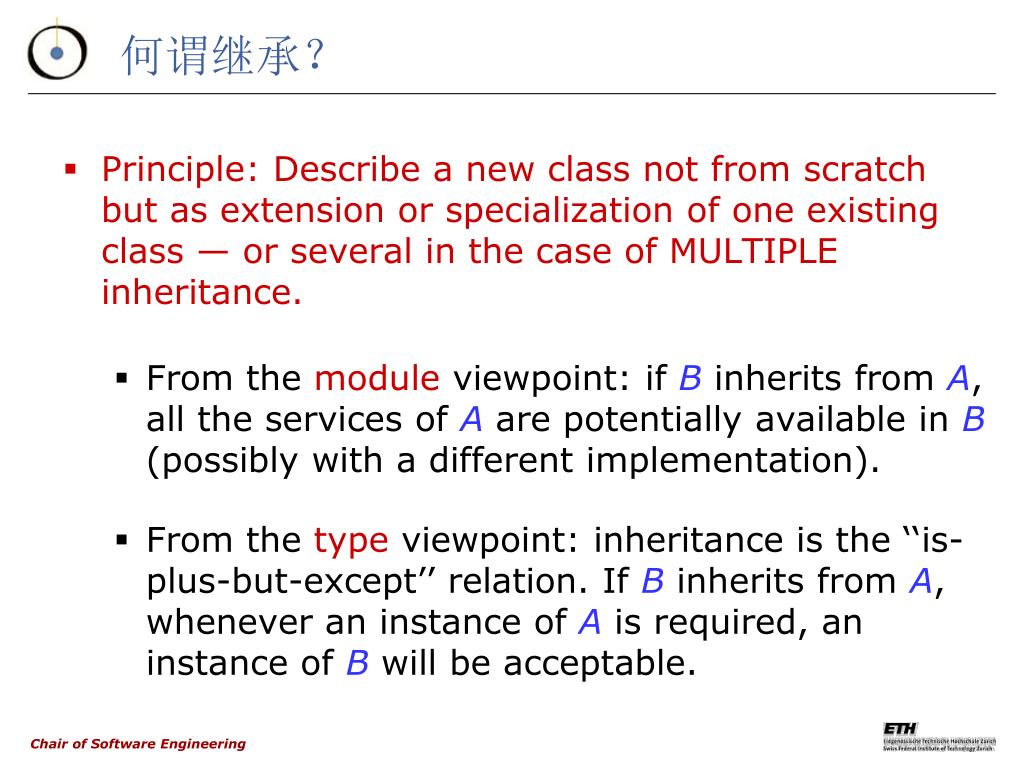

  12. 何谓继承？ • Principle: Describe a new class not from scratch but as extension or specialization of one existing class — or several in the case of MULTIPLE inheritance. • From the module viewpoint: if B inherits from A, all the services of A are potentially available in B (possibly with a different implementation). • From the type viewpoint: inheritance is the ‘‘is-plus-but-except’’ relation. If B inherits from A, whenever an instance of A is required, an instance of B will be acceptable.

  13. Terminology • Parent, Heir • Ancestor, Descendant • The ancestors of B are B itself and the ancestors of its parents. • Proper ancestor, Proper descendant • Direct instance, Instance • The instances of A are the direct instances of its descendants. • (Other terminology: subclass, superclass, base class) feature A feature B

  14. Example hierarchy extent* display* * deferred + effective ++ redefined barycenter* * rotate … FIGURE … * * OPEN_ FIGURE CLOSED_ FIGURE perimeter* perimeter+ perimeter+ + + SEGMENT POLYLINE POLYGON ELLIPSE diagonal perimeter++ ... ... side1 TRIANGLE RECTANGLE side2 CIRCLE perimeter++ perimeter++ SQUARE

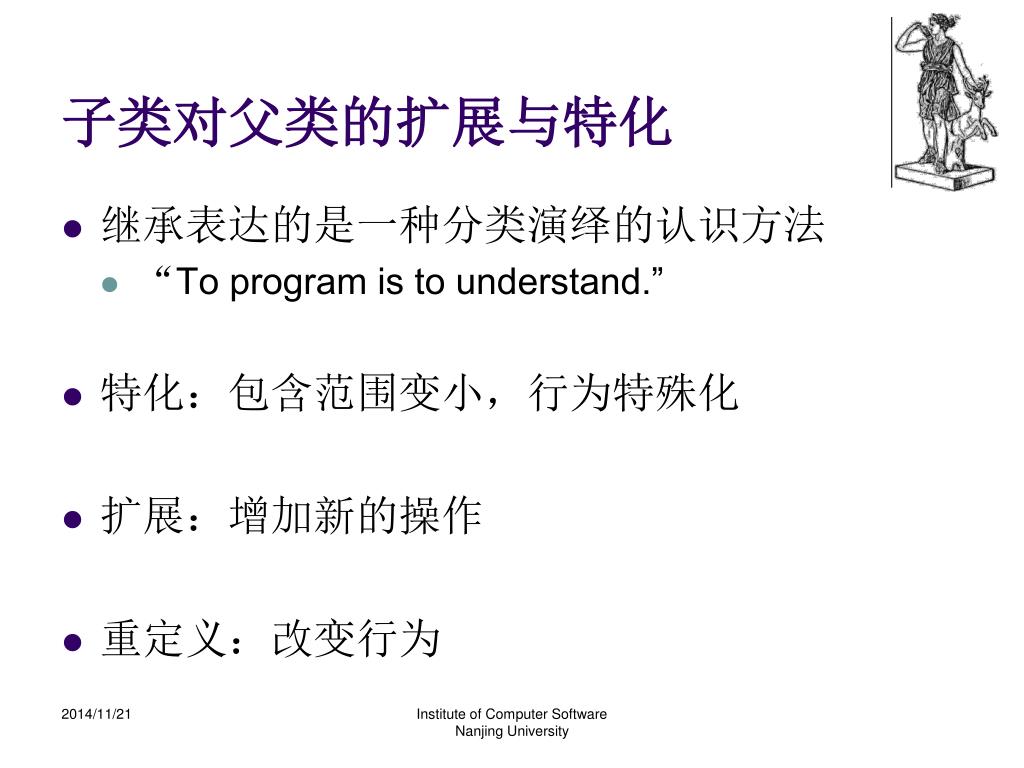

  15. 子类对父类的扩展与特化 • 继承表达的是一种分类演绎的认识方法 • “To program is to understand.” • 特化：包含范围变小，行为特殊化 • 扩展：增加新的操作 • 重定义：改变行为 Institute of Computer Software Nanjing University

  16. Redefinition classPOLYGON create make feature vertices: ARRAY [POINT] vertices_count: INTEGER perimeter: REALis -- Perimeter length do from...until...loop Result :=Result + (vertices @ i).distance (vertices @ (i + 1)) ... endend invariant vertices_count >= 3 vertices_count = vertices.countend vertices @ i vertices @ (i + 1)

  17. Redefinition (cont’d) classRECTANGLEinherit POLYGON redefine perimeter endcreate make featurediagonal, side1, side2: REAL perimeter: REALis -- Perimeter length do Result := 2 *(side1 + side2) end invariantvertices_count = 4end side2 side1

  18. Inheritance, typing and polymorphism • Assume: p: POLYGON; r: RECTANGLE; t: TRIANGLE; x: REAL  • Permitted: x := p.perimeter x := r.perimeter x := r.diagonal p := r • NOT permitted: x := p.diagonal (even just after p := r  !) r := p 注意理解引用：运行时刻实体 p (POLYGON) r (RECTANGLE)

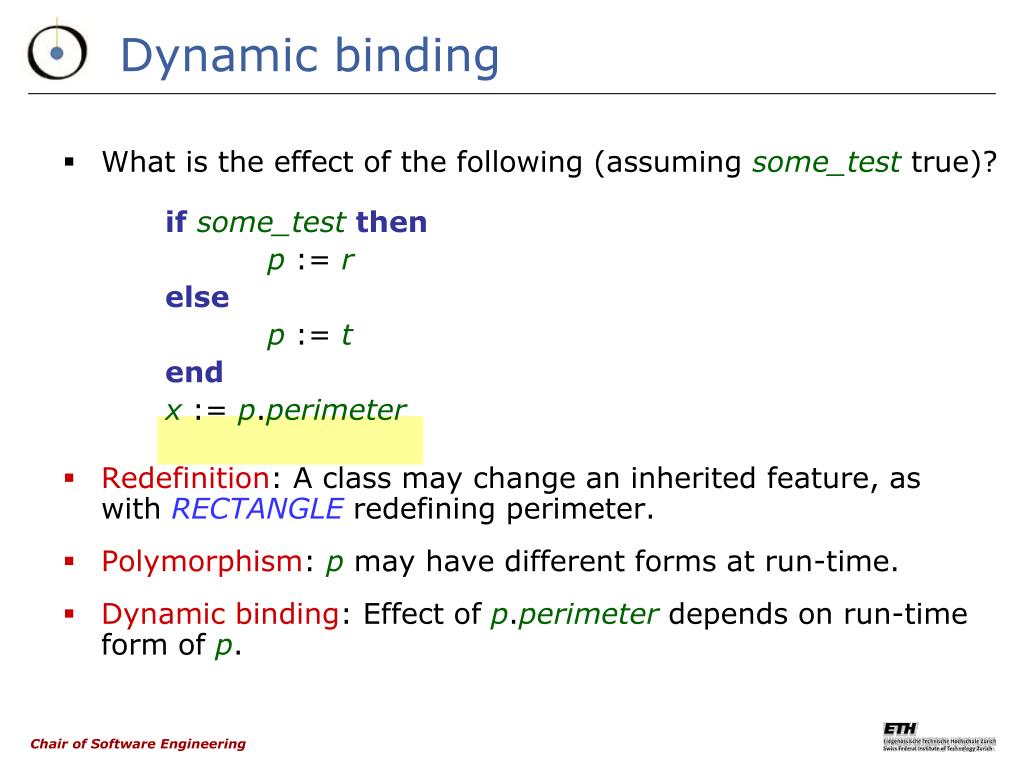

  19. Dynamic binding • What is the effect of the following (assuming some_test true)? ifsome_testthen p := r else p := t end x := p.perimeter • Redefinition: A class may change an inherited feature, as with RECTANGLE redefining perimeter. • Polymorphism: p may have different forms at run-time. • Dynamic binding: Effect of p.perimeter depends on run-time form of p.

  20. The meaning of inheritance • The type perspective: • Automatic adaptation of operations to the dynamic form of their targets (extendibility):Representation independence. • Factoring out reusable operations: Commonality. • The module perspective (reusability): • Open-closed modules • Modularity • The Single Choice Principle

  21. The traditional architecture display (f: FIGURE) is do if‘‘f is a CIRCLE’’then ... elseif‘‘f is a POLYGON’’then ... end end and similarly for all other routines!

  22. Applying the Single Choice Principle f: FIGURE c: CIRCLE p: POLYGON ... createc.make (...) createp.make (...) ... if ... then f := c else f := p end ... f.move (...) f.rotate (...) f.display (...) ...

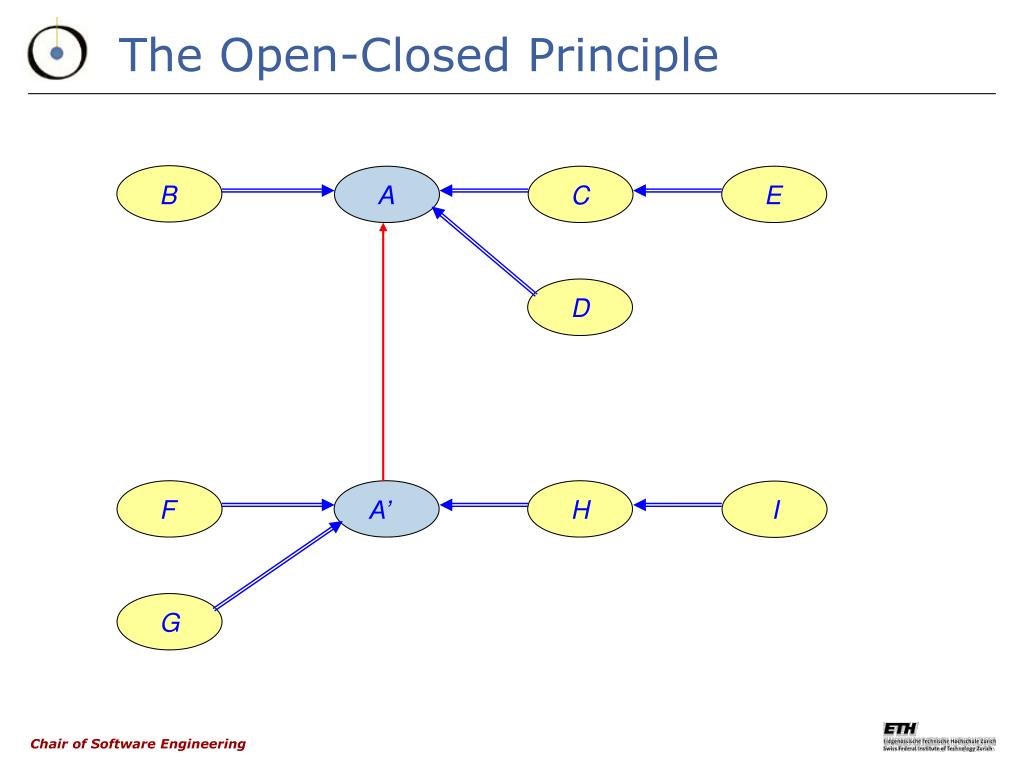

  23. The Open-Closed Principle B A C E D F A’ H I G

  24. The dangers of static binding createa.make (…) • For every creation procedure cp: {precp} docp {postcp and INV} • For every exported routine r: {INV and prer} dor {INV and postr} • The worst possible erroneous run-time situation in object-oriented software development: • Producing an object that does not satisfy the invariant of its class. S1 a.f (…) S2 a.g (…) S3 a.f (…) S4

  25. The dangers of static binding (cont’d) • {INVA} dorA {INVA} • {INVB} dorB {INVB} • Consider a call of the form a1.r where a1 is polymorphic: • No guarantee on the effect of dorA on an instance of B! rA A rB++ B

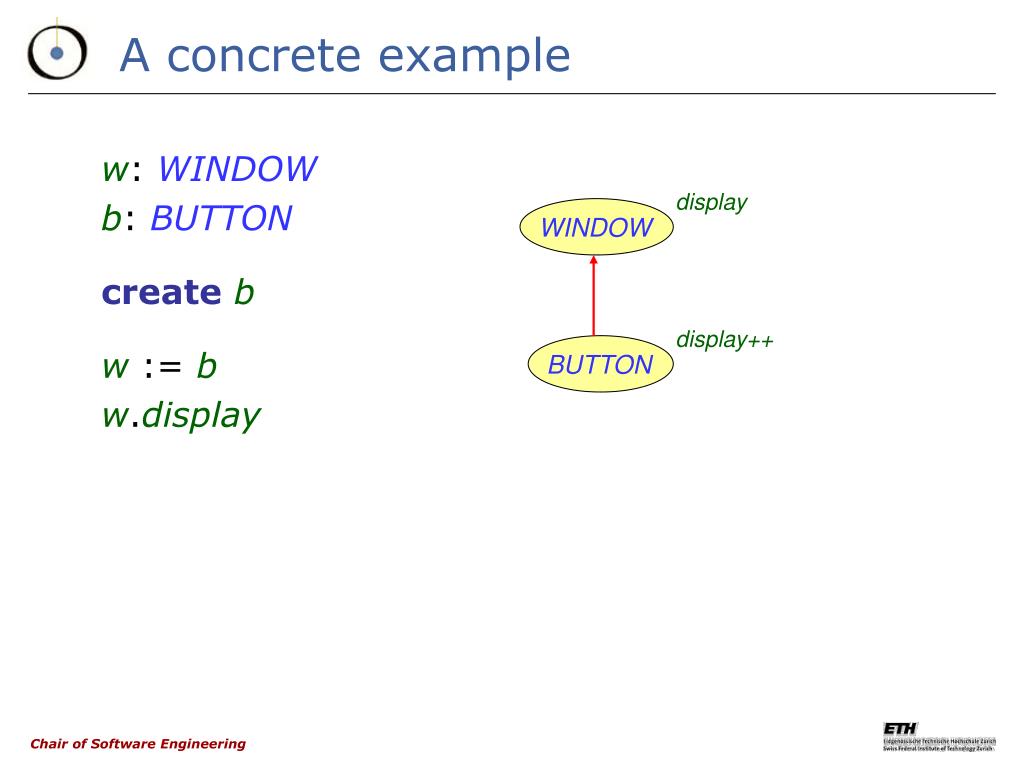

  26. A concrete example w: WINDOW b: BUTTON createb w:= b w.display display WINDOW display++ BUTTON

  27. Using original version of redefined feature classBUTTONinherit WINDOWredefine display end feature displayis doPrecursordisplay_border display_labelend display_labelis do ... end display_borderis do ... end end

  28. Use of Precursor • Not necessarily the first feature statement. • May have arguments. classBinherit Aredefine my_feature end feature my_feature (args: SOME_TYPE) is do-- Something here Precursor (args) -- Something else here end end my_feature A my_feature++ B

  29. Typing vs. binding • What do we know about the feature to be called? • Static typing: At least one • Dynamic binding: The right one • Example: my_aircraft.lower_landing_gear

  30. Example hierarchy * deferred * + effected AIRCRAFT ++ redefined * * PLANE COPTER lower_landing_gear* BOEING AIRBUS lower_landing_gear+ A_320 B_737 B_747 lower_landing_gear++ B_747_400

  31. 动态绑定 • 回顾 C++ 和 Java 的绑定机制 • C++的绑定规则 • 用户指定 • 缺省静态 • 优点？缺点？ Institute of Computer Software Nanjing University

  32. 泛型与继承 Abstraction SET_OF_BOOKS Type parameterization Type parameterization LIST_OF_ LIST_OF_PEOPLE LIST_OF_BOOKS JOURNALS LINKED_LIST_OF_BOOKS Specialization

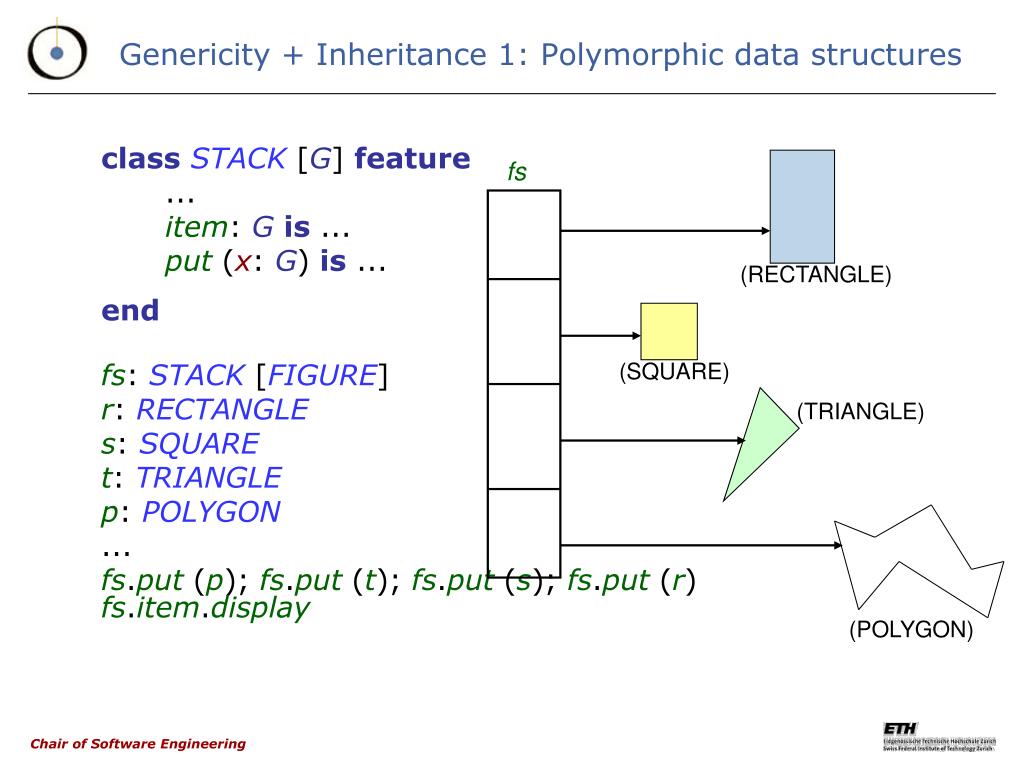

  33. Genericity + Inheritance 1: Polymorphic data structures classSTACK [G] feature ... item: Gis ... put (x: G) is ... end fs: STACK [FIGURE] r: RECTANGLE s: SQUARE t: TRIANGLE p: POLYGON ... fs.put (p); fs.put (t); fs.put (s); fs.put (r)fs.item.display fs (RECTANGLE) (SQUARE) (TRIANGLE) (POLYGON)

  34. Example hierarchy extent* display* * deferred + effective ++ redefined barycenter* * rotate … FIGURE … * * OPEN_ FIGURE CLOSED_ FIGURE perimeter* perimeter+ perimeter+ + + SEGMENT POLYLINE POLYGON ELLIPSE diagonal perimeter++ ... ... side1 TRIANGLE RECTANGLE side2 CIRCLE perimeter++ perimeter++ SQUARE

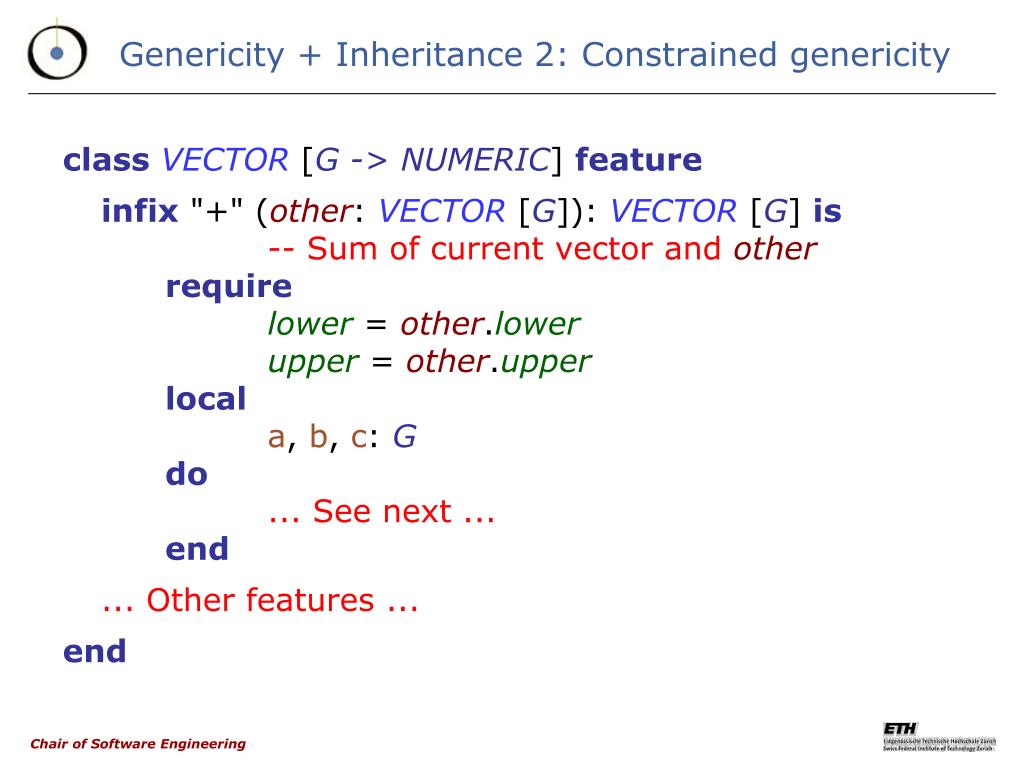

  35. Genericity + Inheritance 2: Constrained genericity classVECTOR [G -> NUMERIC] feature infix "+" (other: VECTOR [G]): VECTOR [G] is -- Sum of current vector and other require lower = other.lower upper = other.upper local a, b, c: G do ... See next ... end ... Other features ... end

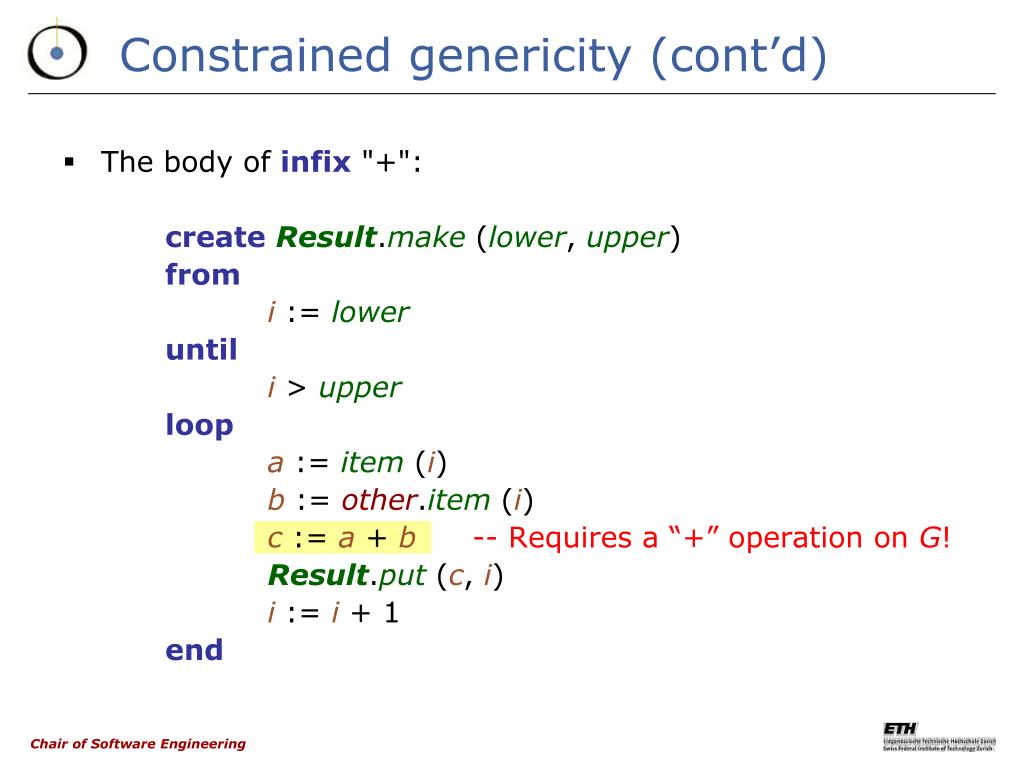

  36. Constrained genericity (cont’d) • The body of infix "+": createResult.make (lower, upper) from i := lower until i > upper loop a := item (i) b := other.item (i) c := a + b-- Requires a “+” operation on G! Result.put (c, i) i := i + 1 end

  37. Constrained genericity (cont’d) • The body of infix "+": createResult.make (lower, upper) from i := lower until i > upper loop a := item (i) b := other.item (i) c := a + b-- Requires a “+” operation on G! Result.put (c, i) i := i + 1 end

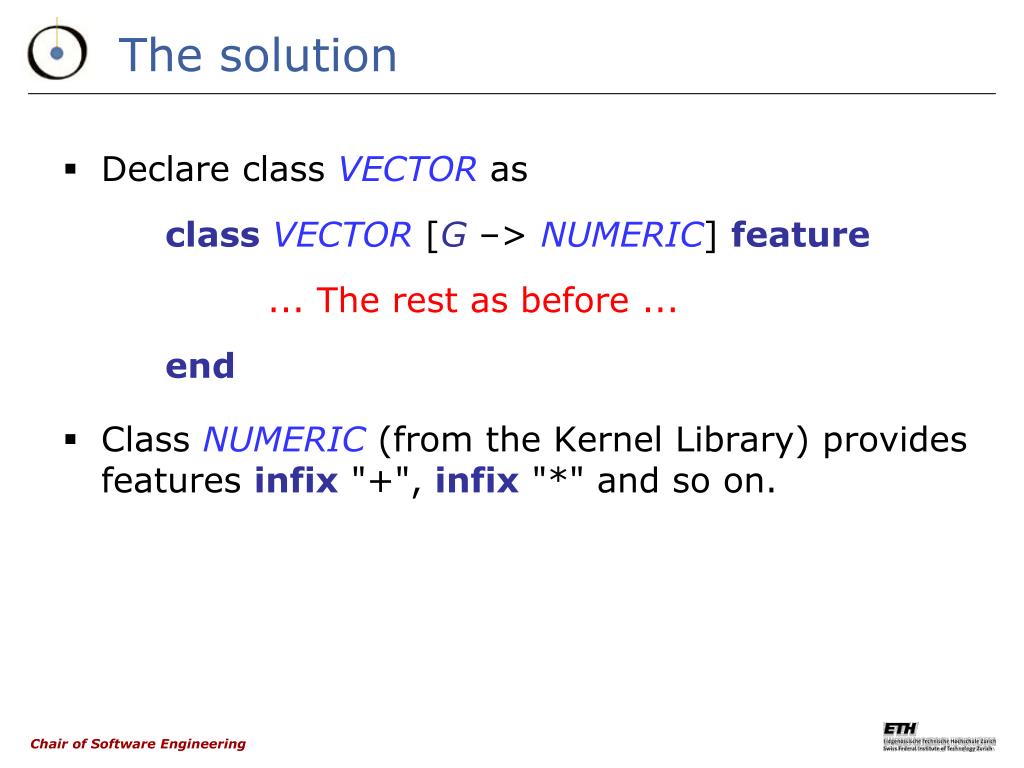

  38. The solution • Declare class VECTOR as classVECTOR [G –> NUMERIC] feature ... The rest as before ... end • Class NUMERIC (from the Kernel Library) provides features infix "+", infix "*" and so on.

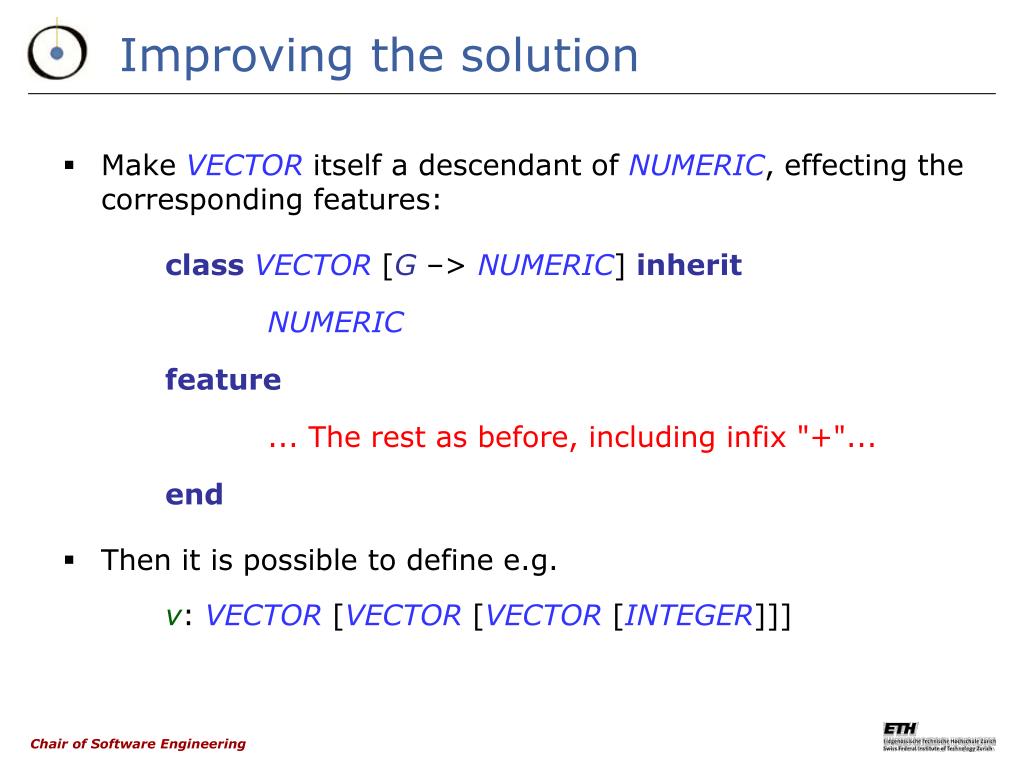

  39. Improving the solution • Make VECTOR itself a descendant of NUMERIC, effecting the corresponding features: classVECTOR [G –> NUMERIC] inherit NUMERIC feature ... The rest as before, including infix "+"... end • Then it is possible to define e.g. v: VECTOR [VECTOR [VECTOR [INTEGER]]]

  40. Forcing a type: the problem fs.store ("FILE_NAME") ... -- Two years later: fs.retrieve ("FILE_NAME")x := fs.item-- [1] print (x.diagonal) -- [2] But: • If x is declared of type RECTANGLE, [1] is invalid. • If x is declared of type FIGURE, [2] is invalid.

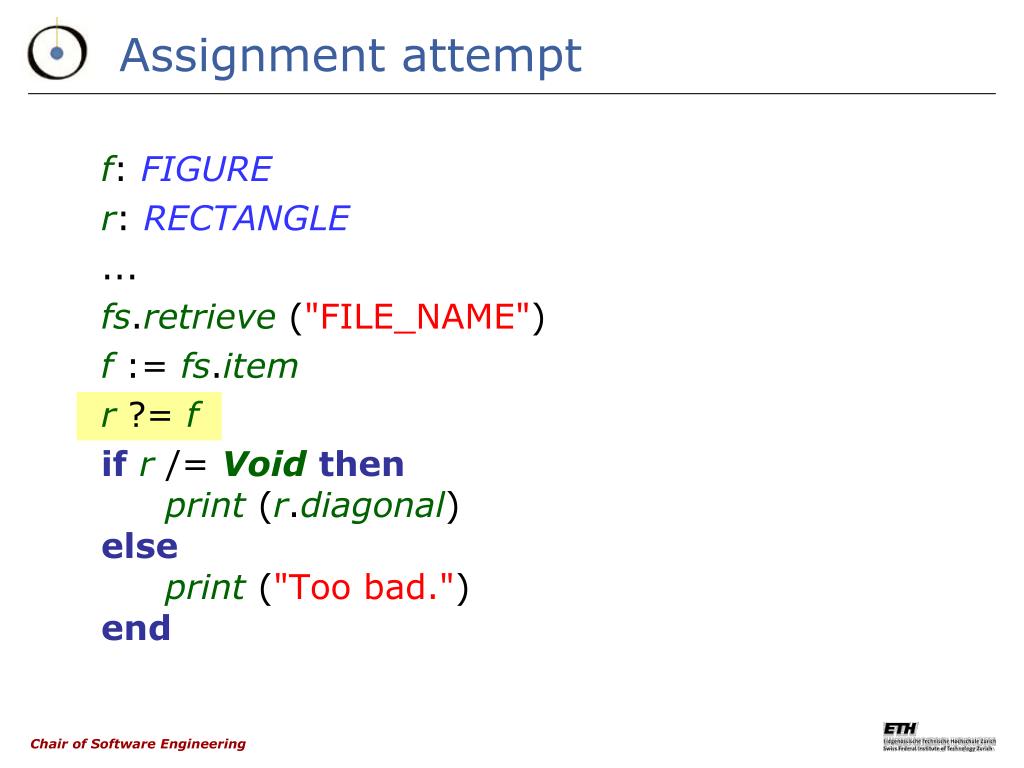

  41. Assignment attempt f: FIGURE r: RECTANGLE ... fs.retrieve ("FILE_NAME") f := fs.item r ?= f ifr /= Voidthenprint (r.diagonal)elseprint ("Too bad.")end

  42. Assignment attempt (cont’d) x ?= y with x: A • If y is attached to an object whose type conforms to A, perform normal reference assignment. • Otherwise, make x void.

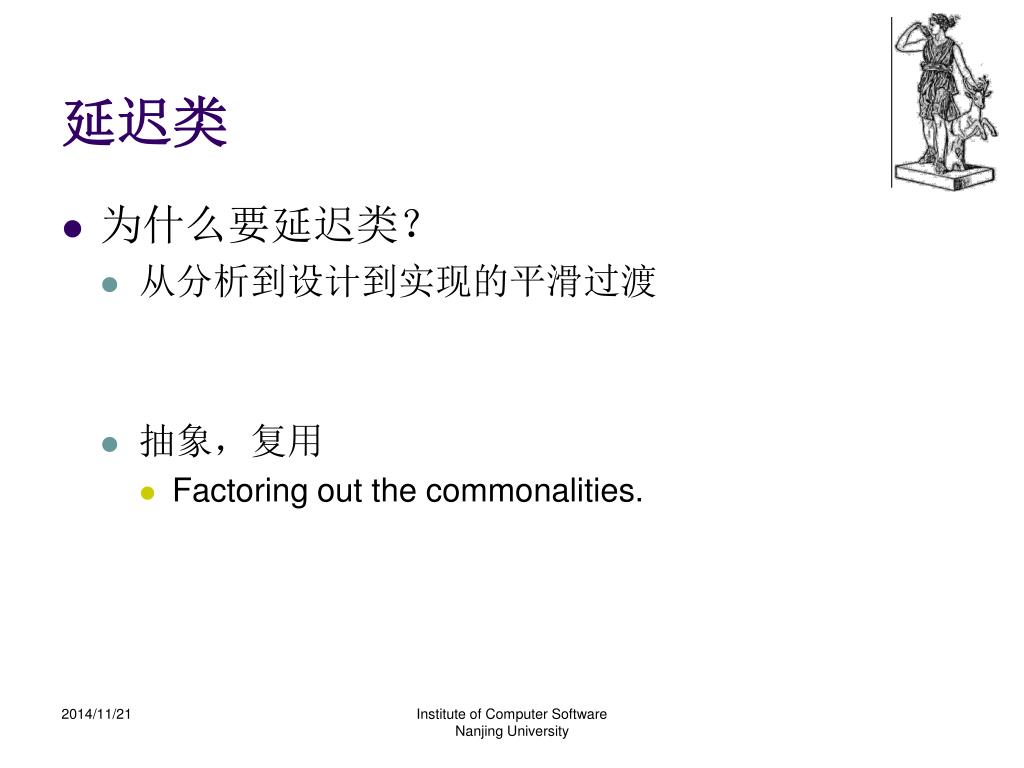

  43. 延迟类 • 为什么要延迟类？ • 从分析到设计到实现的平滑过渡 • 抽象，复用 • Factoring out the commonalities. Institute of Computer Software Nanjing University

  44. The need for deferred classes • In the scheme seen earlier: f: FIGURE; c: CIRCLE; p: POLYGON ... createc.make (...); createp.make (...) ... if ... then f := c else f := p end ... f.move (...); f.rotate (...); f.display (...); ... • How do we ensure that a call such as f.move (...) is valid even though there is no way to implement a general-purpose feature move for class FIGURE?

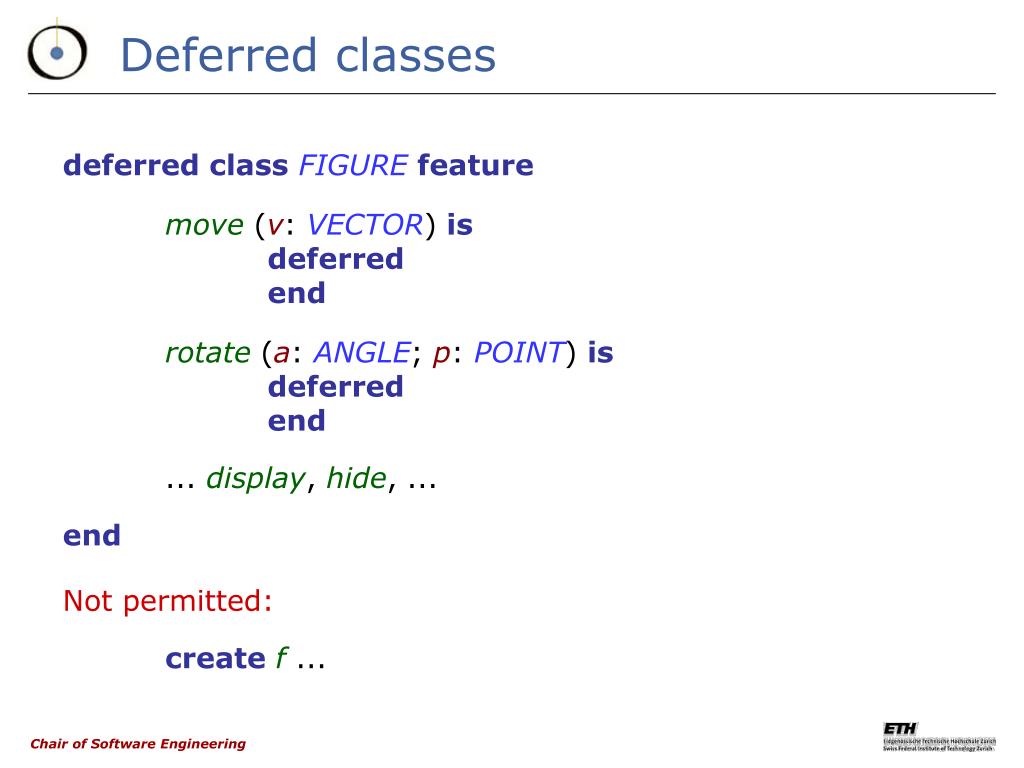

  45. Deferred classes deferred classFIGUREfeature move (v: VECTOR) is deferred end rotate (a: ANGLE; p: POINT) is deferred end ... display, hide, ... end Not permitted: createf ...

  46. Example hierarchy extent* display* barycenter* * rotate* … FIGURE … * * OPEN_ FIGURE CLOSED_ FIGURE perimeter* perimeter+ perimeter+ SEGMENT POLYLINE POLYGON ELLIPSE diagonal perimeter++ ... ... TRIANGLE RECTANGLE CIRCLE perimeter++ perimeter++ SQUARE

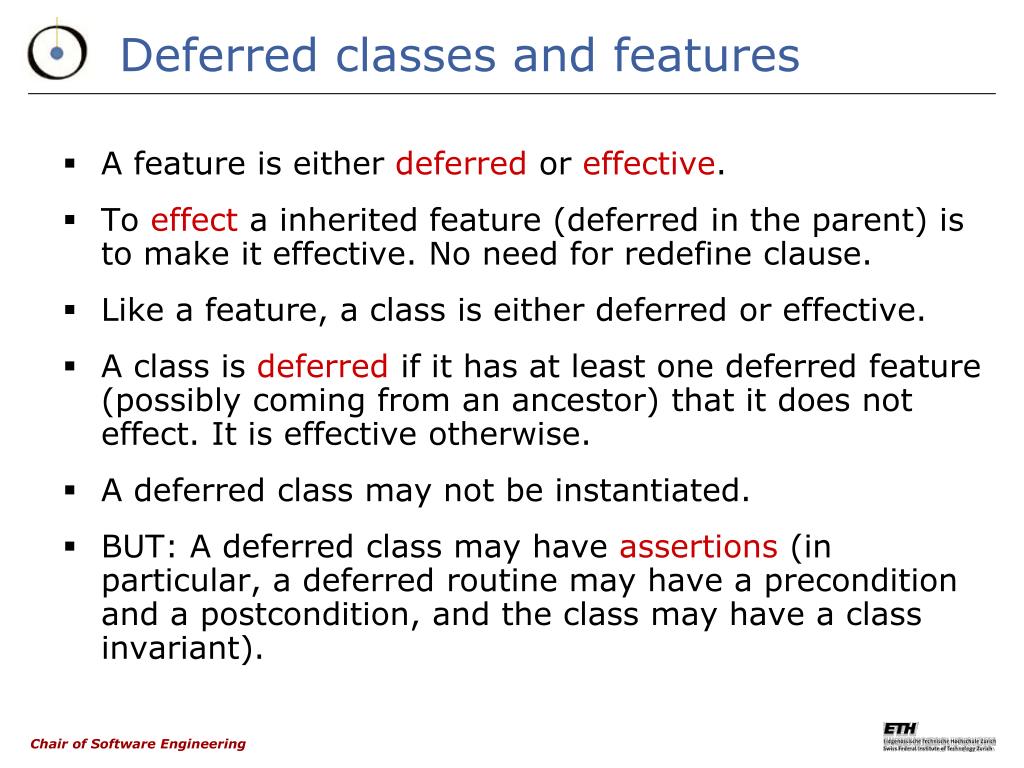

  47. Deferred classes and features • A feature is either deferred or effective. • To effect a inherited feature (deferred in the parent) is to make it effective. No need for redefine clause. • Like a feature, a class is either deferred or effective. • A class is deferred if it has at least one deferred feature (possibly coming from an ancestor) that it does not effect. It is effective otherwise. • A deferred class may not be instantiated. • BUT: A deferred class may have assertions (in particular, a deferred routine may have a precondition and a postcondition, and the class may have a class invariant).

  48. Deferred classes • Compare with Ada-Modula 2-Java interface/body separation: • May contain both deferred and non-deferred elements. • More than one implementation is possible. • Formal semantic specification (assertions).

  49. Table variants * TABLE * SEQUENTIAL_TABLE + + + ARRAY_TABLE LINKED_TABLE FILE_ TABLE

  50. Don’t call us, we’ll call you deferred classSEQUENTIAL_TABLE [G] inherit TABLE [G] feature has (x: G): BOOLEANis-- Doesxappear in table?do from start until afteror elseequal (item, x) loopforthendResult := notafterend
