SPEECH & SWALLOWING

1. 2011 Annual Membership Meeting SPEECH & SWALLOWING Anne G. Lefton, M.A. / CCC-SLP Nancy Sedat & Associates

2. “It feels like there’s something stuck in my throat!”

3. Swallowing • Transference of material from:

4. 3 Phases of Swallowing • Oral • Pharyngeal • Esophageal

5. Normal Swallow Sequence

6. Normal Swallow Sequence • In the mouth: • lips, teeth and tongue help prepare bolus (food mass) for further stages of swallowing. Lips Teeth Tongue Bolus

7. Normal Swallow Sequence • Access between the nasal cavity and mouth closes as bolus moves into pharynx (throat). Nasal Cavity Pharynx Bolus

8. Normal Swallow Sequence • Bolus is propelled  esophagus • As esophagus entrance opens: Epiglottis helps guard against access to the lungs. Epiglottis Vocal Cords Trachea/Airway to the Lungs Esophagus Entrance

9. Normal Swallow Sequence • The airway reopens and the esophagus entrance closes as muscle contractions move bolus toward stomach. To the Stomach

10. Swallowing Disorders

11. Swallowing Disorders / Dysphagia • Oral Stage • Difficulty controlling, forming, or transporting a cohesive bolus

12. Swallowing Disorders / Dysphagia • Pharyngeal Stage • Pooling or Stasis • Aspiration Illustrations by Elliot Sheltman from Follow the Swallow by Jo Puntil-Sheltman

13. Evaluation of Swallowing Function • Non-instrumental clinical evaluation • Instrumental assessment • Modified Barium Swallowing Study (MBSS) • aka: Videofluoroscopic Swallowing Examination • Fiberoptic Endoscopic Evaluation of Swallowing (FEES)

14. Thin Liquid Swallows

15. Puree Swallows

16. Cookie Swallows

17. Complications from Dysphagia • Pneumonia • Risk increases as dysphagia worsens • Choking • Longer Meal Times • Malnutrition • Dehydration • Weight Loss • Quality of Life • Loss of social interaction associated w/ eating

18. Treatment

19. What to Do? • Immediate remedies: • If coughing/choking, never inhibit cough • Heimlich Maneuver • Stack breathing • Portable suction • CoughAssist device[www.respironics.com] • CoughAssist™Mechanical In-Exsufflator

20. Safe Swallowing Strategies • Swallowing techniques • Don’t talk with mouth full • Repeat swallows • Alternate solids and liquids • One sip at a time • Sip ‘n’ tip straws • Smaller bites • Slowed rate • Supervision and cueing • Smaller, more frequent meals per day

21. Safe Swallowing Strategies [cont.] • Changes in food & liquid consistencies • Avoid problem textures and consistencies • Gel/powder liquid thickener • Diet Hierarchy • Steak consistency diet • Pot roast consistency diet • Meat loaf consistency diet • Pudding consistency diet • Cream consistency diet (tube feedings)

22. Safe Swallowing Strategies [cont.] • Positioning • Chin tuck • Behavioral changes • Reduce distractions • Eat more calories early in the day or when there is less fatigue

23. Safe Swallowing Strategies [cont.] • Pill management • Take with applesauce, yogurt, pudding, ice cream, or any other slippery medium • Cool Whip! • Long-necked bottles • Carbonated beverages • Crush with pharmacist’s consent

24. Alternative Methods of Nutrition

25. Feeding Tubes • G-tube goes into stomach through an opening in skin

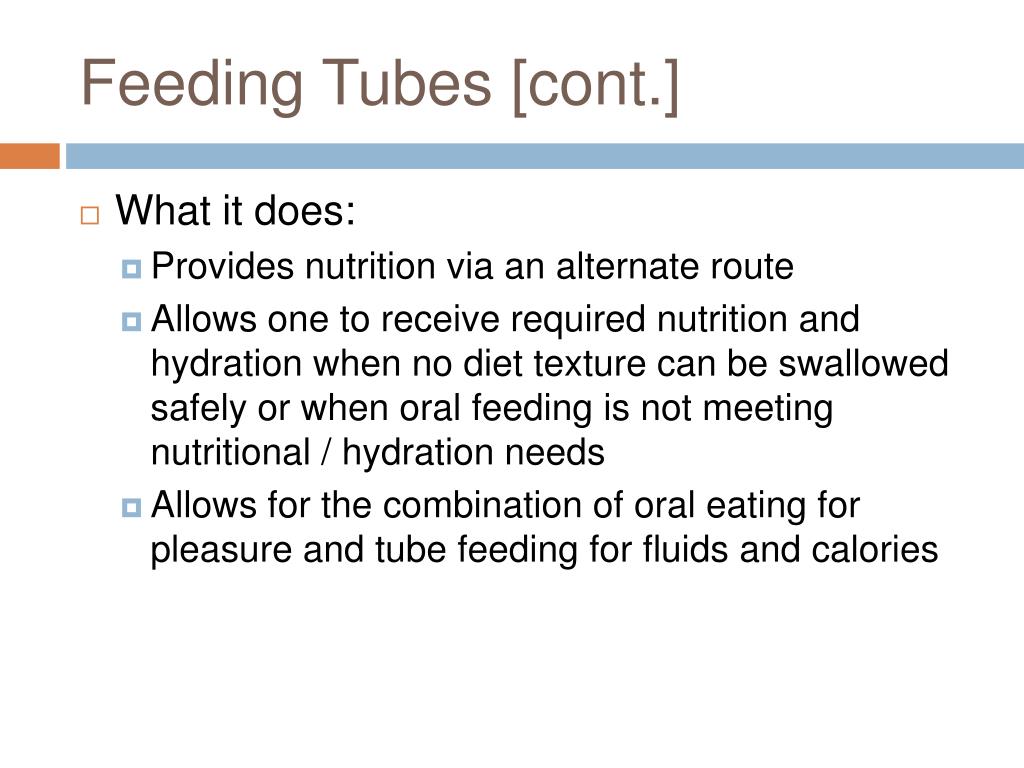

26. Feeding Tubes [cont.] • What it does: • Provides nutrition via an alternate route • Allows one to receive required nutrition and hydration when no diet texture can be swallowed safely or when oral feeding is not meeting nutritional / hydration needs • Allows for the combination of oral eating for pleasure and tube feeding for fluids and calories

27. Ataxia and Speech

28. Speech • “Normal” sounding speech requires perfect coordination of the following systems: • Articulatory system (e.g., lips, tongue, etc.) • Resonatory system (e.g., velum/soft palate) • Phonatory system (e.g., vocal cords) • Respiratory system (e.g., lungs)

29. Random Speech Facts… • Approx. 14 different sounds produced every second when we verbalize. • Over 100 different muscles coordinate during speech.

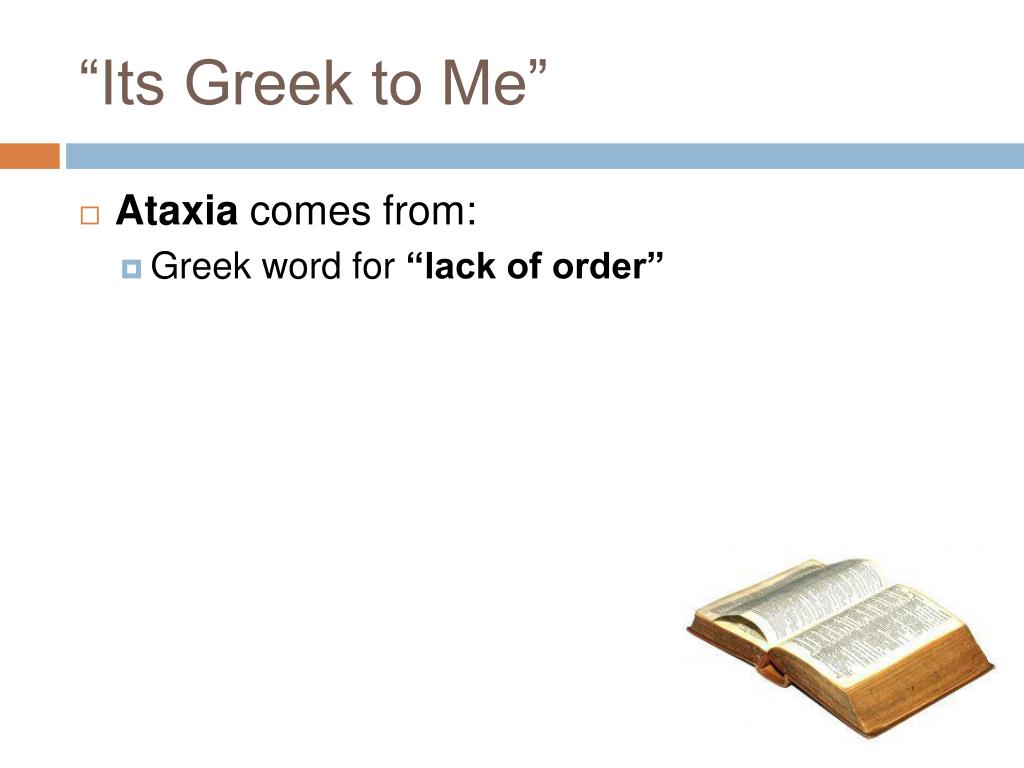

30. “Its Greek to Me” • Ataxia comes from: • Greek word for “lack of order”

31. Ataxic Dysarthria • Disorder of sensorimotor control for speech production that results from damage to cerebellum or to its input and output pathways

32. Effects of Ataxia on Speech

33. Effects of Ataxia on Speech • Articulation: disruption of the timing, force, range, and direction of movements. • Imprecise consonant articulation • Distorted vowels • Breakdown is most evident during longer strings of speech

34. Effects of Ataxia on Speech [cont.] • Resonance: • Hypernasality • Hyponasality • May occur due to timing errors between the muscles of the velum and the other muscles of articulation. Soft Palate / Velum

35. Effects of Ataxia on Speech [cont.] • Phonation: the sound of the voice • Harsh vocal quality • due to decreased muscle tone • Vocal tremor

36. Effects of Ataxia on Speech [cont.] • Respiration: • Uncoordinated movements of the respiratory muscles • Exaggerated movements • Excessive loudness • Paradoxical movements (different muscle groups work against each other) • Talking too quickly • Decreased vocal volume • Trying to talk on residual air

37. Most Common Speech Changes • Imprecise consonants • Excess and equal stress • Articulatory breakdown • Distorted vowels • Harsh vocal quality • Mono pitch/Mono loudness • Slowed speech rate

38. Treatment

39. What to do about it… • 1. Evaluation by a Speech-Language Pathologist • 2. Treatment • Exercises will target the affected system(s) • Improve breath support and coordination of breathing and speaking • Rate control techniques (e.g., finger/hand tapping to set the pace of appropriate syllable production) • Increase articulatory accuracy: over-articulate • Develop stress and intonation skills to regulate pitch and loudness

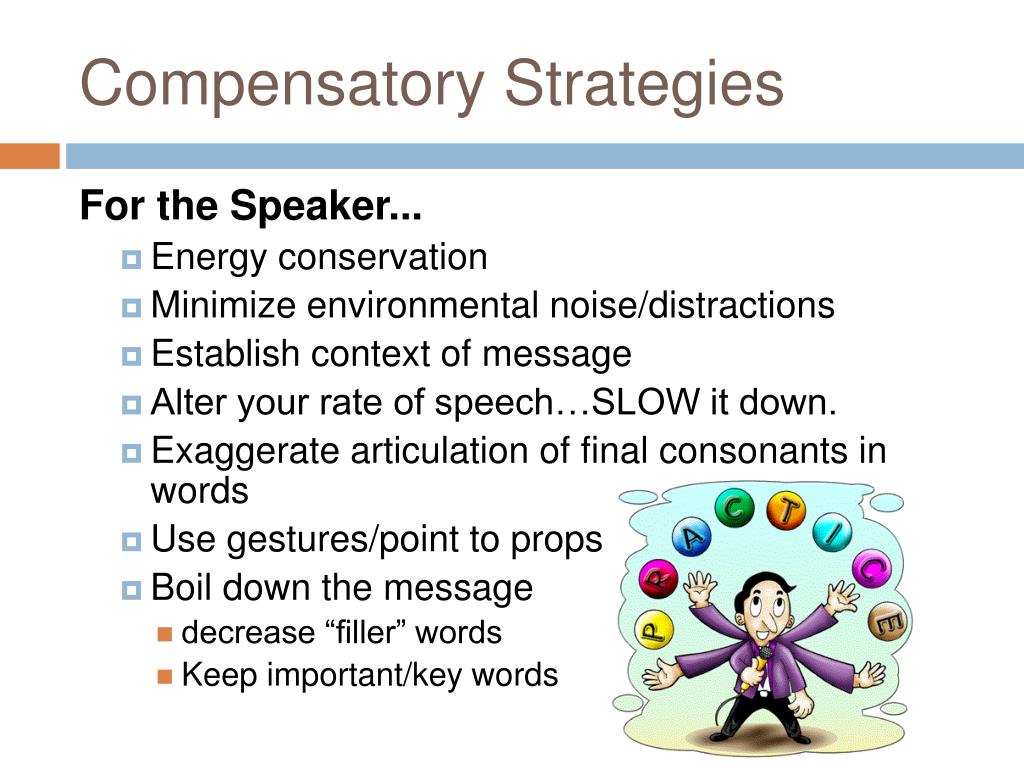

40. Compensatory Strategies For the Speaker... • Energy conservation • Minimize environmental noise/distractions • Establish context of message • Alter your rate of speech…SLOW it down. • Exaggerate articulation of final consonants in words • Use gestures/point to props • Boil down the message • decrease “filler” words • Keep important/key words

41. Compensatory Strategies For the Communication Partner… • Ascertain patients preferred strategy when not intelligible • Decrease the need for repetition  fatigue and frustration • Ask yes/no questions • Know the topic • Maintain eye contact • Give undivided attention • Don’t interrupt or finish sentences • Let the speaker know the parts of the message you did not understand so s/he will not have to repeat the entire message. • Patience

42. Augmentative/Alternative Communication (AAC) • Low tech • Communication board • Alphabet board • Phrase board • High tech • Speech generating devices • An SLP can help explore your options • Other • Voice amplification • Chattervox OR SoniVox

43. Take Home Message With regard to speech or swallowing, there is always a way to keep you functioning at the highest level possible.

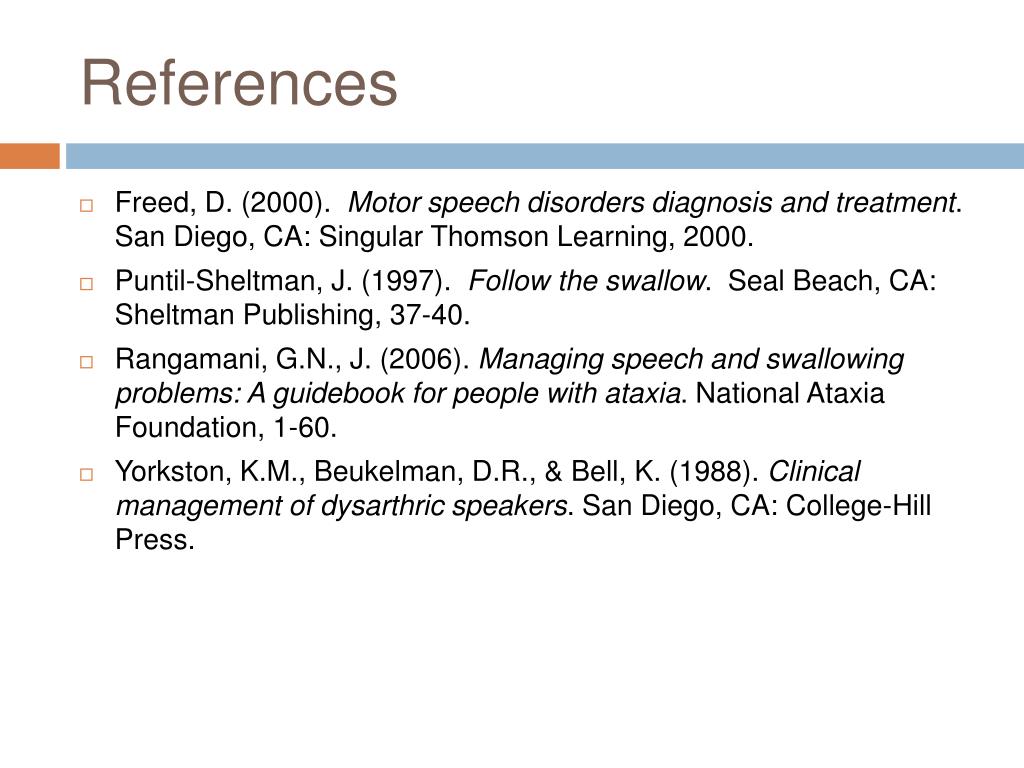

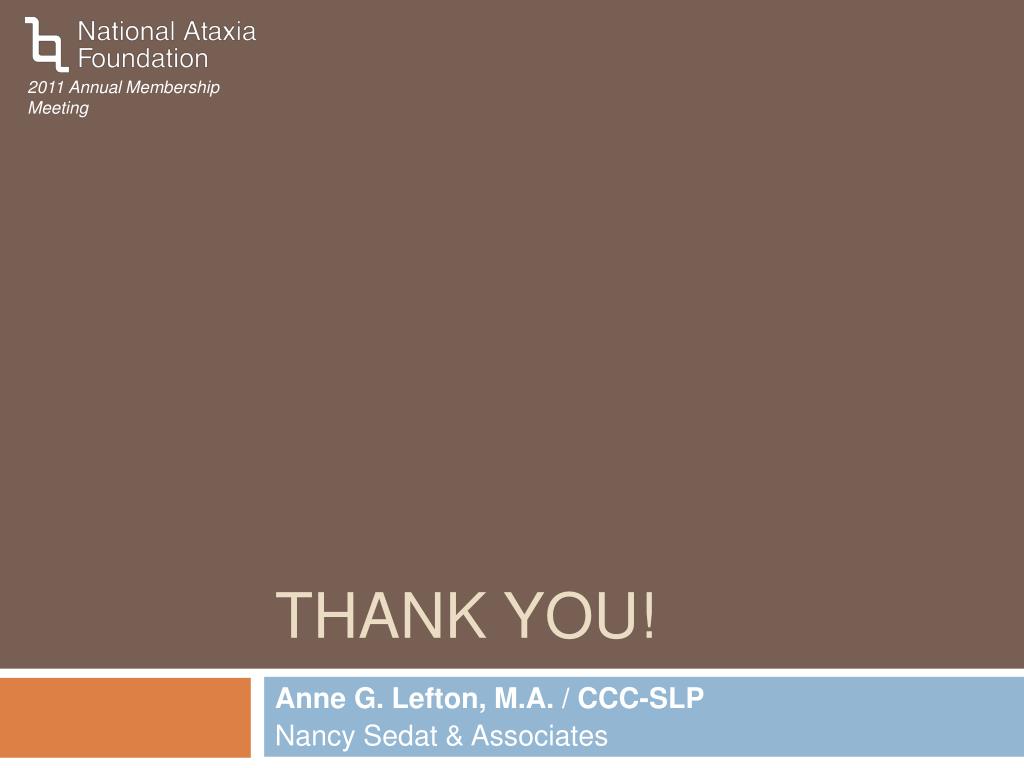

44. 2011 Annual Membership Meeting THANK YOU! Anne G. Lefton, M.A. / CCC-SLP Nancy Sedat & Associates
