  1. Building the 5.5 HP Tecumseh Spark Plug, Magneto, Magneto Pin/Bushing, Flywheel.

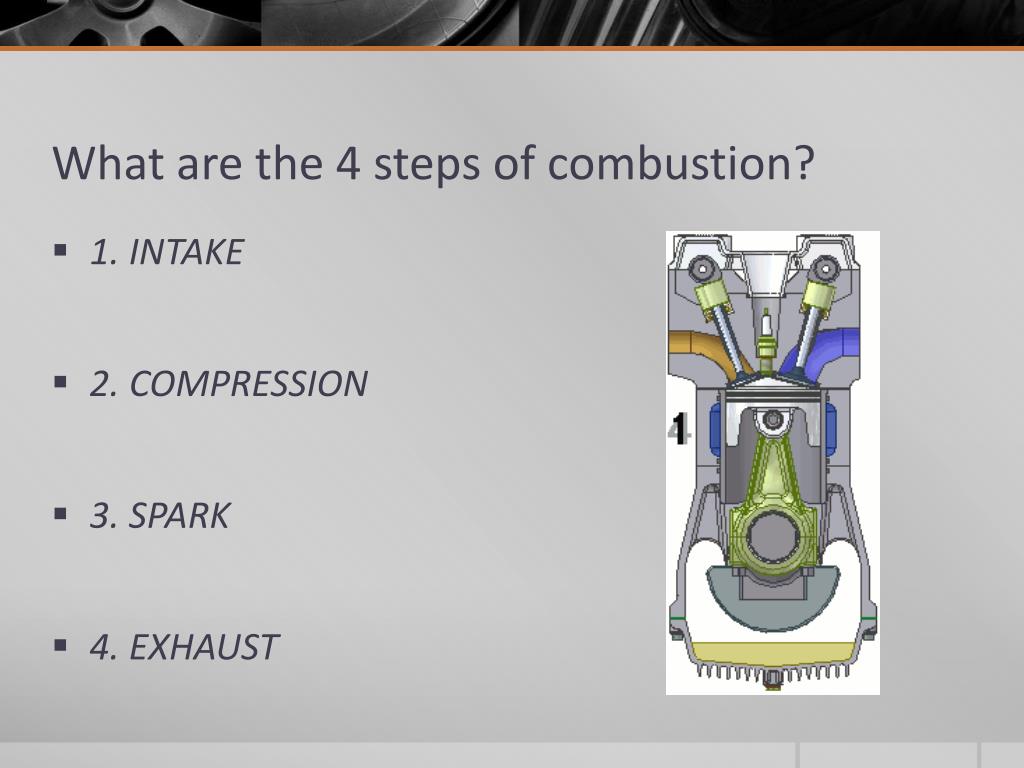

  2. What are the 4 steps of combustion? • 1. INTAKE • 2. COMPRESSION • 3. SPARK • 4. EXHAUST

  3. The 4 Steps of Combustion

  4. Crankshaft

  5. Cylinder Head

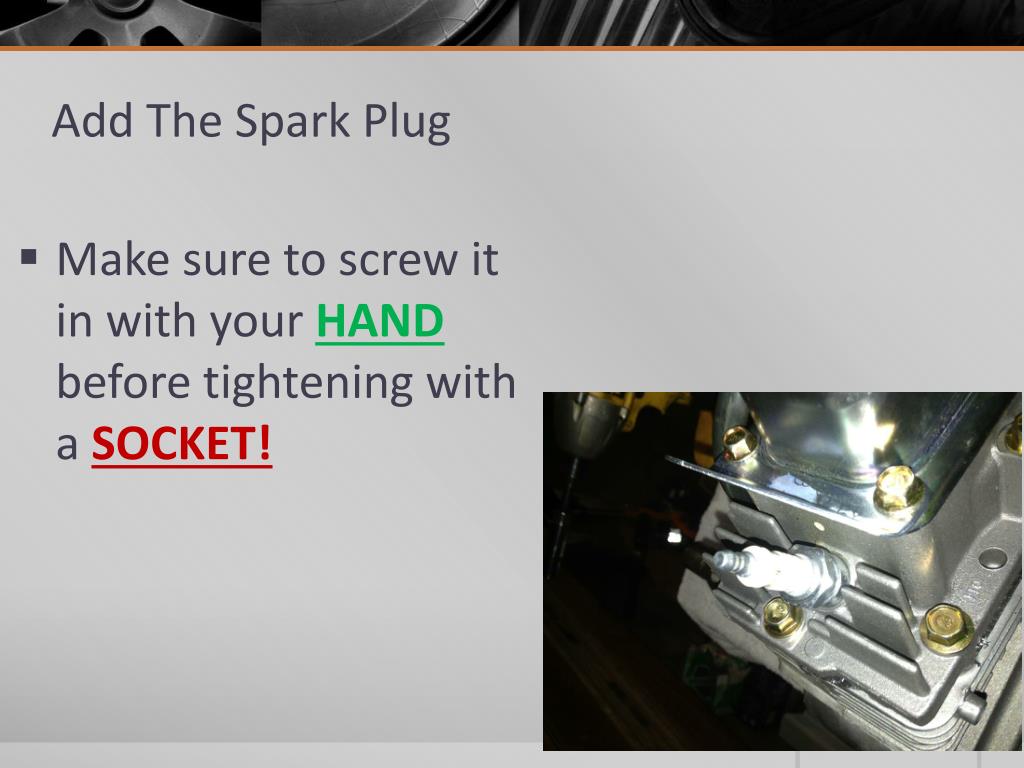

  6. Add The Spark Plug • Make sure to screw it in with your HAND before tightening with a SOCKET!

  7. Oil Pressure Sensor • Make sure the oil pressure sensor is lined up correctly and fastened down. • What does this part do??

  8. Flywheel Pin and Bushing • 1. Slip the flywheel bushing over the end of the crankshaft output shaft. • 2. LIGHTLY tap the flywheel retaining pin into the groove as shown • What does this part do??

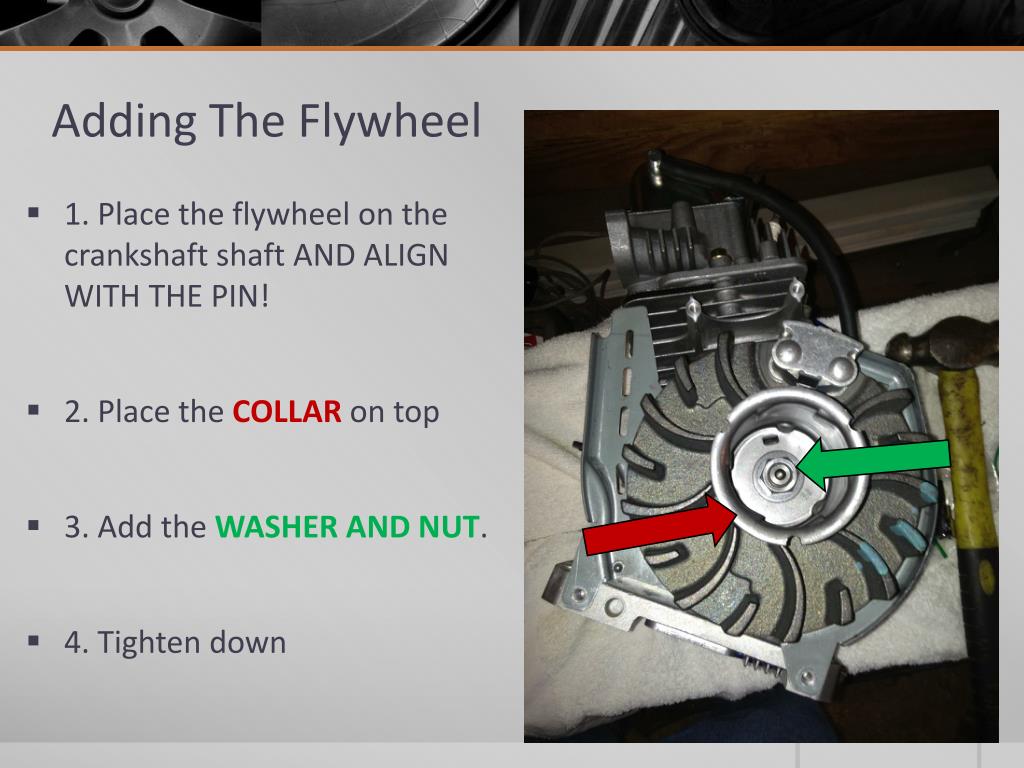

  9. Adding The Flywheel • 1. Place the flywheel on the crankshaft shaft AND ALIGN WITH THE PIN! • 2. Place the COLLAR on top • 3. Add the WASHER AND NUT. • 4. Tighten down

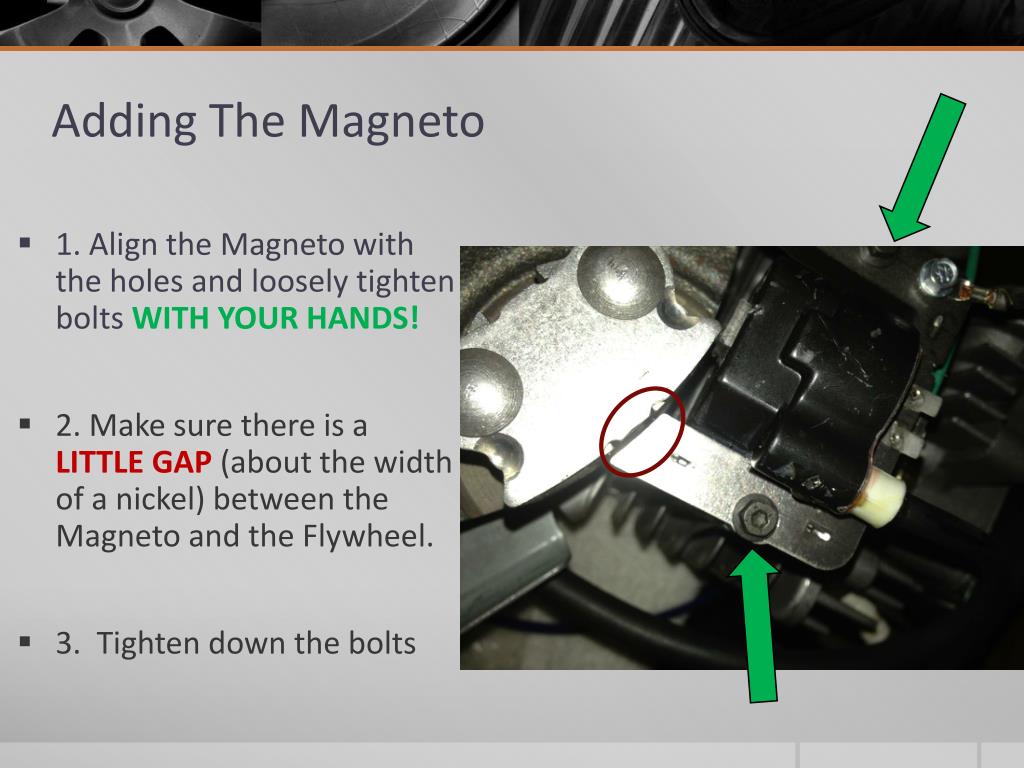

  10. Adding The Magneto • 1. Align the Magneto with the holes and loosely tighten bolts WITH YOUR HANDS! • 2. Make sure there is a LITTLE GAP (about the width of a nickel) between the Magneto and the Flywheel. • 3. Tighten down the bolts

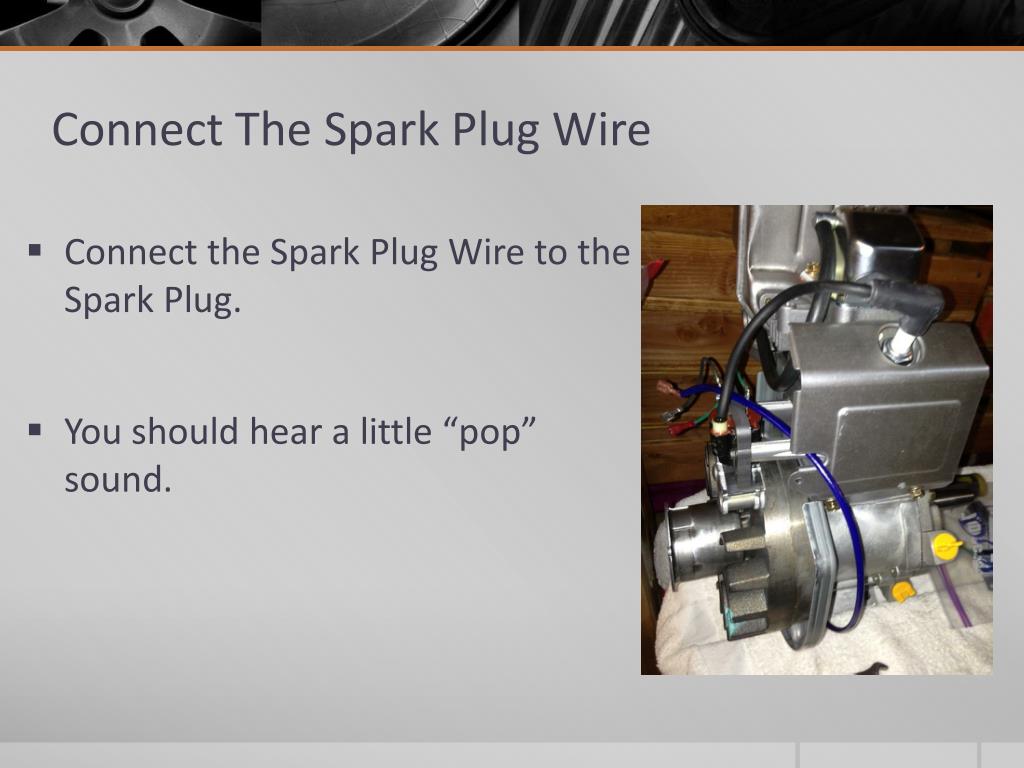

  11. Connect The Spark Plug Wire • Connect the Spark Plug Wire to the Spark Plug. • You should hear a little “pop” sound.

  12. The 4 Steps of Combustion

  13. HI FIVE! • GREAT TEAMWORK SO FAR ON THE BUILD! Crankcase!! Cylinder Head!! IGNITION!!!
