  1. CO2 transfer lines on YB0 • Review held on the 17th of April was successful and this project has been endorsed as baseline. Thanks to all of you for this effort ! • Committee report outlined a few issues. In particular: • Examining the possibilities of connecting the independent vacuum of the two jacketed lines at the connection box. • It is much preferable if the vacuum jacketed transfer line can be continued into the inside of the vacuum tank. • The currently scheduled windows for verifying design and for installation are too late/short. The Master schedule and coherent placement of order/delivery are to be adapted accordingly in cooperation with TC. …the revision should include reasonable contingency. N.Bacchetta

  2. Connecting vacuum at the intermediate junction box • Seems do-able within the envelope of the present junction box • It will be an option in the new offer from DeMaCo PP1 -6 intermediate junction box N.Bacchetta

  3. Pipes ending inside the vac-tank • Top sectors have no issues. PP1 +5 N.Bacchetta

  4. Vactank surface Vactank surface Vactank surface Vactank surface PP1+5C PP1+6A +5B EB/HB 5/6 Pixel Inlet Cold Dry Gas Inlet Thermal Screen Inlet Thermal screen Outlet PP1 +5 N.Bacchetta

  5. CO2 transfer lines on YB0 PP1 +14C is the most challenging N.Bacchetta

  6. Create a later window for installation of CO2 pipes on YB0- Z+ installation (Dec 6) here Dates from: CMS_LS1_20130410.mpp Before installation of YE-4 seems the best option (a few days staggering with +Z installation window): Skip task “Install 2 sets of CO2 pipes (including supports) on -Z” (no gain) Skip task “YB0- restore vac-tank environment” or partially skip it (gain of up to 2 weeks) Scaffolding from YE-1 removed (currently Dec 6, 2013) Move YBs –Z away from vac-tank (new), (loss of 2 days) Install new CO2 pipes –Z (new), (loss of 5 days) Restore vac-tank environment, (loss of up to 2 weeks) Move YBs –Z on vac-tank and lock (new), (loss of 2 days) At this point back to same sequence as current schedule starting with “Move YE-1-2-3 towards IP”, 3 days 2 weeks total loss

  7. Where we stand • Need to finish the technical specifications (now ready to be circulated) • Need to finalize the end points and specially find a decent solution for PP1 +14 • Agree on a later installation for the –Z end • Once the final offer is received, decide on the vacuum connection at the junction box. • Define/specify the sample piece for welding inspection in order to qualify DeMaCo work. N.Bacchetta

  8. spare N.Bacchetta

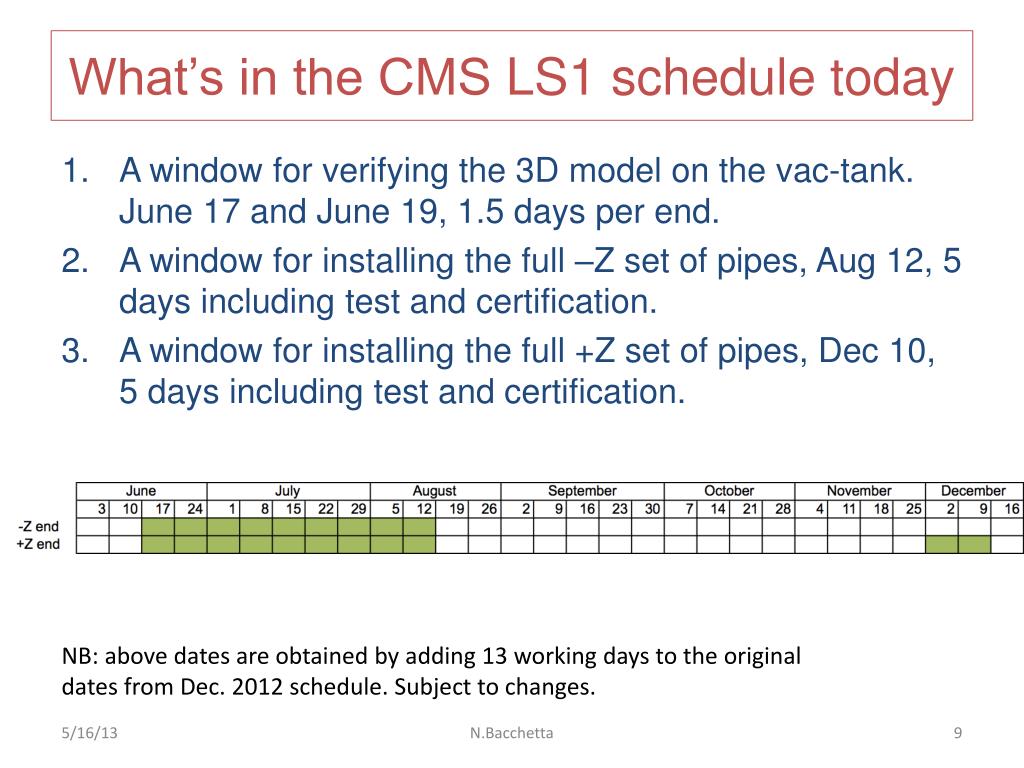

  9. What’s in the CMS LS1 schedule today • A window for verifying the 3D model on the vac-tank. June 17 and June 19, 1.5 days per end. • A window for installing the full –Z set of pipes, Aug 12, 5 days including test and certification. • A window for installing the full +Z set of pipes, Dec 10, 5 days including test and certification. NB: above dates are obtained by adding 13 working days to the original dates from Dec. 2012 schedule. Subject to changes. N.Bacchetta
