  1. Circuits

  2. Logic circuits for digital systems may be • Combinational Circuits • Sequential Circuits

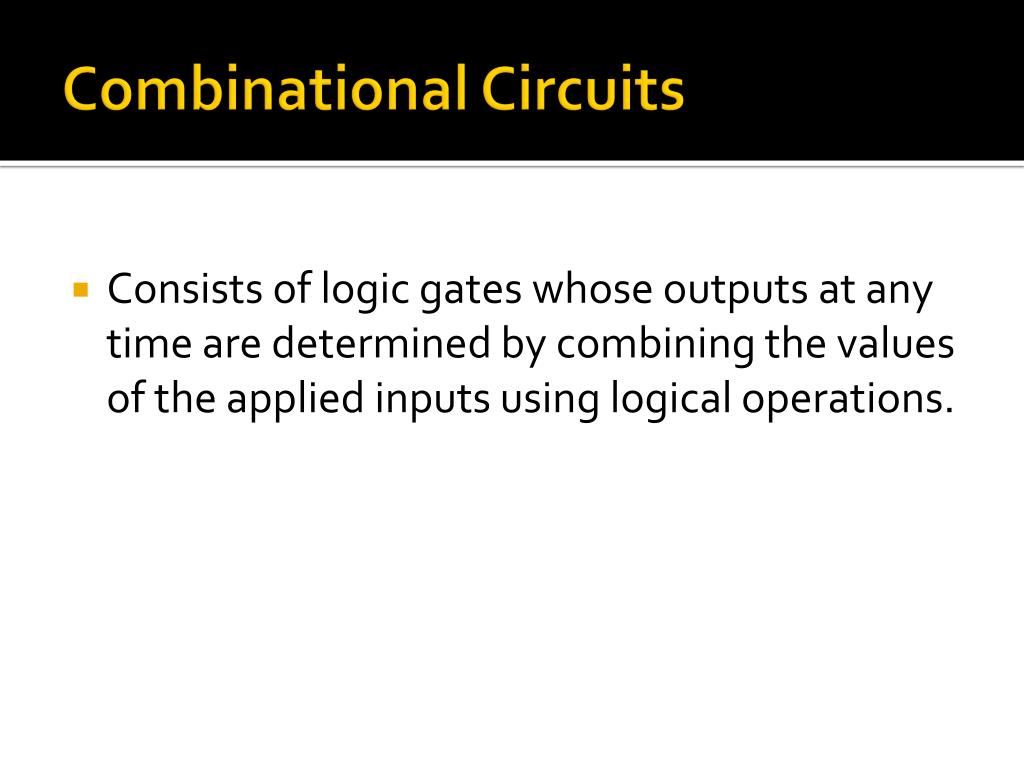

  3. Combinational Circuits • Consists of logic gates whose outputs at any time are determined by combining the values of the applied inputs using logical operations.

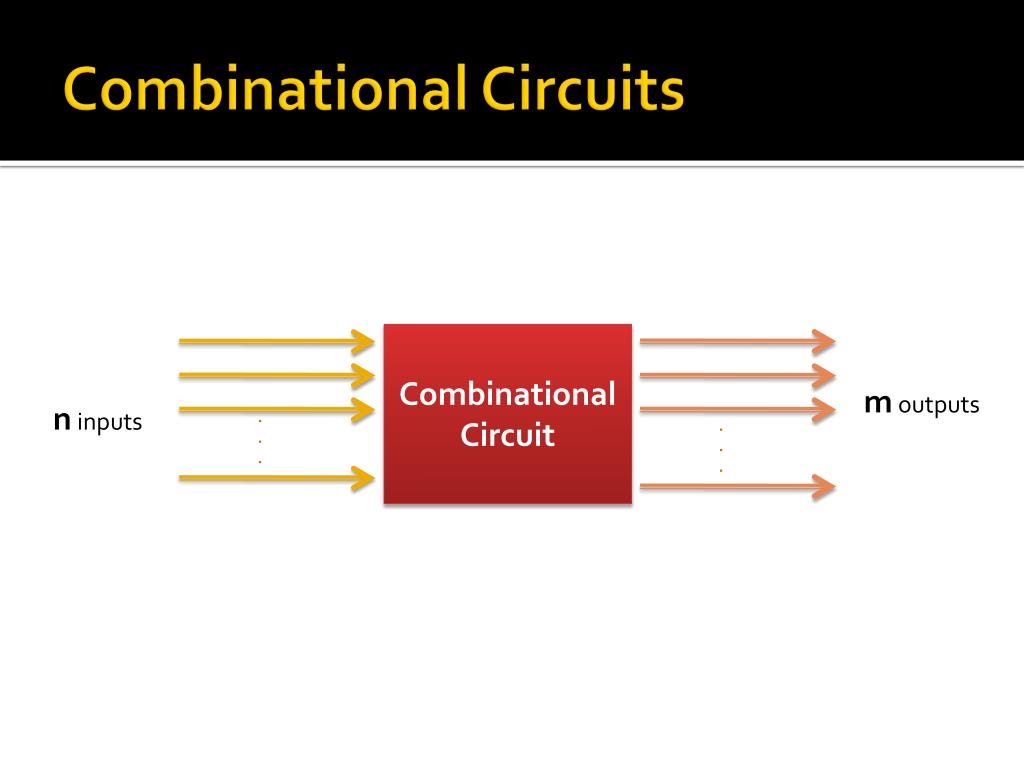

  4. Combinational Circuits Combinational Circuit m outputs n inputs ... ...

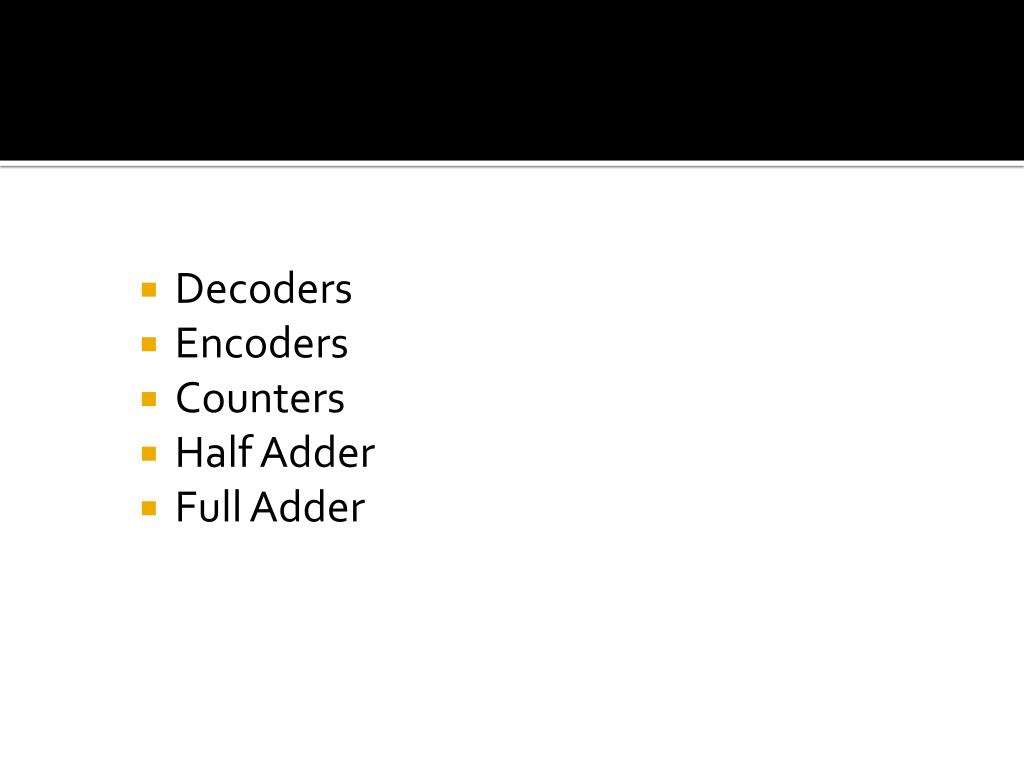

  5. Decoders • Encoders • Counters • Half Adder • Full Adder

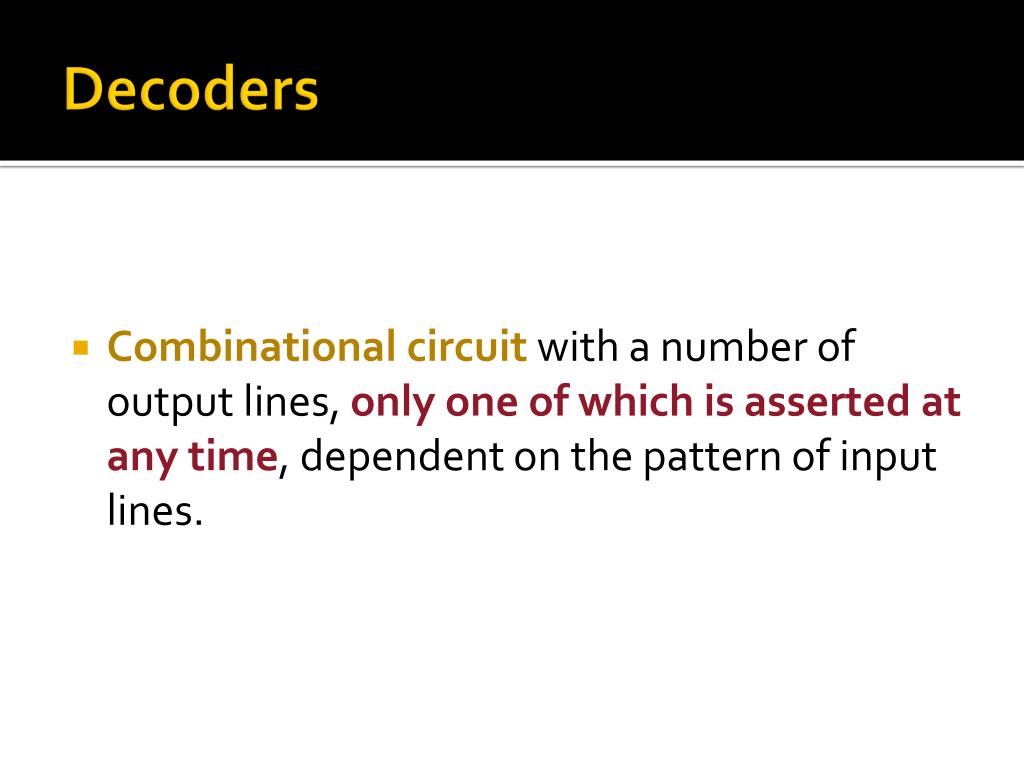

  6. Decoders • Combinational circuit with a number of output lines, only one of which is asserted at any time, dependent on the pattern of input lines.

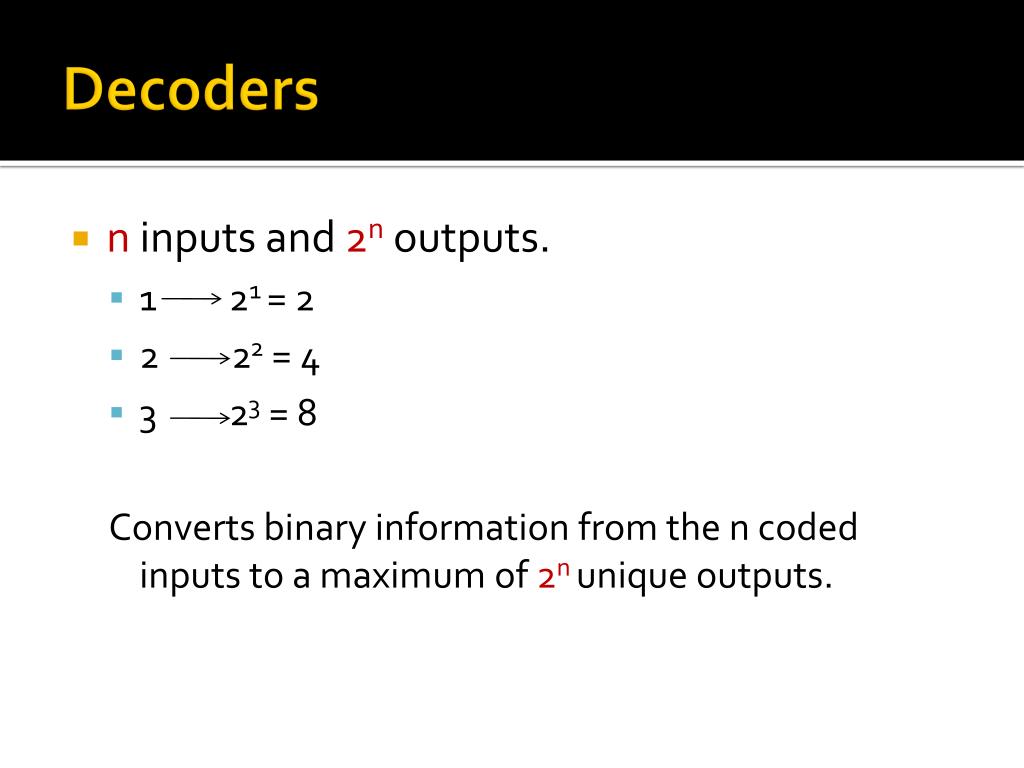

  7. Decoders • n inputs and 2n outputs. • 1 21 = 2 • 2 22 = 4 • 3 23 = 8 Converts binary information from the n coded inputs to a maximum of 2n unique outputs.

  8. 1 to 2 line Decoder

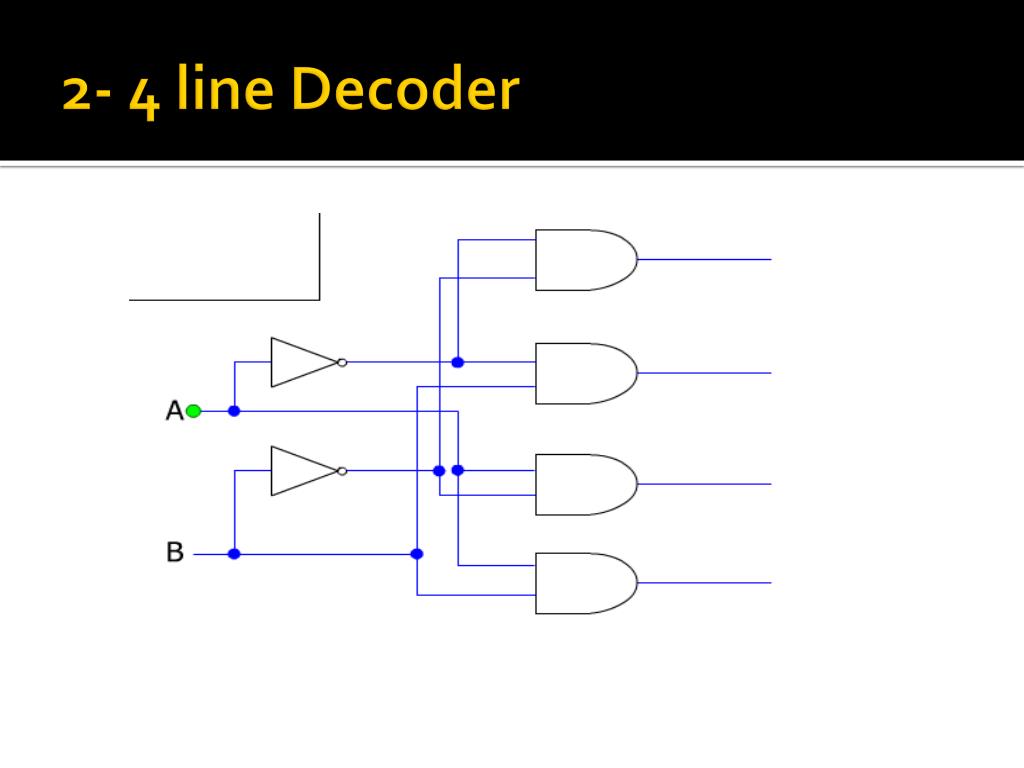

  9. 2- 4 line Decoder

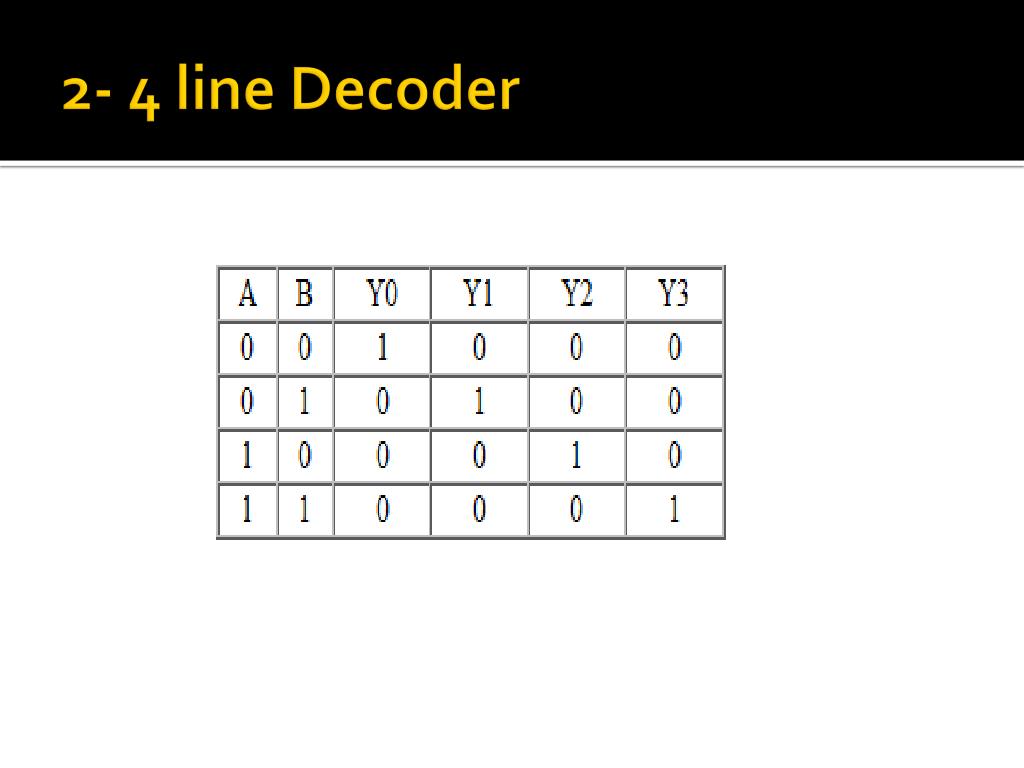

  10. 2- 4 line Decoder

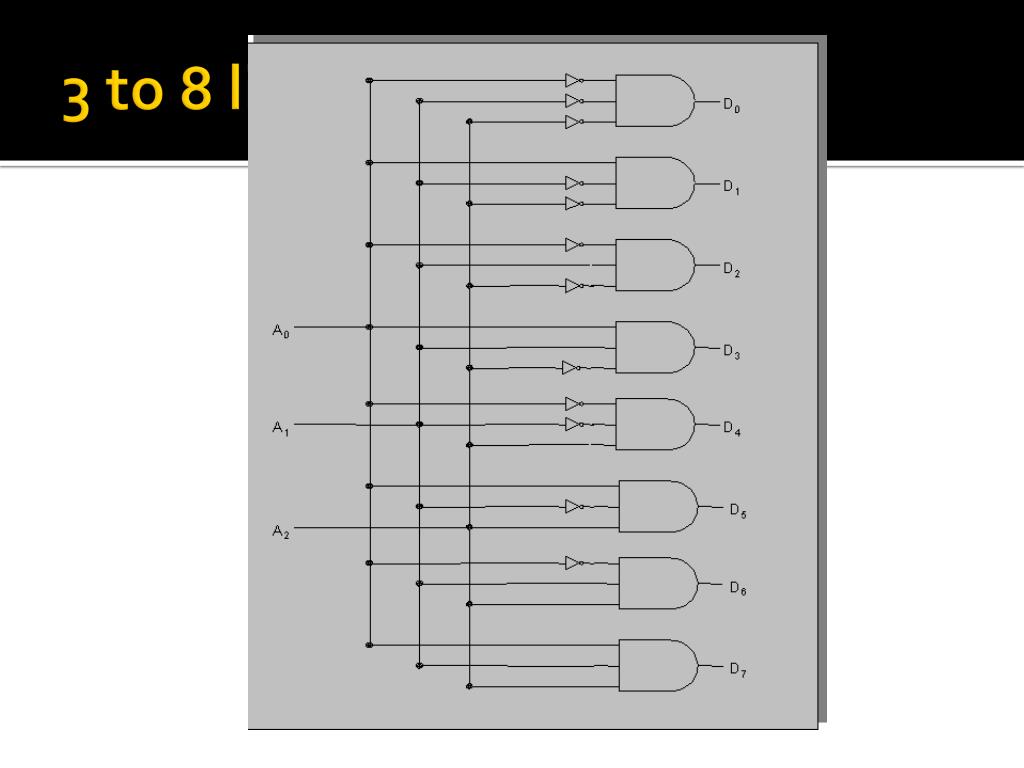

  11. 3 to 8 line Decoder

  12. Logic Symbol for 3-line-to-8-line decoder

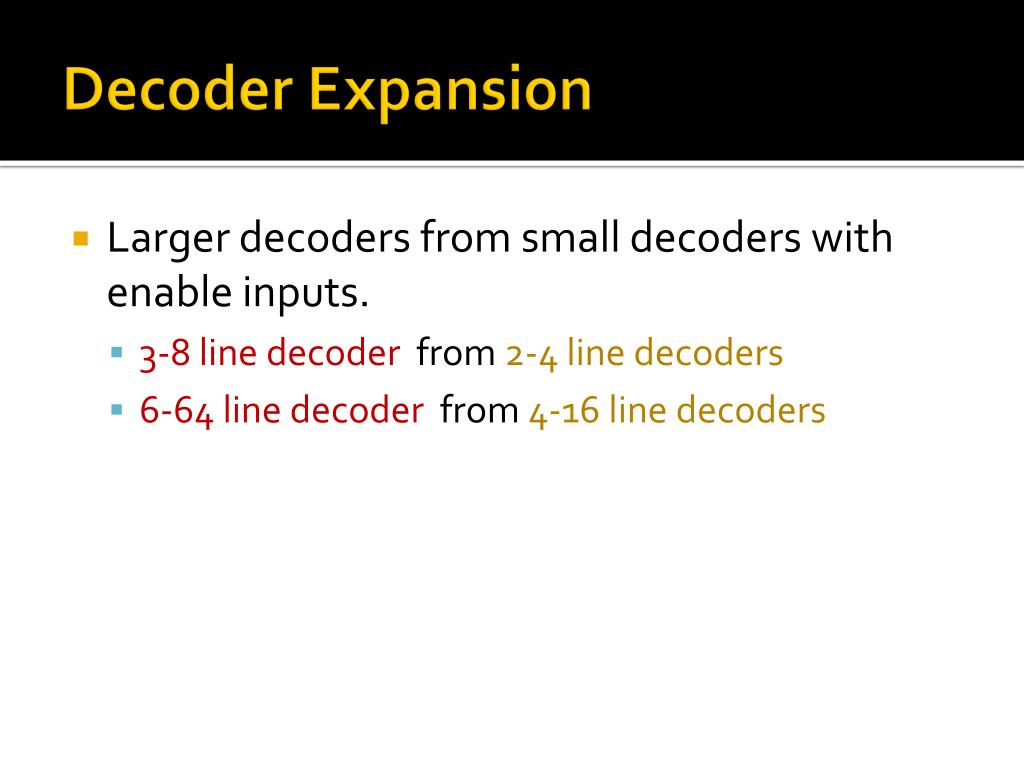

  13. Decoder Expansion • Larger decoders from small decoders with enable inputs. • 3-8 line decoder from 2-4 line decoders • 6-64 line decoder from4-16 line decoders

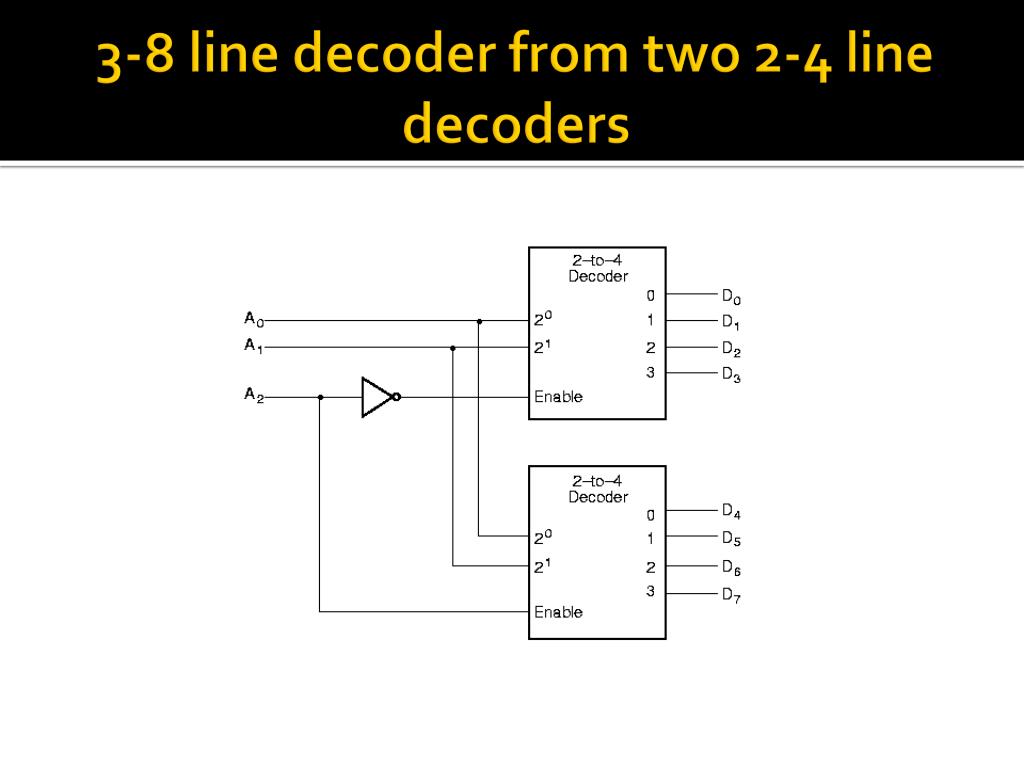

  14. 3-8 line decoder from two 2-4 line decoders

  15. 3-to-8-line decoder constructed from two 2-to-4-line decoders • The MSB is connected to the enable inputs • if A2=0, upper is enabled; if A2=1, lower is enabled.

  16. Encoders • Combinational logic circuit which performs reverse of decoder functions. • Accepts an active level on one of its inputs and converts to a coded output. • The process of converting familiar symbols or numbers to a coded format is called encoding.

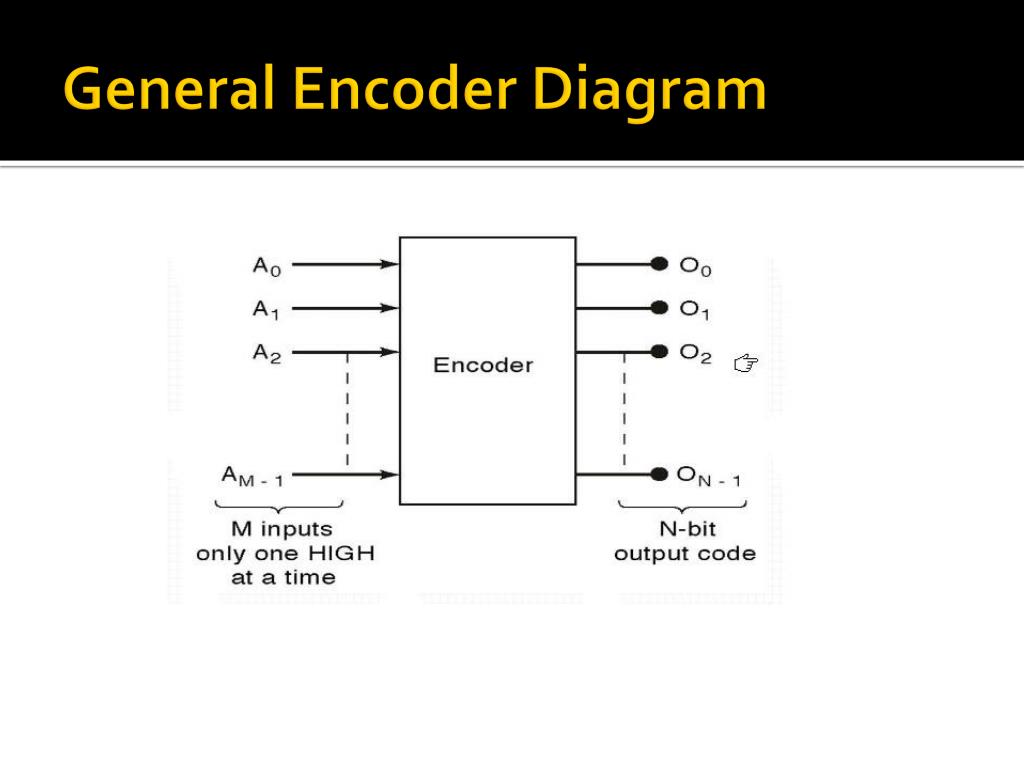

  17. General Encoder Diagram

  18. 8-3 line Encoder

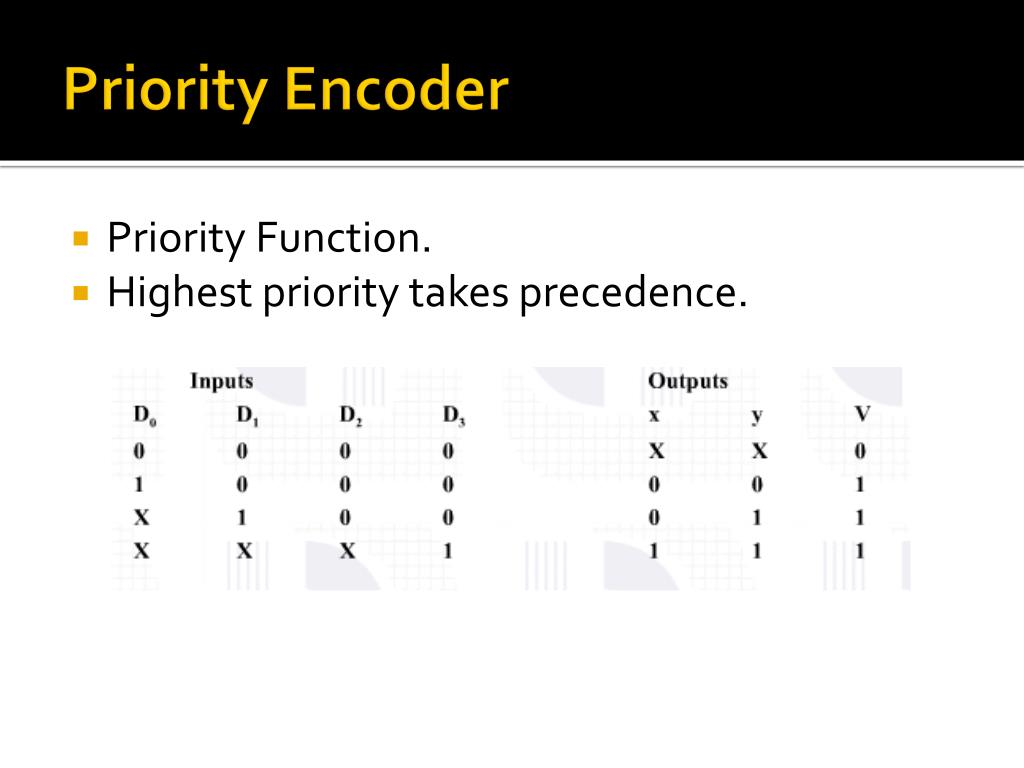

  19. Priority Encoder • Priority Function. • Highest priority takes precedence.
