  1. Trimble NetR8 GNSS Reference Receiver October 2008

  2. What are the Primary Applications of a Geodetic Reference Receiver? • Campaign • Collect high quality GNSS data for post processing • Portable Base Station • Produce RTK correctors for broadcast via radio and Internet • Continuously Operating Reference Station • Sensor for central software • Scientific Reference Station • Collect various information for specialized studies

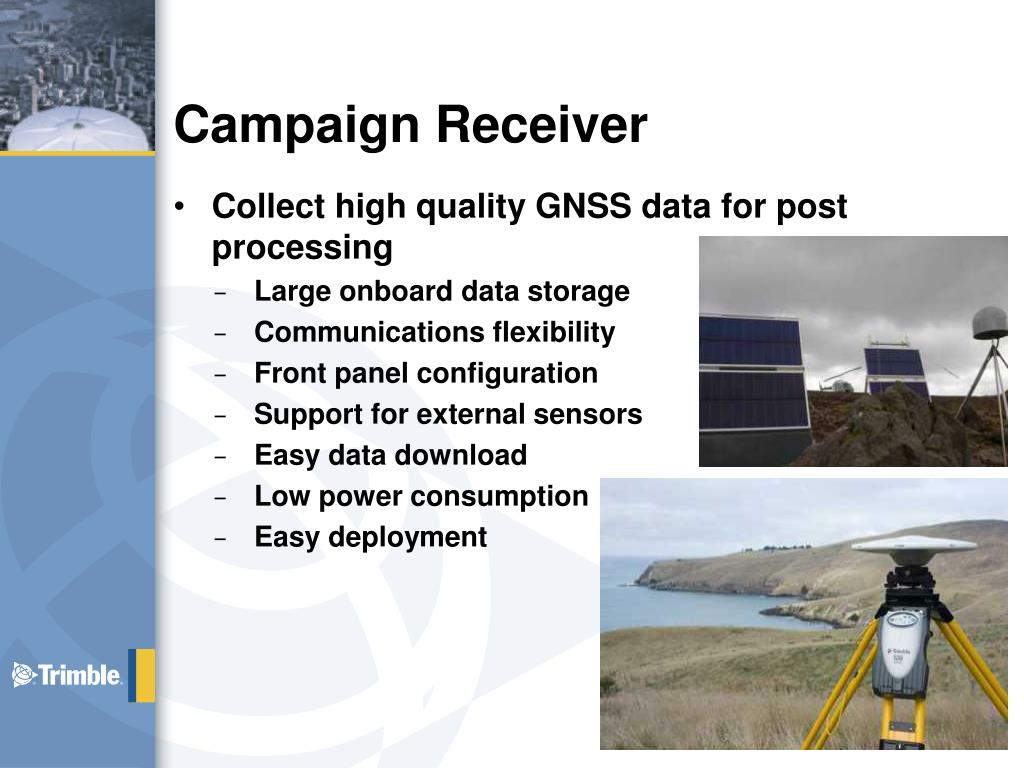

  3. Campaign Receiver • Collect high quality GNSS data for post processing • Large onboard data storage • Communications flexibility • Front panel configuration • Support for external sensors • Easy data download • Low power consumption • Easy deployment

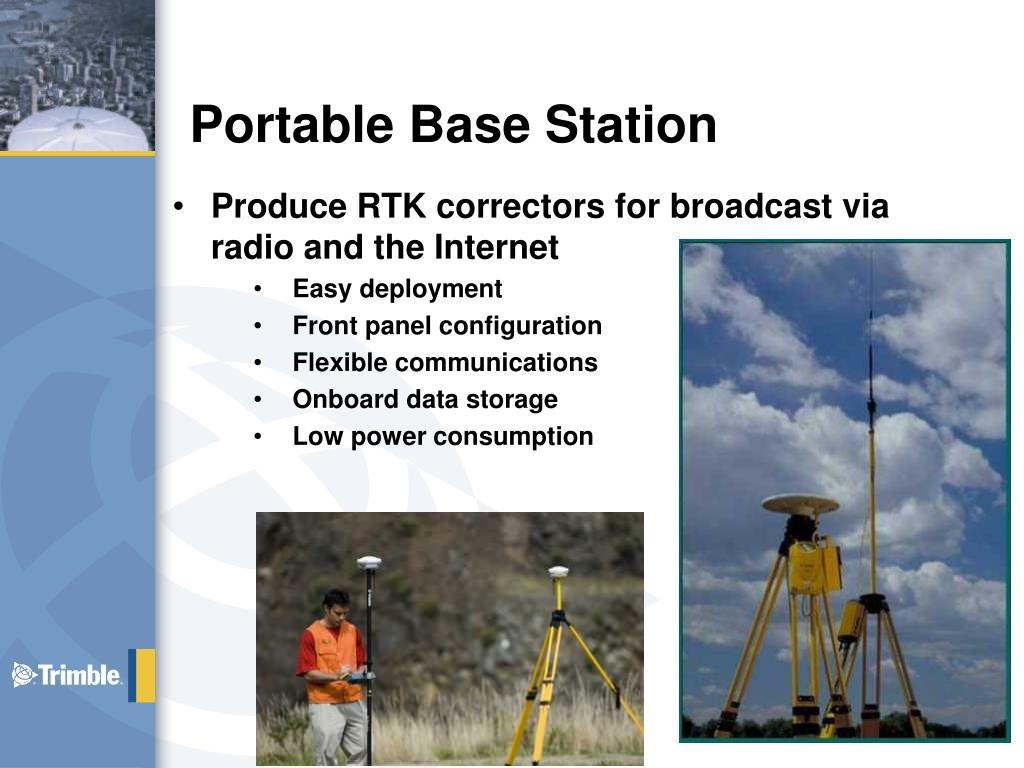

  4. Portable Base Station • Produce RTK correctors for broadcast via radio and the Internet • Easy deployment • Front panel configuration • Flexible communications • Onboard data storage • Low power consumption

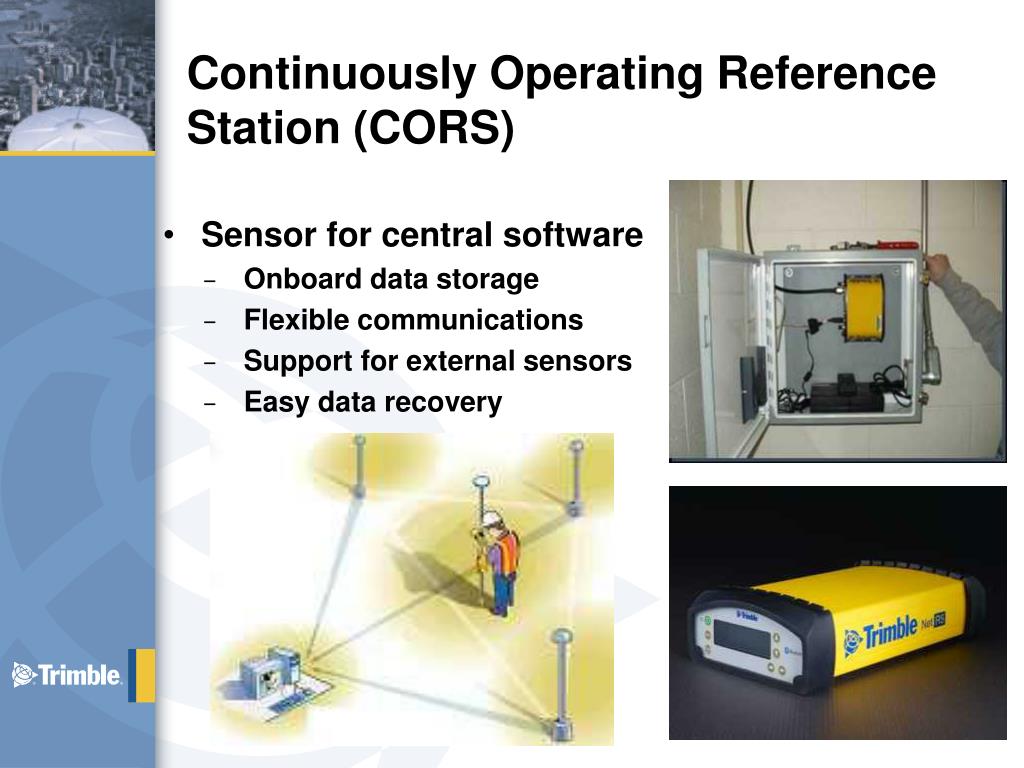

  5. Continuously Operating Reference Station (CORS) • Sensor for central software • Onboard data storage • Flexible communications • Support for external sensors • Easy data recovery

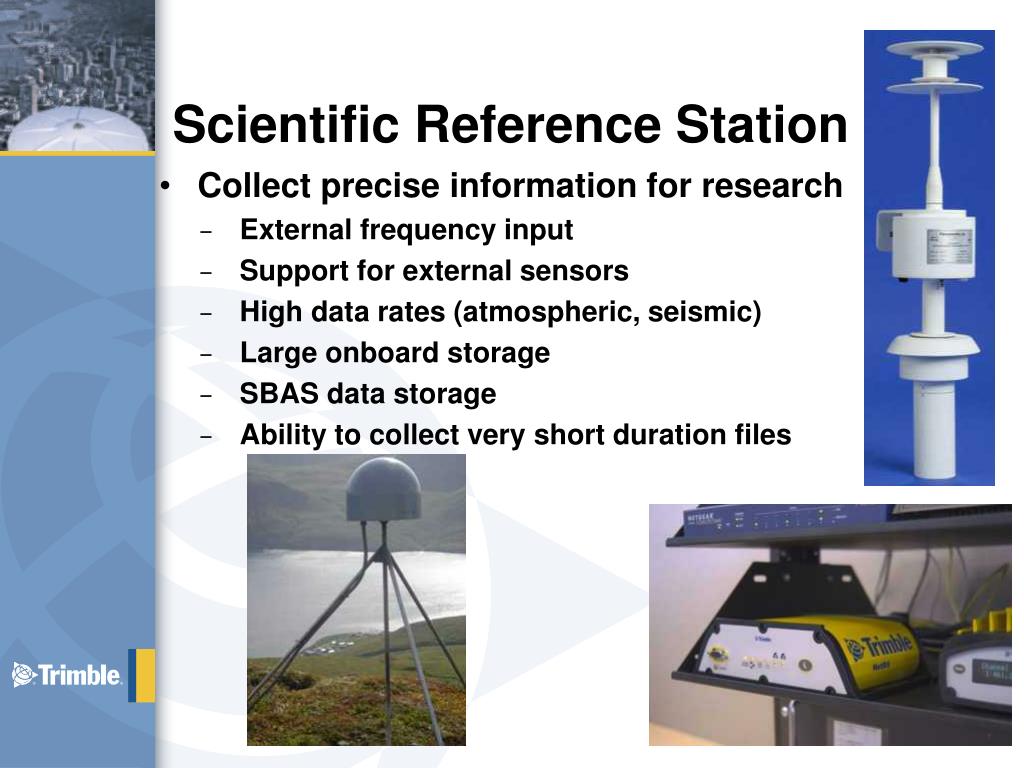

  6. Scientific Reference Station • Collect precise information for research • External frequency input • Support for external sensors • High data rates (atmospheric, seismic) • Large onboard storage • SBAS data storage • Ability to collect very short duration files

  7. Can One Receiver Perform all of these Functions?

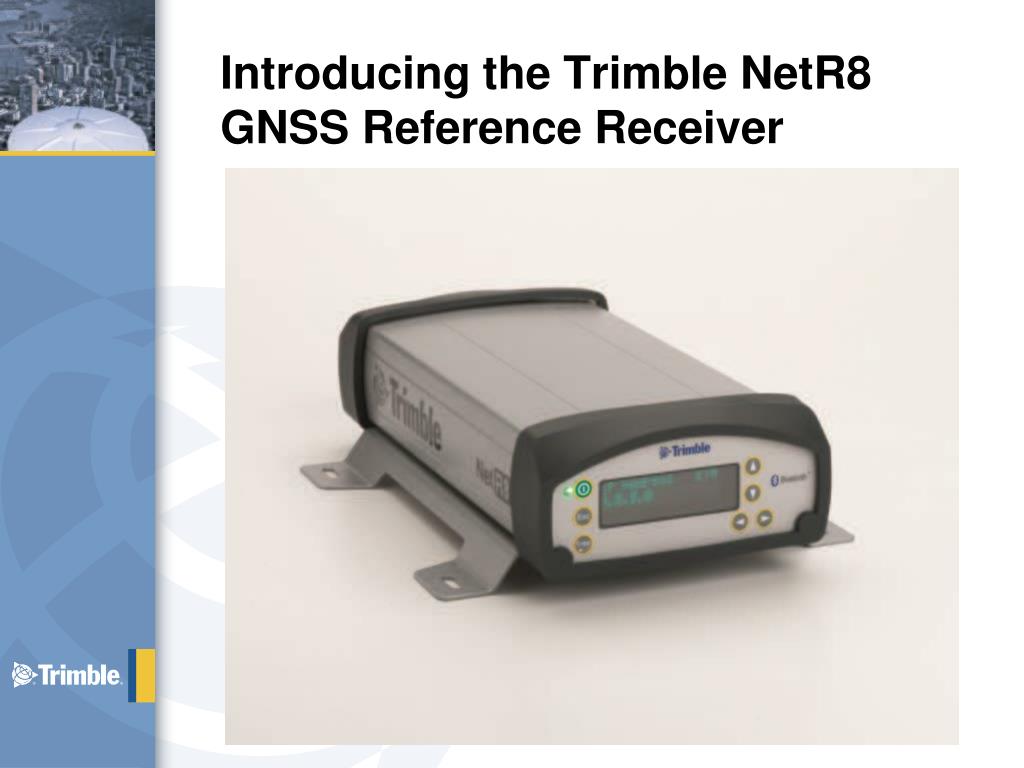

  8. Introducing the Trimble NetR8 GNSS Reference Receiver

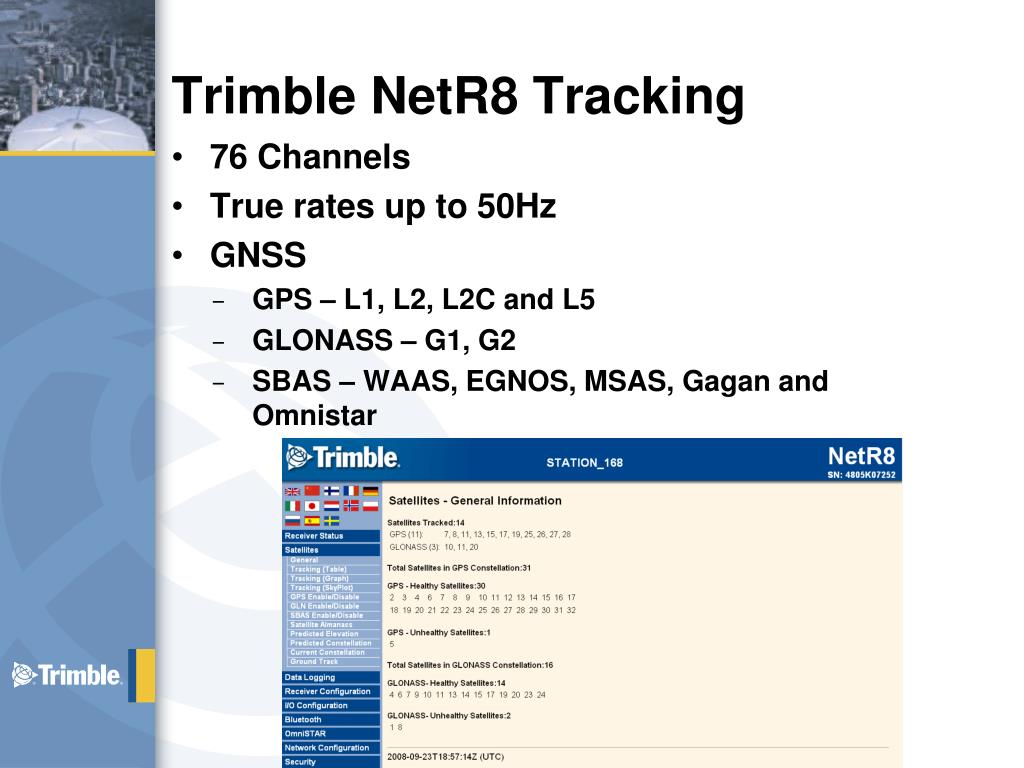

  9. Trimble NetR8 Tracking • 76 Channels • True rates up to 50Hz • GNSS • GPS – L1, L2, L2C and L5 • GLONASS – G1, G2 • SBAS – WAAS, EGNOS, MSAS, Gagan and Omnistar

  10. Trimble NetR8 Data Streaming • Realtime Observations • RT17 / RT27 • BINEX • RTCM3.1 • Correctors • RTCM 2.3, RTCM 3.1 • CMR, CMR+

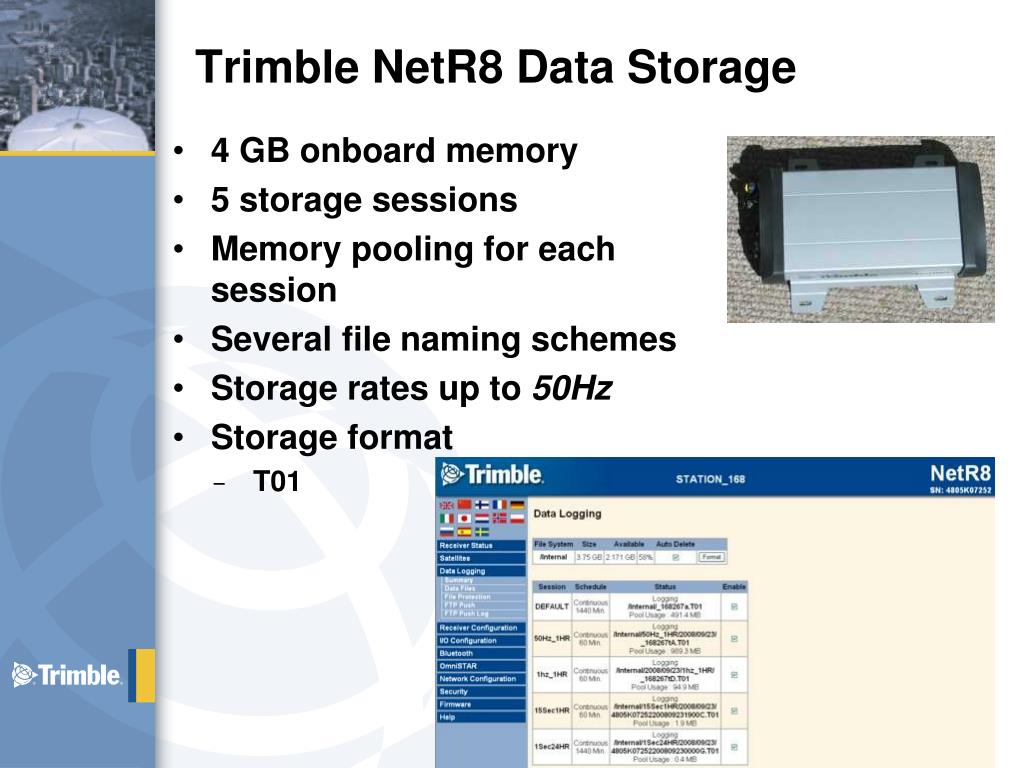

  11. Trimble NetR8 Data Storage • 4 GB onboard memory • 5 storage sessions • Memory pooling for each session • Several file naming schemes • Storage rates up to 50Hz • Storage format • T01

  12. Trimble NetR8 Communications • Ethernet with Power Over Ethernet (PoE) • Port : D9 - Full 9 signal RS-232 Serial • Port 2: Lemo - 5 signal Serial & Power input/1PPS Output/Event Input • Port 3: Lemo - 3 signal Serial/Power Input • External 10MHz Frequency Input • Bluetooth

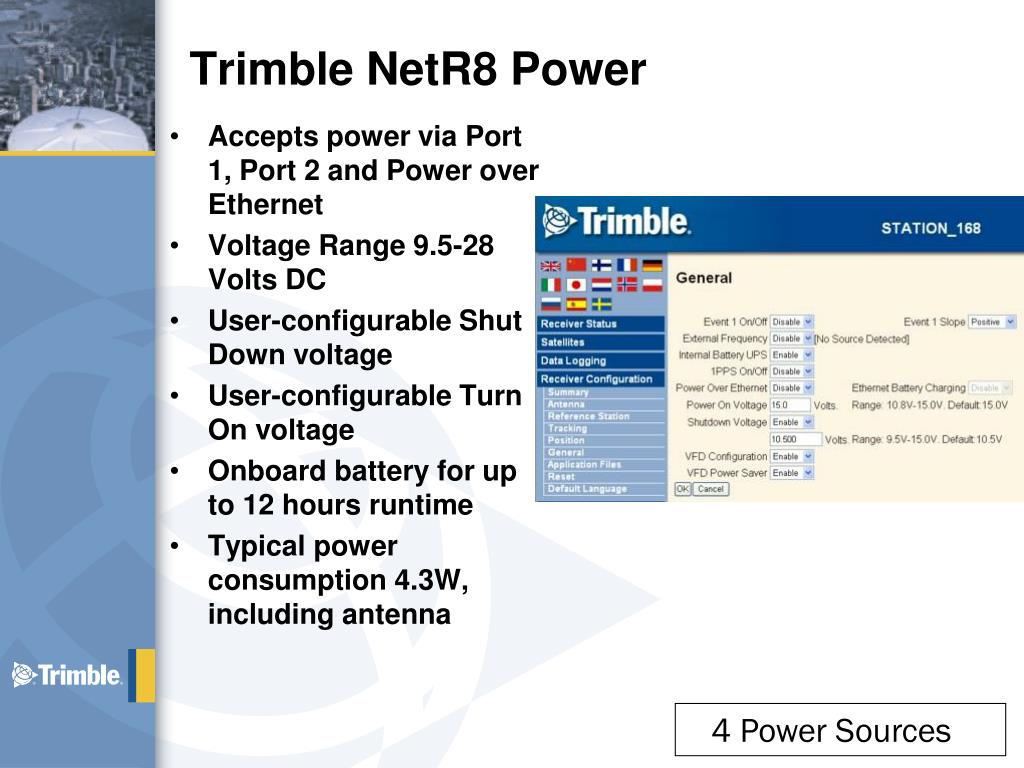

  13. Trimble NetR8 Power • Accepts power via Port 1, Port 2 and Power over Ethernet • Voltage Range 9.5-28 Volts DC • User-configurable Shut Down voltage • User-configurable Turn On voltage • Onboard battery for up to 12 hours runtime • Typical power consumption 4.3W, including antenna 4 Power Sources

  14. Trimble NetR8 User Interface • Web User Interface • Offers full receiver status/configuration/data access • Front Panel • Offers partial receiver status/configuration

  15. Trimble NetR8 Deployment • Built to be a Campaign and a Continuously Operating Reference Station (CORS) receiver • Replace mounting base with tripod clip for rapid deployment • Front panel offers major controls. No computer or data collector is needed to initiate logging.

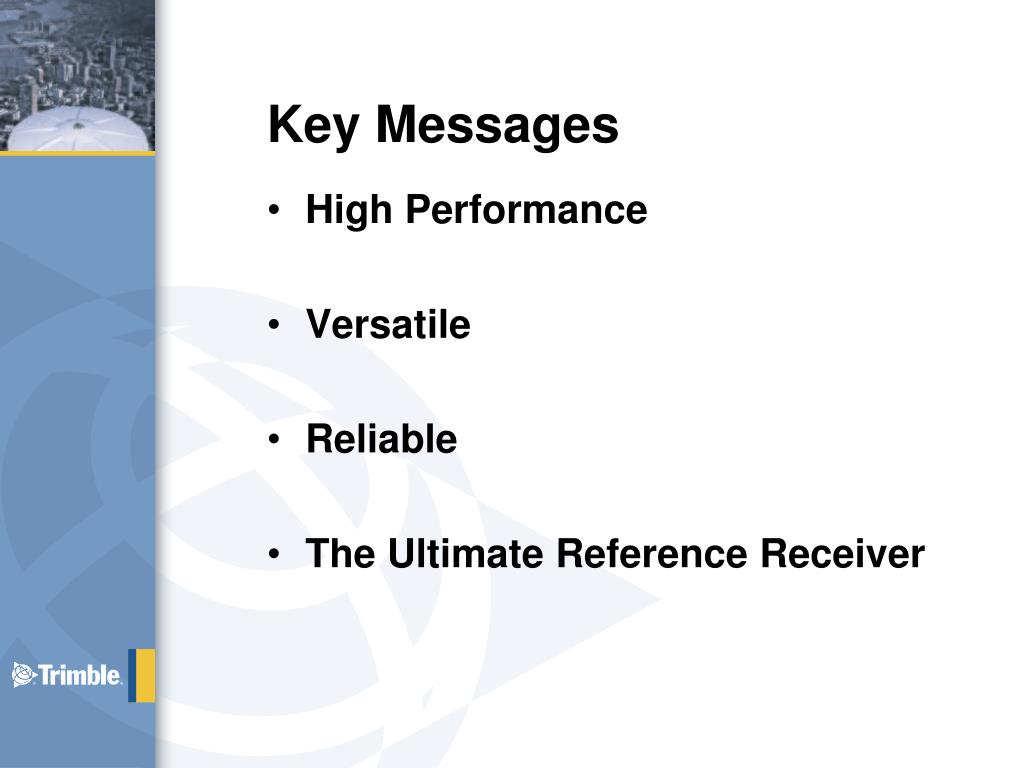

  16. Key Messages • High Performance • Versatile • Reliable • The Ultimate Reference Receiver

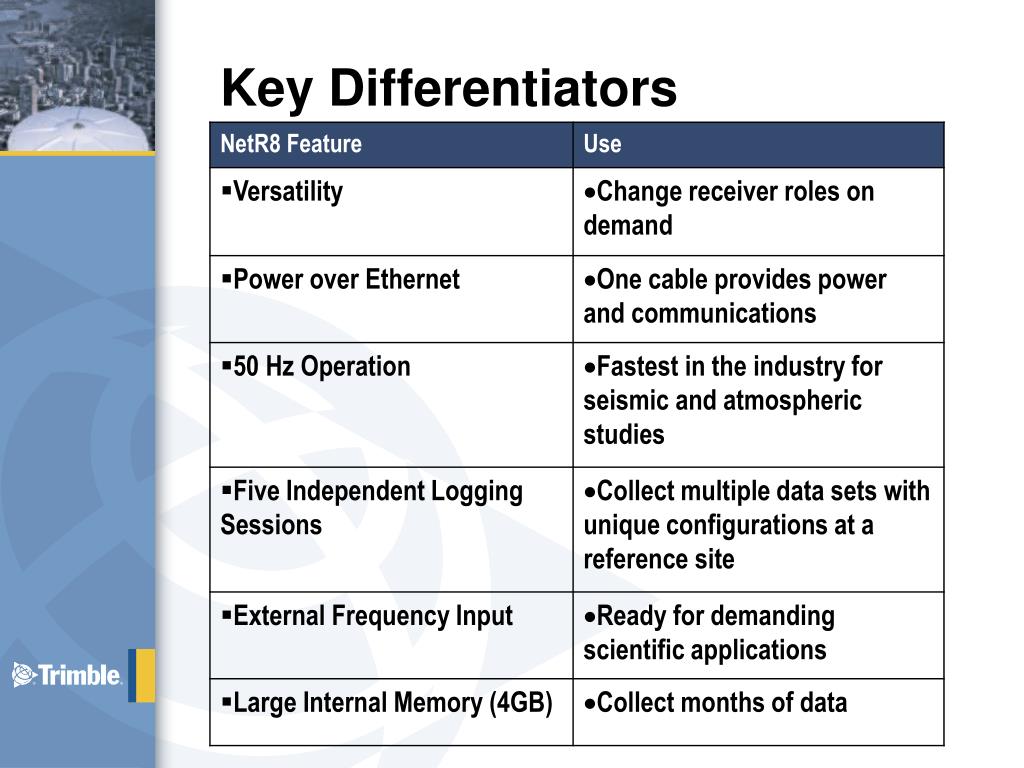

  17. Key Differentiators

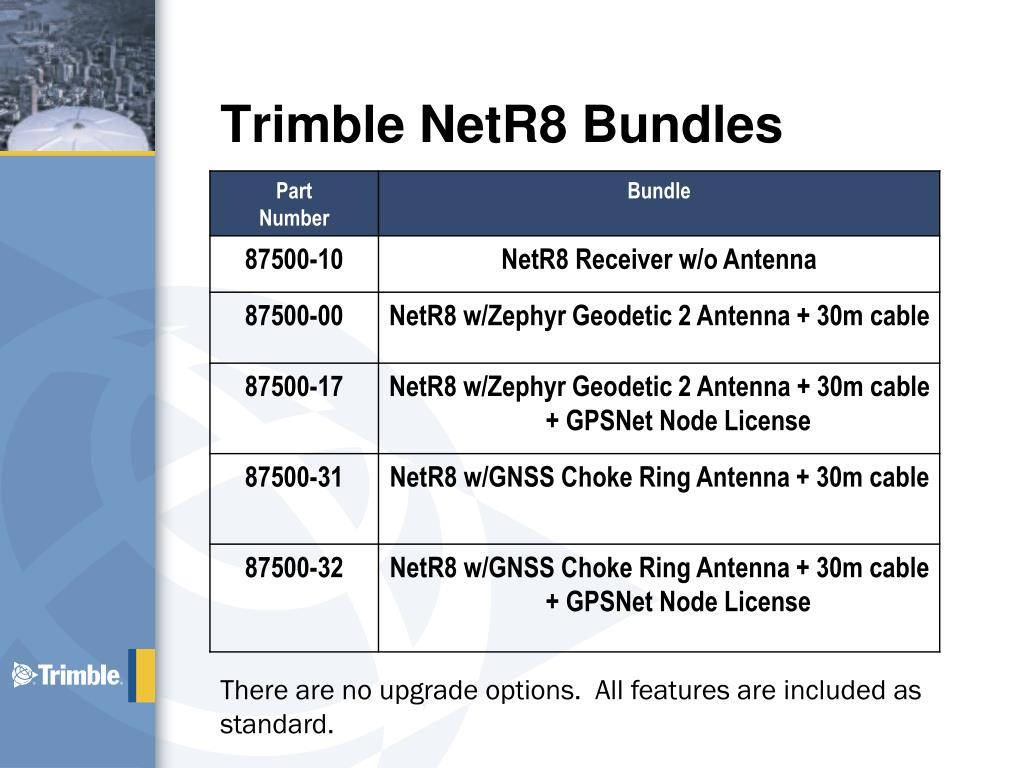

  18. Trimble NetR8 Bundles There are no upgrade options. All features are included as standard.

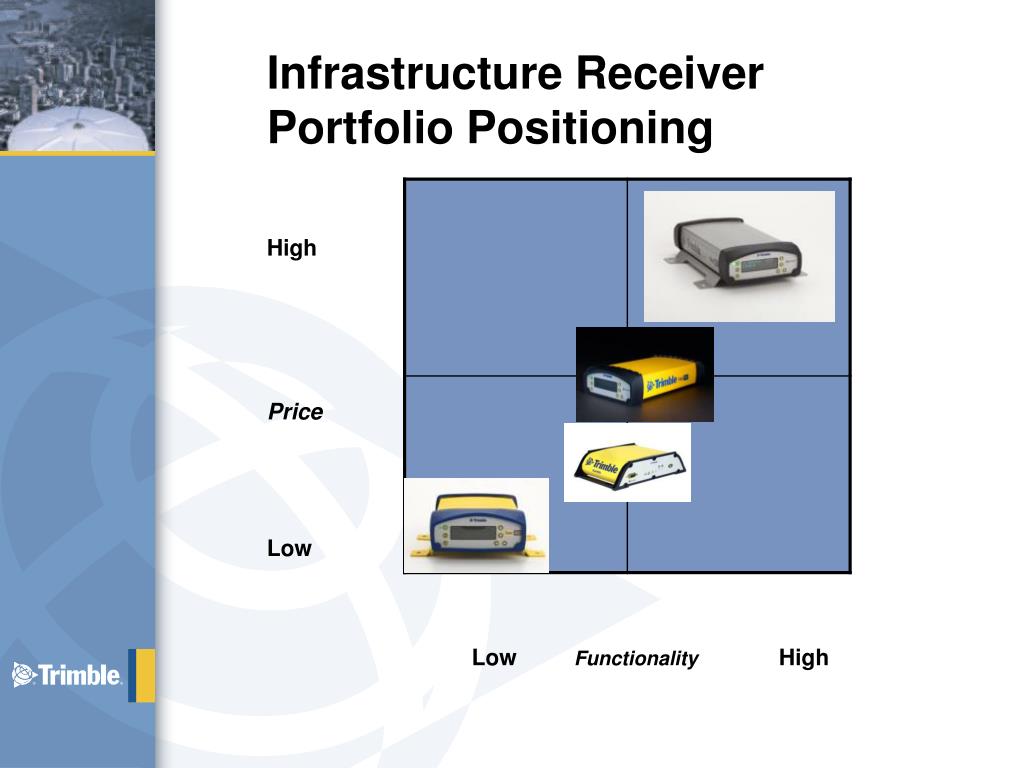

  19. Infrastructure Receiver Portfolio Positioning High Price Low Low Functionality High

  20. Availability First Customer Ship Date: November 3, 2008

  21. Questions? • Please contact your regional Infrastructure Sales Manager • -or- • Email Infrastructure_Sales@Trimble.com • Visit: www.trimble.com/netr8.shtml
