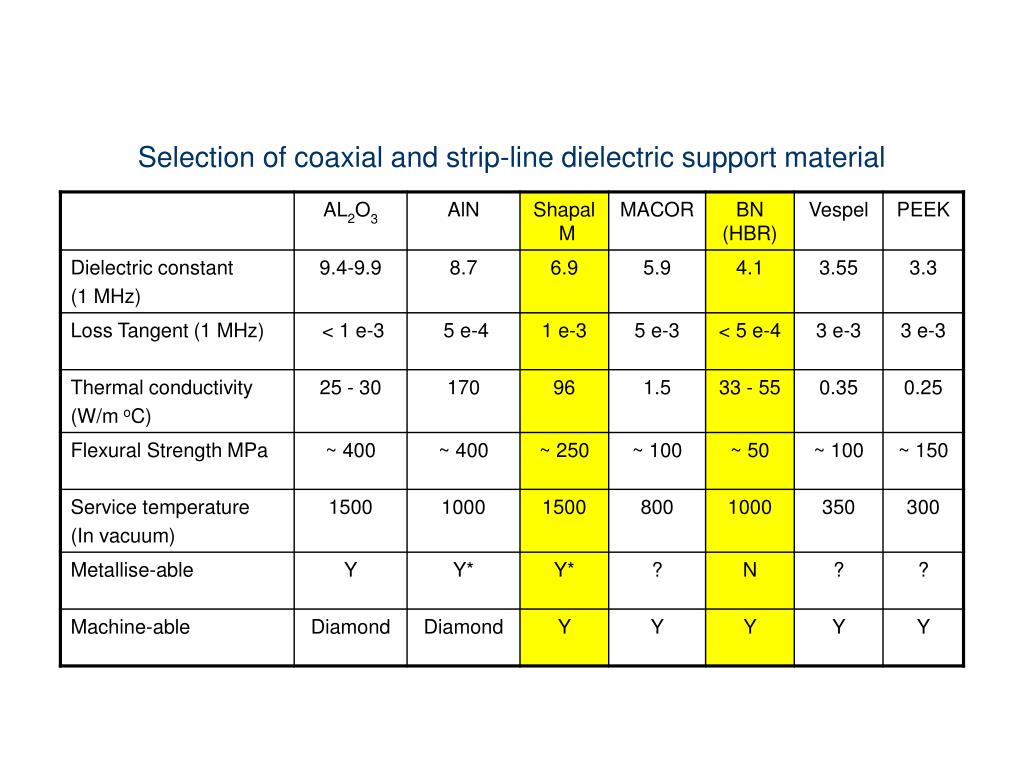

Selection of coaxial and strip-line dielectric support material

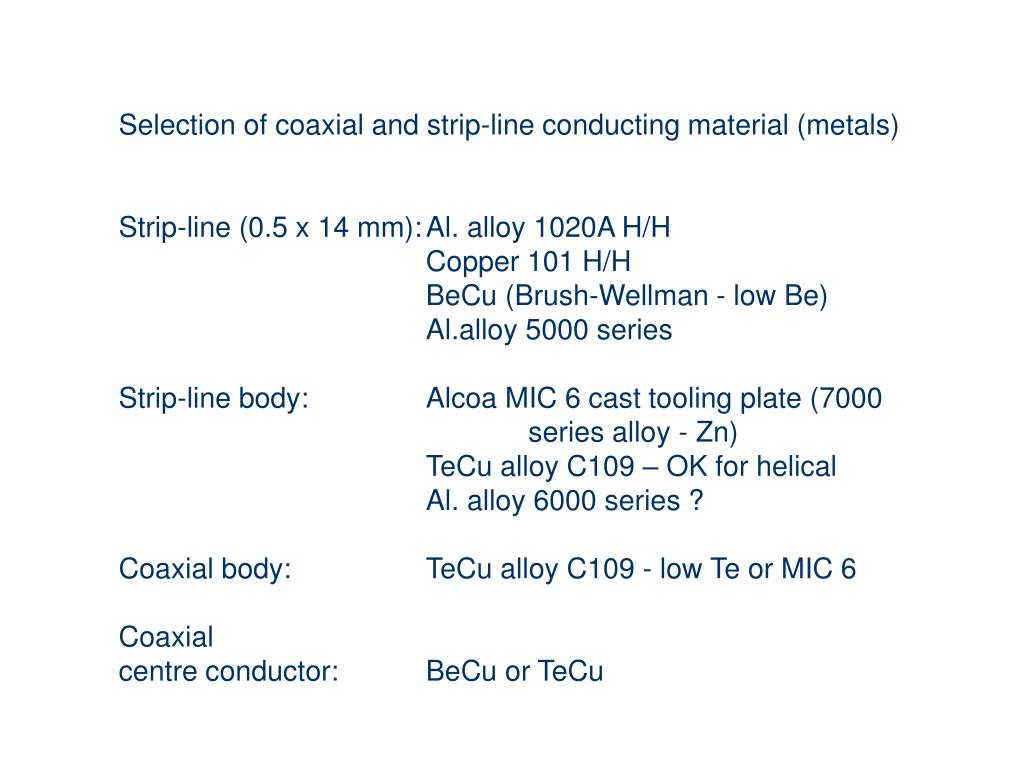

Selection of coaxial and strip-line conducting material (metals) Strip-line (0.5 x 14 mm): Al. alloy 1020A H/H Copper 101 H/H BeCu (Brush-Wellman - low Be) Al.alloy 5000 series Strip-line body: Alcoa MIC 6 cast tooling plate (7000 series alloy - Zn) TeCu alloy C109 – OK for helical Al. alloy 6000 series ? Coaxial body: TeCu alloy C109 - low Te or MIC 6 Coaxial centre conductor: BeCu or TeCu

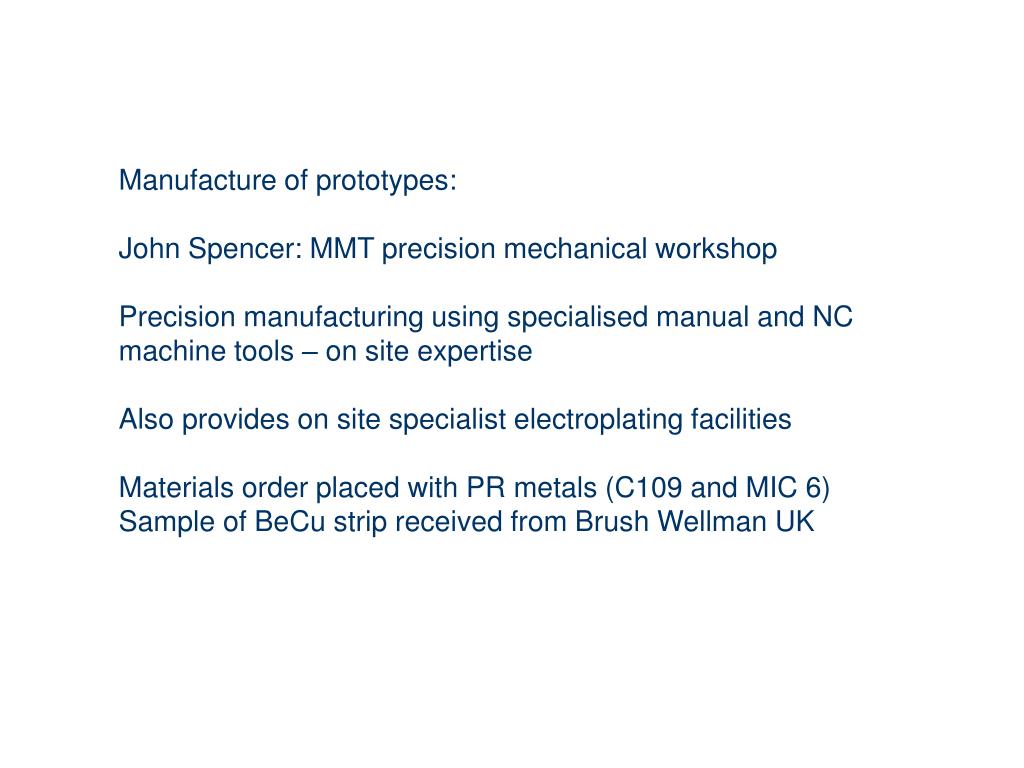

Manufacture of prototypes: John Spencer: MMT precision mechanical workshop Precision manufacturing using specialised manual and NC machine tools – on site expertise Also provides on site specialist electroplating facilities Materials order placed with PR metals (C109 and MIC 6) Sample of BeCu strip received from Brush Wellman UK

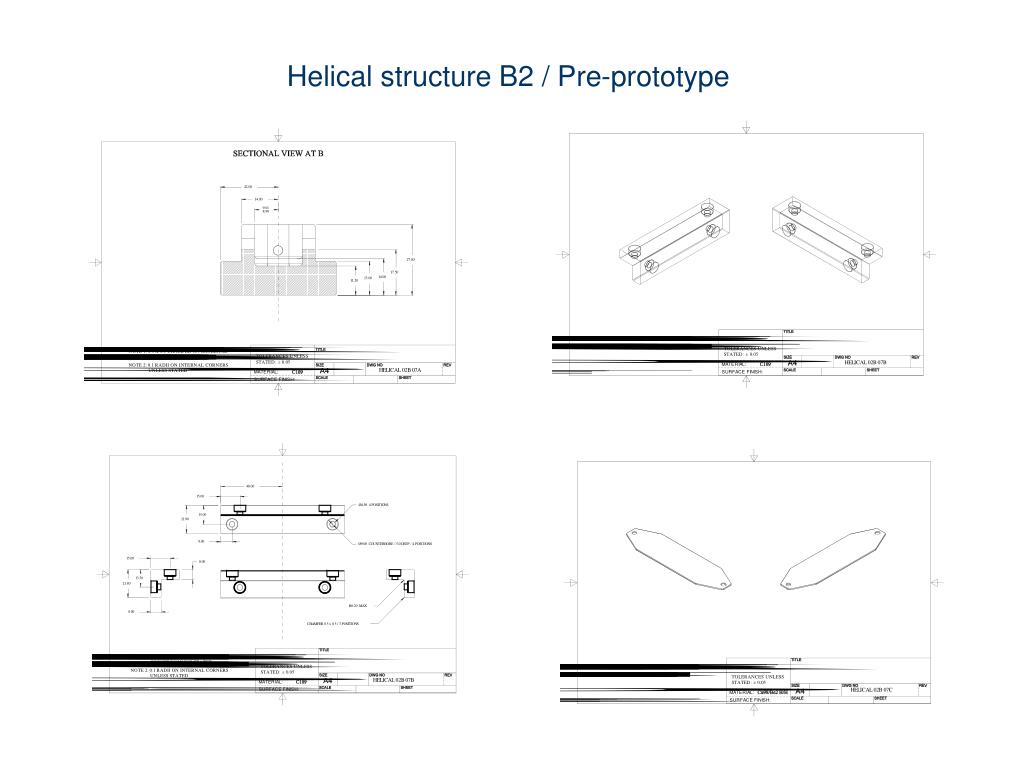

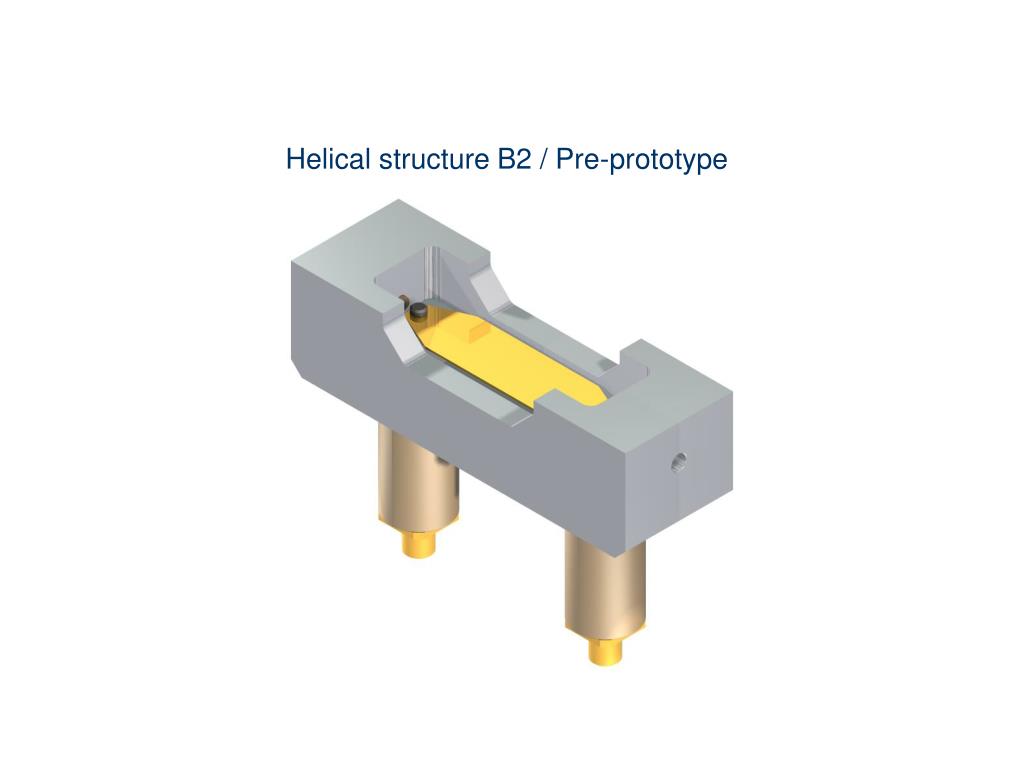

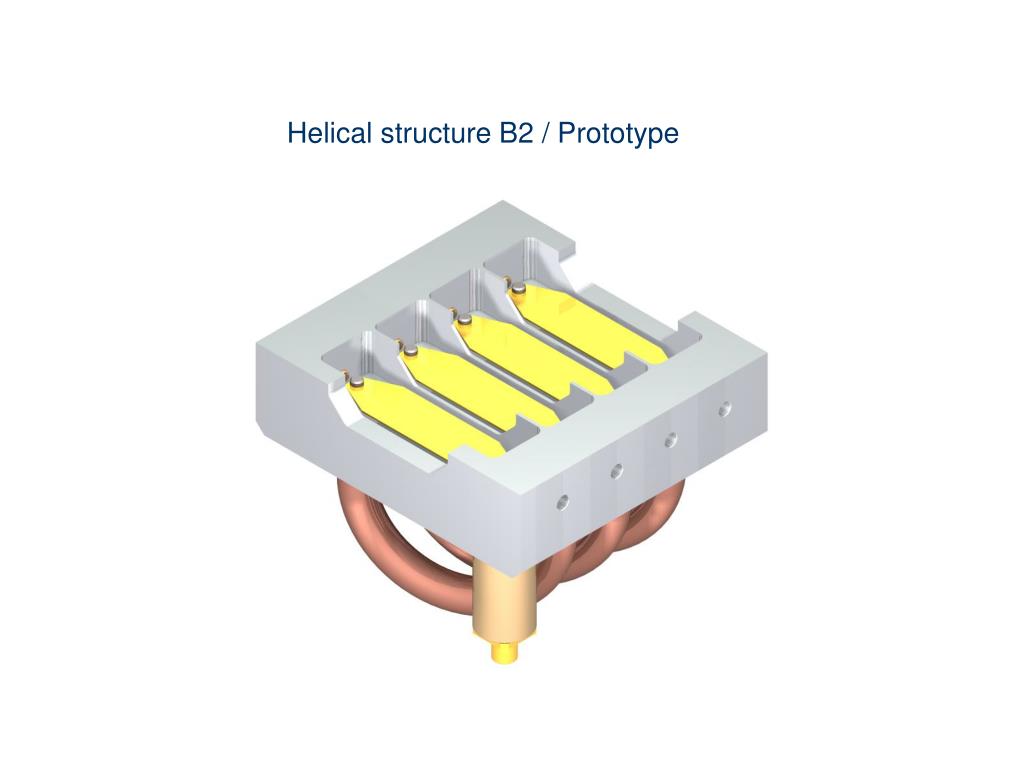

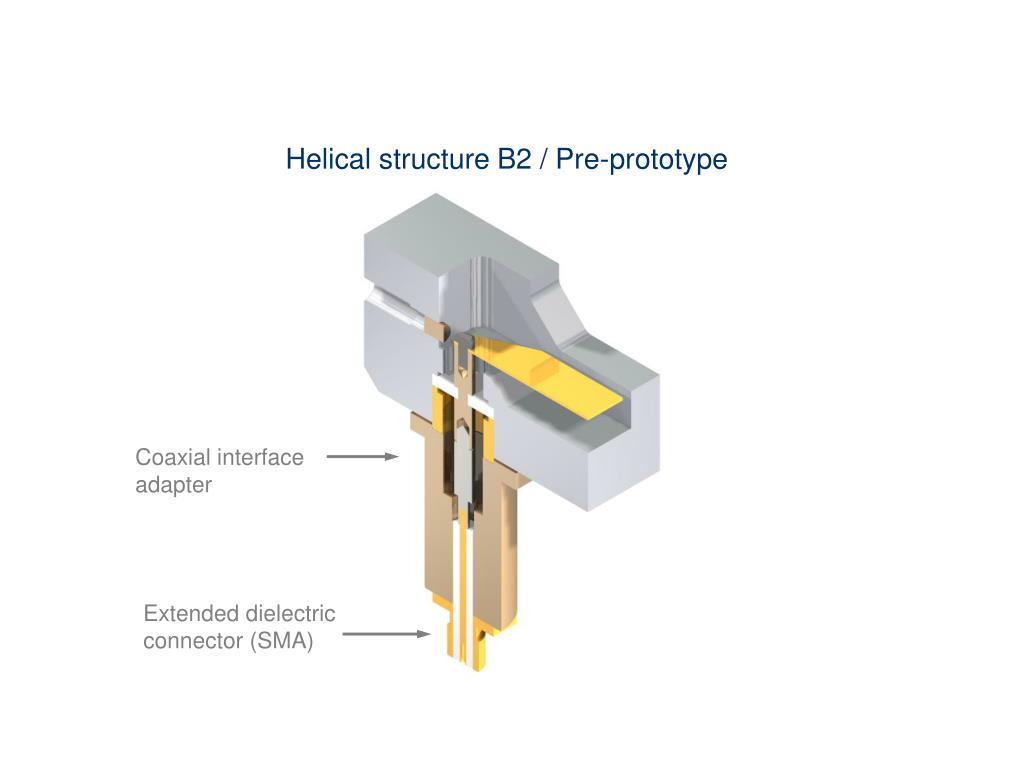

Helical structure B2 / Pre-prototype Coaxial interface adapter Extended dielectricconnector (SMA)

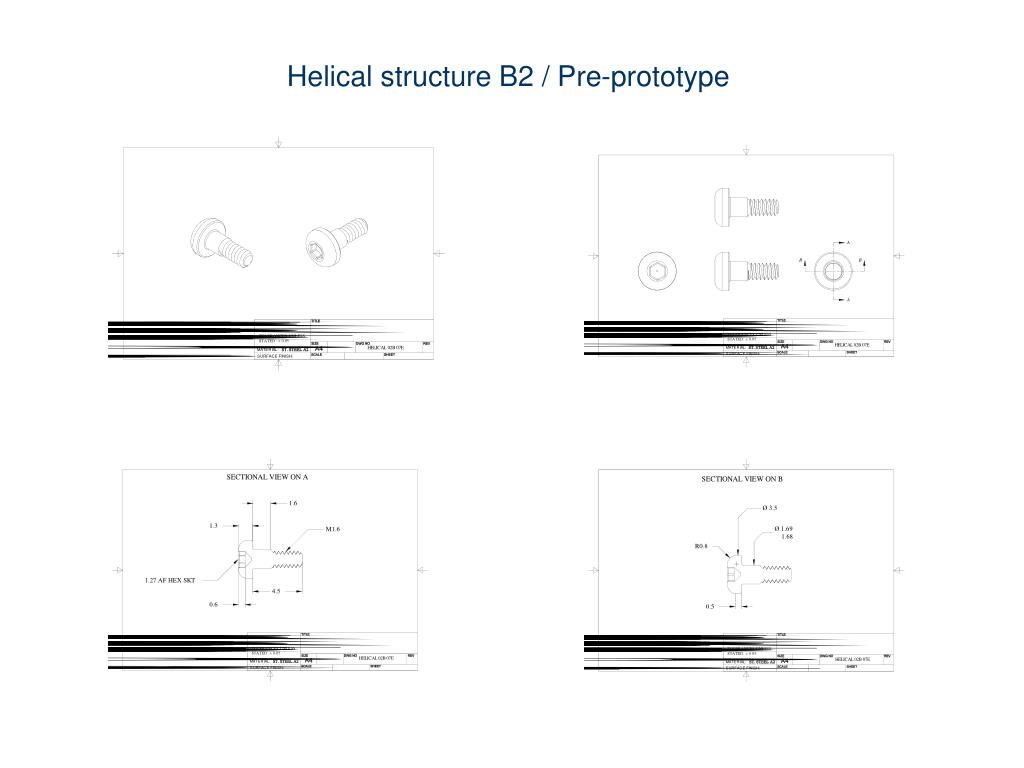

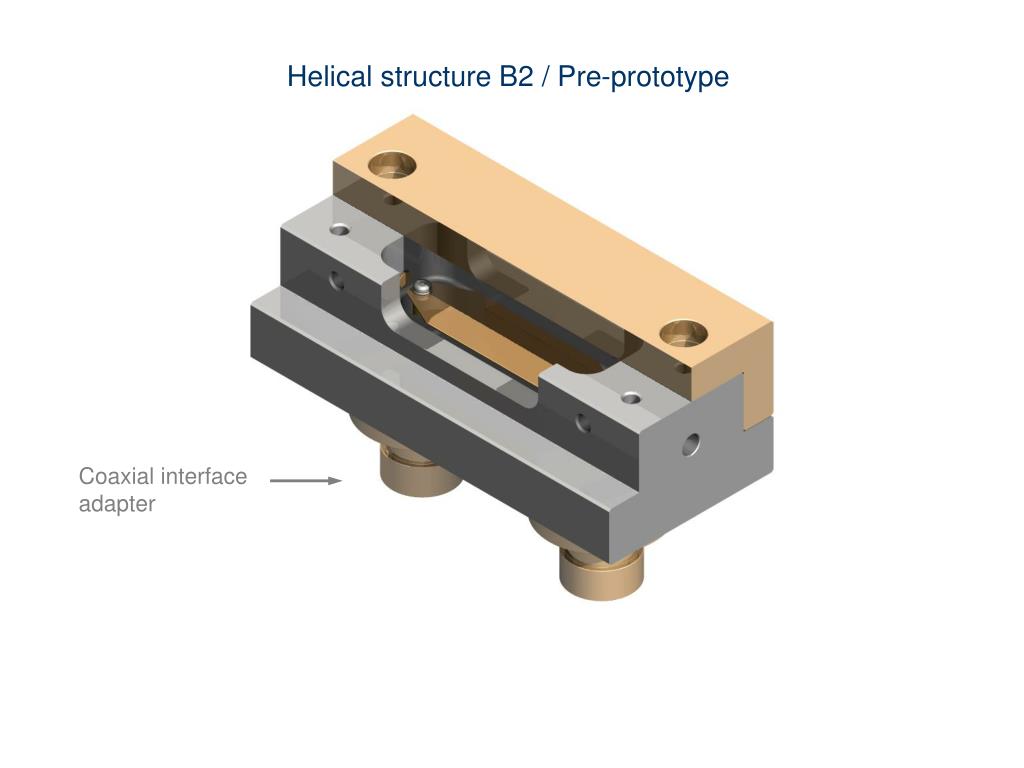

Helical structure B2 / Pre-prototype Coaxial interface adapter

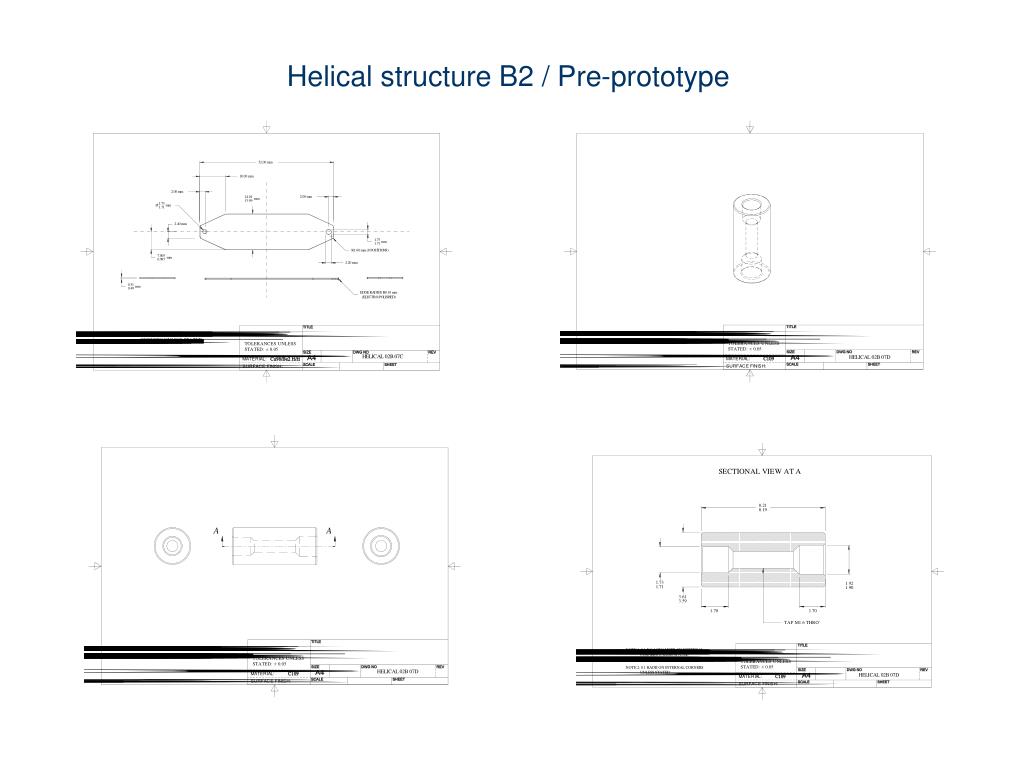

Helical structure B2 / Pre-prototype Coaxial interface adapter

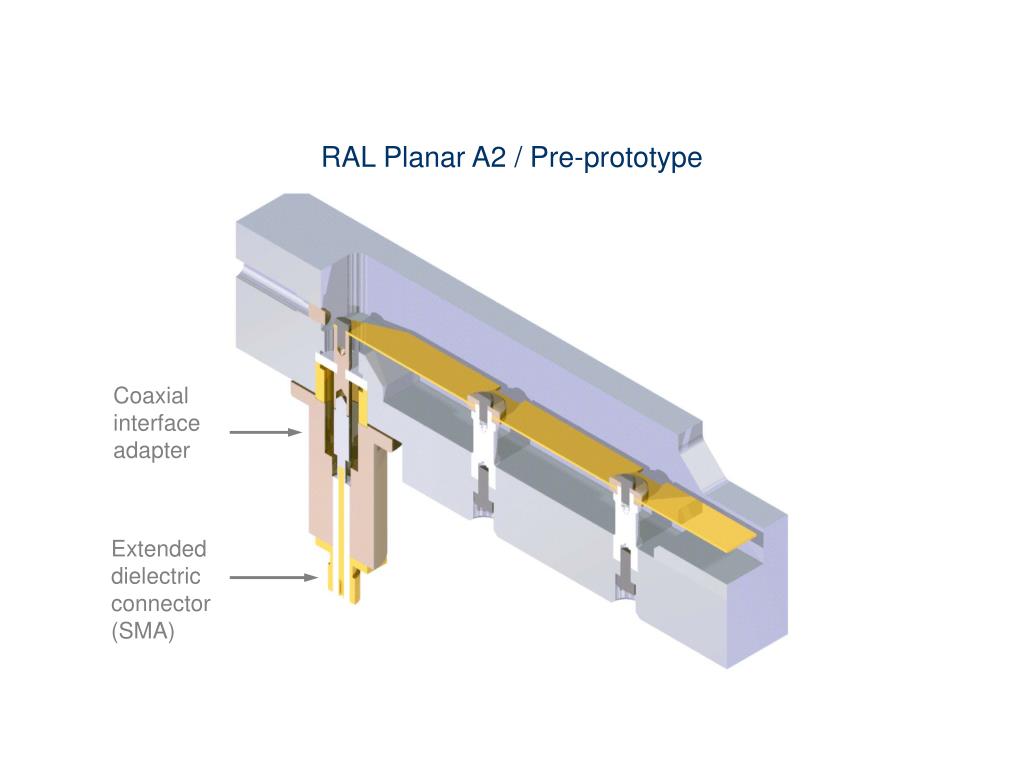

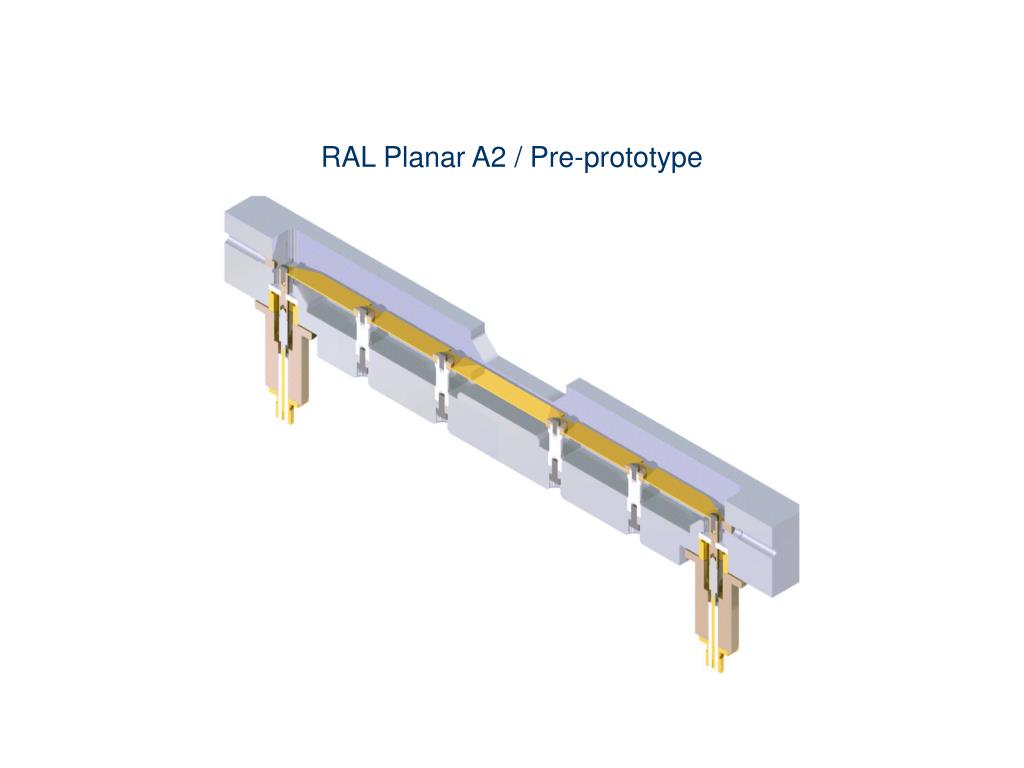

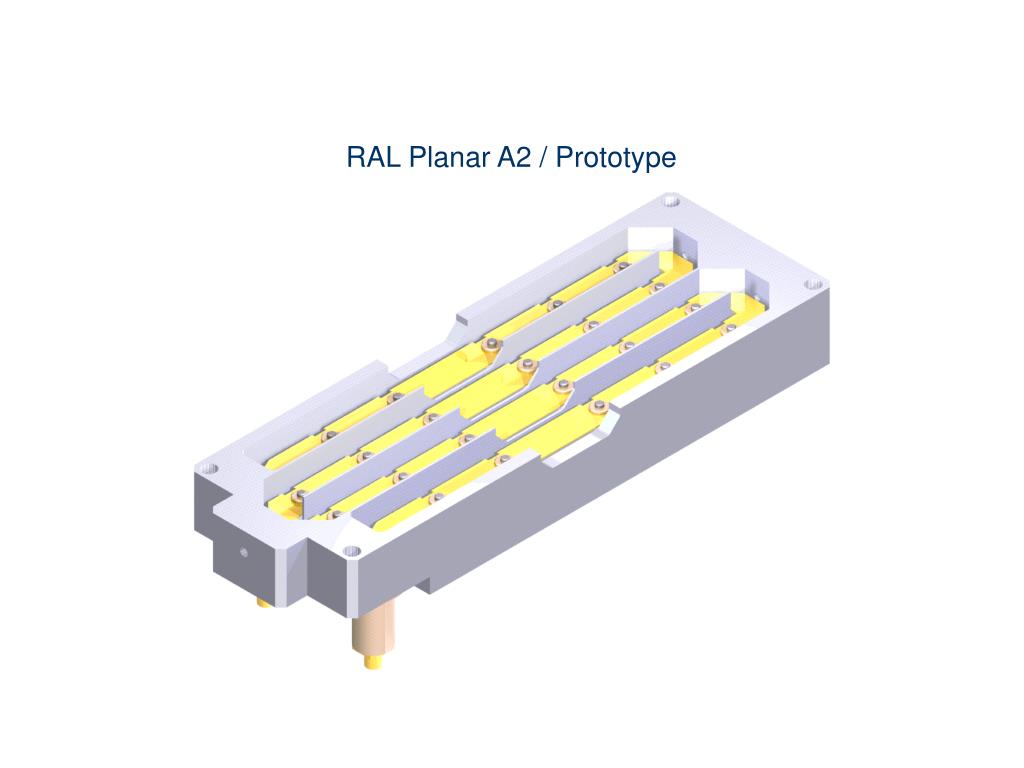

RAL Planar A2 / Pre-prototype Coaxial interface adapter Extended dielectricconnector (SMA)
