  1. Docking Structures & Wave Energy Nick Ripp William Marcouiller

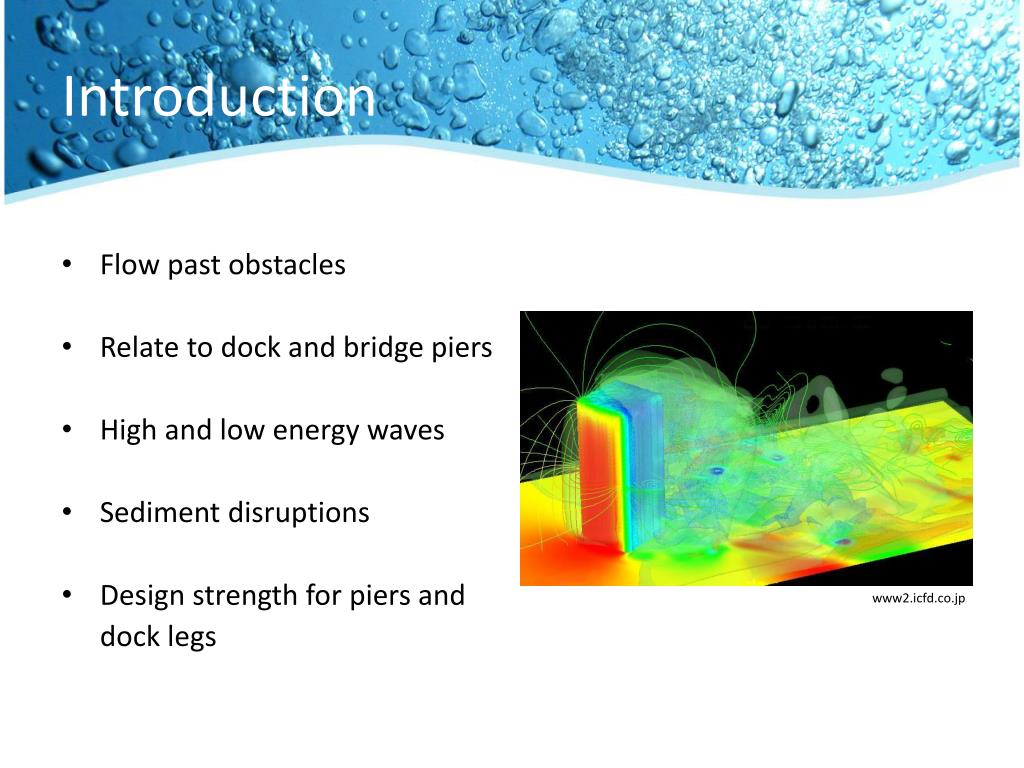

  2. Introduction • Flow past obstacles • Relate to dock and bridge piers • High and low energy waves • Sediment disruptions • Design strength for piers and dock legs www2.icfd.co.jp

  3. Motivation

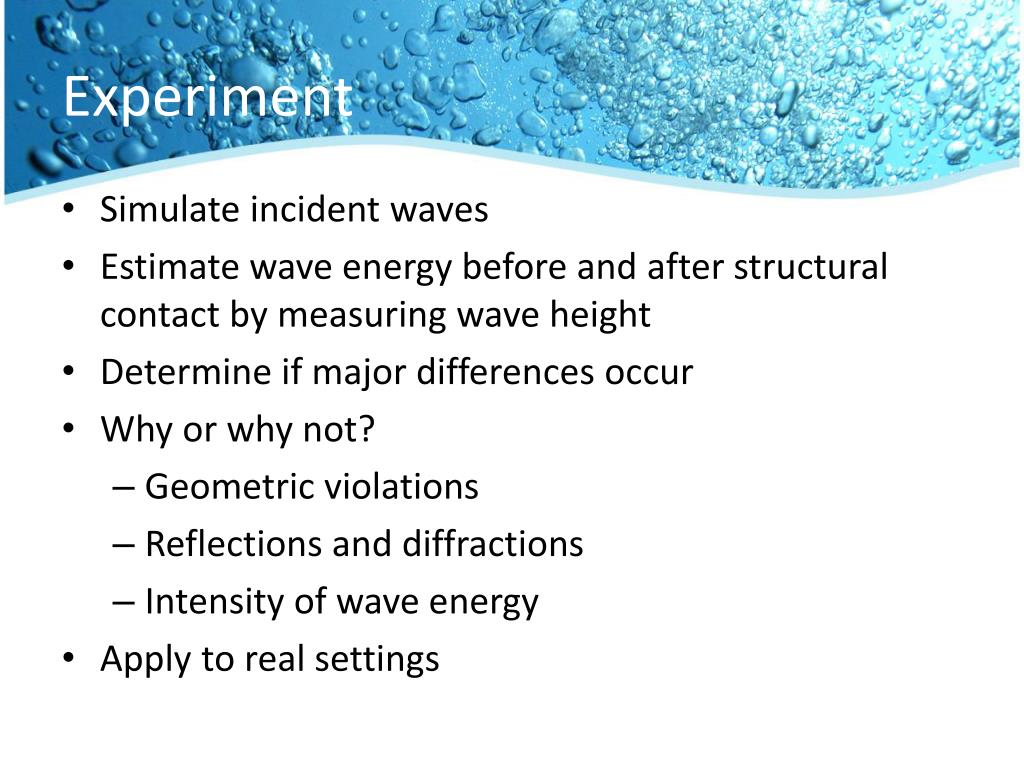

  4. Experiment • Simulate incident waves • Estimate wave energy before and after structural contact by measuring wave height • Determine if major differences occur • Why or why not? • Geometric violations • Reflections and diffractions • Intensity of wave energy • Apply to real settings

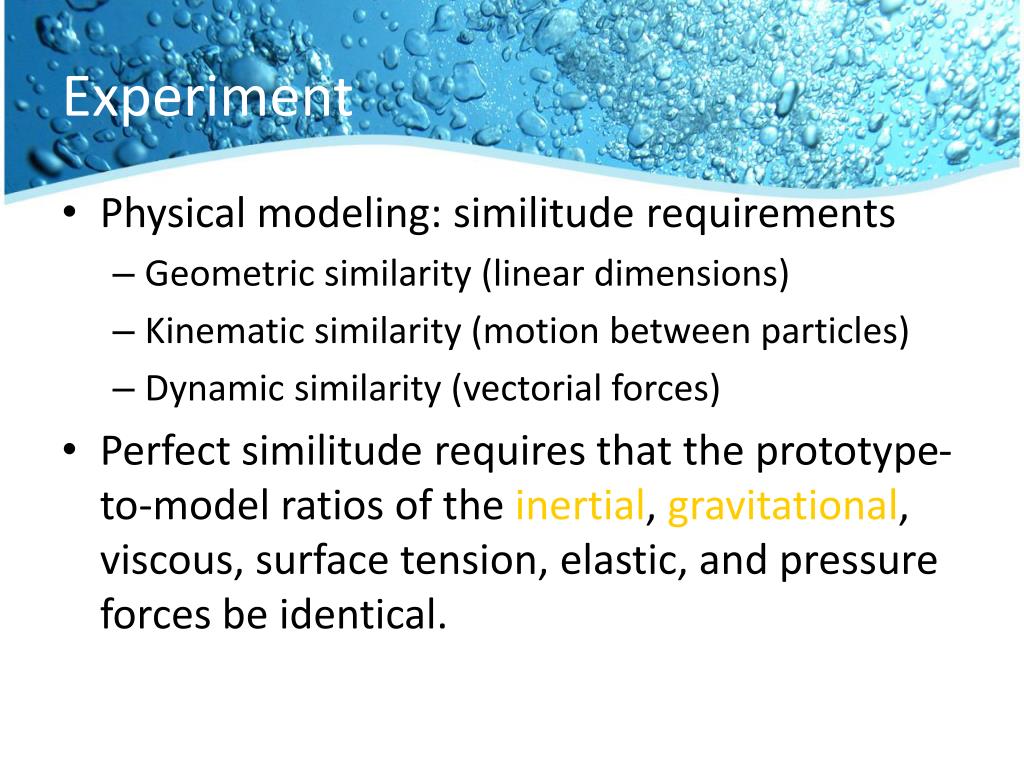

  5. Experiment • Physical modeling: similitude requirements • Geometric similarity (linear dimensions) • Kinematic similarity (motion between particles) • Dynamic similarity (vectorial forces) • Perfect similitude requires that the prototype-to-model ratios of the inertial, gravitational, viscous, surface tension, elastic, and pressure forces be identical.

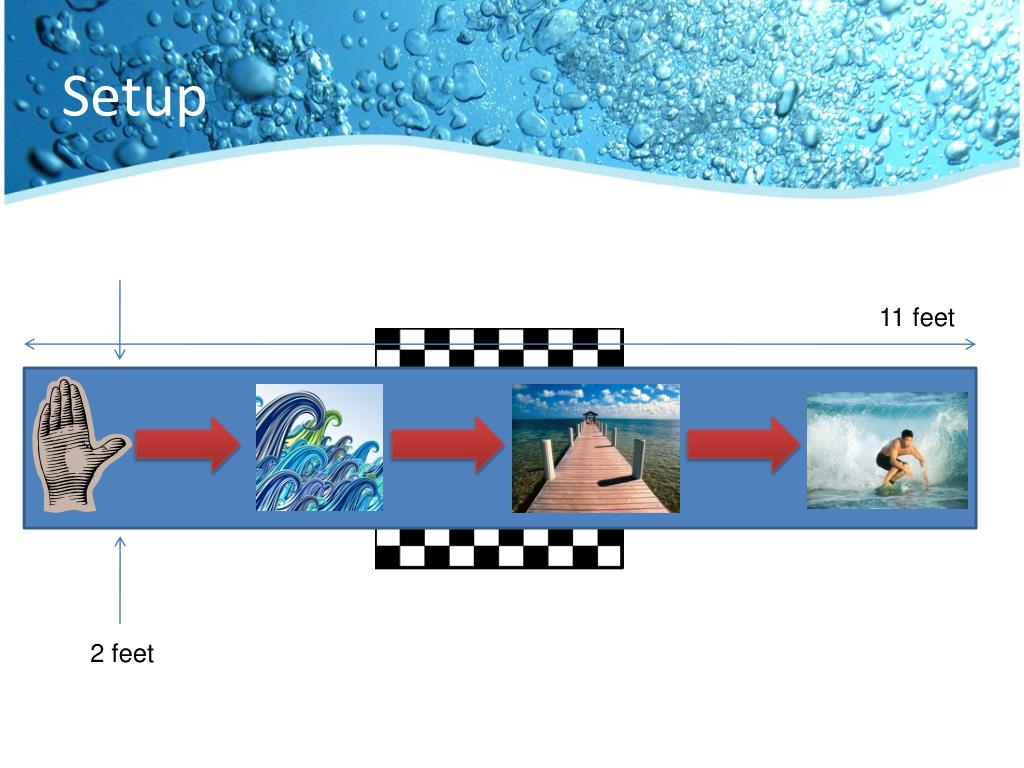

  6. Setup 11 feet 2 feet

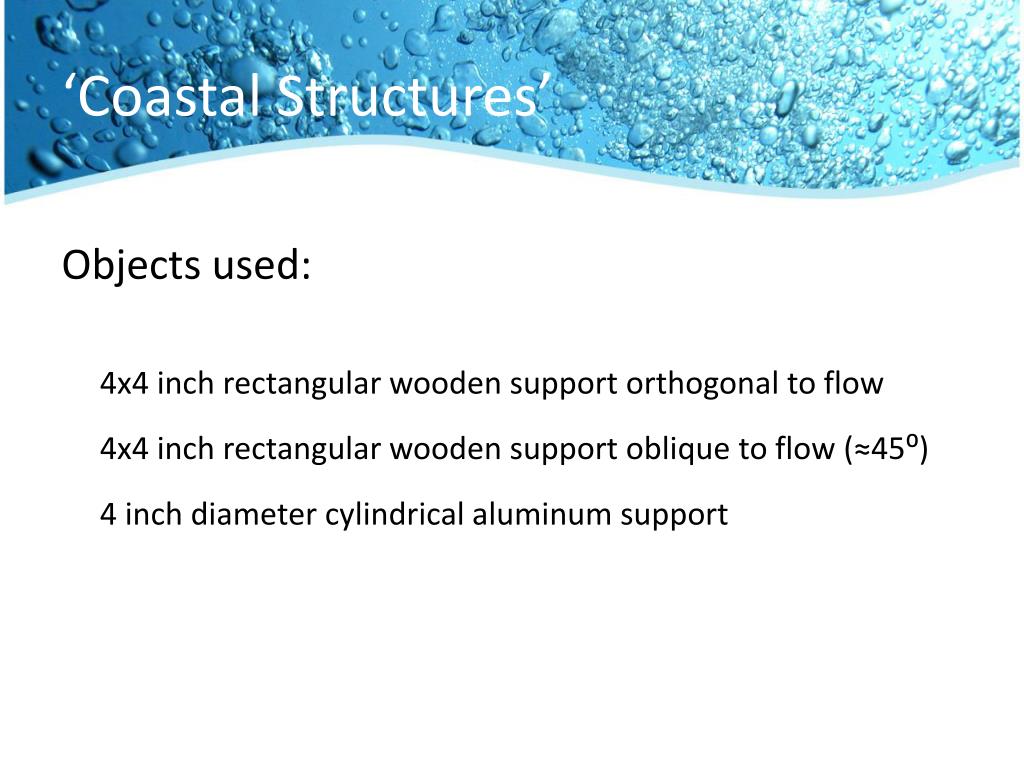

  7. ‘Coastal Structures’ Objects used: 4x4 inch rectangular wooden support orthogonal to flow 4x4 inch rectangular wooden support oblique to flow (≈45⁰) 4 inch diameter cylindrical aluminum support

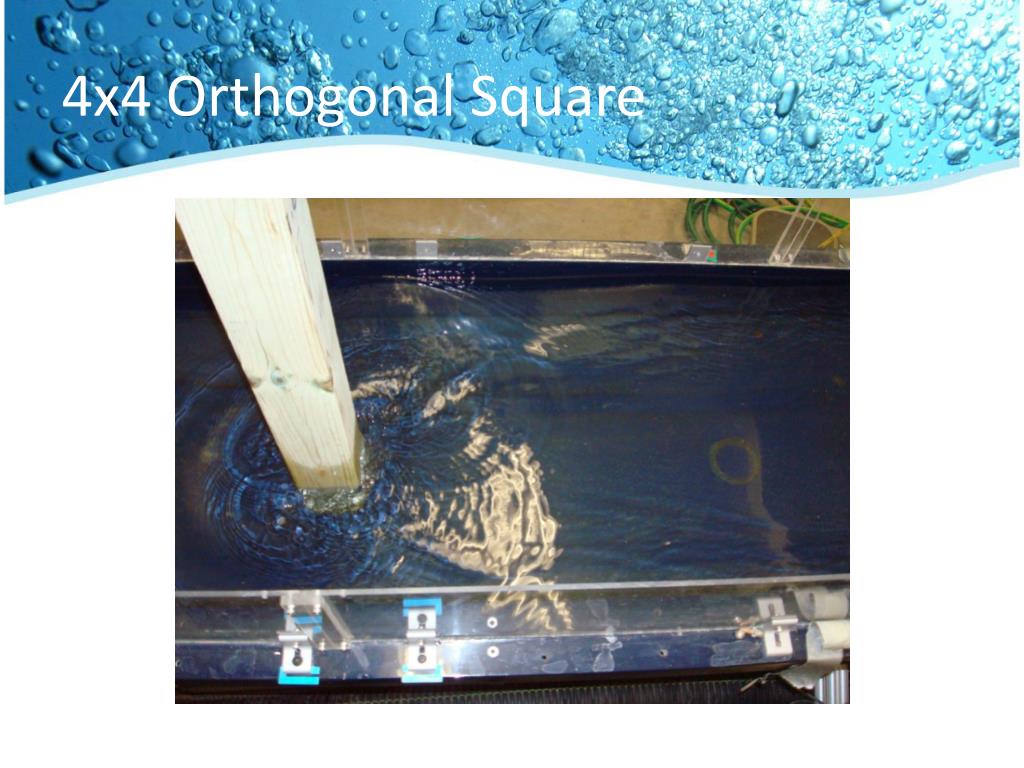

  8. 4x4 Orthogonal Square

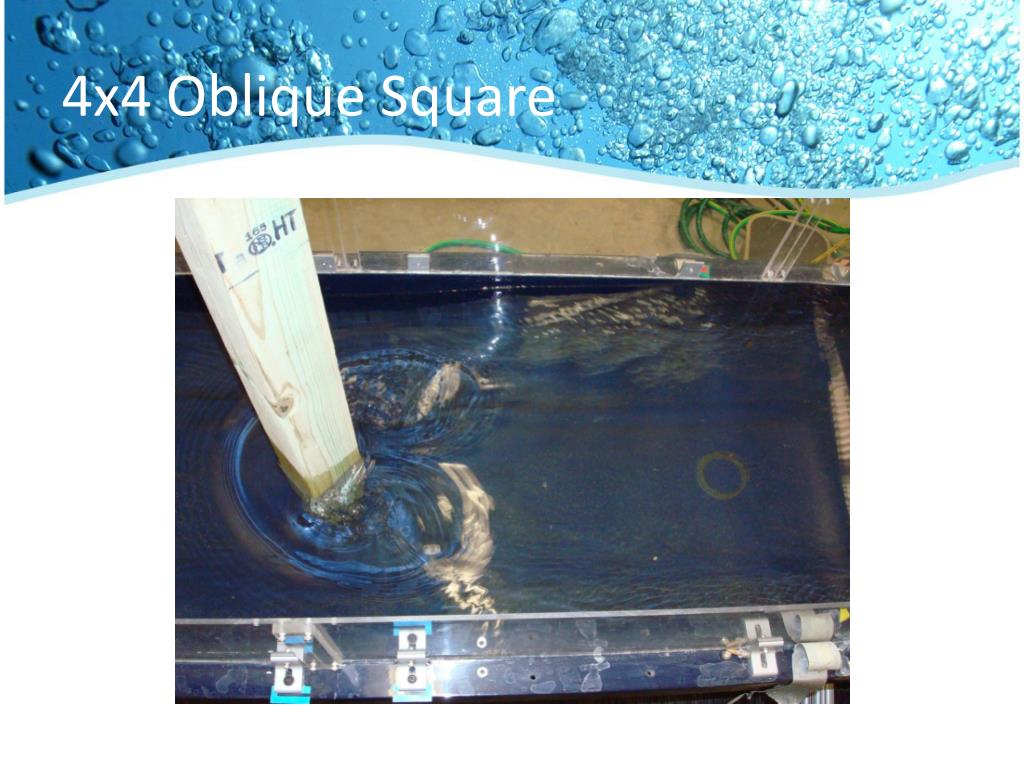

  9. 4x4 Oblique Square

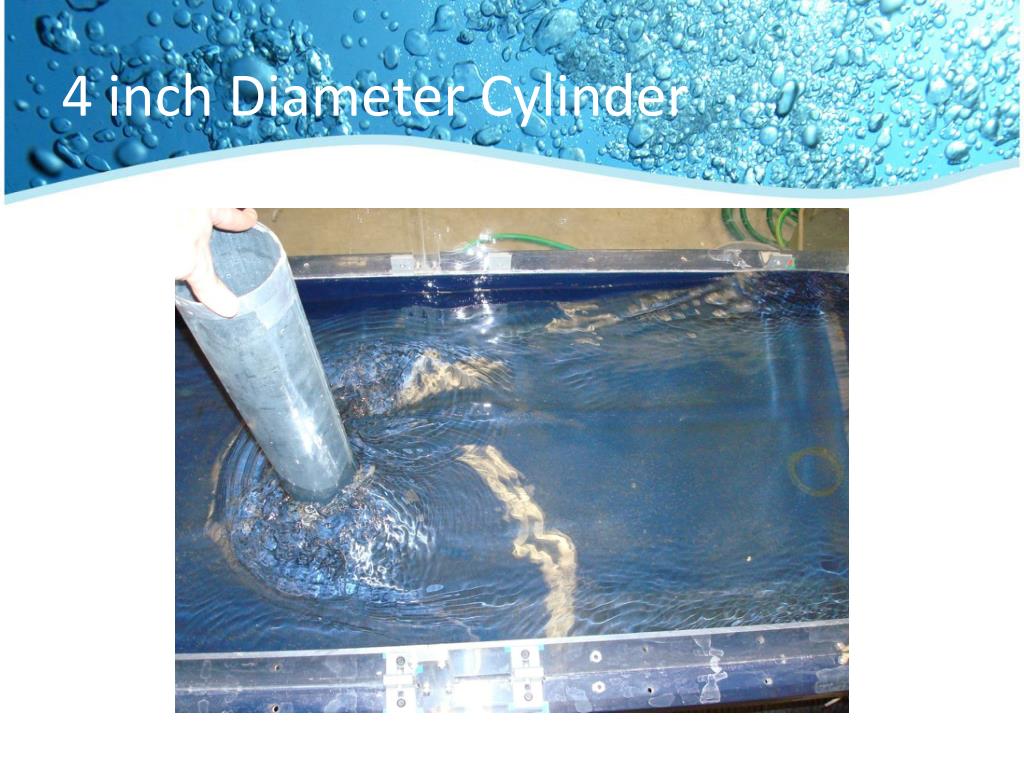

  10. 4 inch Diameter Cylinder

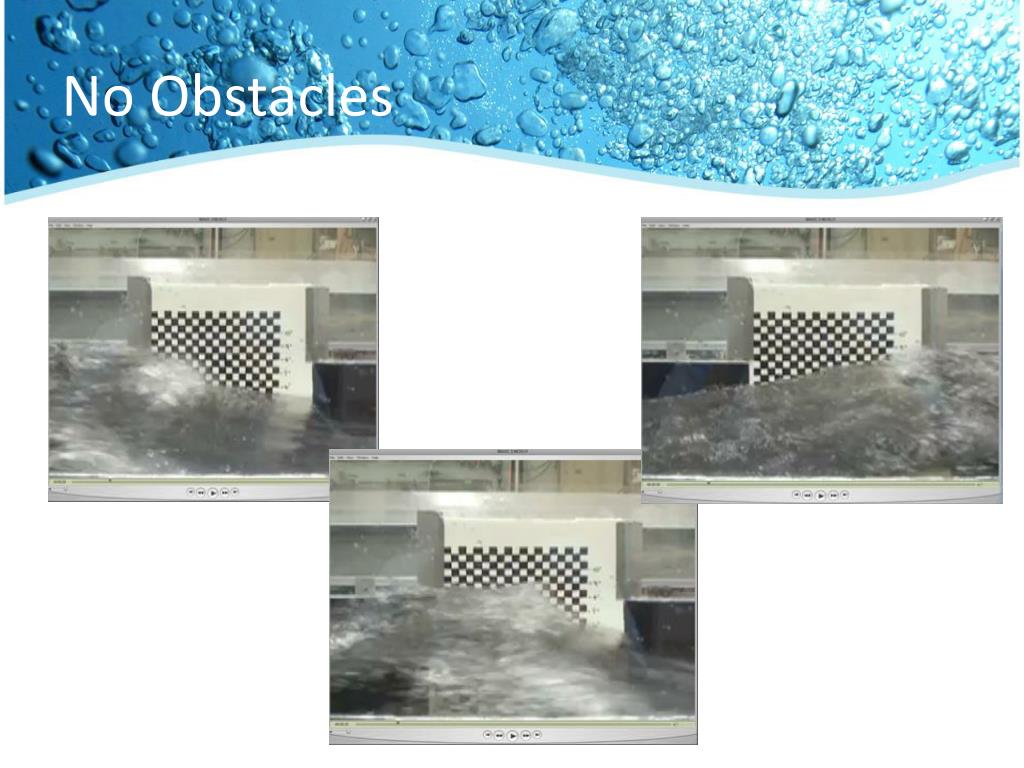

  11. No Obstacles

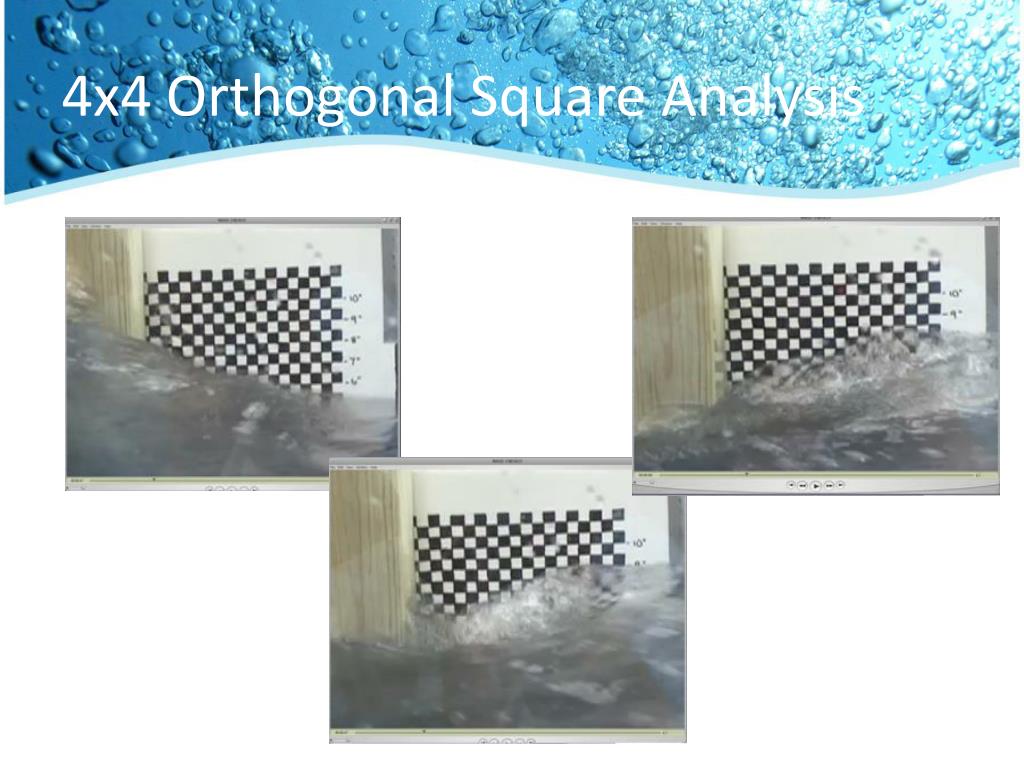

  12. 4x4 Orthogonal Square Analysis

  13. 4x4 Oblique Square Analysis

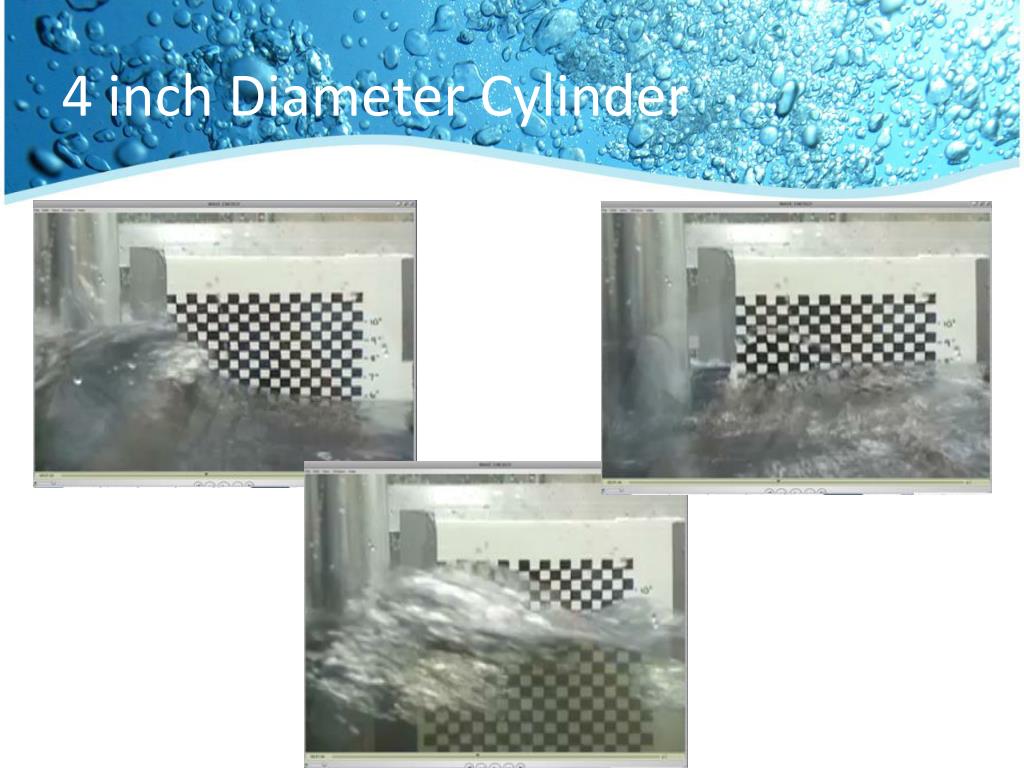

  14. 4 inch Diameter Cylinder

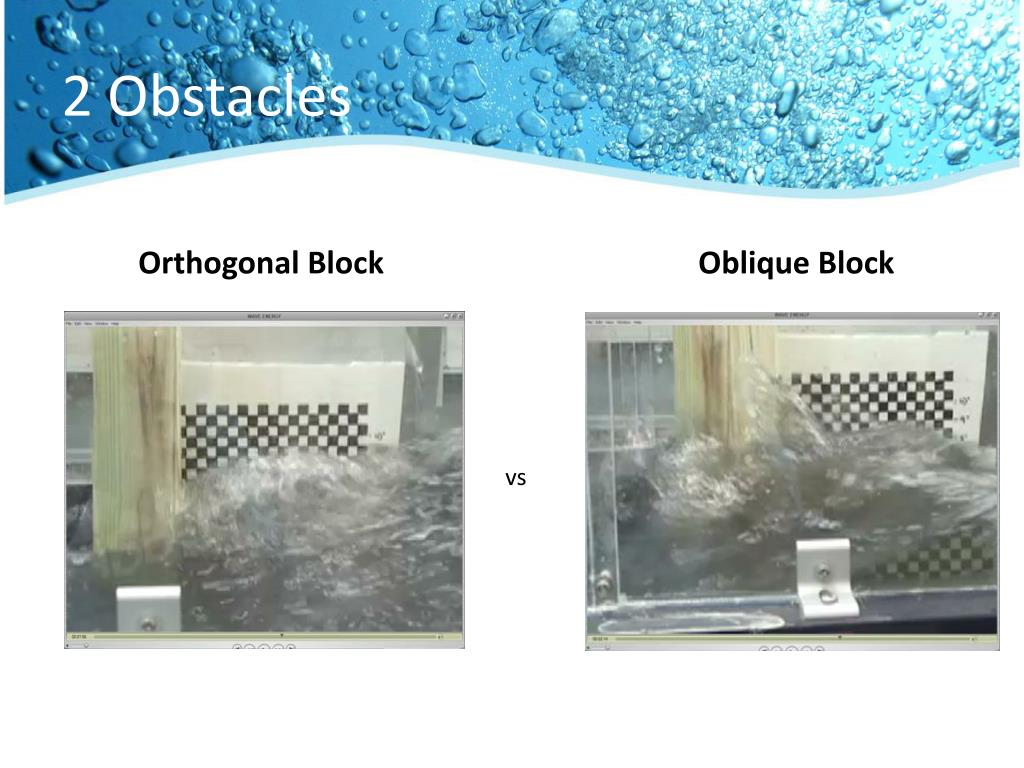

  15. 2 Obstacles Orthogonal Block Oblique Block vs

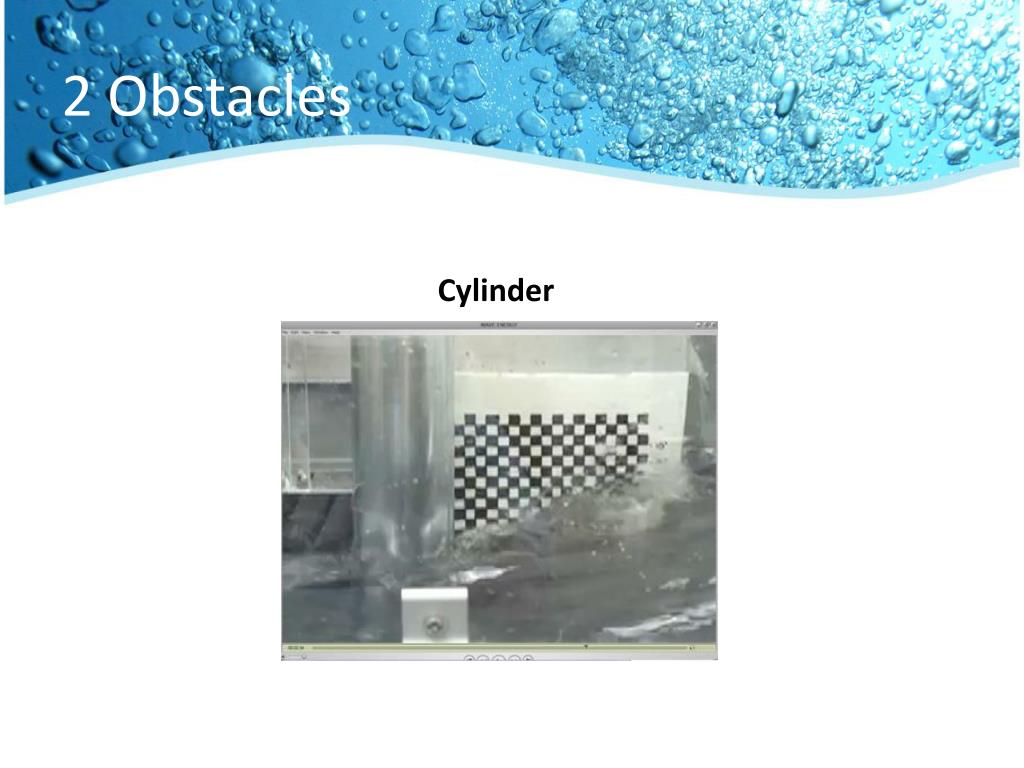

  16. 2 Obstacles Cylinder

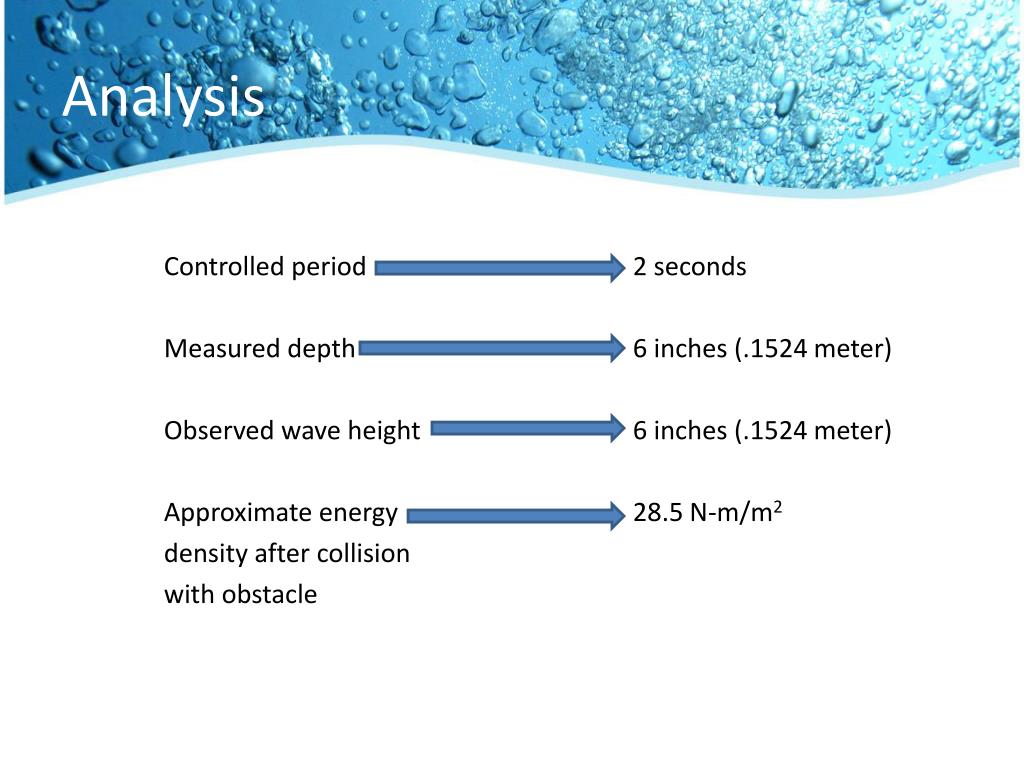

  17. Analysis 2 seconds 6 inches (.1524 meter) 6 inches (.1524 meter) 28.5 N-m/m2 Controlled period Measured depth Observed wave height Approximate energy density after collision with obstacle

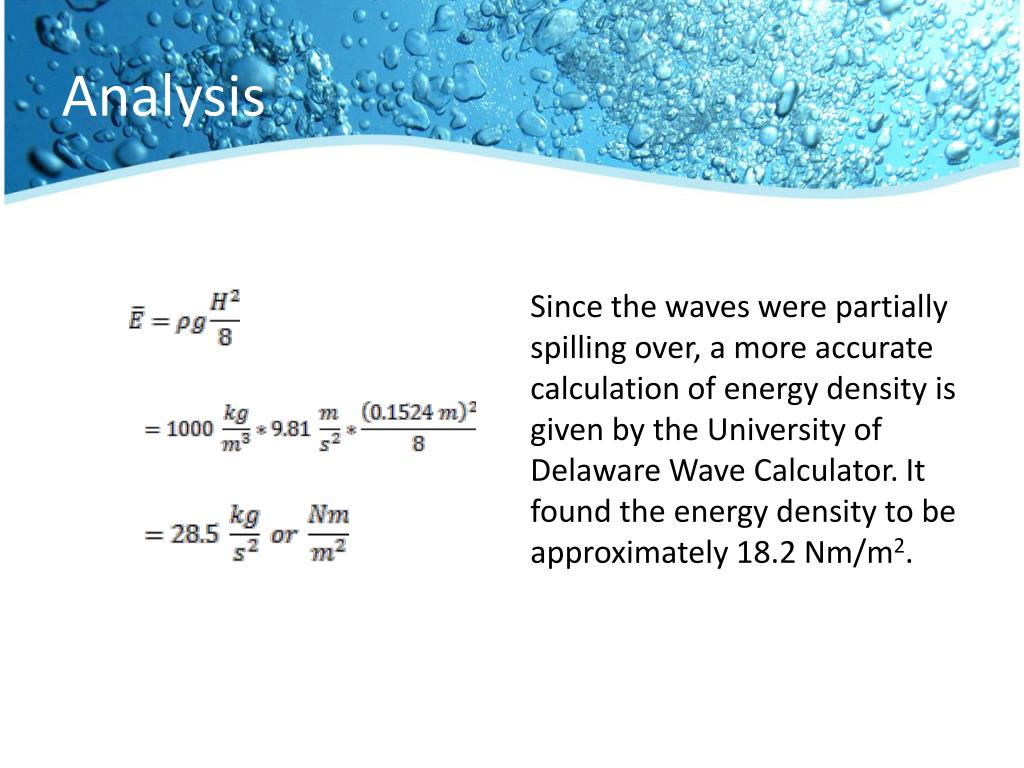

  18. Analysis Since the waves were partially spilling over, a more accurate calculation of energy density is given by the University of Delaware Wave Calculator. It found the energy density to be approximately 18.2 Nm/m2.

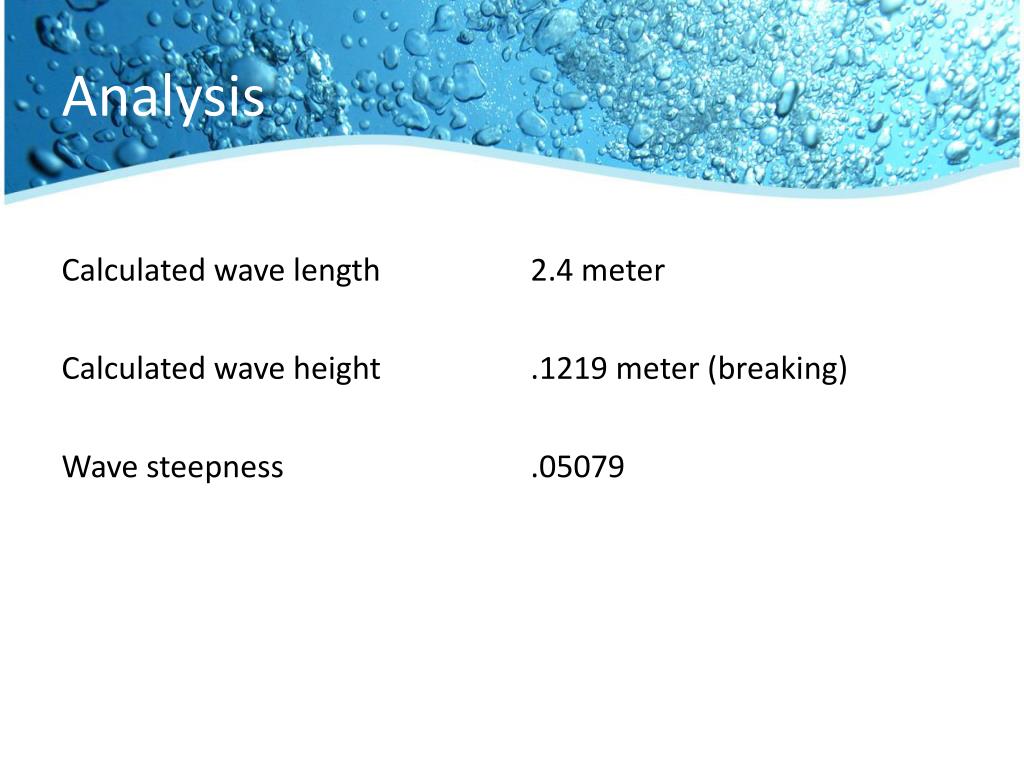

  19. Analysis 2.4 meter .1219 meter (breaking) .05079 Calculated wave length Calculated wave height Wave steepness

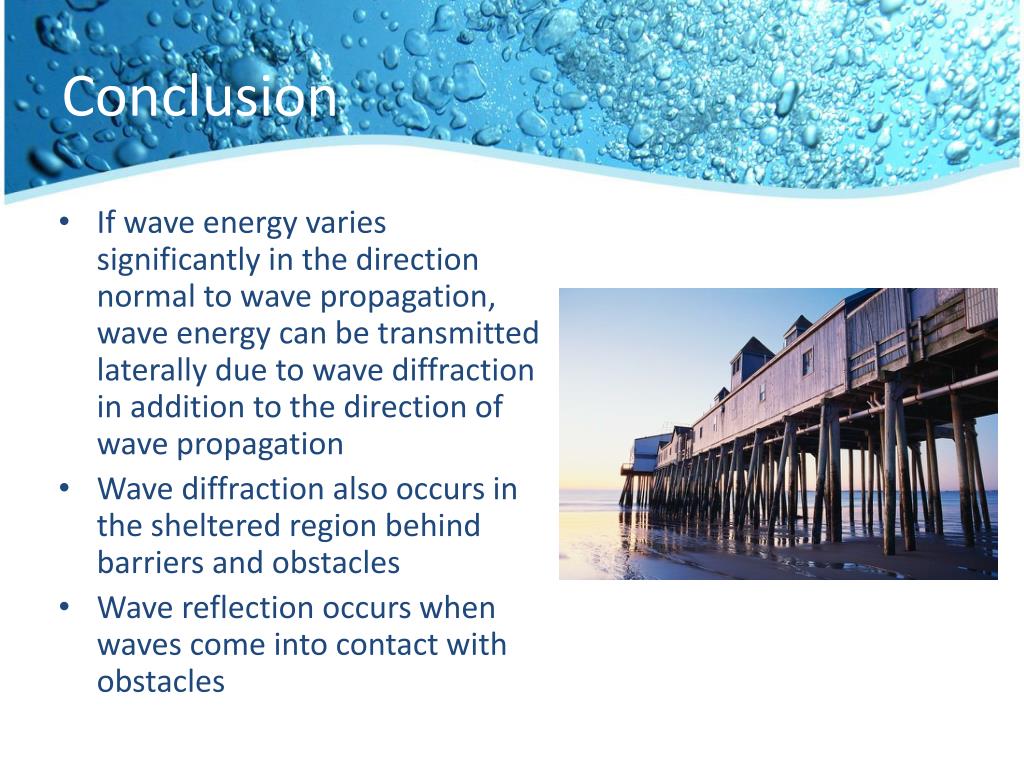

  20. Conclusion • If wave energy varies significantly in the direction normal to wave propagation, wave energy can be transmitted laterally due to wave diffraction in addition to the direction of wave propagation • Wave diffraction also occurs in the sheltered region behind barriers and obstacles • Wave reflection occurs when waves come into contact with obstacles

  21. Conclusion • Encourage dock industry to produce innovative designs that have less of an impact on the coastal environment • Educate coastal landowners • Restricting the amount of coastal area disturbed minimizes impacts

  22. Bibliography Acknowledgments Professor Chin Wu Minnesota DNR http://www.dnr.state.mn.us/waters/watermgmt_section/pwpermits/docks.html http://files.dnr.state.mn.us/waters/watermgmt_section/pwpermits/dock_platform_general_permit_q_and_a.pdf Mohn, Magoon, Pirrell. (2003). Advances in coastal structure design. ASCE Wisconsin DNR dnr.wi.gov/ University of Delaware: Wave Calculator
