  1. Chapter 8 Main Memory Bernard Chen Spring 2007

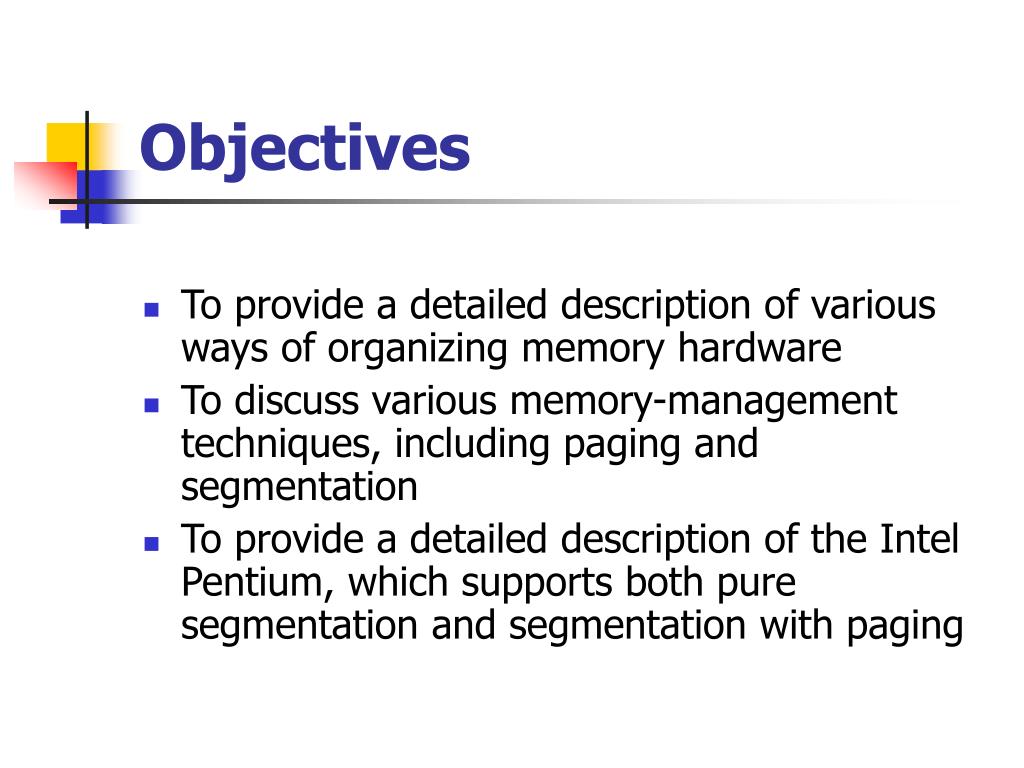

  2. Objectives • To provide a detailed description of various ways of organizing memory hardware • To discuss various memory-management techniques, including paging and segmentation • To provide a detailed description of the Intel Pentium, which supports both pure segmentation and segmentation with paging

  3. Background • Program must be brought (from disk) into memory and placed within a process for it to be run • Main memory and registers are only storage CPU can access directly • Register access in one CPU clock (or less) • Main memory can take many cycles • Cache sits between main memory and CPU registers • Protection of memory required to ensure correct operation

  4. Memory shared by Processes • We first need to make sure that each process has a separate memory space • The BASE register holds the smallest legal physical memory address; the LIMIL register specifies the size of the range

  5. Base and Limit Registers

  6. Base and Limit Registers • The base and limit registers can be loaded only the operating system , which uses a special privileged instruction. • And these instructions can only be executed in kernel mode, which can only achieved by OS

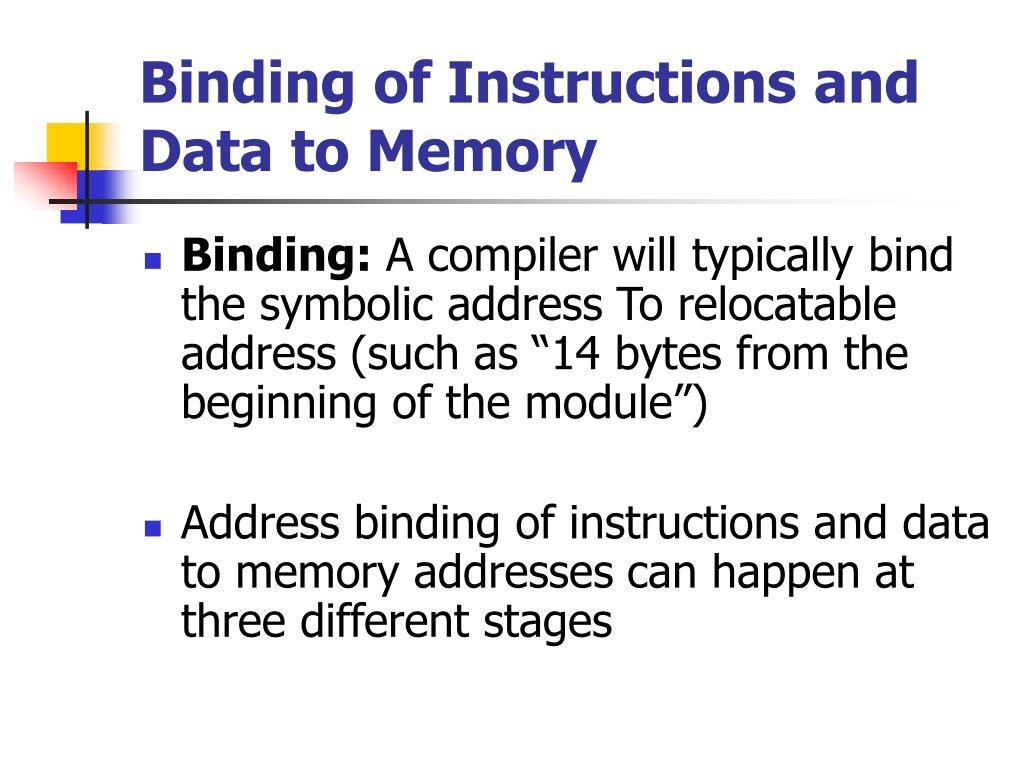

  7. Binding of Instructions and Data to Memory • Binding: A compiler will typically bind the symbolic address To relocatable address (such as “14 bytes from the beginning of the module”) • Address binding of instructions and data to memory addresses can happen at three different stages

  8. Binding of Instructions and Data to Memory • Compile time: If memory location known a priori, absolute code can be generated; must recompile code if starting location changes • Load time: Must generate relocatable code if memory location is not known at compile time • Execution time: Binding delayed until run time if the process can be moved during its execution from one memory segment to another.

  9. Logical vs. Physical Address Space • The concept of a logical address space that is bound to a separate physical address space is central to proper memory management • Logical address–generated by the CPU; also referred to as virtual address • Physical address– addres seen by the memory unit

  10. Logical vs. Physical Address Space • Logical and physical addresses are the same in compile-time and load-time address-binding schemes; logical (virtual) and physical addresses differ in execution-time address-binding scheme • Logical address also refer to a virtual address

  11. Memory-Management Unit (MMU) • The run time mapping from virtual to physical address is done by a hardware device called the memory-management unit, as well as MMU • In MMU scheme, the value in the relocation register is added to every address generated by a user process at the time it is sent to memory • The user program deals with logical addresses; it never sees the real physical addresses

  12. Memory-Management Unit (MMU)

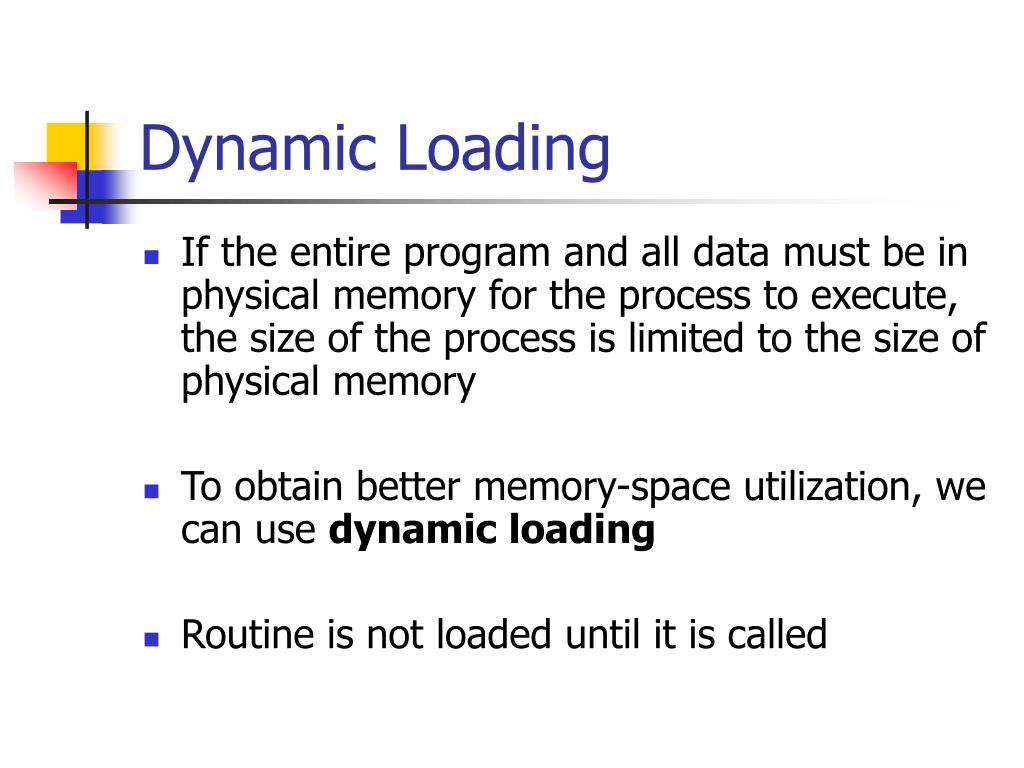

  13. Dynamic Loading • If the entire program and all data must be in physical memory for the process to execute, the size of the process is limited to the size of physical memory • To obtain better memory-space utilization, we can use dynamic loading • Routine is not loaded until it is called

  14. Swapping • A process can swapped temporarily out of memory to a Backing store and then brought back into memory for continued execution. • For example, RR CPU-scheduler, Priority scheduler

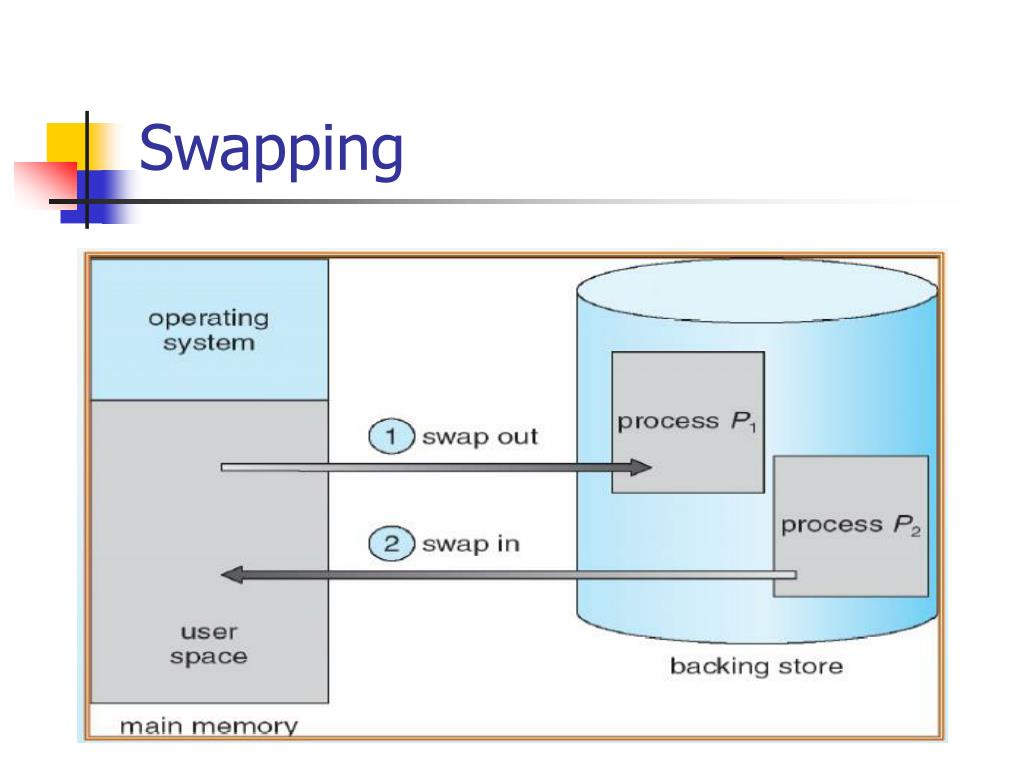

  15. Swapping

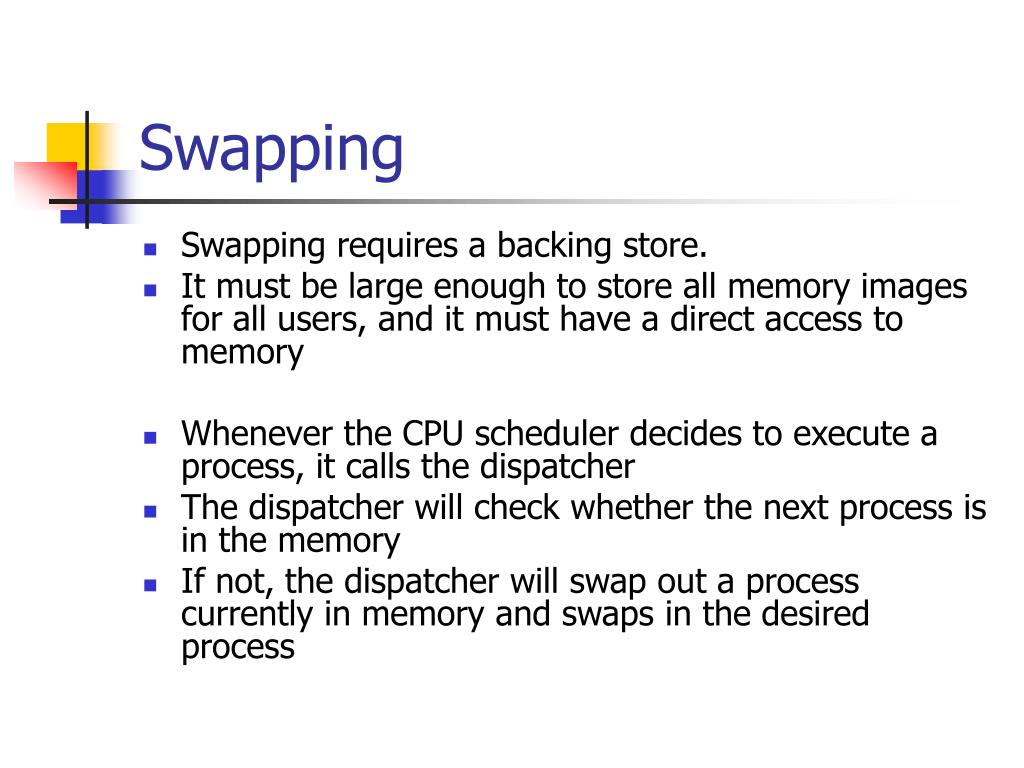

  16. Swapping • Swapping requires a backing store. • It must be large enough to store all memory images for all users, and it must have a direct access to memory • Whenever the CPU scheduler decides to execute a process, it calls the dispatcher • The dispatcher will check whether the next process is in the memory • If not, the dispatcher will swap out a process currently in memory and swaps in the desired process

  17. Swapping • We assume that the user process is 10MB, and the standard hard disk with a transfer rate of 40MB per second, it would take: 10000kb/40000kb per sec = ¼ second = 250 milliseconds • Assume we expect 8 millisecond of delay, each swap will take 258 millisecond. And we need two swaps therefore it takes 516 milliseconds • If we do a RR CPU-scheduler, the time quantum should be more than half second

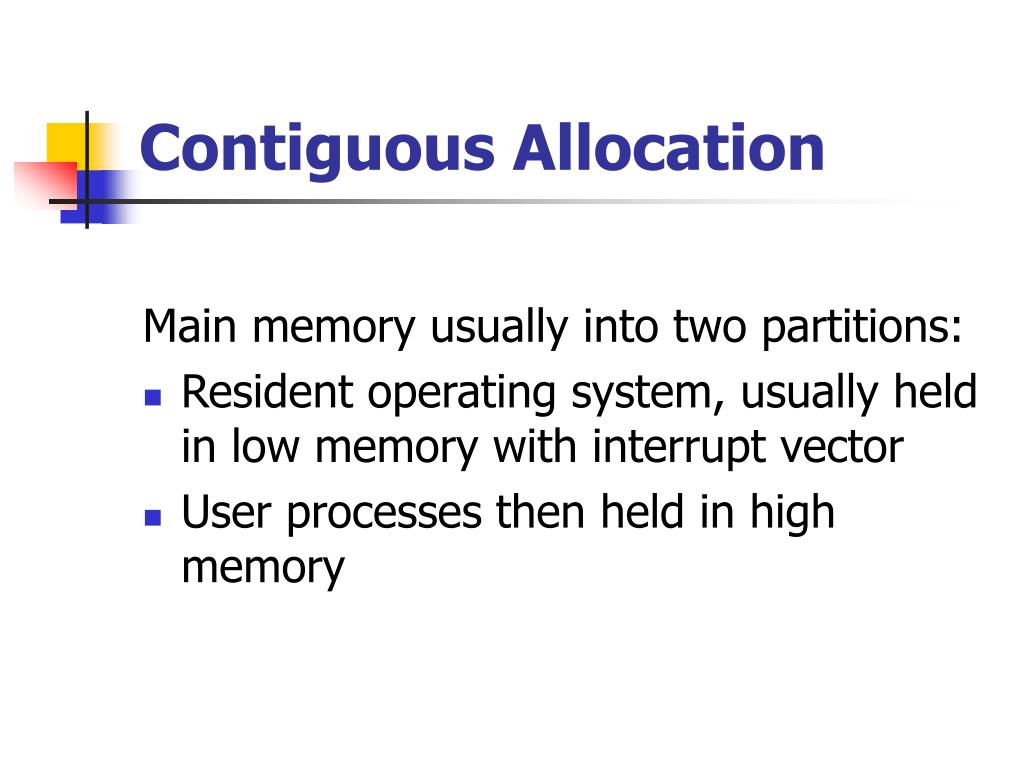

  18. Contiguous Allocation Main memory usually into two partitions: • Resident operating system, usually held in low memory with interrupt vector • User processes then held in high memory

  19. Memory Mapping and Protection • Relocation registers used to protect user processes from each other, and from changing operating-system code and data • Base register contains value of smallest physical address • Limit register contains range of logical addresses –each logical address must be less than the limit register • MMU maps logical address dynamically

  20. Memory Mapping and Protection

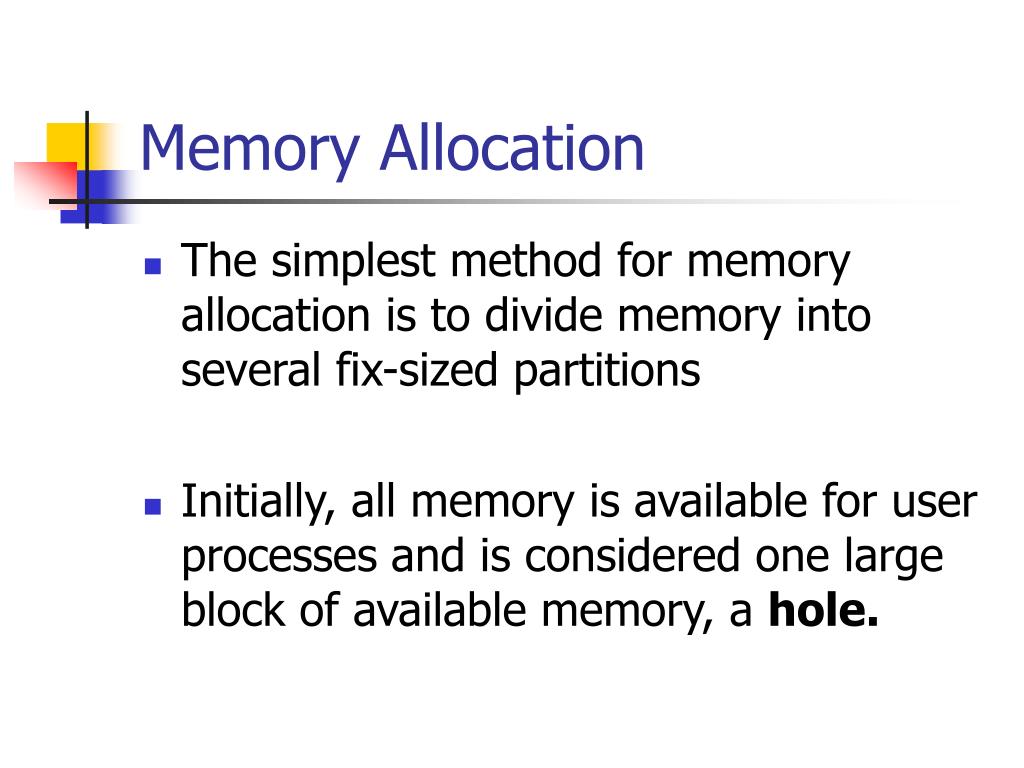

  21. Memory Allocation • The simplest method for memory allocation is to divide memory into several fix-sized partitions • Initially, all memory is available for user processes and is considered one large block of available memory, a hole.

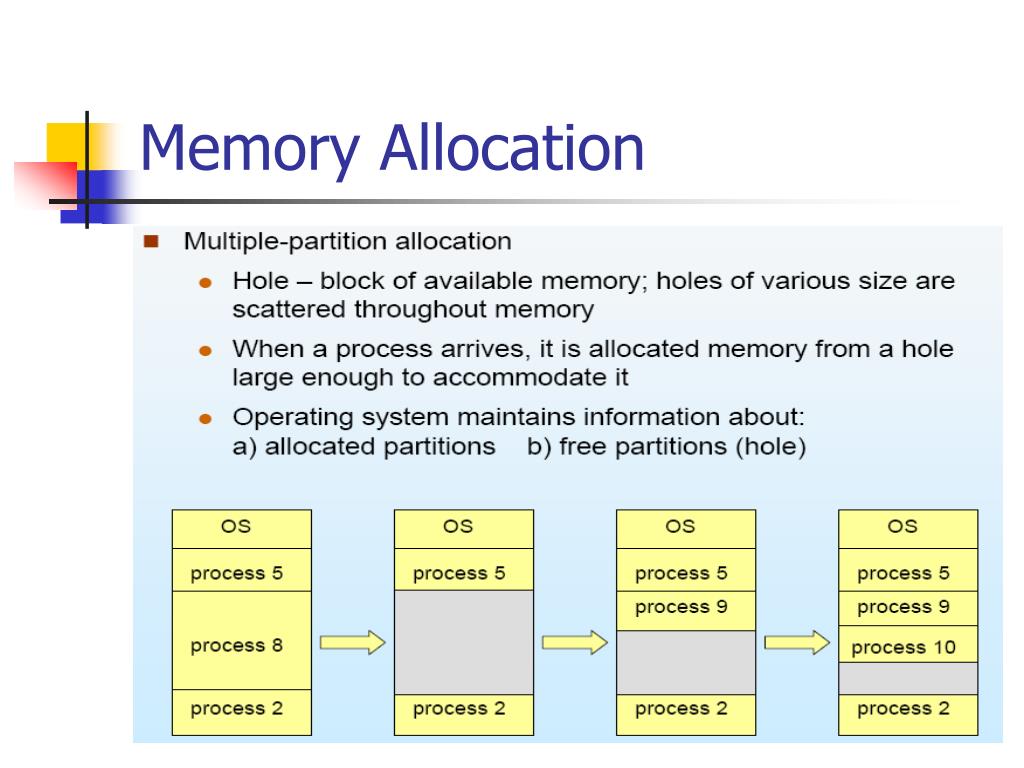

  22. Memory Allocation

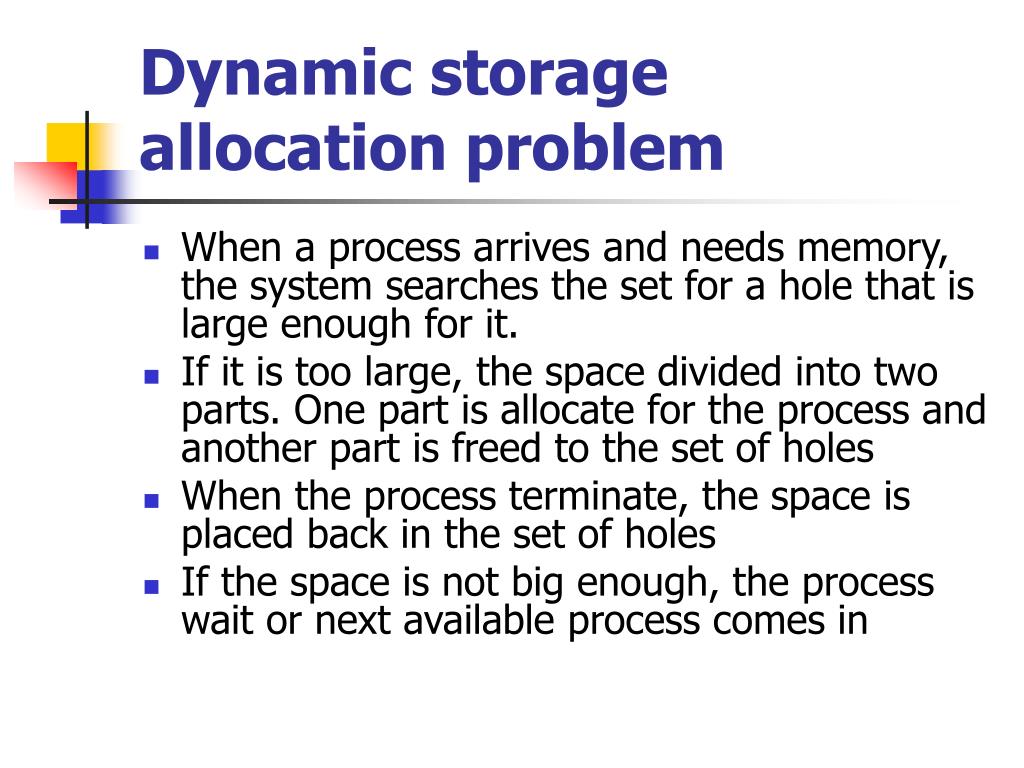

  23. Dynamic storage allocation problem • When a process arrives and needs memory, the system searches the set for a hole that is large enough for it. • If it is too large, the space divided into two parts. One part is allocate for the process and another part is freed to the set of holes • When the process terminate, the space is placed back in the set of holes • If the space is not big enough, the process wait or next available process comes in

  24. Dynamic Storage-Allocation Problem • How to satisfy a request of size n from a list of free holes • First-fit: Allocate the first hole that is big enough • Best-fit: Allocate the smallest hole that is big enough; must search entire list, unless ordered by size (Produces the smallest leftover hole) • Worst-fit: Allocate the largest hole; must also search entire list (Produces the largest leftover hole)

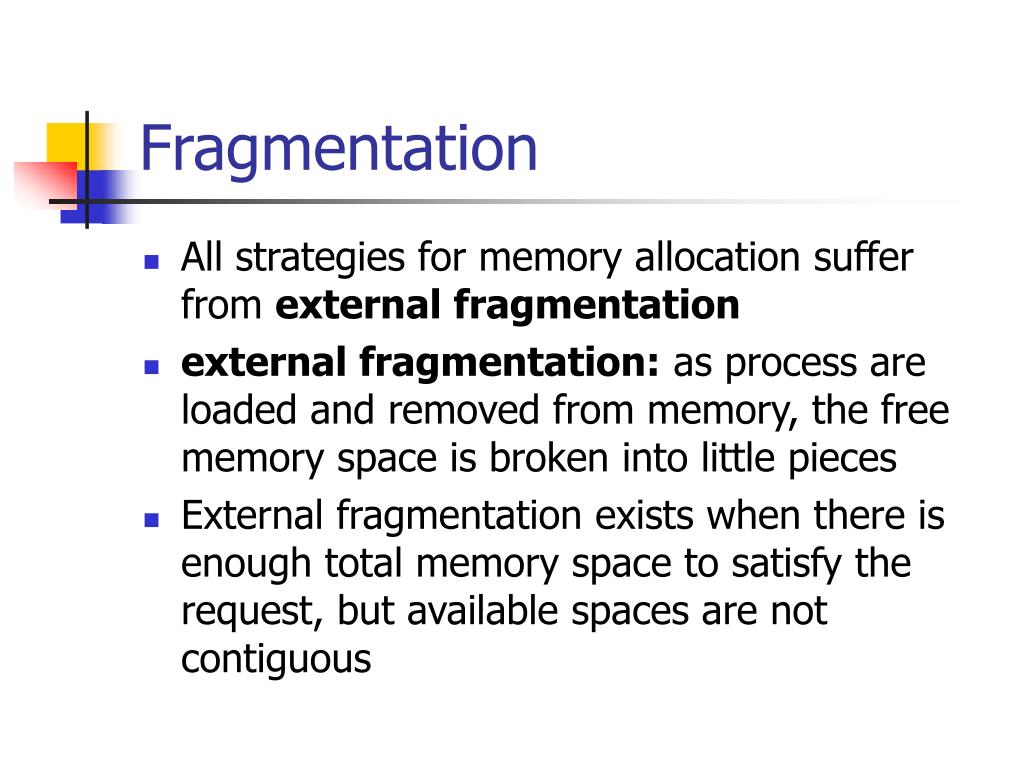

  25. Fragmentation • All strategies for memory allocation suffer from external fragmentation • external fragmentation: as process are loaded and removed from memory, the free memory space is broken into little pieces • External fragmentation exists when there is enough total memory space to satisfy the request, but available spaces are not contiguous

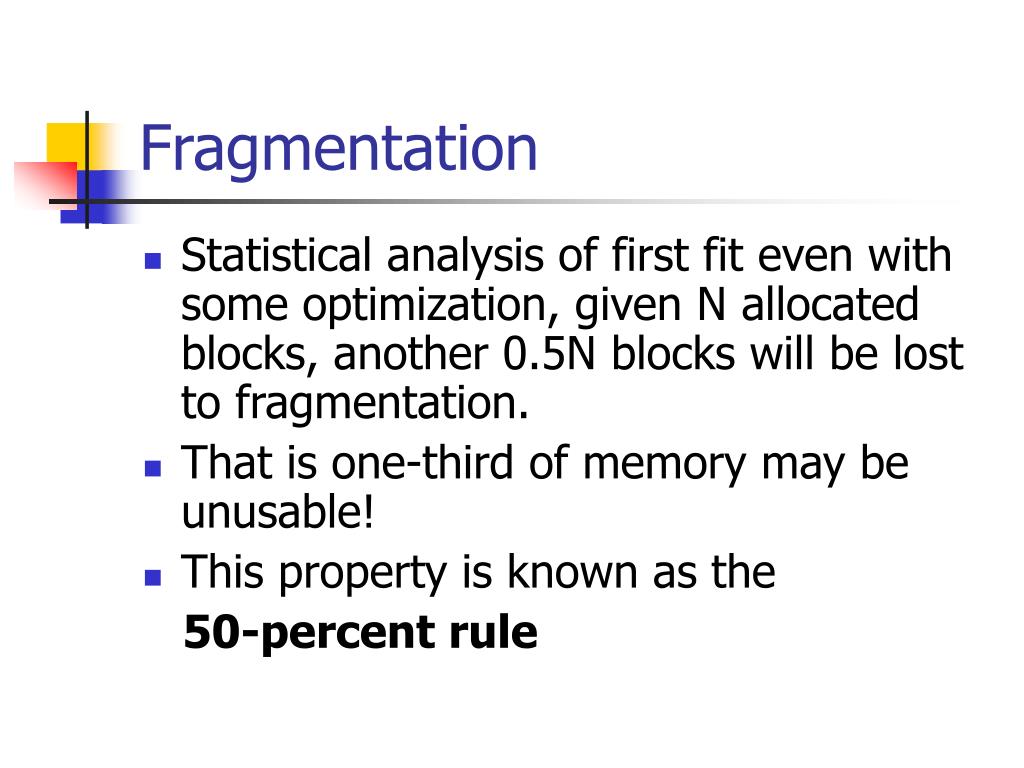

  26. Fragmentation • Statistical analysis of first fit even with some optimization, given N allocated blocks, another 0.5N blocks will be lost to fragmentation. • That is one-third of memory may be unusable! • This property is known as the 50-percent rule

  27. Fragmentation • If the hole is the size of 20,000 bytes, suppose that next process requests 19,000 bytes. 1,000 bytes are lose • This is called internal fragmentation- memory that is internal to a partition but is nor being used

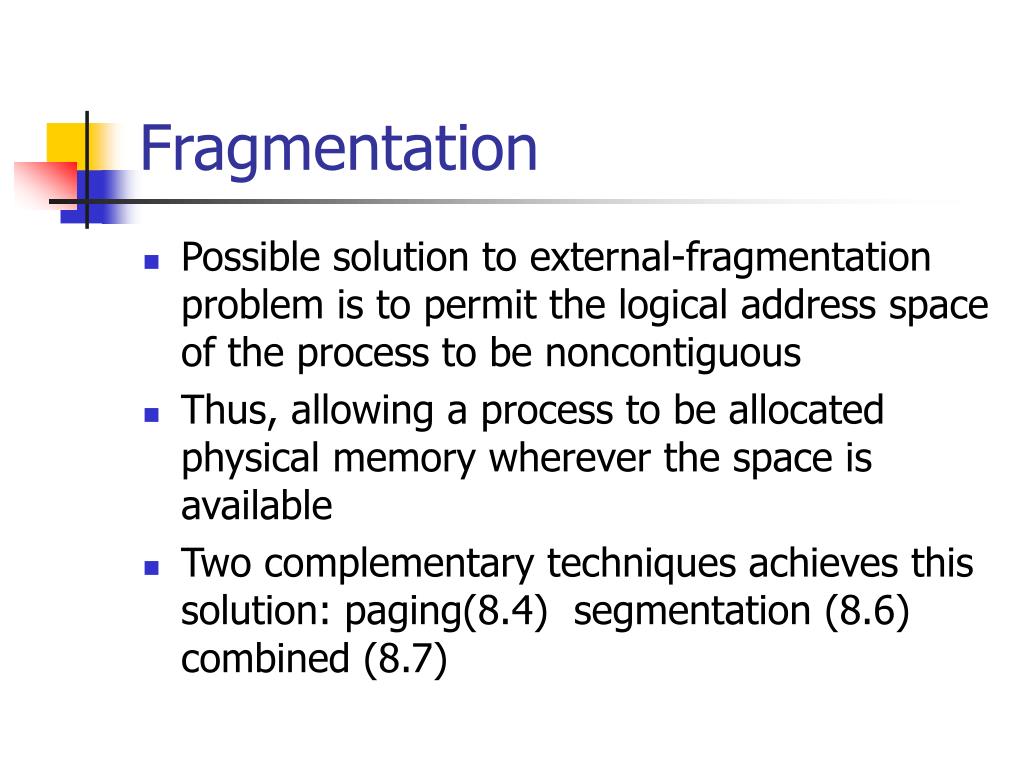

  28. Fragmentation • Possible solution to external-fragmentation problem is to permit the logical address space of the process to be noncontiguous • Thus, allowing a process to be allocated physical memory wherever the space is available • Two complementary techniques achieves this solution: paging(8.4) segmentation (8.6) combined (8.7)

  29. 8.4 paging • Paging is a memory-management scheme that permits the physical address space of a process to be non-contiguous. • The basic method for implementation involves breaking physical memory into fixed-sized blocks called FRAMES and break logical memory into blocks of the same size called PAGES

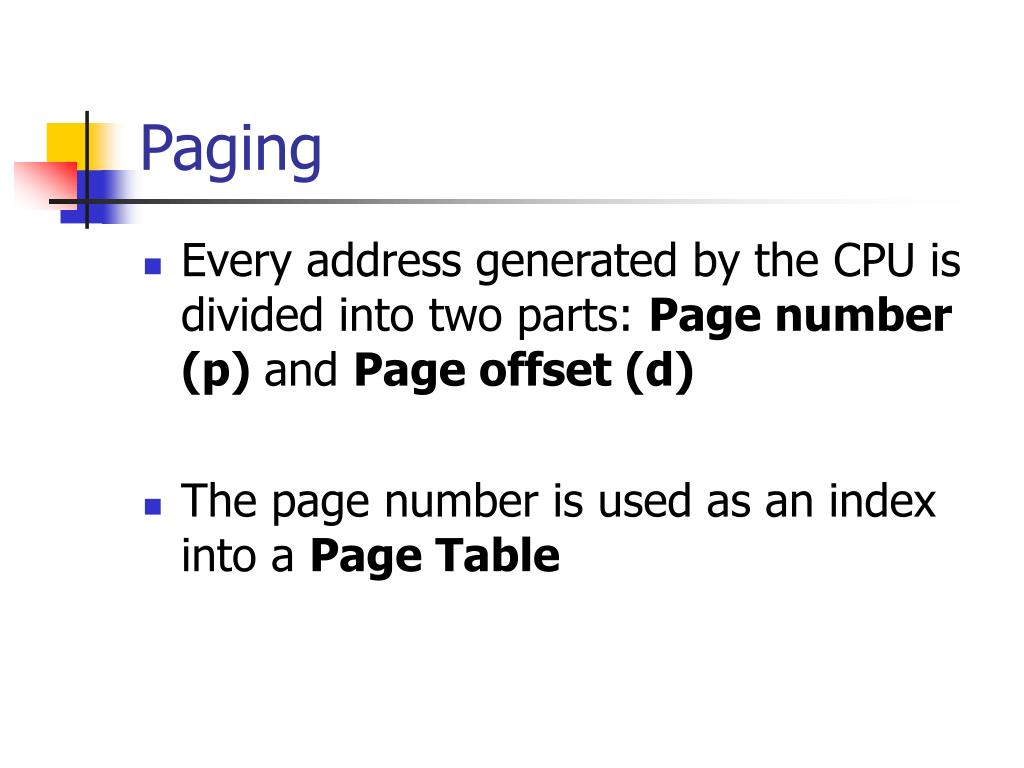

  30. Paging • Every address generated by the CPU is divided into two parts: Page number (p) and Page offset (d) • The page number is used as an index into a Page Table

  31. Paging

  32. Paging

  33. Paging • The page size is defined by the hardware • The size of a page is typically a power of 2, varying between 512 bytes and 16MB per page • Reason: If the size of logical address is 2^m and page size is 2^n, then the high-order m-n bits of a logical address designate the page number

  34. Paging

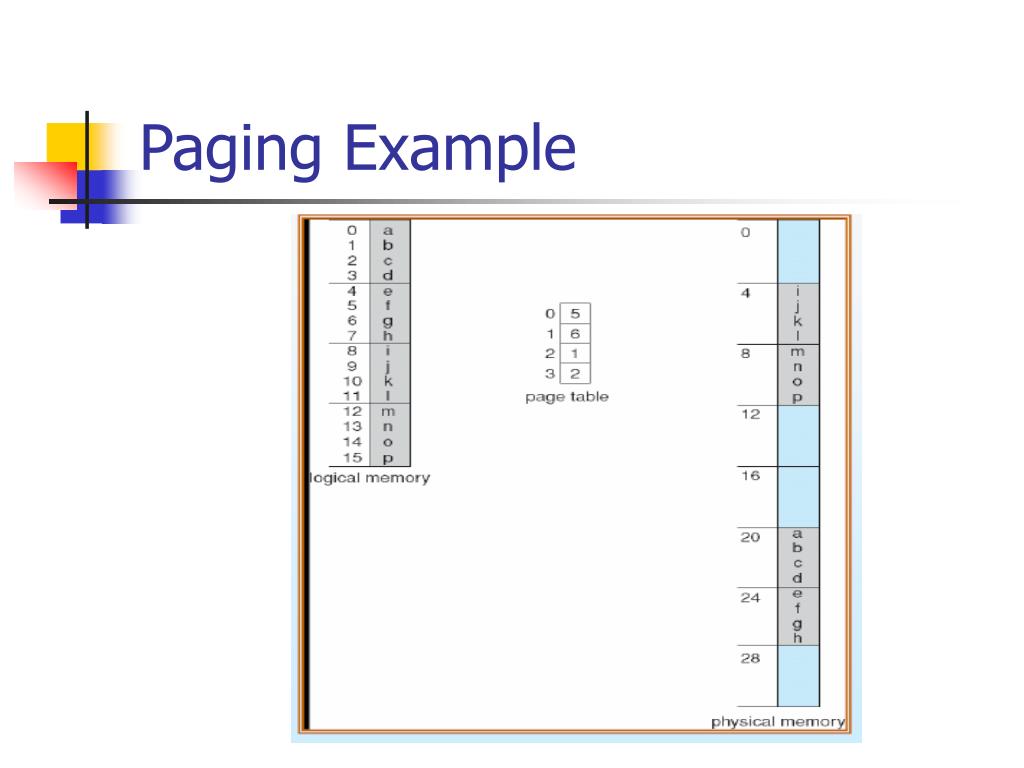

  35. Paging Example

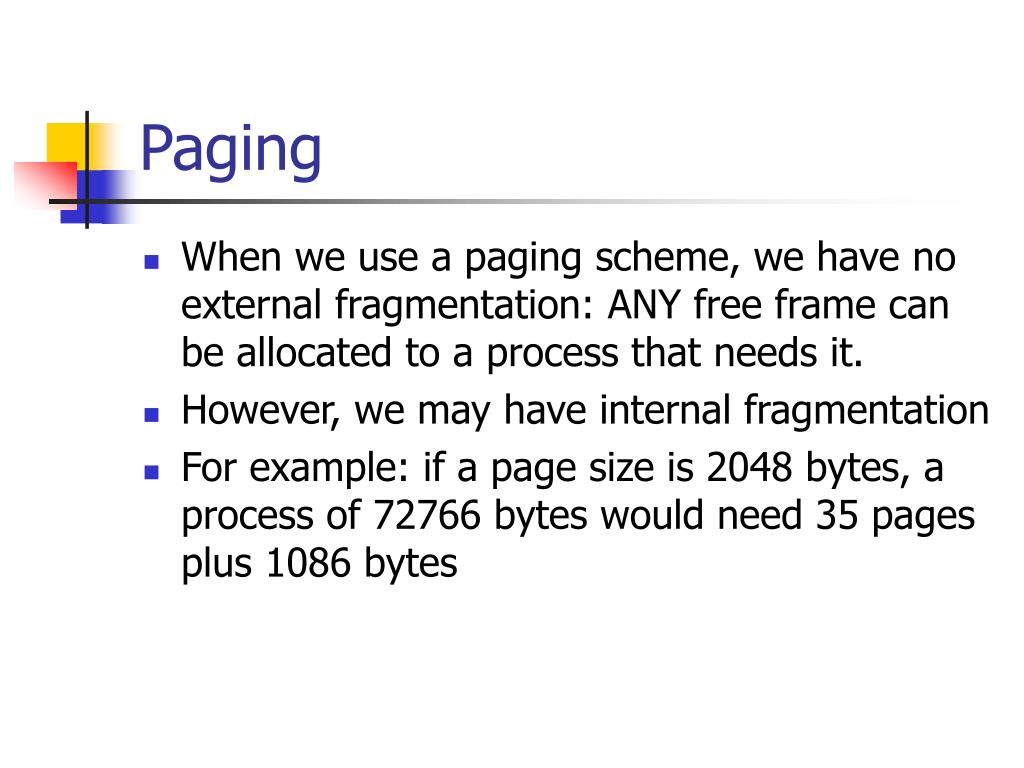

  36. Paging • When we use a paging scheme, we have no external fragmentation: ANY free frame can be allocated to a process that needs it. • However, we may have internal fragmentation • For example: if a page size is 2048 bytes, a process of 72766 bytes would need 35 pages plus 1086 bytes

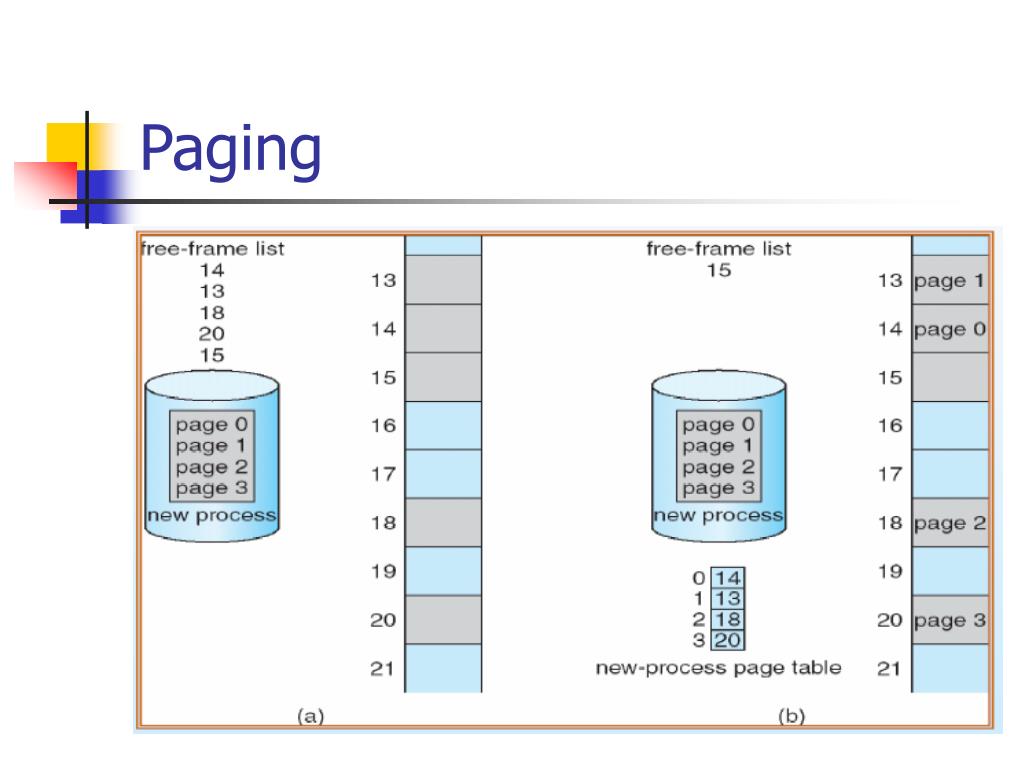

  37. Paging • If the process requires n pages, at least n frames are required • The first page of the process is loaded into the first frame listed on free-frame list, and the frame number is put into page table

  38. Paging

  39. Hardware Support on Paging • To implement paging, the simplest method is to implement the page table as a set of registers • However, the size of register is limited and the size of page table is usually large • Therefore, the page table is kept in main memory

  40. Hardware Support on Paging • If we want to access location I, we must first index into page table, this requires one memory access • With this scheme, TWO memory access are needed to access a byte • The standard solution is to use a special, small, fast cache, called Translation look-aside buffer (TLB) or associative memory

  41. TLB

  42. TLB • If the page number is not in the TLB (TLB miss) a memory reference to the page table must be made. • In addition, we add the page number and frame number into TLB • If the TLB already full, the OS have to must select one for replacement • Some TLBs allow entries to be wire down, meaning that they cannot be removed from the TLB, for example kernel codes

  43. TLB • The percentage of times that a particular page number is found in the TLN is called hit ratio • If it takes 20 nanosecond to search the TLB and 100 nanosecond to access memory • If our hit ratio is 80%, the effective memory access time equal: 0.8*(100+20) + 0.2 *(100+100)=140 • If our hit ratio is 98%, the effective memory access time equal: 0.98*(100+20) + 0.02 *(100+100)=122 (detail in CH9)

  44. Memory Protection • Memory protection implemented by associating protection bit with each frame • Valid-invalid bit attached to each entry in the page table: • “valid” indicates that the associated page is in the process’ logical address space, and is thus a legal page • “invalid” indicates that the page is not in the process ’logical address space

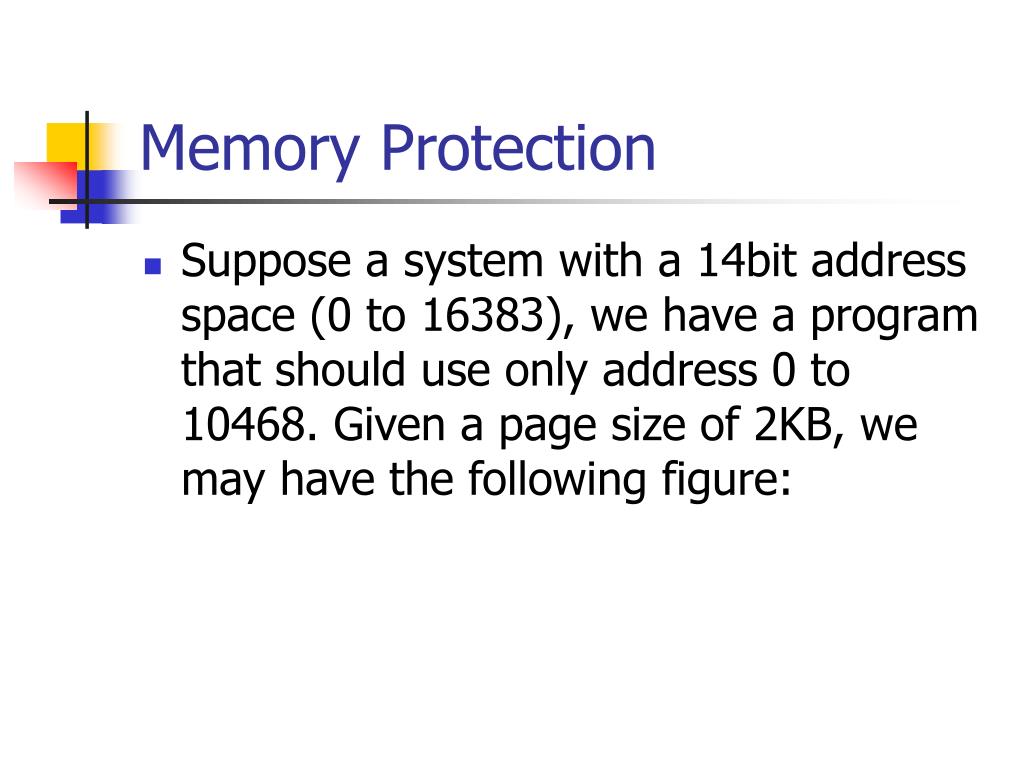

  45. Memory Protection • Suppose a system with a 14bit address space (0 to 16383), we have a program that should use only address 0 to 10468. Given a page size of 2KB, we may have the following figure:

  46. Memory Protection

  47. Memory Protection • Any attempt to generate an address in page 6 or 7 will be invalid • Notice that this scheme allows the program to access 10468 to 12287, this problem is result of the 2KB page size and reflects the internal fragmentation of paging

  48. Shared Pages • An advantage of paging is the possible of sharing common code, especially time-sharing environment • For example a server with 40 user using text editor (with 150k reentrant code and 50k data space) • In next figure, we see three page editor with 50k each. Each process has its own data page

  49. Shared Pages
