  1. CHAPTER 10 INSTRUCTION SETS CSNB123 coMPUTERoRGANIZATION Systems and Networking

  2. Expected Course Outcome Systems and Networking

  3. Architecture Recap Chapter 1 • Attributes visible to the programmer • Instruction set • Number of bits used for data representation • I/O mechanisms • Addressing techniques Systems and Networking

  4. Machine Instruction Characteristics • Each instruction must contain the information required by the processor for execution Systems and Networking

  5. Machine Instruction Characteristics (Cont.) • Elements of Machine Instruction (MI) Systems and Networking

  6. Simple Instruction Format • Instruction is represented by a sequence of bits • During instruction execution, an instruction is read into an instruction register (IR) in the processor. • The processor must be able to extract the data from the various instruction fields to perform the required operation • Opcodes are presented by abbreviations-mnemonics-that indicate the operation ..why do this …hard to remember code in binary form Systems and Networking

  7. Simple Instruction Format (Cont.) • Operands also represented symbolically • Example: • Add the value contained in the location Y to the contents of register R • Y=refer to the address of a location in memory • R=refers to a particular register ADD R,Y Systems and Networking

  8. Instruction Types • HLL language instruction in BASIC • Instruct the computer to add the value stored in Y to the value stored in X and put the result in X. X=513, Y=514 X=X + Y Systems and Networking

  9. Instruction Types (Cont.) X=513, Y=514 X=X + Y Simple instruction sets • Load a register with the contents of memory location 513 • Add the contents of memory location 514 to the register • Store the contents of the register in memory location 513 Systems and Networking

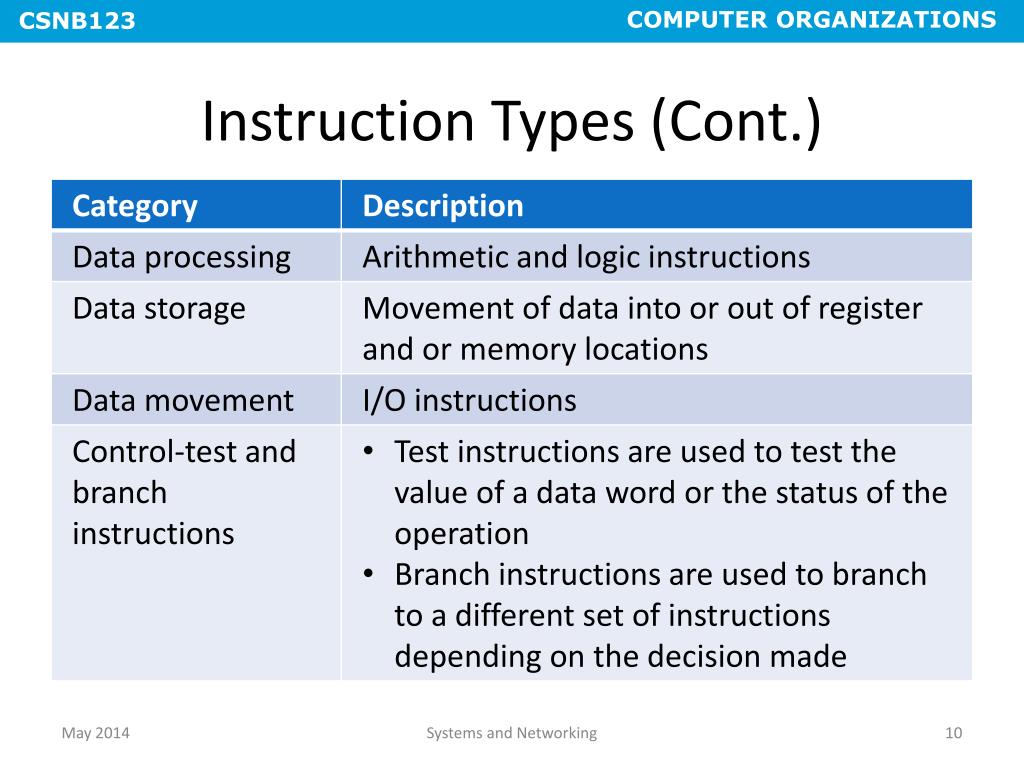

  10. Instruction Types (Cont.) Systems and Networking

  11. Number of Address • Address refer to location that store the value of the operands • In most architecture, most instructions have 1,2 or 3 operand addresses Systems and Networking

  12. Example Y=(A-B)/[C+(DXE)] Systems and Networking

  13. 3 address instructions • Each instruction specifies two source operand locations and a destination operation location • Operand 1, Operand 2, Result • Not common since they require a relatively long instructions format to hold the three address references • T = temporary location-to store intermediary result Systems and Networking

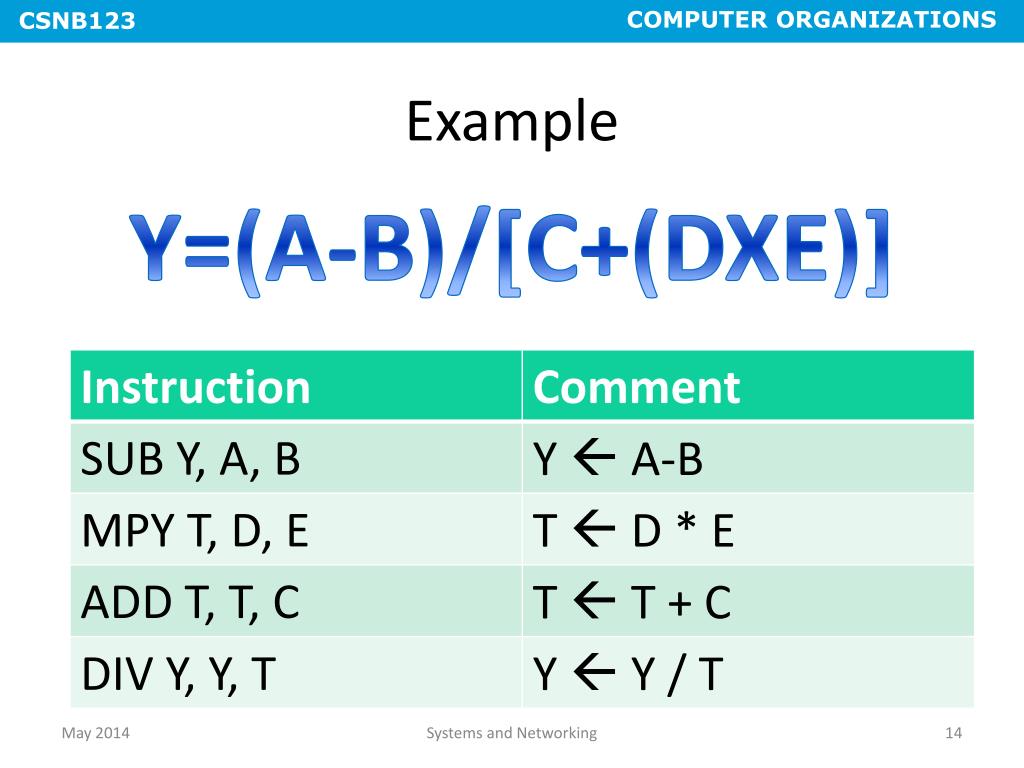

  14. Example Y=(A-B)/[C+(DXE)] Systems and Networking

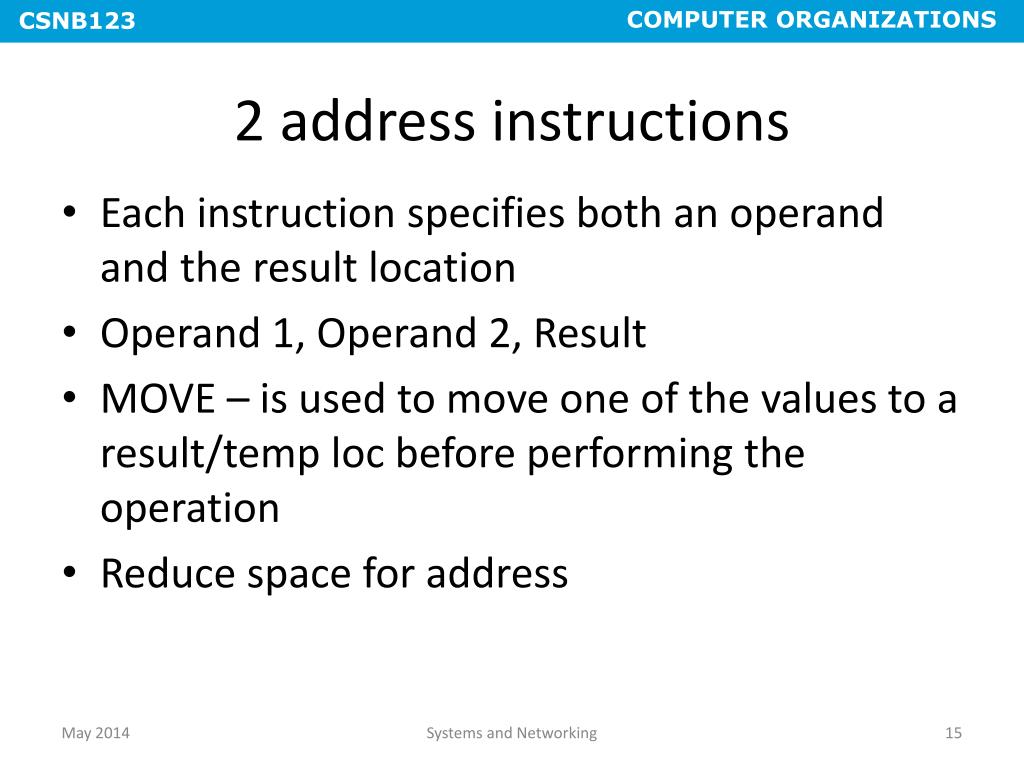

  15. 2 address instructions • Each instruction specifies both an operand and the result location • Operand 1, Operand 2, Result • MOVE – is used to move one of the values to a result/temp loc before performing the operation • Reduce space for address Systems and Networking

  16. Example Y=(A-B)/[C+(DXE)] Systems and Networking

  17. 1address instructions • Second address must be implicit (hidden) • Common in earlier machines- the implied address being a processor register known as the accumulator (AC) • The AC contains one of the operands and is used to store the result Systems and Networking

  18. Example Y=(A-B)/[C+(DXE)] Systems and Networking

  19. 0 address instructions • All address must be implicit (hidden) • Stack-based operations • last-in-first-out (LIFO) set of locations • Interact with the stack using PUSH and POP operations • PUSH – to push a data from memory onto the stack • POP – to pop out data from the stack to a memory location Systems and Networking

  20. Example Y=(A-B)/[C+(DXE)] D B C C A A A A A PUSH B PUSH A SUB PUSH D PUSH C E D D C C C PUSH E ADD DIV A A MPY A A POP Systems and Networking

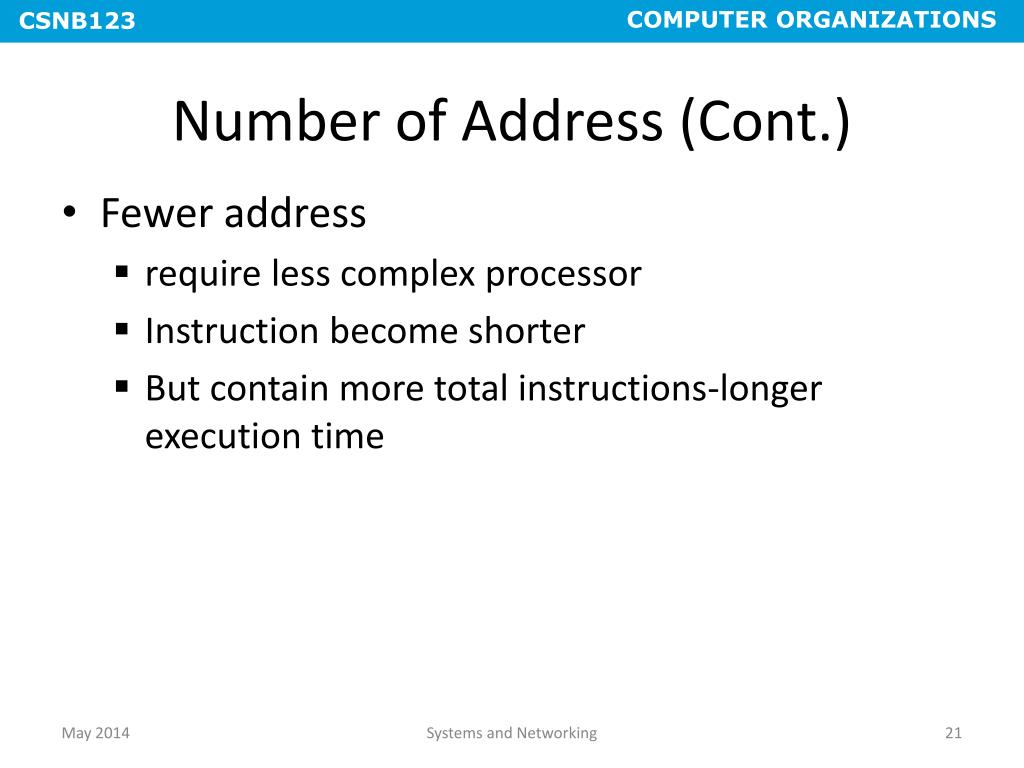

  21. Number of Address (Cont.) • Fewer address • require less complex processor • Instruction become shorter • But contain more total instructions-longer execution time Systems and Networking

  22. Number of Address (Cont.) • Multiple address instructions – have multiple general purpose register • Register references are faster than memory references – speed up the execution • Most contemporary machine employ a mixture of 2 and 3 address instructions Systems and Networking

  23. Types of Operands • Categories of data • Addresses • Numbers • Integer/floating point • Characters • ASCII etc. • Logical data • 0/1-false/true Systems and Networking

  24. Types of Operations • Data transfer • Arithmetic • Logical • Conversion • I/O • Transfer of control Refer to Table 9.3 Systems and Networking

  25. Types of Operations (Cont.) Systems and Networking

  26. Types of Operations (Cont.) Systems and Networking

  27. Control Operations • Branch/jump instruction • Sequential • Unconditional branch • Conditional branch • Skip • Subroutine / procedure call Systems and Networking

  28. Control Operations - Branch • Has one of its operands the address of the next instruction to be executed • A sequence of code in a computer program which is conditionally executed depending on whether the flow of control is altered or not (at the branching point) • Conditional – the branch is made only if a certain condition is met • Unconditional – a branch instruction in which the branch is always taken Systems and Networking

  29. Control Operations - Branch (Cont.) Systems and Networking

  30. Control Operations - Skip • Useful in loop control • Implies that next instruction to be skipped Systems and Networking

  31. Control Operations – Subroutine • Also known as procedure call • A self-contained computer program that is incorporated into a larger program • At any point in the program, the procedure may be called or invoked • The processor is instructed to go and execute the entire procedure and then return to the point from which the call took place • A procedure allow the same piece of code to be used many times • Involves two basic instructions; call and return instruction Systems and Networking

  32. Control Operations – Subroutine (Cont.) Call instruction Return instruction Instruction that returns from the procedure to the place from which it was called • Instructions that branches from the present location to the procedure Systems and Networking

  33. Control Operations – Subroutine (Cont.) Systems and Networking

  34. Additional Reference • William Stallings, Computer Organization and Architecture: Designing for Performance, 8th. Edition, Prentice-Hall Inc., 2010 Systems and Networking

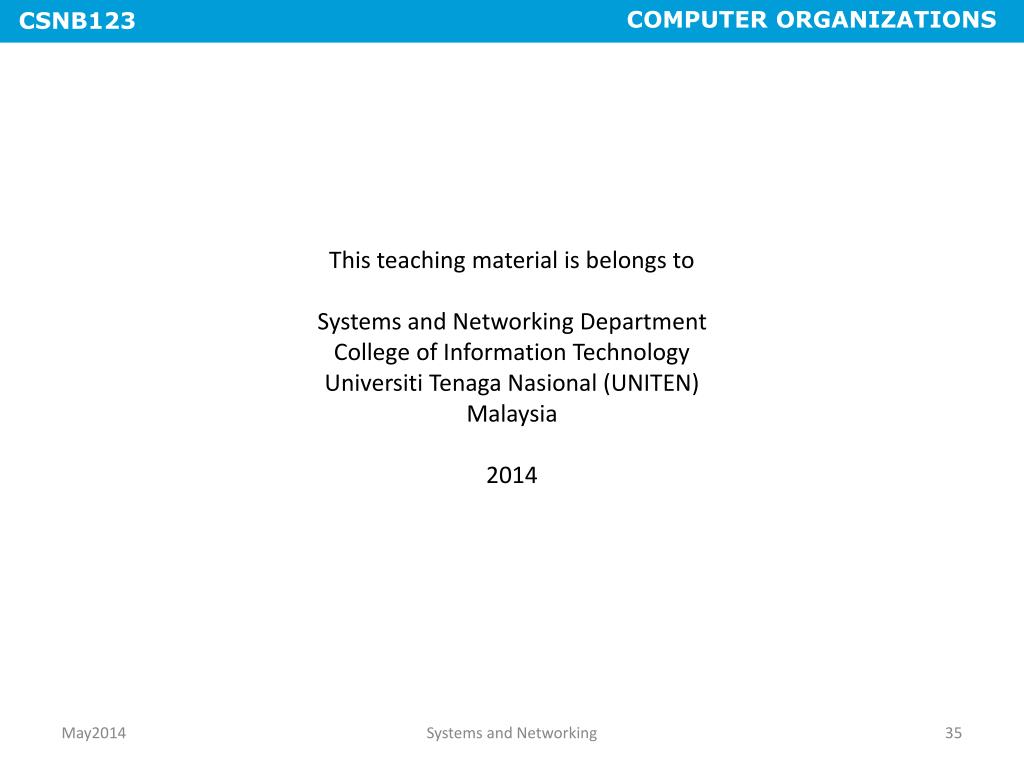

  35. This teaching material is belongs to Systems and Networking Department College of Information Technology UniversitiTenagaNasional (UNITEN) Malaysia 2014 Systems and Networking
