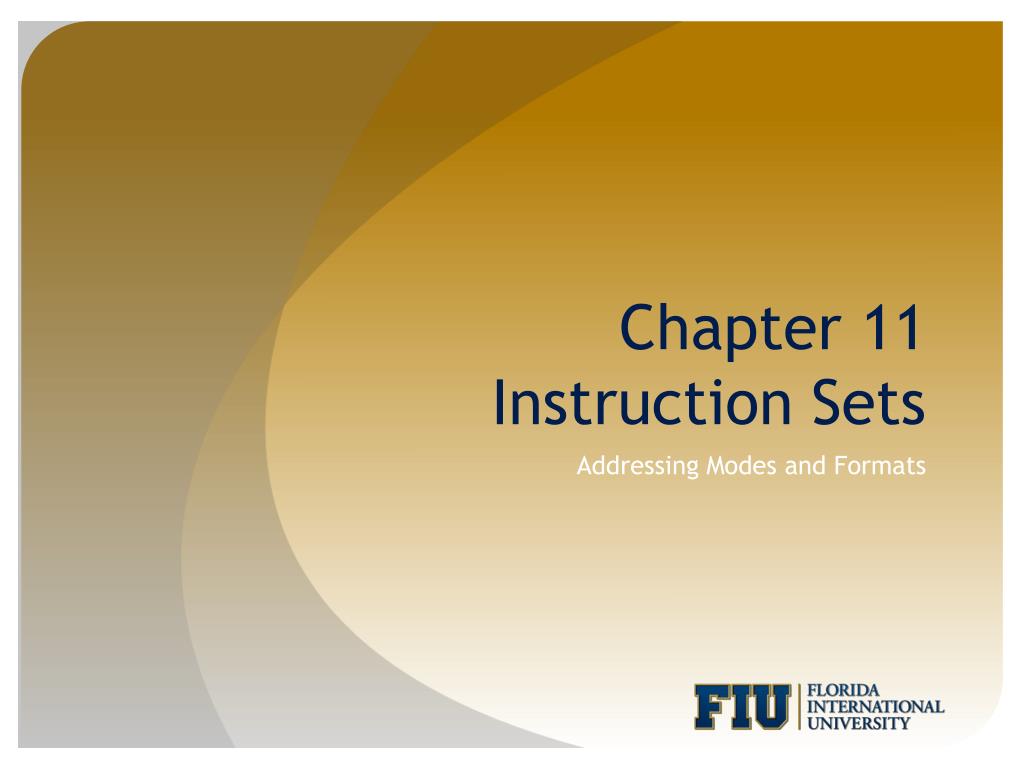

  1. Chapter 11Instruction Sets Addressing Modes and Formats

  2. Team Members • Jose Alvarez • Daniel Monsalve • Marlon Calero • Alfredo Guerrero • Oskar Pio • Andres Manyoma

  3. Addressing Modes • An addressing mode is the method by which an instruction references memory • Types of addressing modes: • Immediate • Direct • Indirect • Register • Register Indirect • Displacement (Indexed) • Stack

  4. Immediate Addressing • Simplest form of addressing • Actual data is stored in instruction • Value of the operand is stored within instruction • Data sizes vary by processor and by instruction • No memory reference (other than instruction fetch) required to obtain operand • Size of number limited to size of address field

  5. Immediate Addressing Diagram Instruction Opcode Operand

  6. Direct Addressing • Instruction points to location of stored value, but value itself is out of memory • Single memory reference to access data • No additional calculations needed to work out effective address • Frequently used for global variables in high level language • Limited address space

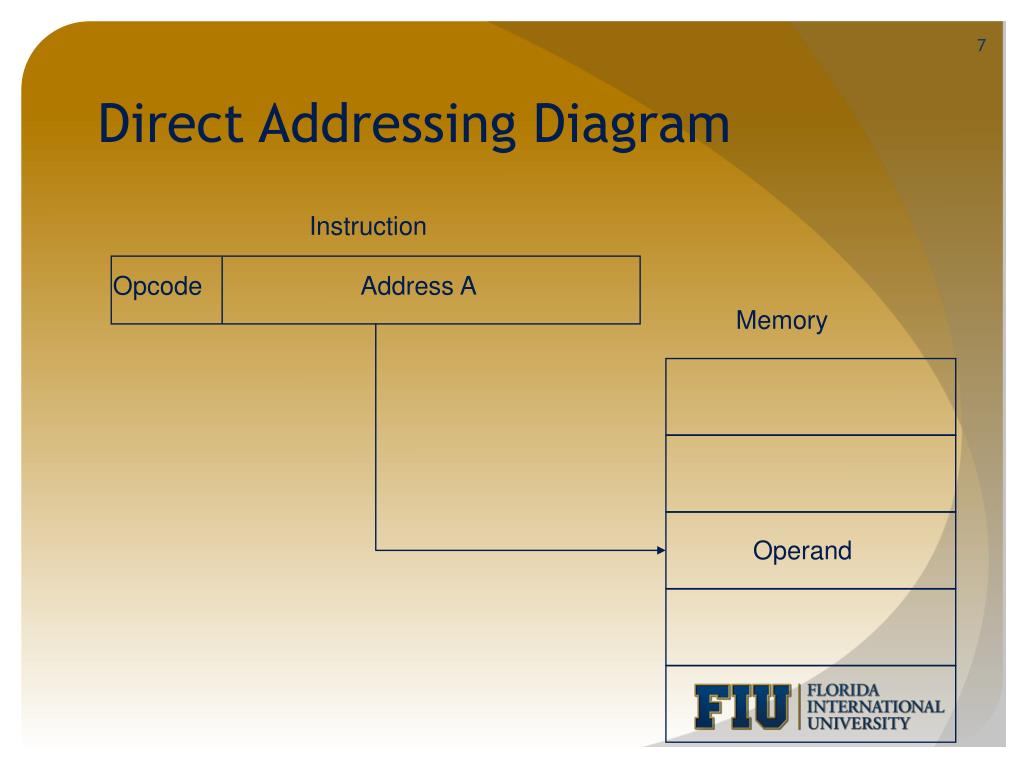

  7. Direct Addressing Diagram Instruction Opcode Address A Memory Operand

  8. Indirect Addressing • Memory pointed to by address field contains the address of the operand • Large address space • 2n where n = word length • Multiple memory accesses to find operand • Hence slower

  9. Indirect Addressing Diagram Instruction Opcode Address A Memory Pointer to operand Operand

  10. Register Addressing • Specified instruction contains required operand • Limited number of registers • Small address field needed • Leads to shorter instructions, but faster fetch cycle • No memory access • Fast execution • Limited address space

  11. Register Addressing Diagram Instruction Opcode Register Address R Registers Operand

  12. Register Indirect Addressing • Very similar to indirect addressing • Only one main difference between the two • Algorithms: • Register Indirect: EA = (R) • Indirect: EA = (A) • Advantages/disadvantages also similar to those of indirect addressing: • Advantage: Large address space (2n) • Disadvantage: Extra memory reference

  13. Register Indirect Addressing Diagram Instruction Opcode Register Address R Memory Registers Operand Pointer to Operand

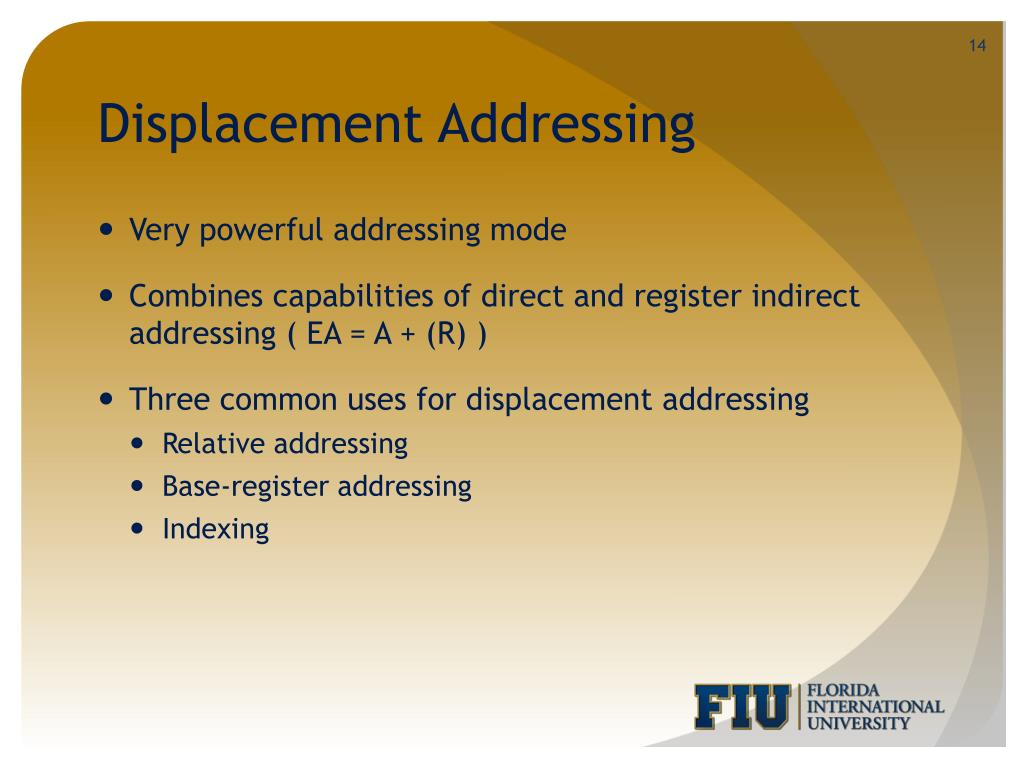

  14. Displacement Addressing • Very powerful addressing mode • Combines capabilities of direct and register indirect addressing ( EA = A + (R) ) • Three common uses for displacement addressing • Relative addressing • Base-register addressing • Indexing

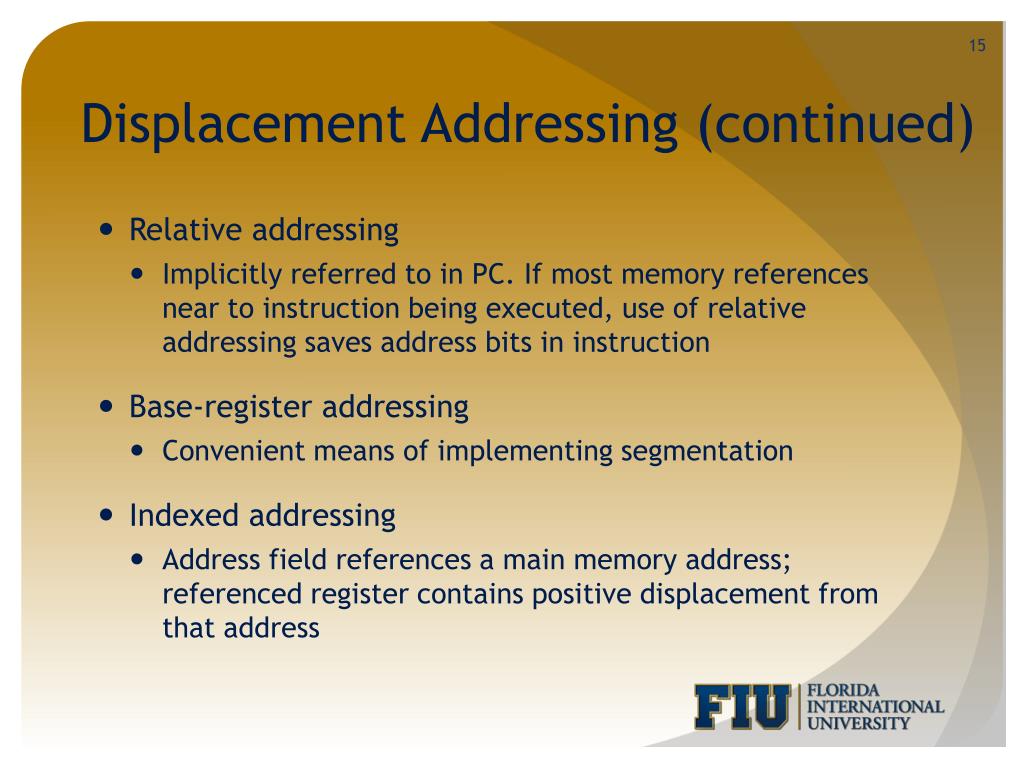

  15. Displacement Addressing (continued) • Relative addressing • Implicitly referred to in PC. If most memory references near to instruction being executed, use of relative addressing saves address bits in instruction • Base-register addressing • Convenient means of implementing segmentation • Indexed addressing • Address field references a main memory address; referenced register contains positive displacement from that address

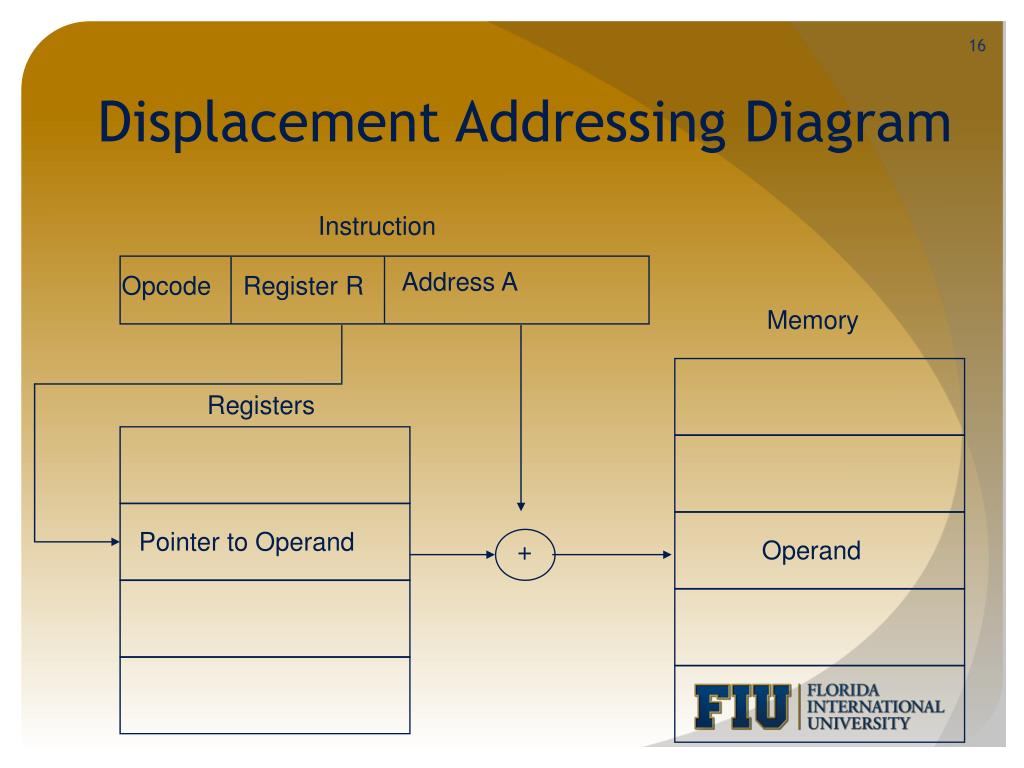

  16. Displacement Addressing Diagram Instruction Address A Opcode Register R Memory Registers Pointer to Operand Operand +

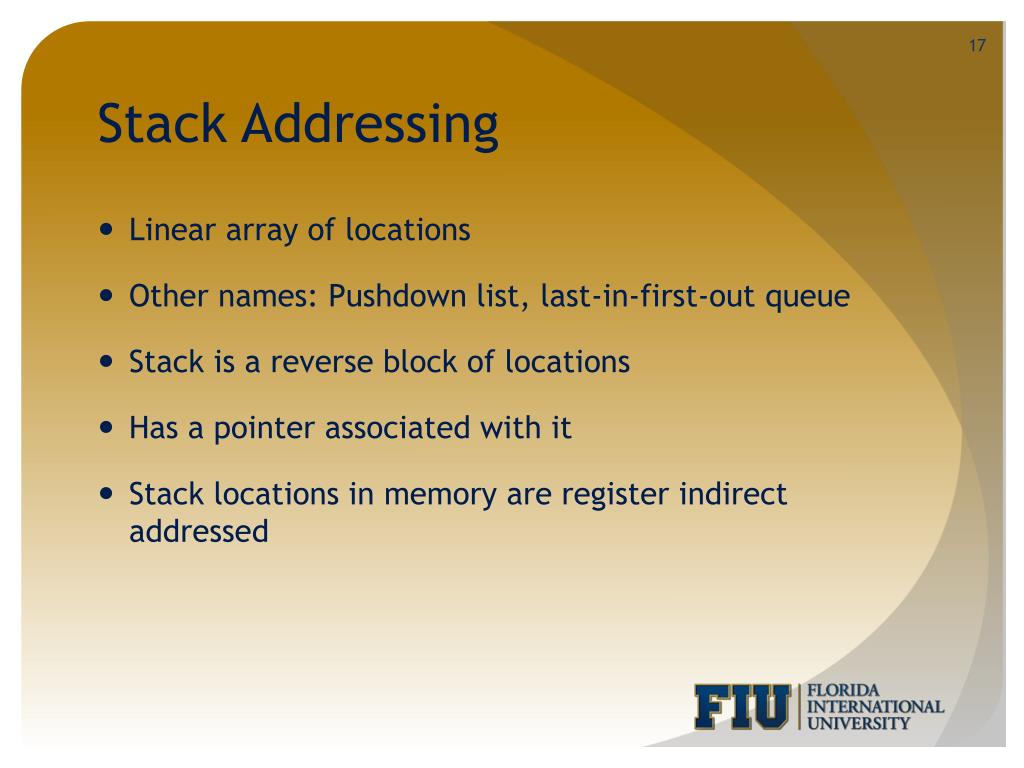

  17. Stack Addressing • Linear array of locations • Other names: Pushdown list, last-in-first-out queue • Stack is a reverse block of locations • Has a pointer associated with it • Stack locations in memory are register indirect addressed

  18. Stack Addressing Diagram

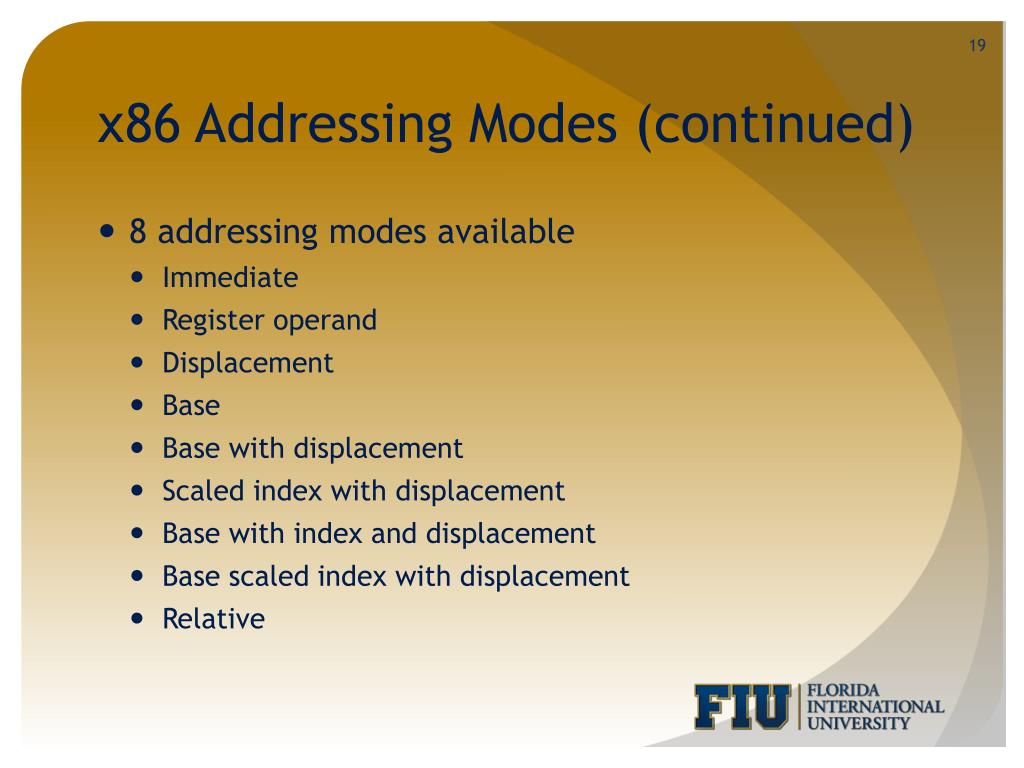

  19. x86 Addressing Modes (continued) • 8 addressing modes available • Immediate • Register operand • Displacement • Base • Base with displacement • Scaled index with displacement • Base with index and displacement • Base scaled index with displacement • Relative

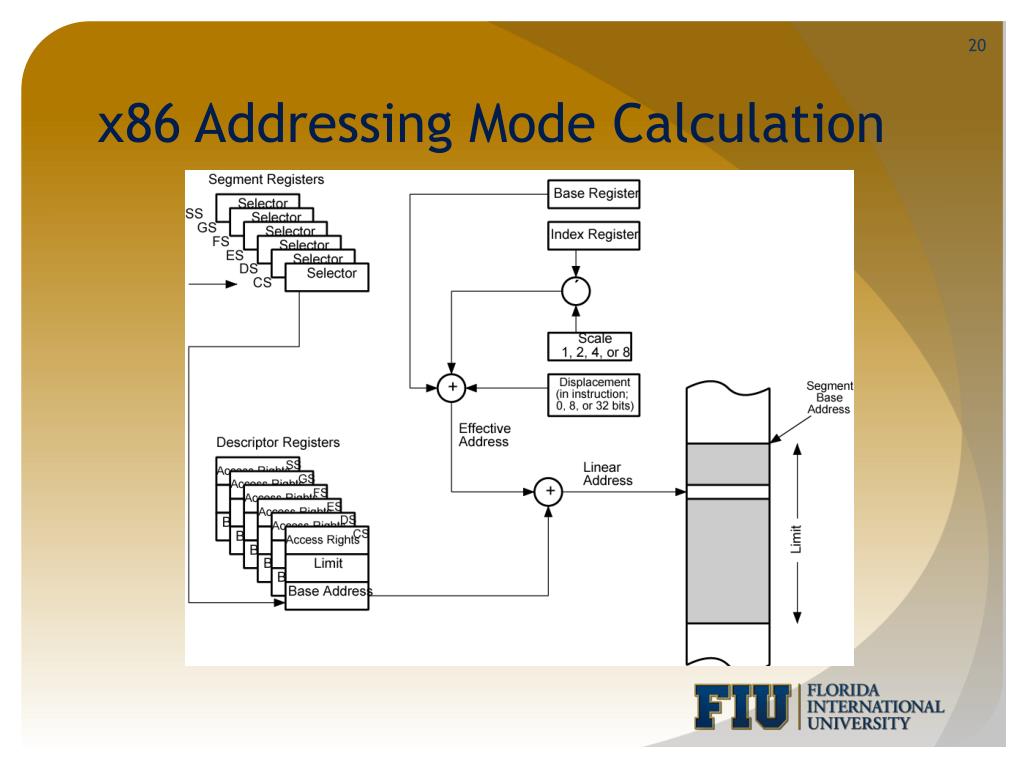

  20. x86 Addressing Mode Calculation

  21. ARM Addressing Modes • Arm has a rich set of addressing modes. • Typically they are classified with respect to the type of instruction. • Load/Store Addressing • Data Processing Instruction Addressing • Branch Instructions • Load/Store Multiple Addressing

  22. ARM Addressing ModesLoad/Store • Loads and stores Instructions are the only instructions that reference memory, always done indirectly through a base register plus offset. • 3 alternatives are : • Offset • Preindex • Postindex

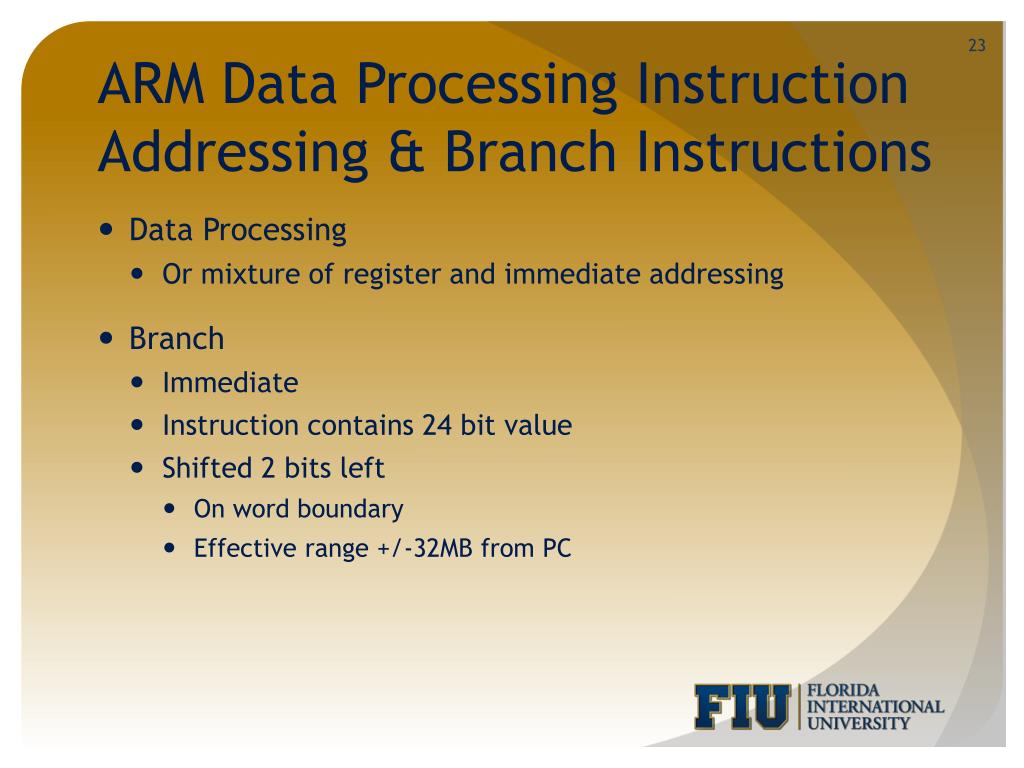

  23. ARM Data Processing Instruction Addressing & Branch Instructions • Data Processing • Or mixture of register and immediate addressing • Branch • Immediate • Instruction contains 24 bit value • Shifted 2 bits left • On word boundary • Effective range +/-32MB from PC

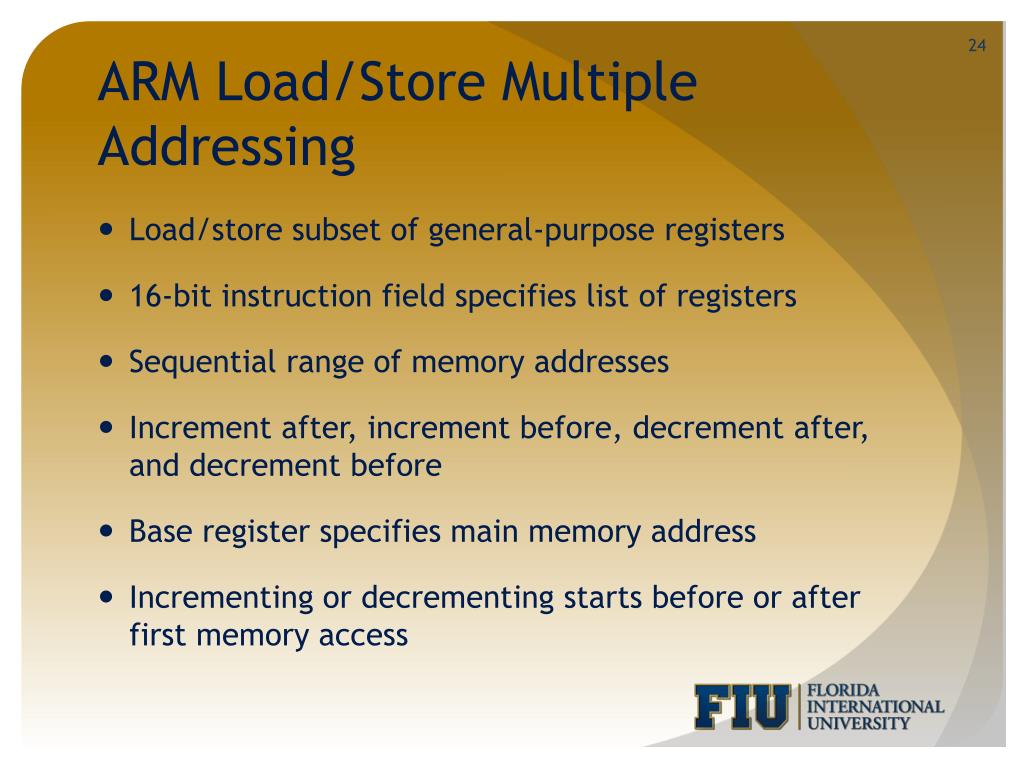

  24. ARM Load/Store Multiple Addressing • Load/store subset of general-purpose registers • 16-bit instruction field specifies list of registers • Sequential range of memory addresses • Increment after, increment before, decrement after, and decrement before • Base register specifies main memory address • Incrementing or decrementing starts before or after first memory access

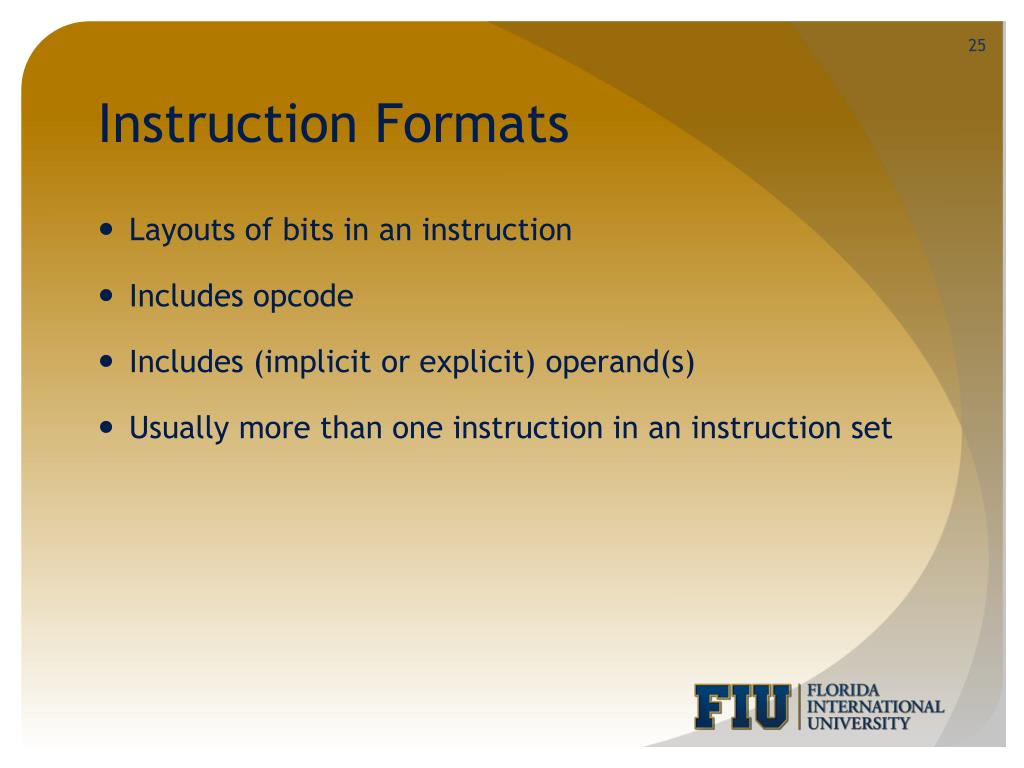

  25. Instruction Formats • Layouts of bits in an instruction • Includes opcode • Includes (implicit or explicit) operand(s) • Usually more than one instruction in an instruction set

  26. Instruction Length • Affected by and affects: • Memory size • Memory organization • Bus structure • CPU complexity • CPU speed • Tradeoff between powerful instruction repertoire and saving space

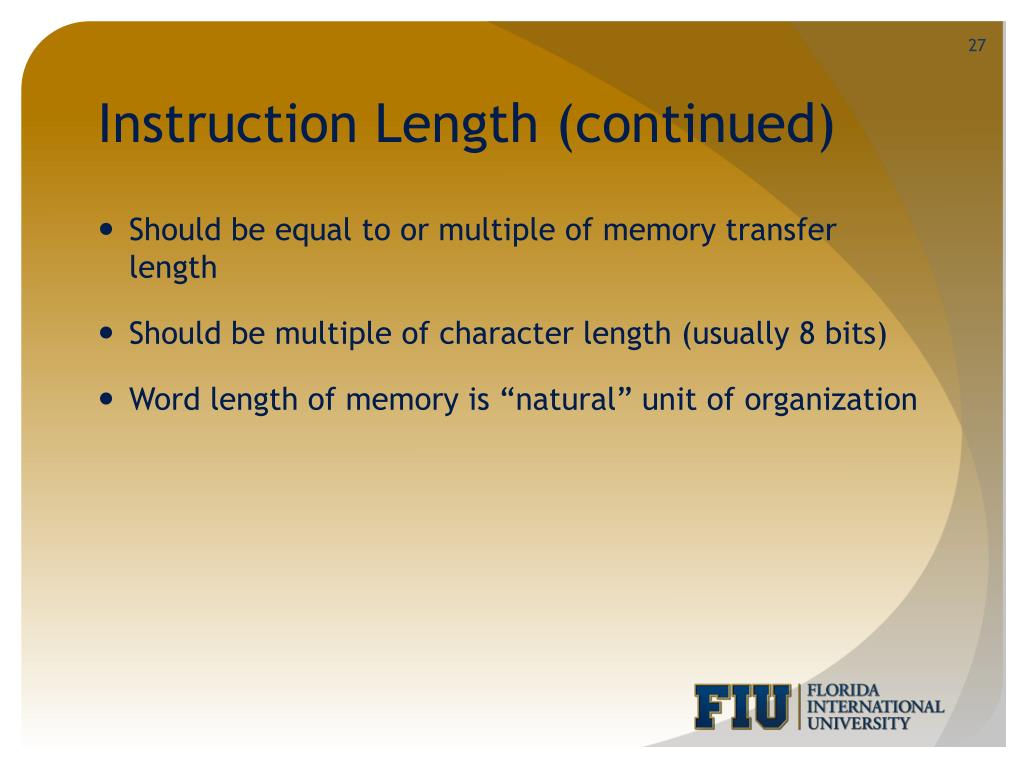

  27. Instruction Length (continued) • Should be equal to or multiple of memory transfer length • Should be multiple of character length (usually 8 bits) • Word length of memory is “natural” unit of organization

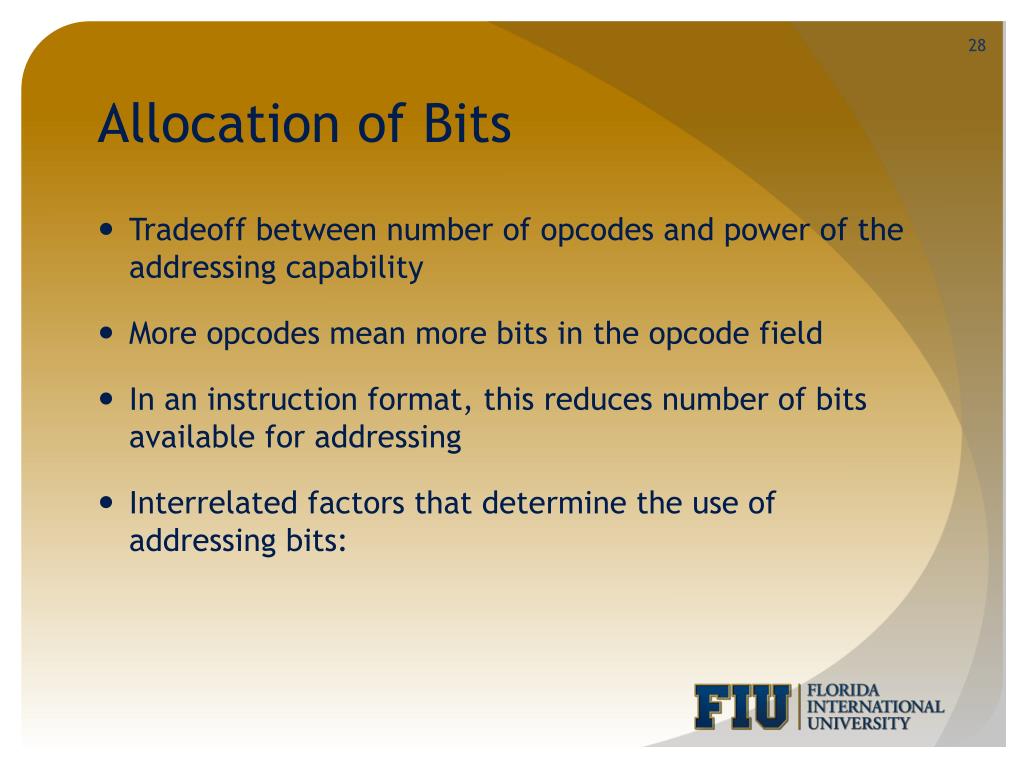

  28. Allocation of Bits • Tradeoff between number of opcodes and power of the addressing capability • More opcodes mean more bits in the opcode field • In an instruction format, this reduces number of bits available for addressing • Interrelated factors that determine the use of addressing bits:

  29. Allocation of Bits (continued) • Number of addressing modes: can be implicit, but sometimes one or more mode bits are needed • Number of operands: today’s machines provide for two operands, each requiring its own mode indicator • Register versus memory: one operand address is implicit and consumes no instruction bits, but causes awkward programming and many instructions (a total of 8 to 32 user-visible registers is desirable)

  30. Allocation of Bits 30 • Number of register sets: most machines have one set of 32 general-purpose registers to store data and addresses • Architectures like Pentium have more specialized sets, that by a functional split the instruction uses fewer bits • Address range: related to number of address bits, has severe limitations (which is why direct addressing is rarely used) • With displacement addressing, the range is opened up to the length of the address register

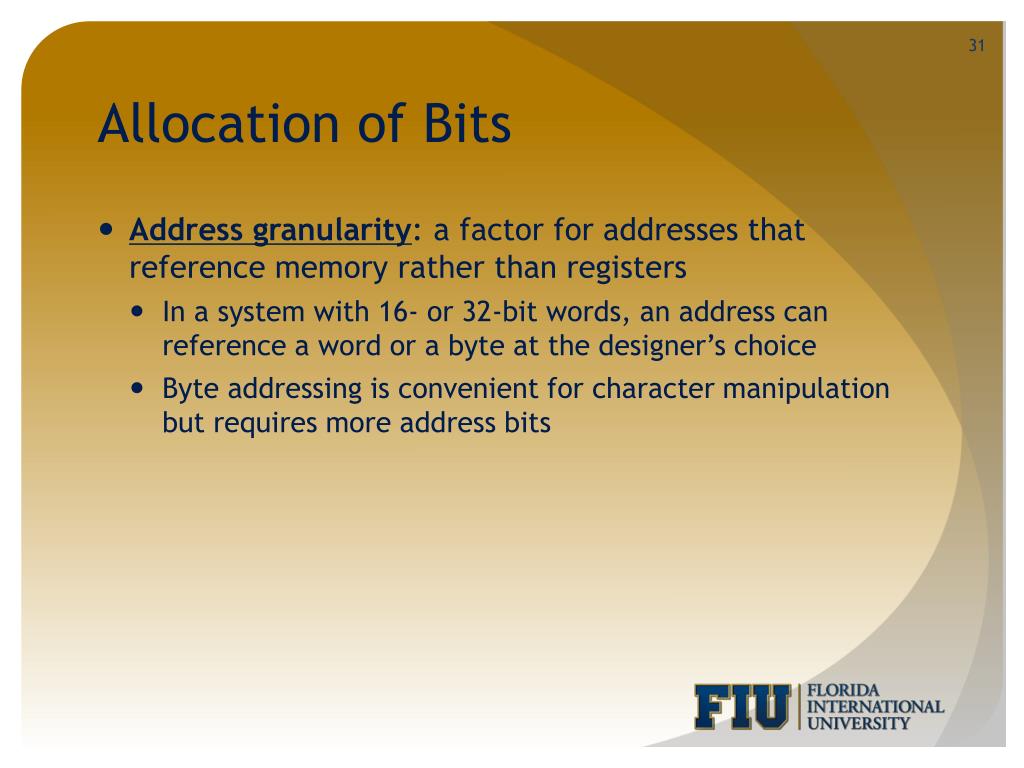

  31. Allocation of Bits 31 • Address granularity: a factor for addresses that reference memory rather than registers • In a system with 16- or 32-bit words, an address can reference a word or a byte at the designer’s choice • Byte addressing is convenient for character manipulation but requires more address bits

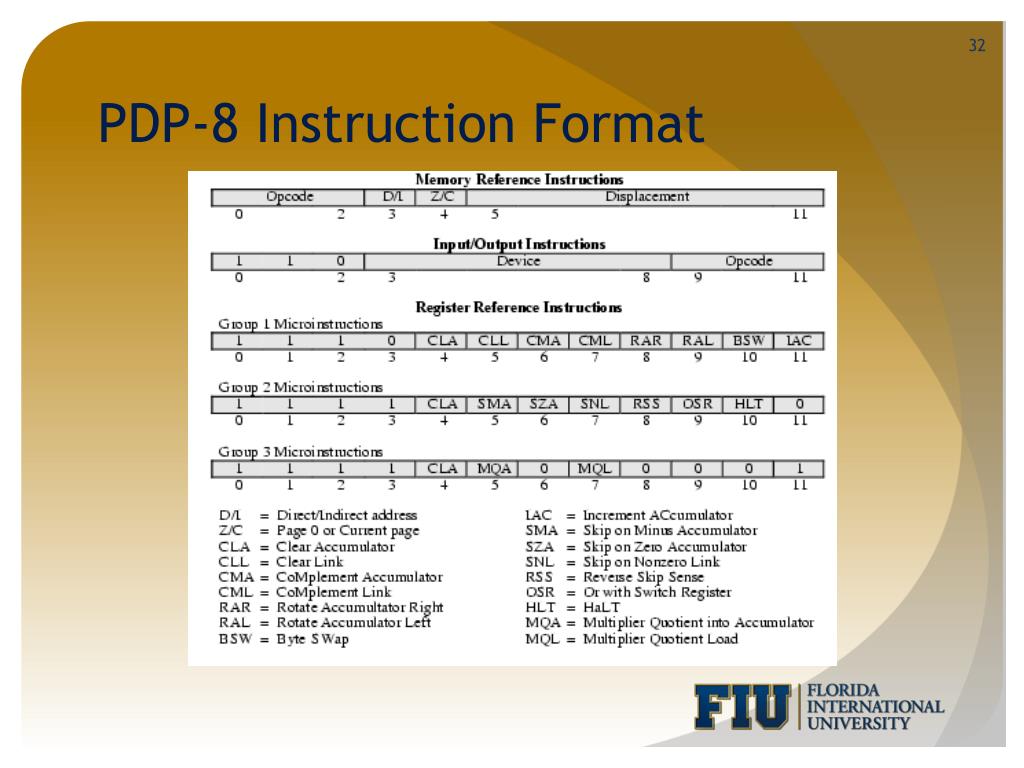

  32. PDP-8 Instruction Format

  33. PDP-10 Instruction Format

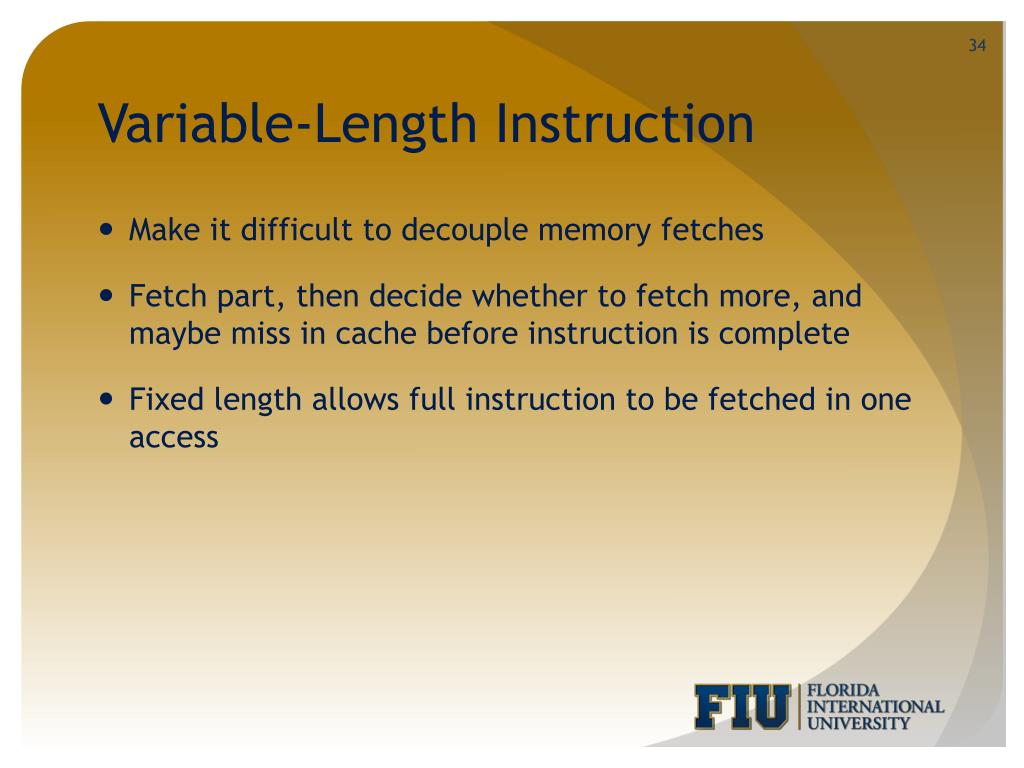

  34. Variable-Length Instruction • Make it difficult to decouple memory fetches • Fetch part, then decide whether to fetch more, and maybe miss in cache before instruction is complete • Fixed length allows full instruction to be fetched in one access

  35. PDP-11 • Designed to provide powerful and flexible instruction set within constraints of 16-bit minicomputer • Employs set of eight 16-bit general-purpose registers • Two of these registers have additional significance • One is used as a stack pointer for special-purpose stack operations • The other is used as the program counter, which contains the address of the next instruction

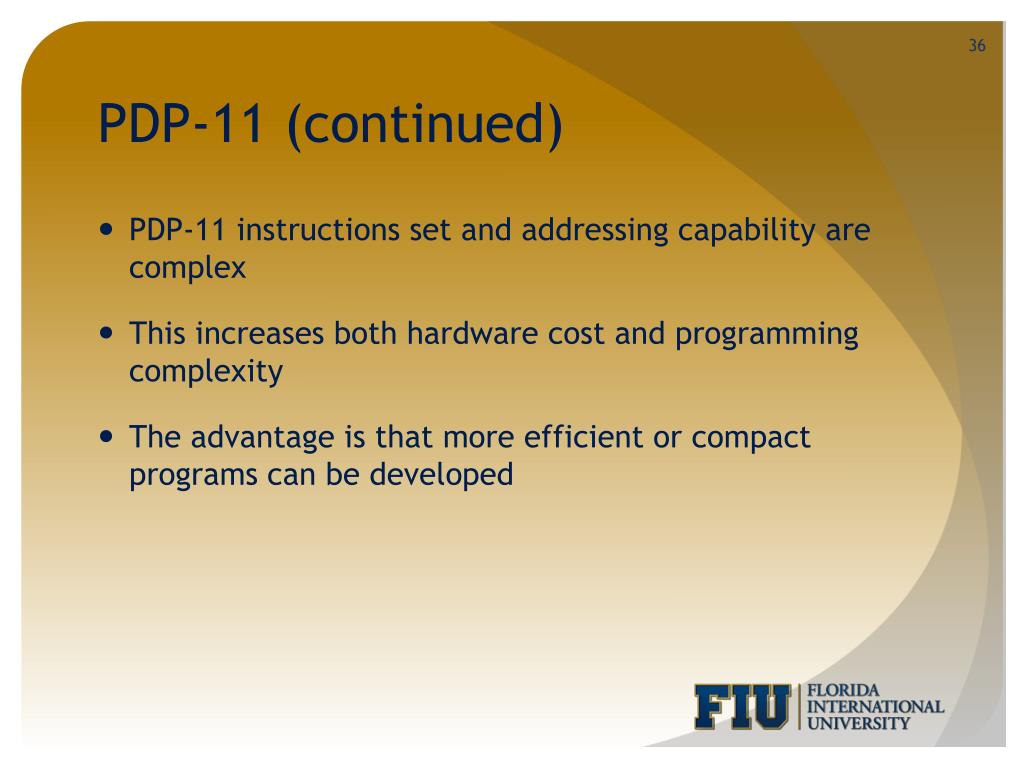

  36. PDP-11 (continued) • PDP-11 instructions set and addressing capability are complex • This increases both hardware cost and programming complexity • The advantage is that more efficient or compact programs can be developed

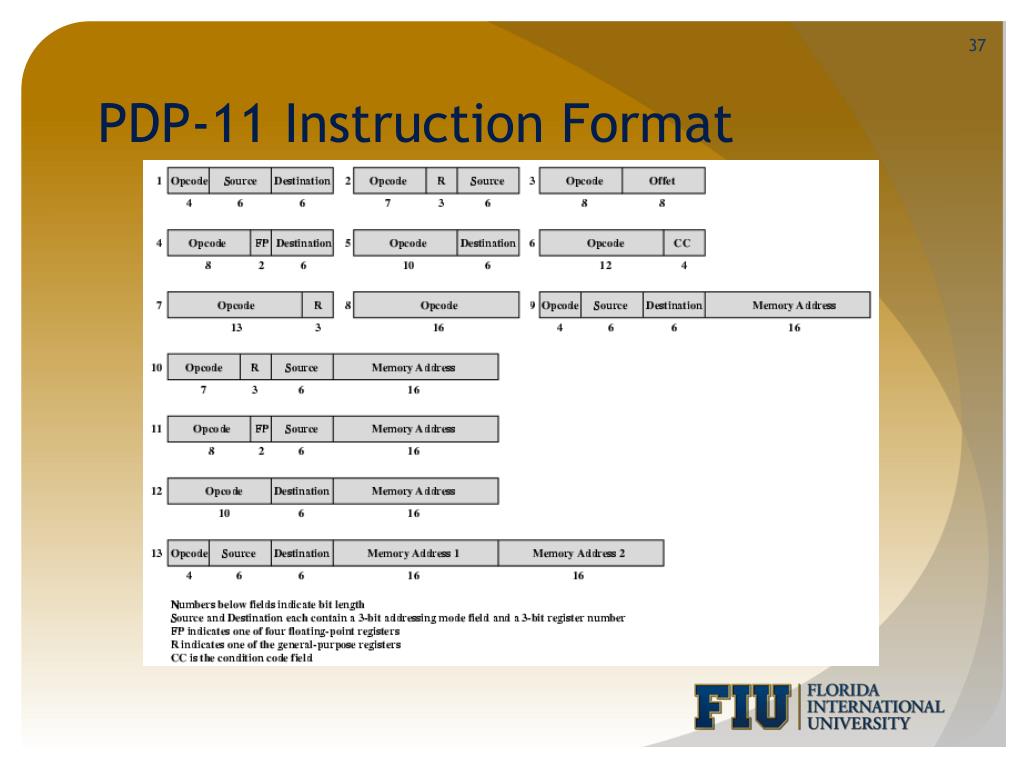

  37. PDP-11 Instruction Format

  38. VAX • Most architectures provide a relatively small number of fixed instruction formats • To avoid problems two criteria were used in designing the VAX • All instructions should have the “natural” number of operands • All operands should have the same generality in specification • VAX instruction begins with a 1-byte opcode, which suffices to handle most VAX instructions

  39. VAX Instruction Examples

  40. VAX Instruction Formats • The remainder of the instructions consists of up to six operand specifiers • Is, at minimum, a 1-byte format in which the leftmost 4 bits are the address mode specifier • The only exception to this rule is the literal mode, which is signaled by the pattern 00 in the leftmost 2 bits, leaving space for a 6-bit literal • Because of this exception, a total of 12 different addressing modes can be specified

  41. VAX Instruction Formats • An example uses an 8-, 16-, or 32-bit displacement. An indexed mode of addressing may be used. In this case, the first byte of the operand specifier consists of the 4-bit addressing mode code of 0100 and a 4-bit index register identifier. • The remainder of operand specifier consists of base address specifier, which may be one or more bytes. • The VAX instruction set provides for a wide variety of operations and addressing modes. This gives the programmer a very powerful and flexible tool for developing programs.

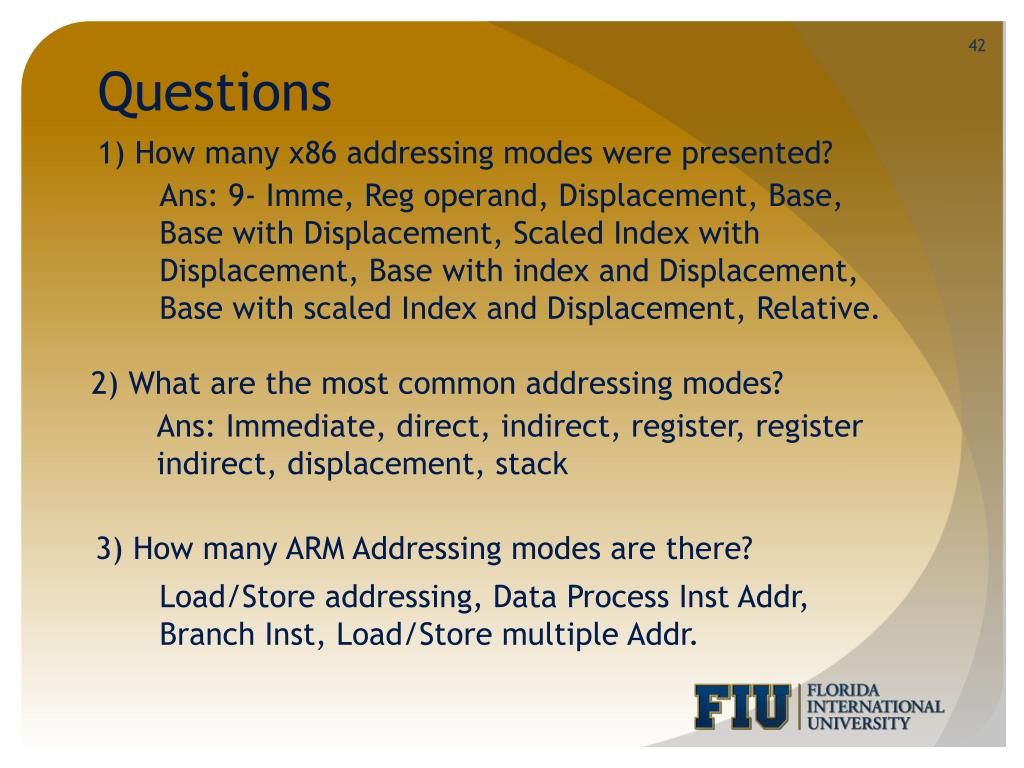

  42. Questions Ans: 9- Imme, Reg operand, Displacement, Base, Base with Displacement, Scaled Index with Displacement, Base with index and Displacement, Base with scaled Index and Displacement, Relative. 1) How many x86 addressing modes were presented? 2) What are the most common addressing modes? Ans: Immediate, direct, indirect, register, register indirect, displacement, stack 3) How many ARM Addressing modes are there? Load/Store addressing, Data Process Inst Addr, Branch Inst, Load/Store multiple Addr.

  43. Questions 4) How many factors can go into determining the use of determining addressing bits? Ans: # of Addr. Modes, # of Operands, Register vsMem, # of reg sets, Address Range, Address Granularity 5) What is the fastest Addressing mode? Ans: Immediate Opt code + Operand 6) What is an advantage of using Direct addressing mode? Ans: Simplicity Opt code + lower address space. 7) What addressing mode combines the capabilities of direct & reg indirect addr? Ans: Displacement

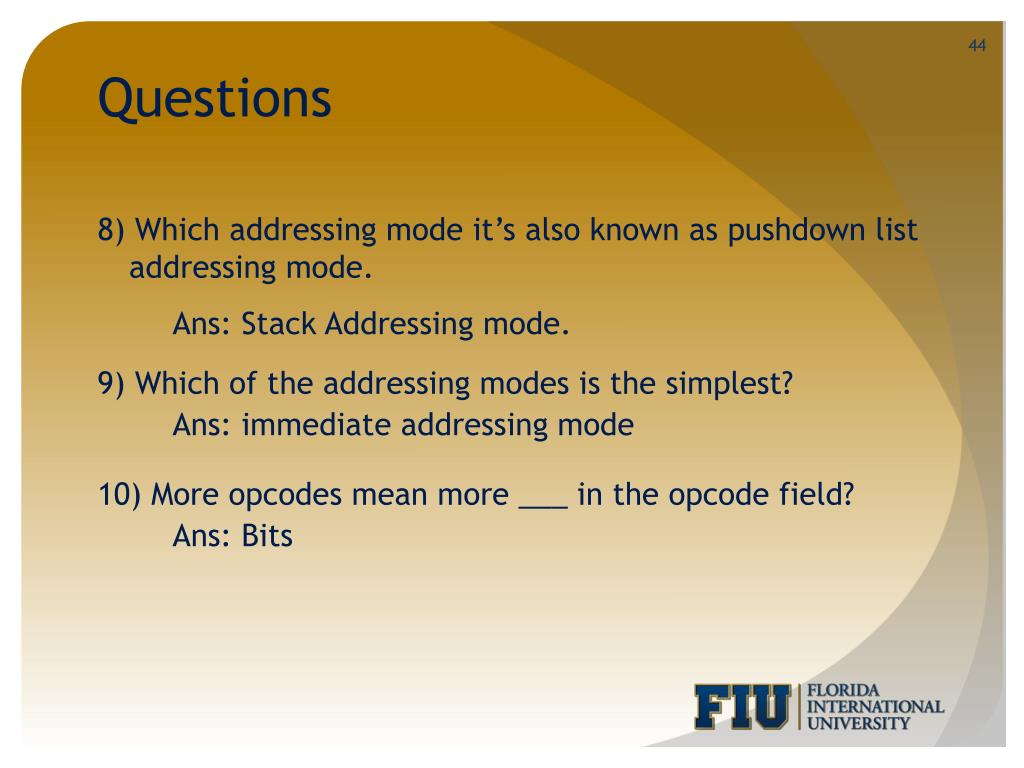

  44. Questions 8) Which addressing mode it’s also known as pushdown list addressing mode. Ans: Stack Addressing mode. 9) Which of the addressing modes is the simplest? Ans: immediate addressing mode 10) More opcodes mean more ___ in the opcode field? Ans: Bits

  45. Thank You [APPLAUSE]
