Create 3D Images Step-by-Step

Learn to make 3D images using Unix commands and GLG410 environment. Set up, process data, and transfer files with ease.

demont
Télécharger la présentation

Create 3D Images Step-by-Step

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

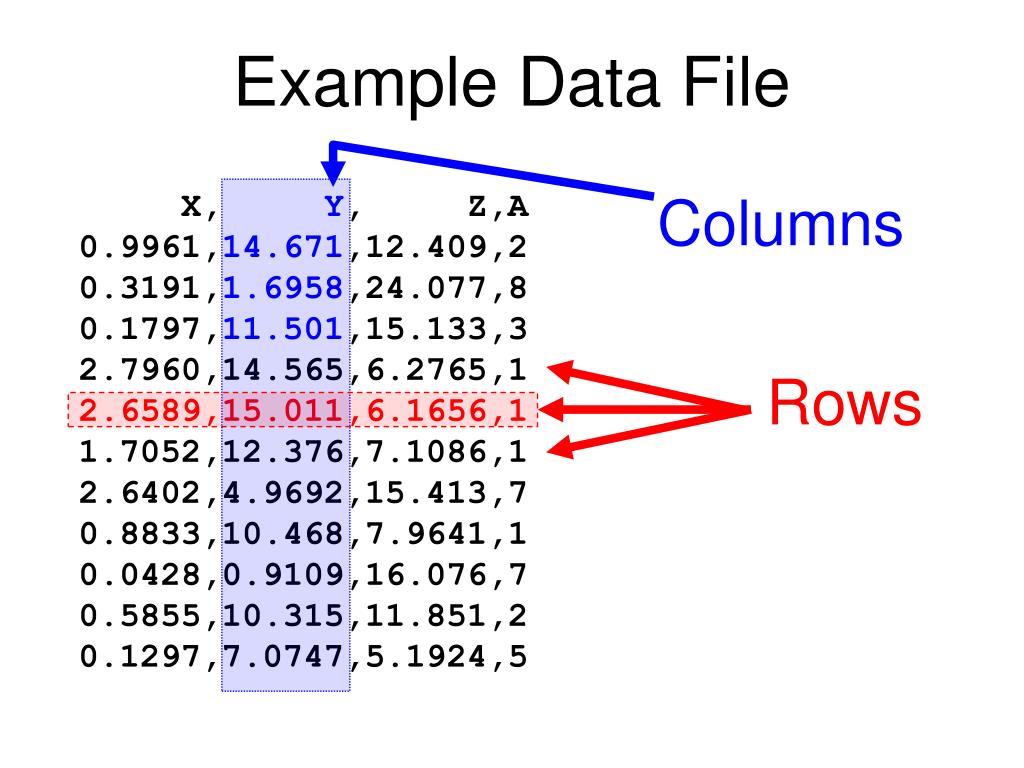

  1. X, Y, Z,A0.9961,14.671,12.409,20.3191,1.6958,24.077,80.1797,11.501,15.133,32.7960,14.565,6.2765,12.6589,15.011,6.1656,11.7052,12.376,7.1086,12.6402,4.9692,15.413,70.8833,10.468,7.9641,10.0428,0.9109,16.076,70.5855,10.315,11.851,20.1297,7.0747,5.1924,5 Columns Rows Example Data File

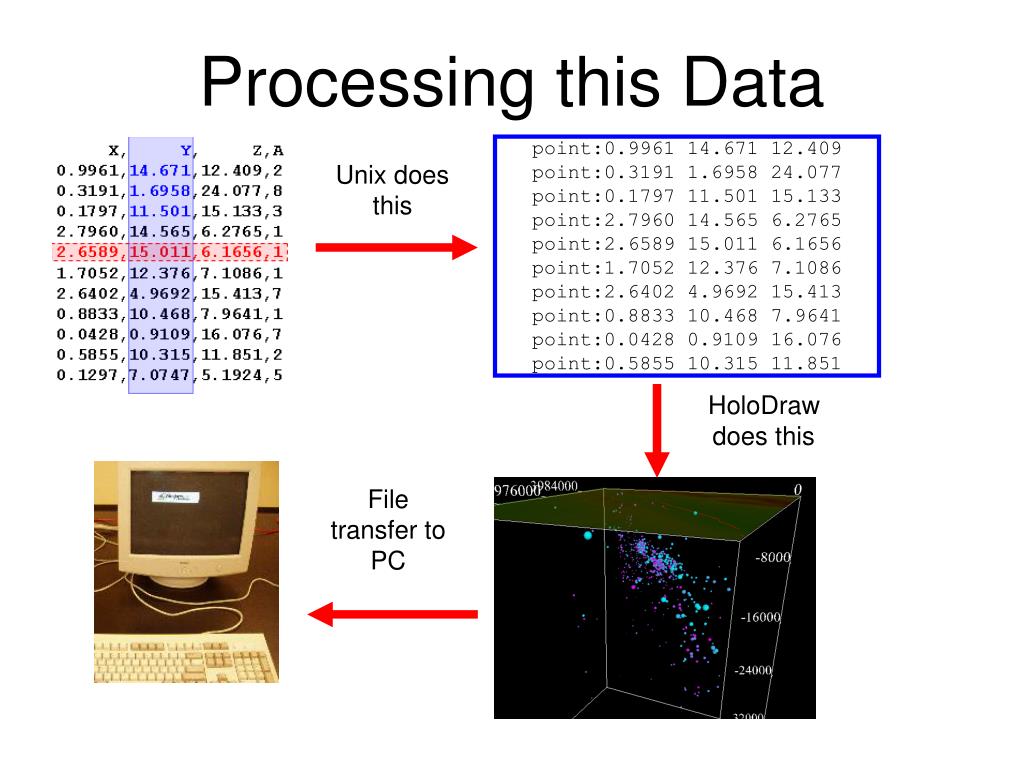

  2. point:0.9961 14.671 12.409 point:0.3191 1.6958 24.077 point:0.1797 11.501 15.133 point:2.7960 14.565 6.2765 point:2.6589 15.011 6.1656 point:1.7052 12.376 7.1086 point:2.6402 4.9692 15.413 point:0.8833 10.468 7.9641 point:0.0428 0.9109 16.076 point:0.5855 10.315 11.851 Unix does this HoloDraw does this Processing this Data File transfer to PC

  3. Login and Setup >/export/home4/msimkin/shared/setup ---- You are now entering the GLG410 environment ---- $ pwd /export/home4/msimkin/shared/yourname $

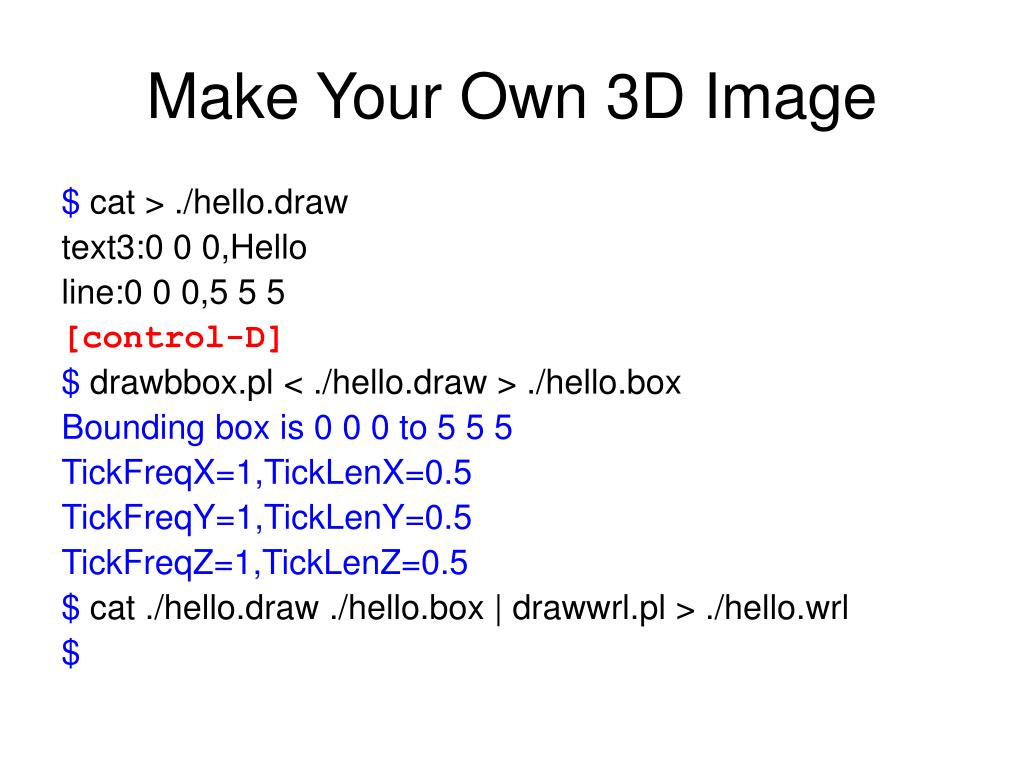

  4. Make Your Own 3D Image $ cat > ./hello.draw text3:0 0 0,Hello line:0 0 0,5 5 5 [control-D] $ drawbbox.pl < ./hello.draw > ./hello.box Bounding box is 0 0 0 to 5 5 5 TickFreqX=1,TickLenX=0.5 TickFreqY=1,TickLenY=0.5 TickFreqZ=1,TickLenZ=0.5 $ cat ./hello.draw ./hello.box | drawwrl.pl > ./hello.wrl $

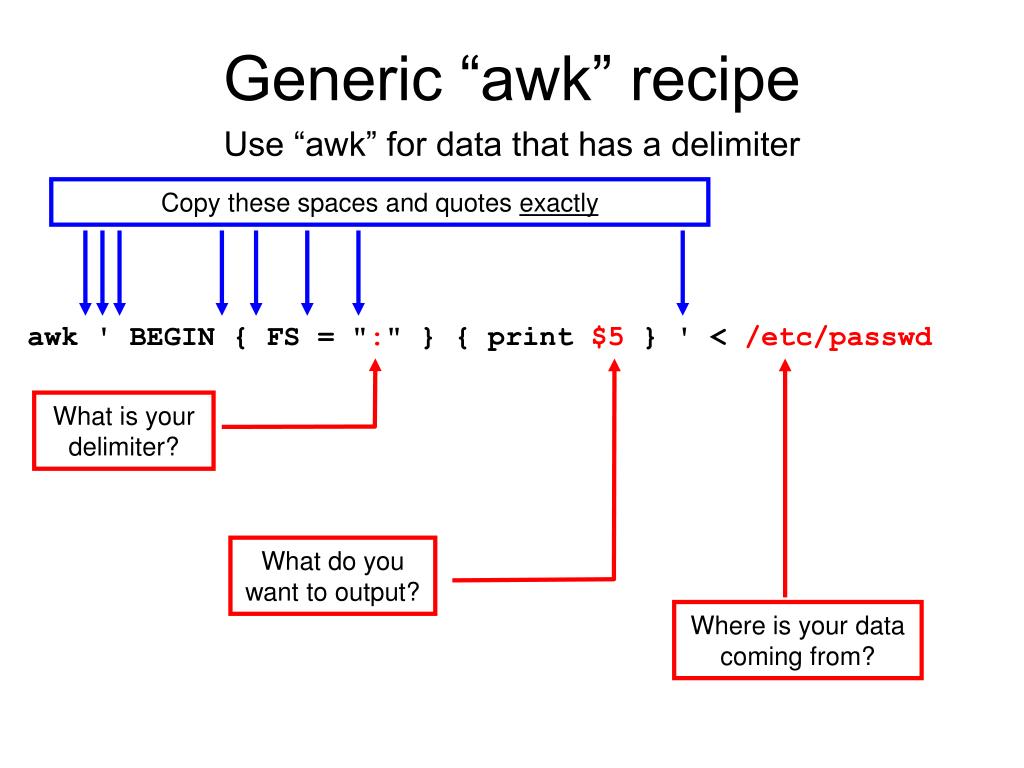

  5. awk ' BEGIN { FS = ":" } { print $5 } ' < /etc/passwd Copy these spaces and quotes exactly What is your delimiter? Generic “awk” recipe Use “awk” for data that has a delimiter What do you want to output? Where is your data coming from?

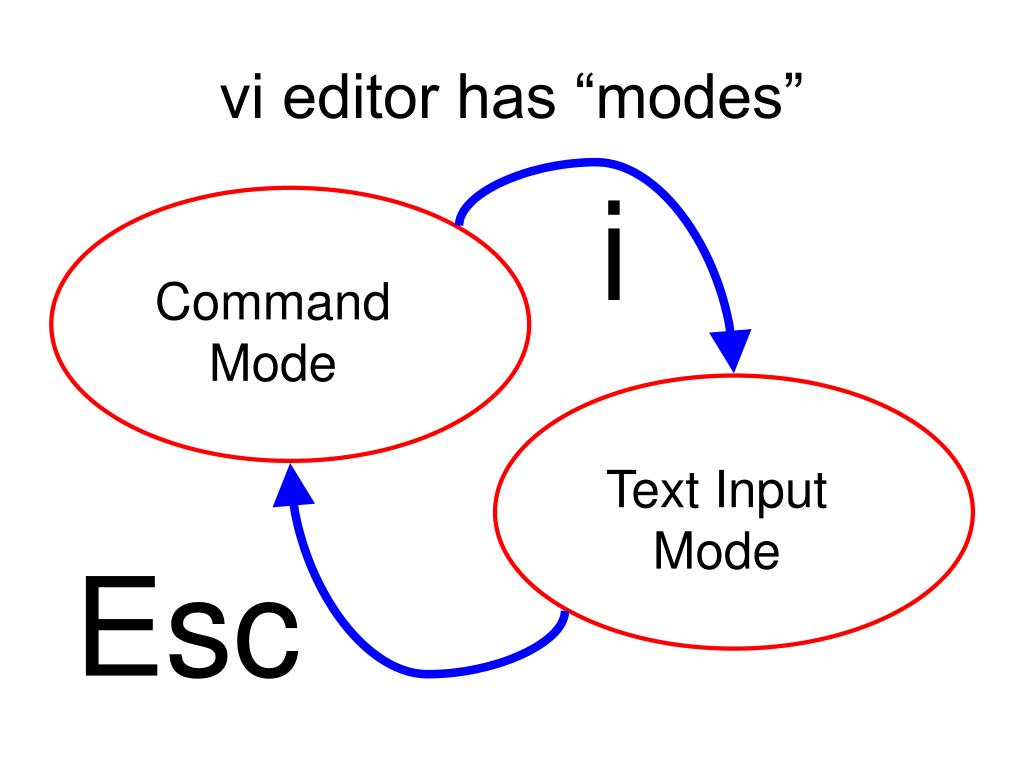

  6. vi editor has “modes” i Command Mode Text Input Mode Esc
