  1. PV Manager Gabriele Carcassi Feb 18 2010

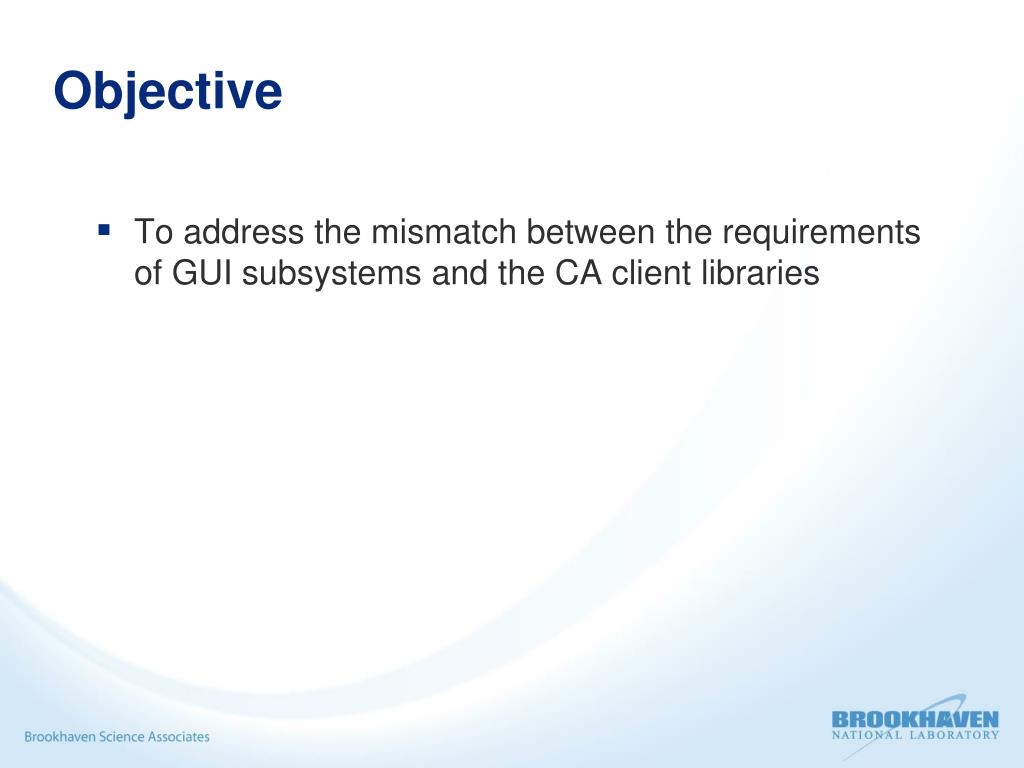

  2. Objective • To address the mismatch between the requirements of GUI subsystems and the CA client libraries

  3. UI subsystem requirements • Single threaded • Notification must be done on event thread • Data objects must be changed on the event thread only (to simplify responding to events) • Work must be offloaded to other threads as much as possible (to prevent unresponsiveness) • Refresh rate 1Hz-50Hz (faster is useless and counter productive)

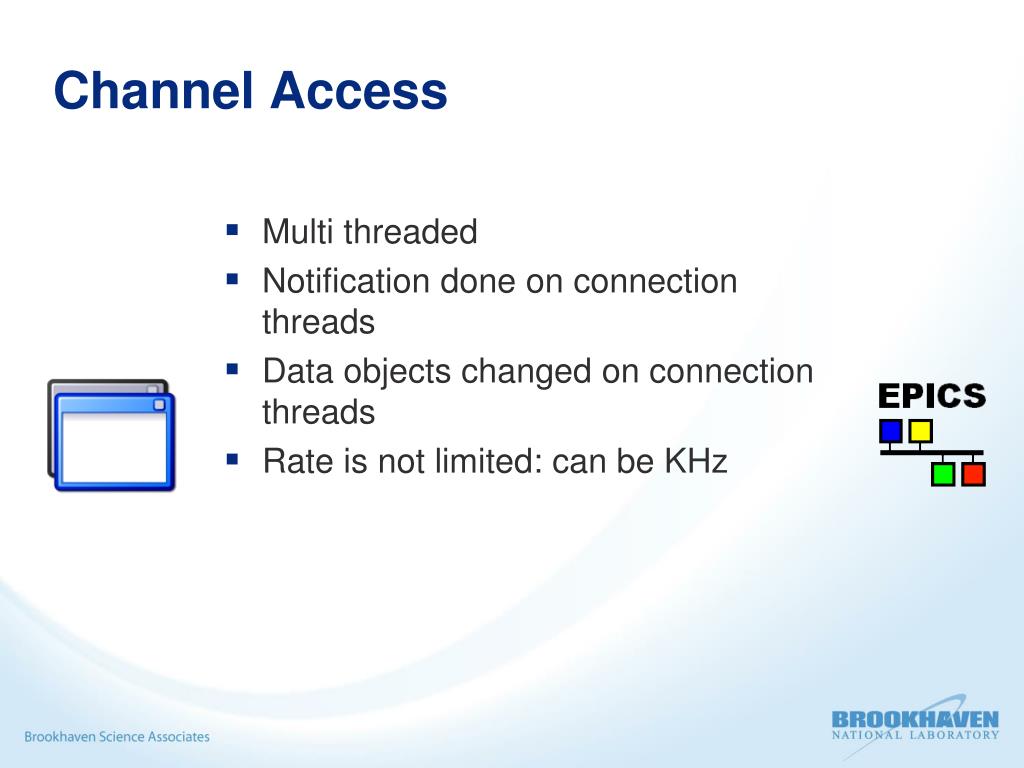

  4. Channel Access • Multi threaded • Notification done on connection threads • Data objects changed on connection threads • Rate is not limited: can be KHz

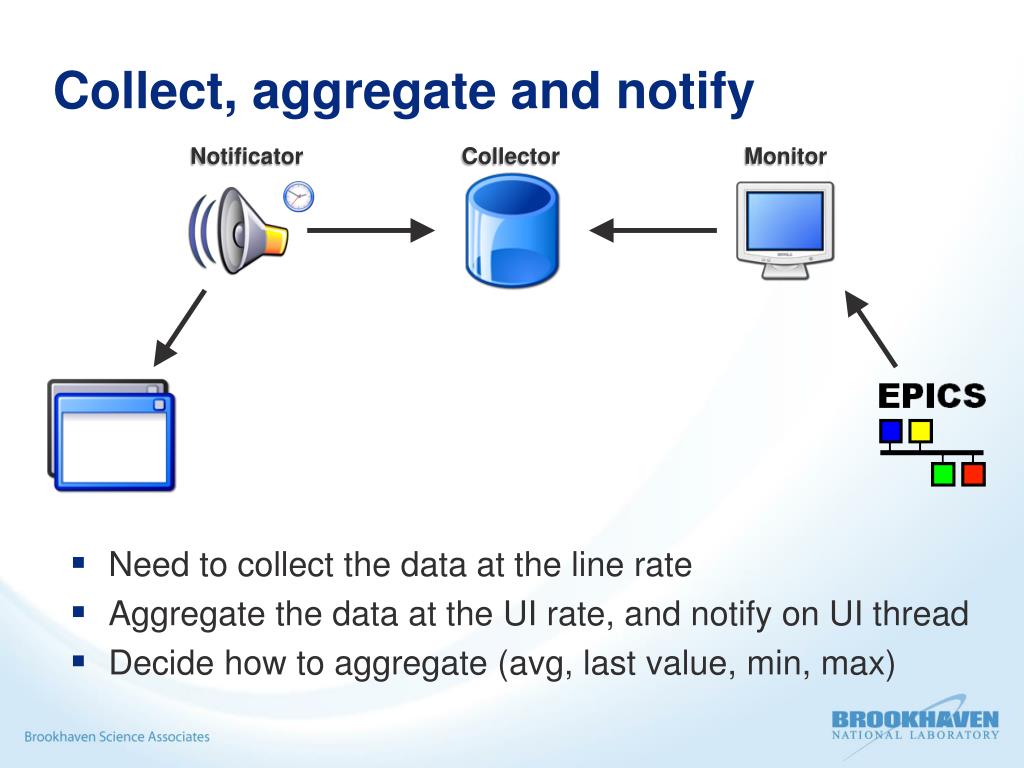

  5. Collect, aggregate and notify Notificator Collector Monitor • Need to collect the data at the line rate • Aggregate the data at the UI rate, and notify on UI thread • Decide how to aggregate (avg, last value, min, max)

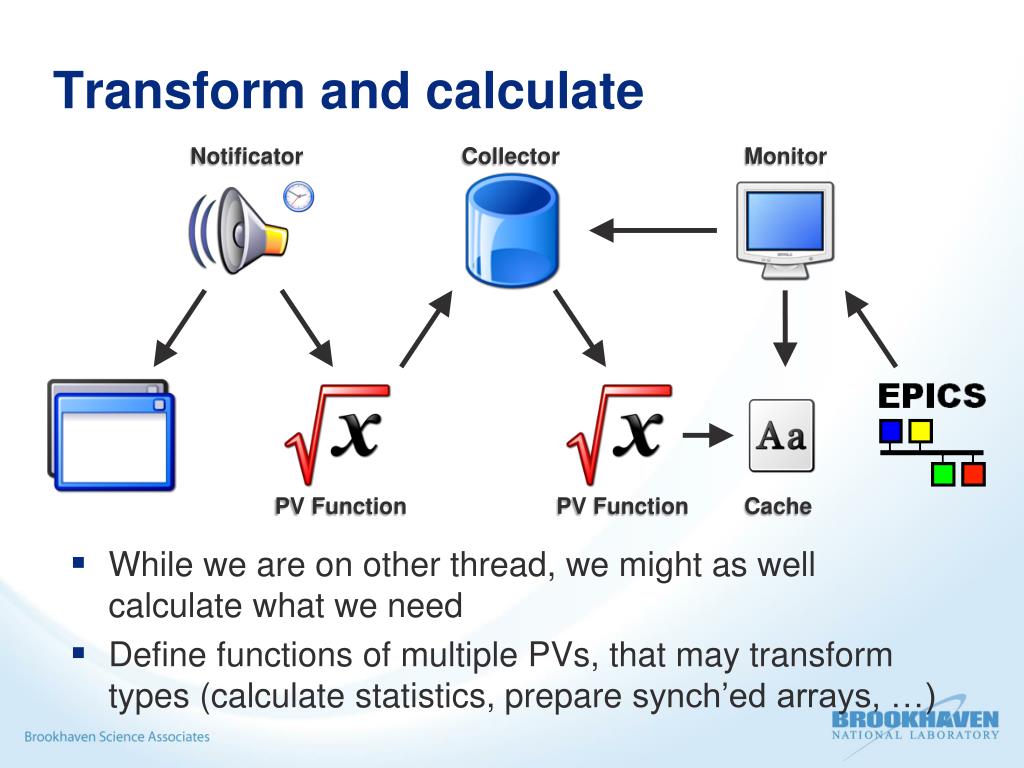

  6. Transform and calculate Notificator Collector Monitor • While we are on other thread, we might as well calculate what we need • Define functions of multiple PVs, that may transform types (calculate statistics, prepare synch’ed arrays, …) PV Function PV Function Cache

  7. Close channels Notificator Collector Monitor • We can use the GC to detect end of use • If PV object is GCed, notification can stop • If Collector is GCed, CA monitors can stop PV Function PV Function Cache

  8. Locks Notificator Collector Monitor • Collector holds (is) write lock for line rate access • Collector holds read lock for its data (buffer) • Notificator is lock for calculating and notifying PV Function PV Function Cache
