Presentation Transcript

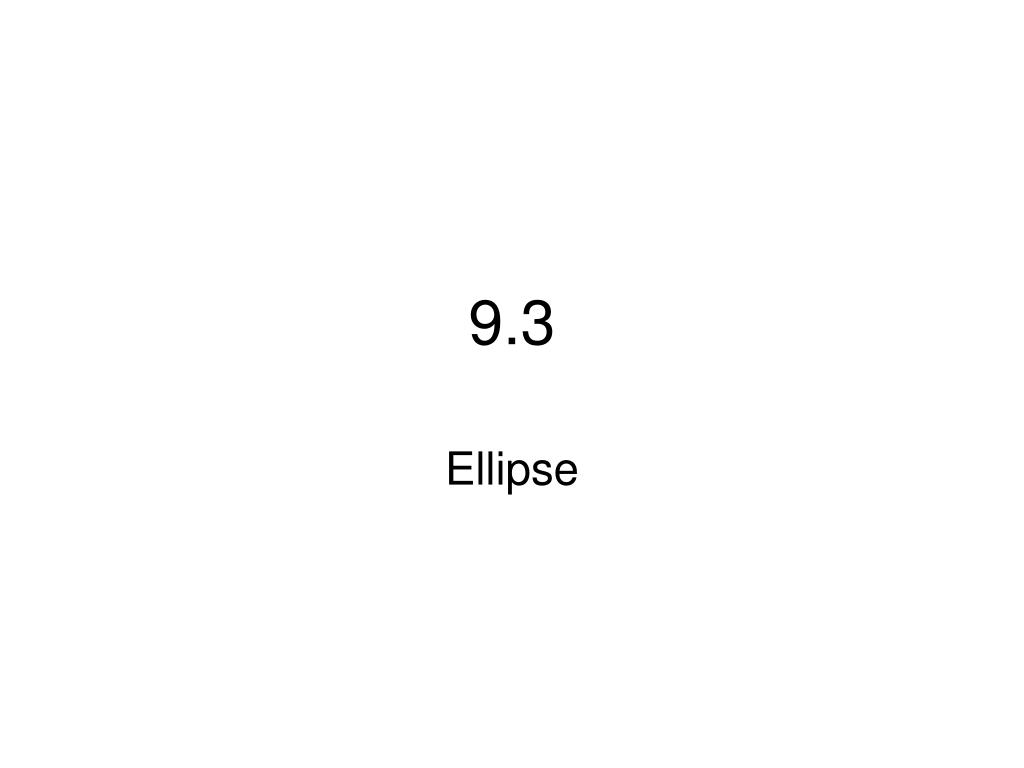

  1. 9.3 Ellipse

  2. Def: An ellipse is the collection of all points in the plane the sum of whose distances form two fixed points, called the foci (two), is a constant.

  3. Def: Major axis: the line containing the foci Minor axis: the line through the center and perpendicular to the major axis Vertices: the points of intersection of the ellipse and the major axis

  4. Equations: Center (0,0), MA: x – axis, foci at (c,0) and (-c,0). Where a > b > 0 and b2 = a 2 – c2 V(-a,0) and (a,0)

  5. Equations: Center (0,0), MA: y – axis, foci at (0,c) and (0,-c). Where a > b > 0 and b2 = a 2 – c2 V(0,-a) and (0,a) If the bigger number is under y then it is up and down if the bigger number is under x then it is left and right.

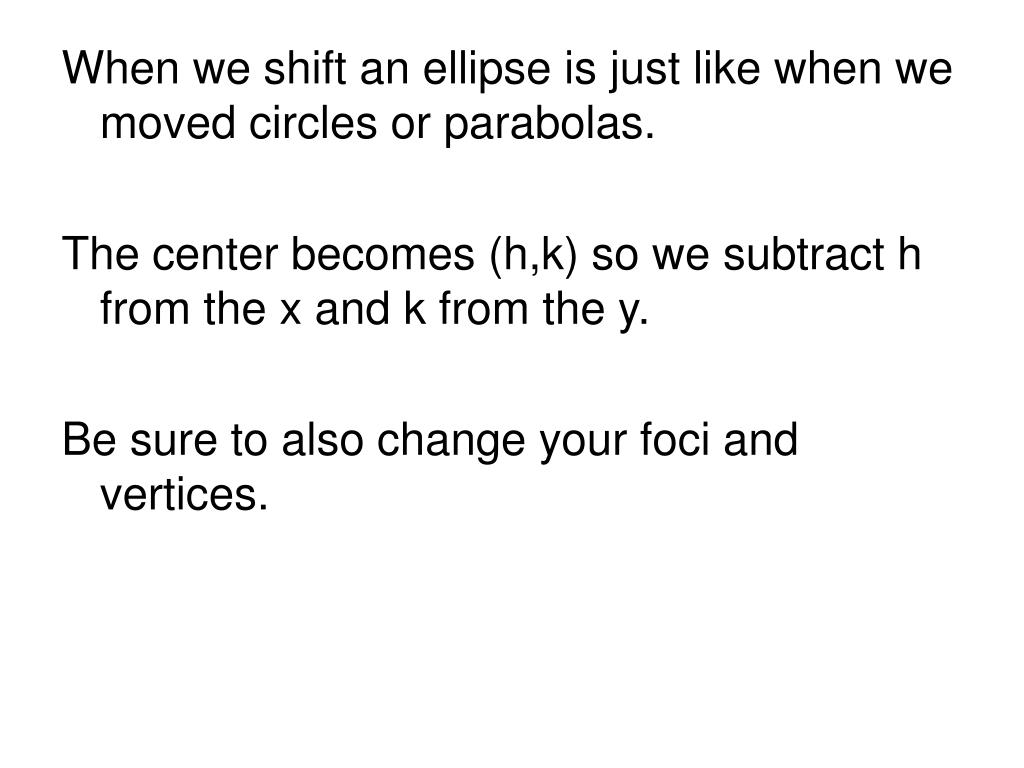

  6. When we shift an ellipse is just like when we moved circles or parabolas. The center becomes (h,k) so we subtract h from the x and k from the y. Be sure to also change your foci and vertices.

  7. Hw pg 685 1-27 all
