  1. Rethinking Hardware and Software for Disciplined Parallelism Sarita V. Adve University of Illinois sadve@illinois.edu

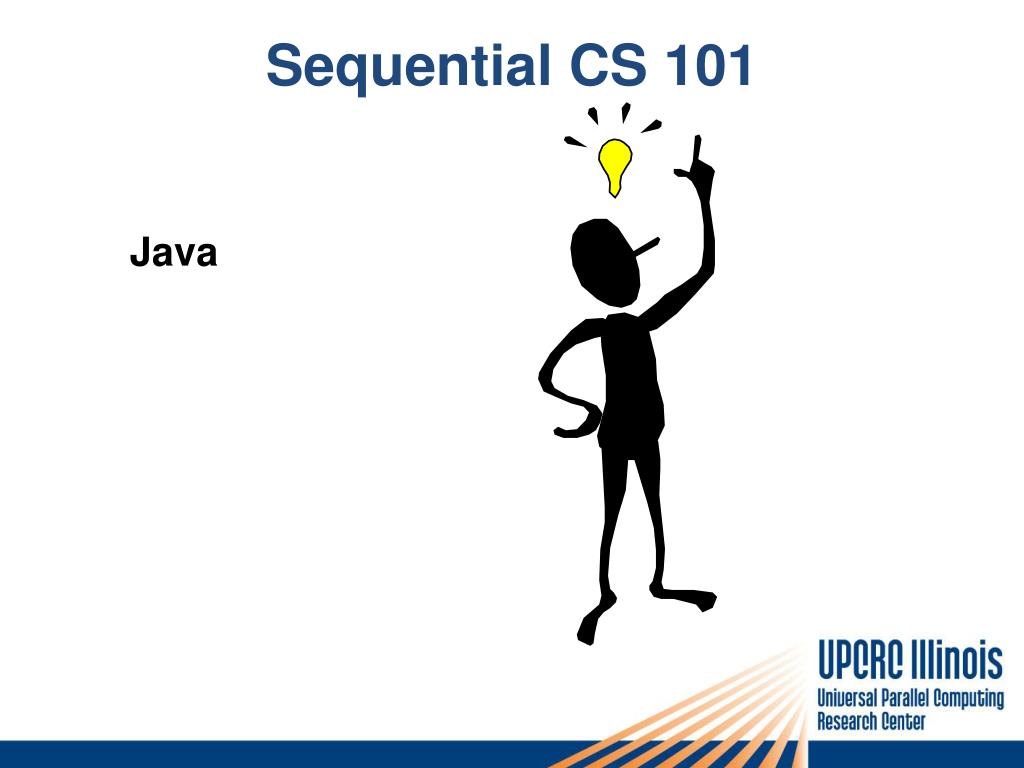

  2. Sequential CS 101 Java

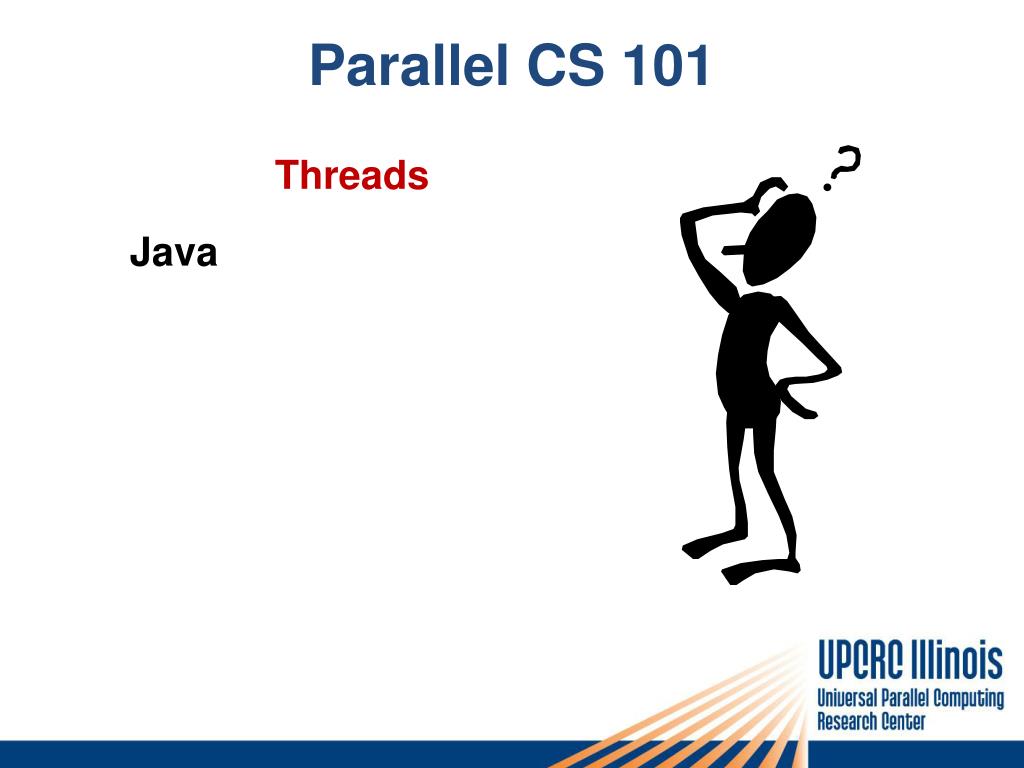

  3. Parallel CS 101 Threads Java

  4. Parallel CS 101 Threads Java Data races

  5. Parallel CS 101 Threads Java Data races Non-determinism

  6. Parallel CS 101 Threads Java Memory Model Non-determinism Data races • General-purpose parallel models are complex, • abandon decades of sequential programming advances • Safety, modularity, composability, maintainability, …

  7. The Problem Popular parallel languages are fundamentally broken

  8. The Problem Theorem: Popular parallel languages are fundamentally broken Proof: See the Java Memory Model (+ unresolved bug)

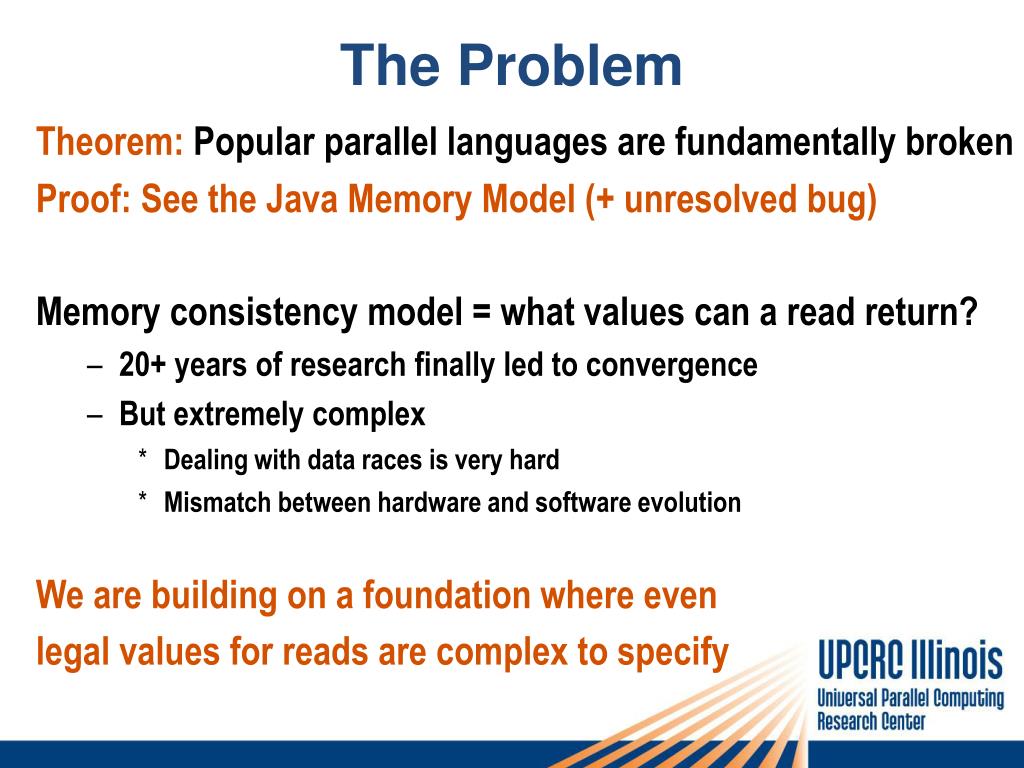

  9. The Problem Theorem: Popular parallel languages are fundamentally broken Proof: See the Java Memory Model (+ unresolved bug) Memory consistency model = what values can a read return? • 20+ years of research finally led to convergence • But extremely complex • Dealing with data races is very hard • Mismatch between hardware and software evolution We are building on a foundation where even legal values for reads are complex to specify

  10. The Problem Theorem: Current parallel languages are fundamentally broken Proof: See the Java Memory Model (+ unresolved bug) Memory model = what values can a read will return? 20+ years of research finally led to convergence • Sequential consistency for data-race-free programs is minimal • Java added MUCH complexity for safety/security • Minimal (complex) semantics for data races, but unresolved bug • C++, C added complexity for experts due to h/w – s/w mismatch • Independent h/w – s/w evolution resulted in painful consequences Should we continue building on a foundation that can’t even specify legal values for reads? Banish shared-memory?

  11. The Problem Theorem: Current parallel languages are fundamentally broken Proof: See the Java Memory Model (+ unresolved bug) Memory model = what values can a read will return? 20+ years of research finally led to convergence • Sequential consistency for data-race-free programs is minimal • Java added MUCH complexity for safety/security • Minimal (complex) semantics for data races, but unresolved bug • C++, C added complexity for experts due to h/w – s/w mismatch • Independent h/w – s/w evolution resulted in painful consequences Should we continue building on a foundation that can’t even specify legal values for reads? Banish wild shared-memory!

  12. The Opportunity Need disciplined shared-memory parallel languages • Banish data races by design • Provide determinism by default • Support only explicit and controlled non-determinism • Explicit side effects (sharing behavior, granularity, …) • ??? Discipline is enforced Much momentum from software community What does this have to do with hardware?

  13. The Opportunity Memory model = core of parallel hardware/software interface Today’s hardware designed for wild shared memory • Cache coherence, communication architecture, scheduling, … • Inefficient in performance, power, resilience, complexity, … Claim: Disciplined interface  h/w simplicity + efficiency E.g., race-free s/w  race-free (MUCH SIMPLER) coherence protocols E.g., explicit sharing behavior and granularity  efficient communication, data layout, cache design, …

  14. The Approach • Software enforces disciplined behavior  Software: safe, modular, composable, maintainable, … • Hardware designed for disciplined software  Hardware: simple, scalable, power-efficient, … • Broad hardware/software research agenda • Interface: semantics, mechanisms at all levels, ISA, … • Rethink hardware: coherence, communication, layout, caches, … • Help software to abide by interface • Fundamental shift in software, hardware • But can be done incrementally • Memory models convergence from similar process • But this time let’s co-evolve h/w, s/w
