  1. Easing the Integration of Intermittent Renewables with Combined Heat and Power Kyle Siler-Evans RenewElec Workshop, 2010

  2. The Problem • Fluctuations in intermittent renewables must be balanced with fast-ramping resources. • Adds cost and emissions

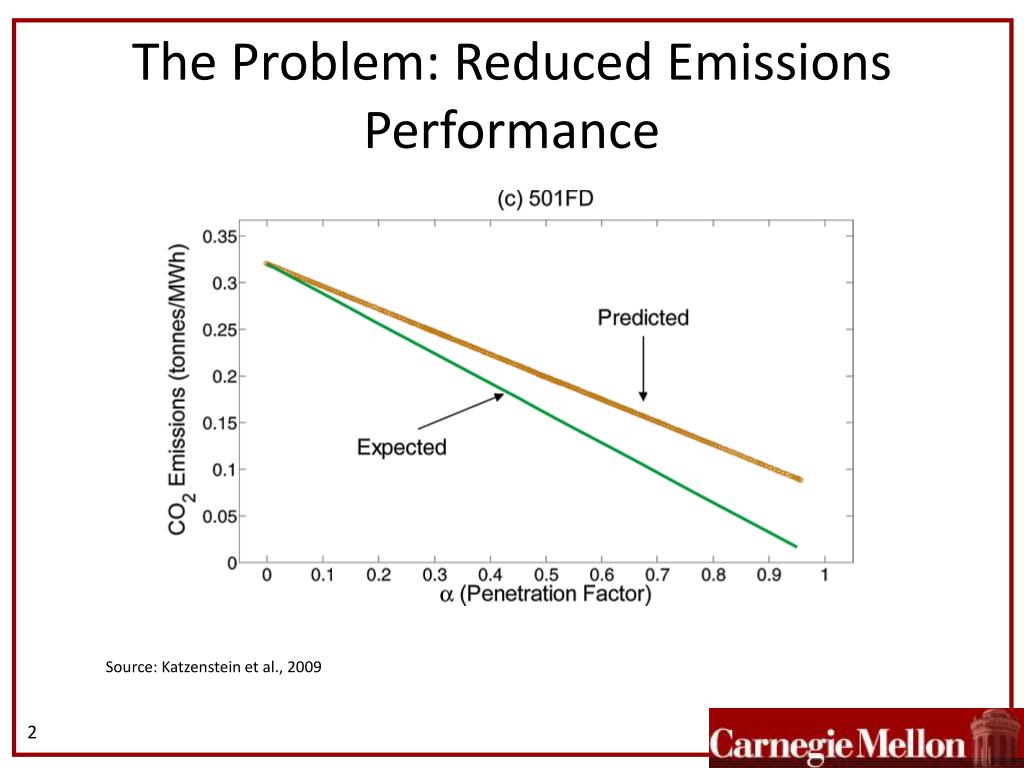

  3. The Problem: Reduced Emissions Performance Source: Katzenstein et al., 2009

  4. The Problem: Added Cost Source: Based on 2008 PJM market data Cost of energy supply in PJM: Energy: ~$50 billion Capacity: ~$5 billion Regulation: ~$0.5 billion (~1%) Reserve: ~$0.03 billion

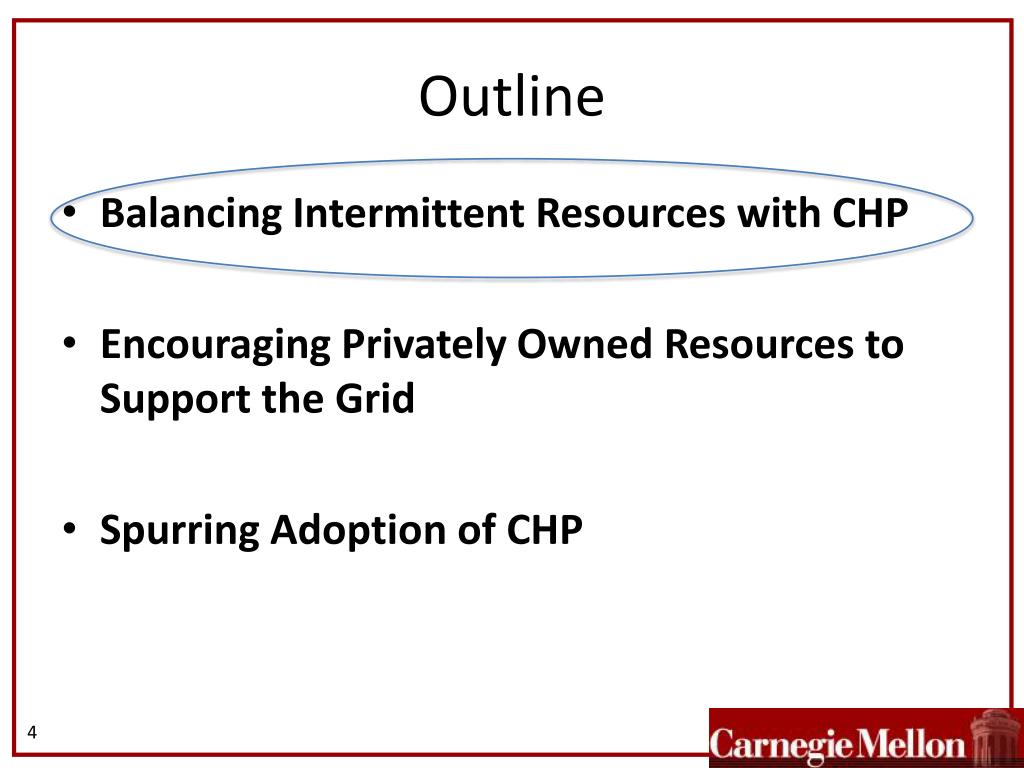

  5. Outline • Balancing Intermittent Resources with CHP • Encouraging Privately Owned Resources to Support the Grid • Spurring Adoption of CHP

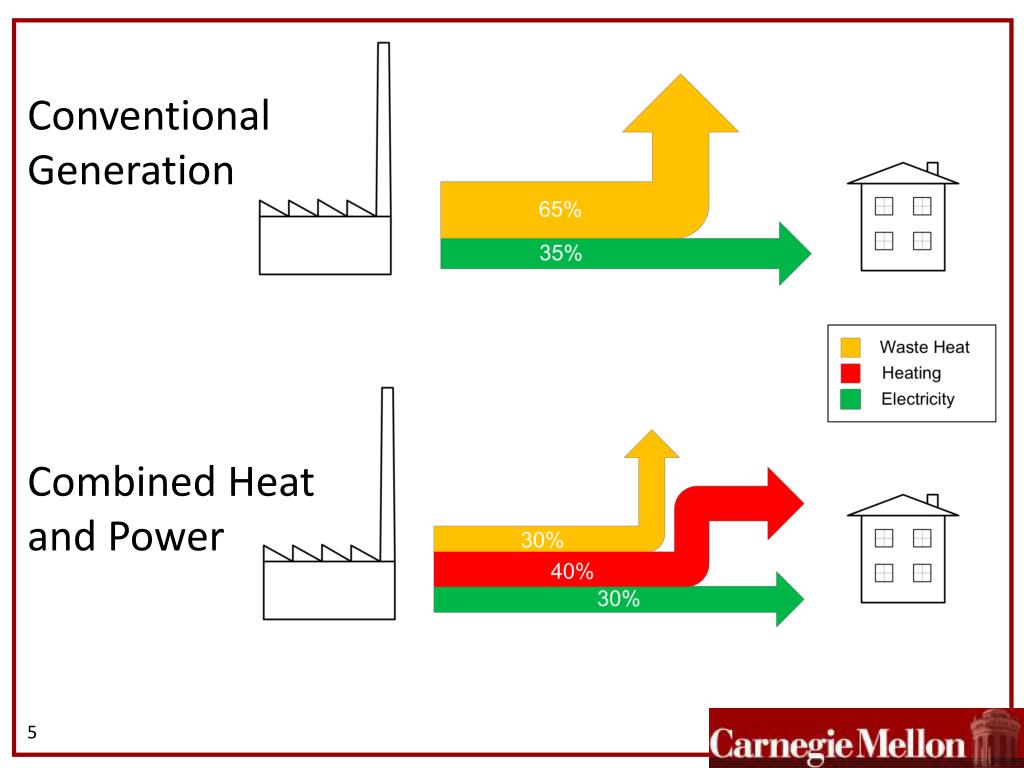

  6. Combined Heat and Power Conventional Generation

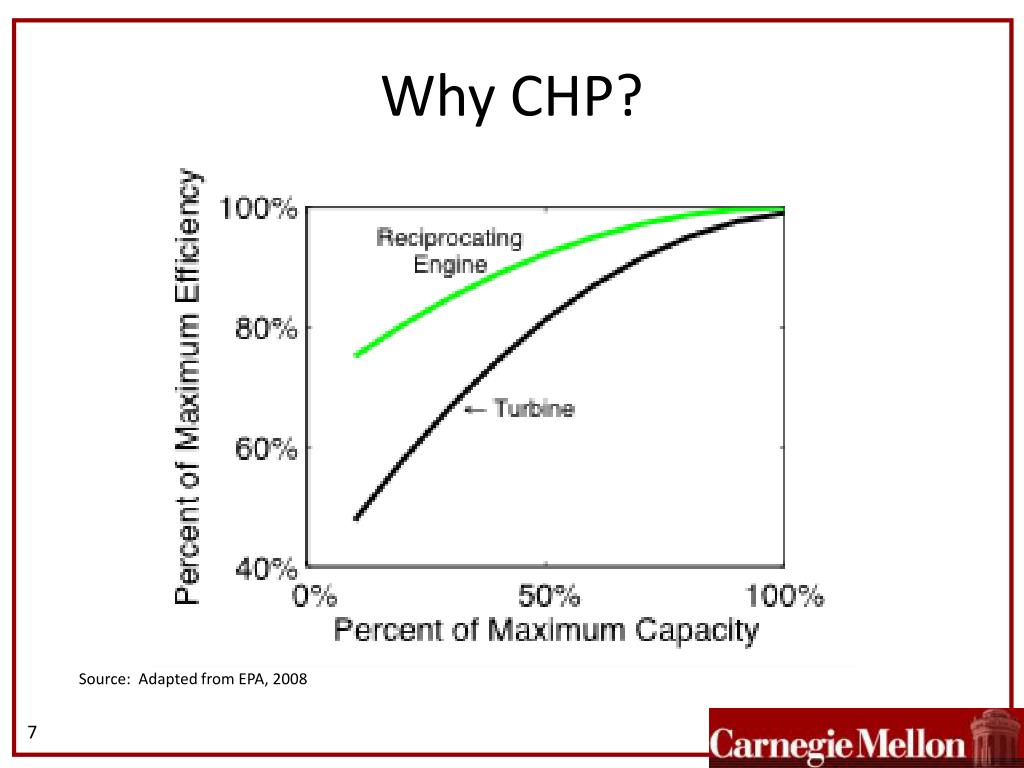

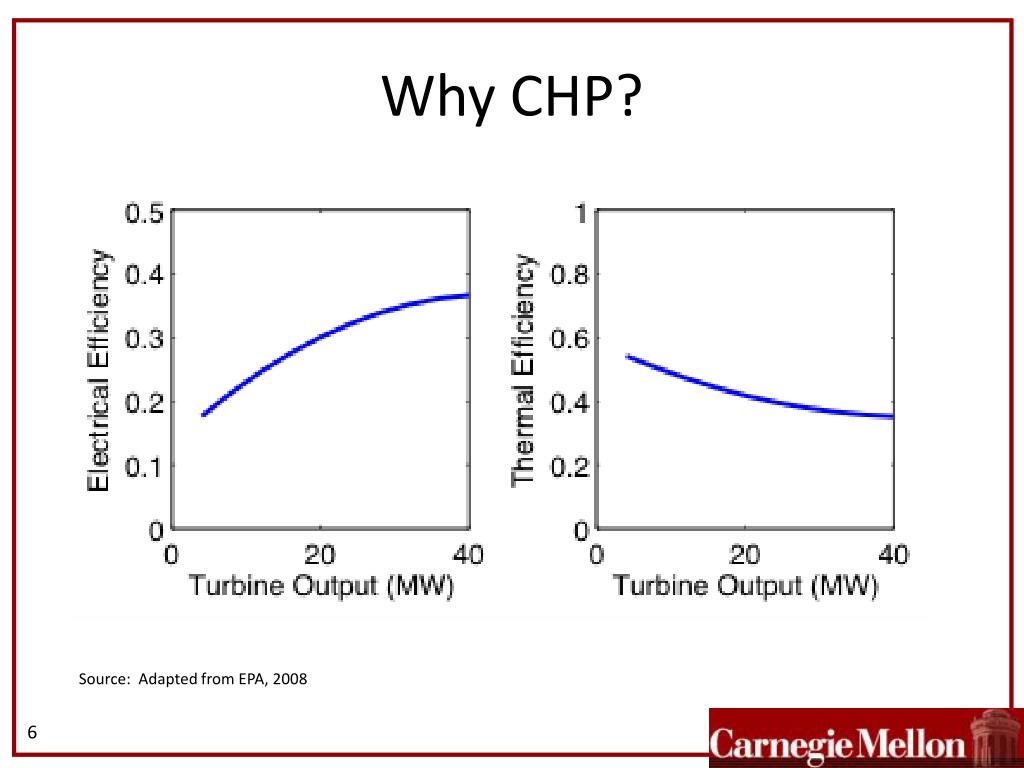

  7. Why CHP? Source: Adapted from EPA, 2008

  8. Why CHP? Source: Adapted from EPA, 2008

  9. Example Scenario: Oversize industrial CHP Source: Adapted from EPA, 2008

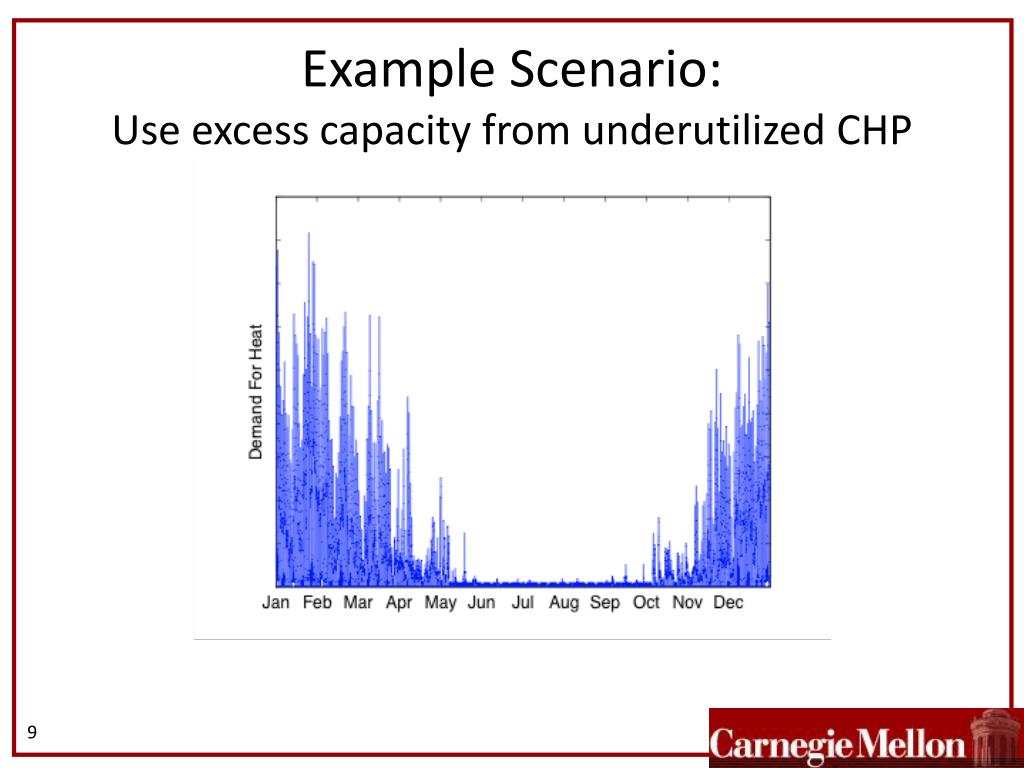

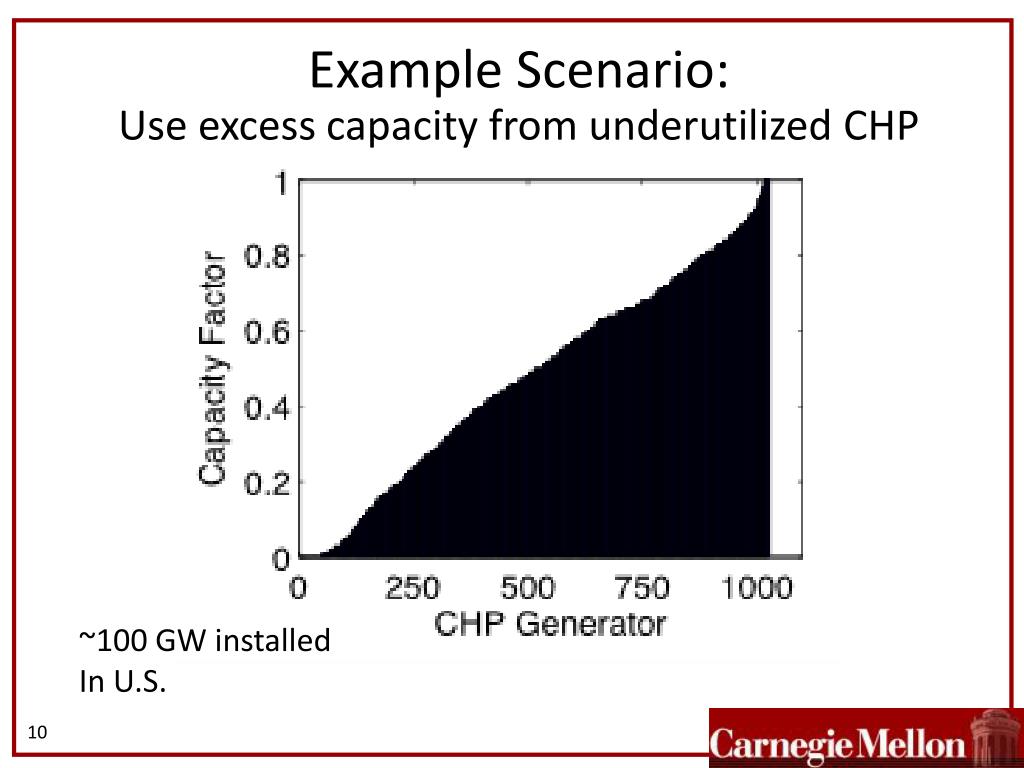

  10. Example Scenario: Use excess capacity from underutilized CHP

  11. Example Scenario: Use excess capacity from underutilized CHP ~100 GW installed In U.S.

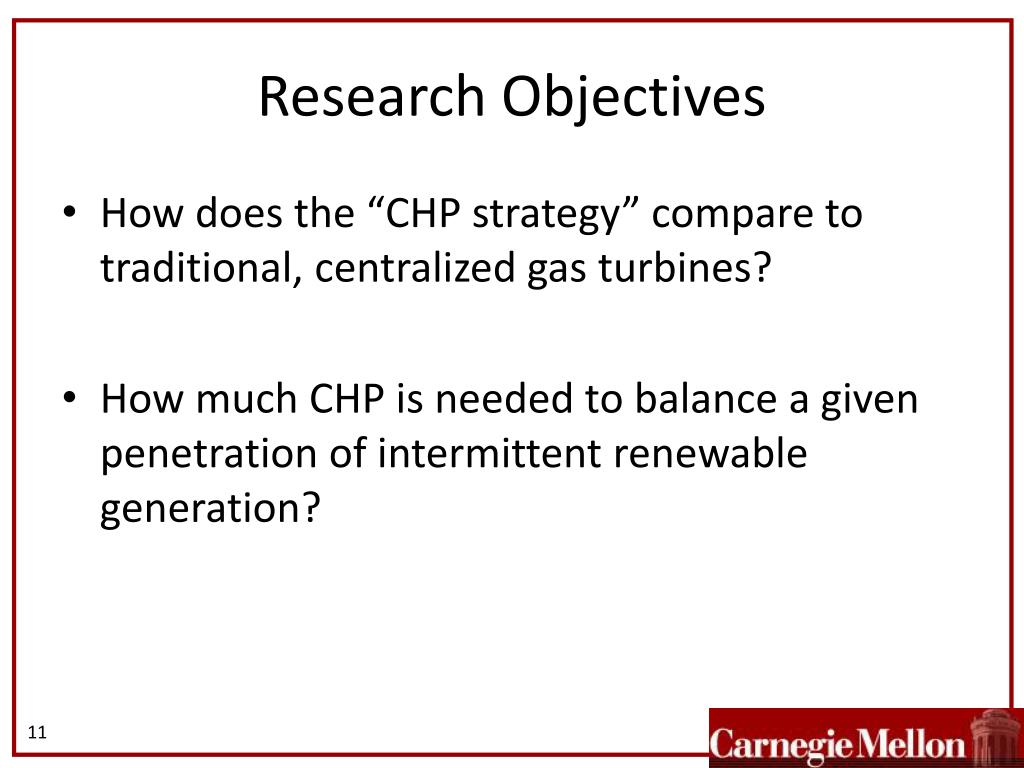

  12. Research Objectives • How does the “CHP strategy” compare to traditional, centralized gas turbines? • How much CHP is needed to balance a given penetration of intermittent renewable generation?

  13. Outline • Balancing Intermittent Resources with CHP • Encouraging Privately Owned Resources to Support the Grid • Spurring Adoption of CHP

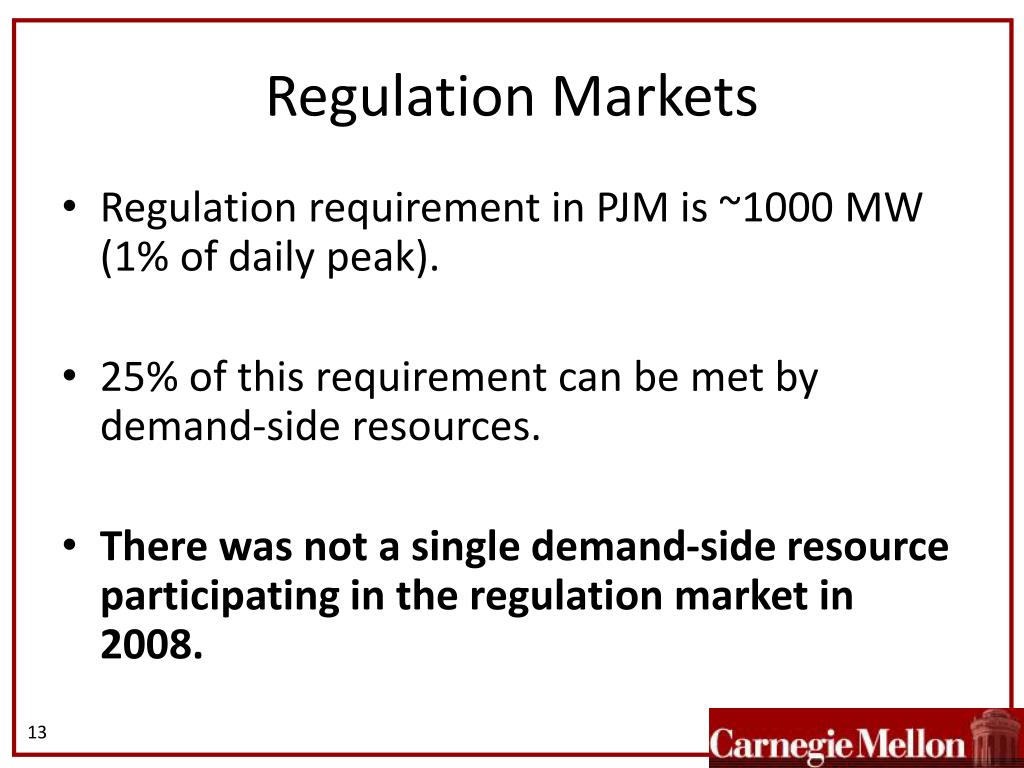

  14. Regulation Markets • Regulation requirement in PJM is ~1000 MW (1% of daily peak). • 25% of this requirement can be met by demand-side resources. • There was not a single demand-side resource participating in the regulation market in 2008.

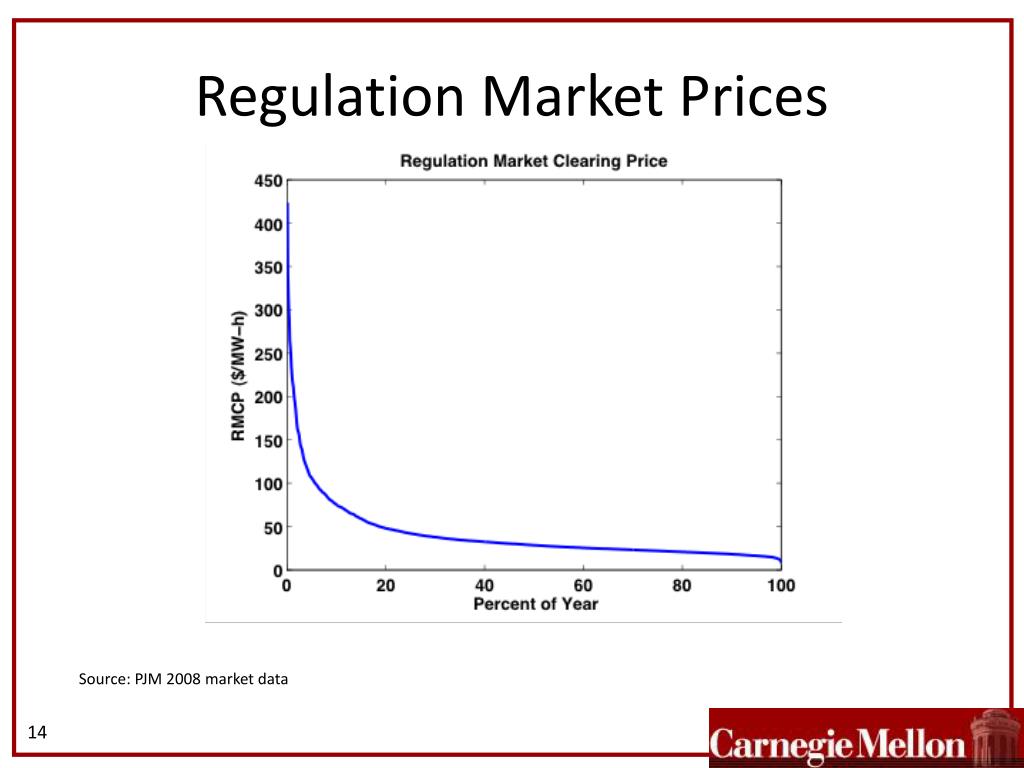

  15. Regulation Market Prices Source: PJM 2008 market data

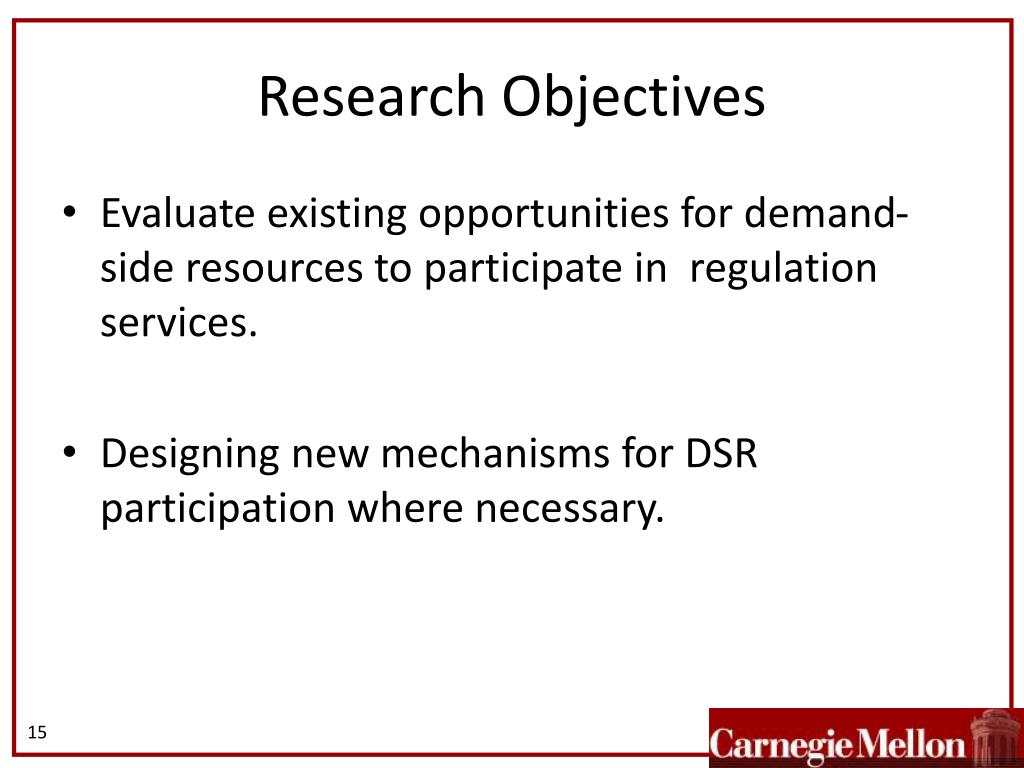

  16. Research Objectives • Evaluate existing opportunities for demand-side resources to participate in regulation services. • Designing new mechanisms for DSR participation where necessary.

  17. Outline • Balancing Intermittent Resources with CHP • Encouraging Privately Owned Resources to Support the Grid • Spurring Adoption of CHP

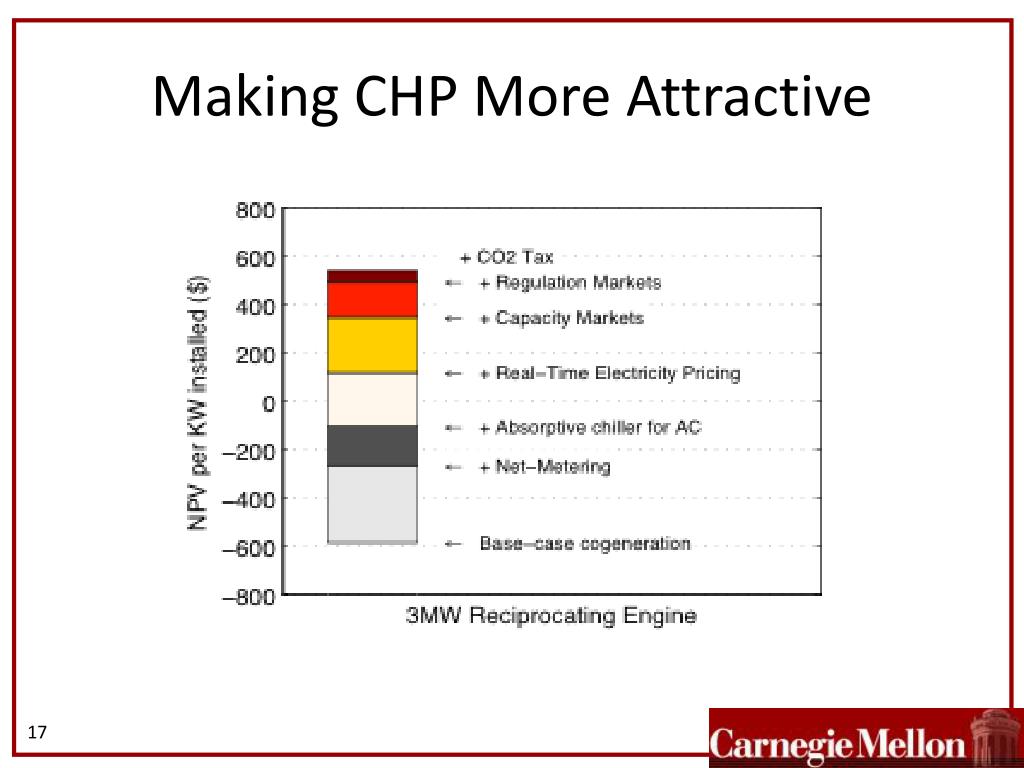

  18. Making CHP More Attractive

  19. Encouraging Broad Adoption of CHP Strachan, N.; Dowlatabadi, H., Distributed Generation and Distribution Utilities. Energy Policy 2002, (34), 649-661. King, D.; Morgan, M., Customer-Focused Assessment of Electric Power Microgrids. Journal of Energy Engineering 2007, 150-164. King, D.; Morgan, G., Guidance for Microgrid Legislation. 2003.

  20. Thank YouQuestion?
