Graphical Transformations. Vertical and Horizontal Translations Vertical and Horizontal Stretches and Shrinks. Take the equation f(x)= x 2. How do you modify the equation to translate the graph of this equation 5 units to the right?........ 5 units to the left?

Télécharger la présentation
## Graphical Transformations

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

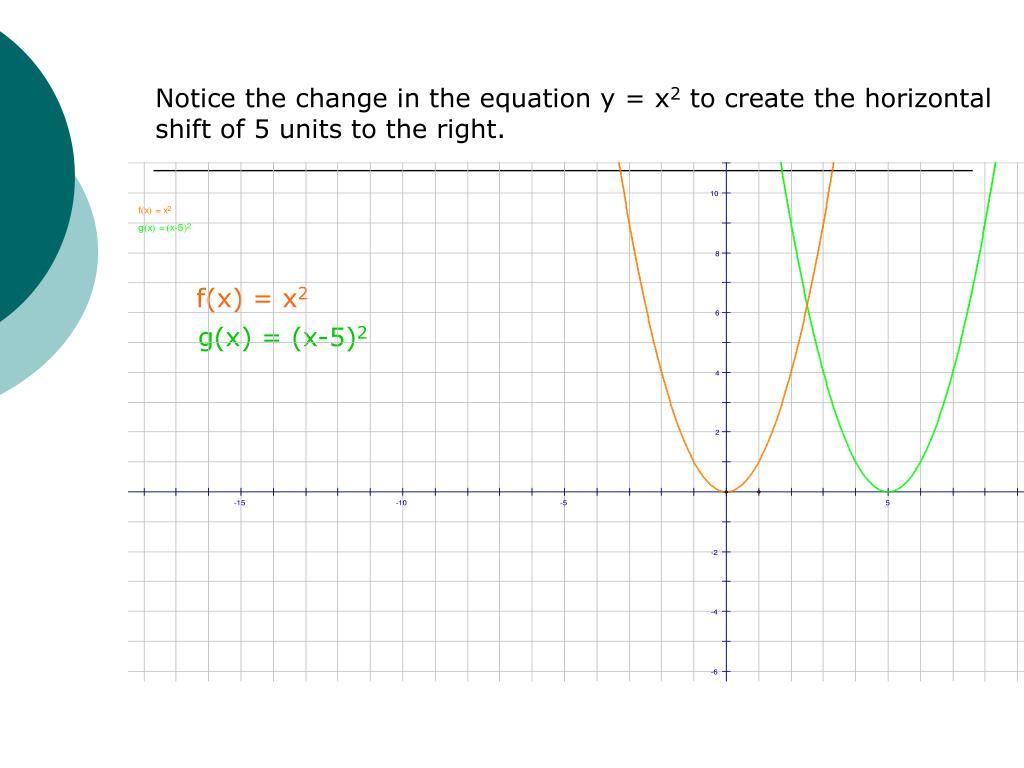

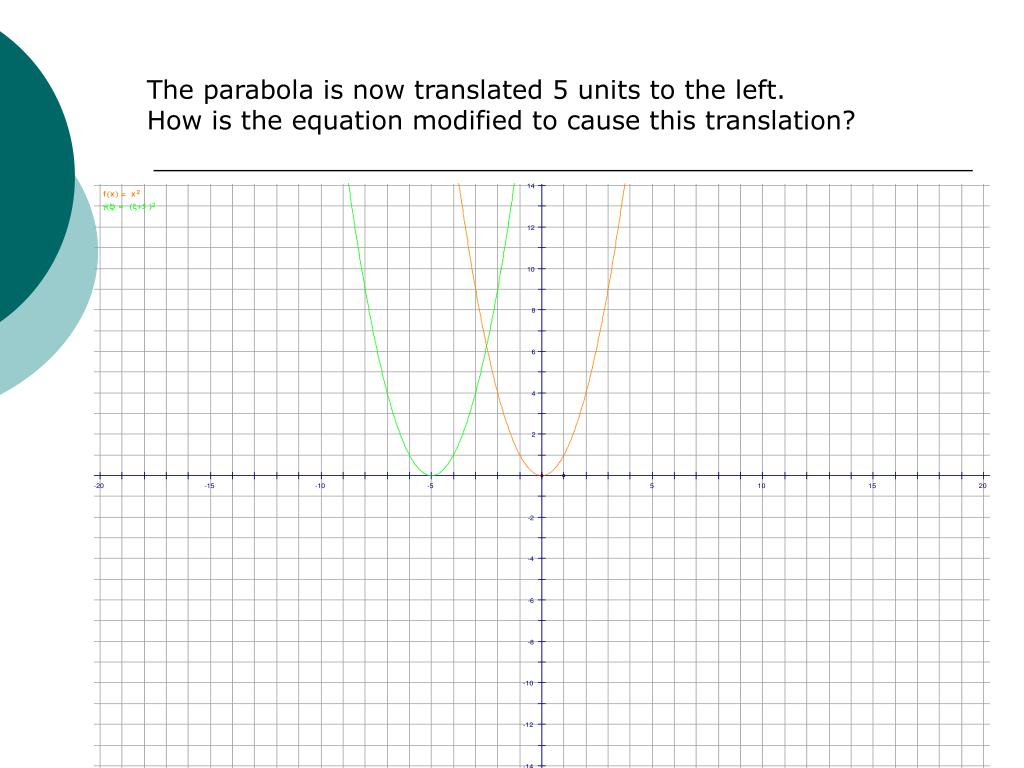

**Graphical Transformations**Vertical and Horizontal Translations Vertical and Horizontal Stretches and Shrinks**Take the equation f(x)= x2**• How do you modify the equation to translate the graph of this equation 5 units to the right?........ 5 units to the left? • How do you modify the equation to translate the graph of this equation 3 units down?..............3 units up? • What if you wanted to translate the graph of this equation 5 units to the left and 3 units down?**The parabola has been translated 5 units to the right.**How is the equation modified to cause this translation?**Notice the change in the equation y = x2 to create the**horizontal shift of 5 units to the right. f(x) = x2 g(x) = (x-5)2**The parabola is now translated 5 units to the left.**How is the equation modified to cause this translation?**Notice the change in the graph of the equation y=x2 to**create a horizontal shift of 5 units to the left. f(x)=x2 h(x)=(x+5)2**The parabola has now been translated three units down.**How is the equation modified to cause this translation?**Notice how the equation y = x2 has changed to make the**Vertical translation of 3 units down. f(x)=x2 q(x)=x2-3**The parabola has now been translated 3 units up.**How is the equation modified to cause this translation?**Notice how the equation y = x2 has been changed to make the**Vertical translation 3 units up. f(x)=x2 r(x)=x2+3**Write what you think would be the equation for translating**the parabola 5 units to the left and 3 units up?**The equation would be**What would the graph would look like?**g(x) is the translation of f(x) 5 units to the left and 3**units up. f(x)= x2 g(x) = (x+5)2+3**Vertical and horizontal stretches and shrinks**• How does the coefficient on the x2 term affect the graph of f(x) = x2? • What if we substitute an expression such as 2x into f(x)? How would that affect the graph of f(x) = x2?**The parabola has been vertically stretched by a factor of 2.**Notice how the equation has been modified to cause this stretch.**The parabola is vertically shrunk by a factor of ½.**Notice how the equation has been modified to cause this shrink.**By substituting an expression like 2x in for x in f(x) = x2**gives a different type of shrink. f(2x) = (2x)2. A horizontal shrink by a factor of ½.**Suppose we found g(1/2x). The equation would be**y = (1/2x)2.. How would this affect the graph of the function g(x) = x2? It is a horizontal stretch by a factor of 2.**If we were to write some rules for translations of functions**and stretches/shrinks of functions, what would we write? Horizontal translation: Vertical translation: Vertical stretch: Vertical shrink: Horizontal stretch: Horizontal shrink:
