  1. Antonio Conde, PH-CMX • CHAMBER MECHANICS & MECHANICAL INTEGRATION III GEM WORKSHOP

  2. GE1/1 CHAMBER & SC III GEM WORKSHOP

  3. MASS : 9,2 Kg Recent 20mm elongation In this direction (HV Div.) III GEM WORKSHOP

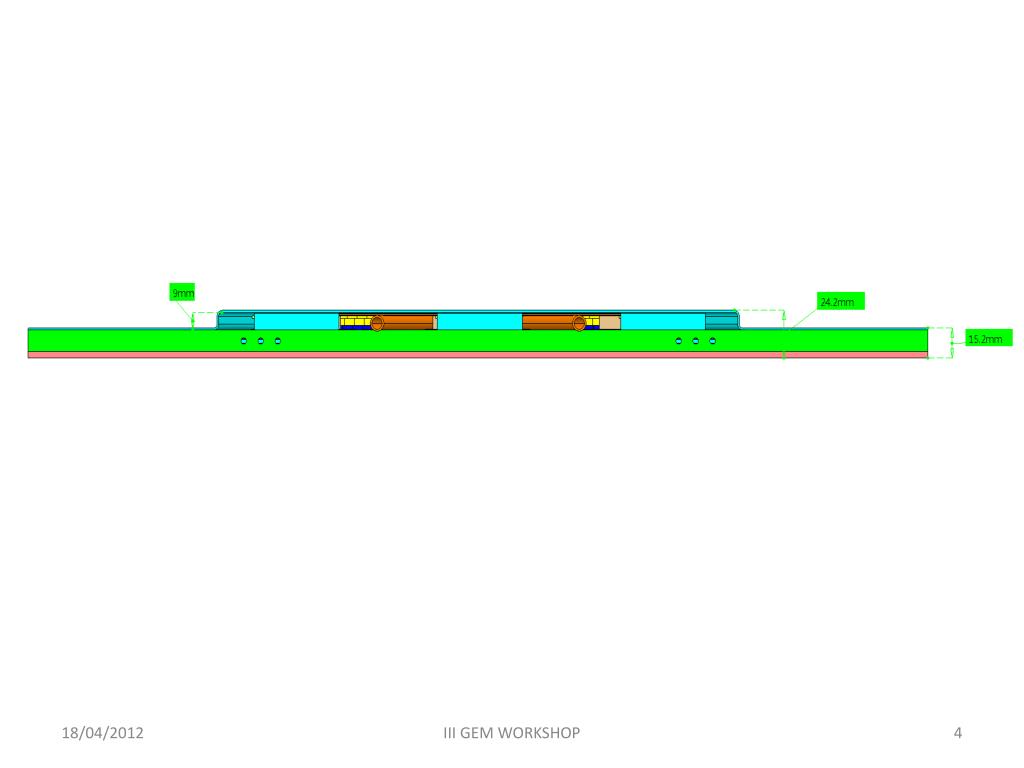

  4. III GEM WORKSHOP

  5. New position of HV Divider New Cooling Pipe and copperSheets DC-DC Converters ElectronicGBT’s III GEM WORKSHOP

  6. The coveris a unique part now (beforewasshield+chimney) VFAT Connectors & Hybrids nowrotated 90° III GEM WORKSHOP

  7. III GEM WORKSHOP

  8. III GEM WORKSHOP

  9. GAP-PAD LARGER THAN CHIP III GEM WORKSHOP

  10. COVER, FRAME & DRIFT EXTENDED 20mm DUE TO NEW LOCATION OF HV DIVIDER III GEM WORKSHOP

  11. ADDING PIVOTS & FEET TO FORM SC STRAIGTH SC (Mass: 18,8 Kg) Pivots 20mm nowshorter due to elongation of the Frame (Surface treatment for slidingneeded) PIVOTING SC (Mass: 18,7 Kg) III GEM WORKSHOP

  12. STRAIGTH SC PATCH-PANELS PIVOTING SC III GEM WORKSHOP

  13. TO BE UPDATED (lackcooling and gap-pad; cover unique part; somescrewsdisappeared) III GEM WORKSHOP

  14. GE1/1 INTEGRATION III GEM WORKSHOP

  15. BACK-FLANGE III GEM WORKSHOP

  16. DETECTOR ENVELOPE 36 SC PER SIDE (18 STRAIGTH+18 PIVOTING) III GEM WORKSHOP

  17. III GEM WORKSHOP

  18. QUESTIONS : • INITIAL FLATNESS OF THE BACK-FLANGE ? • BACK-FLANGE MAGNETIC DEFORMATION ? • ARE THERE NON FORESEEN CABLES OR PIPES ? III GEM WORKSHOP

  19. REDUCING STACKING HEIGHT IN 18mm TO BE STUDIED III GEM WORKSHOP

  20. III GEM WORKSHOP

  21. III GEM WORKSHOP

  22. GE2/1 INTEGRATION III GEM WORKSHOP

  23. WIDTH OF THE ENVELOPE : 150mm III GEM WORKSHOP

  24. RE2/3 RE2/2 GE2/1 III GEM WORKSHOP

  25. - 2 POSSIBLE GEOMETRIES III GEM WORKSHOP

  26. 18 SUPERCHAMBERS PER SIDE NEXT STEP : TO MODEL GE2/1 WITH ALL INTERNAL AND EXTERNAL COMPONENTS III GEM WORKSHOP

  27. ENTRETIENS AVEC JOSÉ SALICIO, CHEFS DE GROUPE, PERSONNEL DEPT. IT III GEM WORKSHOP
