  1. Capacitor Fuses October 2001

  2. CLN 600 V Current Limiting CLC 1.2-4.3 kV Current Limiting CIL 5.5-15.5 kV Current Limiting & Expulsion CXP 9.7-26.2 kV Expulsion COL 2.8-23 kV Current Limiting & Expulsion CLXP 2.5-25 kV Current Limiting & Expulsion Capacitor Fuses Indoor Outdoor

  3. CLN • Full Range Current Limiting, Non-indicating and Non-disconnecting Capacitor Fuse • Indoor Use or in an Enclosure, Protected From Outdoor Weather Conditions • Primary Application Is Individual Unit Fusing of Low Voltage Single and Three Phase Capacitors in Metal Enclosed Equipments

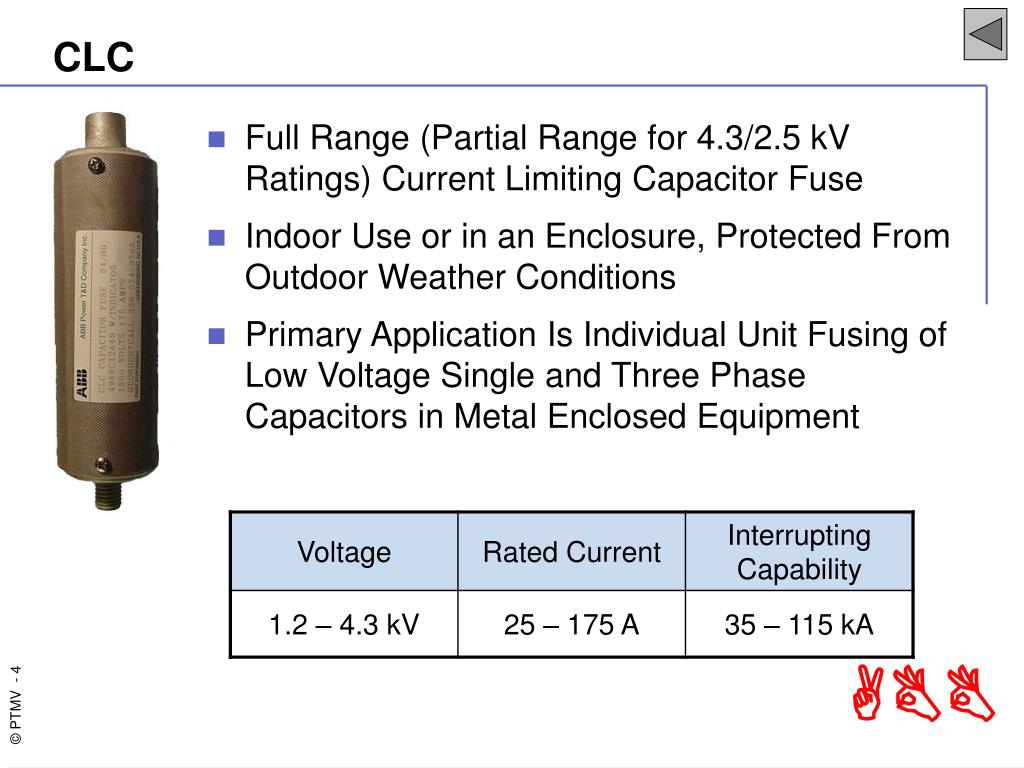

  4. CLC • Full Range (Partial Range for 4.3/2.5 kV Ratings) Current Limiting Capacitor Fuse • Indoor Use or in an Enclosure, Protected From Outdoor Weather Conditions • Primary Application Is Individual Unit Fusing of Low Voltage Single and Three Phase Capacitors in Metal Enclosed Equipment

  5. CIL • Full Range Current Limiting and Expulsion, Indicating and Disconnecting Capacitor Fuse • Indoor Use Only • Primary Application Is Individual Capacitor Unit Fusing for Metal Enclosed Equipment

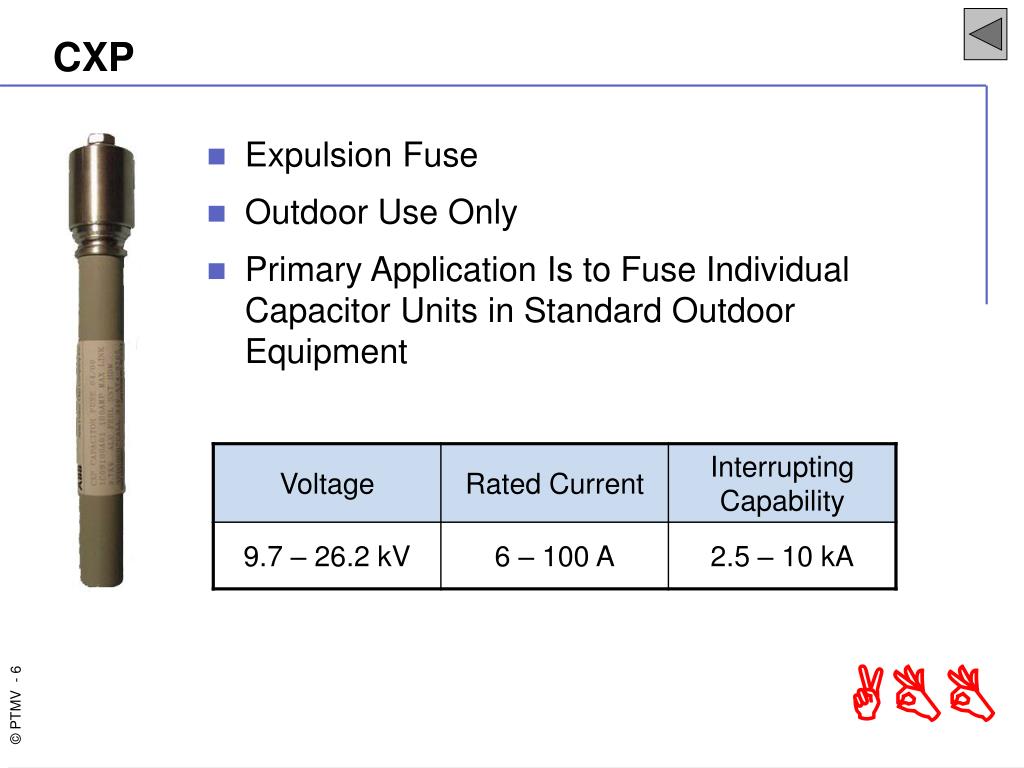

  6. CXP • Expulsion Fuse • Outdoor Use Only • Primary Application Is to Fuse Individual Capacitor Units in Standard Outdoor Equipment

  7. COL • Full Range Current Limiting and Expulsion, Indicating and Disconnecting Capacitor Fuse • Outdoor Use Only • Applied to Individual Capacitor Units in Outdoor Stacking Equipment

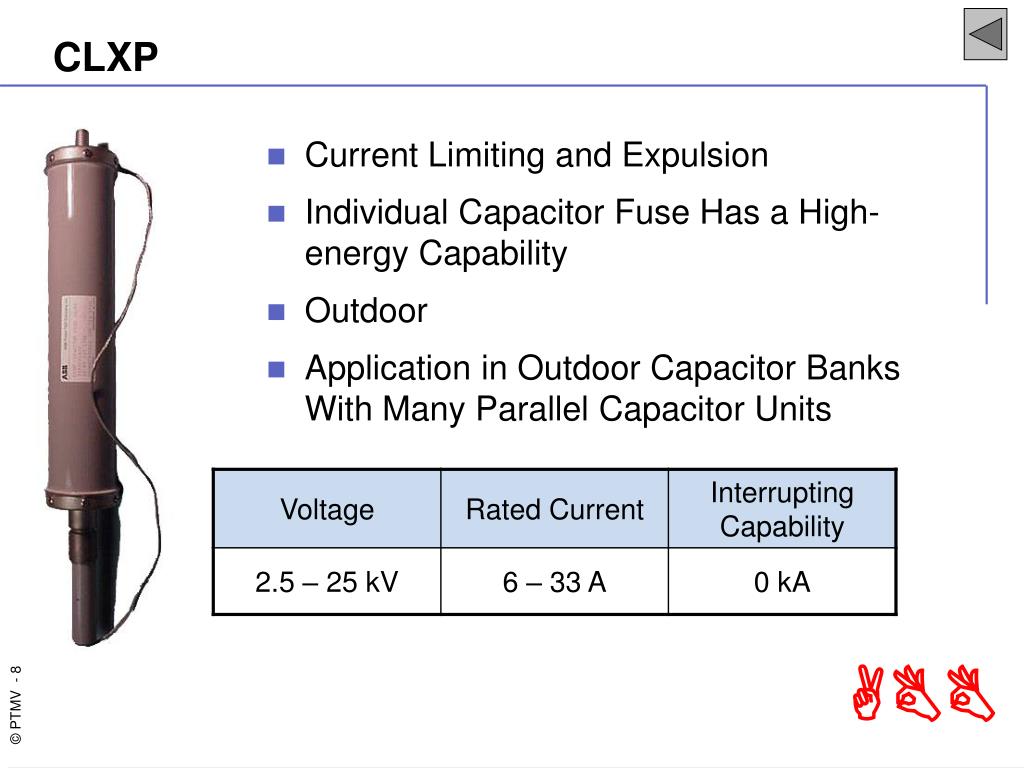

  8. CLXP • Current Limiting and Expulsion • Individual Capacitor Fuse Has a High-energy Capability • Outdoor • Application in Outdoor Capacitor Banks With Many Parallel Capacitor Units
