capacitor. They are important in both electric & electronic circuit. Have you seen any of them before ?. Function :. Capacitors can store and then release electrical energy . The value of a capacitors is often measured in micro-farads .

jud
Télécharger la présentation

capacitor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

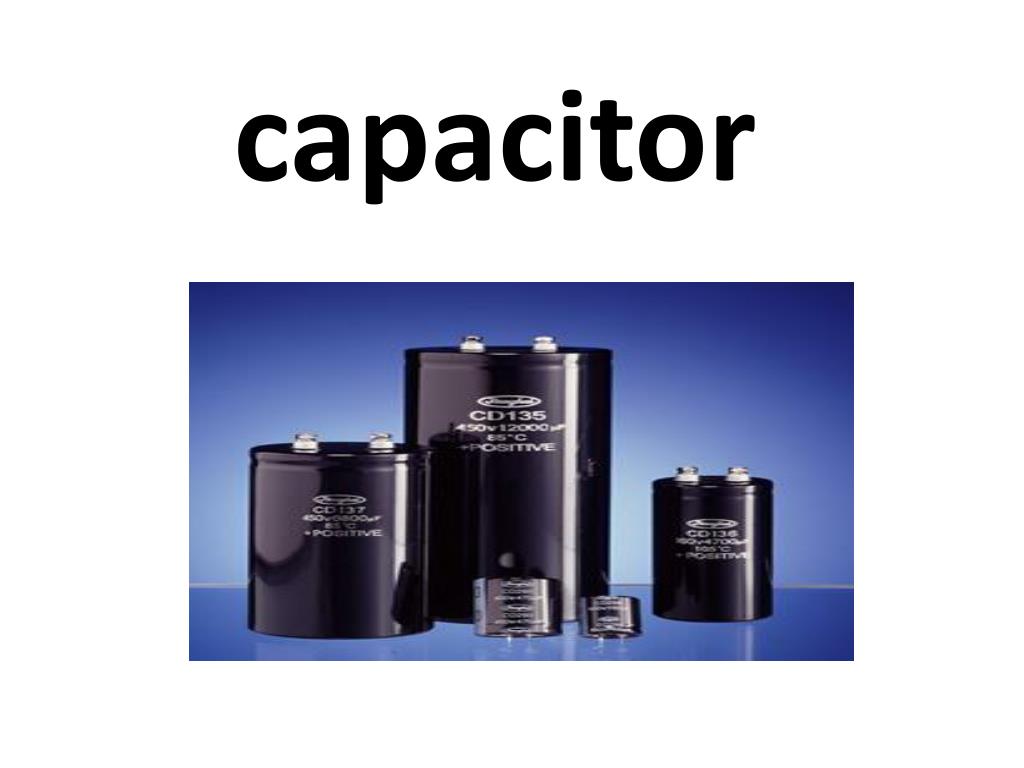

  1. capacitor

  2. They are important in both electric & electronic circuit • Have you seen any of them before ?

  3. Function : • Capacitors can store and then release electrical energy . • The value of a capacitors is often measured in micro-farads . • The amount of energy stored by the capacitor depends on : How much charged is moved on to the plates .

  4. The conducting plates are separated by an insulating material which is called the Dielectric

  5. Charging a capacitor :What happens when the switch closed ?

  6. Discharging capacitor :if the battery is removed , we can discharge the capacitor + _

  7. Why does the direction of charging current in the opposite way of current of the battery ?

  8. The charging & discharging processes happen very quickly .Can we slow them down ?

  9. Capacitance • The ability of a capacitor to store charge on its plates.

  10. The large the capacitance , the more charge the capacitor stores for each volt applied across its plates . In fact : • Capacitance = charge / voltage • C = Q / V

  11. How can we measured the charge on the capacitor plates ?

  12. Measuring capacitance :

  13. Complete the table :

  14. The energy of a charged capacitor • A B

  15. Questions : • Q1:What happens to the switch in position A? • Q2:What happens to the switch in position B? • Q3:Where did this energy come from ?

  16. The p.d. across the capacitor and the size of its capacitance , both affect the energy stored . • Energy stored =0.5Xcapacitance X (voltage)2 W = 0.5 X C X V2 OR W = 0.5 X Q X V

  17. Q1 • A capacitor is charged using a current of 20µA from a 5volts supply .After 55s it is fully charged. • Calculate : • A. Q? • B. C? • C. W?

  18. More Qs. • http://electronics.howstuffworks.com/solid-state-electronics-channel.htm http://us.c2w.com/quizzes/45045-capacitor-quiz

  19. Capacitor in parallel

  20. Here are 3 facts that you should know for • The p.d. across each capacitors is the same & equal to V . • The total Q is the sum Q = Q1+Q2 • The total C is the sum C = C1+C2 Q = C V

  21. Capacitor in series

  22. Here are 3 facts that you should know for • The Q. across each capacitors is the same & equal to Q . • The total V is the sum V= V1+V2 • The total C is the sum 1/C = 1/C1+ 1/C2

  23. Qs. • Q1: Calculate the charge on each capacitor in this diagram : • If : • V=5volt • C1=500 micro farad C2=300 micro farad

  24. Qs.: Pg. 273 , Q:6 Home Work : Pg. 273 , Q :1-3-4-5
