  1. Chapter 20 Coastlines and Ocean Basins

  2. About Coastlines and Ocean Basins • Coastal processes are the interaction of the climate system and the solar system. • Waves and tides are key processes at the coastline. • The ocean basin contains features like mountains, valleys, and volcanoes.

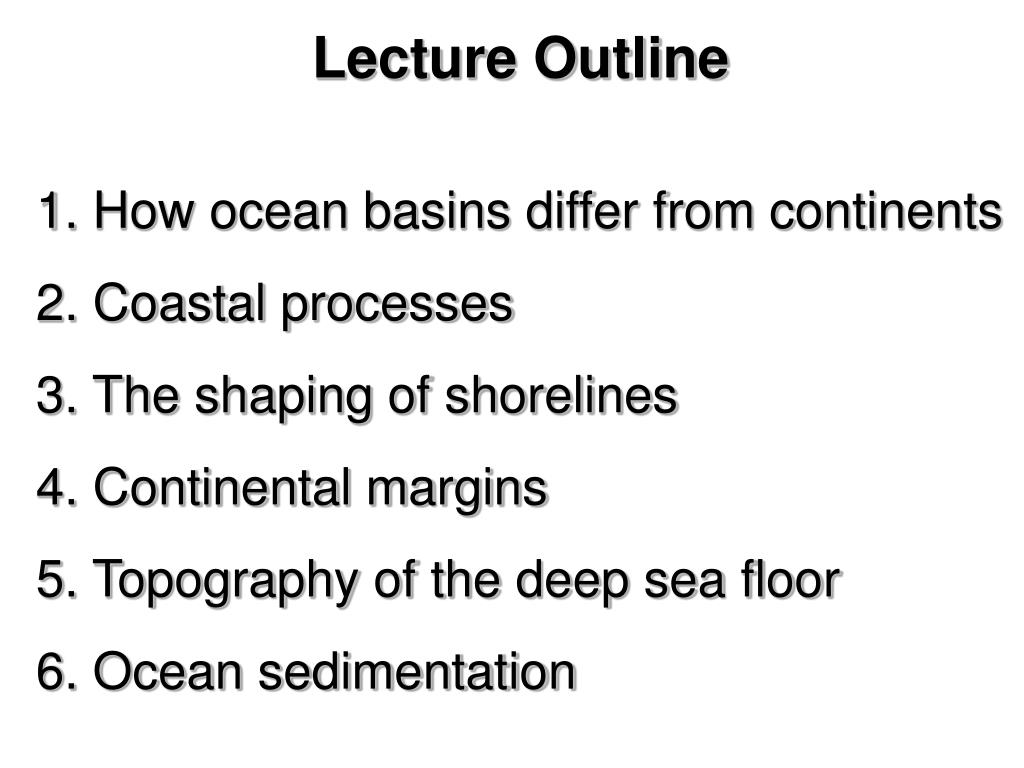

  3. Lecture Outline • How ocean basins differ from continents • 2. Coastal processes • 3. The shaping of shorelines • 4. Continental margins • 5. Topography of the deep sea floor • 6. Ocean sedimentation

  4. How Ocean Basins Differ • from Continents ● Lack of fragmentation processes ● slow chemical weathering ● Limited tectonic activity ● mid-ocean ridges and subduction zones ● Oceans dominated by volcanism and sedimentation

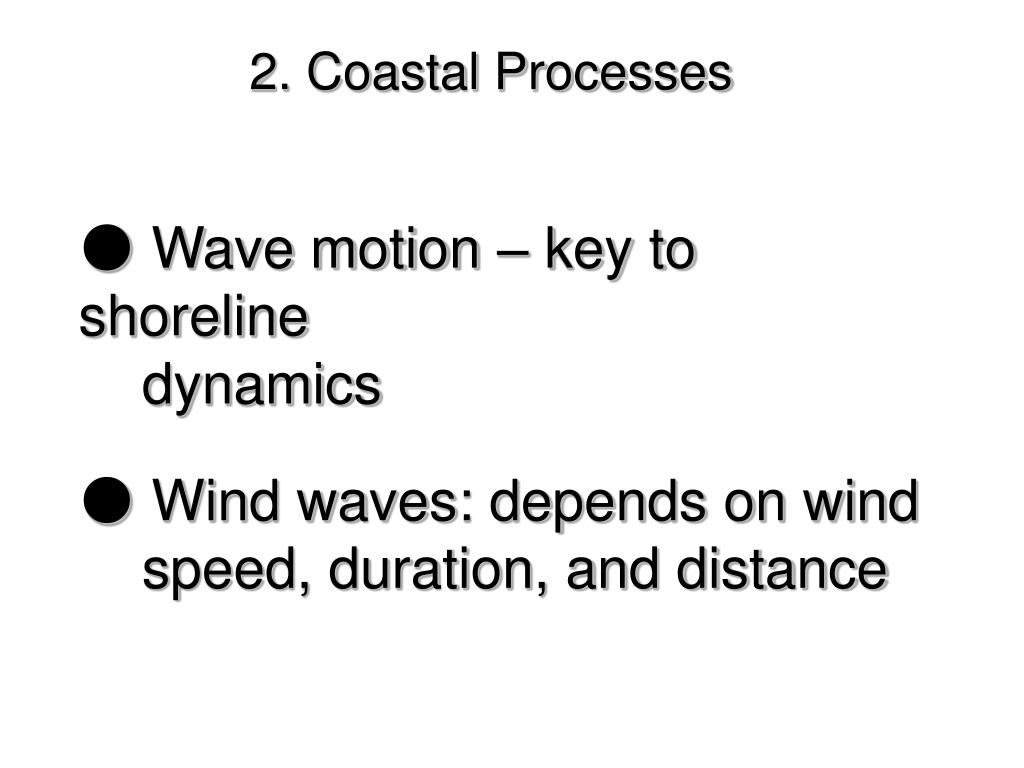

  5. 2. Coastal Processes ● Wave motion – key to shoreline dynamics ● Wind waves: depends on wind speed, duration, and distance

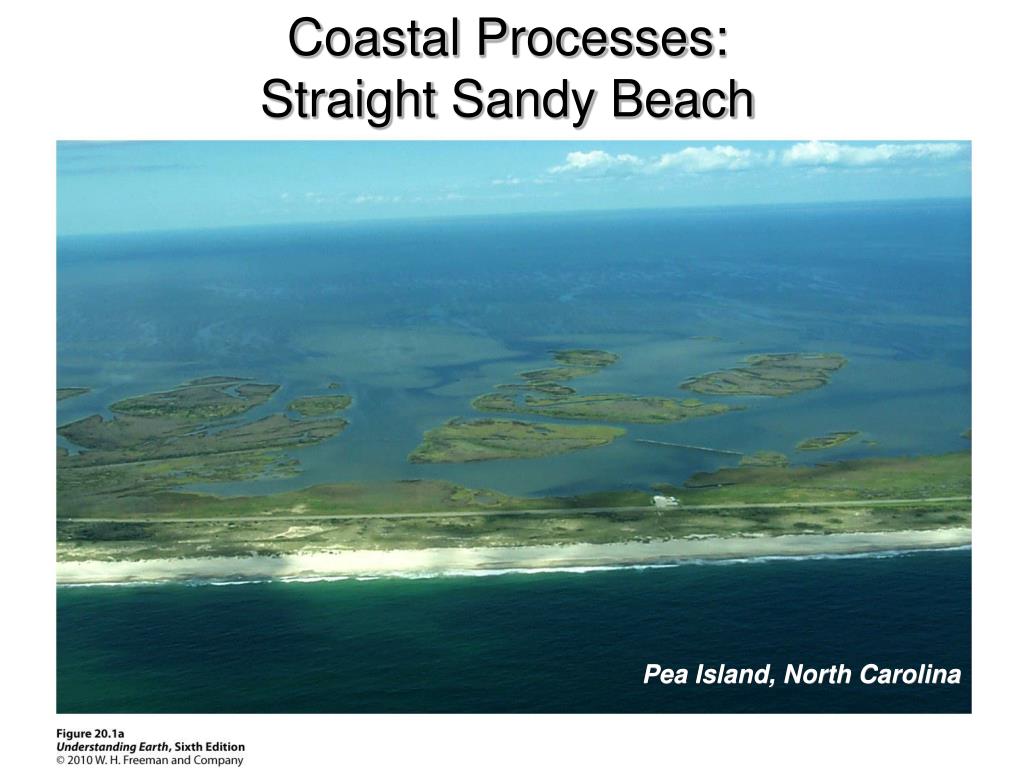

  6. Coastal Processes: Straight Sandy Beach Pea Island, North Carolina

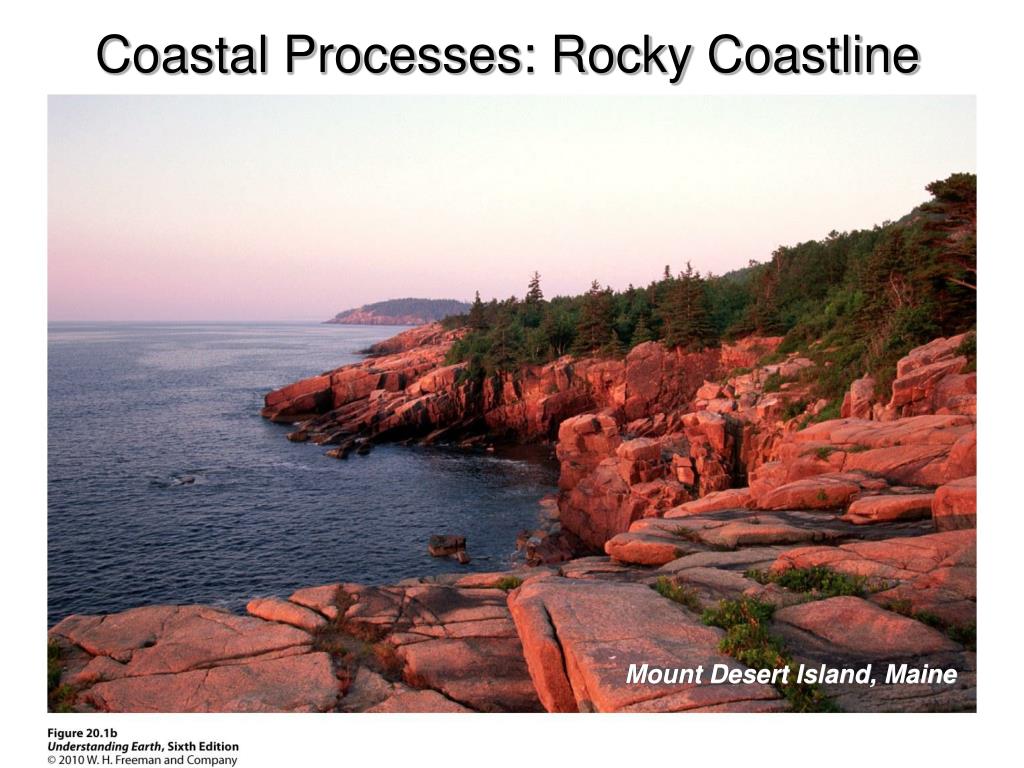

  7. Coastal Processes: Rocky Coastline Mount Desert Island, Maine

  8. Coastal Processes: Wave Erosion Effects Port Campbell, Australia

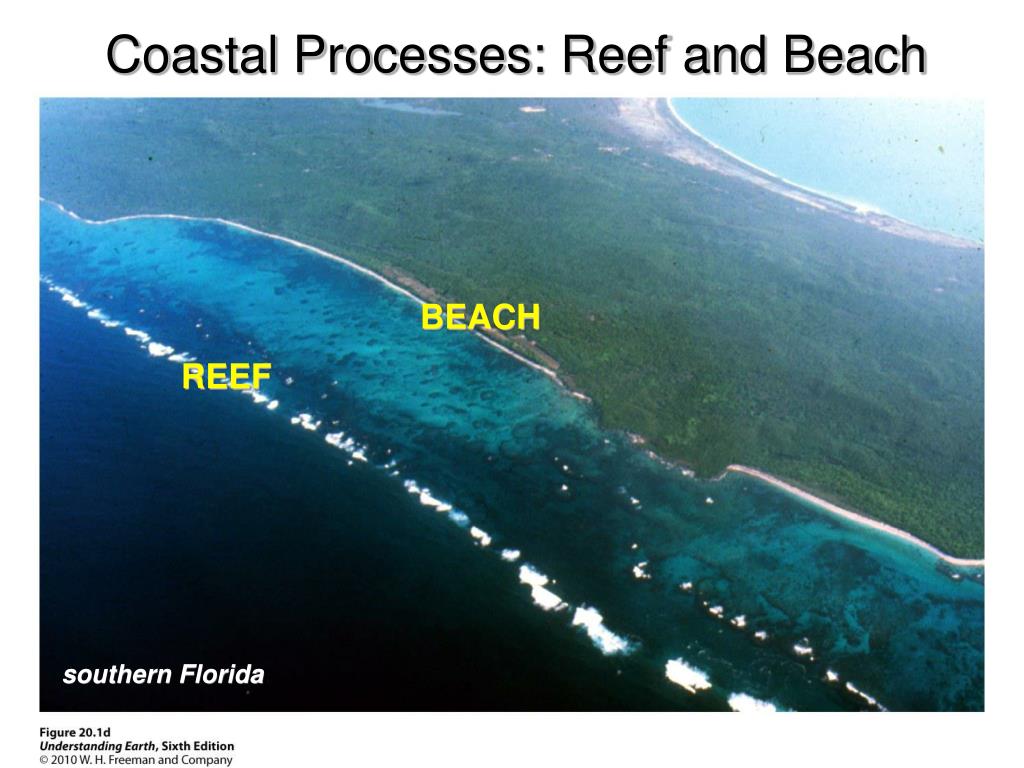

  9. Coastal Processes: Reef and Beach BEACH REEF southern Florida

  10. 2. Coastal Processes ● To describe a wave ● wavelength ●wave height ●period for successive waves

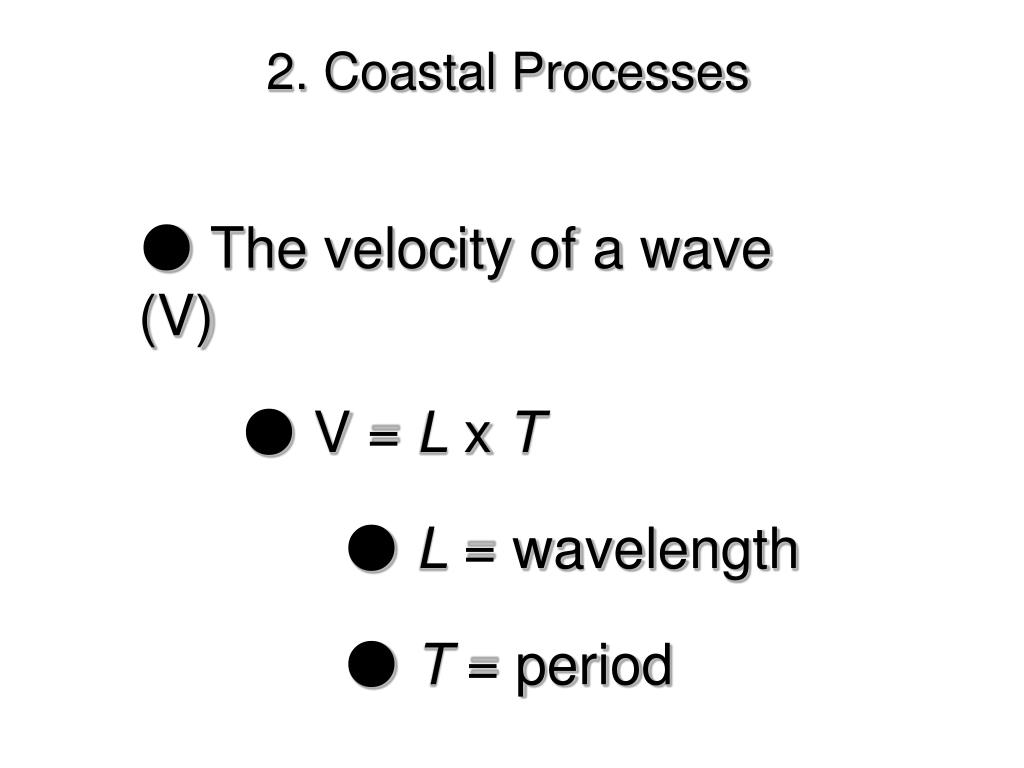

  11. 2. Coastal Processes ● The velocity of a wave (V) ● V = L x T ●L = wavelength ●T = period

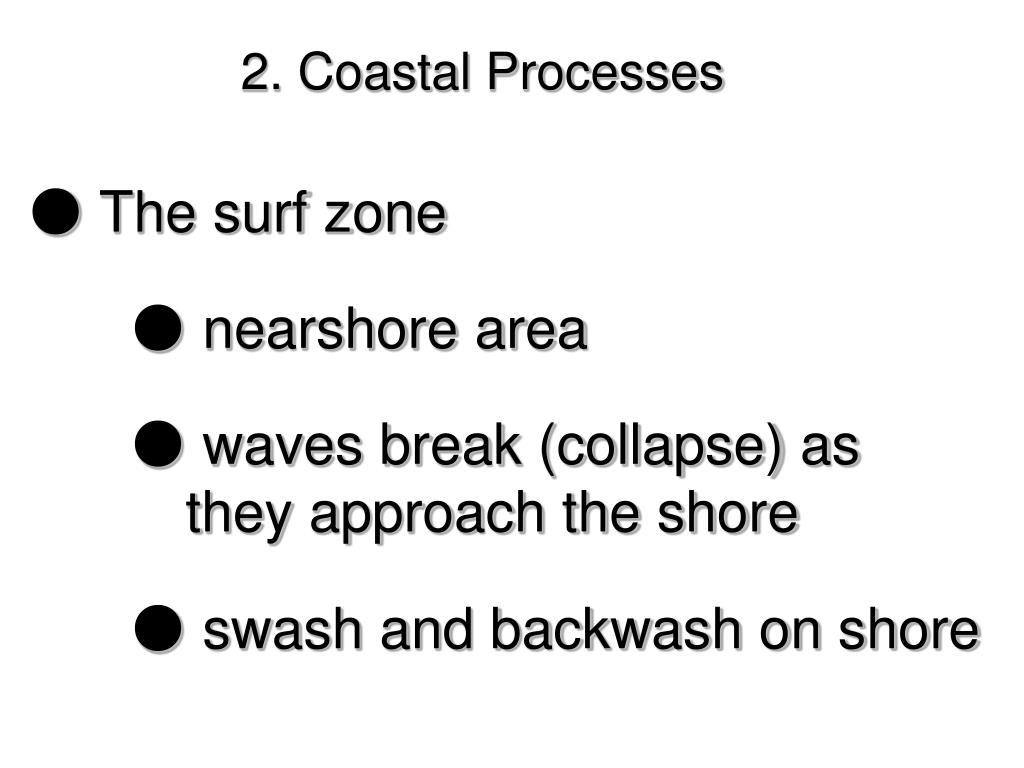

  12. 2. Coastal Processes ● The surf zone ● nearshore area ●waves break (collapse) as they approach the shore ●swash and backwash on shore

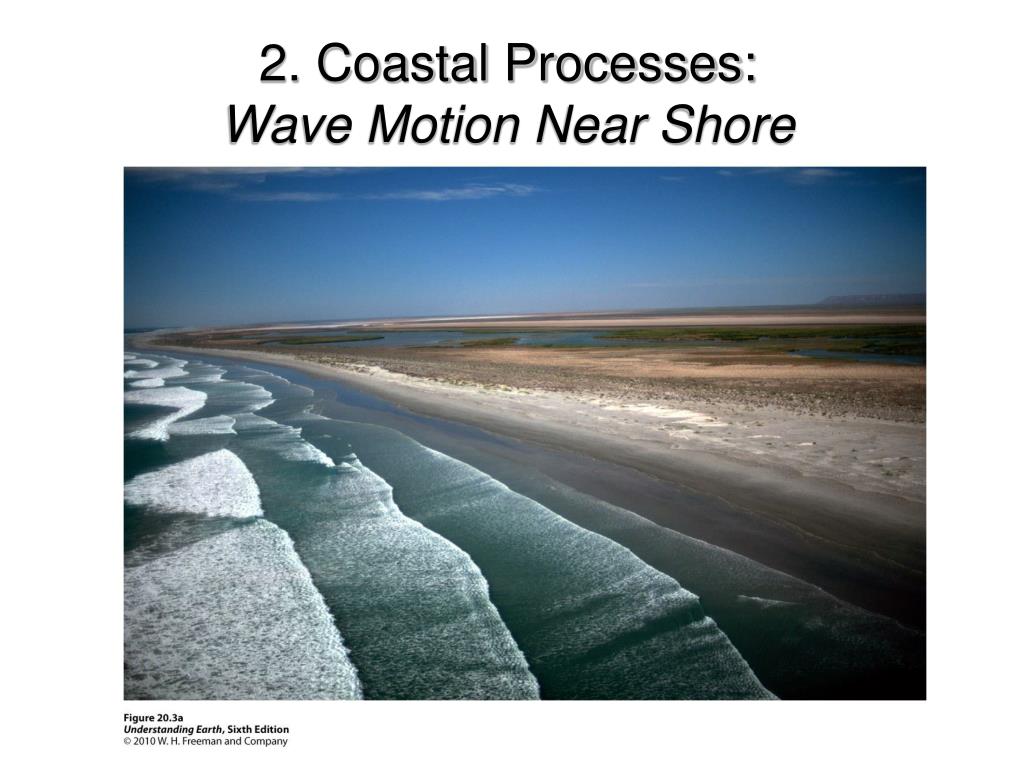

  13. 2. Coastal Processes: Wave Motion Near Shore

  14. 2. Coastal Processes: Wave Motion Near Shore

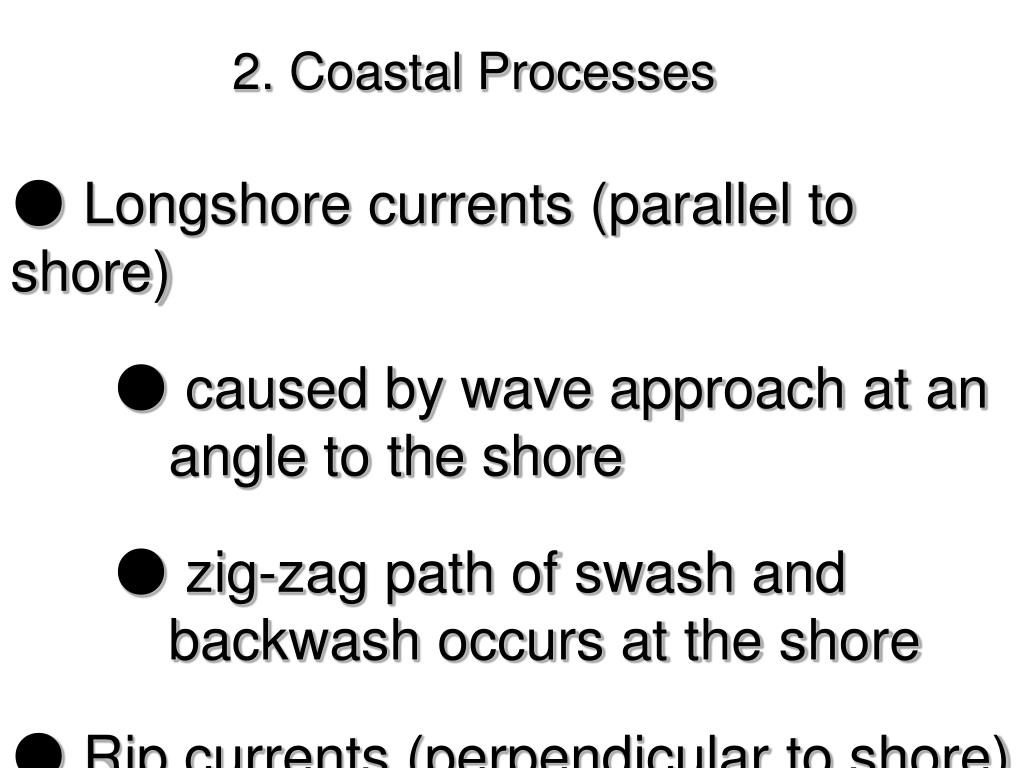

  15. 2. Coastal Processes ● Longshore currents (parallel to shore) ● caused by wave approach at an angle to the shore ●zig-zag path of swash and backwash occurs at the shore ●Rip currents (perpendicular to shore)

  16. 2. Coastal Processes: Wave Motion Near Shore

  17. 3. The Shaping of Shorelines: The Structure of Beaches

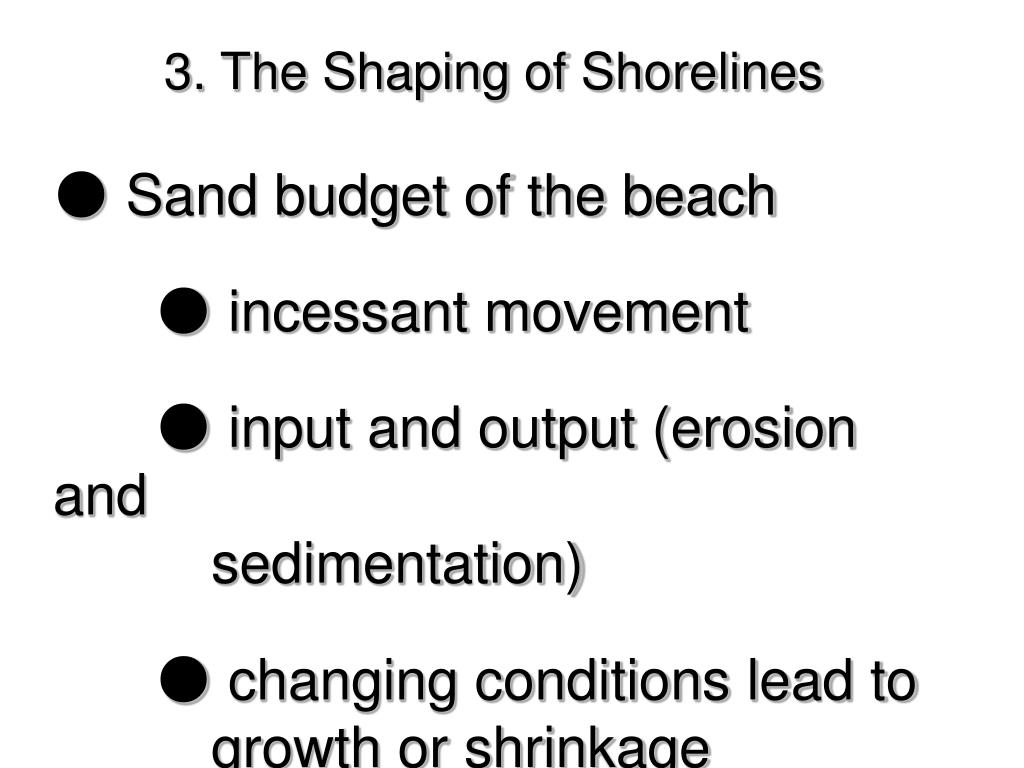

  18. 3. The Shaping of Shorelines ● Sand budget of the beach ● incessant movement ●input and output (erosion and sedimentation) ●changing conditions lead to growth or shrinkage

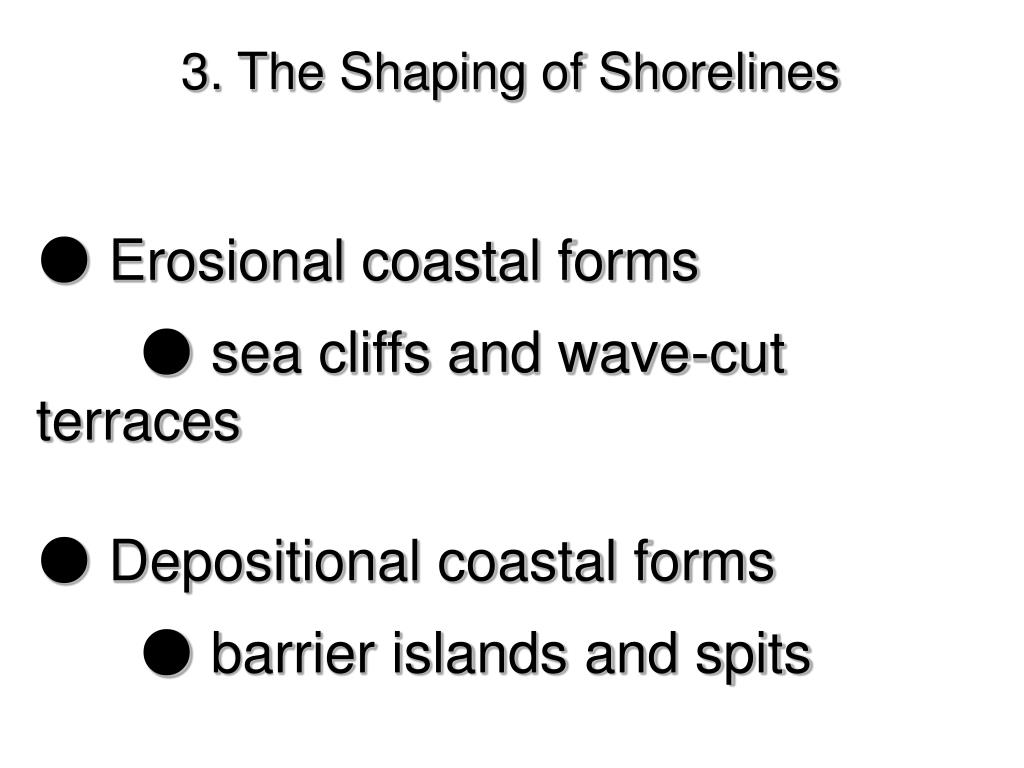

  19. 3. The Shaping of Shorelines ● Erosional coastal forms ● sea cliffs and wave-cut terraces ●Depositional coastal forms ●barrier islands and spits

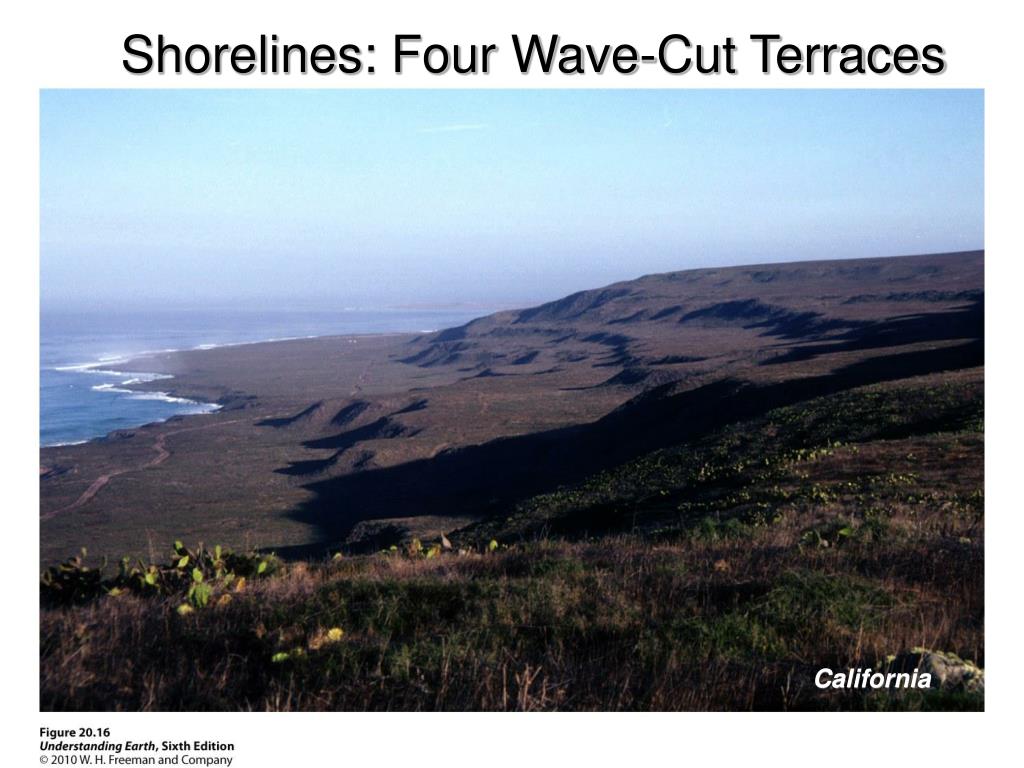

  20. Shorelines: Four Wave-Cut Terraces California

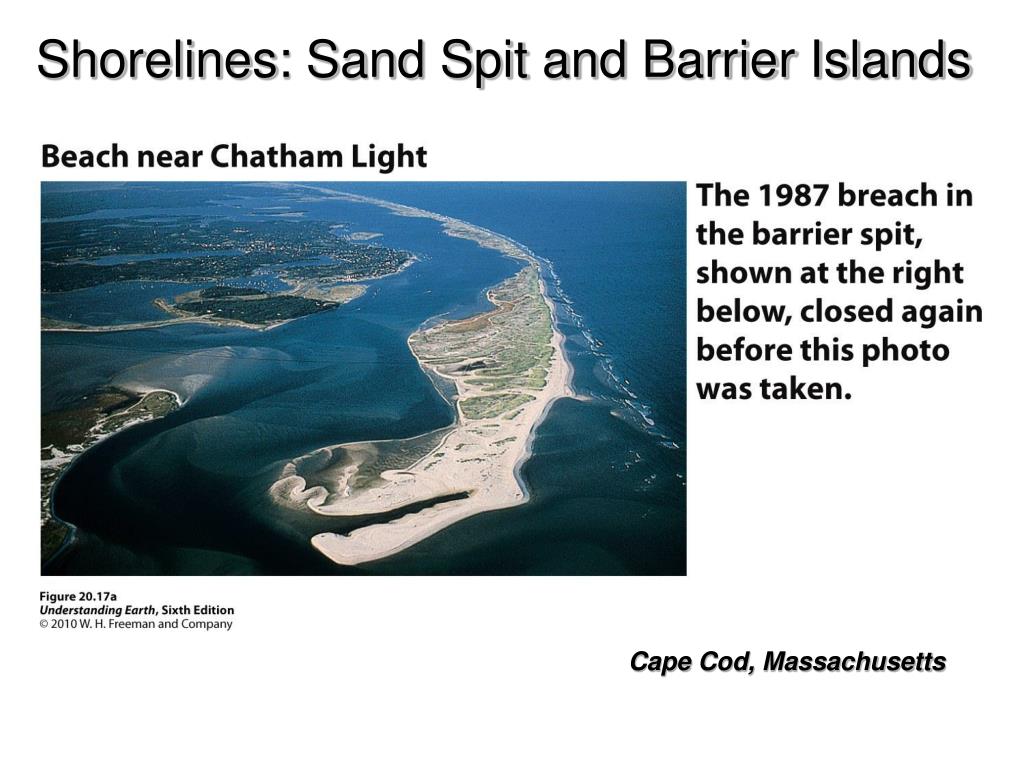

  21. Shorelines: Sand Spit and Barrier Islands Cape Cod, Massachusetts

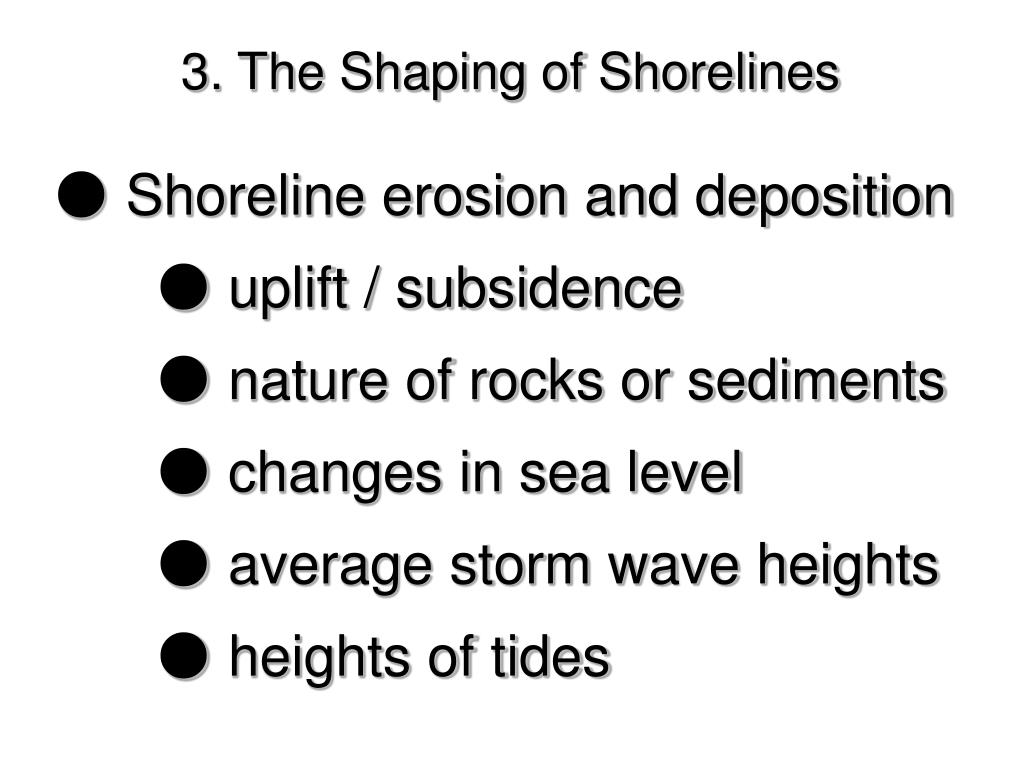

  22. 3. The Shaping of Shorelines ● Shoreline erosion and deposition ● uplift / subsidence ●nature of rocks or sediments ●changes in sea level ● average storm wave heights ● heights of tides

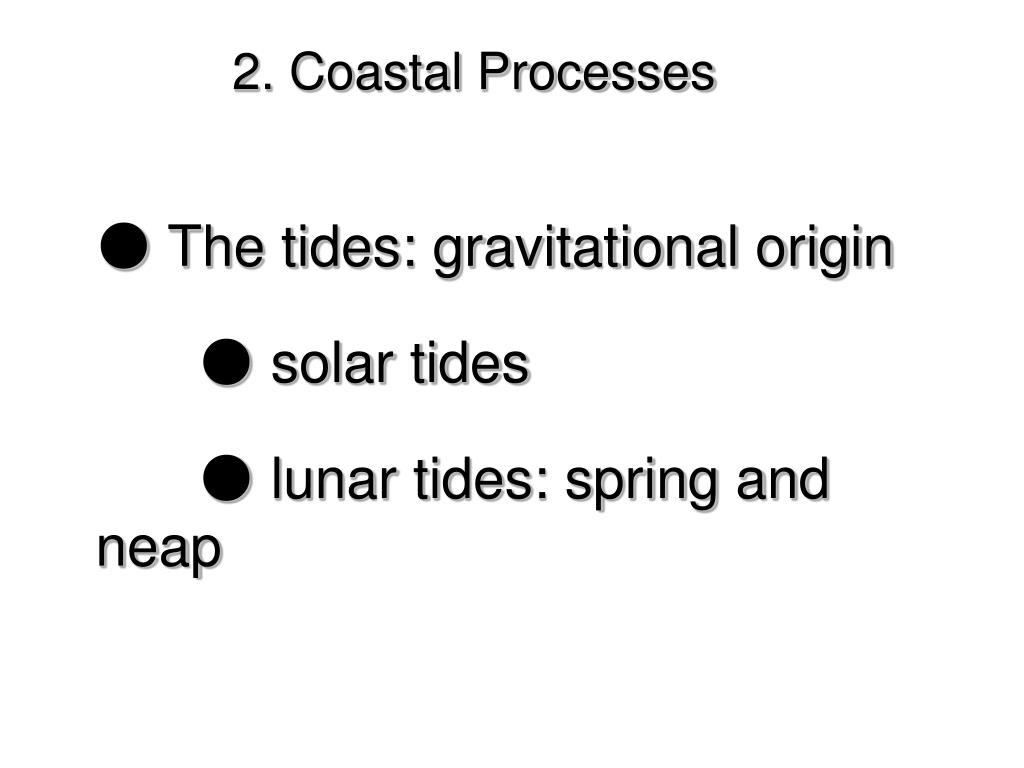

  23. 2. Coastal Processes ● The tides: gravitational origin ● solar tides ●lunar tides: spring and neap

  24. 2. Coastal Processes ● Tidal currents ● flood tidal current ●ebb tidal current

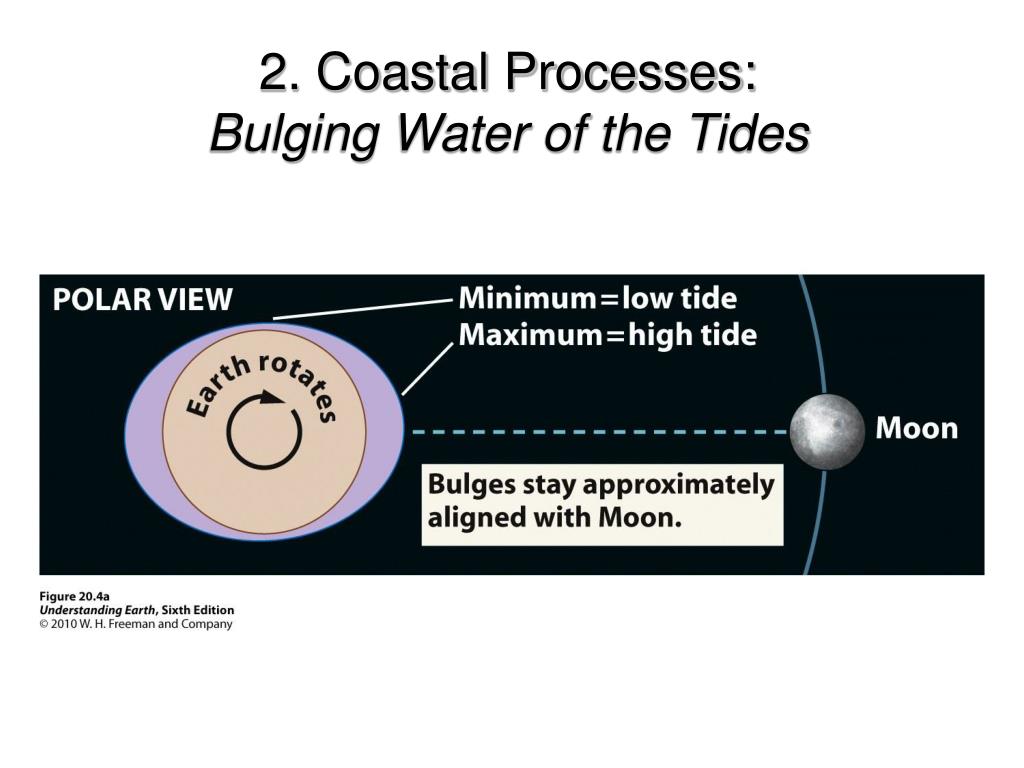

  25. 2. Coastal Processes: Bulging Water of the Tides

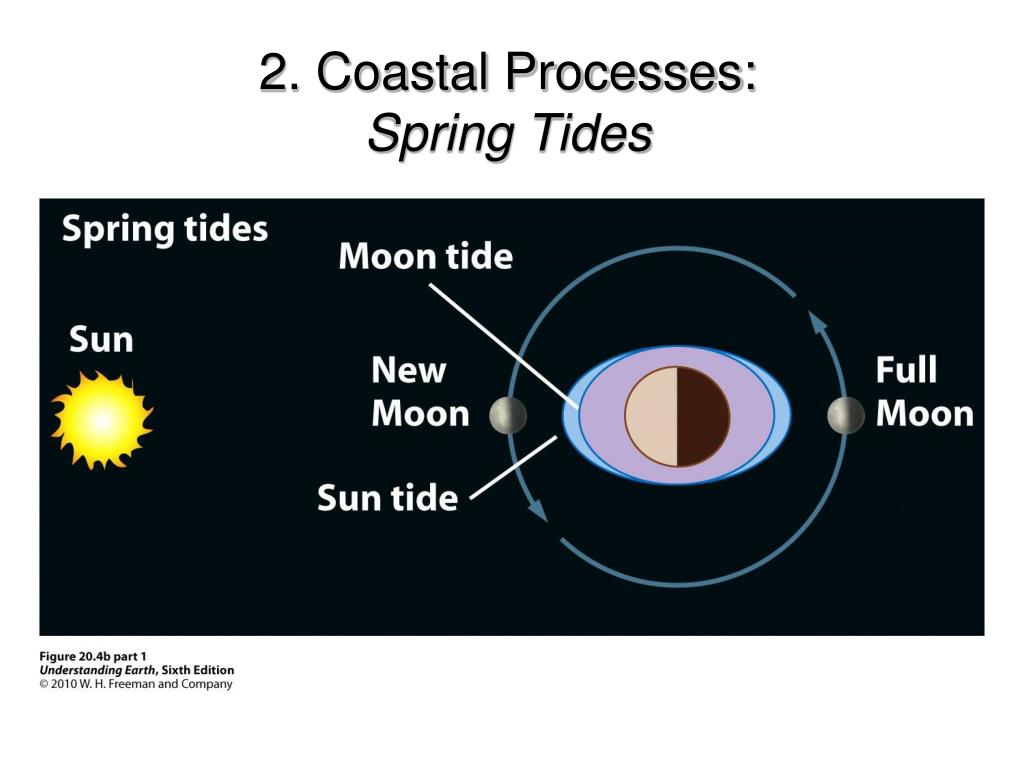

  26. 2. Coastal Processes: Spring Tides

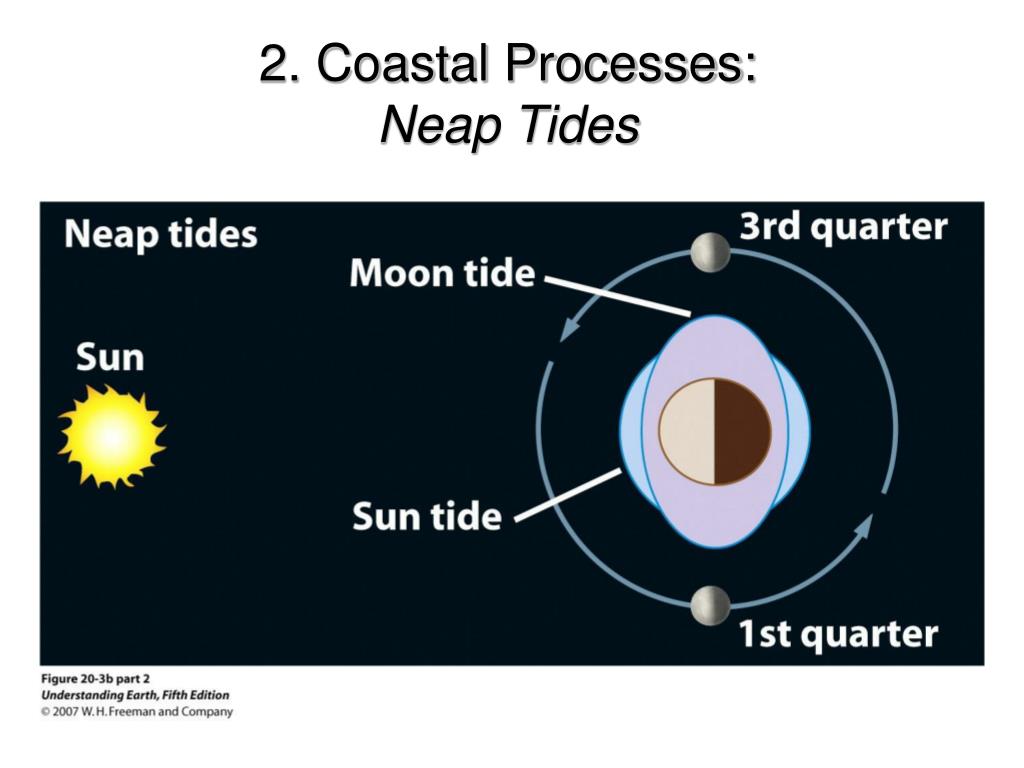

  27. 2. Coastal Processes: Neap Tides

  28. 4. Continental Margins ● Continental shelves ● low sloping offshore area ●economically important ●Continental slope and rise ● canyons and submarine fans ● turbidity flows of sediment

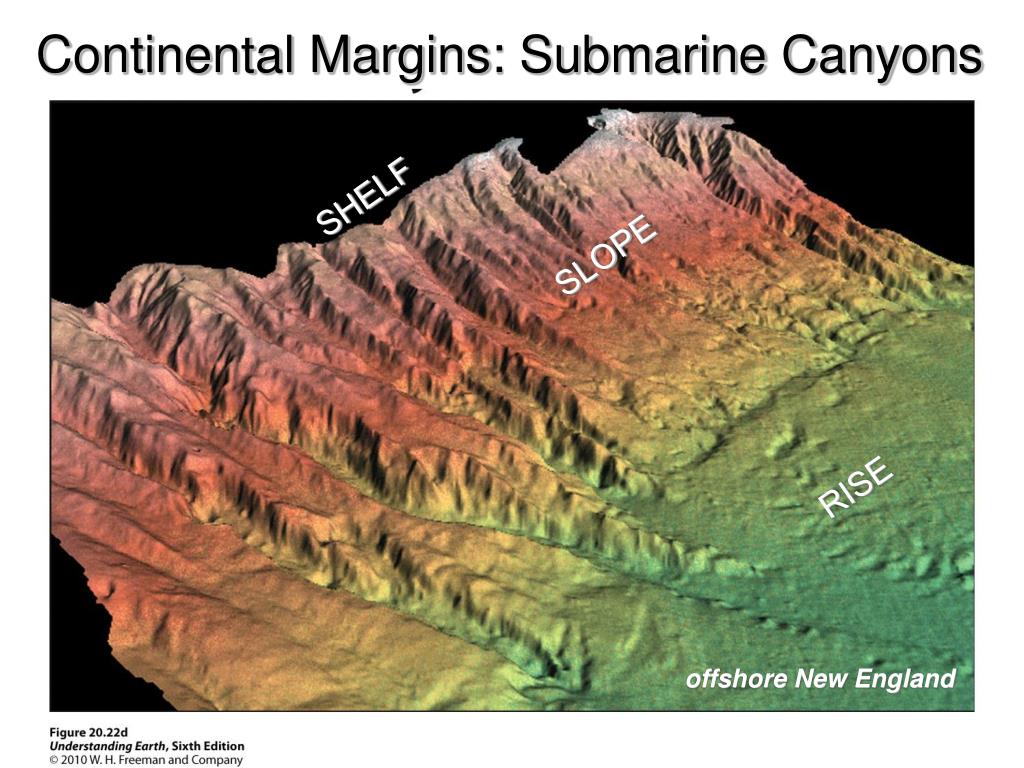

  29. Continental Margins: Submarine Canyons SHELF SLOPE RISE offshore New England

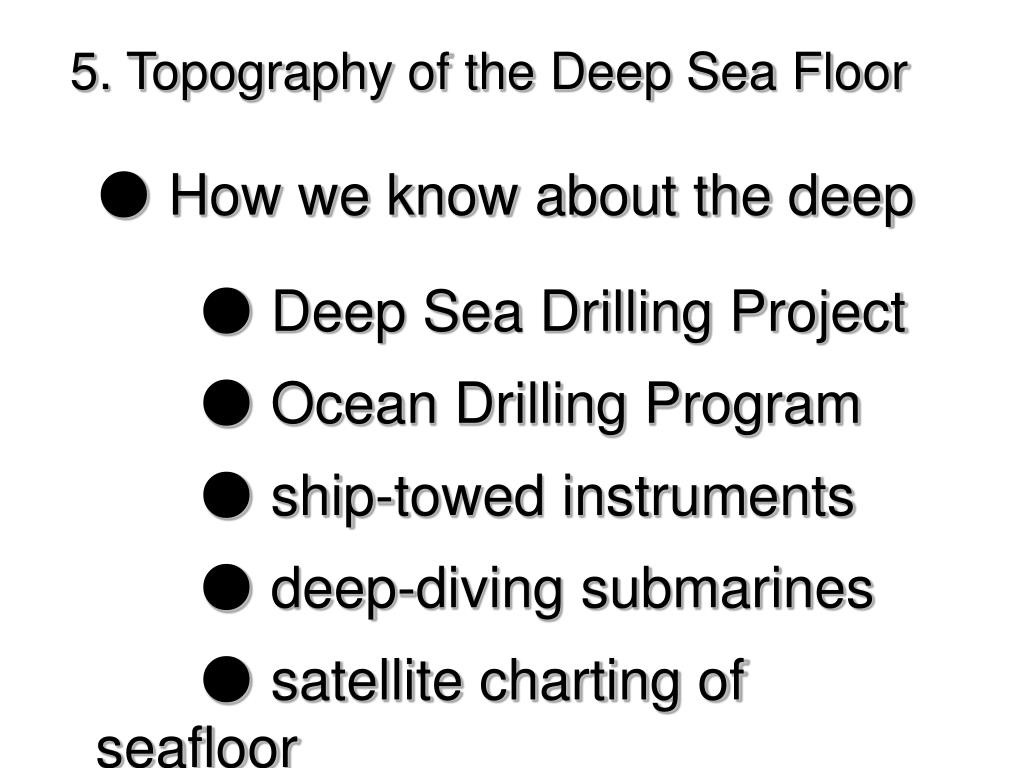

  30. 5. Topography of the Deep Sea Floor ● How we know about the deep ● Deep Sea Drilling Project ●Ocean Drilling Program ●ship-towed instruments ● deep-diving submarines ● satellite charting of seafloor

  31. 5. Topography of the Deep Sea Floor

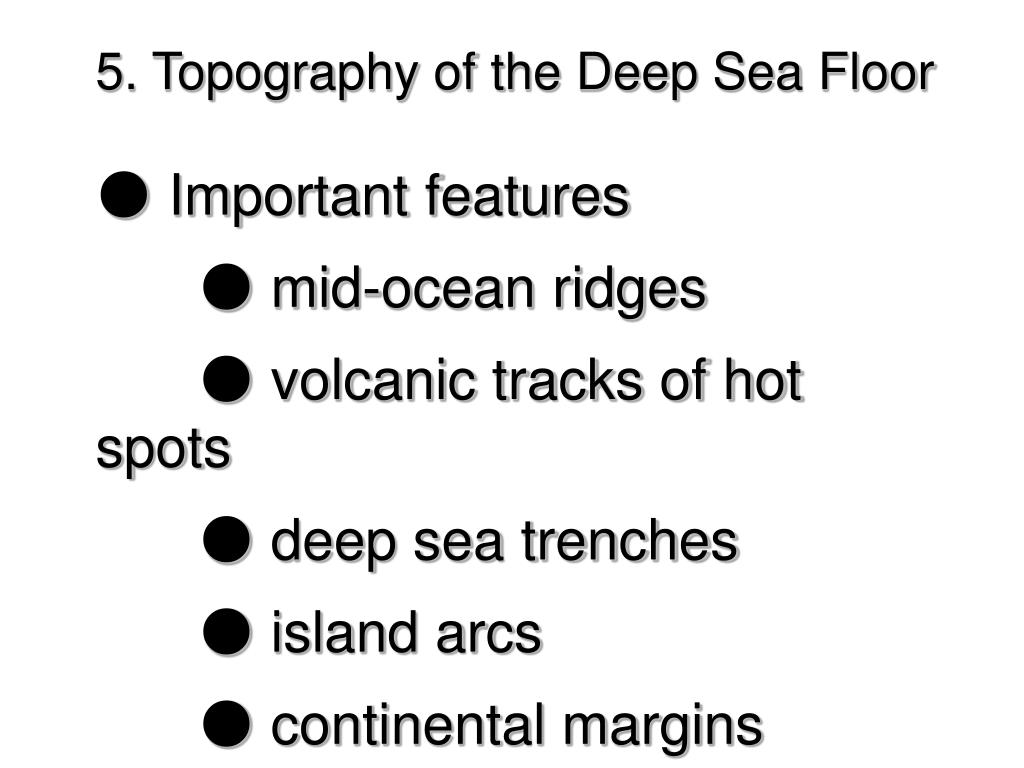

  32. 5. Topography of the Deep Sea Floor ● Important features ● mid-ocean ridges ●volcanic tracks of hot spots ●deep sea trenches ● island arcs ● continental margins

  33. 5. Topography of the Deep Sea Floor

  34. 6. Ocean Sedimentation ● Continental shelf sedimentation ● clastics from land ● biochemical ● Deep-sea sedimentation ● pelagic sediments and foraminiferal oozes ● windblown silt and clay ● siliceous oozes (silica plankton)

  35. Oceanic Sediments: Oceanic Ooze Made of Planktonic Organisms

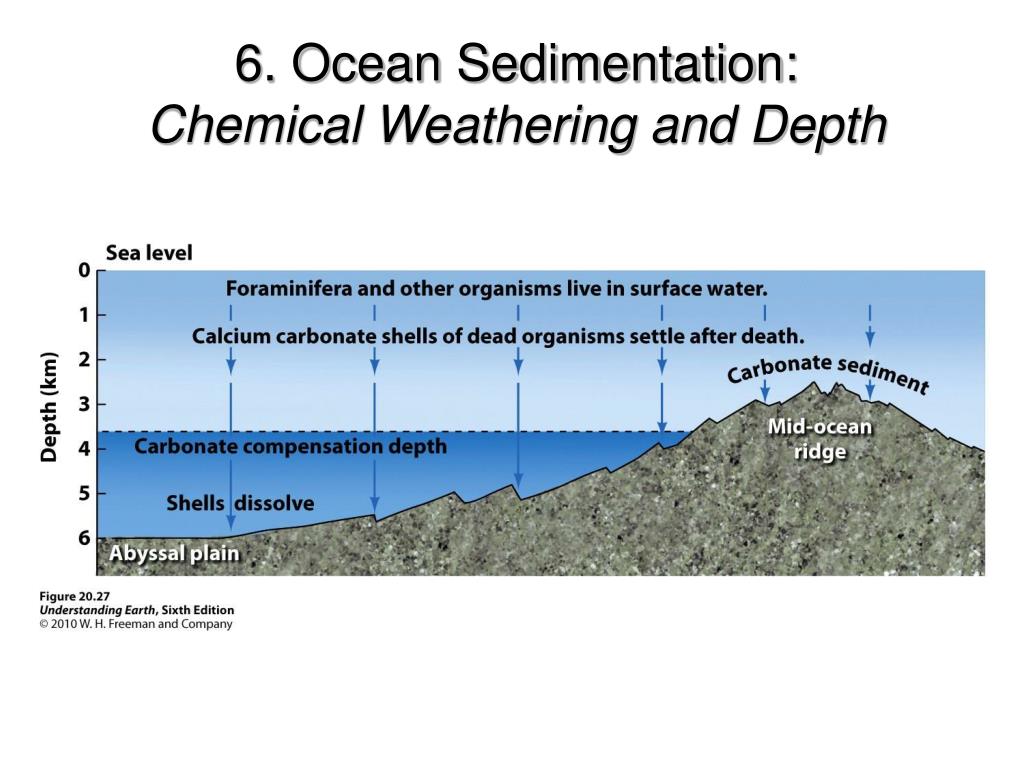

  36. 6. Ocean Sedimentation: Chemical Weathering and Depth

  37. Chapter 21 Glaciers: The Work of Ice

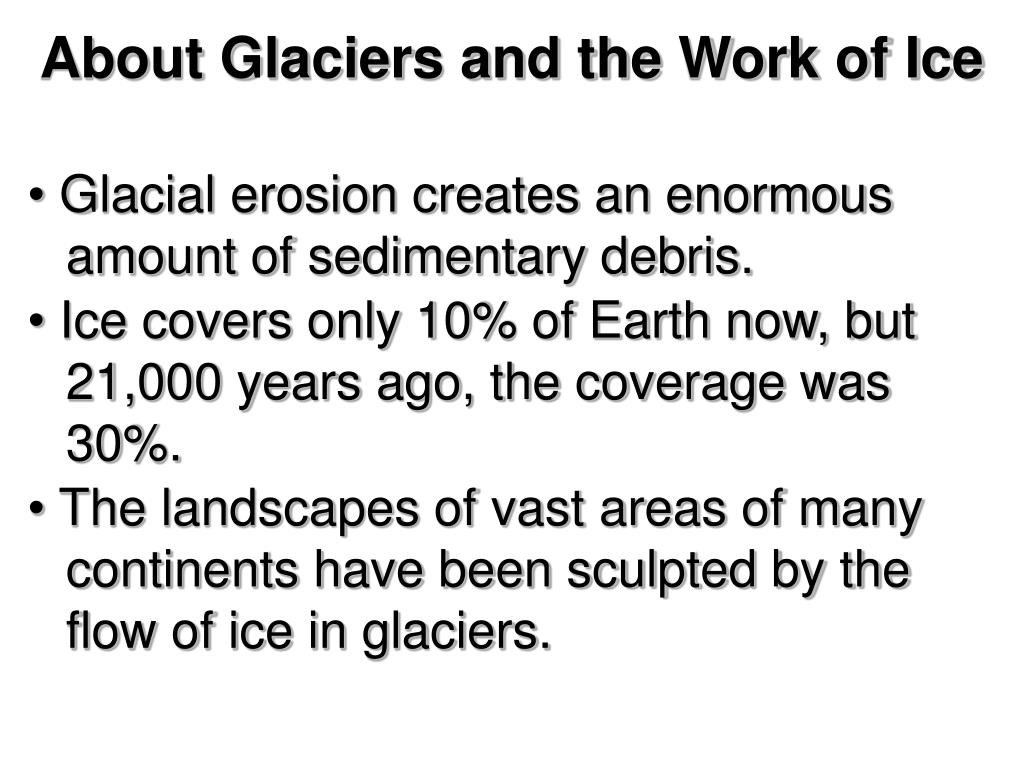

  38. About Glaciers and the Work of Ice • Glacial erosion creates an enormous amount of sedimentary debris. • Ice covers only 10% of Earth now, but 21,000 years ago, the coverage was 30%. • The landscapes of vast areas of many continents have been sculpted by the flow of ice in glaciers.

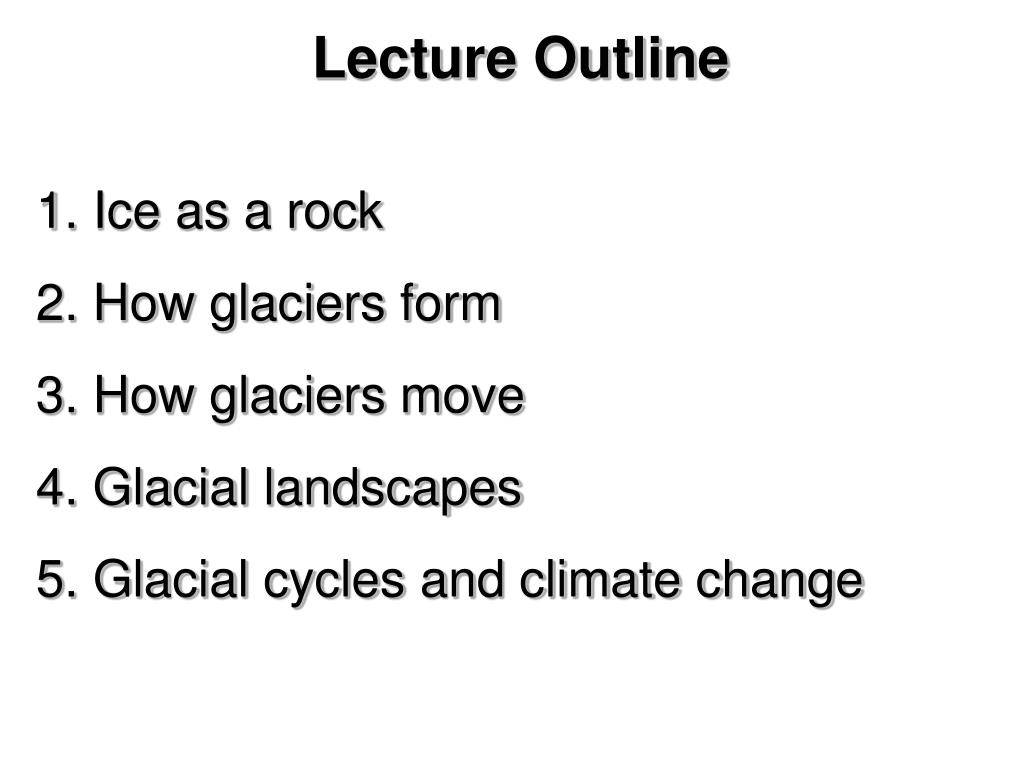

  39. Lecture Outline • Ice as a rock • 2. How glaciers form • 3. How glaciers move • 4. Glacial landscapes • 5. Glacial cycles and climate change

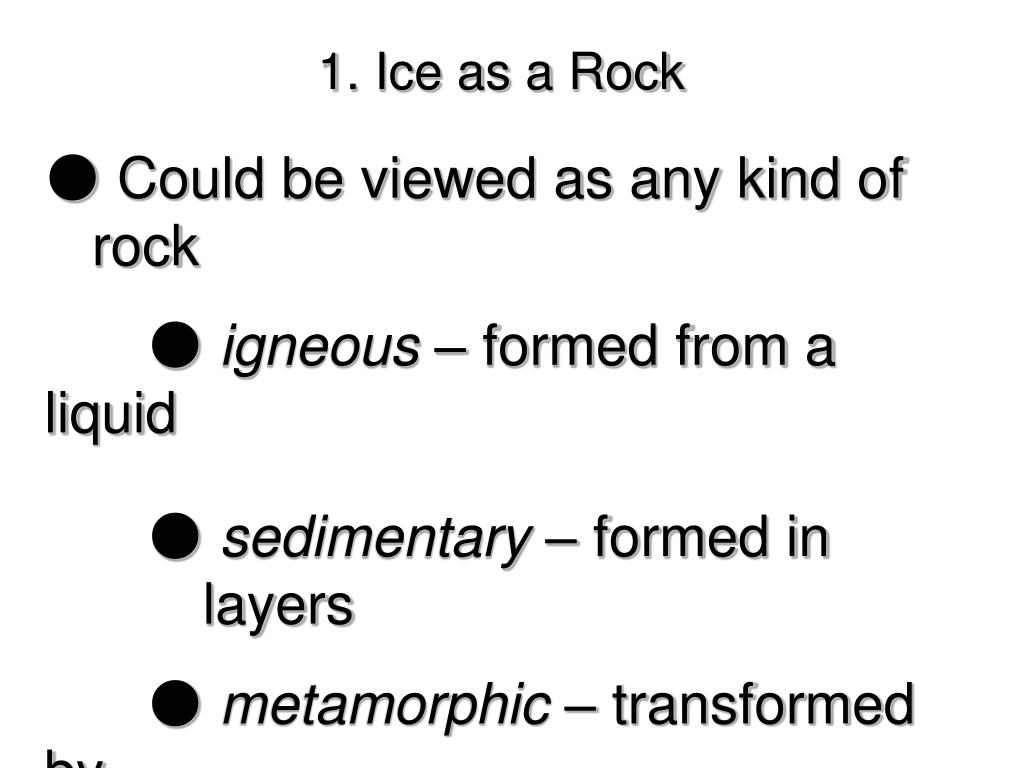

  40. 1. Ice as a Rock ● Could be viewed as any kind of rock ● igneous – formed from a liquid ● sedimentary – formed in layers ● metamorphic – transformed by pressure and recrystallization

  41. Ice as a Rock: Ice Under Microscope

  42. 1. Ice as a Rock ● Formation of glacial ice ● falls as snow and ice ● recrystallizes over time to ice ● with pressure of overlying ice, ice under pressure starts to flow like a very viscous fluid

  43. 1. Ice as a Rock ● Peculiar properties of the rock ice ● freezes at very low temperature compared to other rocks ● ice is less dense than the liquid it comes from (water)

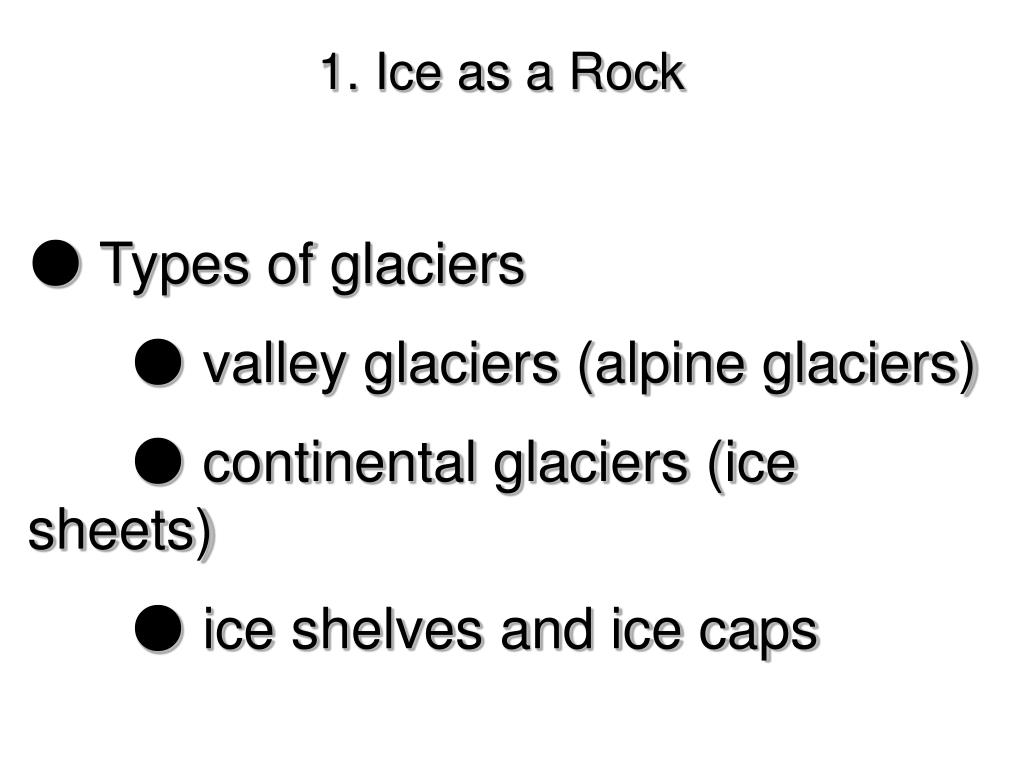

  44. 1. Ice as a Rock ● Types of glaciers ● valley glaciers (alpine glaciers) ● continental glaciers (ice sheets) ● ice shelves and ice caps

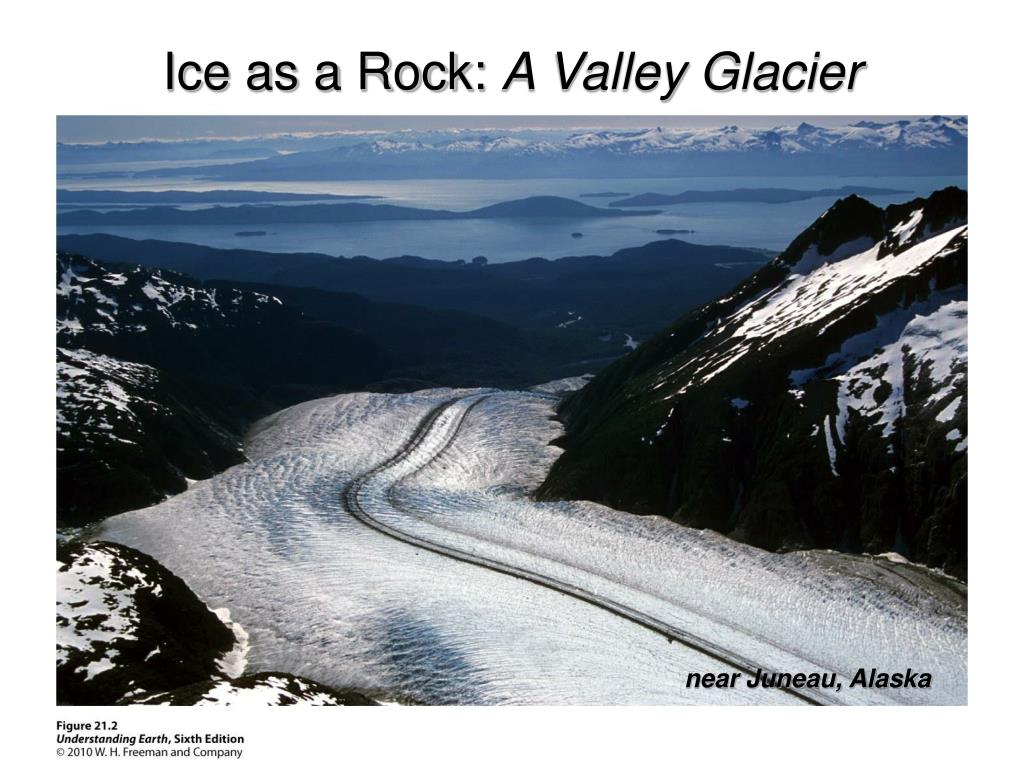

  45. Ice as a Rock: A Valley Glacier near Juneau, Alaska

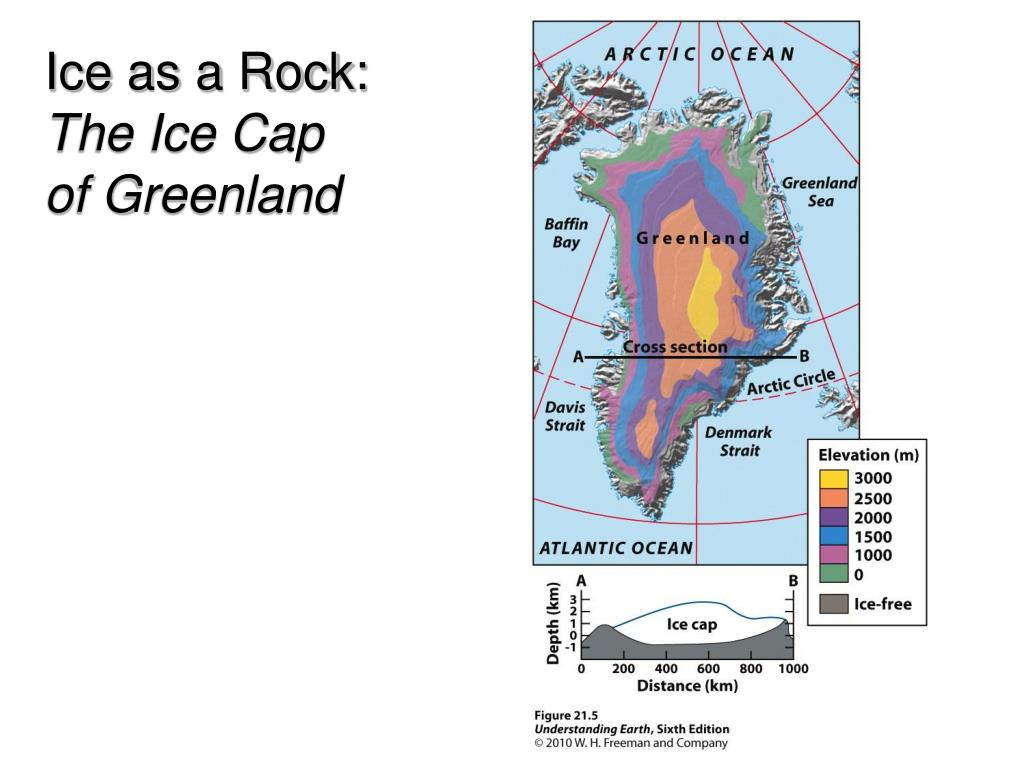

  46. Ice as a Rock: The Ice Cap of Greenland

  47. 2. How Glaciers Form ● Basic ingredients: cold and snow ● accumulation and ablation ● Glacial movement (glacial budget) ● advance or recession

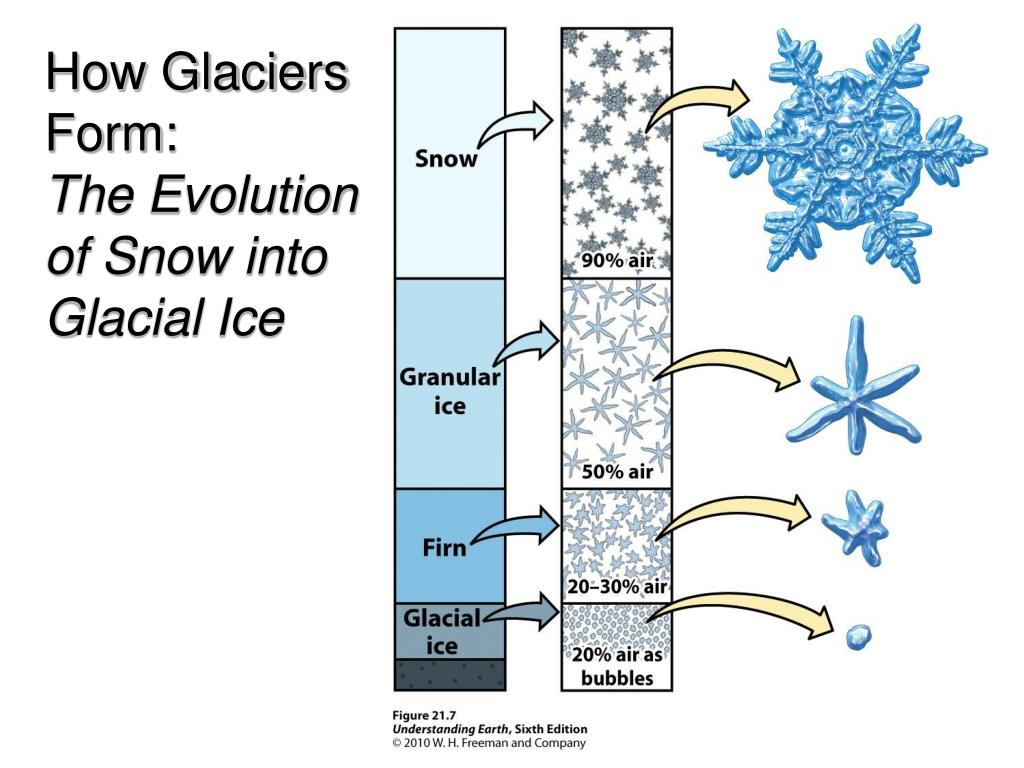

  48. How Glaciers Form: The Evolution of Snow into Glacial Ice
