SAFE AND SOUND

SAFE AND SOUND

INTRODUCTION Elements of Security Auditing Applications to Customers Network

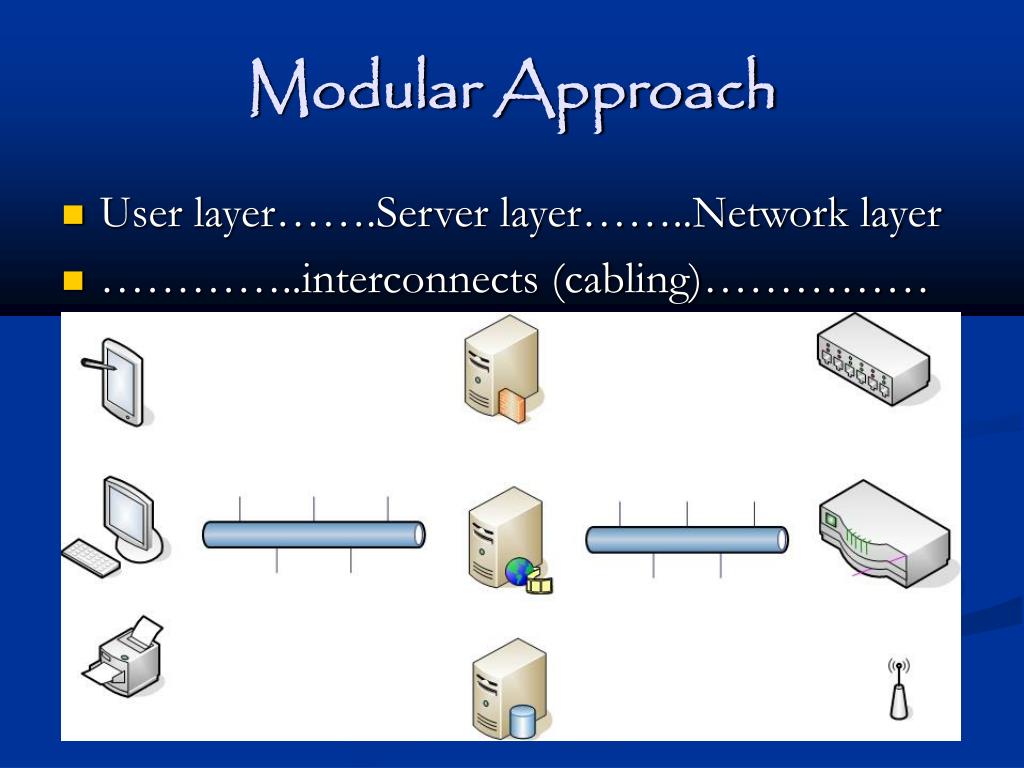

Modular Approach User layer…….Server layer……..Network layer …………..interconnects (cabling)……………

User Layer Thin-clients, or physically-secure workstations Login + passworded access Access only to relevant services, applications Run background malware prevention software

Server Layer Remove unnecessary services User groups to match physical topology Don’t run services as root / admin Run OS as read-only

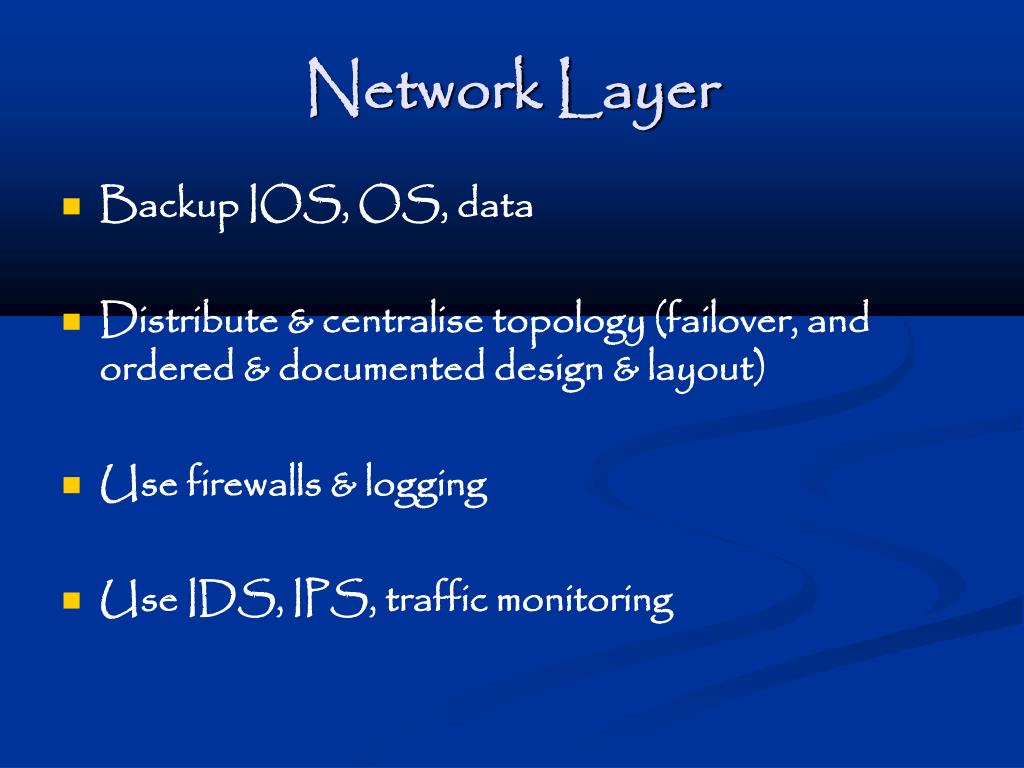

Network Layer Backup IOS, OS, data Distribute & centralise topology (failover, and ordered & documented design & layout) Use firewalls & logging Use IDS, IPS, traffic monitoring

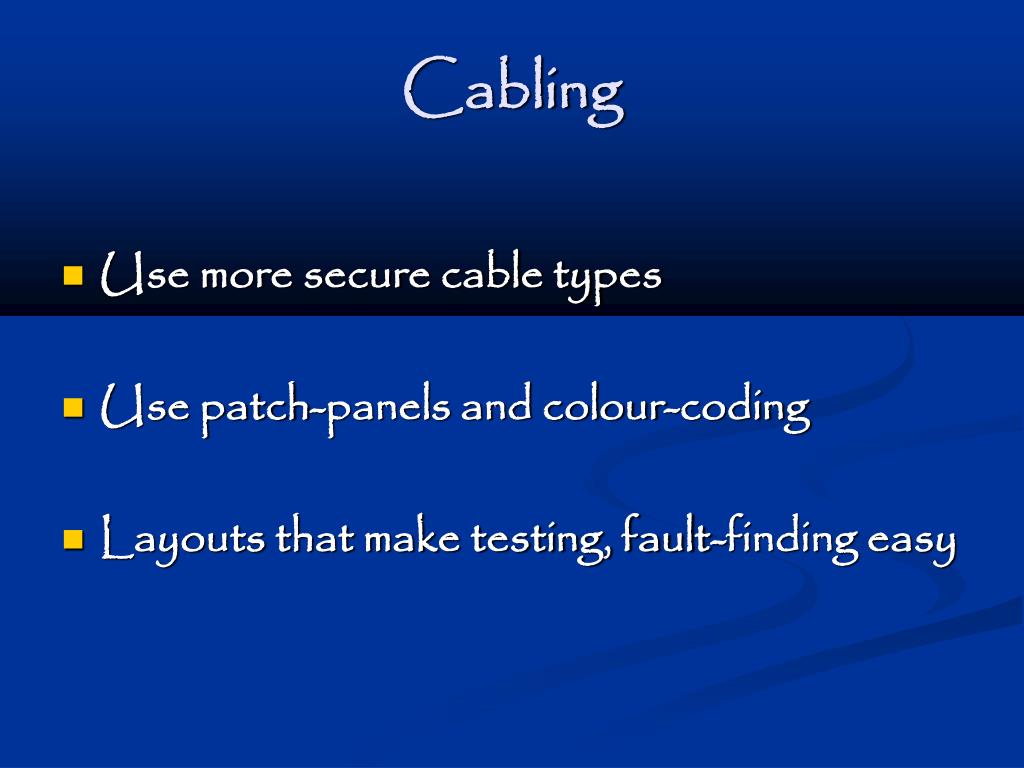

Cabling Use more secure cable types Use patch-panels and colour-coding Layouts that make testing, fault-finding easy

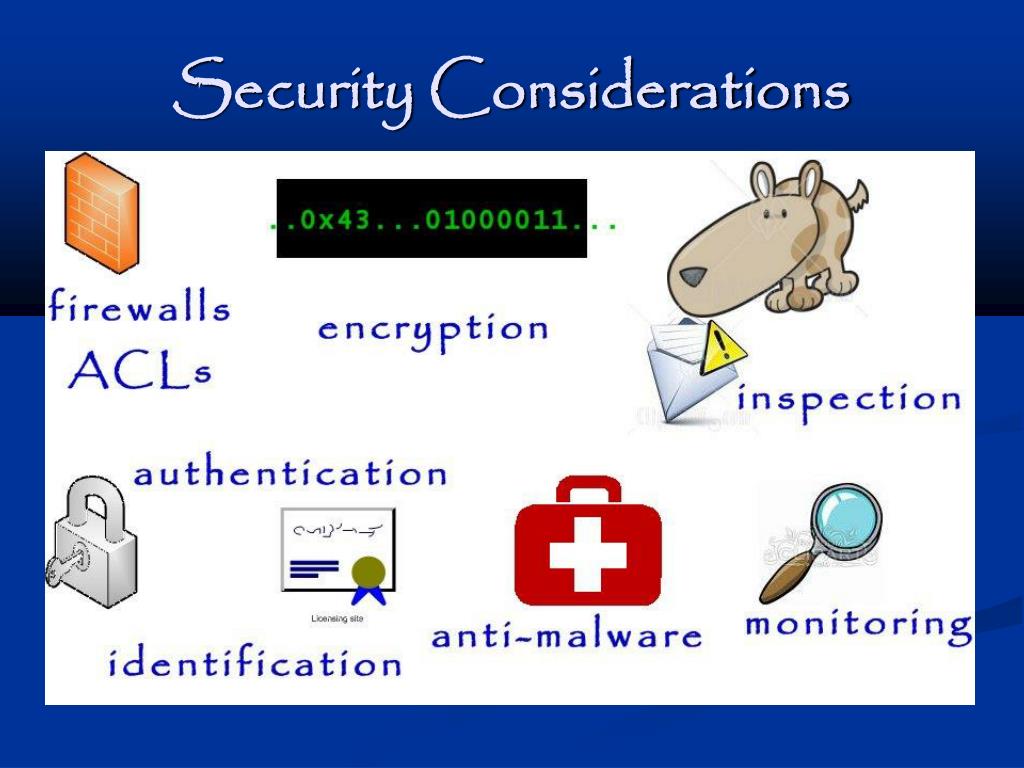

Security Considerations

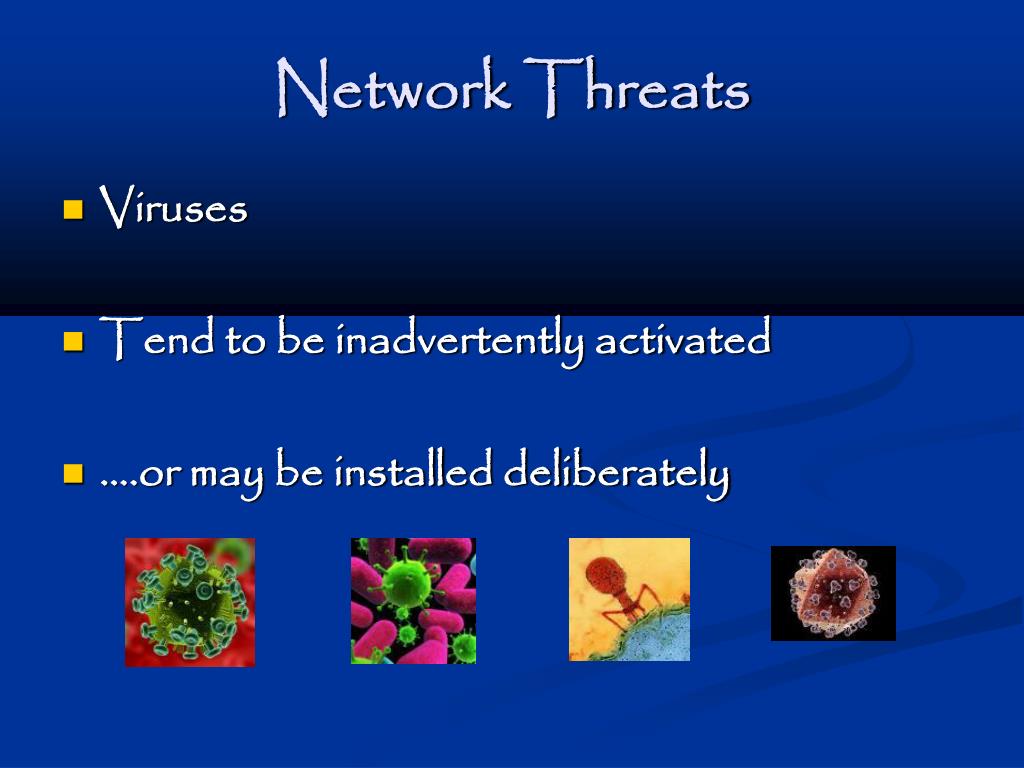

Network Threats Viruses Tend to be inadvertently activated ….or may be installed deliberately

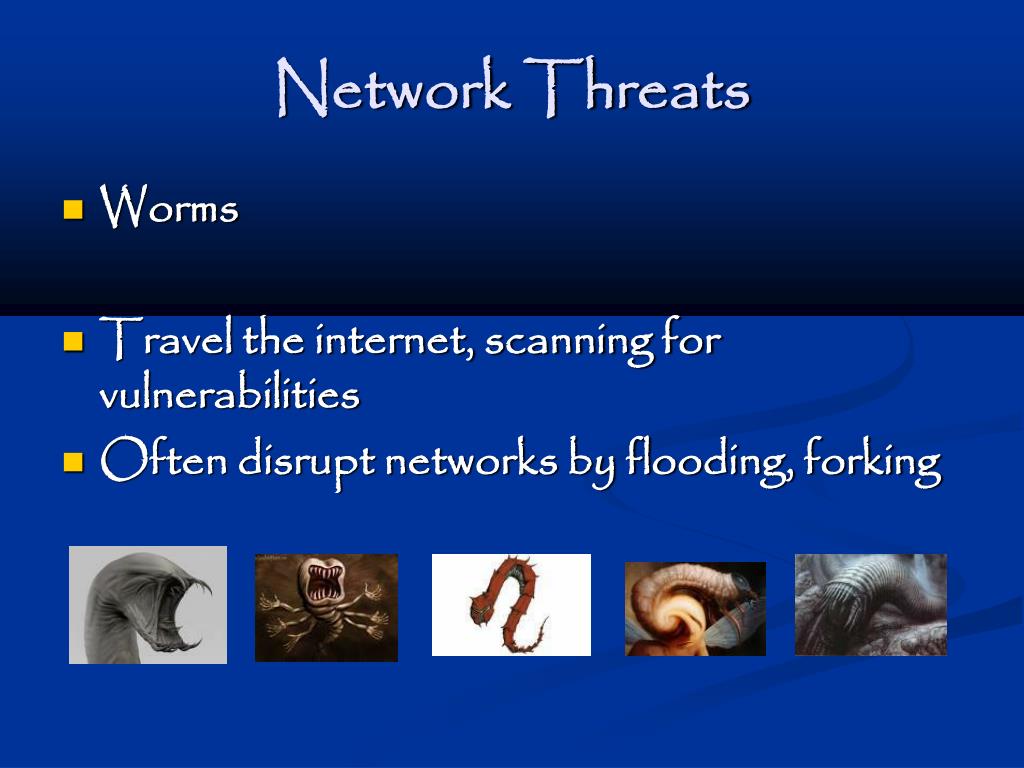

Network Threats Worms Travel the internet, scanning for vulnerabilities Often disrupt networks by flooding, forking

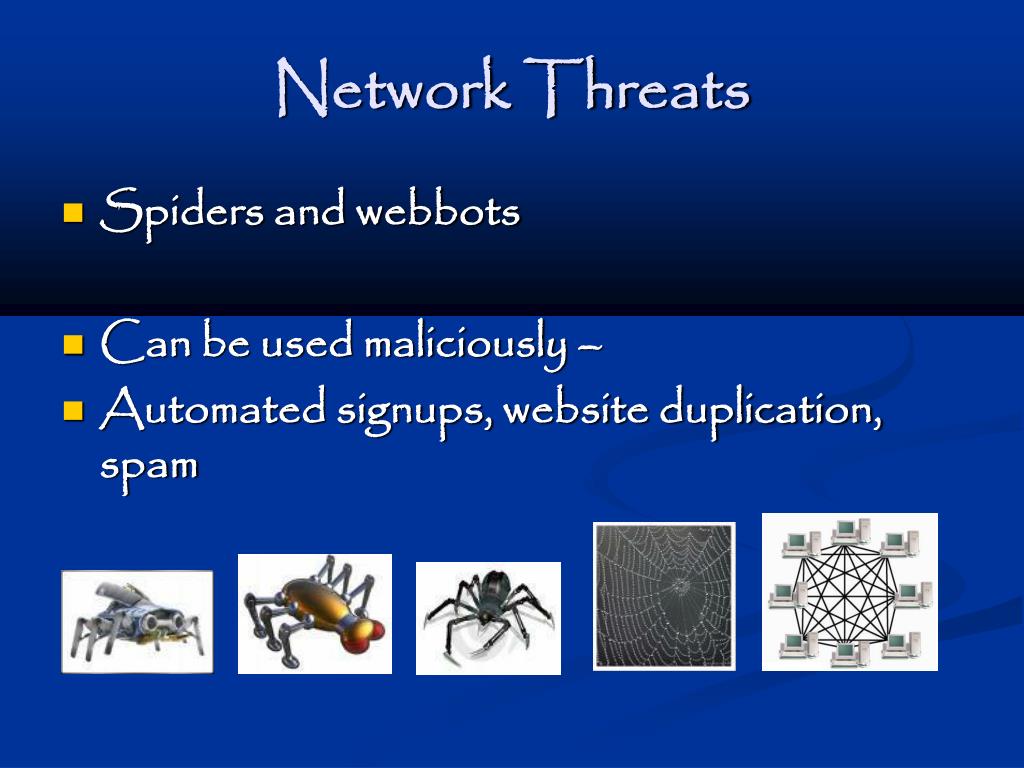

Network Threats Spiders and webbots Can be used maliciously – Automated signups, website duplication, spam

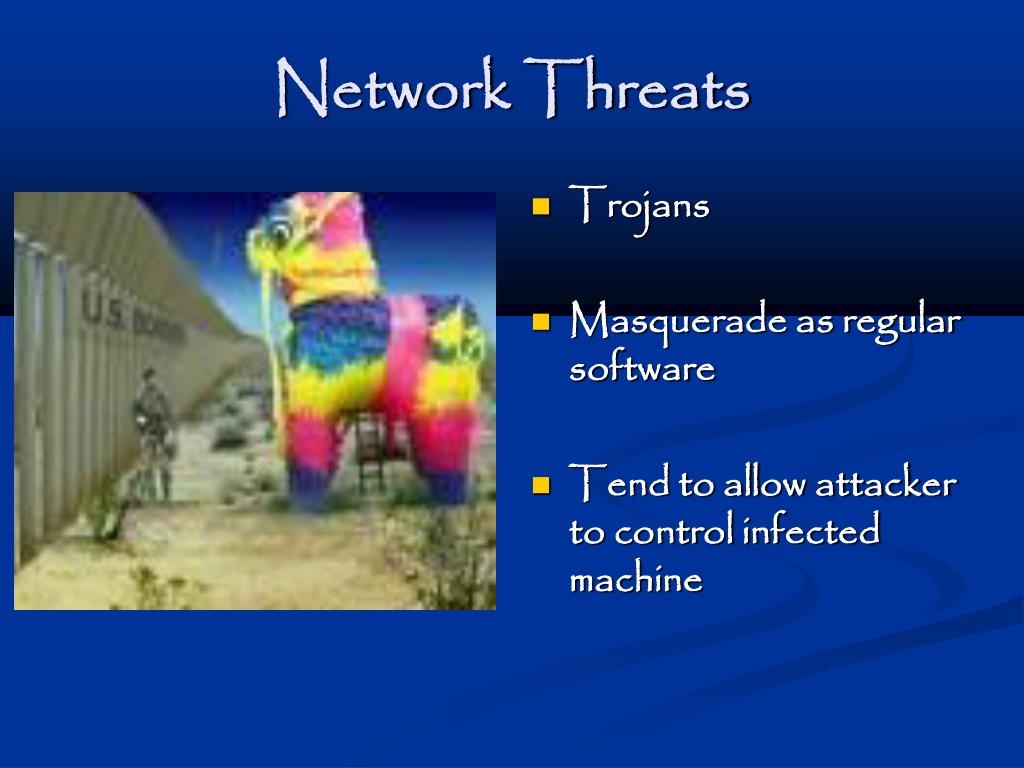

Network Threats • Trojans • Masquerade as regular software • Tend to allow attacker to control infected machine

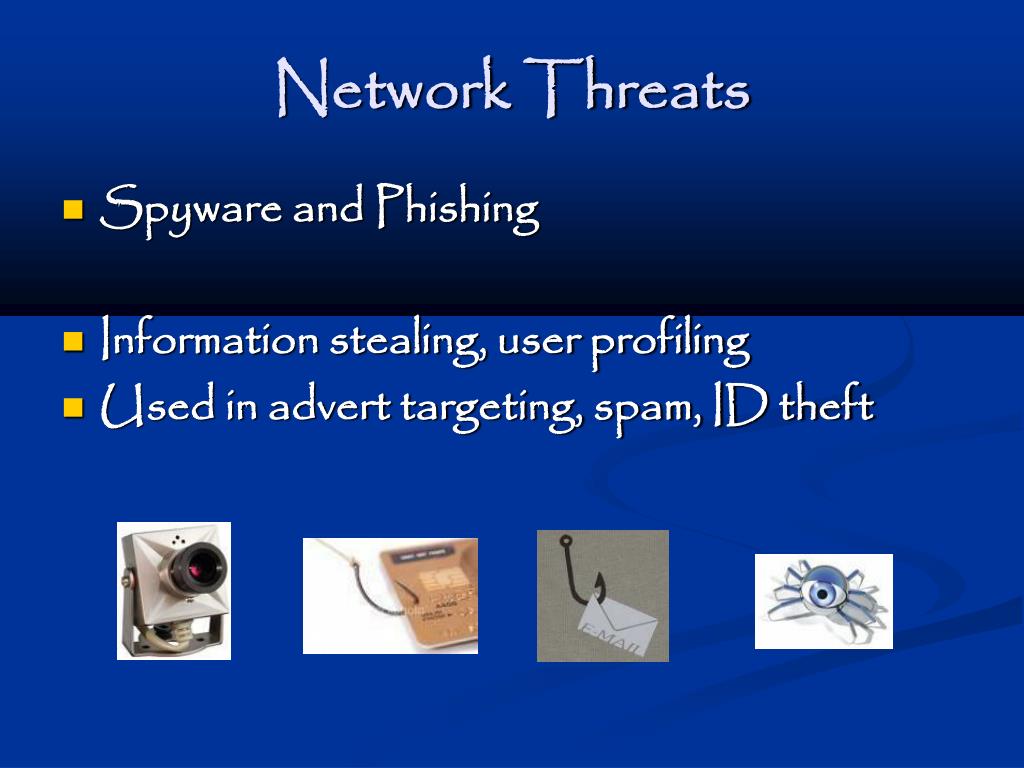

Network Threats Spyware and Phishing Information stealing, user profiling Used in advert targeting, spam, ID theft

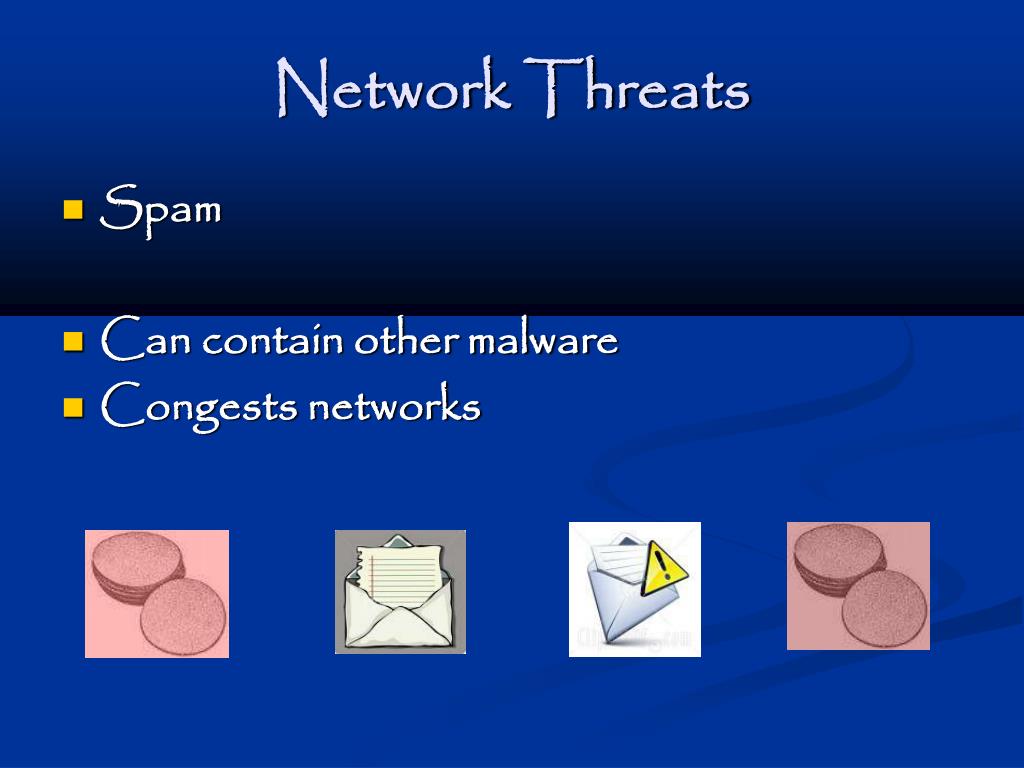

Network Threats Spam Can contain other malware Congests networks

Network Threats Delete traces of intrusions Alter logs Forensics get-around Bombs

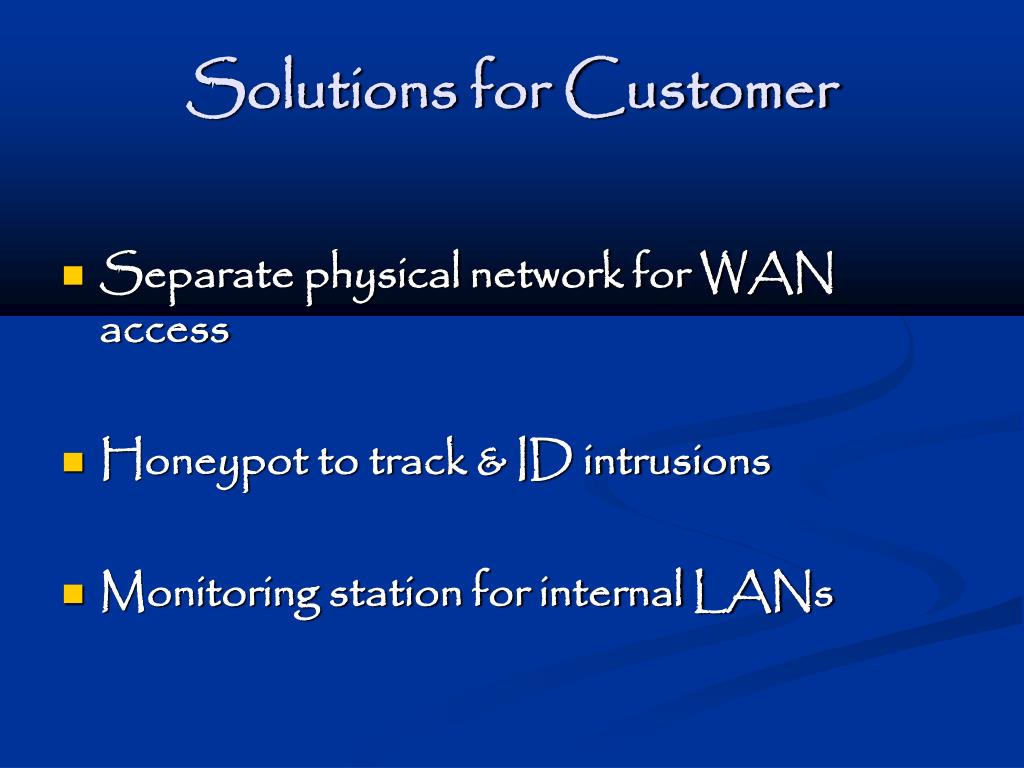

Solutions for Customer Separate physical network for WAN access Honeypot to track & ID intrusions Monitoring station for internal LANs

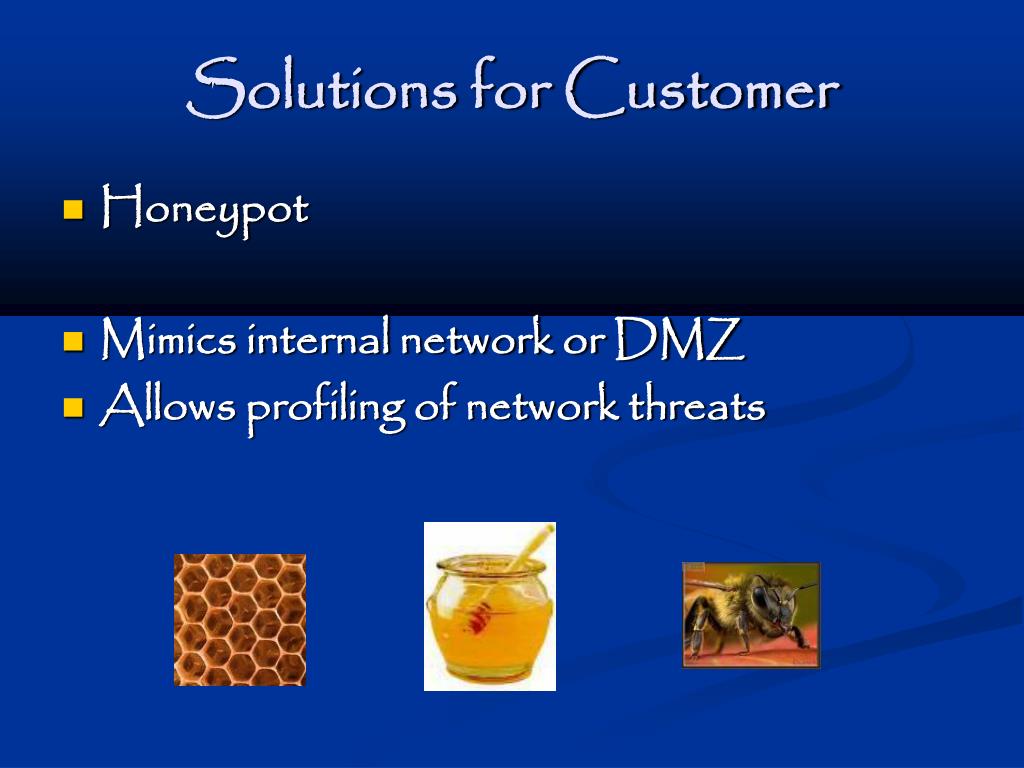

Solutions for Customer Honeypot Mimics internal network or DMZ Allows profiling of network threats

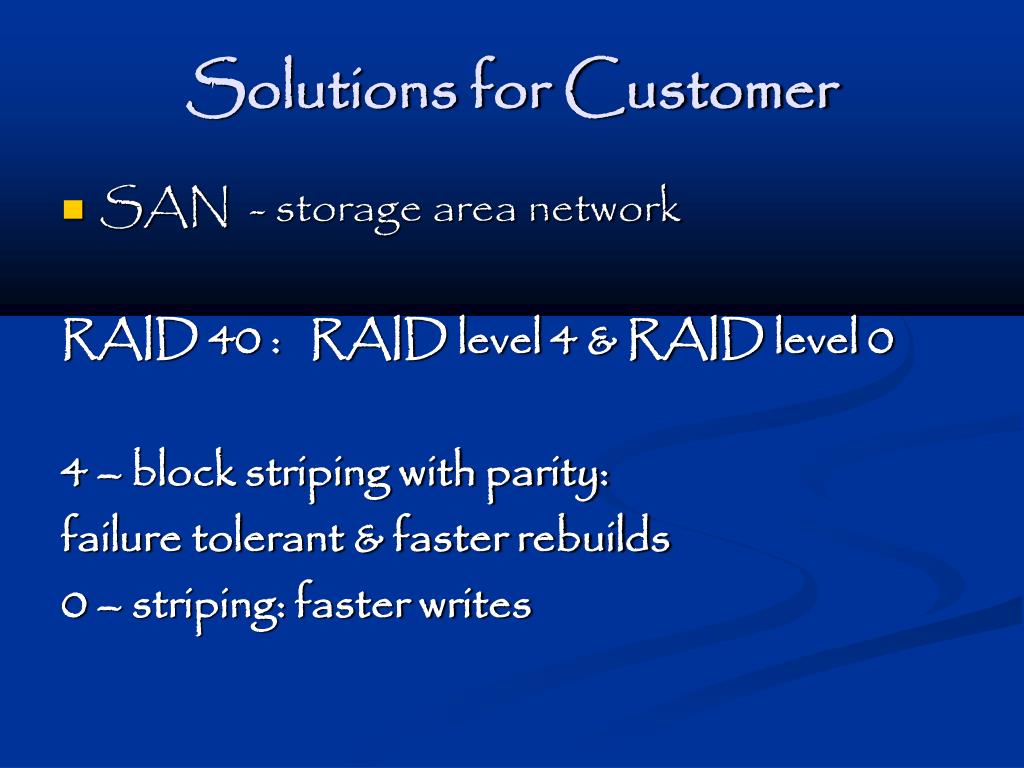

Solutions for Customer SAN - storage area network RAID 40 : RAID level 4 & RAID level 0 4 – block striping with parity: failure tolerant & faster rebuilds 0 – striping: faster writes

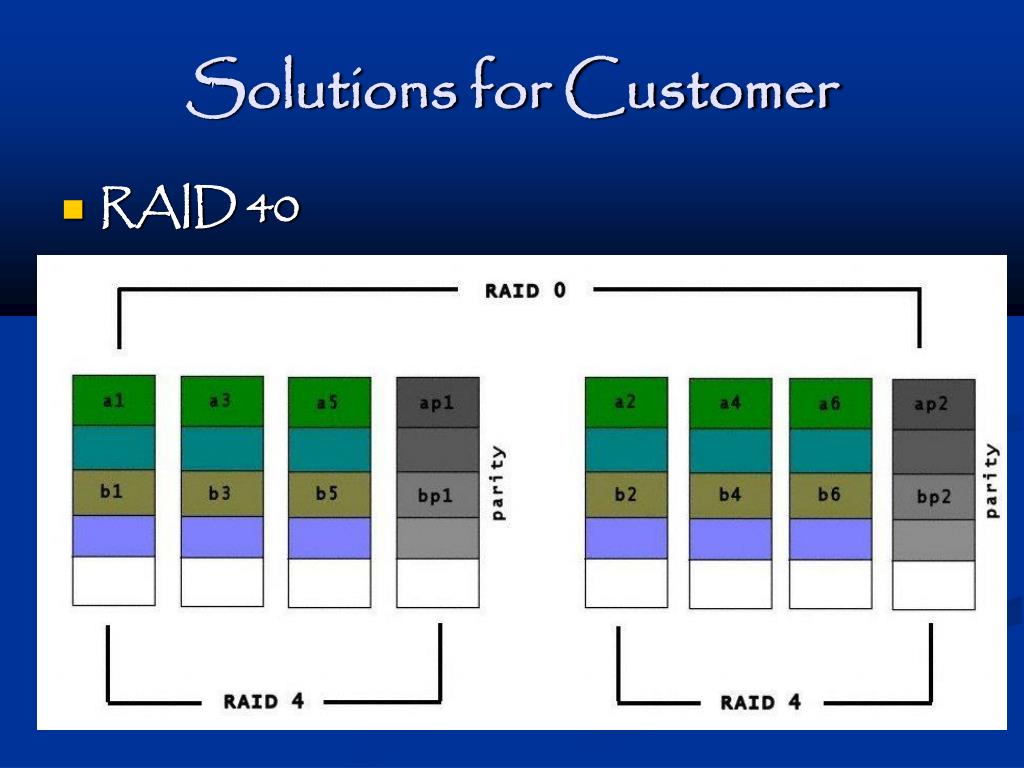

Solutions for Customer RAID 40

Tenable’s Security Center Each node is a router, hosts behind router

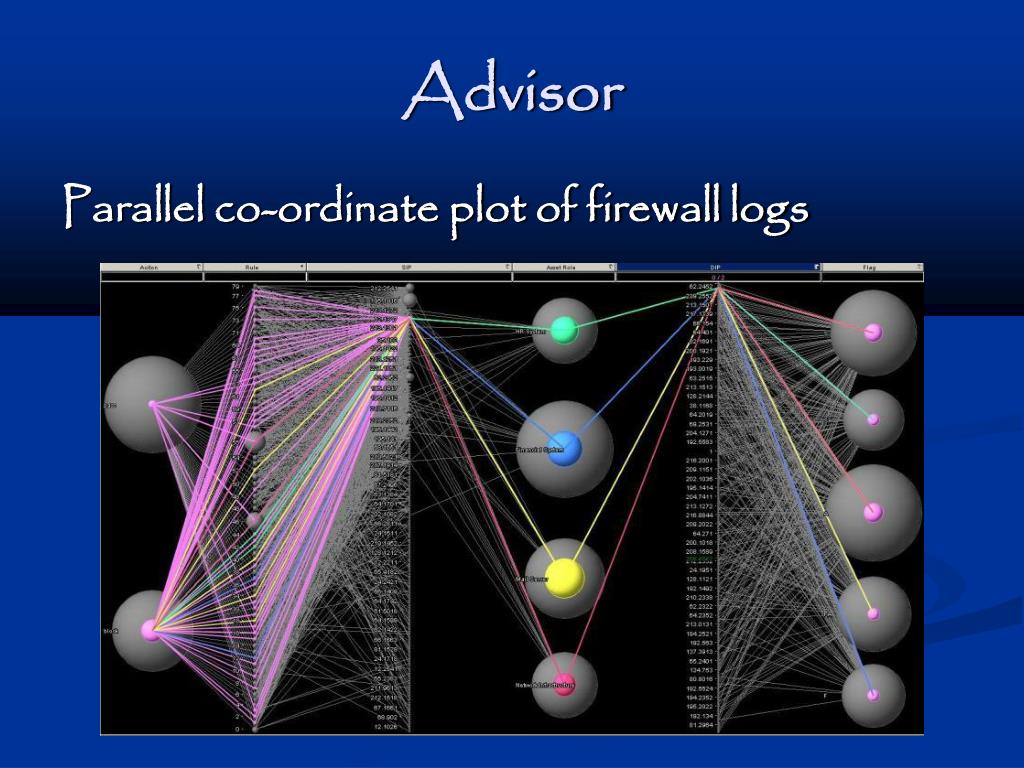

Advisor Parallel co-ordinate plot of firewall logs

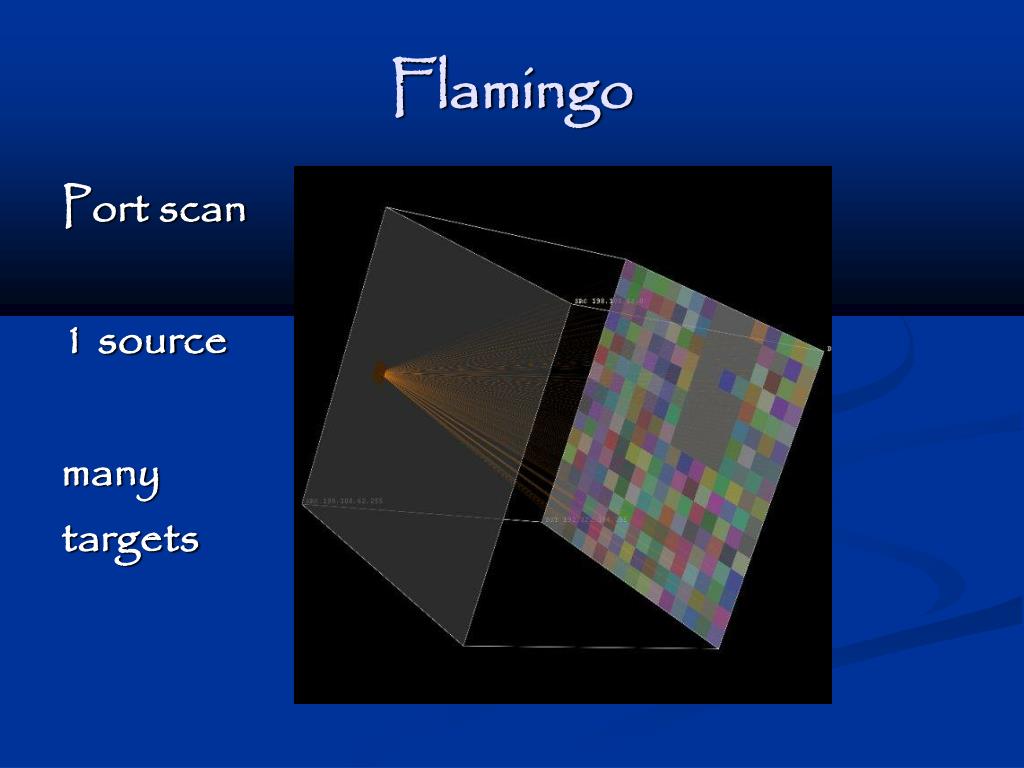

Flamingo Port scan 1 source many targets

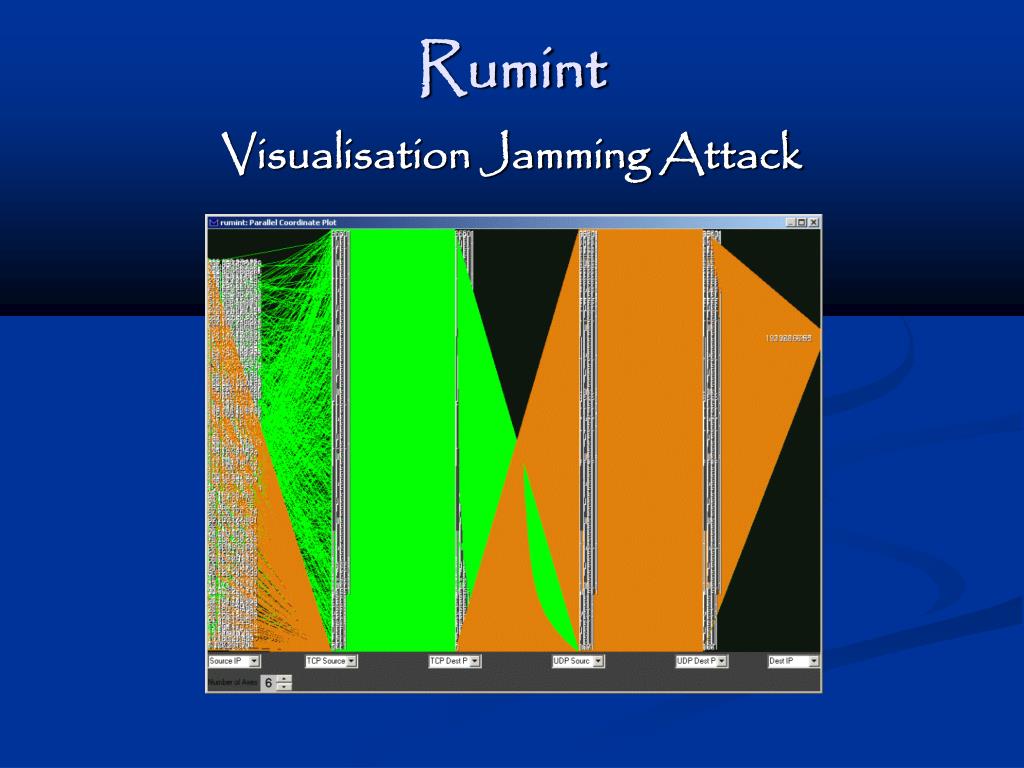

Rumint Visualisation Jamming Attack

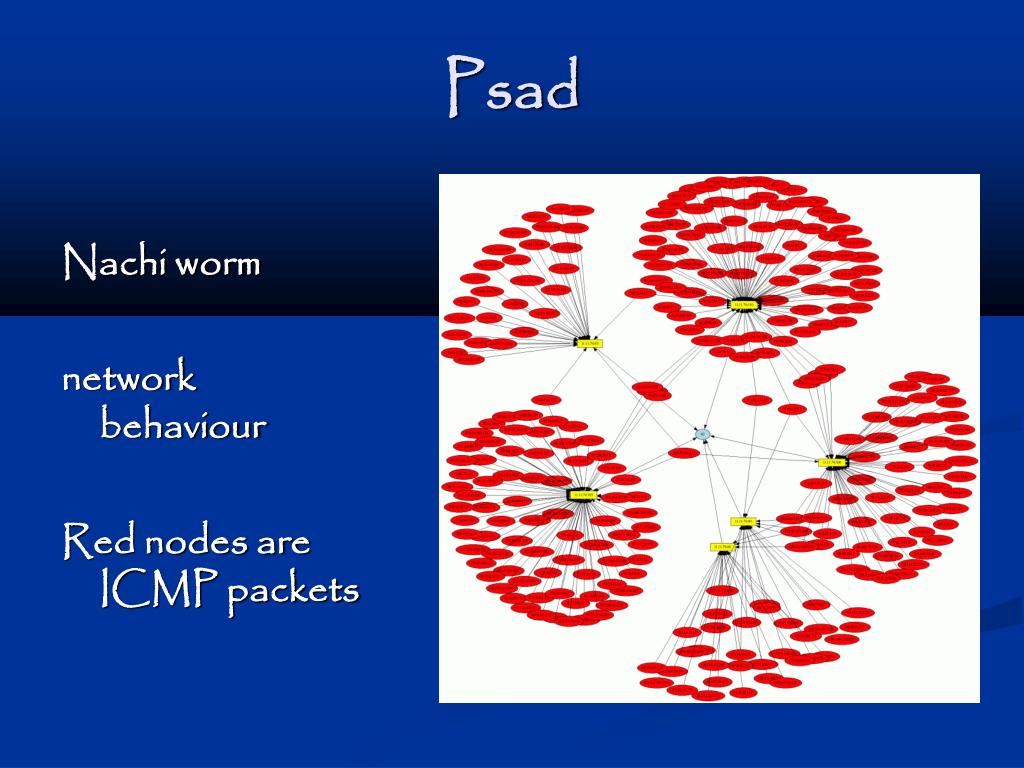

Psad Nachi worm network behaviour Red nodes are ICMP packets

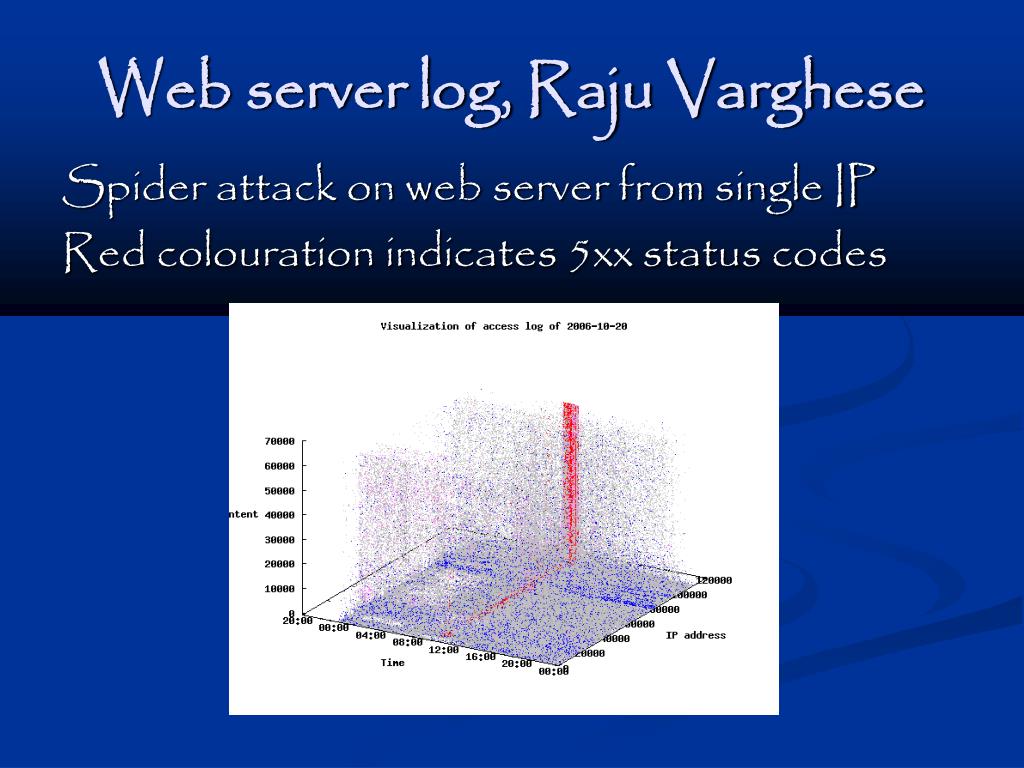

Web server log, Raju Varghese Spider attack on web server from single IP Red colouration indicates 5xx status codes

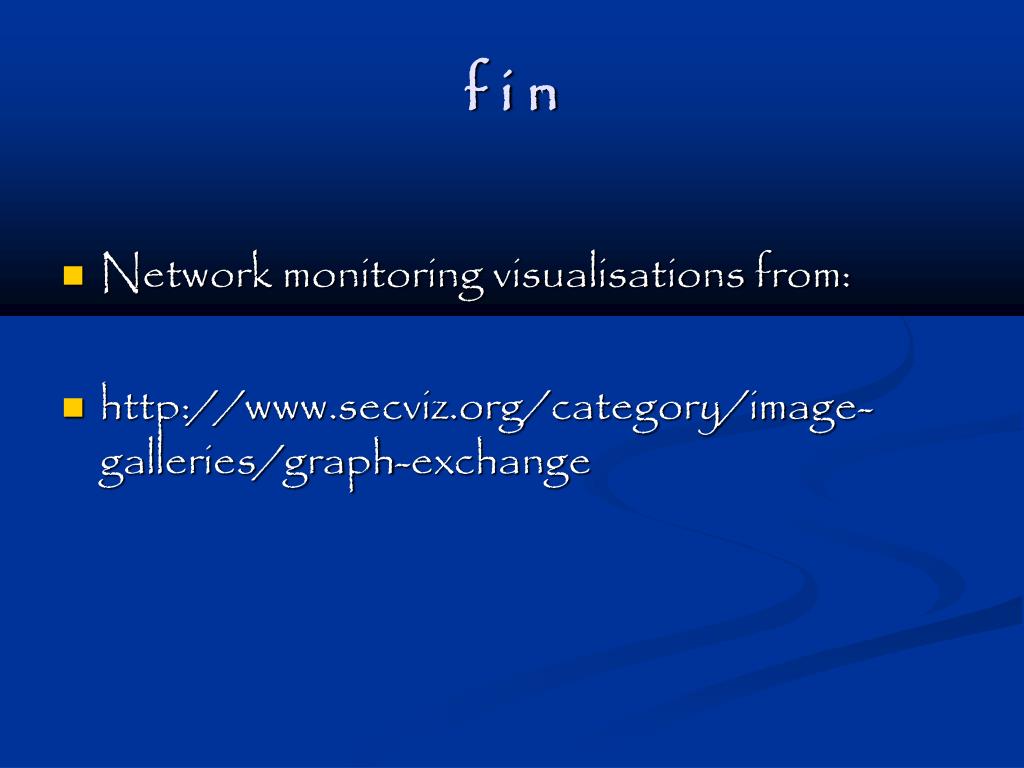

f i n Network monitoring visualisations from: http://www.secviz.org/category/image-galleries/graph-exchange
