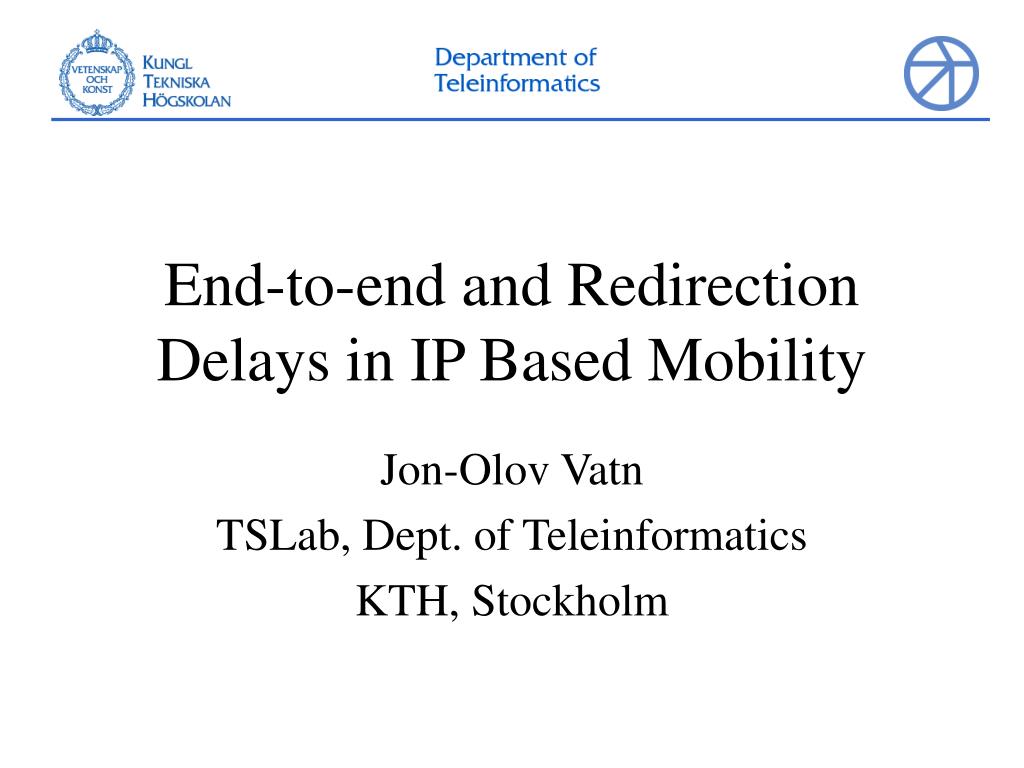

  1. End-to-end and Redirection Delays in IP Based Mobility Jon-Olov Vatn TSLab, Dept. of Teleinformatics KTH, Stockholm

  2. Outline of talk • Introduction to IP based mobility • Aim and scope of this study • Evaluation of IP mobility support schemes • Summary • Future work "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  3. Introduction to IP Mobility Inter-operability handled by IP: • Internetworking rather than interworking. • Easy introduction of new link layers. Internet Protocol (IP) GSM DECT UMTS 802.11 HyperLAN/2 "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

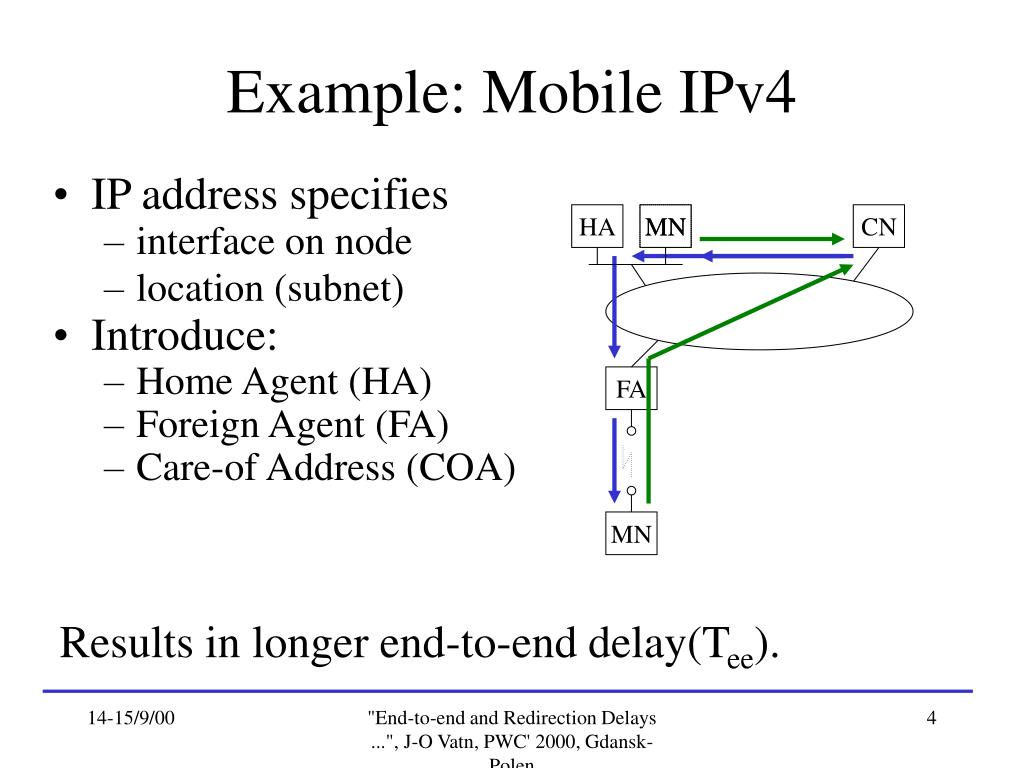

  4. FA MN MN MN Example: Mobile IPv4 HA CN • IP address specifies • interface on node • location (subnet) • Introduce: • Home Agent (HA) • Foreign Agent (FA) • Care-of Address (COA) Results in longer end-to-end delay(Tee). "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

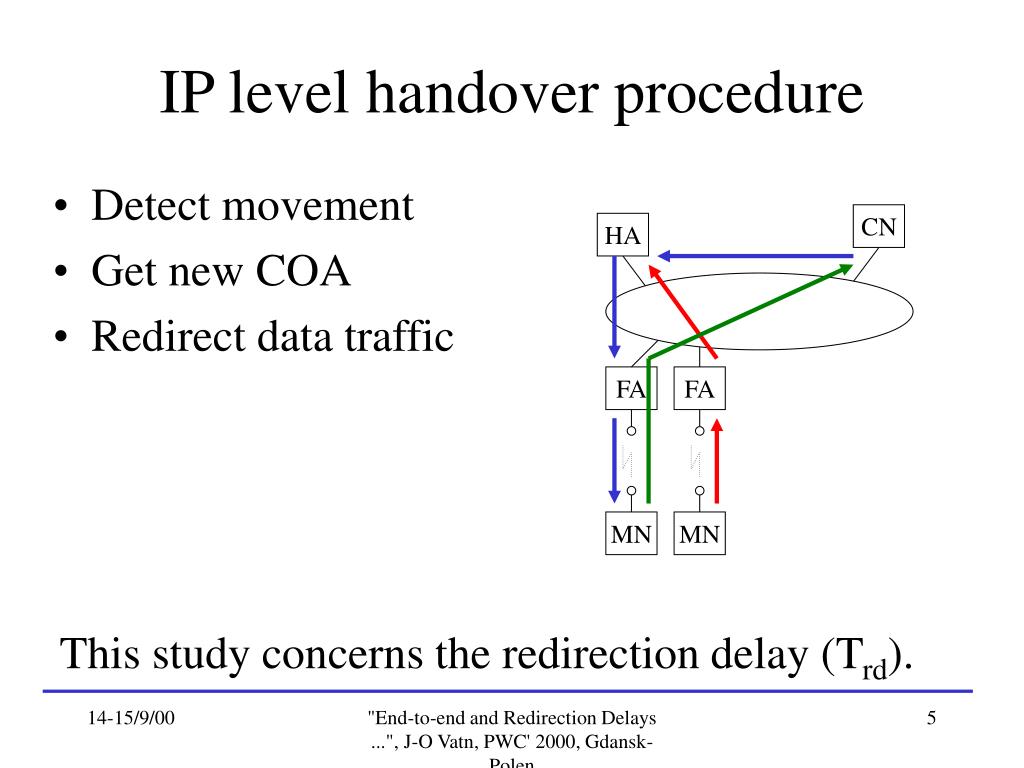

  5. FA FA MN MN IP level handover procedure CN HA • Detect movement • Get new COA • Redirect data traffic This study concerns the redirection delay (Trd). "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  6. Aim and scope of this study The aim of this study has been to evaluate common IP mobility support schemes with respect to their ability to support real-time services like “mobile telephony”. We consider two metrics: the redirection delay (Trd) and end-to-end delay (Tee). The result is a framework with symbolic expressions for Trd and Tee. "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  7. Aim and scope (cont.) To simplify the evaluation of the different schemes, the following assumptions have been made: • Overlapping cells, but MN is only able to attach to one access point at a time. • Both MN and CN are mobile. • MN and CN use the same mobility scheme. • MN (but not CN) is performing a handover. "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  8. FA FA FA MN CN MIPv4: triangular routing HA2 HA1 End-to-end delay Both the upstream and the downstream data traffic may have to pass the backbone twice: Tee,do=TCN->HA1+THA1->MN Tee,up=TMN->HA2+THA2->CN "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  9. FA FA FA MN CN MIPv4: triangular routing HA2 HA1 Redirection delay Both the upstream and the downstream data are affected Trd,do=THA1->MNold+TMN->HA1 Trd,up=TMN->HA1+THA1->MN "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  10. FA FA FA MN CN MIPv4: reverse tunneling HA1 HA2 End-to-end delay Both the upstream and the downstream data may involve three backbone traversals (BTs). Redirection delay Same as triangular routing. . "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  11. FA FA FA MN CN MIPv4: route optimization HA1 HA2 End-to-end delay MN and CN receives info about each others location (COA) from each others Home Agent (HA). Only one BT! (Is not able to pass ingress filtering routers.) "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  12. FA FA FA MN CN MIPv4: route optimization HA1 HA2 Redirection delay • Trd,up as before (2 BTs). • “Smooth handover” • Trd,do differs for intra-AD and cross-AD handovers: • intra-AD: 0 BTs • cross-AD: 3 BTs Why can’t the MN inform the CN directly? "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  13. FA FA FA MN CN MIPv4: Hierarchy of FAs HA2 HA1 End-to-end delay Not affected. Redirection delay Improvement in both directions for intra-AD handover (0 BTs). No (positive) effect on cross-AD handovers. FA "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  14. R R R MN CN MIPv4: co-located COAs HA2 HA1 MN can acquire a COA of its own (e.g. DHCP). This has effect on the upward redirection delay (Trd,up = 0 BTs). "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  15. R R R MN CN Mobile IPv6 HA1 HA2 • Co-located COAs • Route optimization • Smooth handover • MN can notify CN Best of all worlds! (MN loses privacy, though) "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  16. Summary • Extendable framework for Redirection and End-to-end delays for IP based mobility. • Some results: • Route optimization decreases Tee. • Smooth handover decreases Trd,do (intra-AD). • Hierarchal FAs decrease Trd (intra-AD). • Co-located COAs decreases Trd,up. • Trd,do for cross-AD handovers still an issue. "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen

  17. Future work • Refine model: • Include AAA services. • Robustness with respect to packet loss. • Let both MN and CN make handover. • Use network delay data from real network configurations instead of symbolic values. • Make test using high performance Mobile IP implementations. • Efficient link layer support. "End-to-end and Redirection Delays ...", J-O Vatn, PWC' 2000, Gdansk-Polen
