Electron Configuration

Electron Configuration. Label the Sublevels (1 s , 2 s , …). Practice 1. Sulfur ( ______ electrons) Electron configuration: a. How many E.L. in an atom of S have e - ? b. How many e - are in the 2 nd energy level? . Practice 1 Answer. Sulfur ( __ 16 ____ electrons)

dick
Télécharger la présentation

Electron Configuration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Electron Configuration

  2. Label the Sublevels (1s, 2s, …)

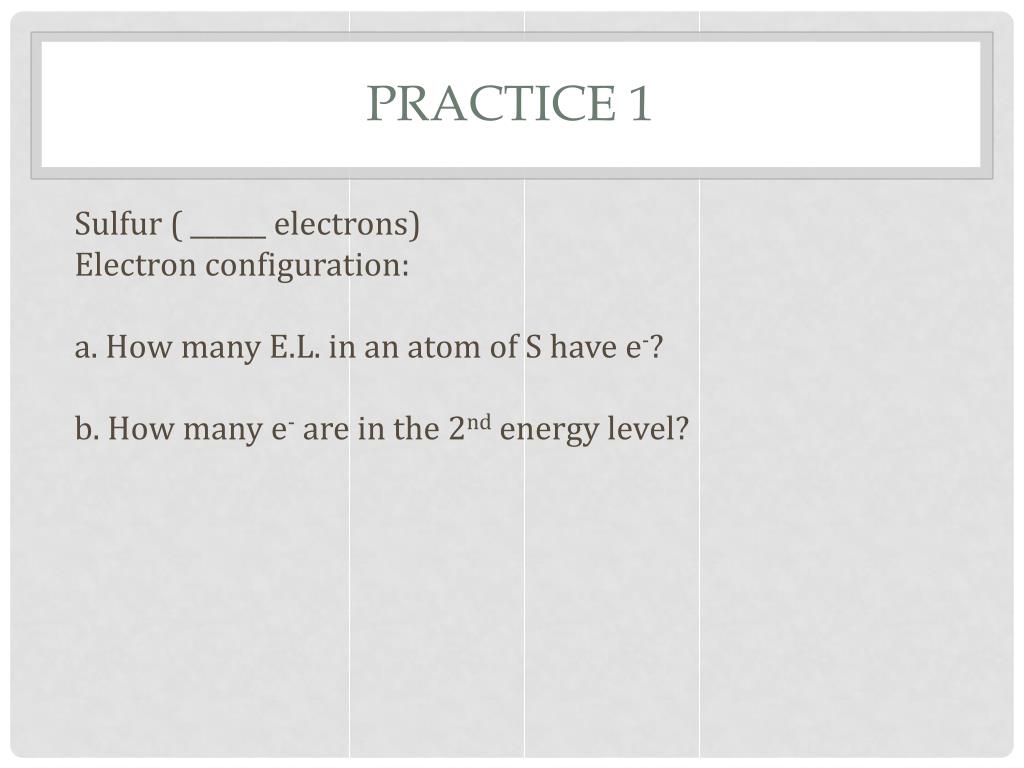

  3. Practice 1 Sulfur ( ______ electrons) Electron configuration: a. How many E.L. in an atom of S have e-? b. How many e- are in the 2nd energy level?

  4. Practice 1 Answer Sulfur ( __16____ electrons) Electron configuration: 1s2 2s2 2p6 3s2 3p4 a. How many E.L. in an atom of S have e-? Three b. How many e- are in the 2nd energy level? 8 (2+6 - just add the superscripts)

  5. Practice 2 • Iron (________ electrons) • Electron Configuration: • How many E.L. in an atom of Fe contain e-? • b. How many e- in 3rd energy level?

  6. Practice 2 Answer • Iron (___26_____ electrons) • Electron Configuration: 1s2 2s2 2p6 3s2 3p6 4s2 3d6 a. How many E.L. in an atom of Fe contain e-? Four b. How many e- in 3rd energy level? 14 (2+6+6)

  7. Noble Gas Notation (“Short Hand”) • This is used to represent electron configurations of noble gases using bracketed symbols.

  8. Short Hand Practice • Use shortcut method to write e-configurations for Ar and P. • Ar: • P: [Ne] 3s2 3p6 or [Ar] [Ne] 3s2 3p3

  9. Ground State vs Excited State Ground State – The most stable, lower energy arrangement of the electrons in an atom. (The electrons are in the correct order of orbitals.) Excited State – When atom gains energy the electrons jump into higher energy level. Example: Identify the following atoms and describe their state. (Ground or Excited) • 1s22s22p63s23p64s13d104p3 • 1s22s22p63s23p64s23d104p5 • 1s22s22p63s23p64s23d104p65s24d8

  10. Electron Configuration A. Aufbau Principle – Electrons enter orbitals of lower energy first. 1s2, 2s2, 2p6, 3s2, 3p6, 4s2, 3d10, 4p6, 5s2, 4d10, 5p6, 6s2, 4f14, 5d10, 6p6, 7s2, 5f14, 6d10, 7p6(or use PT) B. Pauli Exclusion Principle – No more than __2______ electrons can occupy the same orbital AND they must spin in opposite directions.(Opposite spins help hold e- in an orbital by creating magnetic attraction.) C. Hund’s Rule – Orbitals of equal energy must EACH have _1____ electron with thesame ____spin______ before any orbital is occupied by a 2nd electron.

  11. Electron Configuration
