Electron Configuration

Be sure to keep up on your reading from your text and studying your notes (scientific method, sigfigs , sci. notation, electron configs , models, etc.). A quiz may be right around the corner… Or not… Or yes… Hint hint. Electron Configuration. Electrons ( e - ’s) and Orbitals. Atomic Models.

kaipo
Télécharger la présentation

Electron Configuration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Be sure to keep up on your reading from your text and studying your notes (scientific method, sigfigs, sci. notation, electron configs, models, etc.). A quiz may be right around the corner… Or not… Or yes… Hint hint. Electron Configuration Electrons (e-’s) and Orbitals

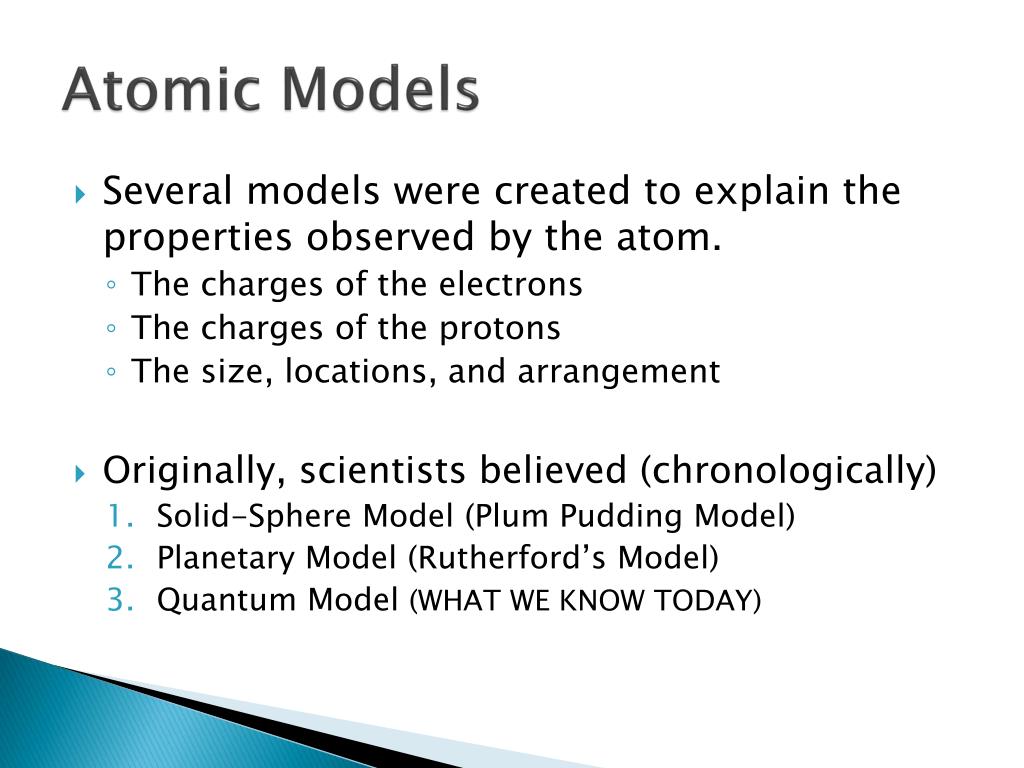

  2. Atomic Models • Several models were created to explain the properties observed by the atom. • The charges of the electrons • The charges of the protons • The size, locations, and arrangement • Originally, scientists believed (chronologically) • Solid-Sphere Model (Plum Pudding Model) • Planetary Model (Rutherford’s Model) • Quantum Model (WHAT WE KNOW TODAY)

  3. Atomic Models • Rutherford’s model proposed electrons orbit the atom • This proved J. J. Thompson’s “Plum Pudding Model” was incorrect • States electrons orbited the atom like moons to a planet • Bohr’s model confines e-’s to energy levels • States e-’s can only be certain distances from the nucleus • This distance depends on the energy the e- has • The further away, the higher energy level

  4. Quantum Model • The present-day model of the atom, in which electrons are located in orbitals, is also known as the quantum model • States electrons within an energy level are located in orbitals, regions of high probability for finding a particular electrons. • Does not, however, explain how the electrons move about the nucleus to create these regions

  5. Orbitals • According to the current model of the atom, electrons are found in orbitals • -regions around the nucleus that correspond to specific energy levels • Orbitals are sometimes called electron clouds because they do not have sharp boundaries • Tells where it is likely to find an electron

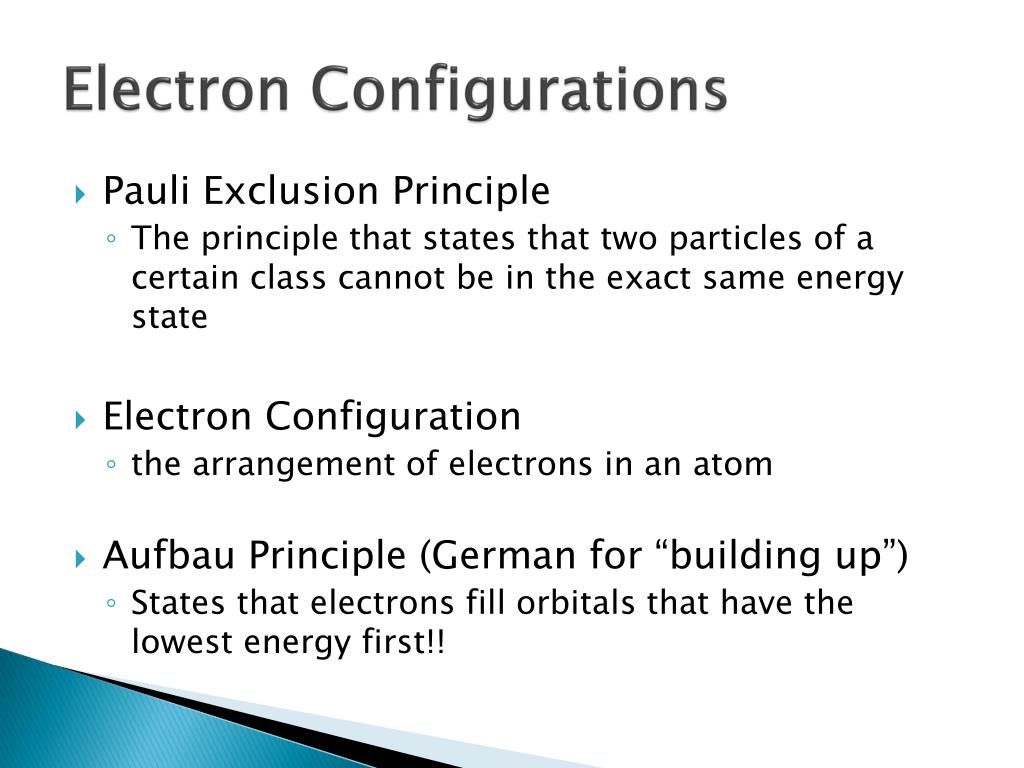

  6. Electron Configurations • Pauli Exclusion Principle • The principle that states that two particles of a certain class cannot be in the exact same energy state • Electron Configuration • the arrangement of electrons in an atom • Aufbau Principle (German for “building up”) • States that electrons fill orbitals that have the lowest energy first!!

  7. “Building up” ?? • “Building up” refers to the filling of all lower energy “sites” before increasing up in energy • Moving outward away from the (+) nucleus requires more energy for the (-) electrons to maintain the further distance • We have 4 orbitals (spots) that e-’s can go into: • s-orbital (holds ________) d-orbital (holds ________) • p-orbital (holds ________) f-orbital (holds ________)

  8. Energy Levels

  9. Electron Configurations • Write out the electron configuration for an element with an atomic number of 20 Atomic # = # of protons = # of electrons 1s22s22p63s23p64s2 We can abbreviate this using the LAST noble gas i.e. [Ar] 4s2

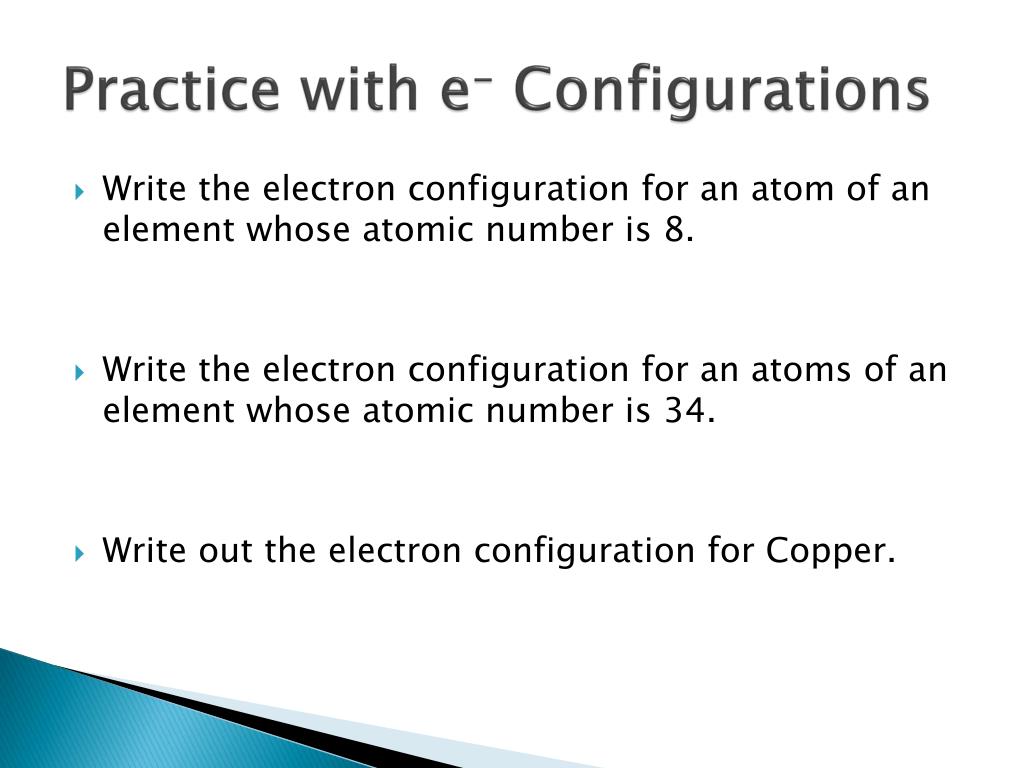

  10. Practice with e- Configurations • Write the electron configuration for an atom of an element whose atomic number is 8. • Write the electron configuration for an atoms of an element whose atomic number is 34. • Write out the electron configuration for Copper.

  11. Electron Configs • Draw these out. • Electrons MUST fill the lower energy levels before moving to the next. Each level is increasing energy.

  12. Electrons and Light • If an electron is in a state of lowest possible energy it is in the Ground State • If an electron gains energy, it moves to an Excited State • An electron in an excited state will release a specific amount of energy as it “falls” back down to the ground state. • This energy is emitted as certain wavelengths of light

  13. Counting Atoms (real chem) • Atomic Mass • The mass of an atoms expressed in atomic mass units (AMU) • The Mole!! • A mole is just a counting unit (a quantity) for really small things (like atoms) • It is 6.0221367 x 1023 of anything • This value is known as Avogadro’s Number

  14. Molar Mass • Molar Mass • The mass in grams of one mole of the element • Has the units of g/mol • 1 mole has 6.022x1023 atoms (particles) • Avogadro’s Number allows us to CONVERT between moles and grams

  15. Practice • Calculate the molar mass of NH3 • Calculate the molar mass of H2SO4 • Calculate the molar mass of NaCl

  16. Practice • Convert 12.5 grams of LiOH to moles LiOH • Convert 0.58 moles of H2O to atoms of water • Convert 1.28 moles of cobalt(II)oxide to mass

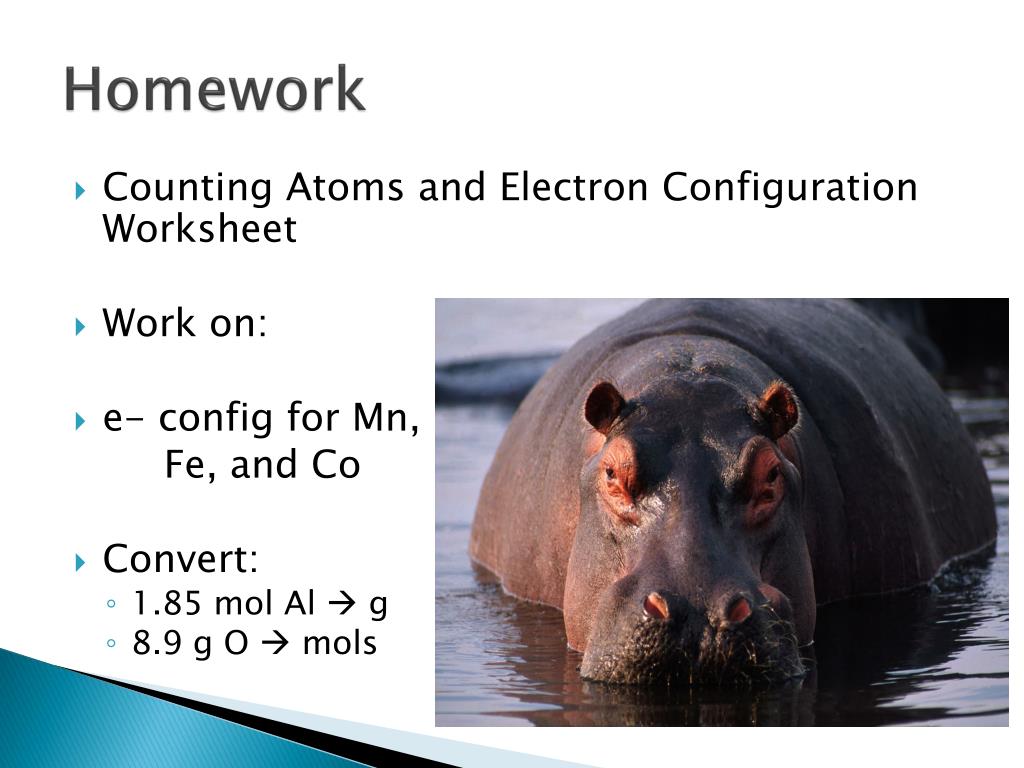

  17. Homework • Counting Atoms and Electron Configuration Worksheet • Work on: • e- config for Mn, Fe, and Co • Convert: • 1.85 mol Al  g • 8.9 g O  mols
