  1. Presented by

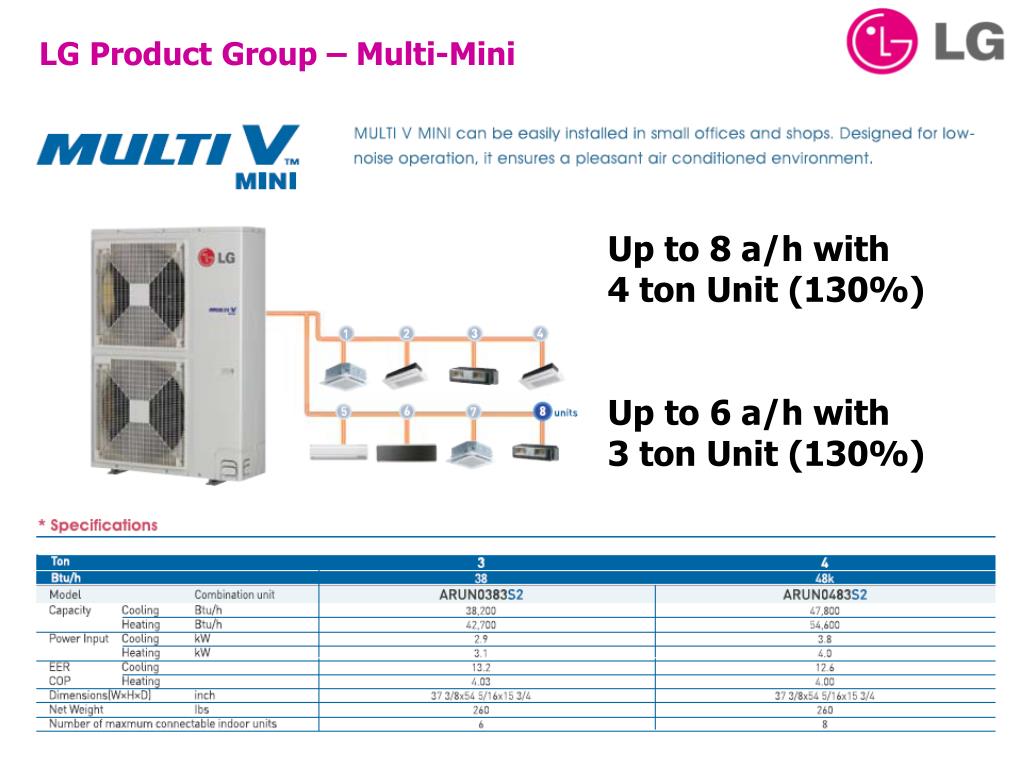

  2. LG Product Group – Multi-Mini Up to 8 a/h with 4 ton Unit (130%) Up to 6 a/h with 3 ton Unit (130%)

  3. LG Product Group – Multi-Mini • 37 3/8 x 54 3/8 x 13 • Very Low Noise • Gold Fin Condenser Corrosion Treatment 984 ft 492 ft 131 ft 164 ft 49 ft 16 ft

  4. LG Product Group – Multi-Mini Air Handlers

  5. LG Product Group – Multi-Mini Air Handlers • 4 way Ceiling Cassette • 7k – 48k • 22 3/8 x 22 3/8 x 8 7/16 • 33 x 33 x 11 ¾ • 265 cfm (7k) – 1095 cfm (48k) • Very Low Noise • Condensate Pump Included (27” head)

  6. LG Product Group – Multi-Mini Air Handlers • High Wall • Mirror Finish • 7k – 24k • 36 x 6 ½ x 11 1/8 • 44 x 7 7/8 x 11 7/8 • 247 cfm (7k) – 530 cfm (24k) • Very Low Noise

  7. LG Product Group – Multi-Mini Air Handlers • Concealed Ceiling • High Static • 7k – 48k • 34 ¾ x 17 ¾ x 10 ¼ (7k) • 48 x 23 ¼ x 15 (48k) • Very Low Noise • 237 cfm (7k) – 1582 cfm (48k) • Condensate Pump Included (27” head)

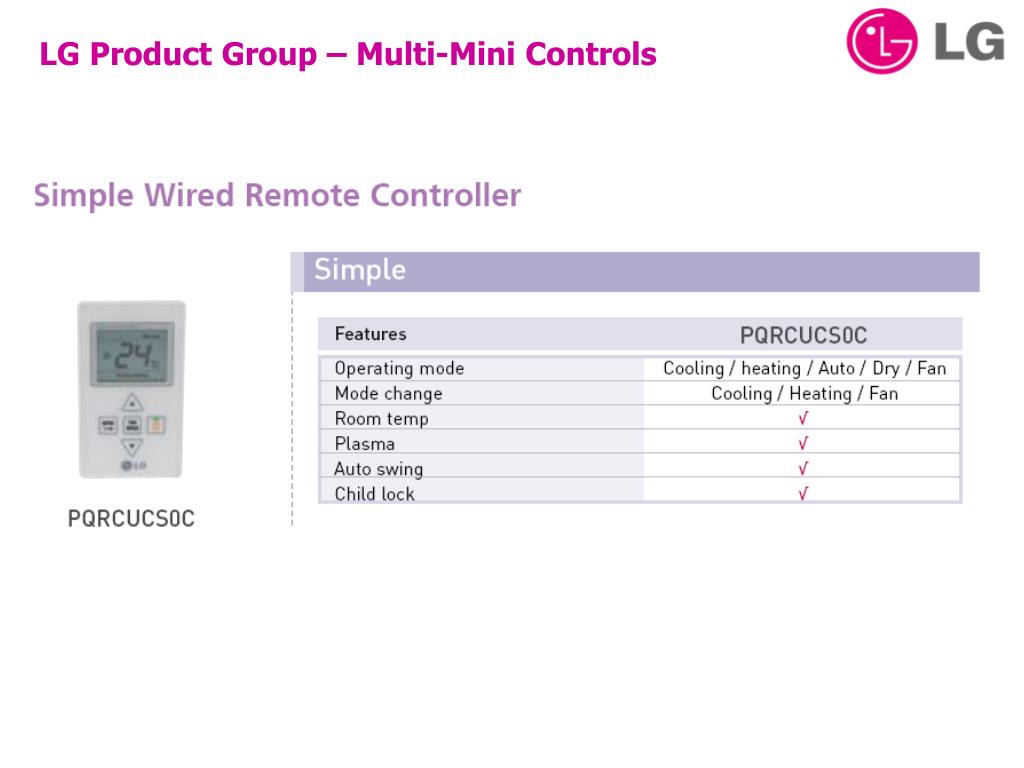

  8. LG Product Group – Multi-Mini Controls

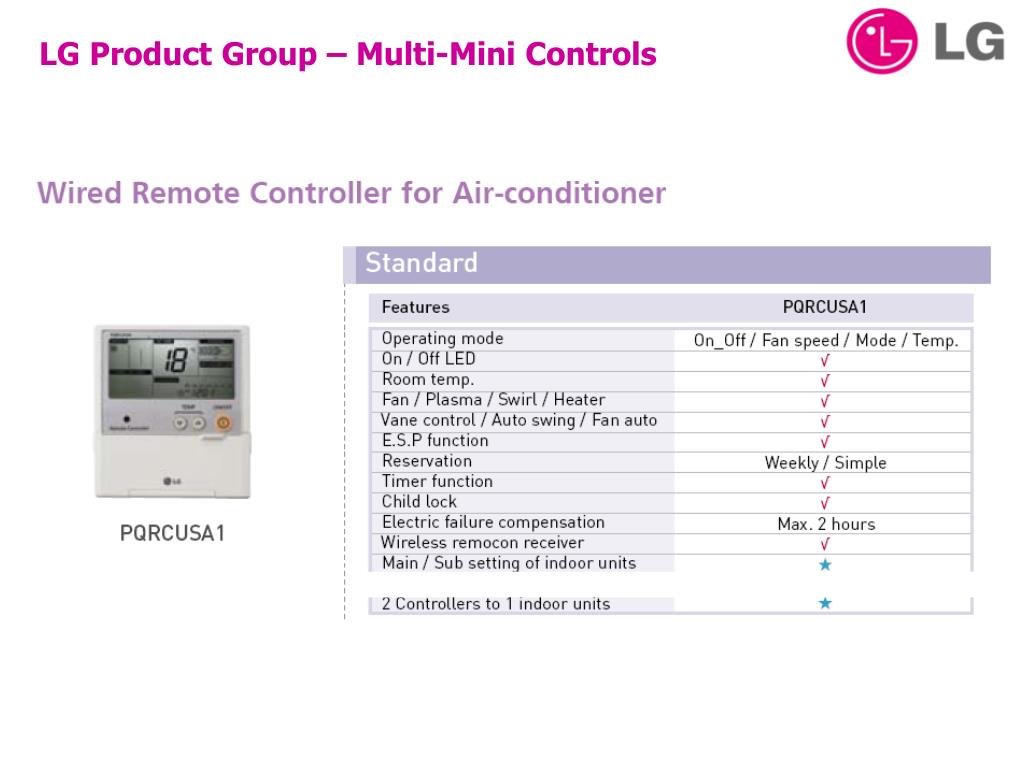

  9. LG Product Group – Multi-Mini Controls

  10. LG Product Group – Multi-Mini Controls

  11. LG Product Group – Multi-Mini Controls Up to 12 Condensers Up to 128 Air Handlers

  12. LG Product Group – Multi-Mini Controls Control Solutions Indoor Unit - Single Gateway Outdoor Unit - Multi V / Multi (Inv./ MPS) BNU-LW RS 485 Bus A/B PI485 BMS LonWorks™ BACnet™ BNU-BN Bus A/B Bus A/B ACP LAN Central Controllers AC Smart SCC FCC AC Manager

  13. Thank You!
