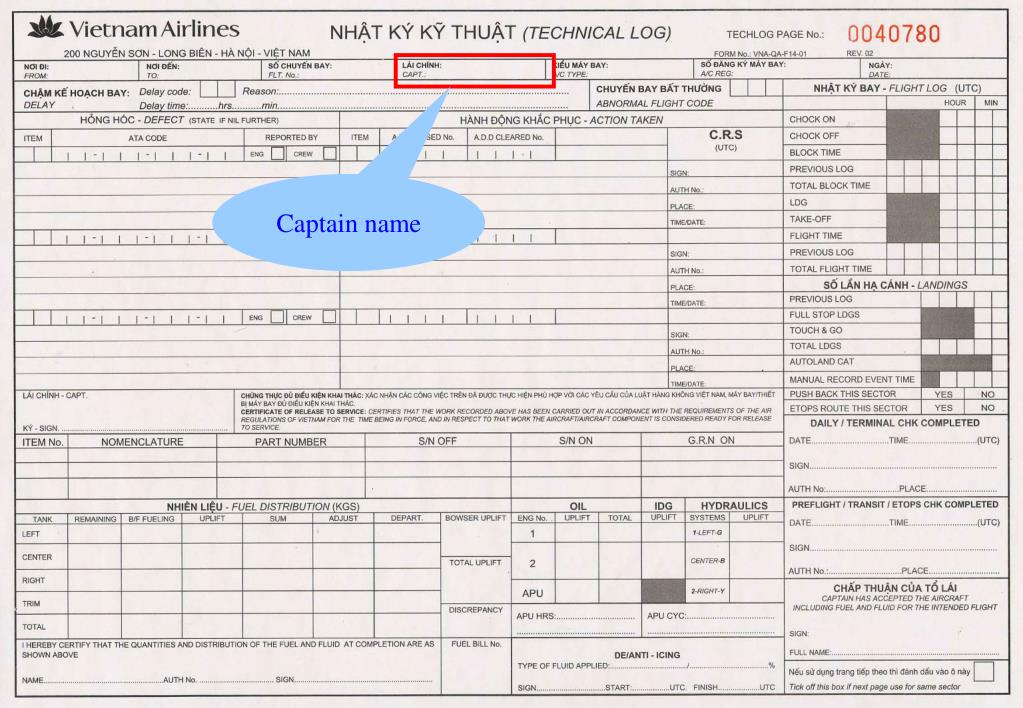

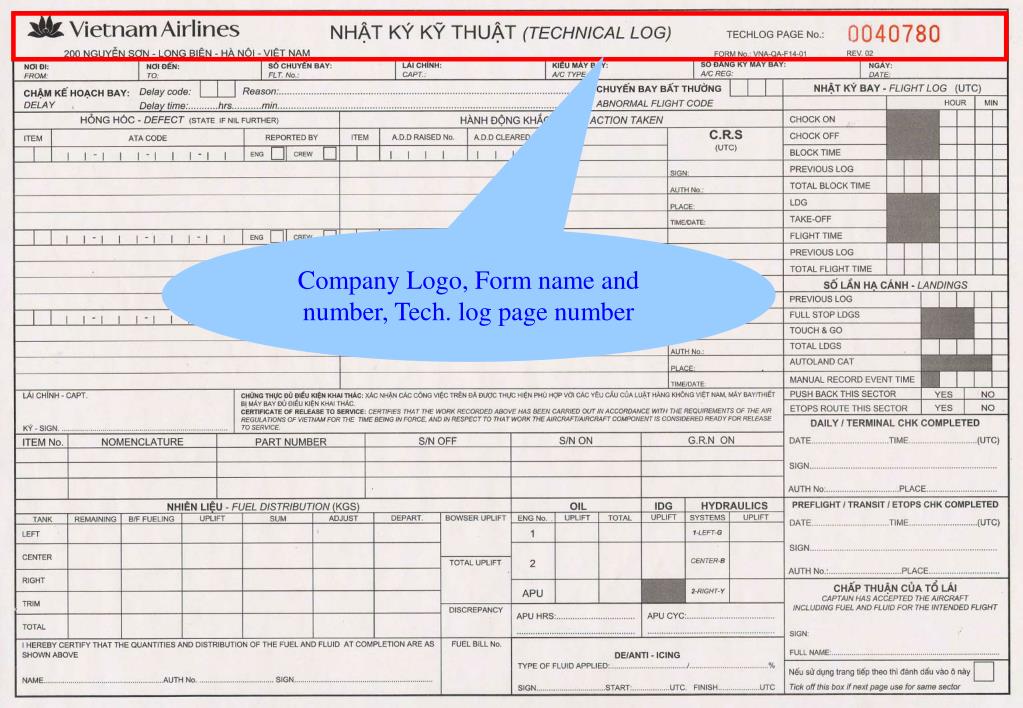

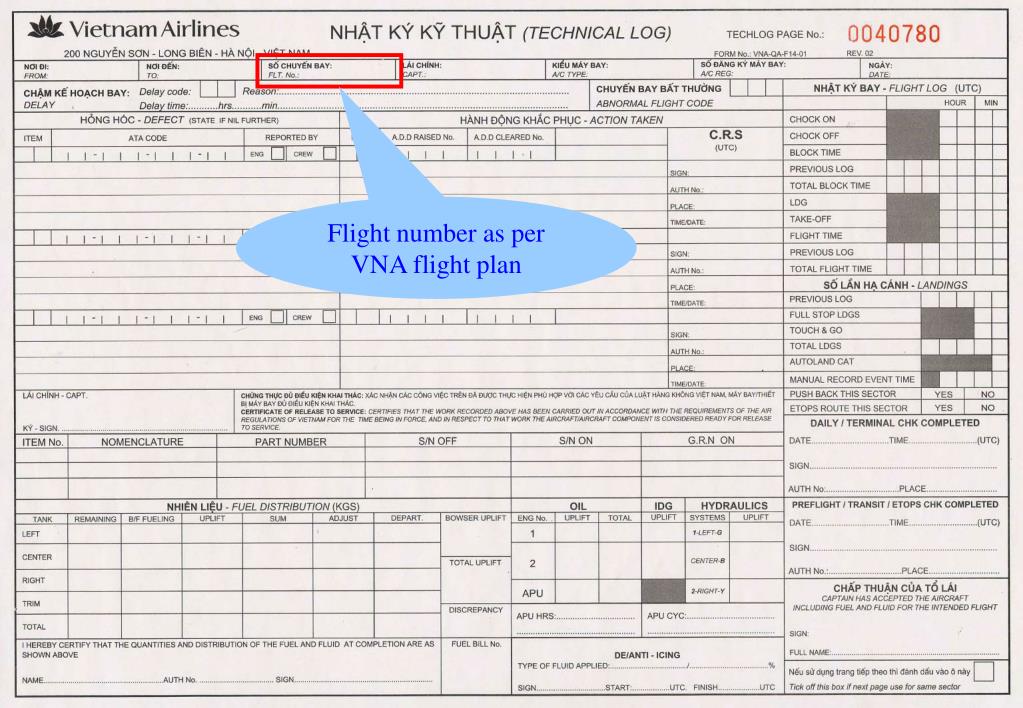

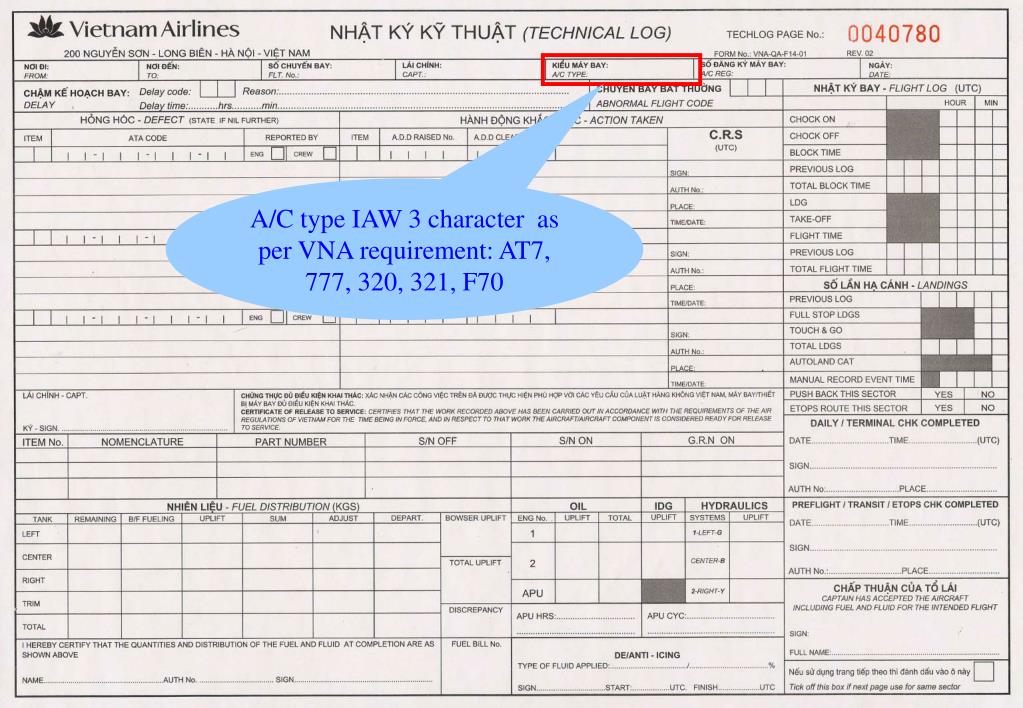

Company Logo, Form name and number, Tech. log page number. From (Departure airport): 3 letters as per IATA code. To (Arrival airport): 3 letters as per IATA code. Flight number as per VNA flight plan. Captain name. A/C type IAW 3 character as per VNA requirement: AT7, 777, 320, 321, F70.
E N D

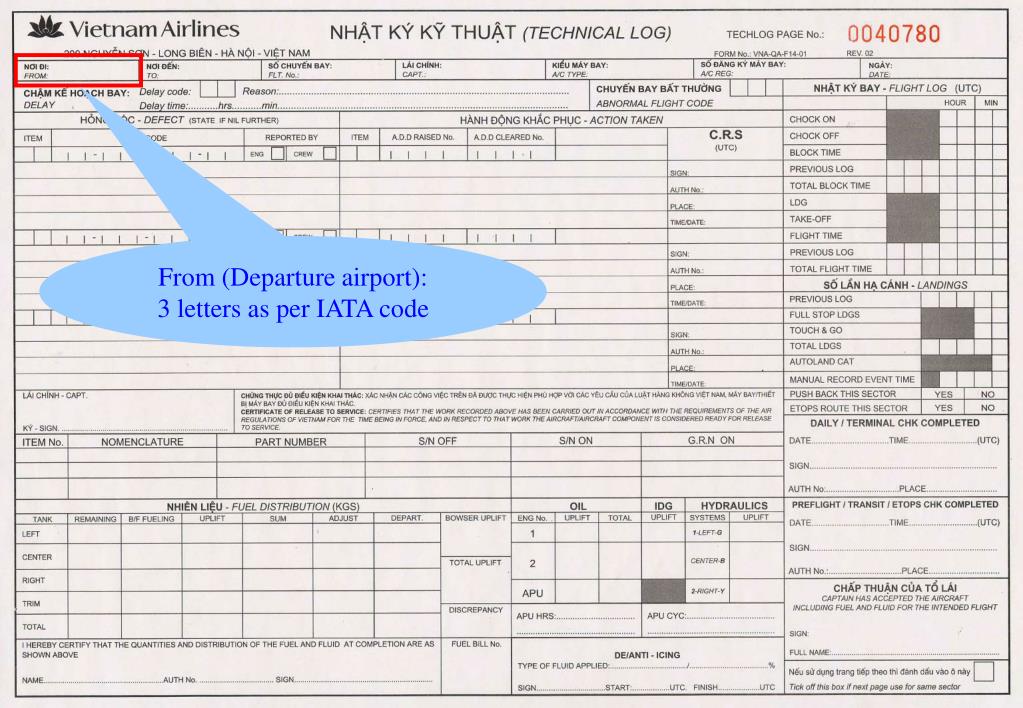

From (Departure airport): 3 letters as per IATA code

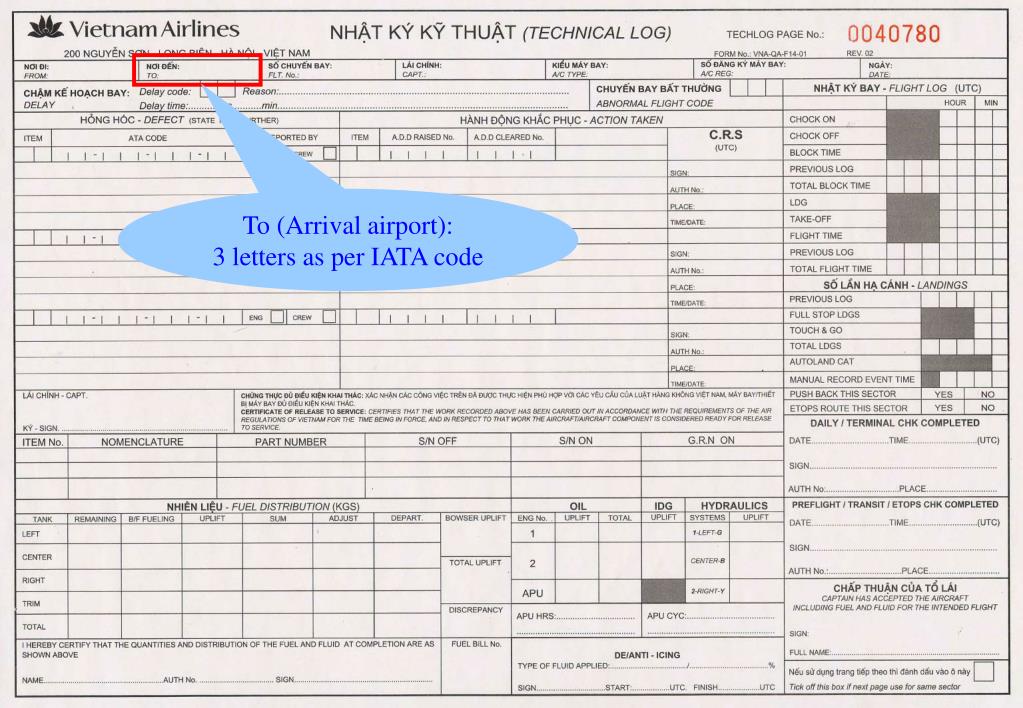

To (Arrival airport): 3 letters as per IATA code

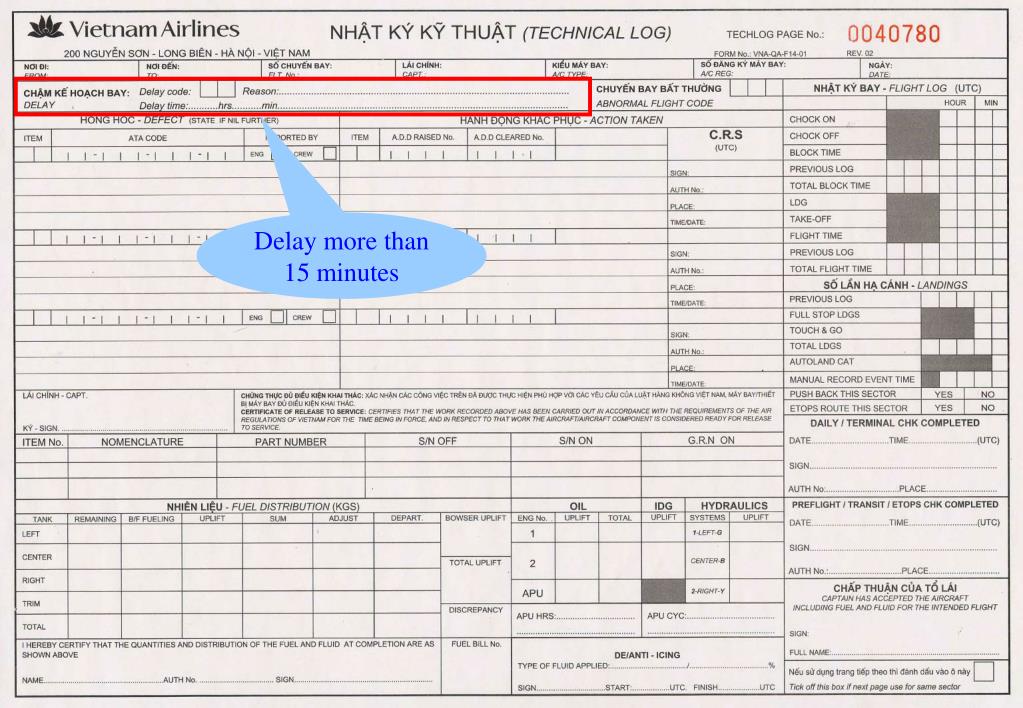

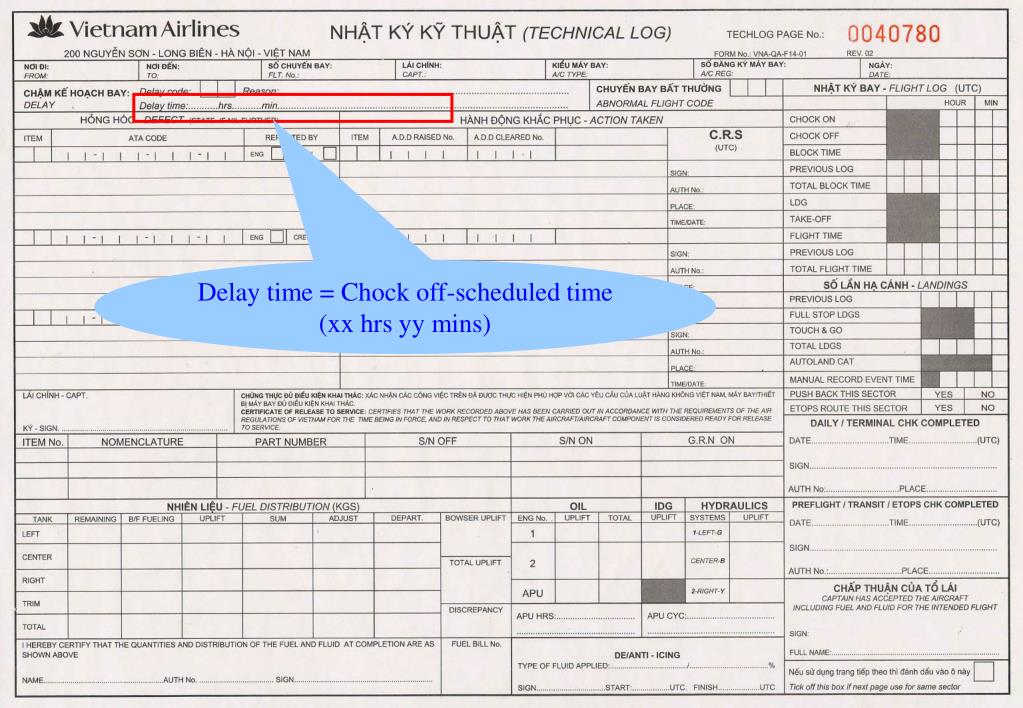

Delay time = Chock off-scheduled time (xx hrs yy mins)

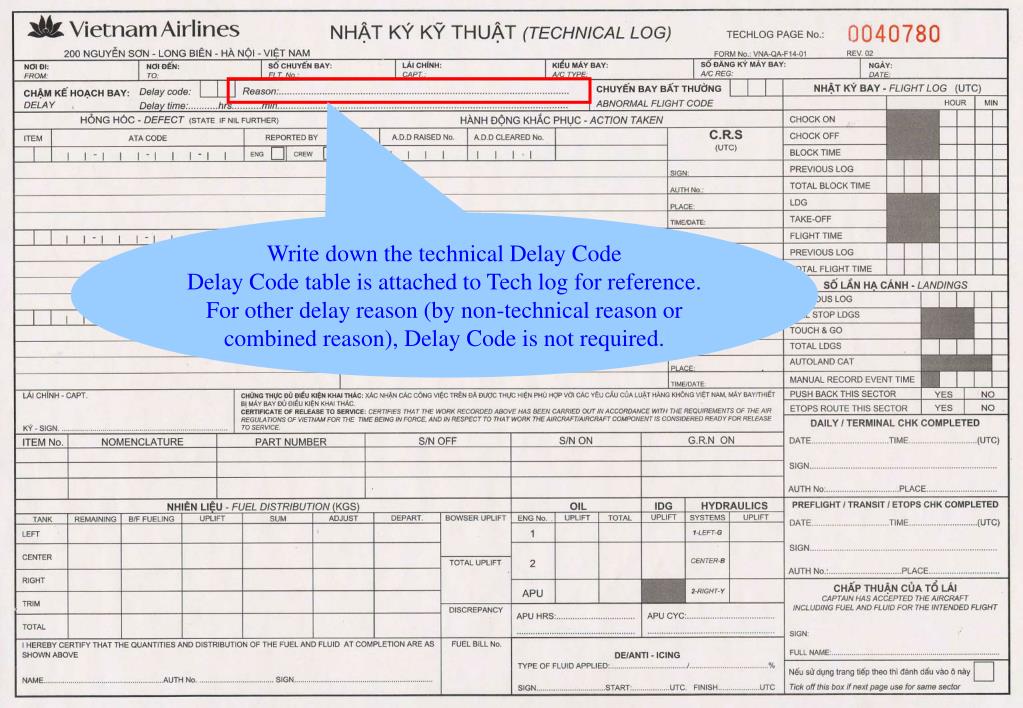

Write down the technical Delay Code Delay Code table is attached to Tech log for reference. For other delay reason (by non-technical reason or combined reason), Delay Code is not required.

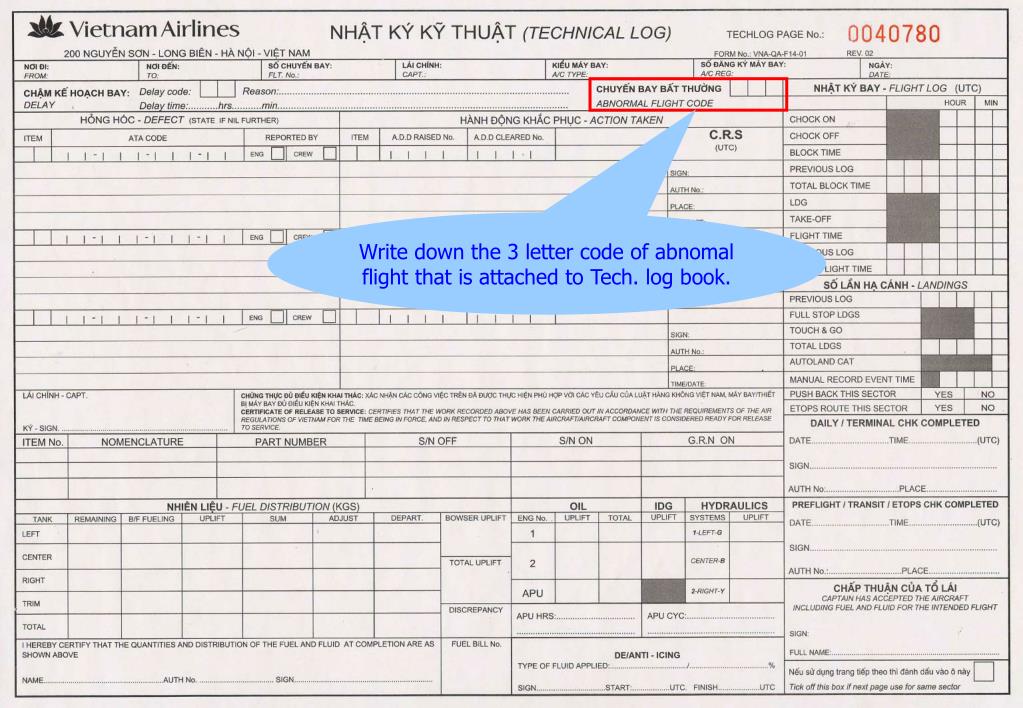

Write down the 3 letter code of abnomal flight that is attached to Tech. log book.

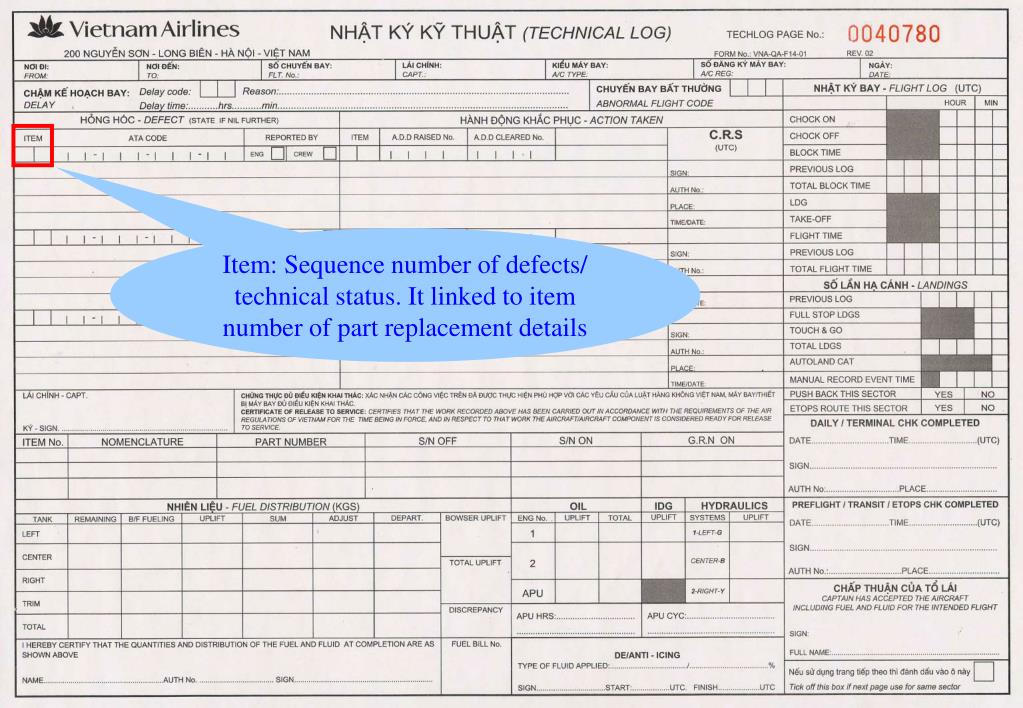

Item: Sequence number of defects/ technical status. It linked to item number of part replacement details

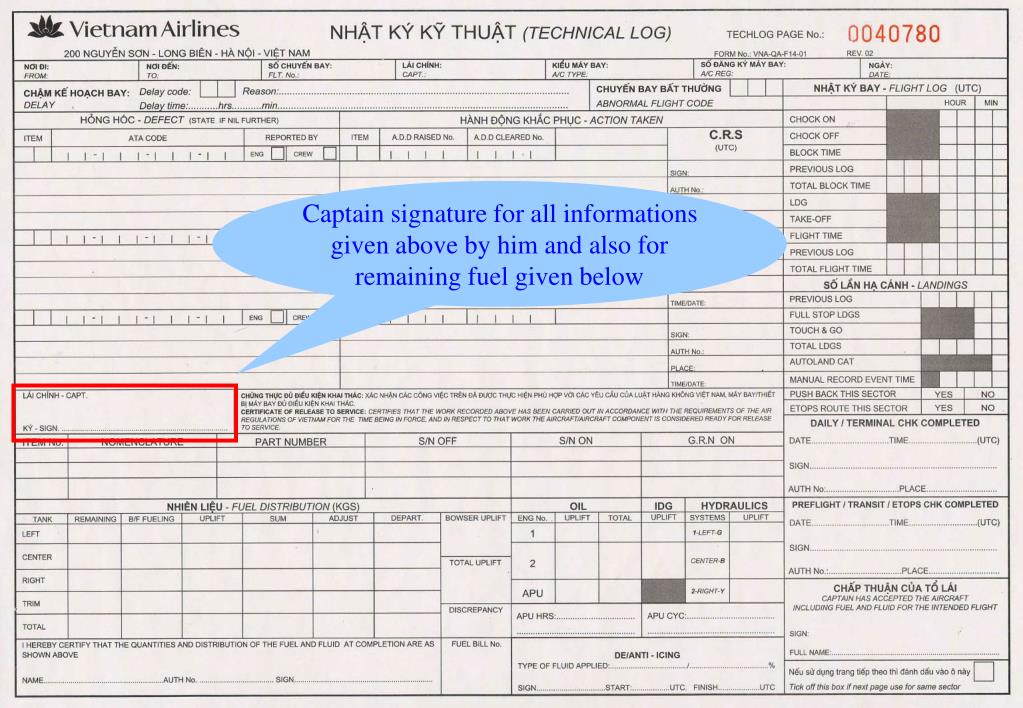

Captain signature for all informations given above by him and also for remaining fuel given below

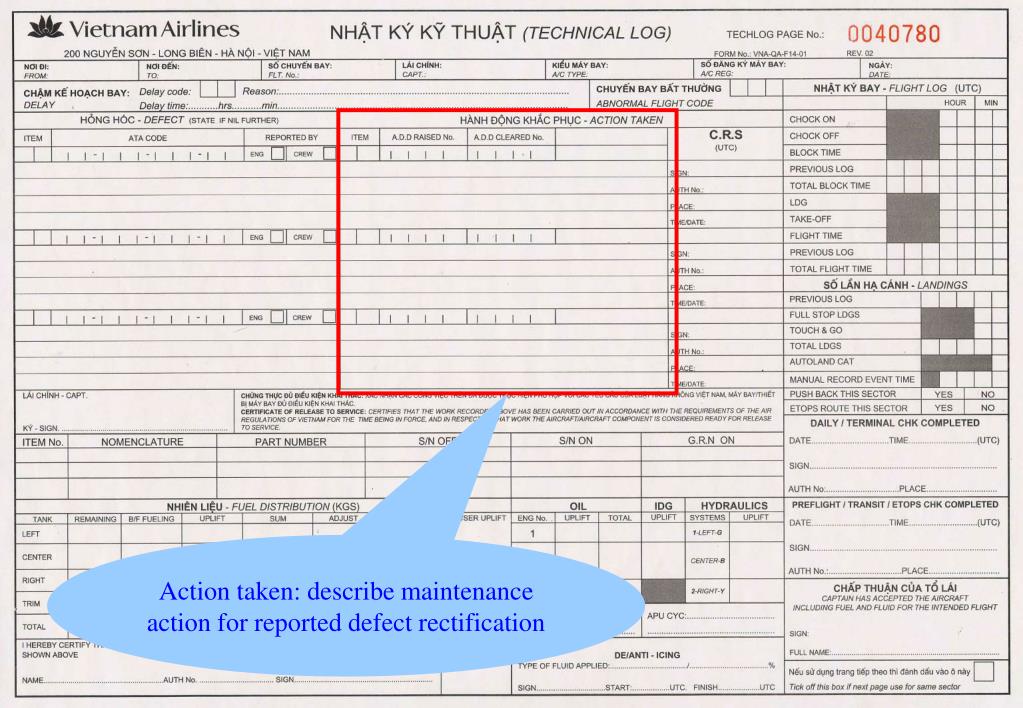

Action taken: describe maintenance action for reported defect rectification

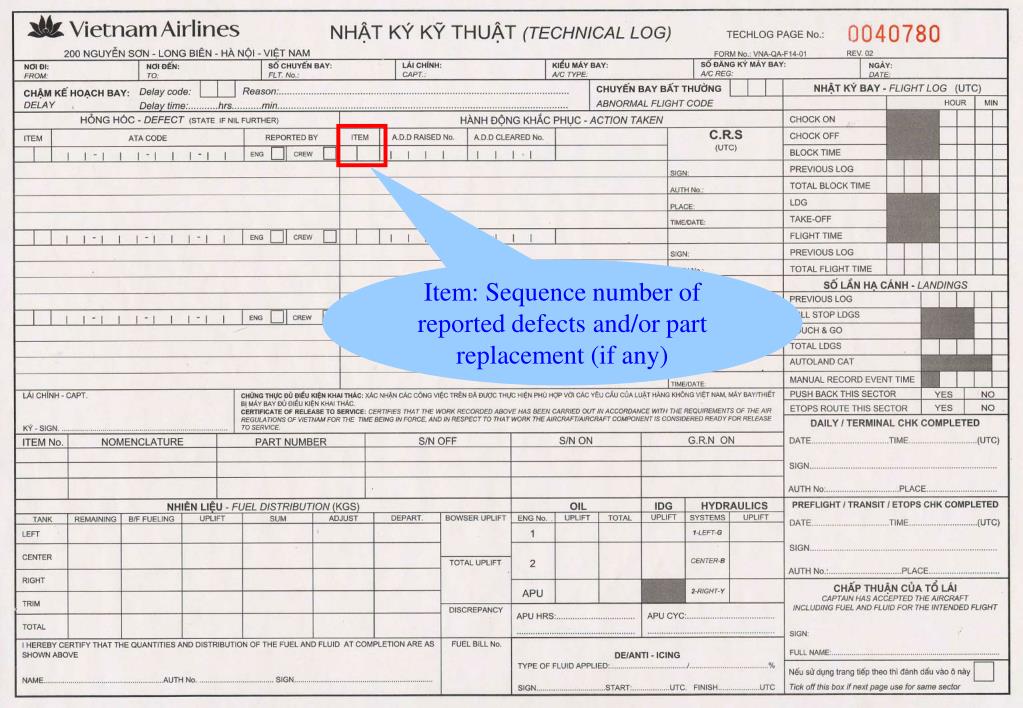

Item: Sequence number of reported defectsand/or part replacement (if any)
Acceptable Deferred Defect sequence number as registered in ADD lists including MEL and Non-MEL related Item

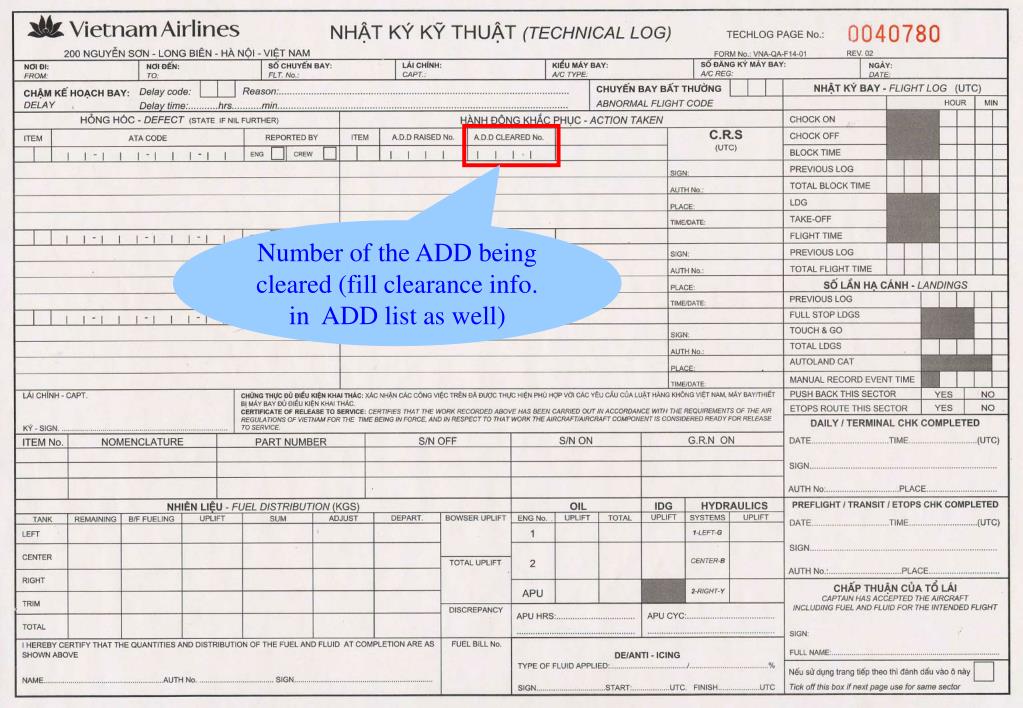

Number of the ADD being cleared (fill clearance info. in ADD list as well)

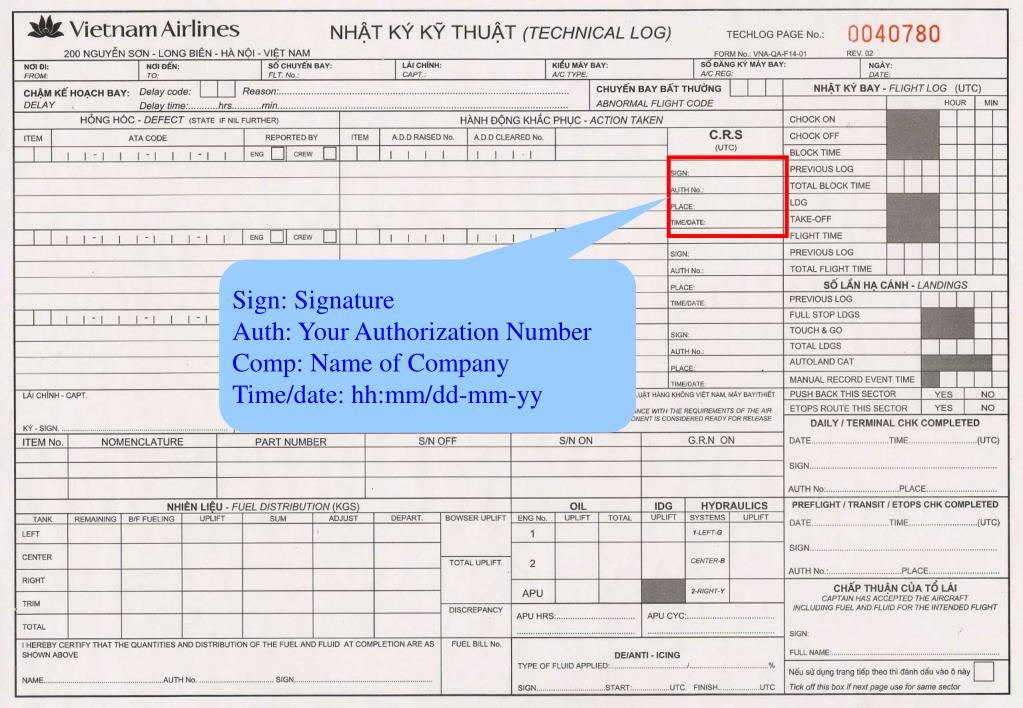

Sign: Signature Auth: Your Authorization Number Comp: Name of Company Time/date: hh:mm/dd-mm-yy

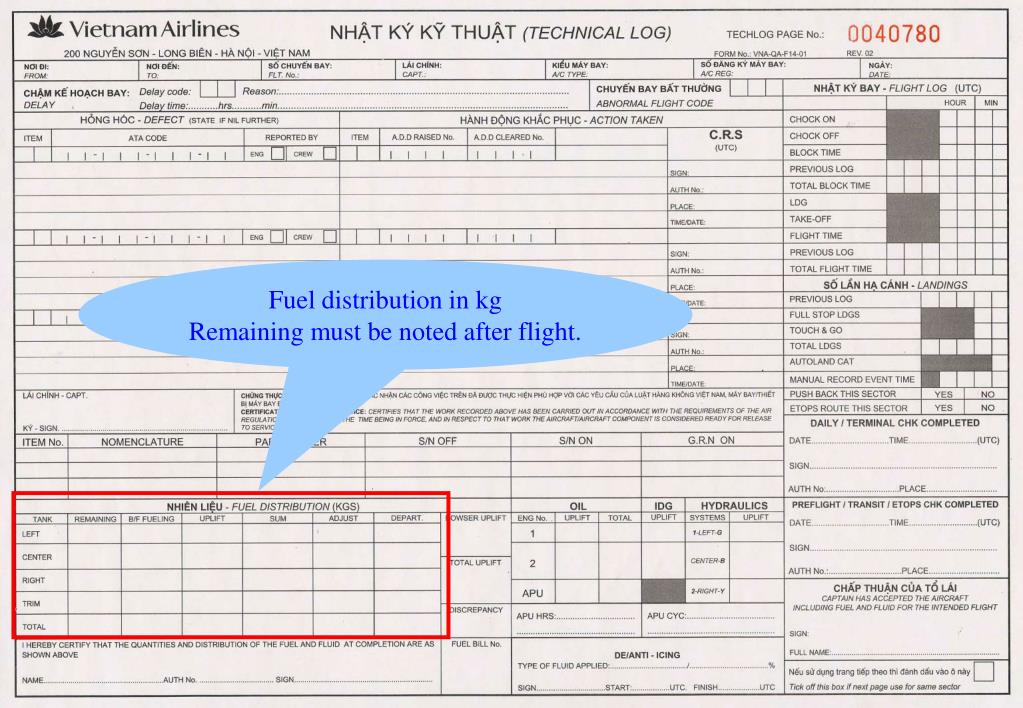

Fuel distribution in kg Remaining must be noted after flight.

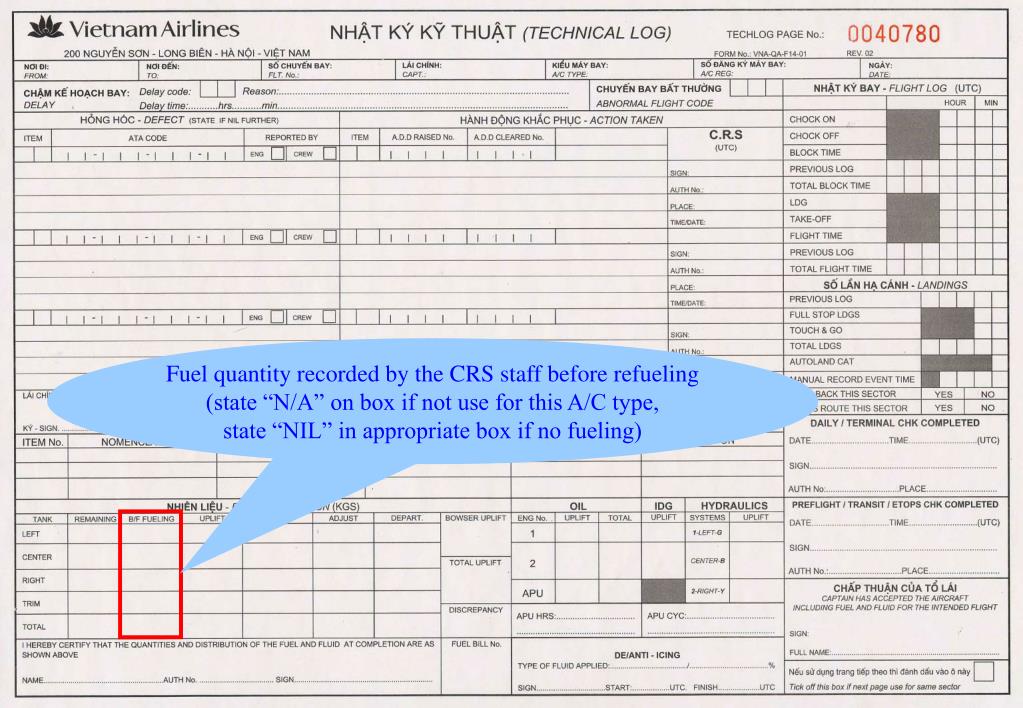

Fuel quantity recorded by the CRS staff before refueling (state “N/A” on box if not use for this A/C type, state “NIL” in appropriate box if no fueling)
Uplift (Quantity of added fuel) = Sum – B/F fueling

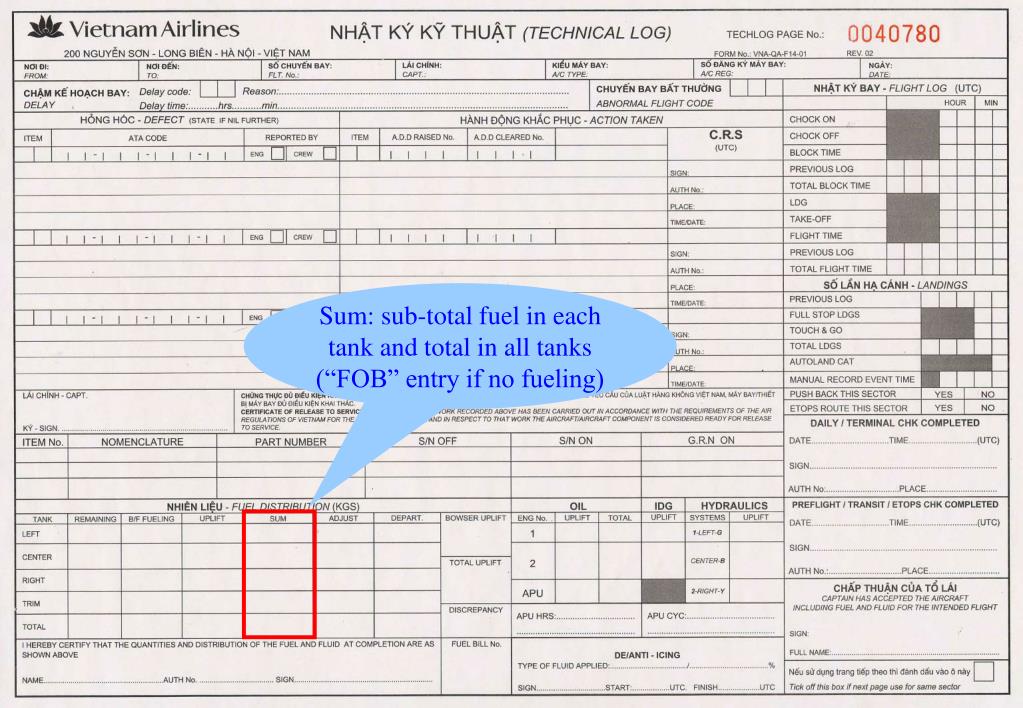

Sum: sub-total fuel in each tank and total in all tanks (“FOB” entry if no fueling)

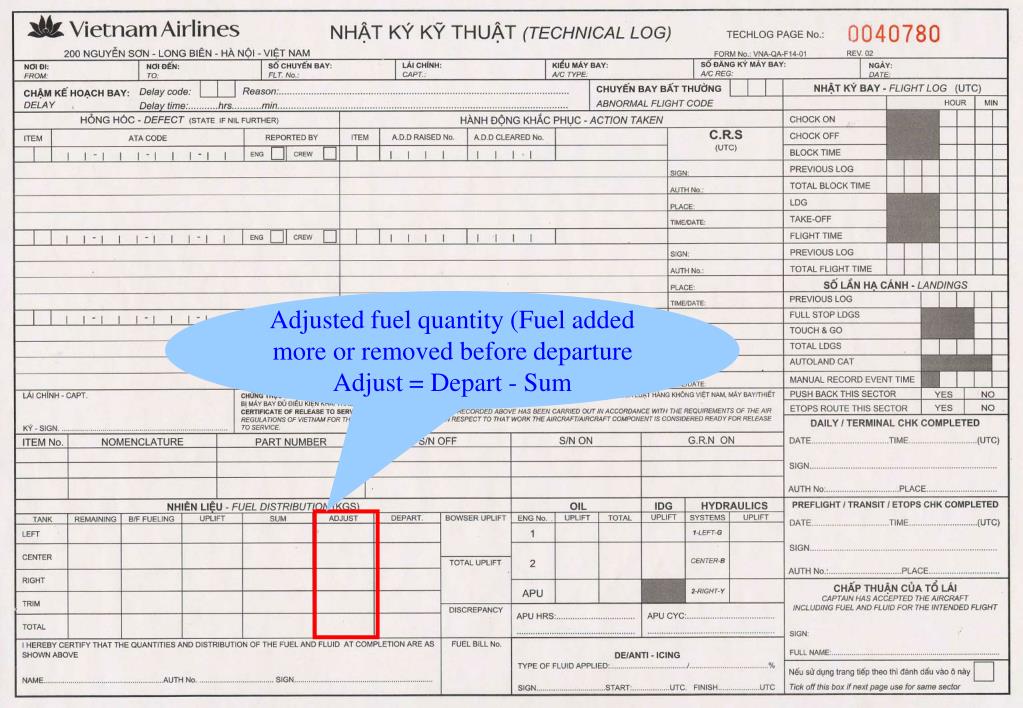

Adjusted fuel quantity (Fuel added more or removed before departure Adjust = Depart - Sum

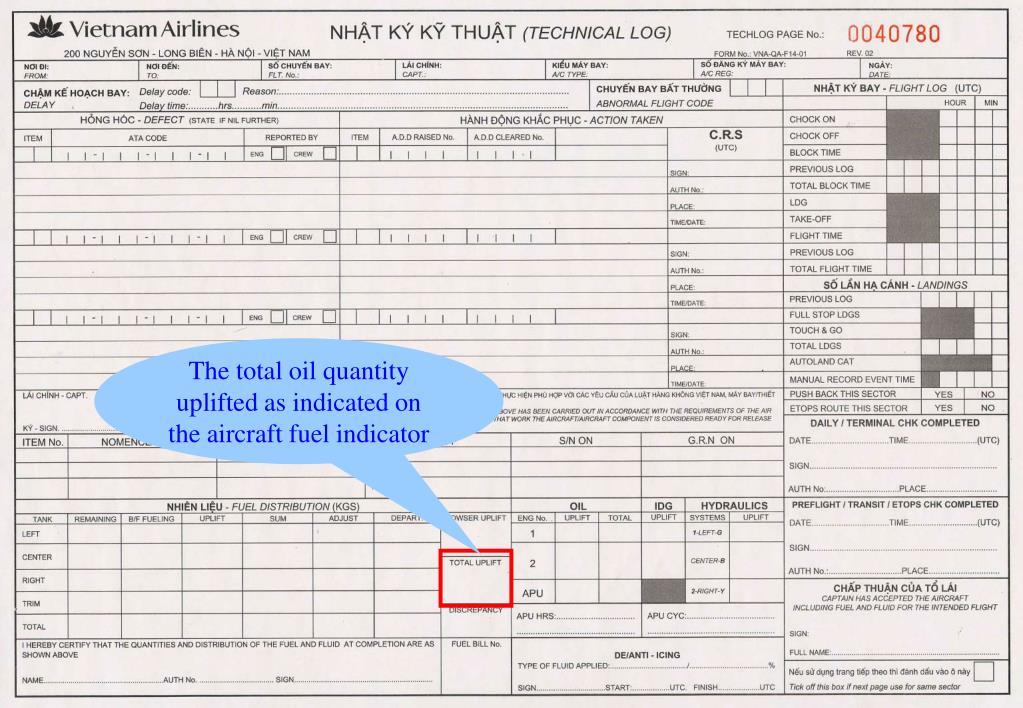

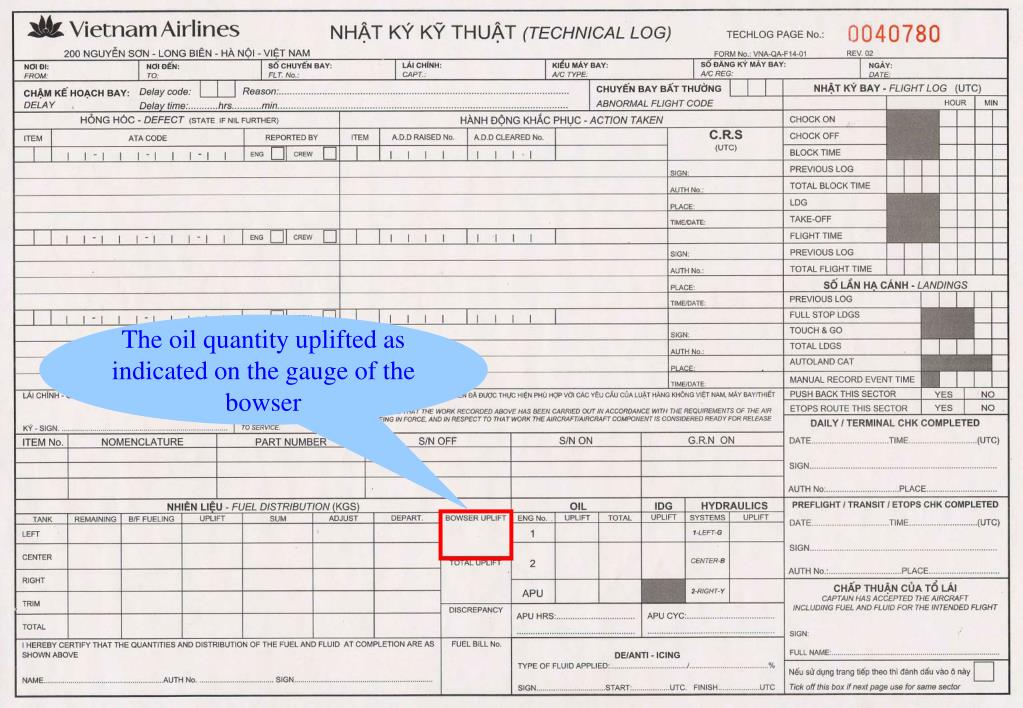

The total oil quantity uplifted as indicated on the aircraft fuel indicator

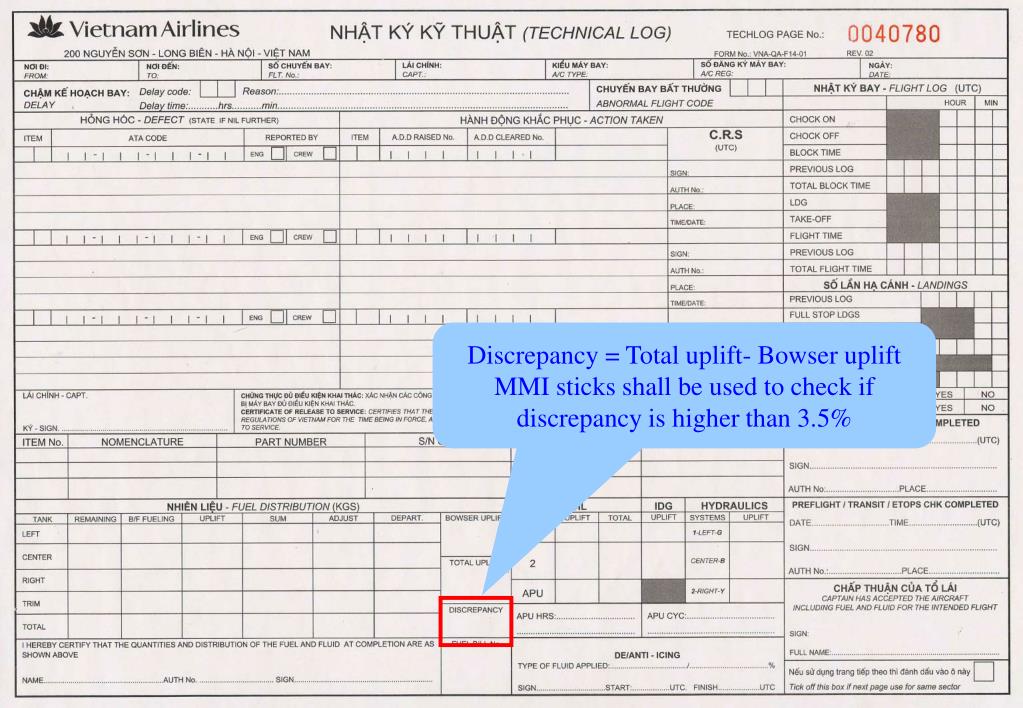

Discrepancy = Total uplift- Bowser uplift MMI sticks shall be used to check if discrepancy is higher than 3.5%
Oil /HYD service: Recording added and total quantities, if not state “NIL”

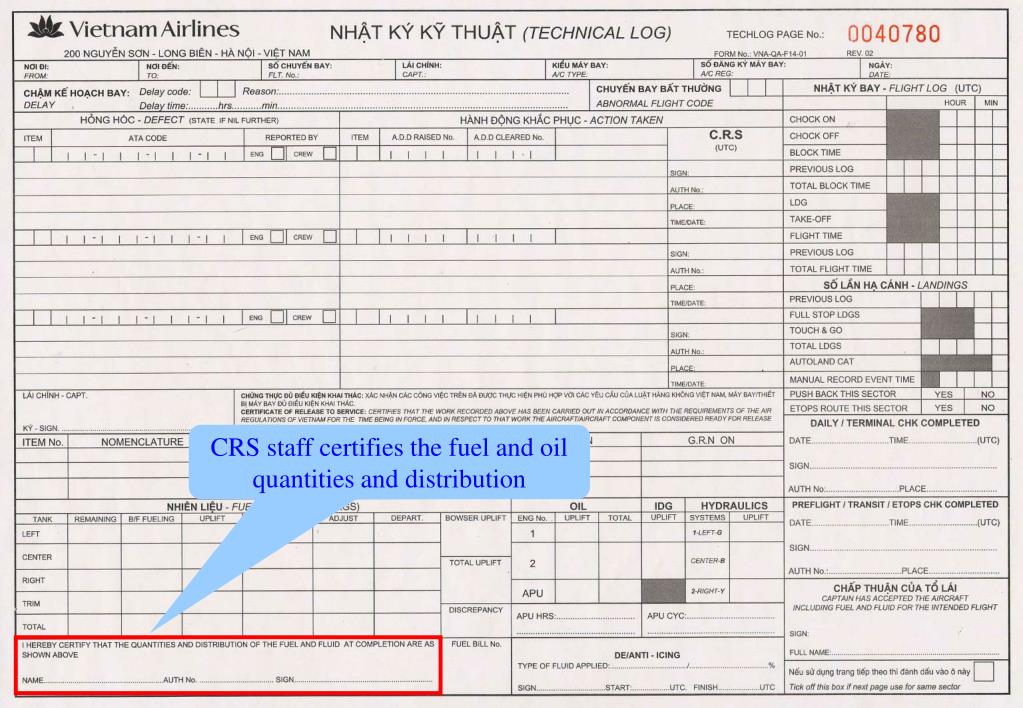

CRS staff certifies the fuel and oil quantities and distribution
Total FH Total CYC

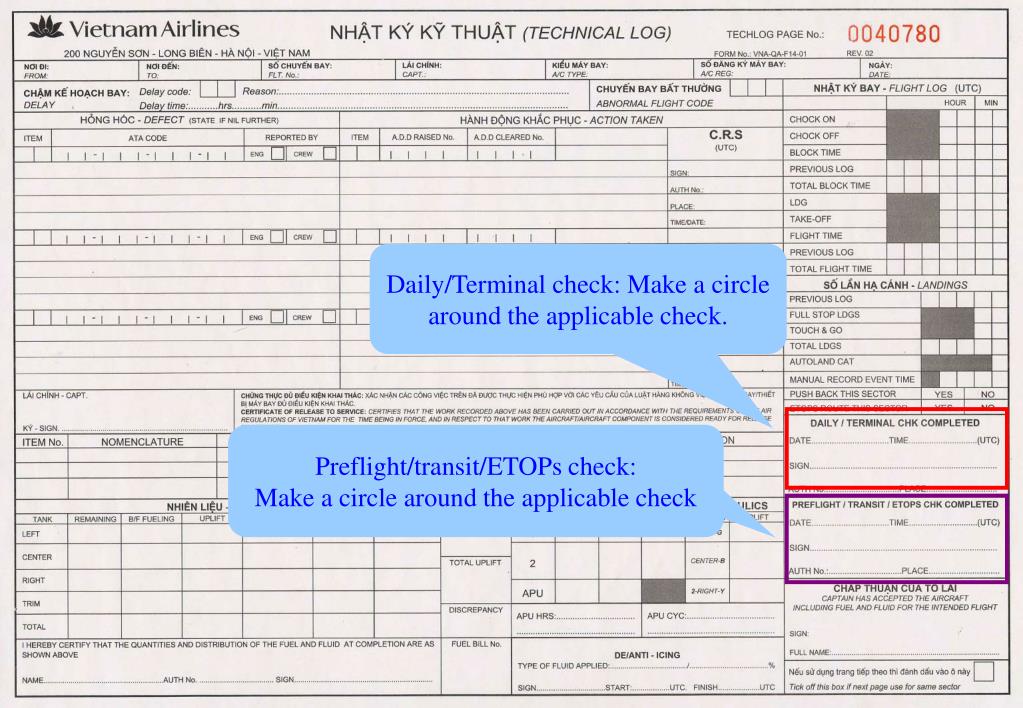

Daily/Terminal check: Make a circle around the applicable check. Preflight/transit/ETOPs check: Make a circle around the applicable check

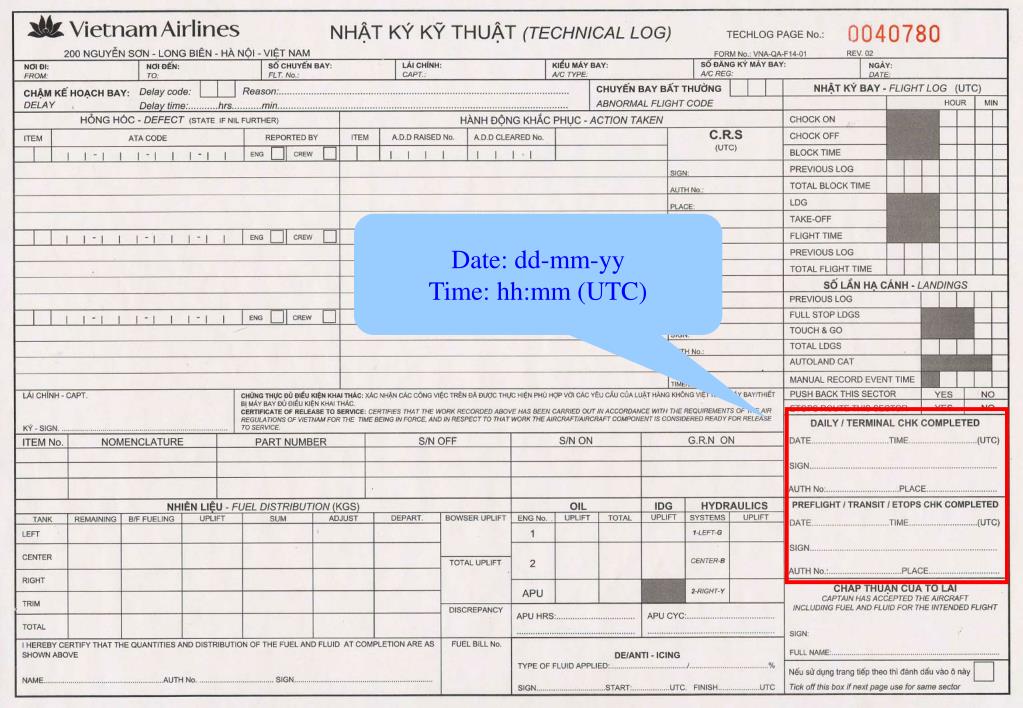

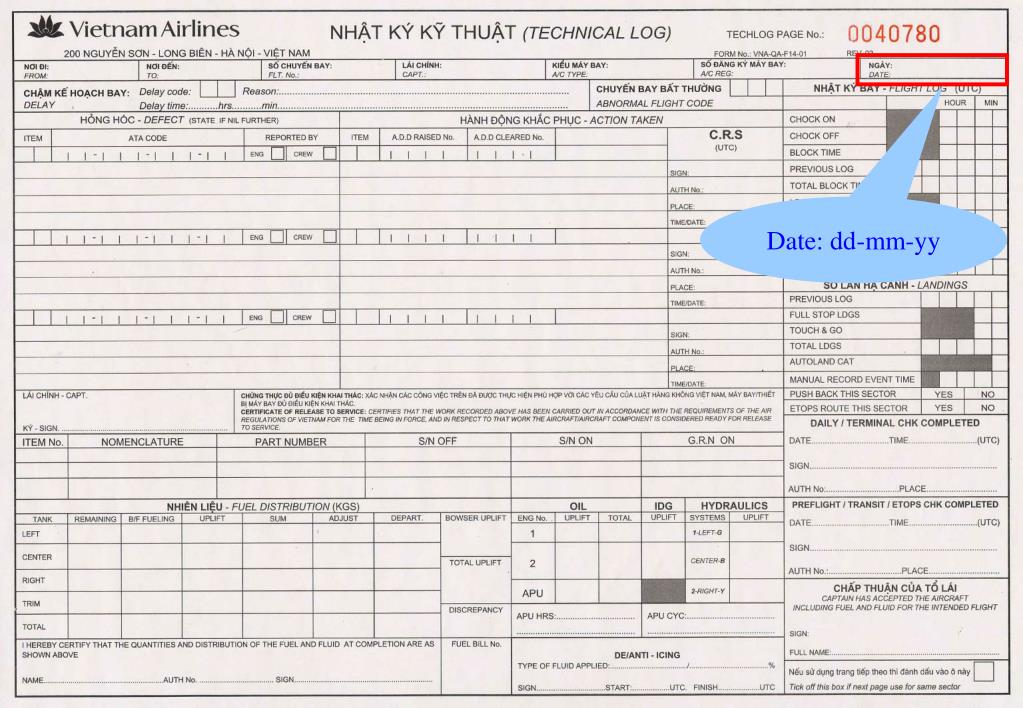

Date: dd-mm-yy Time: hh:mm (UTC)
