HLT progress in CR2

This document outlines the current progress in the commissioning of the TPC, detailing the successful connection of 6 nodes to the read-out of one TPC sector. The first tracks have been recorded using the HLT online monitoring, and work is ongoing to debug the Clusterfinder algorithm, achieving an event processing time of approximately 4.1ms on a Dual Opteron machine. Future enhancements include integrating the Clusterfinder within the HROC FPGA, which promises significant CPU time savings, as referenced in J. Thader's thesis from KIP-Heidelberg.

dieter
Télécharger la présentation

HLT progress in CR2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. HLT progress in CR2

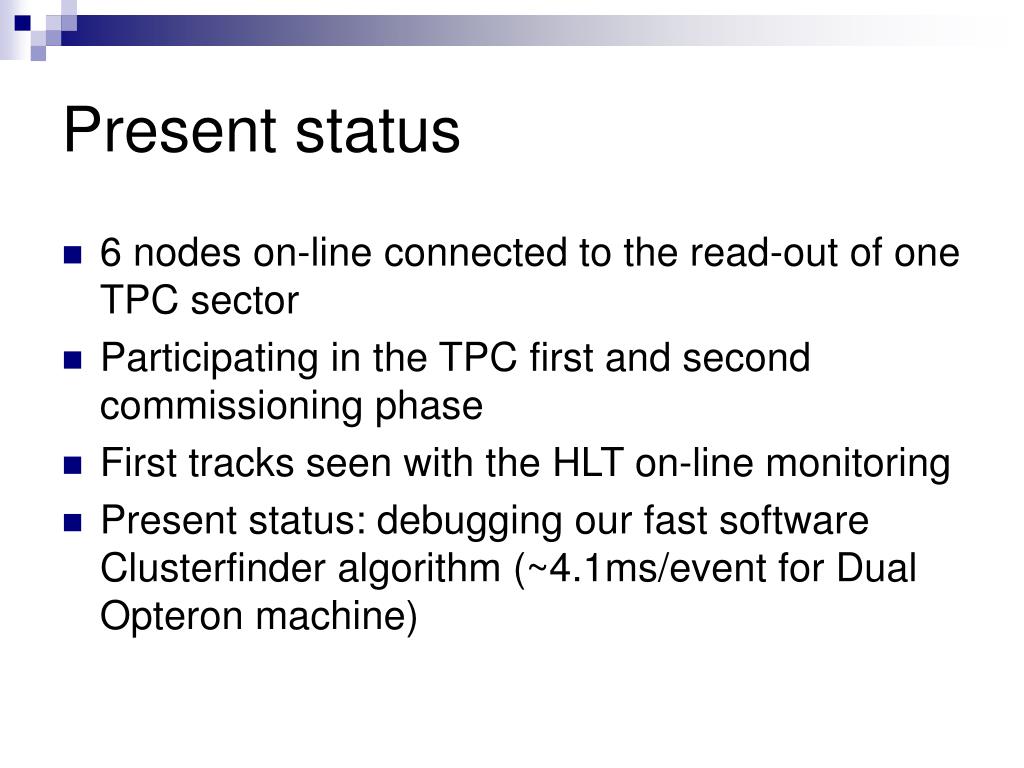

  2. Present status • 6 nodes on-line connected to the read-out of one TPC sector • Participating in the TPC first and second commissioning phase • First tracks seen with the HLT on-line monitoring • Present status: debugging our fast software Clusterfinder algorithm (~4.1ms/event for Dual Opteron machine)

  3. HLT for TPC architecture In near future, CF will work in the HROC FPGA – significant saving in CPU time See thesis of J.Thader,KIP-Heidelberg

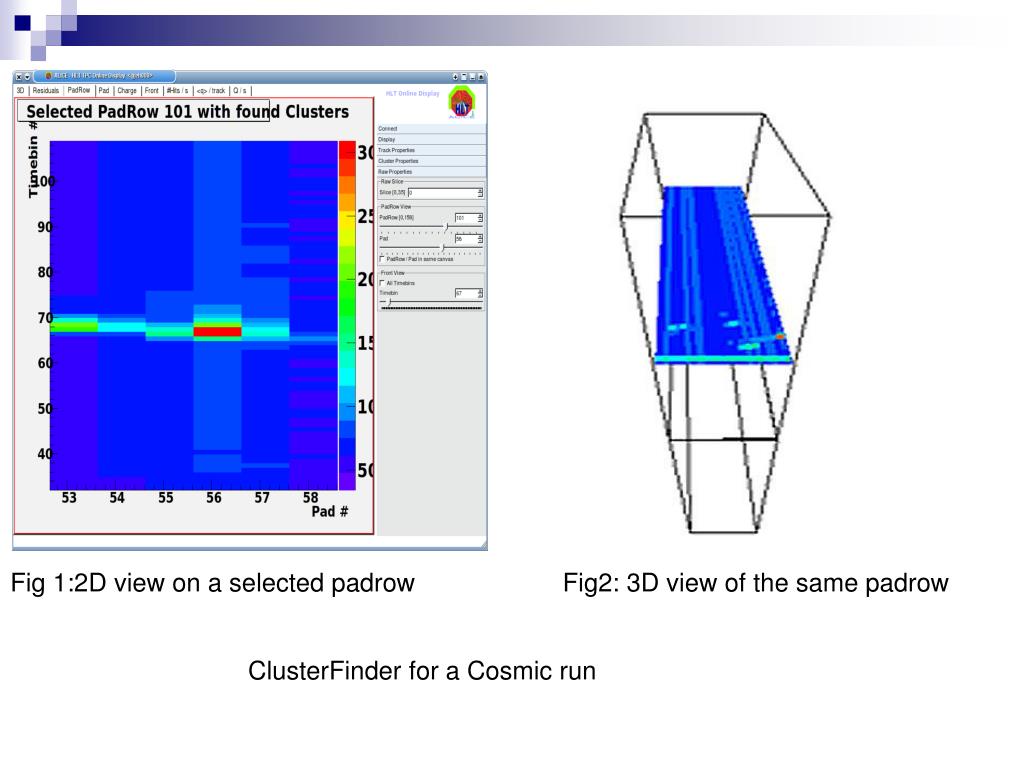

  4. Fig 1:2D view on a selected padrow Fig2: 3D view of the same padrow ClusterFinder for a Cosmic run

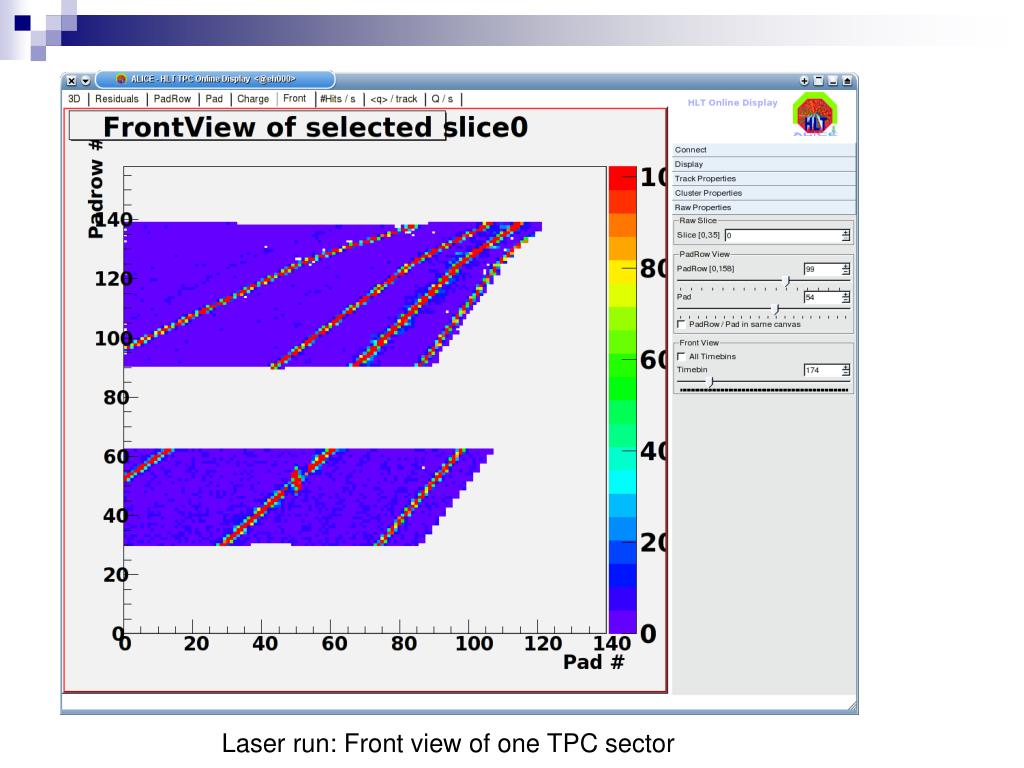

  5. Laser run: Front view of one TPC sector

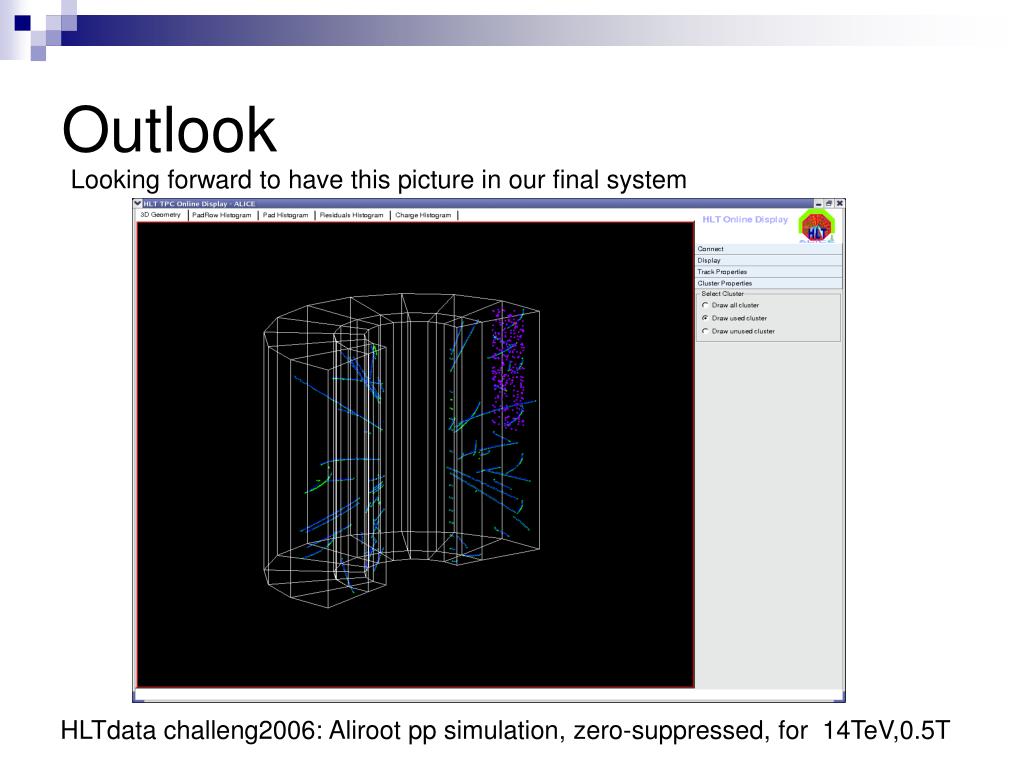

  6. Outlook Looking forward to have this picture in our final system HLTdata challeng2006: Aliroot pp simulation, zero-suppressed, for 14TeV,0.5T
