INDUSTRIAL AUTOMATION FROM ONE PROVIDER

1. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EAST ELECTRIC SYSTEMINTEGRATOR & SALES PARTNER

2. INDUSTRIAL AUTOMATION FROM ONE PROVIDER Easy Handling – more than just a kit of componentsEasier. Faster. More economical.

3. INDUSTRIAL AUTOMATION FROM ONE PROVIDER Your vision – Our solution Your vision: Mechatronic system solutions • Linear Systems • Handling Systems • Positioning Systems • Robotic Palletizer • Cartesian Robot • … Our solution: EasyHandling – more than a just a kit of components

4. INDUSTRIAL AUTOMATION FROM ONE PROVIDER Pneumatics Mechanics EasyHandling – Kit of components Drive Systems Control Systems • standardized – selected – completely – aligned – market-driven – future-proofed – platform based

5. INDUSTRIAL AUTOMATION FROM ONE PROVIDER • engineering without the distractions – including parts lists, technical data and CAD drawings • fast assembly for immediate deployment – based on positive-locking connection technology • commissioning in no time at all – using the intelligent wizard • production efficiency – with run time and travel path based maintenance instructions • open system architecture – free to go where the market takes you Easier to get the result you want. Faster route to the optimal application. More economical saves you money.

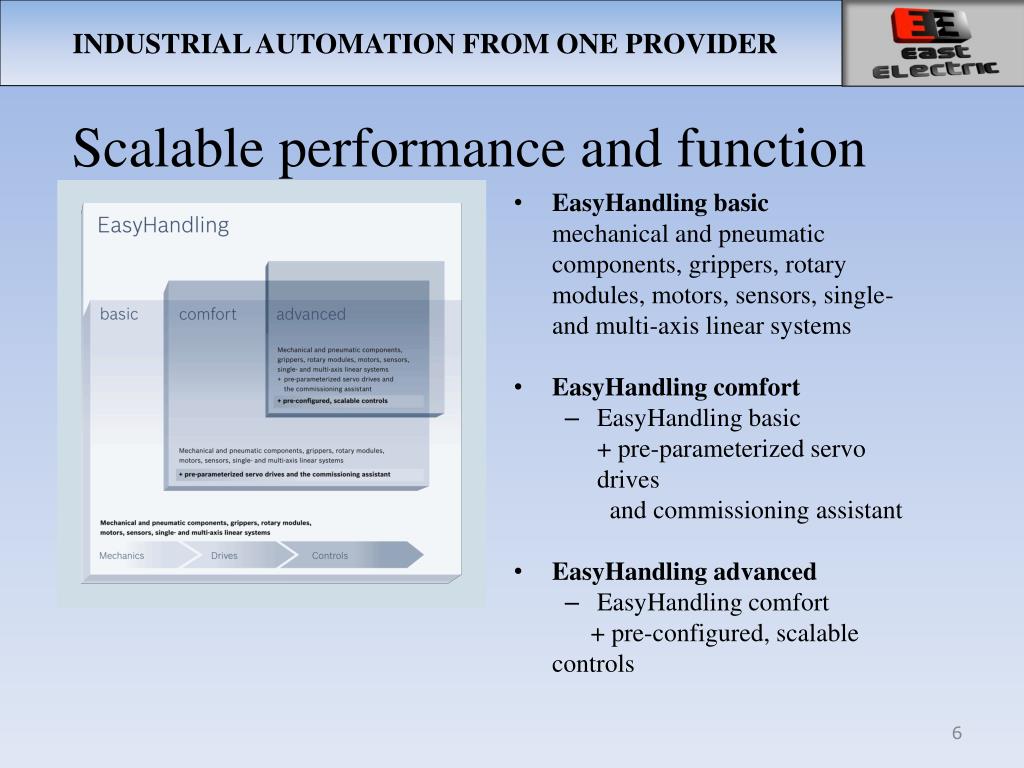

6. INDUSTRIAL AUTOMATION FROM ONE PROVIDER Scalable performance and function • EasyHandling basic mechanical and pneumatic components, grippers, rotary modules, motors, sensors, single- and multi-axis linear systems • EasyHandling comfort • EasyHandling basic + pre-parameterized servo drives and commissioning assistant • EasyHandling advanced • EasyHandling comfort + pre-configured, scalable controls

7. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Mechatronics made to • mechanical and pneumatic components • grippers • rotary modules • motors • sensors • single- and multi-axis linear systems • delivery as components, as kit or assembled

8. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Applications

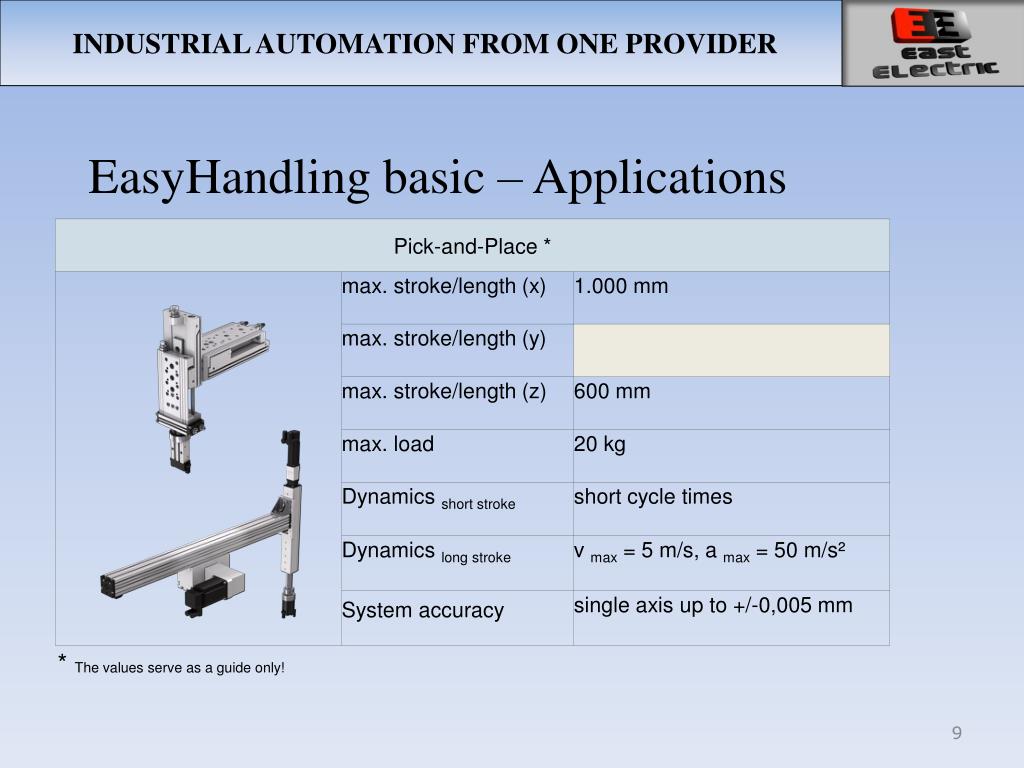

9. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Applications * The values serve as a guide only!

10. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Applications * The values serve as a guide only!

11. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Applications * The values serve as a guide only!

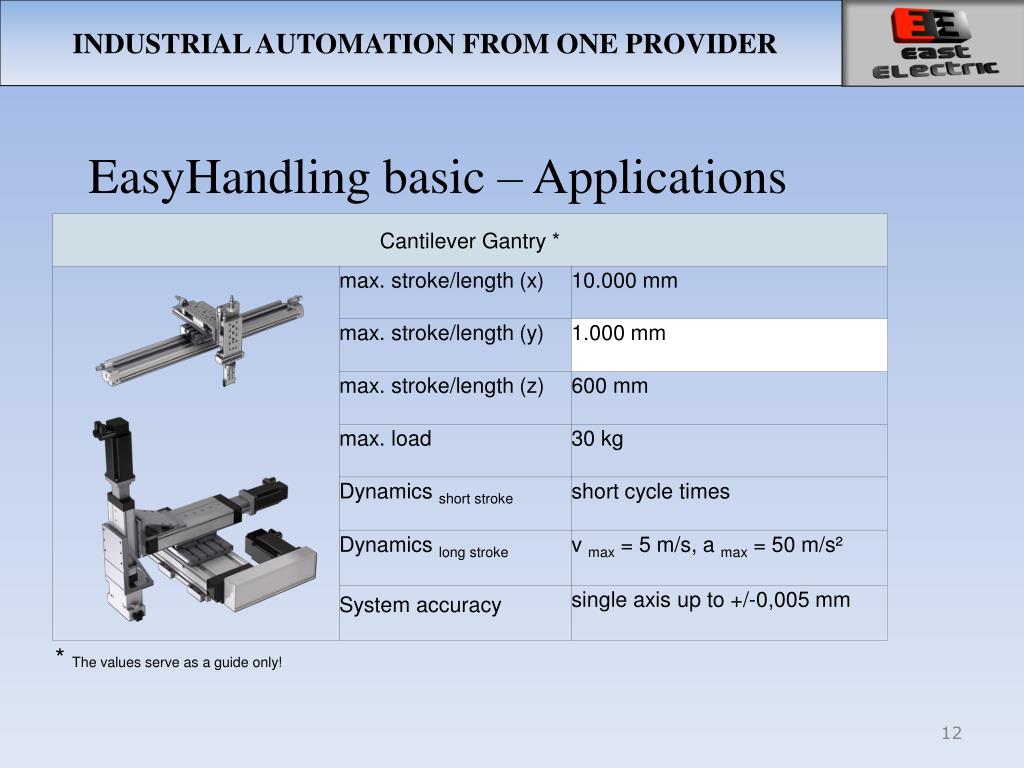

12. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Applications * The values serve as a guide only!

13. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Applications * The values serve as a guide only!

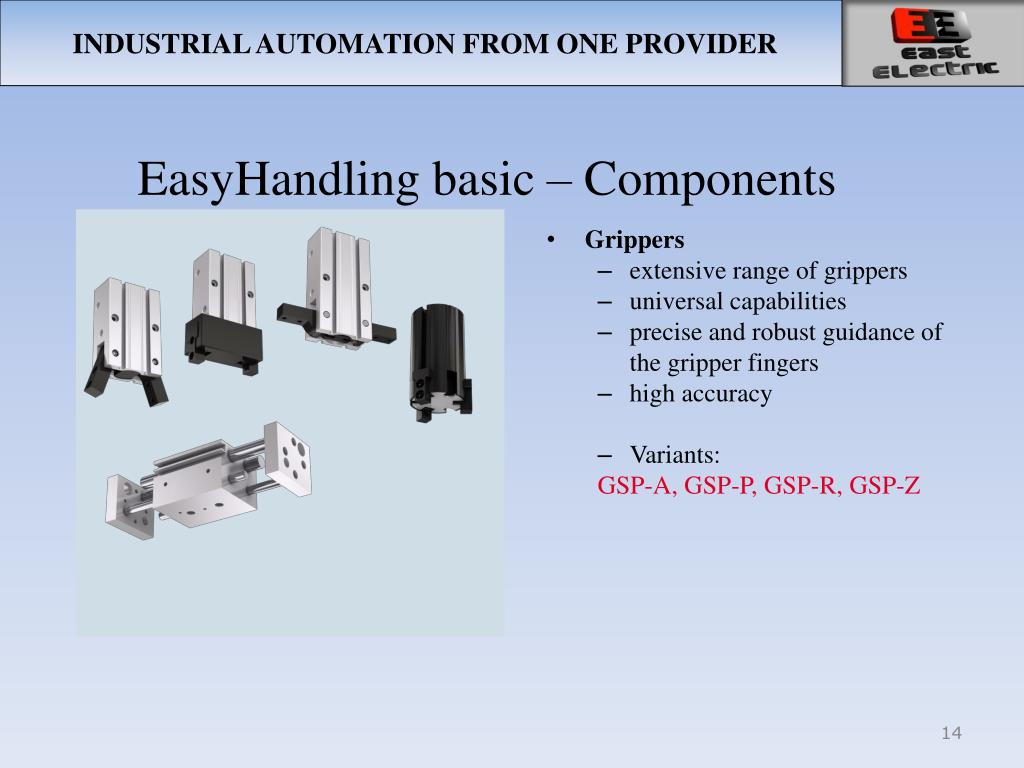

14. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Grippers • extensive range of grippers • universal capabilities • precise and robust guidance of the gripper fingers • high accuracy • Variants: GSP-A, GSP-P, GSP-R, GSP-Z

15. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Vacuum technology • handling of delicate or soft workpieces • compact and powerful ejectors for vacuum generation • extensive range of fl at and bellows-type suction grippers • non-contacting transport unit is working on the Bernoulli principle • Variants: EBS, FSx, BSx, NCT

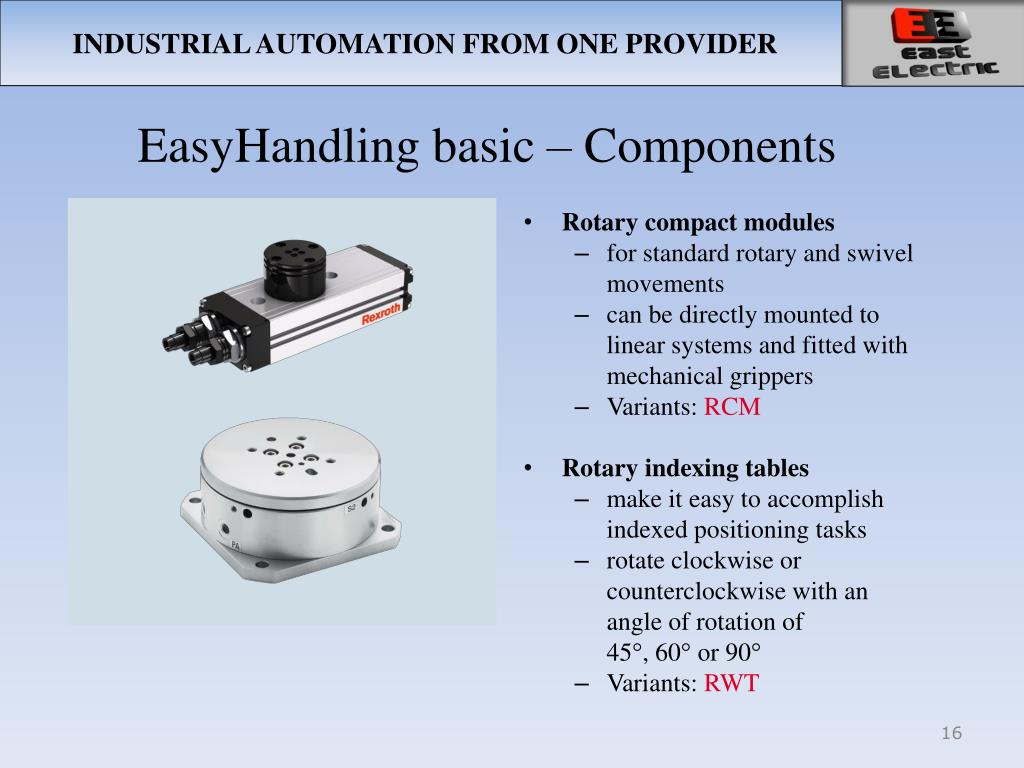

16. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Rotary compact modules • for standard rotary and swivel movements • can be directly mounted to linear systems and fitted with mechanical grippers • Variants: RCM • Rotary indexing tables • make it easy to accomplish indexed positioning tasks • rotate clockwise or counterclockwise with an angle of rotation of 45°, 60° or 90° • Variants: RWT

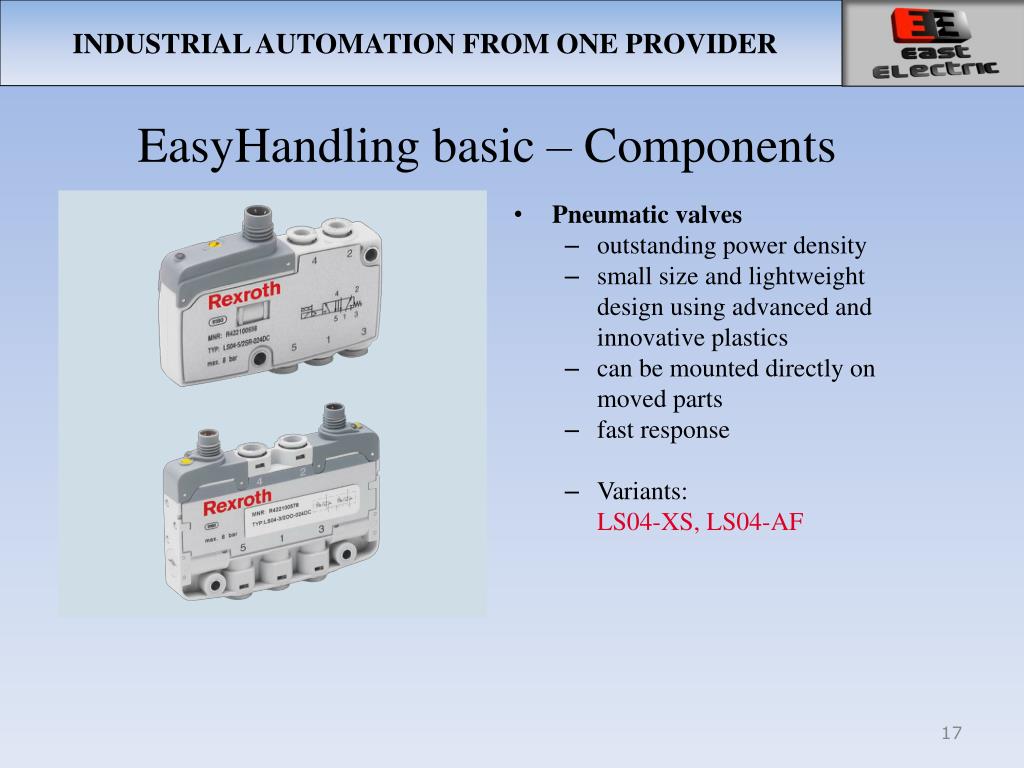

17. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Pneumatic valves • outstanding power density • small size and lightweight design using advanced and innovative plastics • can be mounted directly on moved parts • fast response • Variants: LS04-XS, LS04-AF

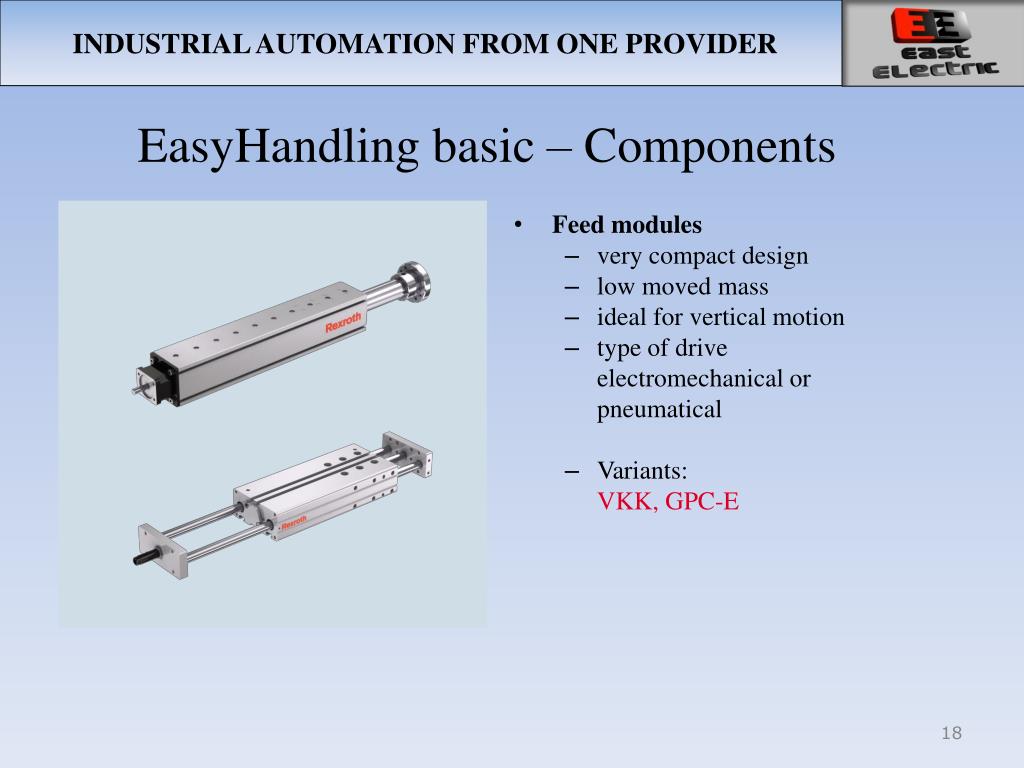

18. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Feed modules • very compact design • low moved mass • ideal for vertical motion • type of drive electromechanical or pneumatical • Variants: VKK, GPC-E

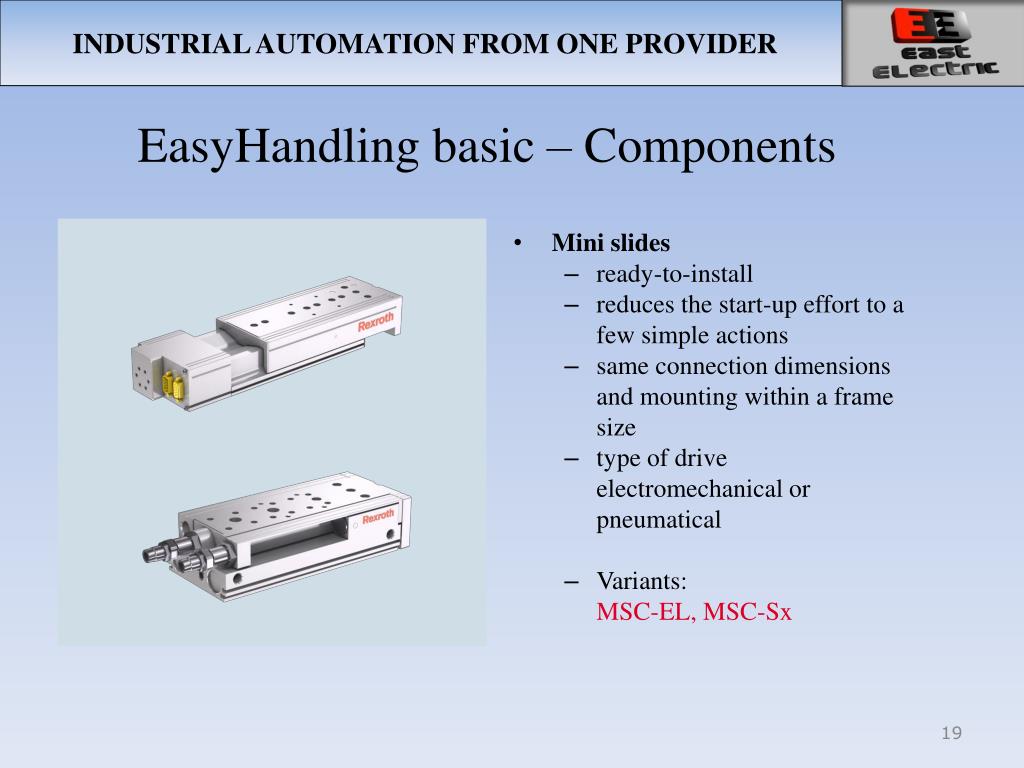

19. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Mini slides • ready-to-install • reduces the start-up effort to a few simple actions • same connection dimensions and mounting within a frame size • type of drive electromechanical or pneumatical • Variants: MSC-EL, MSC-Sx

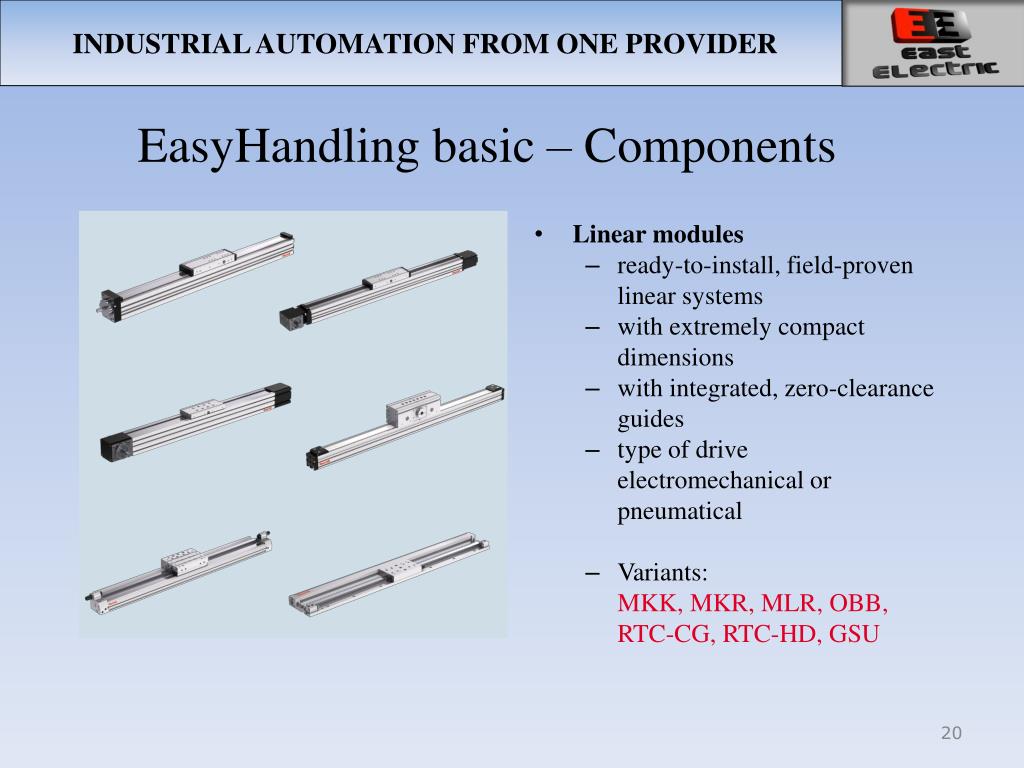

20. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Linear modules • ready-to-install, field-proven linear systems • with extremely compact dimensions • with integrated, zero-clearance guides • type of drive electromechanical or pneumatical • Variants: MKK, MKR, MLR, OBB, RTC-CG, RTC-HD, GSU

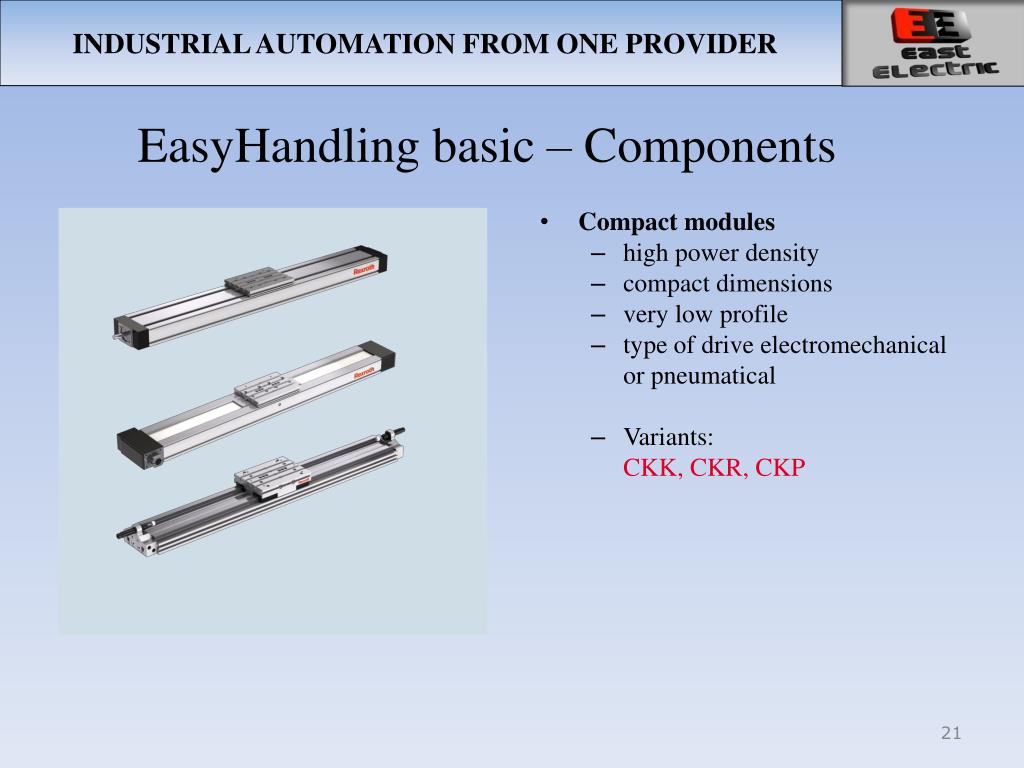

21. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Compact modules • high power density • compact dimensions • very low profile • type of drive electromechanical or pneumatical • Variants: CKK, CKR, CKP

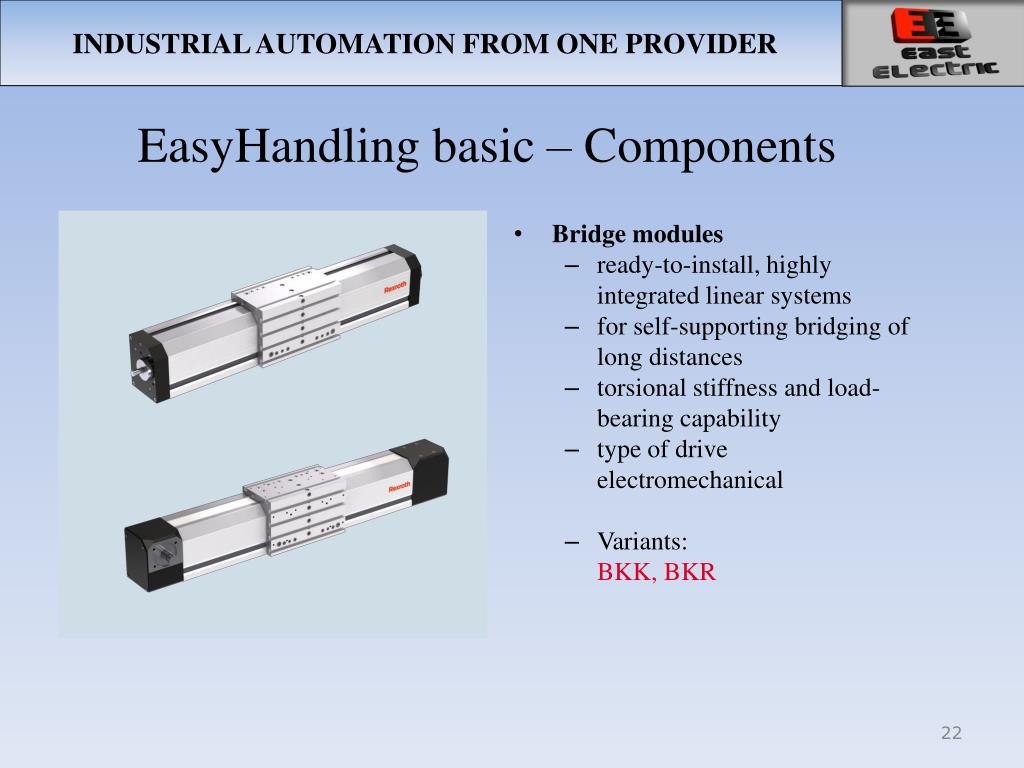

22. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Bridge modules • ready-to-install, highly integrated linear systems • for self-supporting bridging of long distances • torsional stiffness and load-bearing capability • type of drive electromechanical • Variants: BKK, BKR

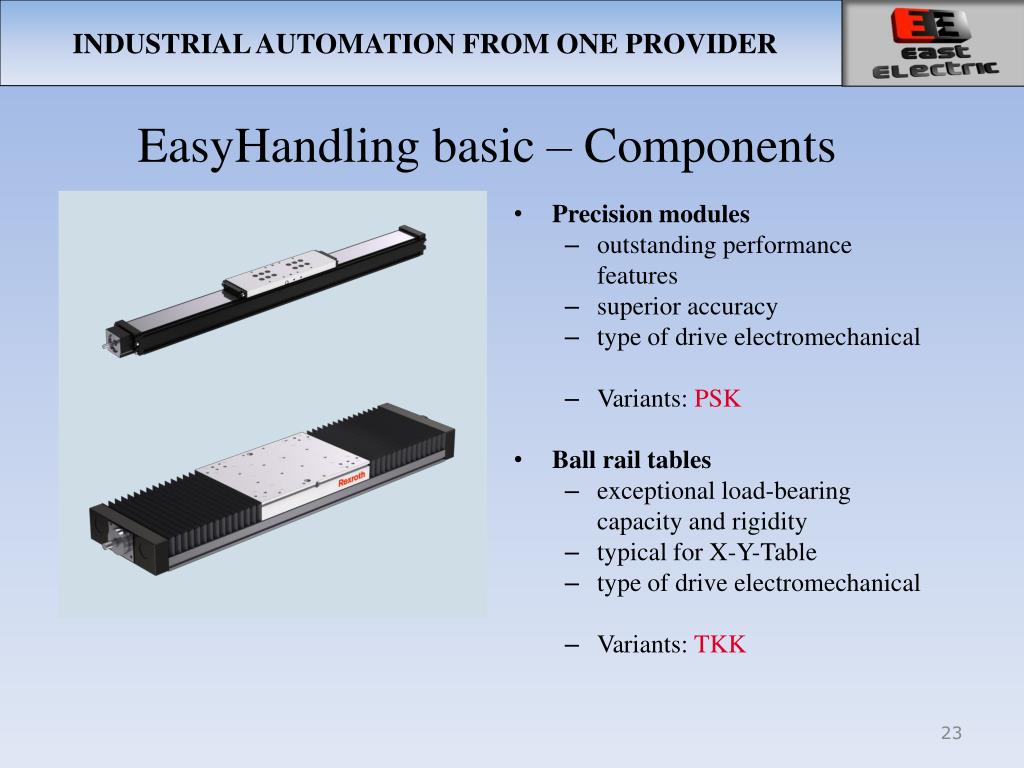

23. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Precision modules • outstanding performance features • superior accuracy • type of drive electromechanical • Variants: PSK • Ball rail tables • exceptional load-bearing capacity and rigidity • typical for X-Y-Table • type of drive electromechanical • Variants: TKK

24. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Components • Servo motors • wide power spectrum and high torque density • compact design • Variants: MSM, MSK • Linear motors • different graded lengths and sizes • compact design • Variants: MCL

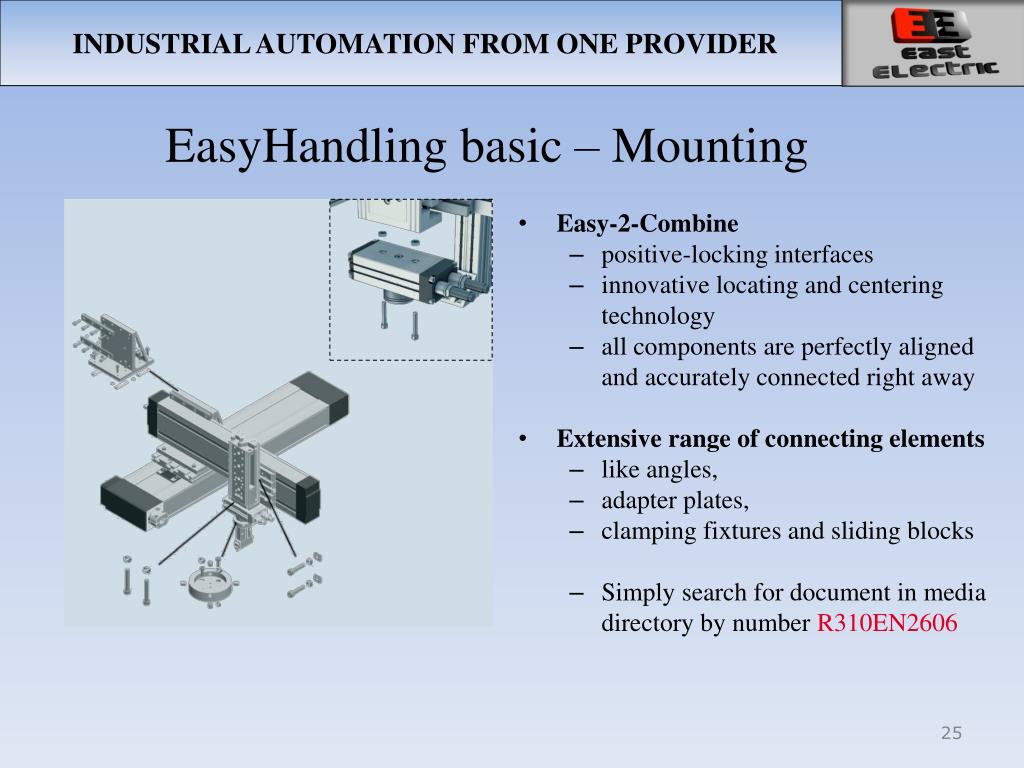

25. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling basic – Mounting • Easy-2-Combine • positive-locking interfaces • innovative locating and centering technology • all components are perfectly aligned and accurately connected right away • Extensive range of connecting elements • like angles, • adapter plates, • clamping fixtures and sliding blocks • Simply search for document in media directory by number R310EN2606

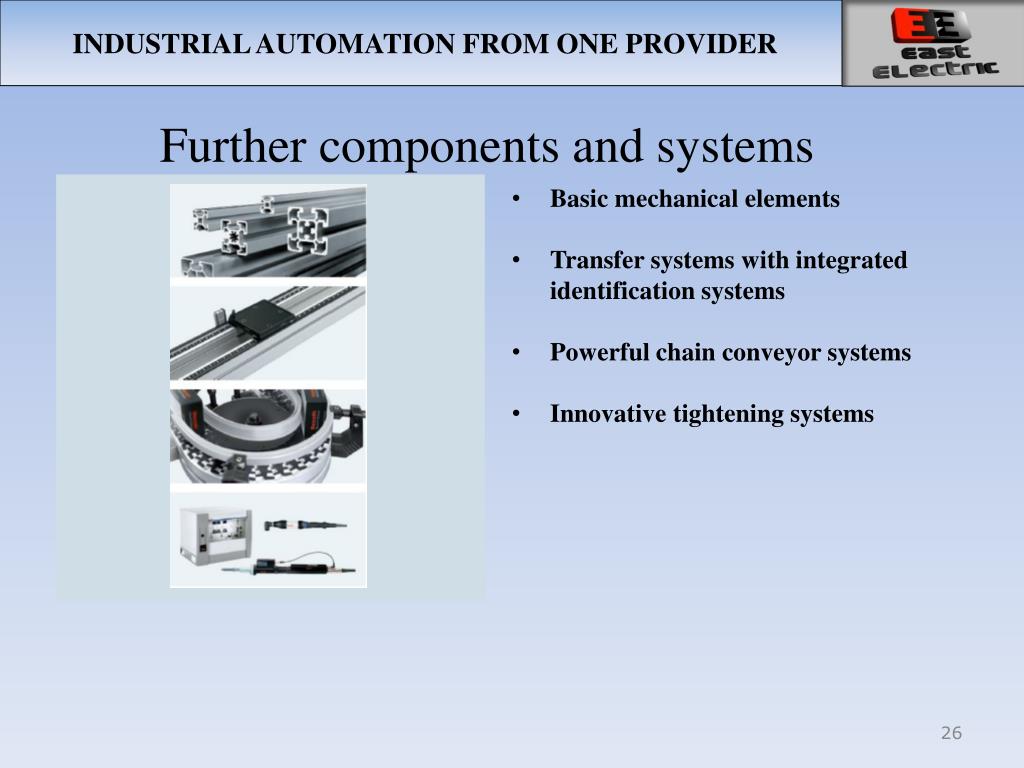

26. INDUSTRIAL AUTOMATION FROM ONE PROVIDER Further components and systems • Basic mechanical elements • Transfer systems with integrated identification systems • Powerful chain conveyor systems • Innovative tightening systems

27. INDUSTRIAL AUTOMATION FROM ONE PROVIDER Easy Handling comfort – get off to a faster start • mechanical and pneumatic components • grippers • rotary modules • motors • sensors • single- and multi-axis linear systems + pre-parameterized servo drives + commissioning wizard

28. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling comfort – Architecture 3rd party control

29. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EasyHandling – Applications • general factory automation • dispensing • Joining • handling • Measuring • Assembly • electronics production • semiconductor production • medical systems • pharmaceutical industry • solar cell production • battery production

30. Thank you for your attention! TOGETHER WE ARE MORE POWERFULL
