  1. INDUSTRIAL AUTOMATION FROM ONE PROVIDER EAST ELECTRIC SYSTEMINTEGRATOR & SALES PARTNER JUNE- 2013

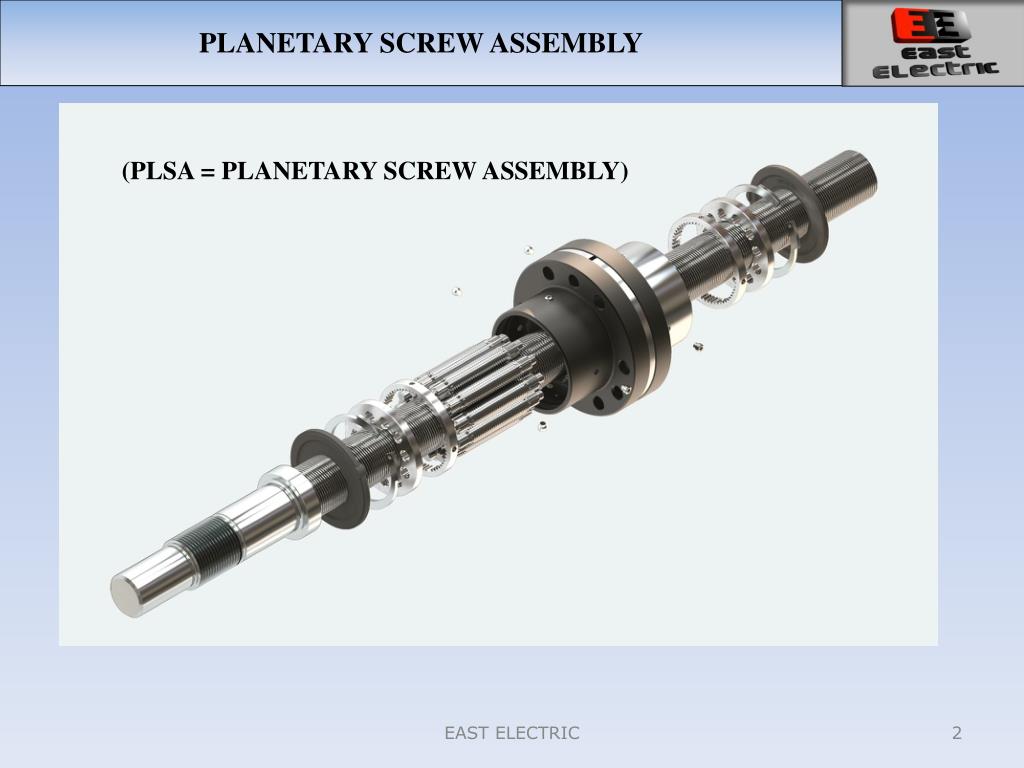

  2. PLANETARY SCREW ASSEMBLY (PLSA = PLANETARY SCREW ASSEMBLY) EAST ELECTRIC

  3. YOUR REQUIREMENTS & OUR SOLUTION • Screw assemblies with high power density offered at market-oriented prices • High load capacities, high rigidity • Precise positioning and repeat accuracy for travel speeds of up to 1.5 m/s Our Solution: Planetary screw assemblies from Bosch Rexroth EAST ELECTRIC

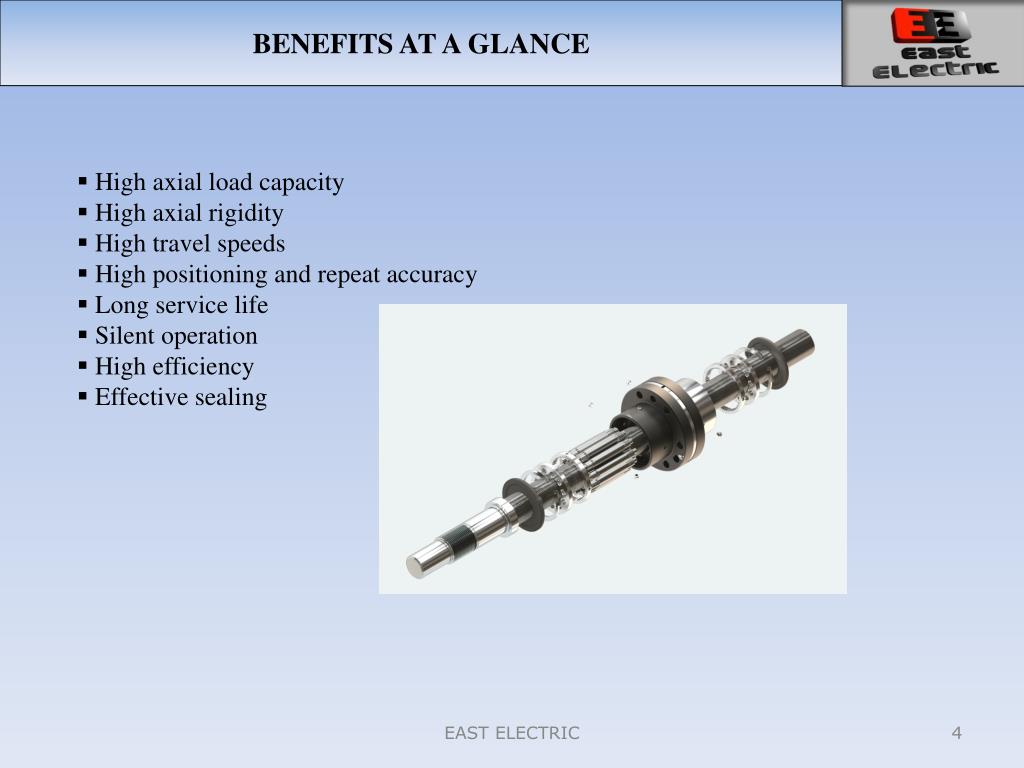

  4. BENEFITS AT A GLANCE • High axial load capacity • High axial rigidity • High travel speeds • High positioning and repeat accuracy • Long service life • Silent operation • High efficiency • Effective sealing EAST ELECTRIC

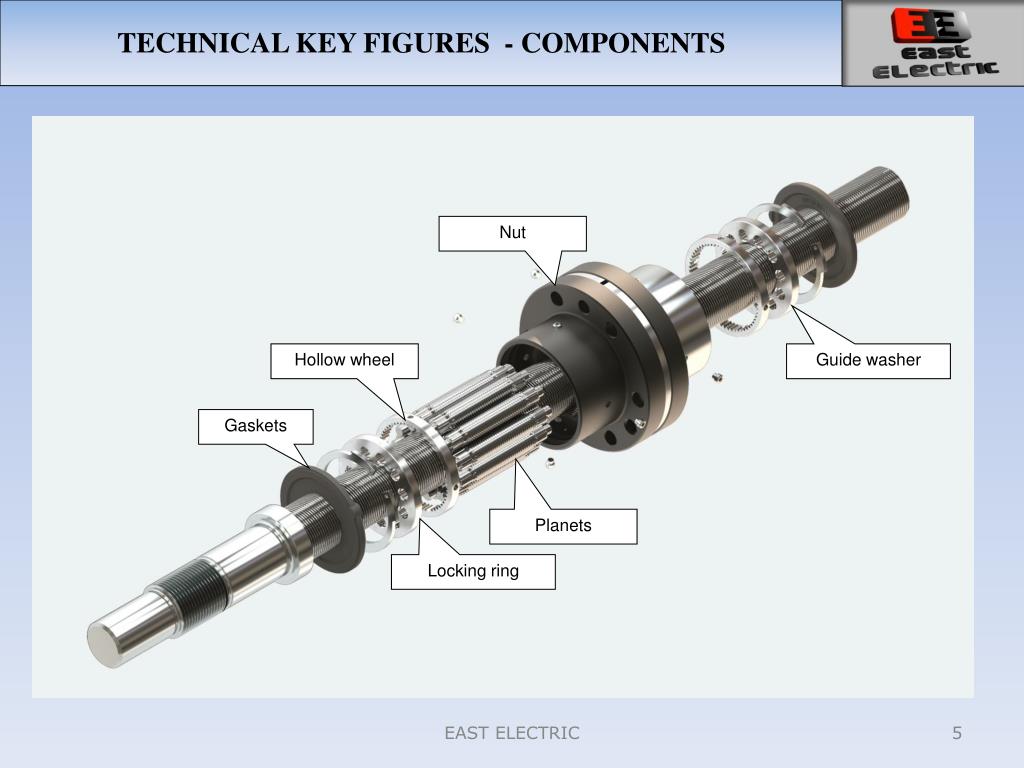

  5. TECHNICAL KEY FIGURES - COMPONENTS Nut Hollow wheel Guide washer Gaskets Planets Locking ring EAST ELECTRIC

  6. TECHNICAL KEY FIGURES - NUT TYPES Cylindrical single nut (with axial play) Flange single nut (with axial play) Flange single nut, split The nut length remains almost identical for the respective size. The following calculation therefore applies to load capacity comparisons: Load capacity of split single nut = 0.5 x load capacity of single nut from April 2013: Cylindrical- and Flange single nut available w/o axial play EAST ELECTRIC

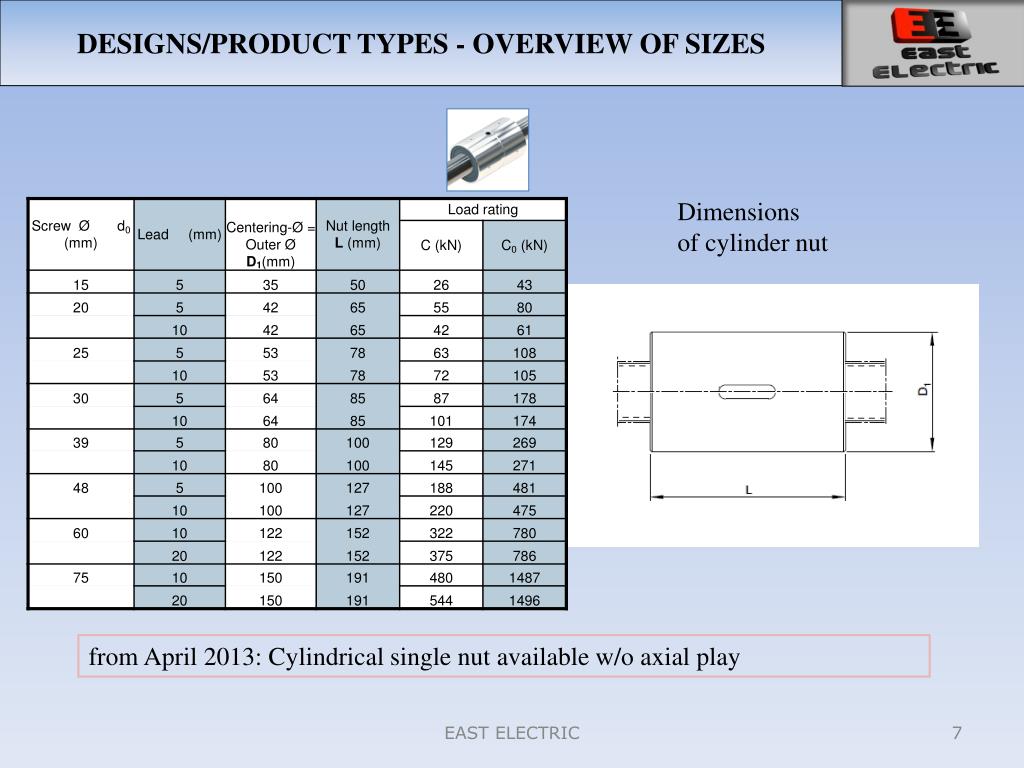

  7. DESIGNS/PRODUCT TYPES - OVERVIEW OF SIZES Dimensions of cylinder nut from April 2013: Cylindrical single nut available w/o axial play EAST ELECTRIC

  8. DESIGNS/PRODUCT TYPES - OVERVIEW OF SIZES Dimensions of flange nut from April 2013: Flange single nut available w/o axial play EAST ELECTRIC

  9. FIELD OF APPLICATION/TARGET INDUSTRIES • Medium to heavy-duty machine construction: • Plastic injection molding • Broaching machines • Valves and flaps for special machine construction • Machine tools • Presses • Bonding, filling, joining • Automatic manipulators • Aerospace • Steel industry • Tire industry • Stage technology • Simulators • Measuring technology EAST ELECTRIC

  10. ONLINE TOOLS • The CAD configuratorcan be used at www.boschrexroth.de • 2D and/or 3D models of system applications can be created and output in different formats in the CAD configurator. EAST ELECTRIC

  11. PLANETARY SCREW ASSEMBLIES (PLSA)FROM BOSCH REXROTH High load capacity and compact design... …with the planetary screw assemblies from Bosch Rexroth EAST ELECTRIC

  12. Thank you! SC. EAST ELECTRIC SRL BdulBasarabia, nr. 256, in incintaRepublica, sector 3, Bucuresti office@eastelectric.ro www.eastelectric.ro EAST ELECTRIC
