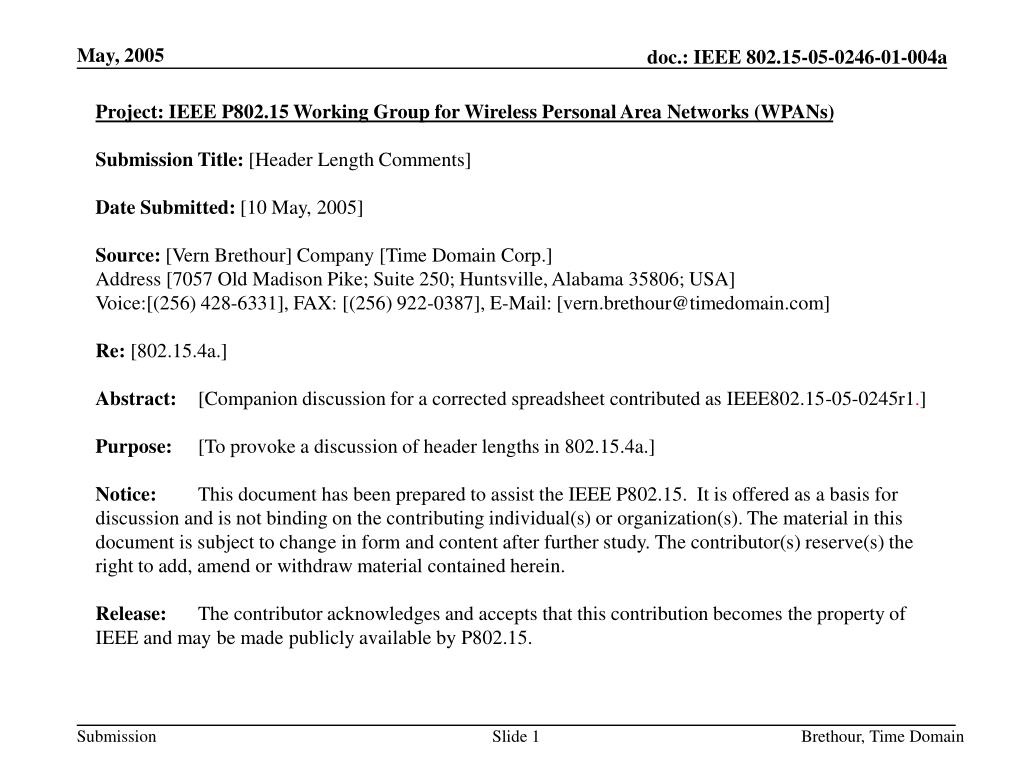

  1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Header Length Comments] Date Submitted: [10 May, 2005] Source: [Vern Brethour] Company [Time Domain Corp.] Address [7057 Old Madison Pike; Suite 250; Huntsville, Alabama 35806; USA] Voice:[(256) 428-6331], FAX: [(256) 922-0387], E-Mail: [vern.brethour@timedomain.com] Re: [802.15.4a.] Abstract: [Companion discussion for a corrected spreadsheet contributed as IEEE802.15-05-0245r1.] Purpose: [To provoke a discussion of header lengths in 802.15.4a.] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Brethour, Time Domain

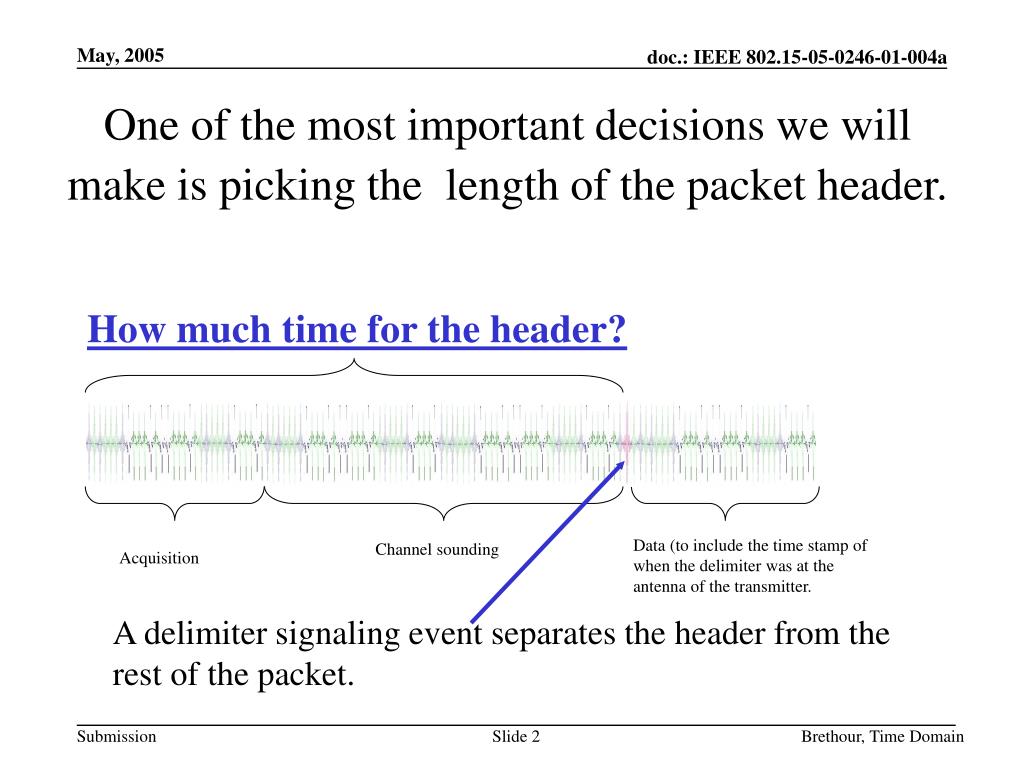

  2. One of the most important decisions we will make is picking the length of the packet header. How much time for the header? Data (to include the time stamp of when the delimiter was at the antenna of the transmitter. Channel sounding Acquisition A delimiter signaling event separates the header from the rest of the packet. Brethour, Time Domain

  3. The length of the packet header plays a huge roll in determining our long range positioning performance. • Our Standard is about the signal on the air. • The Signal on the air must support our performance targets. • Yet our performance is also largely determined by the receiver. Brethour, Time Domain

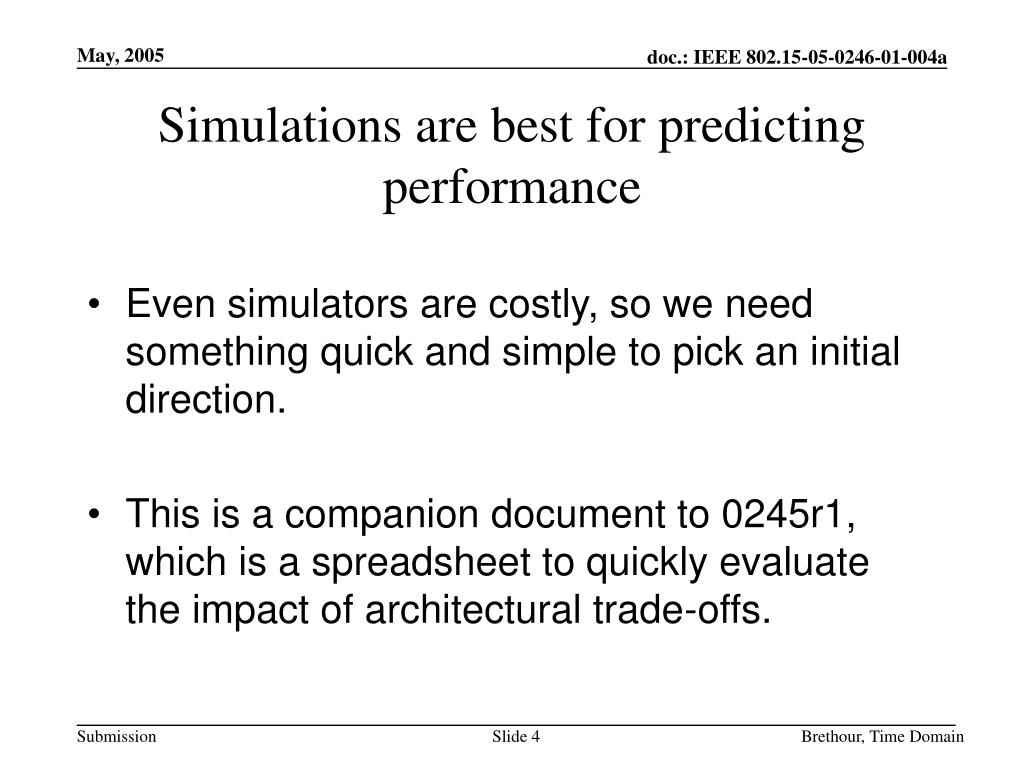

  4. Simulations are best for predicting performance • Even simulators are costly, so we need something quick and simple to pick an initial direction. • This is a companion document to 0245r1, which is a spreadsheet to quickly evaluate the impact of architectural trade-offs. Brethour, Time Domain

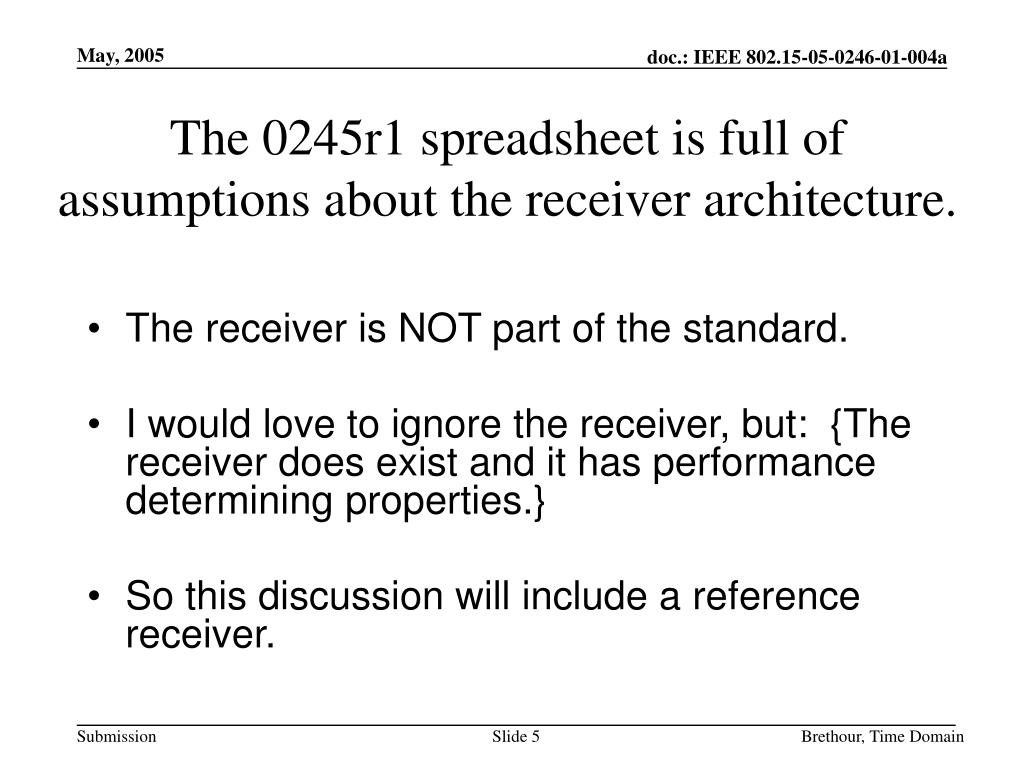

  5. The 0245r1 spreadsheet is full of assumptions about the receiver architecture. • The receiver is NOT part of the standard. • I would love to ignore the receiver, but: {The receiver does exist and it has performance determining properties.} • So this discussion will include a reference receiver. Brethour, Time Domain

  6. Include a reference receiver …..okay, but first…….. disclaimers! • This is not and will not be part of the standard. • There are lots of ways to build a radio. • There is absolutely no claim here that this reference receiver is the best way to build a 15.4a radio. • This is simply a structure to put the performance spreadsheet into some context. Brethour, Time Domain

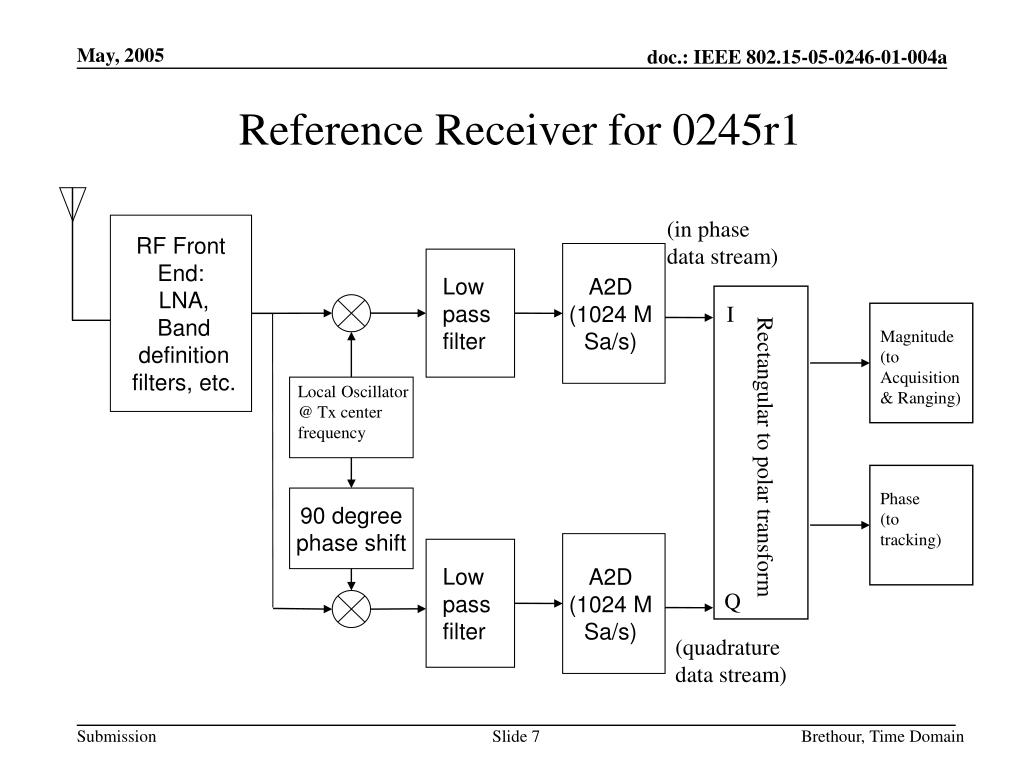

  7. Reference Receiver for 0245r1 (in phase data stream) RF Front End: LNA, Band definition filters, etc. A2D (1024 M Sa/s) Low pass filter I Rectangular to polar transform Magnitude (to Acquisition & Ranging) Local Oscillator @ Tx center frequency Phase (to tracking) 90 degree phase shift A2D (1024 M Sa/s) Low pass filter Q (quadrature data stream) Brethour, Time Domain

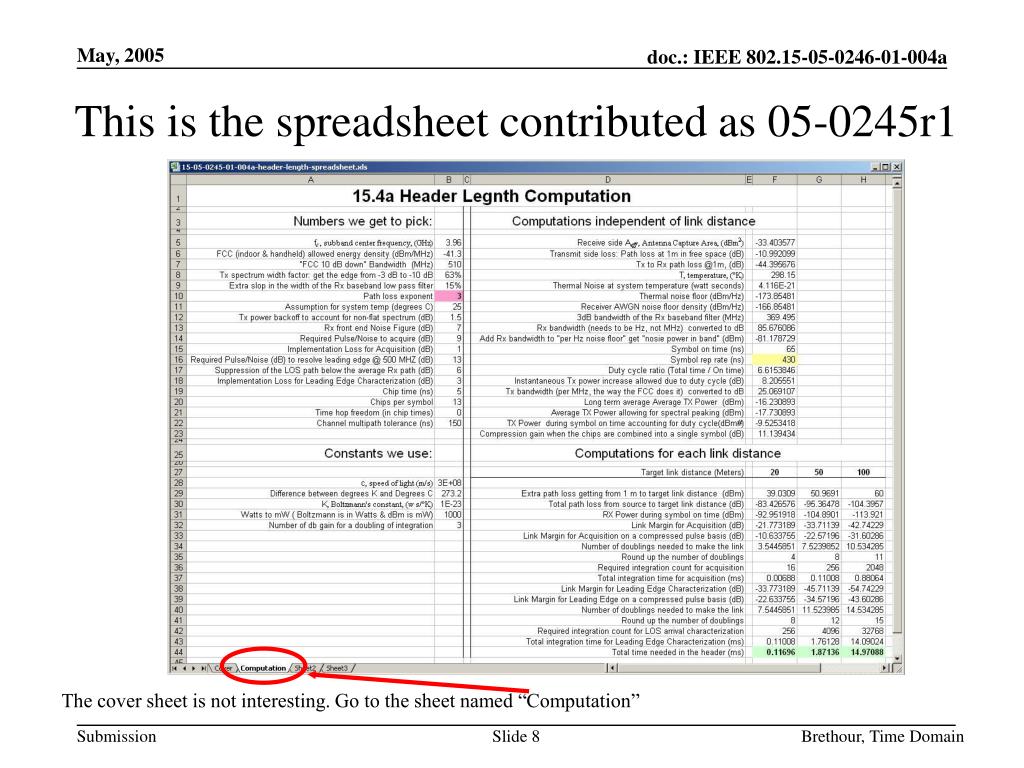

  8. This is the spreadsheet contributed as 05-0245r1 The cover sheet is not interesting. Go to the sheet named “Computation” Brethour, Time Domain

  9. How do we use the spreadsheet? We make decisions and trade off numbers in this part of the spreadsheet While we keep our eye on these two answers: These are the projected preamble lengths needed to satisfy the conditions Brethour, Time Domain

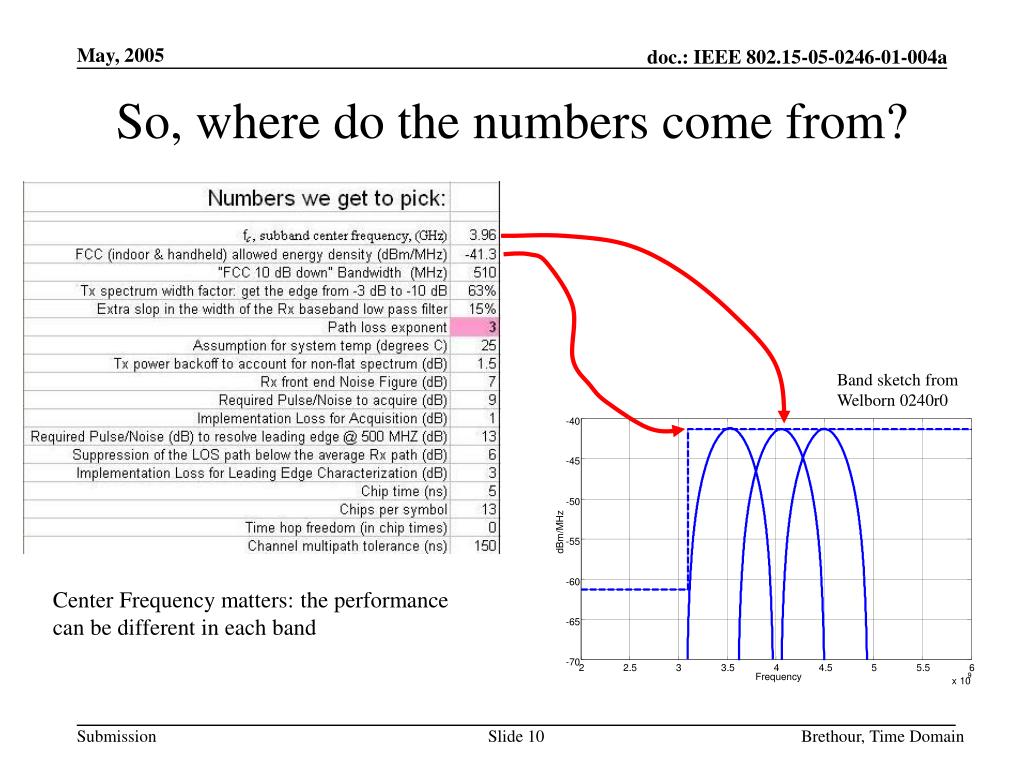

  10. So, where do the numbers come from? Band sketch from Welborn 0240r0 -40 -45 -50 dBm/MHz -55 -60 Center Frequency matters: the performance can be different in each band -65 -70 2 2.5 3 3.5 4 4.5 5 5.5 6 Frequency 9 x 10 Brethour, Time Domain

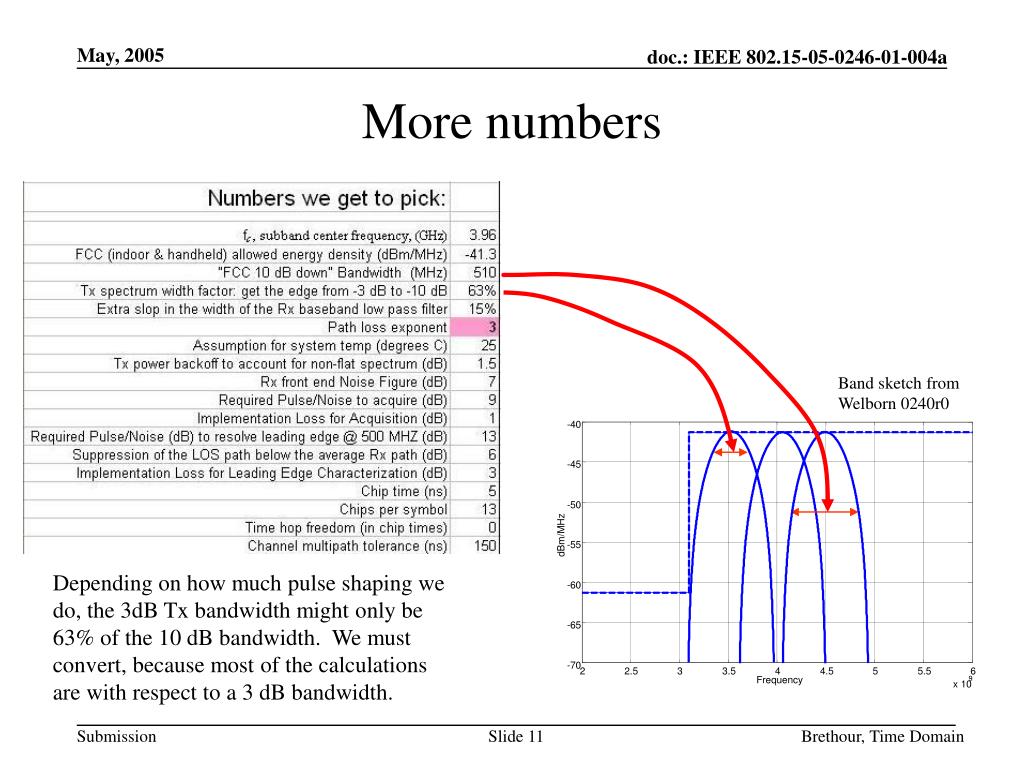

  11. More numbers Band sketch from Welborn 0240r0 -40 -45 -50 dBm/MHz -55 Depending on how much pulse shaping we do, the 3dB Tx bandwidth might only be 63% of the 10 dB bandwidth. We must convert, because most of the calculations are with respect to a 3 dB bandwidth. -60 -65 -70 2 2.5 3 3.5 4 4.5 5 5.5 6 Frequency 9 x 10 Brethour, Time Domain

  12. I low pass A2D LNA Mag Rectangle to polar osc Phase Q 90 low pass A2D More numbers The pass band of the low pass filter is often wider than the incoming signal envelope bandwidth. That allows in more noise, which we account for with this cell. Brethour, Time Domain

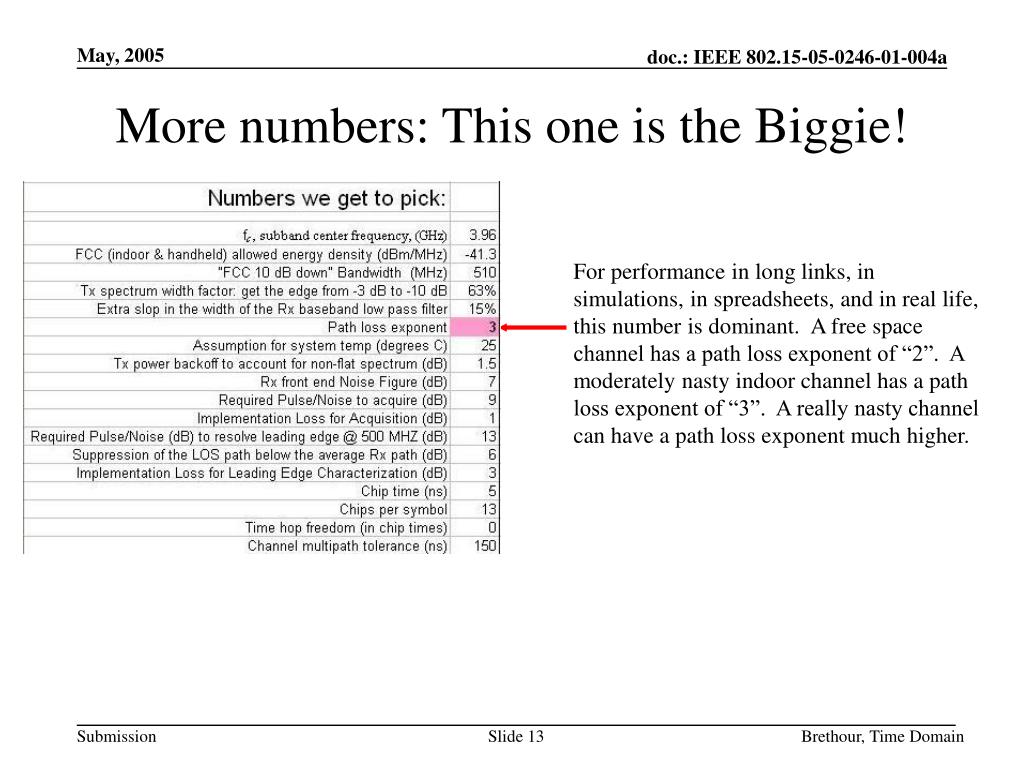

  13. More numbers: This one is the Biggie! For performance in long links, in simulations, in spreadsheets, and in real life, this number is dominant. A free space channel has a path loss exponent of “2”. A moderately nasty indoor channel has a path loss exponent of “3”. A really nasty channel can have a path loss exponent much higher. Brethour, Time Domain

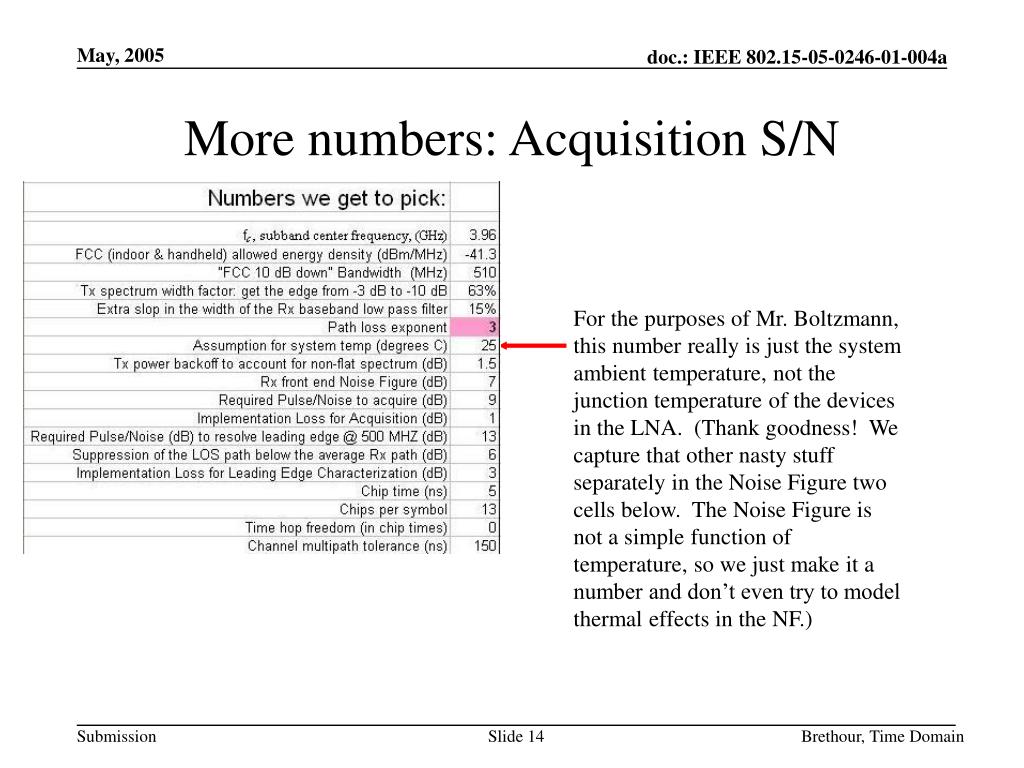

  14. More numbers: Acquisition S/N For the purposes of Mr. Boltzmann, this number really is just the system ambient temperature, not the junction temperature of the devices in the LNA. (Thank goodness! We capture that other nasty stuff separately in the Noise Figure two cells below. The Noise Figure is not a simple function of temperature, so we just make it a number and don’t even try to model thermal effects in the NF.) Brethour, Time Domain

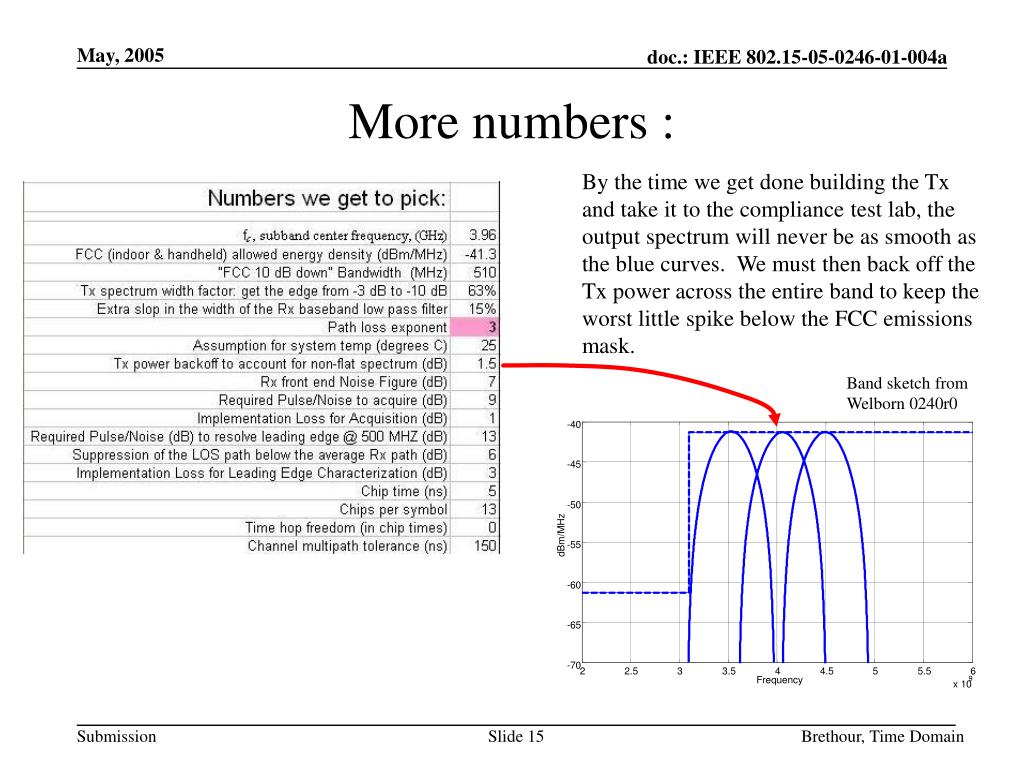

  15. More numbers : By the time we get done building the Tx and take it to the compliance test lab, the output spectrum will never be as smooth as the blue curves. We must then back off the Tx power across the entire band to keep the worst little spike below the FCC emissions mask. Band sketch from Welborn 0240r0 -40 -45 -50 dBm/MHz -55 -60 -65 -70 2 2.5 3 3.5 4 4.5 5 5.5 6 Frequency 9 x 10 Brethour, Time Domain

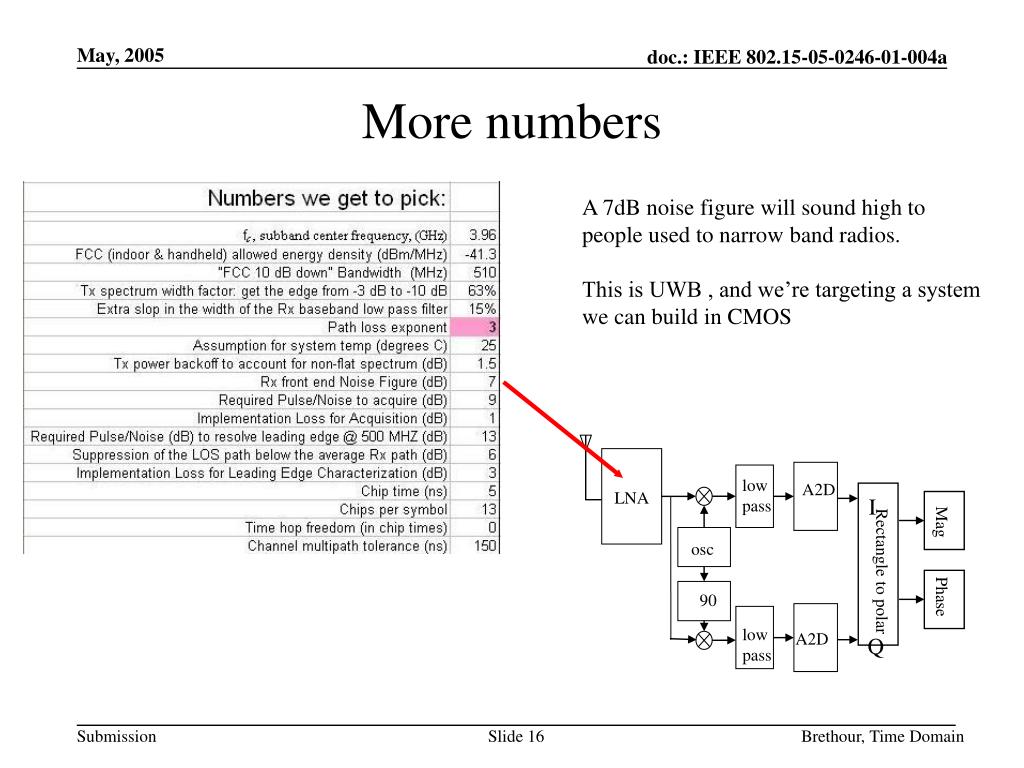

  16. I low pass A2D LNA Mag Rectangle to polar osc Phase Q 90 low pass A2D More numbers A 7dB noise figure will sound high to people used to narrow band radios. This is UWB , and we’re targeting a system we can build in CMOS Brethour, Time Domain

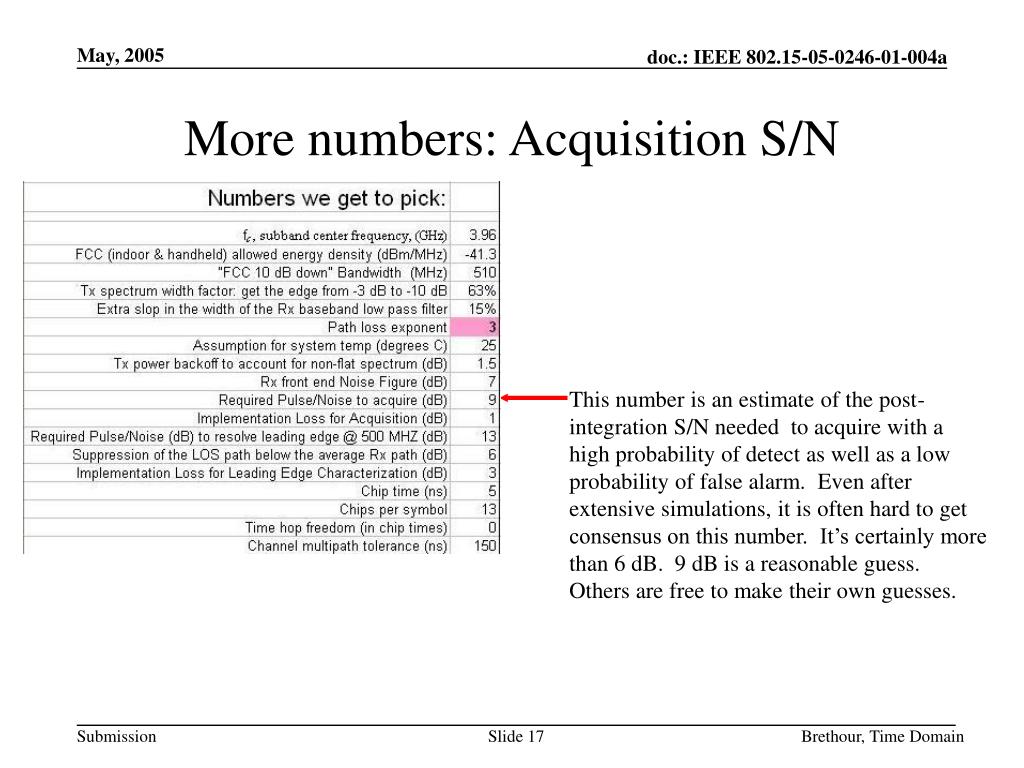

  17. More numbers: Acquisition S/N This number is an estimate of the post-integration S/N needed to acquire with a high probability of detect as well as a low probability of false alarm. Even after extensive simulations, it is often hard to get consensus on this number. It’s certainly more than 6 dB. 9 dB is a reasonable guess. Others are free to make their own guesses. Brethour, Time Domain

  18. More numbers: Acquisition S/N This number is hard for me to distinguish from the S/N in the cell directly above. Some people like to manage issues like degradation due to oscillator drift during the integration period with a separate number. This spreadsheet is organized to please those people. In this spreadsheet, this number and the one in the cell above are never used separately but rather always used as a summed pair. Brethour, Time Domain

  19. I low pass A2D LNA Mag Rectangle to polar osc Phase Q 90 low pass A2D Another key number: S/N for leading edge. The channel sounding is characterized by looking at magnitude information. But what algorithm is used for this is another issue with the reference receiver. What algorithm? Brethour, Time Domain

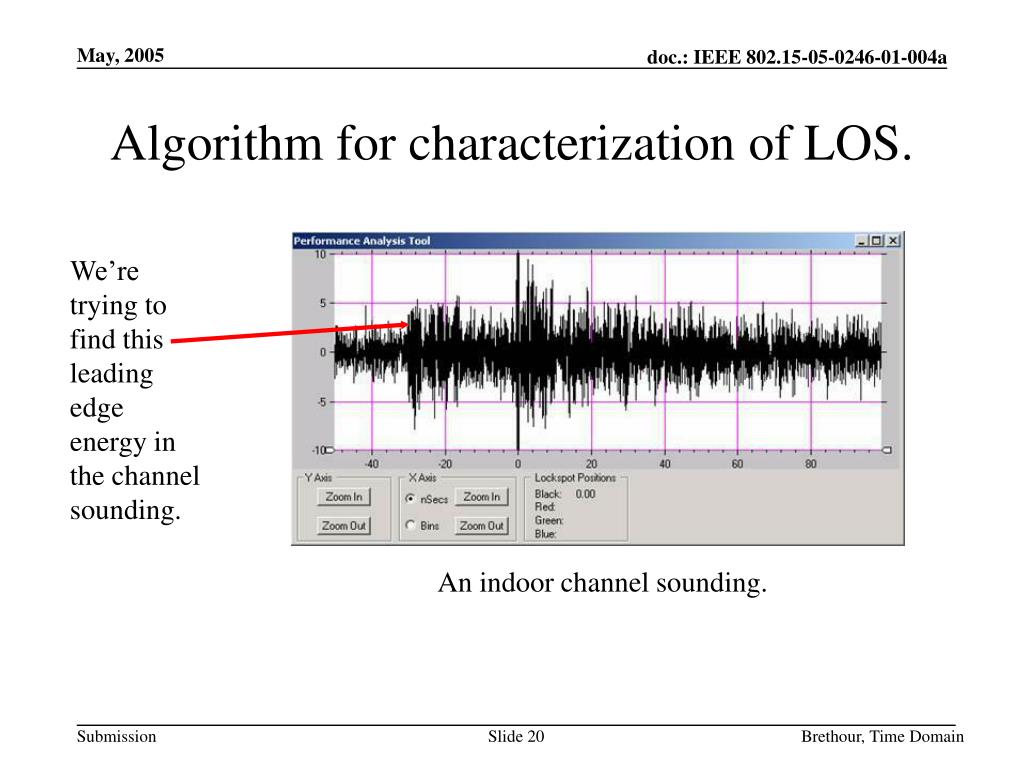

  20. Algorithm for characterization of LOS. We’re trying to find this leading edge energy in the channel sounding. An indoor channel sounding. Brethour, Time Domain

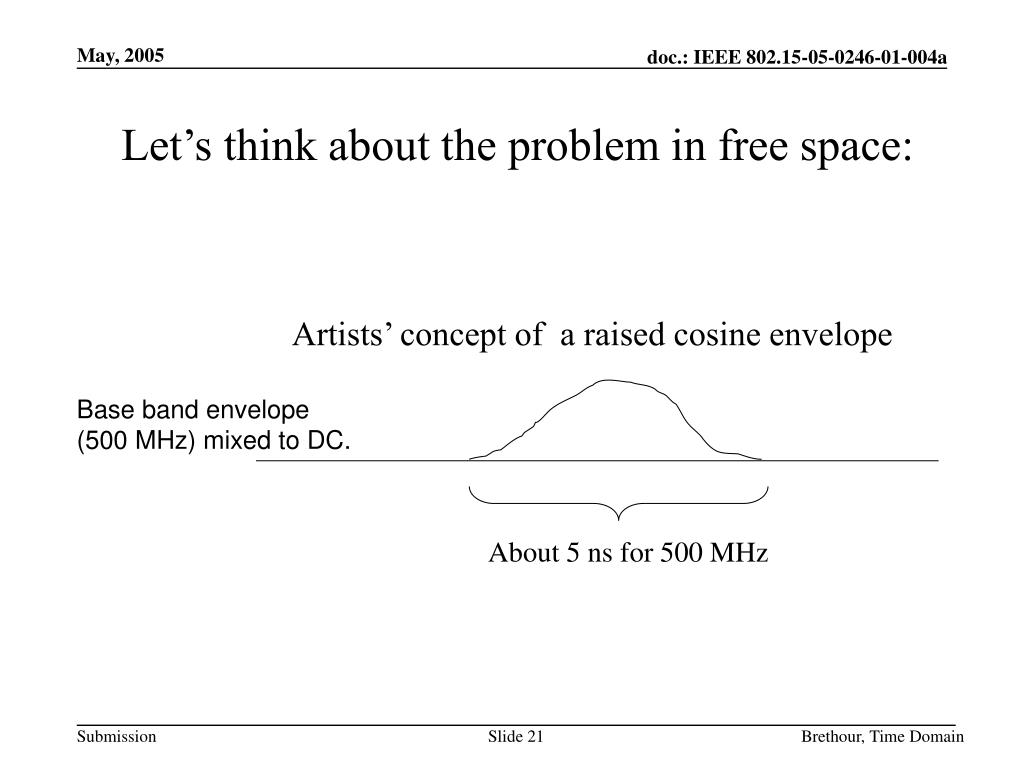

  21. Let’s think about the problem in free space: Artists’ concept of a raised cosine envelope Base band envelope (500 MHz) mixed to DC. About 5 ns for 500 MHz Brethour, Time Domain

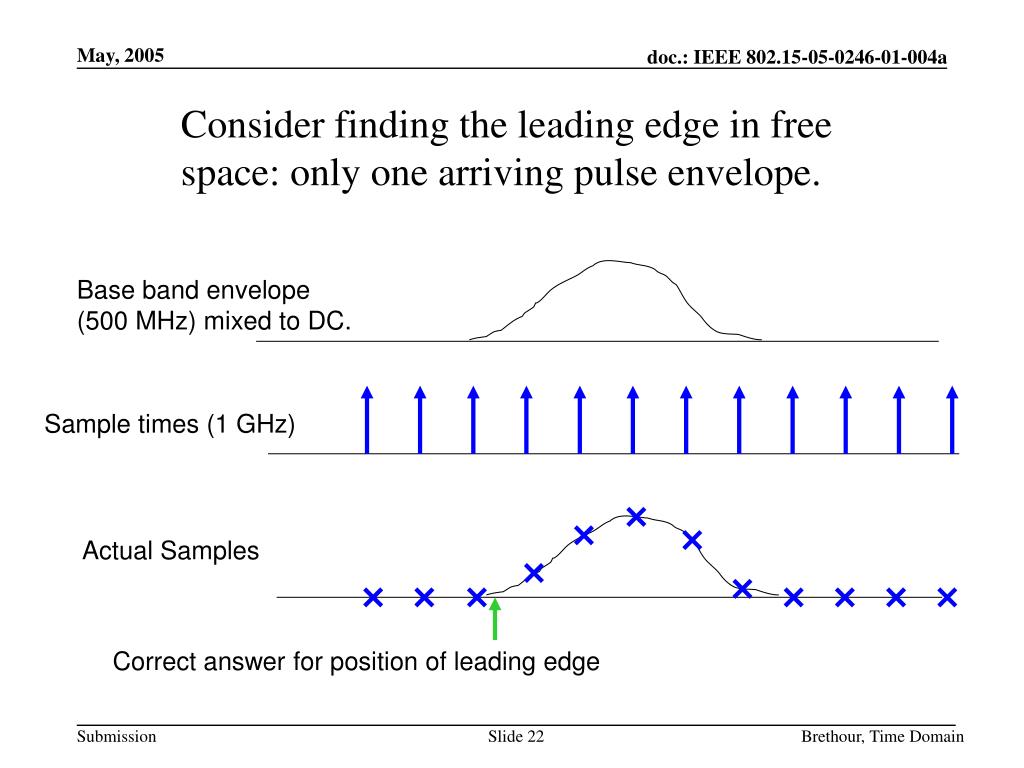

  22. Consider finding the leading edge in free space: only one arriving pulse envelope. Base band envelope (500 MHz) mixed to DC. Sample times (1 GHz) Actual Samples Correct answer for position of leading edge Brethour, Time Domain

  23. How do we find the green arrow? 500 MHz base band envelope mixed to DC. and sampled at 1 GHz Correct answer for position of leading edge (The elusive green arrow) One popular algorithm simply finds the first non-zero (in practice, above some threshold) value and calls that sample position the location of the leading edge. In this example, that algorithm would say the leading edge is here. Brethour, Time Domain

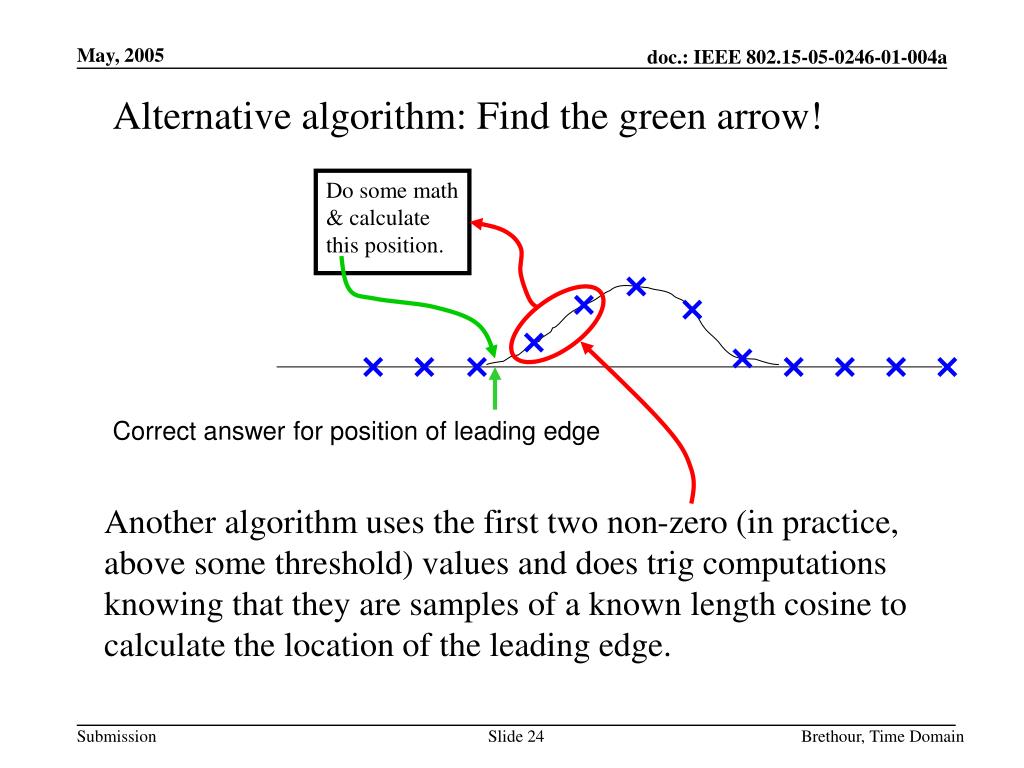

  24. Alternative algorithm: Find the green arrow! Do some math & calculate this position. Correct answer for position of leading edge Another algorithm uses the first two non-zero (in practice, above some threshold) values and does trig computations knowing that they are samples of a known length cosine to calculate the location of the leading edge. Brethour, Time Domain

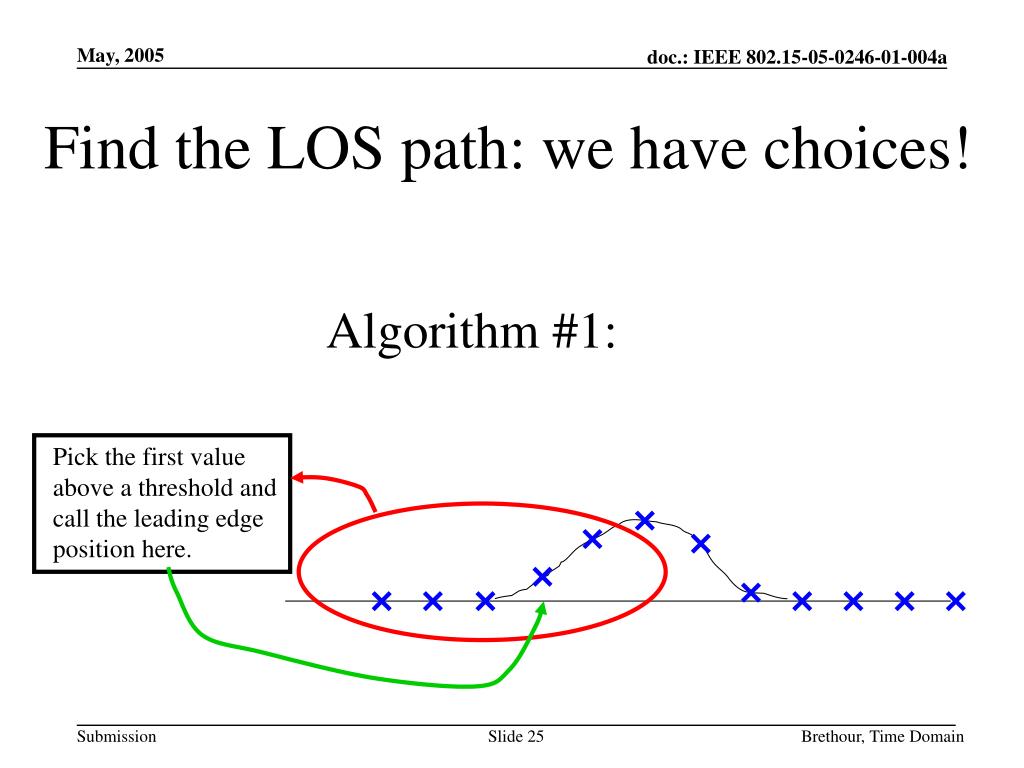

  25. Find the LOS path: we have choices! Algorithm #1: Pick the first value above a threshold and call the leading edge position here. Brethour, Time Domain

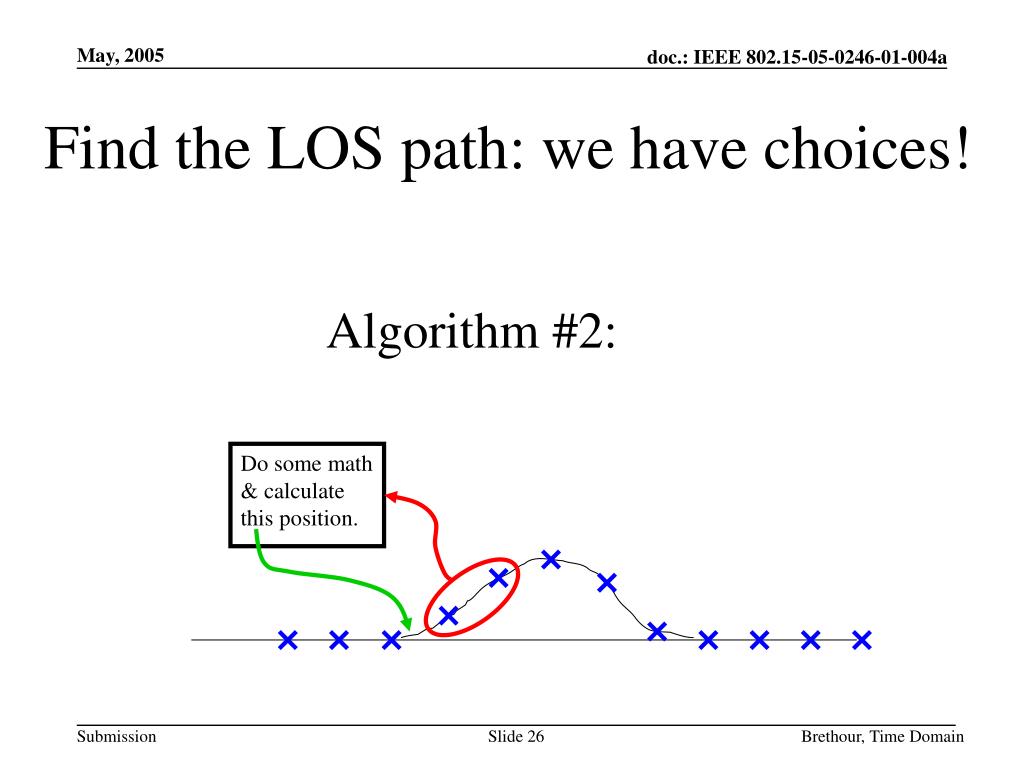

  26. Find the LOS path: we have choices! Algorithm #2: Do some math & calculate this position. Brethour, Time Domain

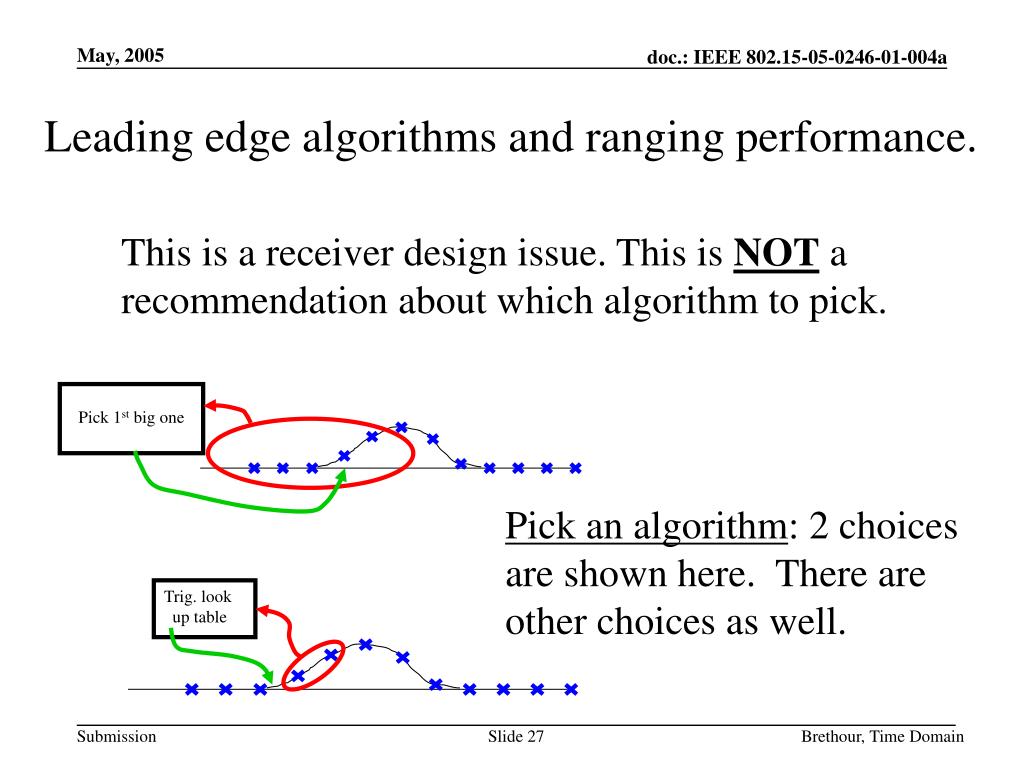

  27. Leading edge algorithms and ranging performance. This is a receiver design issue. This is NOT a recommendation about which algorithm to pick. Pick 1st big one Pick an algorithm: 2 choices are shown here. There are other choices as well. Trig. look up table Brethour, Time Domain

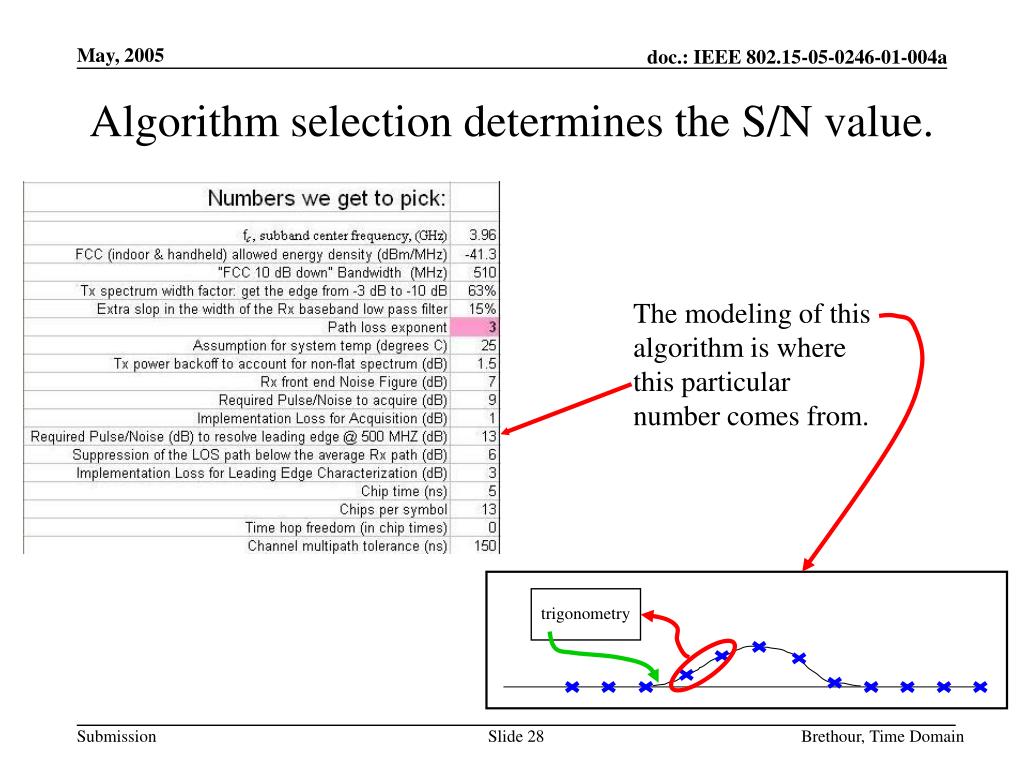

  28. Algorithm selection determines the S/N value. The modeling of this algorithm is where this particular number comes from. trigonometry Brethour, Time Domain

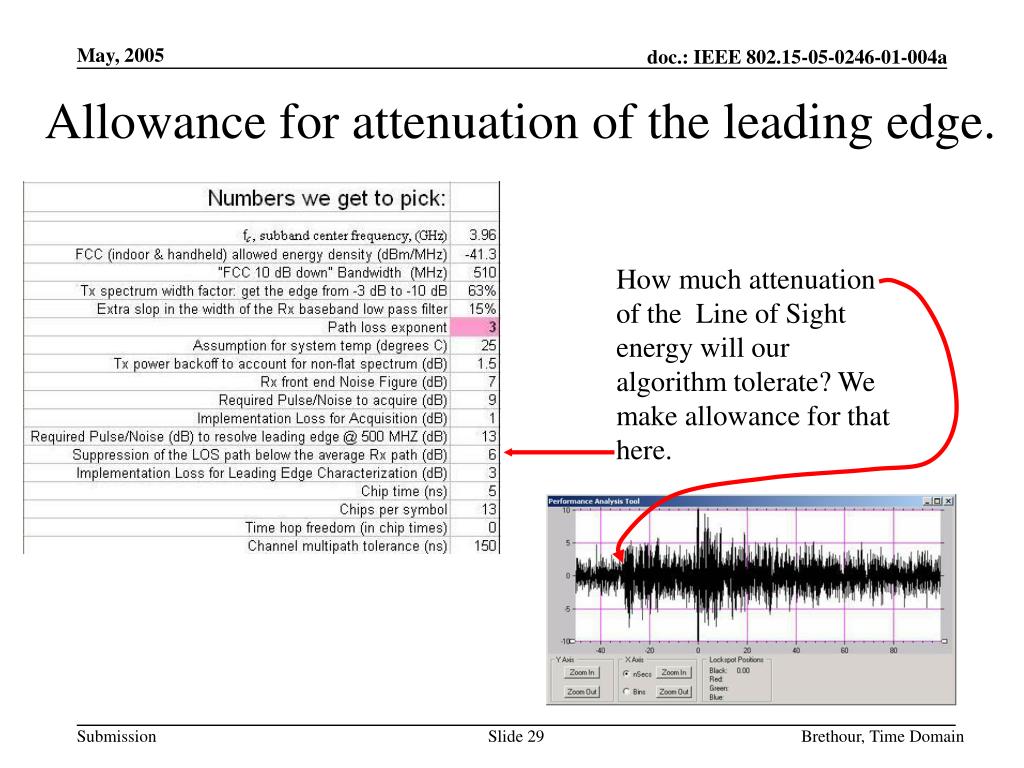

  29. Allowance for attenuation of the leading edge. How much attenuation of the Line of Sight energy will our algorithm tolerate? We make allowance for that here. Brethour, Time Domain

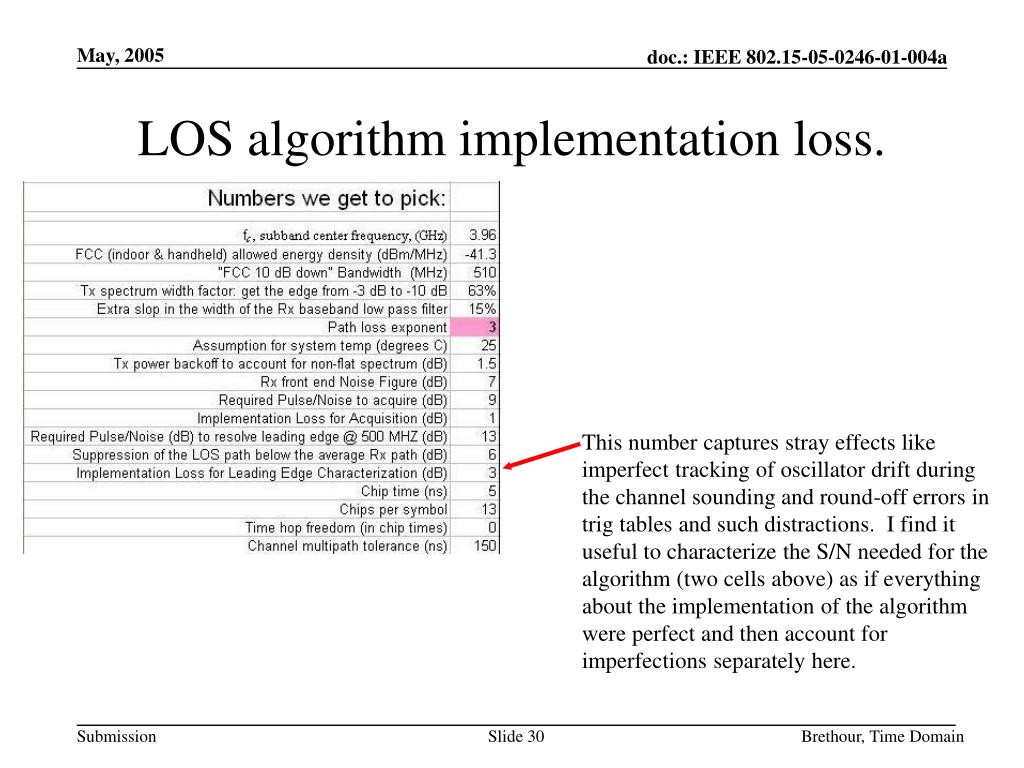

  30. LOS algorithm implementation loss. This number captures stray effects like imperfect tracking of oscillator drift during the channel sounding and round-off errors in trig tables and such distractions. I find it useful to characterize the S/N needed for the algorithm (two cells above) as if everything about the implementation of the algorithm were perfect and then account for imperfections separately here. Brethour, Time Domain

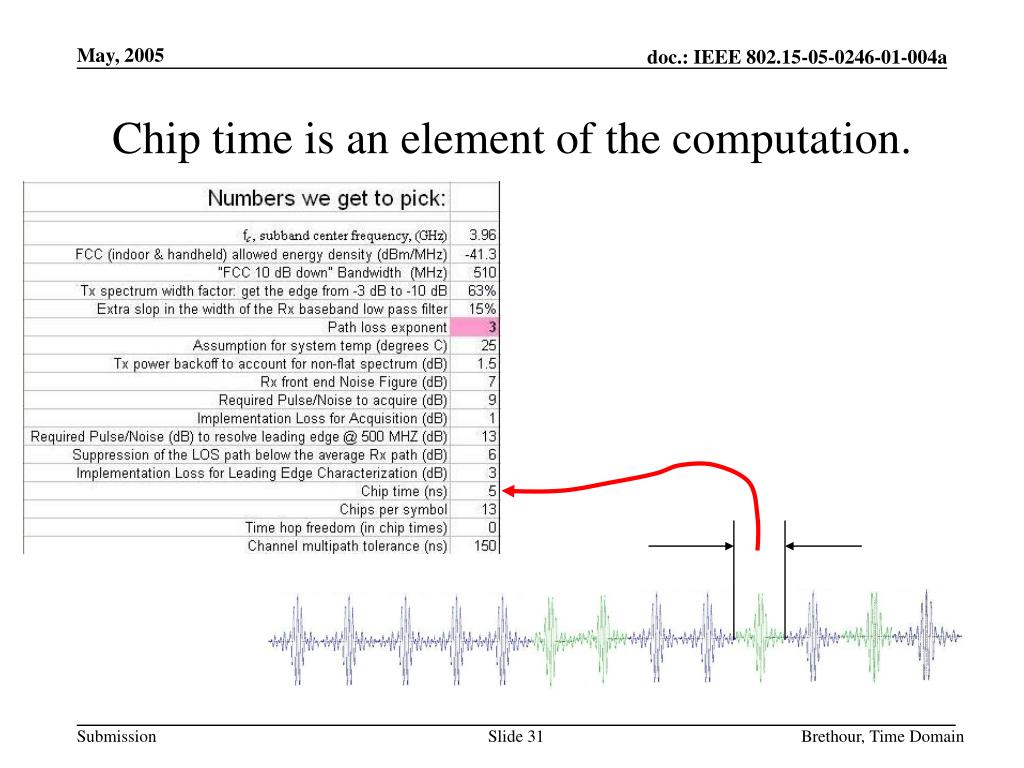

  31. Chip time is an element of the computation. Brethour, Time Domain

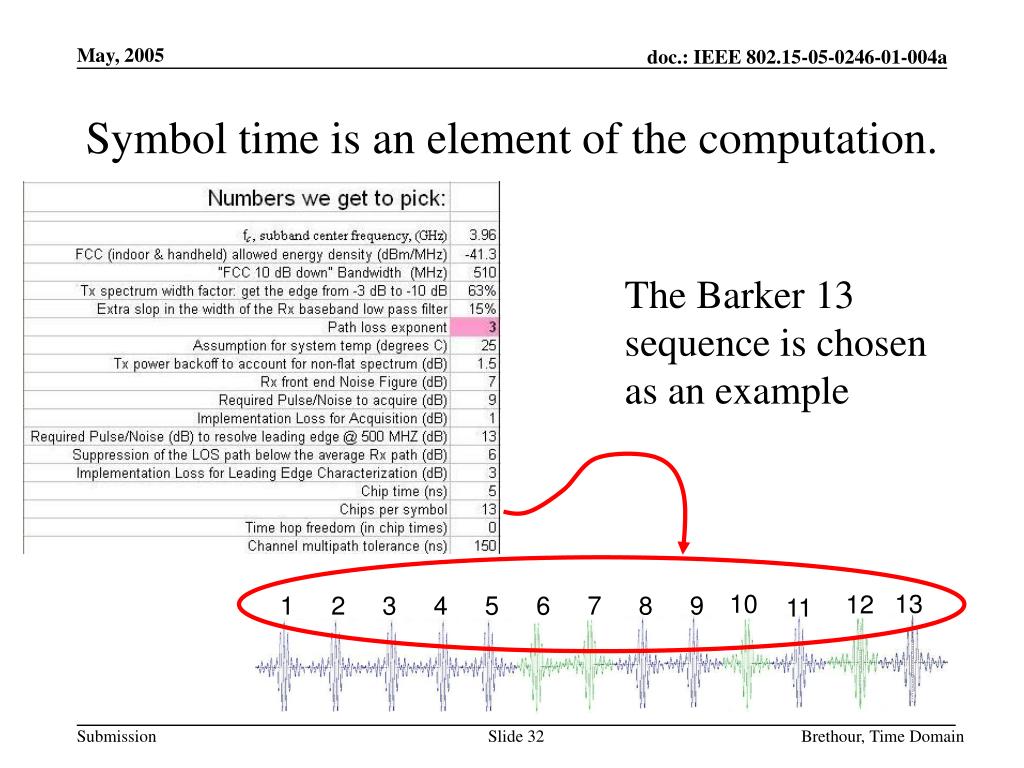

  32. Symbol time is an element of the computation. The Barker 13 sequence is chosen as an example 10 13 12 9 1 2 3 4 5 6 7 8 11 Brethour, Time Domain

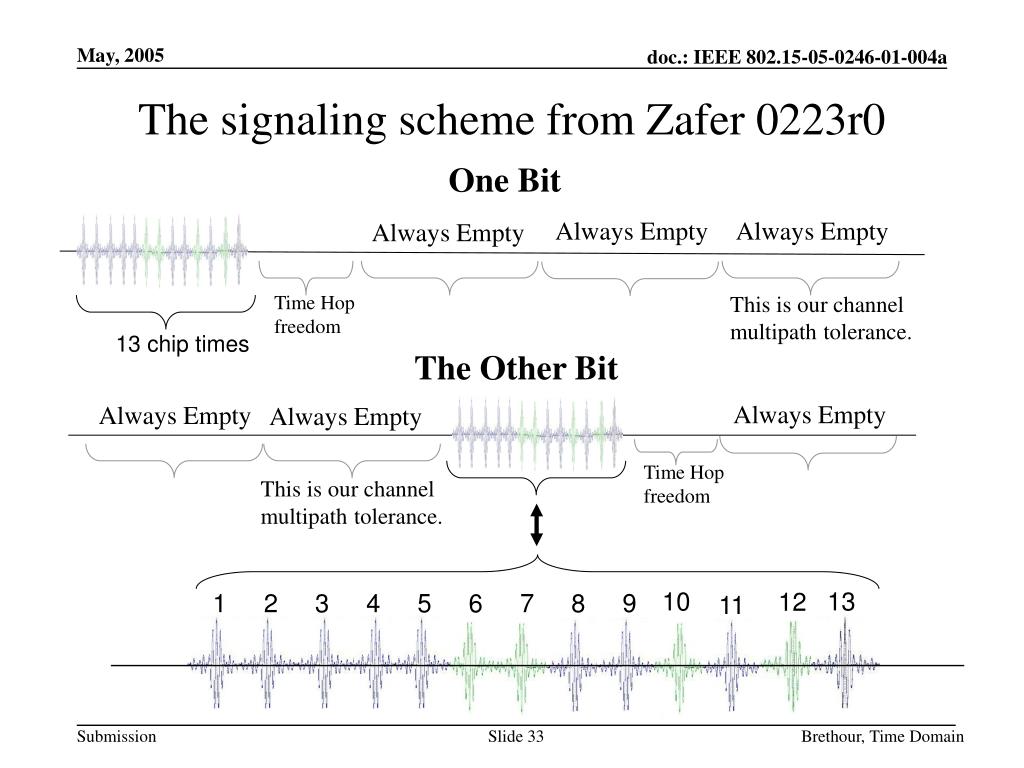

  33. The signaling scheme from Zafer 0223r0 One Bit Always Empty Always Empty Always Empty Time Hop freedom This is our channel multipath tolerance. 13 chip times The Other Bit Always Empty Always Empty Always Empty Time Hop freedom This is our channel multipath tolerance. 10 13 12 9 1 2 3 4 5 6 7 8 11 Brethour, Time Domain

  34. Time hopping and multipath tolerance. The “Time Hop Freedom” cell is to optionally support the time hopping proposed by Zafer. I set it to zero, to keep it out of the way in this analysis. Signaling from Zafer 0223r0 Brethour, Time Domain

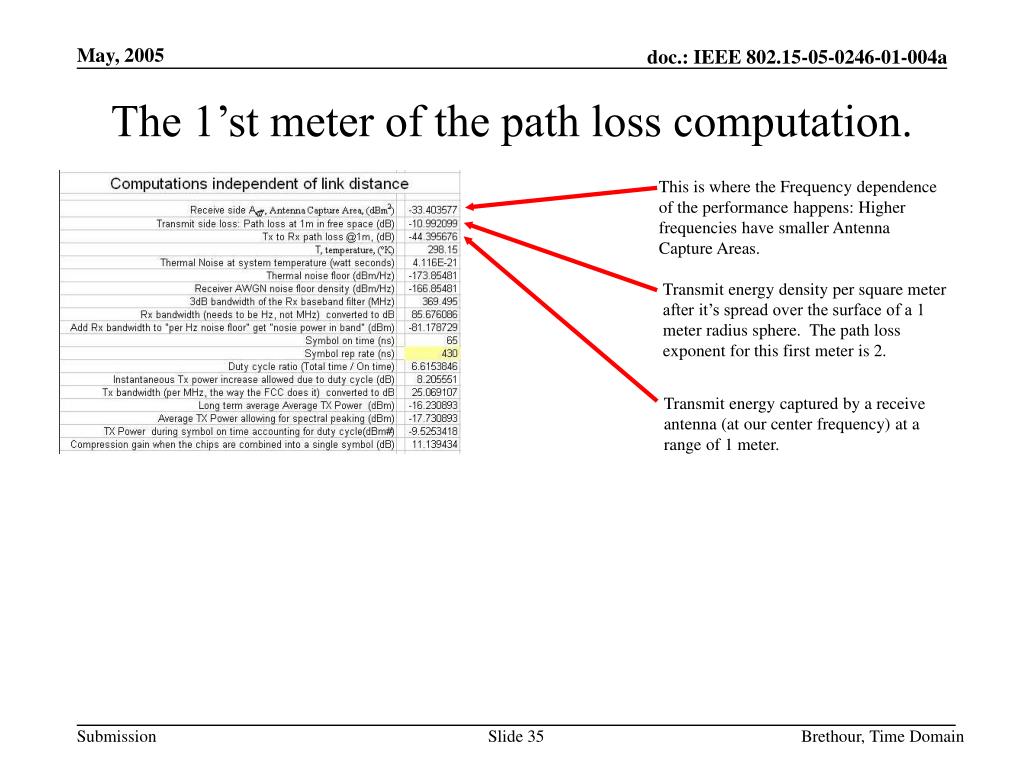

  35. The 1’st meter of the path loss computation. This is where the Frequency dependence of the performance happens: Higher frequencies have smaller Antenna Capture Areas. Transmit energy density per square meter after it’s spread over the surface of a 1 meter radius sphere. The path loss exponent for this first meter is 2. Transmit energy captured by a receive antenna (at our center frequency) at a range of 1 meter. Brethour, Time Domain

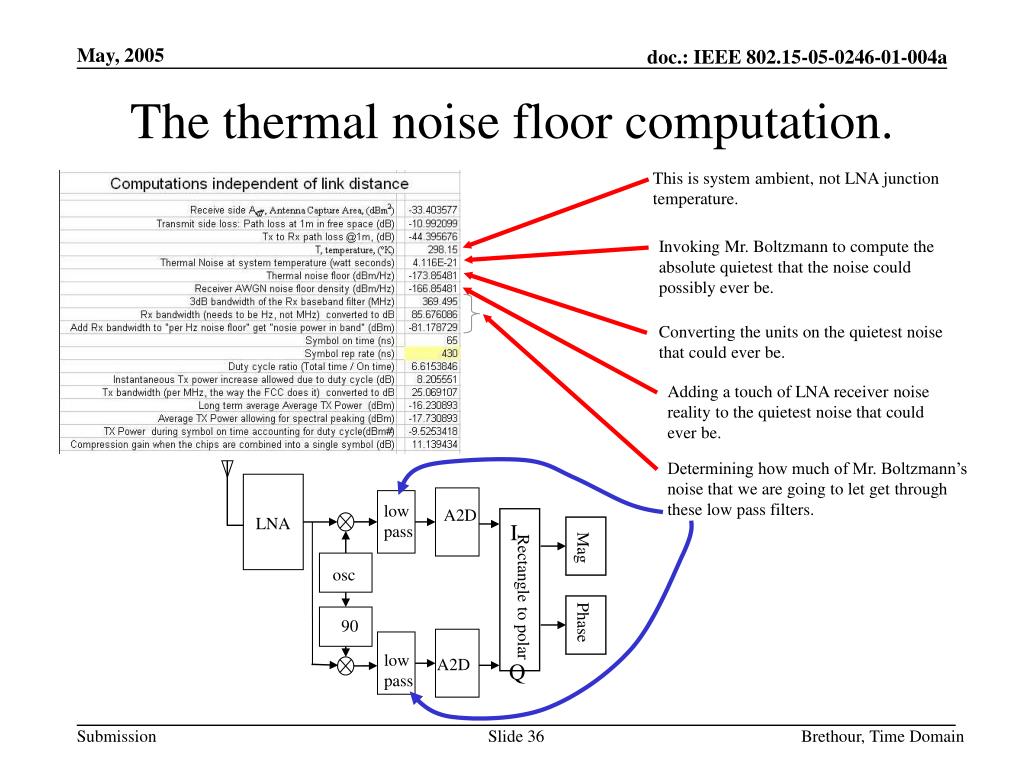

  36. I low pass A2D LNA Mag Rectangle to polar osc Phase Q 90 low pass A2D The thermal noise floor computation. This is system ambient, not LNA junction temperature. Invoking Mr. Boltzmann to compute the absolute quietest that the noise could possibly ever be. Converting the units on the quietest noise that could ever be. Adding a touch of LNA receiver noise reality to the quietest noise that could ever be. Determining how much of Mr. Boltzmann’s noise that we are going to let get through these low pass filters. Brethour, Time Domain

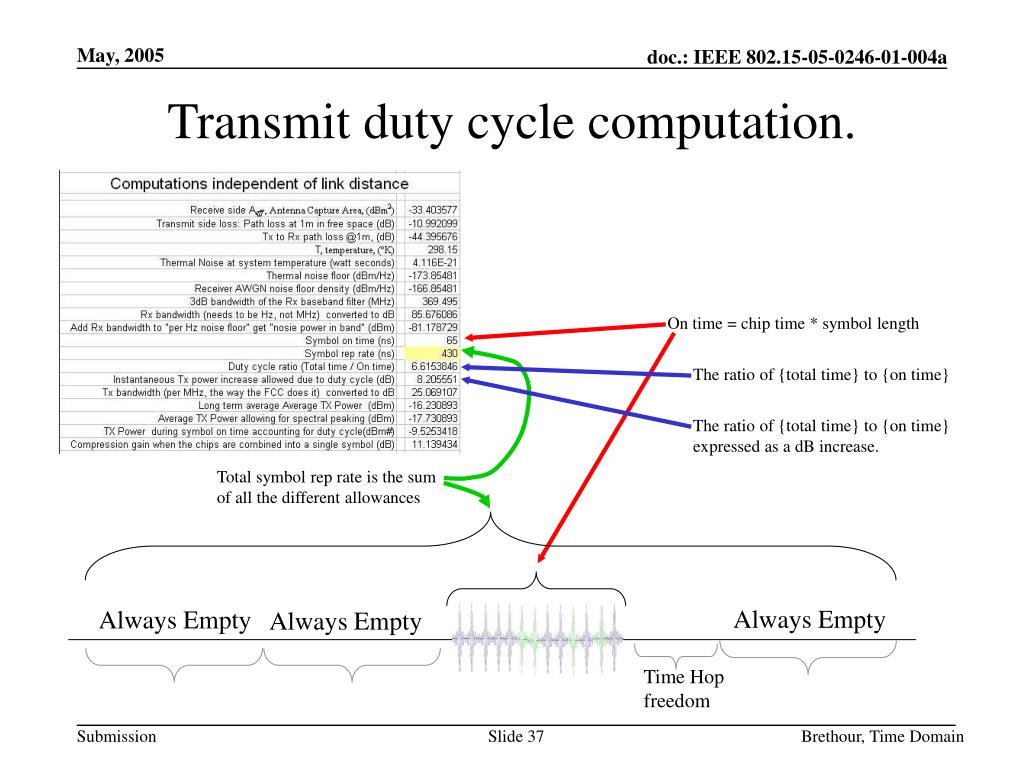

  37. Transmit duty cycle computation. On time = chip time * symbol length The ratio of {total time} to {on time} The ratio of {total time} to {on time} expressed as a dB increase. Total symbol rep rate is the sum of all the different allowances Always Empty Always Empty Always Empty Time Hop freedom Brethour, Time Domain

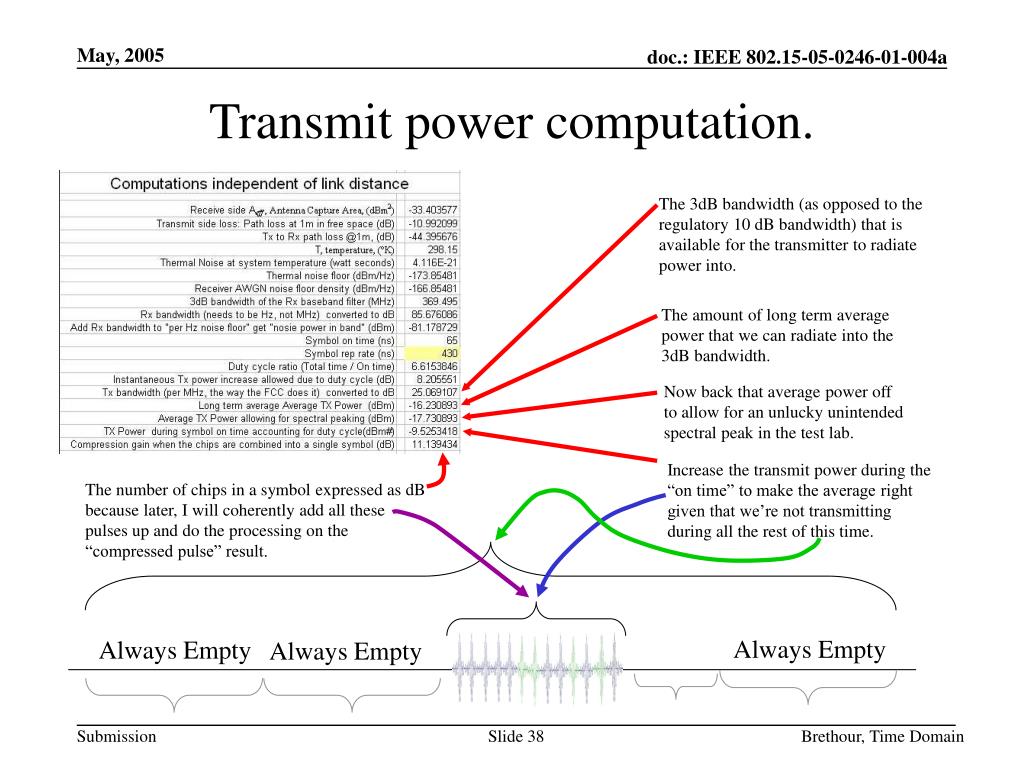

  38. Transmit power computation. The 3dB bandwidth (as opposed to the regulatory 10 dB bandwidth) that is available for the transmitter to radiate power into. The amount of long term average power that we can radiate into the 3dB bandwidth. Now back that average power off to allow for an unlucky unintended spectral peak in the test lab. Increase the transmit power during the “on time” to make the average right given that we’re not transmitting during all the rest of this time. The number of chips in a symbol expressed as dB because later, I will coherently add all these pulses up and do the processing on the “compressed pulse” result. Always Empty Always Empty Always Empty Brethour, Time Domain

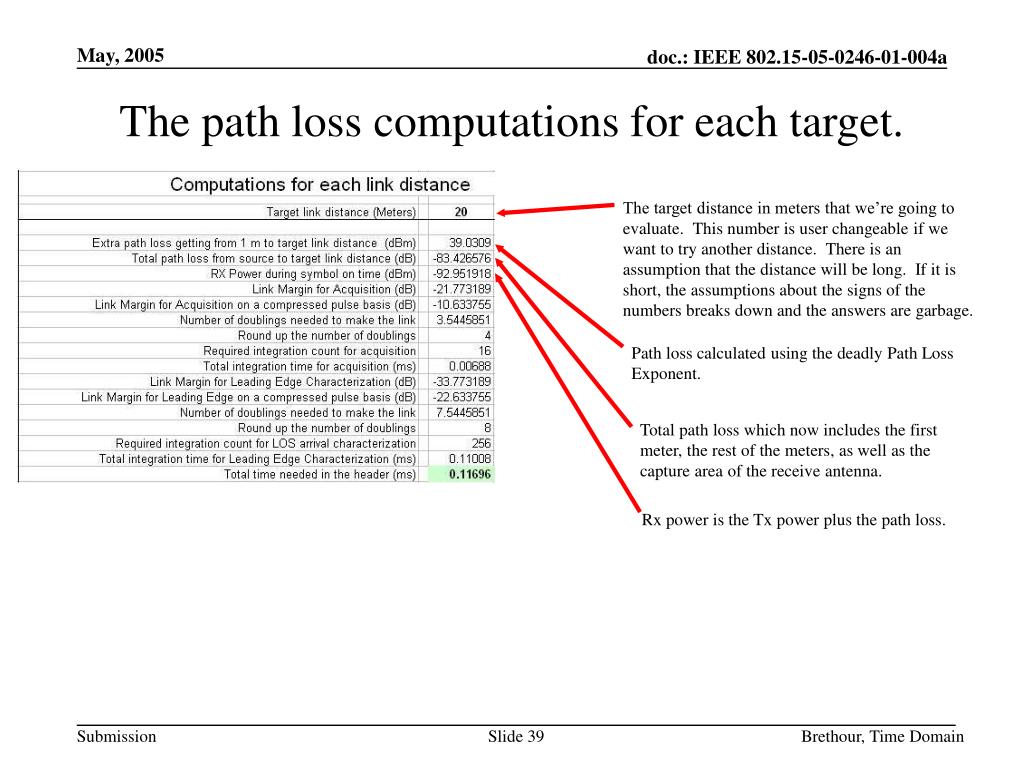

  39. The path loss computations for each target. The target distance in meters that we’re going to evaluate. This number is user changeable if we want to try another distance. There is an assumption that the distance will be long. If it is short, the assumptions about the signs of the numbers breaks down and the answers are garbage. Path loss calculated using the deadly Path Loss Exponent. Total path loss which now includes the first meter, the rest of the meters, as well as the capture area of the receive antenna. Rx power is the Tx power plus the path loss. Brethour, Time Domain

  40. Acquisition computations for each target. Link margin is the Rx signal minus the noise, minus the required S/N for reliable acquisition, minus the acquisition implementation loss. Now we get credit for our symbol compression gain. I held off on adding it in to the receive power number before because I wanted to show the required receiver sensitivity to pick up the itty bitty chip signals before compression. In this case, it’s minus 92.95 dB minus another 21.77 dB for a scary total of minus 114.7 dB and that gets worse for longer links. I took that cell out of the r1 version because Receiver sensitivity means other things in the regular vocabulary of communications theory. Brethour, Time Domain

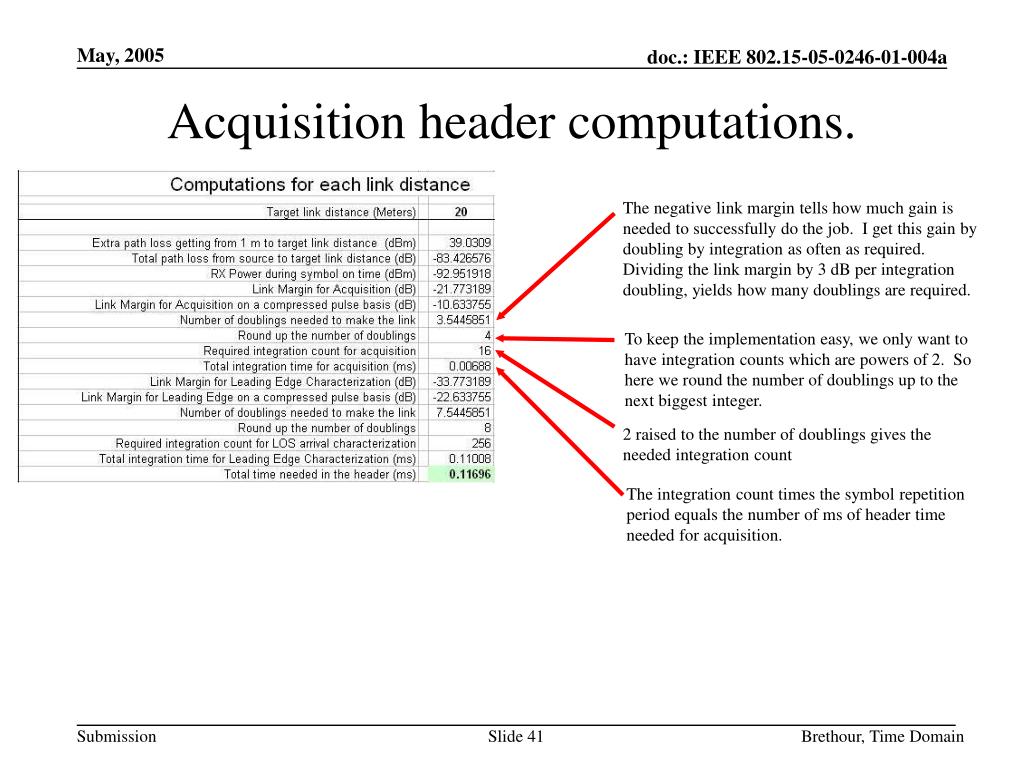

  41. Acquisition header computations. The negative link margin tells how much gain is needed to successfully do the job. I get this gain by doubling by integration as often as required. Dividing the link margin by 3 dB per integration doubling, yields how many doublings are required. To keep the implementation easy, we only want to have integration counts which are powers of 2. So here we round the number of doublings up to the next biggest integer. 2 raised to the number of doublings gives the needed integration count The integration count times the symbol repetition period equals the number of ms of header time needed for acquisition. Brethour, Time Domain

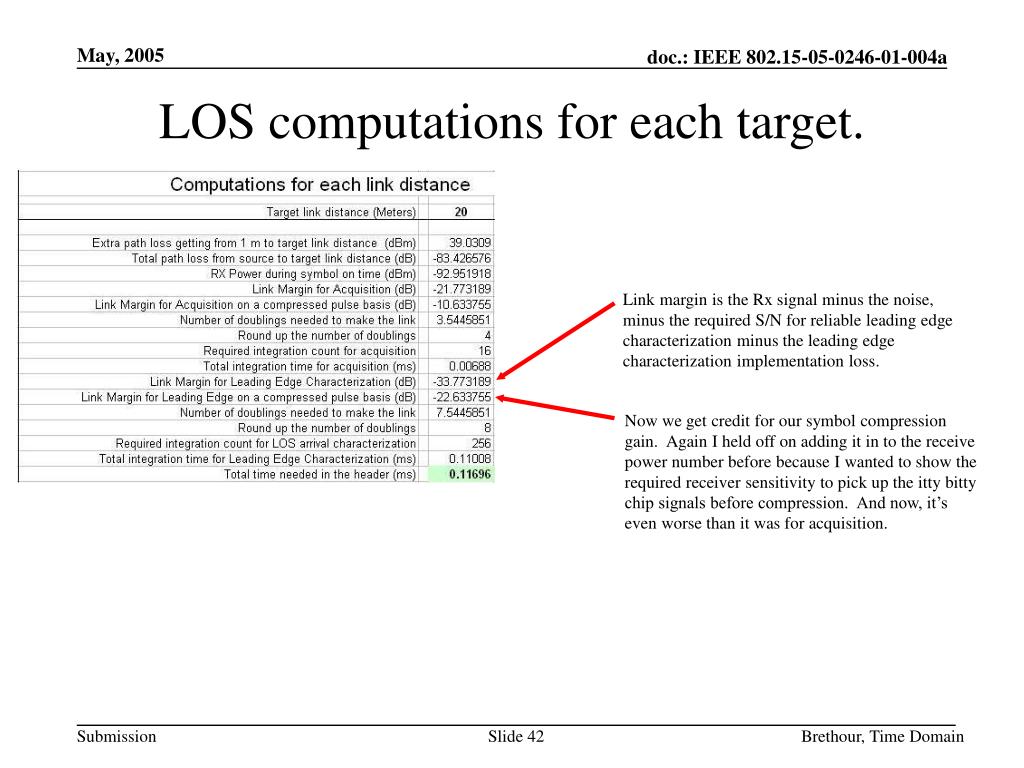

  42. LOS computations for each target. Link margin is the Rx signal minus the noise, minus the required S/N for reliable leading edge characterization minus the leading edge characterization implementation loss. Now we get credit for our symbol compression gain. Again I held off on adding it in to the receive power number before because I wanted to show the required receiver sensitivity to pick up the itty bitty chip signals before compression. And now, it’s even worse than it was for acquisition. Brethour, Time Domain

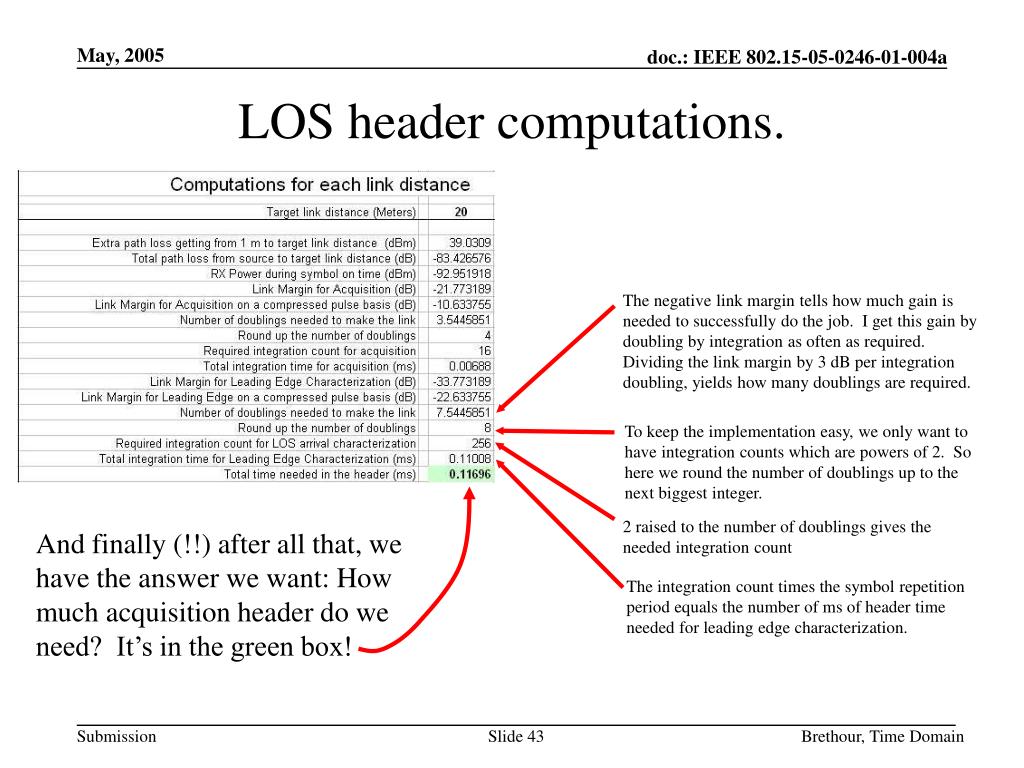

  43. LOS header computations. The negative link margin tells how much gain is needed to successfully do the job. I get this gain by doubling by integration as often as required. Dividing the link margin by 3 dB per integration doubling, yields how many doublings are required. To keep the implementation easy, we only want to have integration counts which are powers of 2. So here we round the number of doublings up to the next biggest integer. 2 raised to the number of doublings gives the needed integration count And finally (!!) after all that, we have the answer we want: How much acquisition header do we need? It’s in the green box! The integration count times the symbol repetition period equals the number of ms of header time needed for leading edge characterization. Brethour, Time Domain

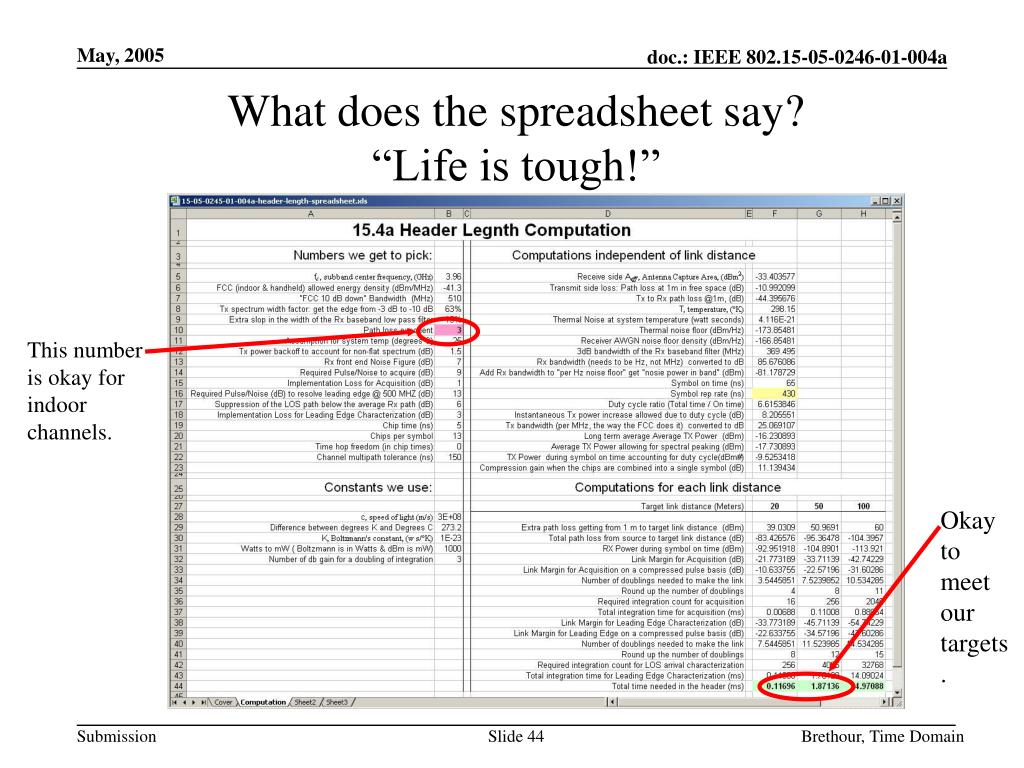

  44. What does the spreadsheet say?“Life is tough!” This number is okay for indoor channels. Okay to meet our targets. Brethour, Time Domain

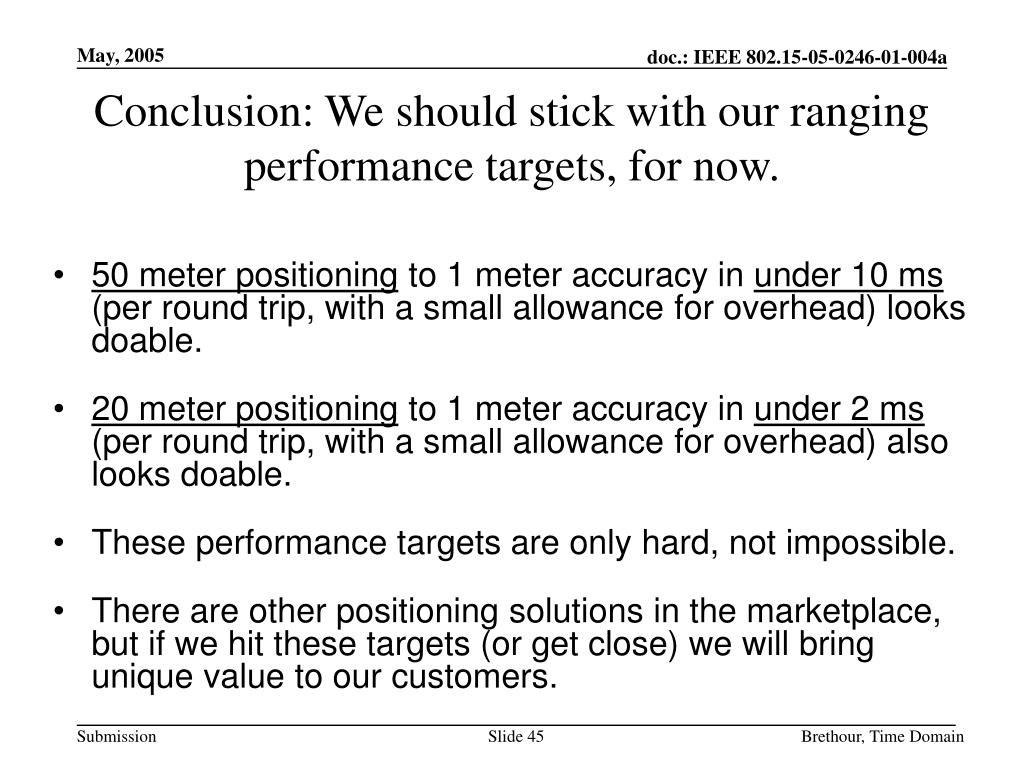

  45. Conclusion: We should stick with our ranging performance targets, for now. • 50 meter positioning to 1 meter accuracy in under 10 ms (per round trip, with a small allowance for overhead) looks doable. • 20 meter positioning to 1 meter accuracy in under 2 ms (per round trip, with a small allowance for overhead) also looks doable. • These performance targets are only hard, not impossible. • There are other positioning solutions in the marketplace, but if we hit these targets (or get close) we will bring unique value to our customers. Brethour, Time Domain
