  1. LAUNCH X431 MASTER

  2. LAUNCH’s note:http://www.x431.com/news/newsShowAction.do?id=57384

  3. Product picture and catalogue  • Product description • Product character • Product parameter • Europe car software list • Japan Car software list • Korea car software list • America car software list • Russia car software list • China car software list and others • Standard Configuration Packing List • Full set picture of the products

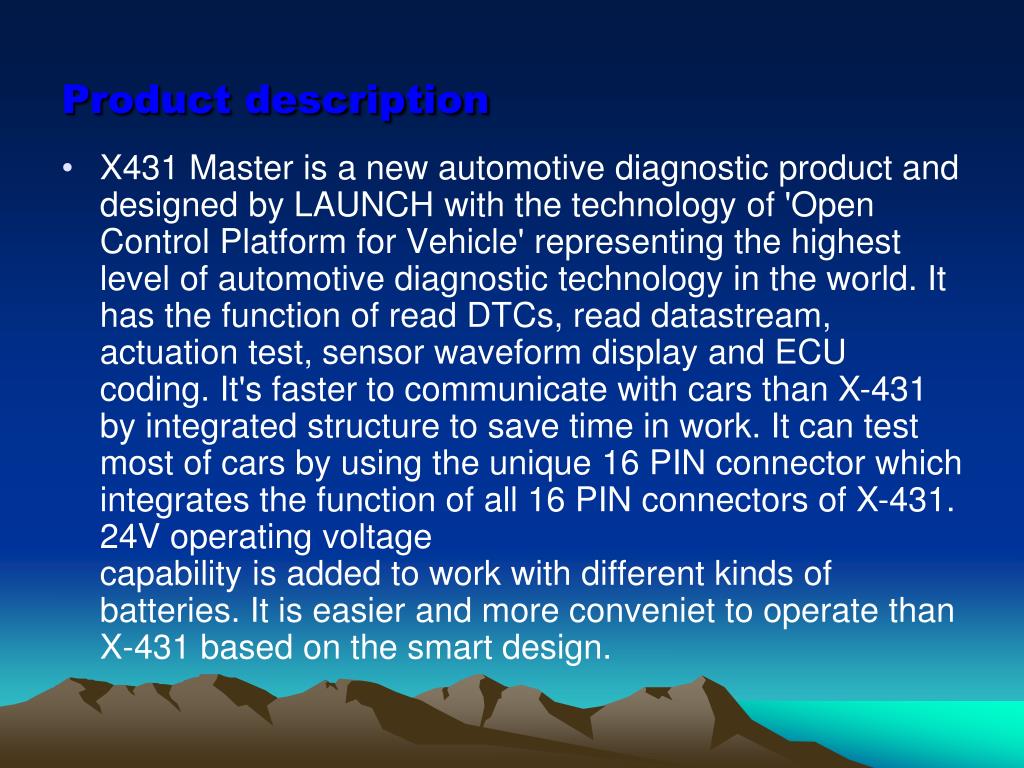

  4. Product description • X431 Master is a new automotive diagnostic product and designed by LAUNCH with the technology of 'Open Control Platform for Vehicle' representing the highest level of automotive diagnostic technology in the world. It has the function of read DTCs, read datastream, actuation test, sensor waveform display and ECU coding. It's faster to communicate with cars than X-431 by integrated structure to save time in work. It can test most of cars by using the unique 16 PIN connector which integrates the function of all 16 PIN connectors of X-431. 24V operating voltage capability is added to work with different kinds of batteries. It is easier and more conveniet to operate than X-431 based on the smart design.

  5. Product character • 1. Inherited with all diagnosis function of X-4312. Faster communication with cars than X-431 by integrated design to save time in work3. All inclusive software coverage - European, American and Asian4. 24V operating voltage capability is added to work with different kinds of batteries5. Powerful diagnostic function: read DTCs,read datastream, actuation test, sensor waveform display and ECU coding6. Test most of cars by using unique & integrated 16 PIN connector7. Easier and more conveniet to operate than X-431 based on the smart design8. Upgrade software anytime and anywhere to keep up with latest models

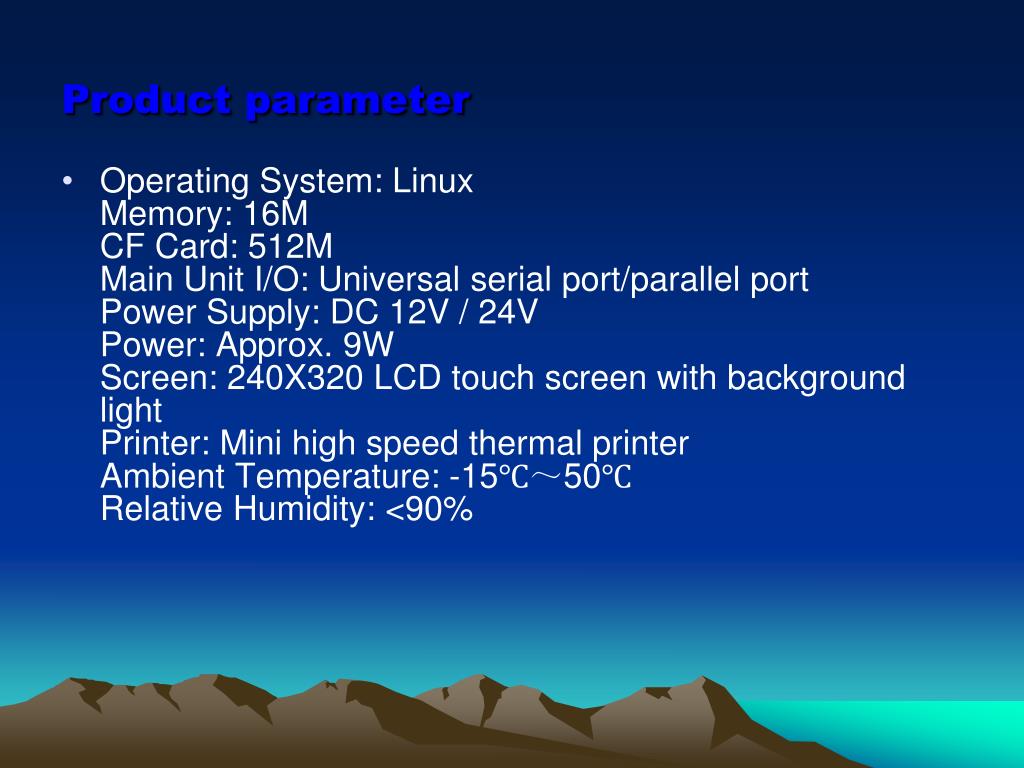

  6. Product parameter • Operating System: LinuxMemory: 16MCF Card: 512MMain Unit I/O: Universal serial port/parallel portPower Supply: DC 12V / 24VPower: Approx. 9WScreen: 240X320 LCD touch screen with background lightPrinter: Mini high speed thermal printerAmbient Temperature: -15℃～50℃Relative Humidity: <90%

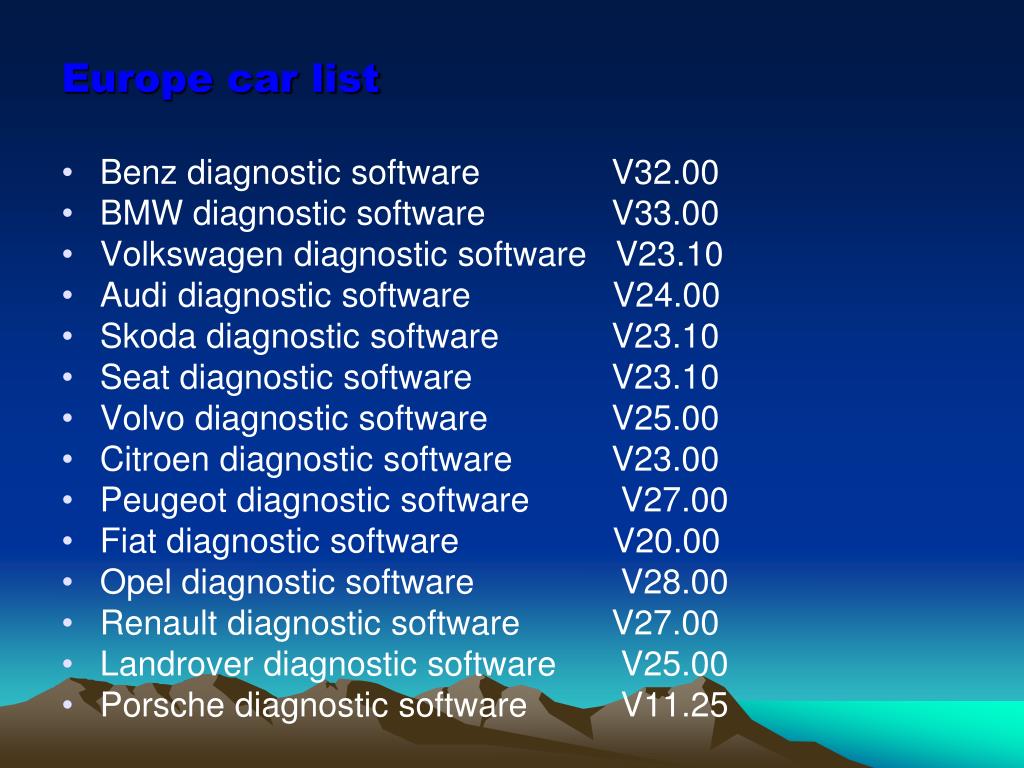

  7. Europe car list • Benz diagnostic software V32.00 • BMW diagnostic software V33.00 • Volkswagen diagnostic software V23.10 • Audi diagnostic software V24.00 • Skoda diagnostic software V23.10 • Seat diagnostic software V23.10 • Volvo diagnostic software V25.00 • Citroen diagnostic software V23.00 • Peugeot diagnostic software V27.00 • Fiat diagnostic software V20.00 • Opel diagnostic software V28.00 • Renault diagnostic software V27.00 • Landrover diagnostic software V25.00 • Porsche diagnostic software V11.25

  8. Japan Car list • Toyota diagnostic software V36.00 • Nissan diagnostic software V28.05 • Honda diagnostic software V27.00 • Mitsubishi diagnostic software V23.00 • Mazda diagnostic software V26.00 • Subaru diagnostic software V17.01

  9. Korea car software list • Daewoo diagnostic software V22.00 • Hyundai diagnostic software V35.00 • Kia diagnostic software V32.00

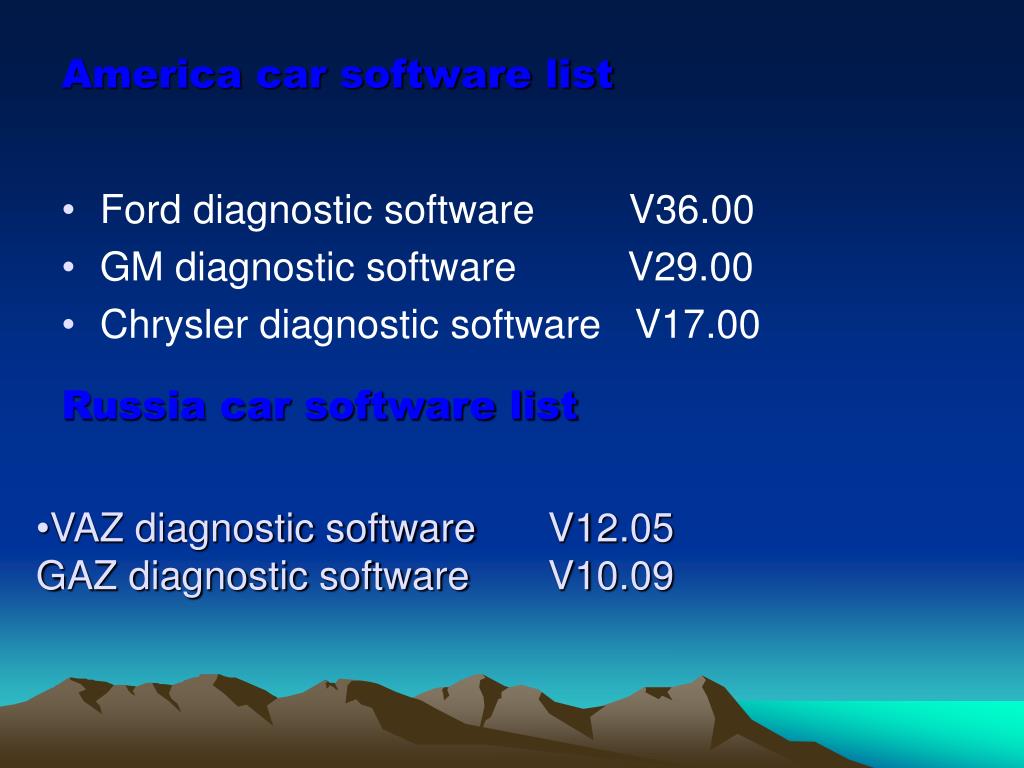

  10. America car software list • Ford diagnostic software V36.00 • GM diagnostic software V29.00 • Chrysler diagnostic software V17.00 Russia car software list • VAZ diagnostic software V12.05GAZ diagnostic software V10.09

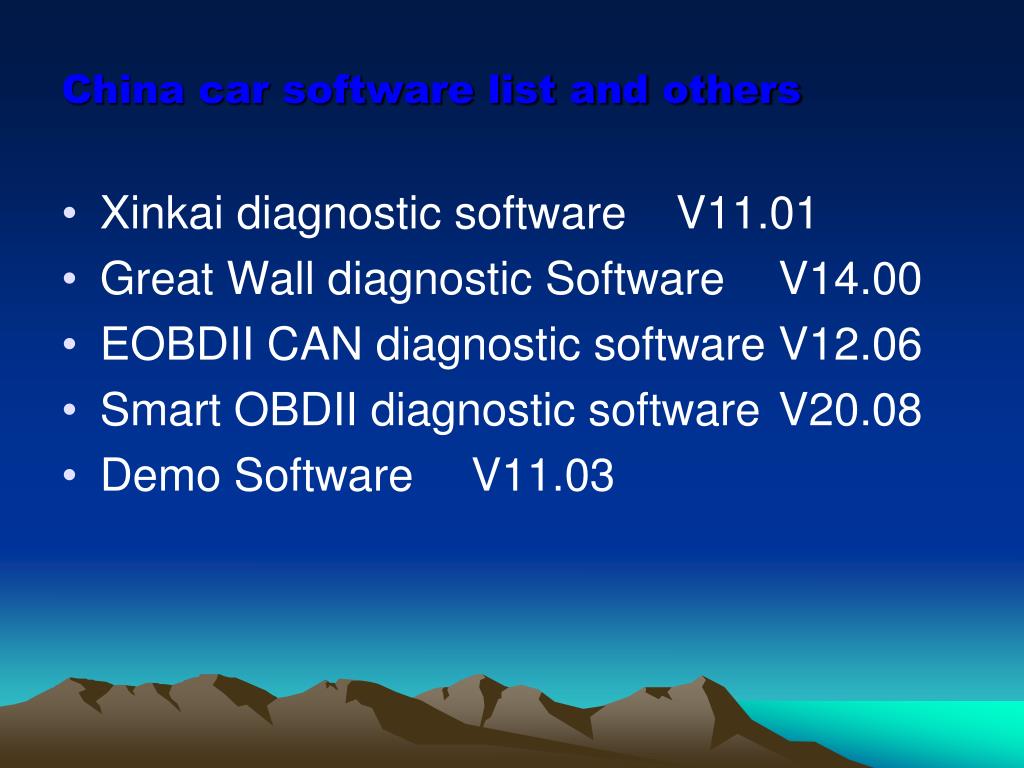

  11. China car software list and others • Xinkai diagnostic software V11.01 • Great Wall diagnostic Software V14.00 • EOBDII CAN diagnostic software V12.06 • Smart OBDII diagnostic software V20.08 • Demo Software V11.03

  12. FORD-6+1 1 SMART OBDII-16 1 CHRYSLER-6 1 UNIVERSAL-3 1 FIAT-3 1 AUDI-4 1 GAZ-12 1 BMW-16 1 OBDII-16C 1 AUDI-16 K-L Converter 1 DAEWOO-12 1 HONDA-5 1 TOYOTA-16 1 SUBARU-9 1 X-431 CAN BUS II-16 1 TOYOTA-17 1 TOYOTA -22 1 MITSUBISHI/ HYUNDAI-12+16 1 NISSAN-14+16 1 HONDA-3 1 MAZDA-17 1 KIA-20 1 BENZ-38 1 BMW-20 1 GM/VAZ-12 1 LAUNCH X-431 Master Standard Configuration Packing List 1. Main unit 2. Connector

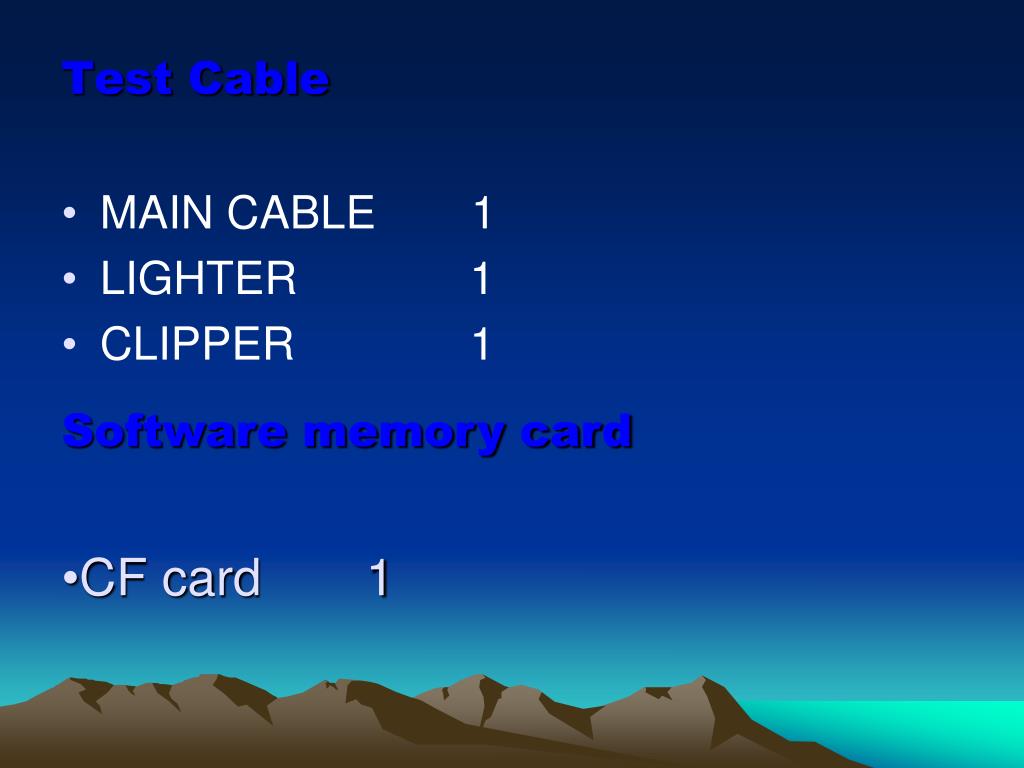

  13. Test Cable • MAIN CABLE 1 • LIGHTER 1 • CLIPPER 1 Software memory card • CF card 1

  14. Accessories • Clipper fuse 5*20mm 4 • Lighter fuse 6*30mm 2 • X-431 Power supply 1 • X-431 Printer paper 1 • CF card reader 1 • X-431 Main unit user’s manual 1 • X-431 Main unit user’s manual(English) 1 • Private ＆ confidential 1 • Driver CD of CF card reader 1 • USB cable 1 • User‘s manual CD 1 • DEMO CD 1 • Russia CD 1 • X-431 Quick Reference Guide 1 • Rustless Steel Wire 1

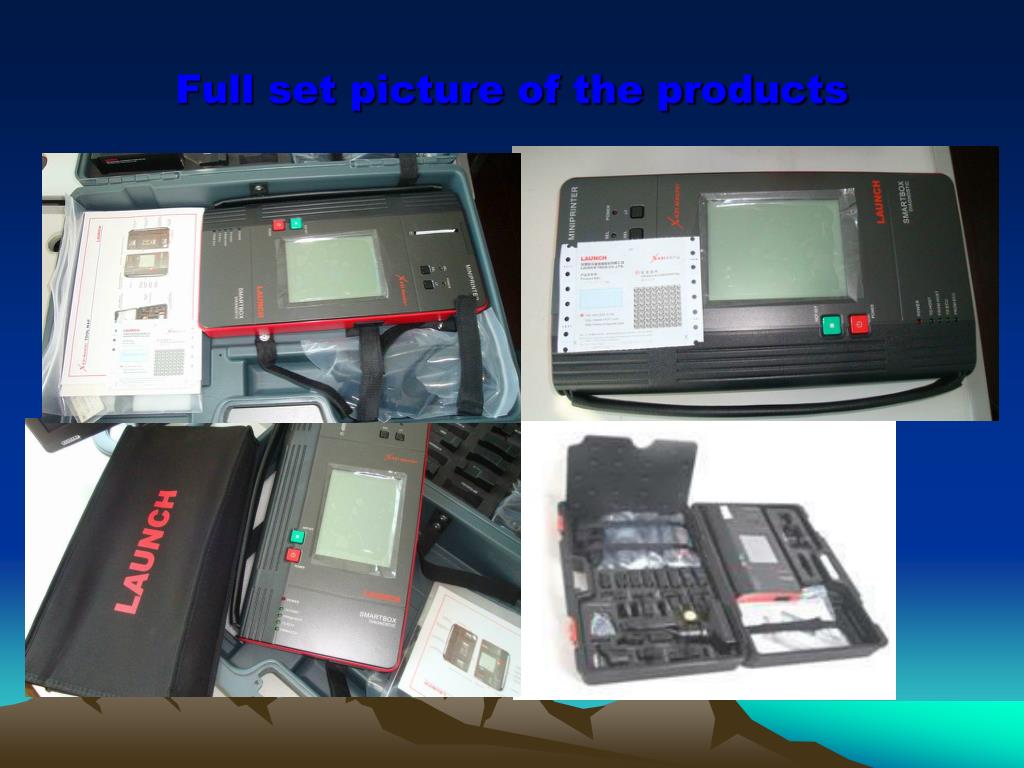

  15. Full set picture of the products
