  1. PFL20M Launch

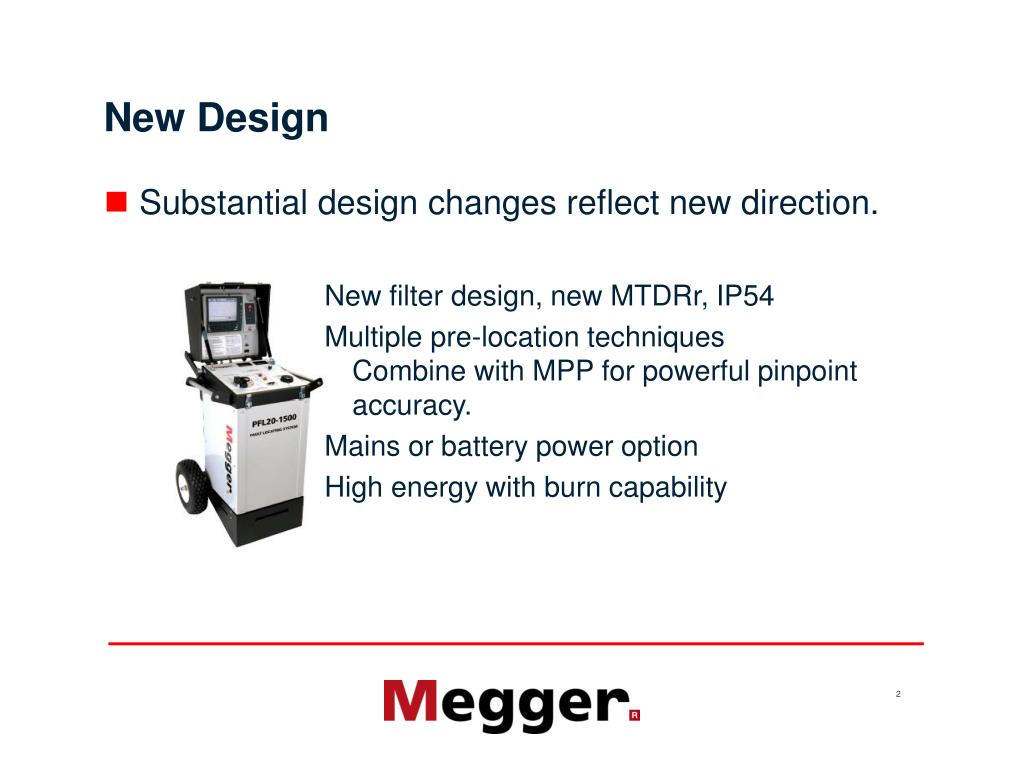

  2. New Design • Substantial design changes reflect new direction. • New filter design, new MTDRr, IP54 • Multiple pre-location techniques Combine with MPP for powerful pinpoint accuracy. • Mains or battery power option • High energy with burn capability

  3. Time Tested Features • Manual mode select switch, • Arc reflection • Impulse • Proof/Burn • Analog, continuously variable, voltage control. • Ultra reliable analog meters, default passive mode for safety. • Zero Start interlock, for safety

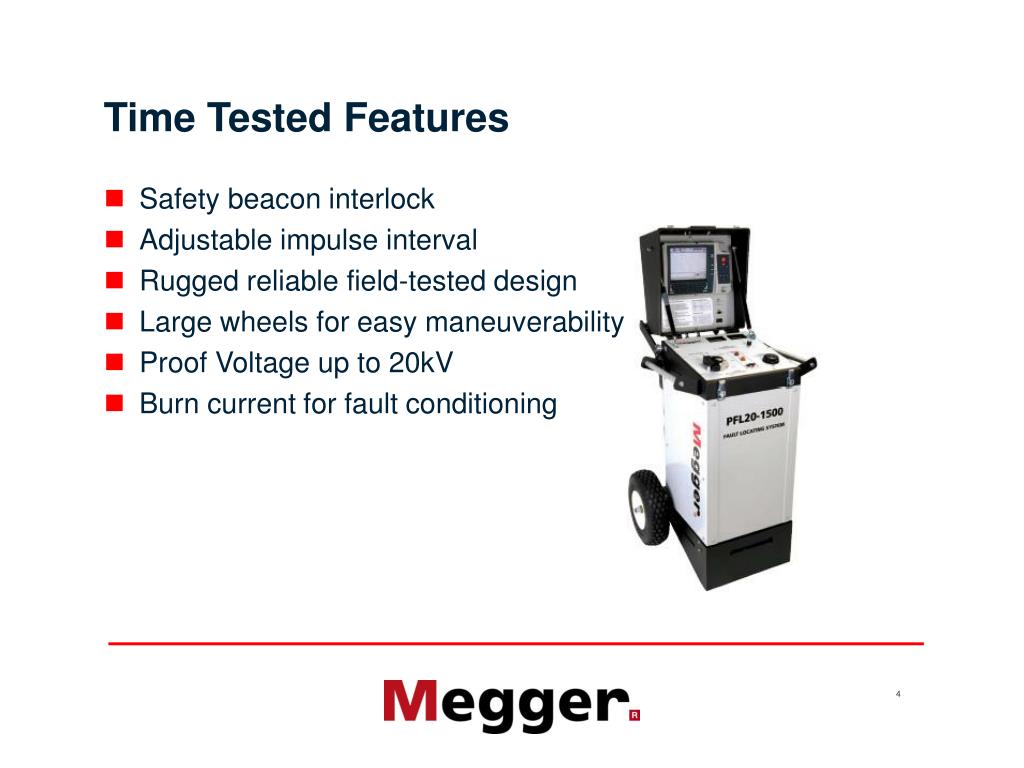

  4. Time Tested Features • Safety beacon interlock • Adjustable impulse interval • Rugged reliable field-tested design • Large wheels for easy maneuverability • Proof Voltage up to 20kV • Burn current for fault conditioning

  5. New Features • New MTDR retrofitted into specially redesigned cover • TDR • ARC • Impulse Current • Large, bright screen, suitable for direct viewing in direct sunlight. • Save & Recall traces internally or via USB • QWERTY keyboard

  6. New Features • New Inductive Arc Reflection Filter • “Lossless” device • Allows more surge current at the fault. • Stabilizes arc current at the fault, longer sustaining, better pulse echo reflector • Internal Inverter • Use mains power, vehicle battery or external battery • Non-louvered panels • IP 54, better suited for use in humid / damp conditions

  7. PFL20M-1500 Summary • Single range surge to 16 kV, 1536 Joules • Onboard Proof test, to 20kV • Burn (conditioning current) to 60mA • Linear Power Supply technology • 2-10 second “thump rate” • On-Board 12Vdc Inverter- new • Integral Inductive Arc reflection filter- new • Integrated MTDR1- new • “Louver-less” panels (IP54)- new Modes • TDR • ARC • ICE Modes • Surge • Burn • Proof
