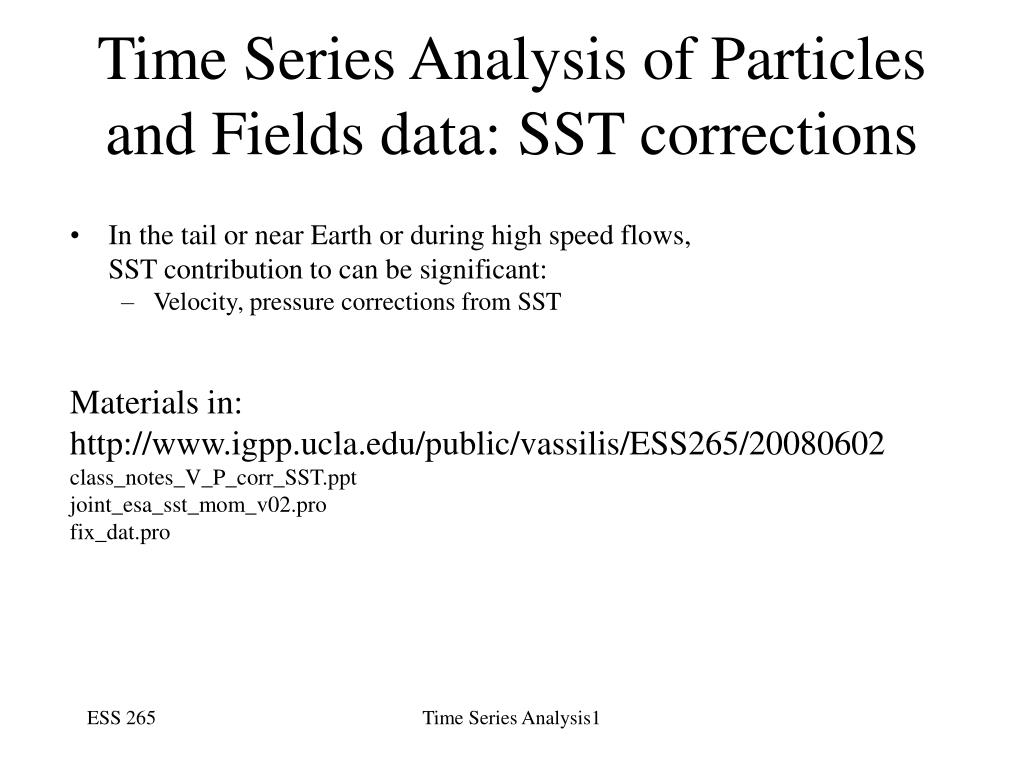

  1. Time Series Analysis of Particles and Fields data: SST corrections • In the tail or near Earth or during high speed flows,SST contribution to can be significant: • Velocity, pressure corrections from SST Materials in: http://www.igpp.ucla.edu/public/vassilis/ESS265/20080602 class_notes_V_P_corr_SST.ppt joint_esa_sst_mom_v02.pro fix_dat.pro Time Series Analysis1

  2. Density Correction • Interpolate densities • Add • date='2008-03-01' • startdate = '2008-03-01/00:00' • timespan,startdate, 4.0, /hour • Trange=['08-03-01/00:00','08-03-01/04:00'] • Tzoom=['08-03-01/01:40','08-03-01/02:40'] • ;... select exact time interval to calculate join ESA/SST moments • tbeg = time_double(date+'/00:00') • tend = time_double(date+'/04:00') • ;select a probe • sc='b' • thm_load_state,probe=sc,coord='gsm',/get_support • thm_load_fit, level=1, probe=sc,datatype=['efs', 'fgs'],/verbose • thm_cotrans,strjoin('th'+sc+'_fgs'),out_suf='_gsm', in_c='dsl', out_c='gsm' • ; • ; SST now • thm_load_sst,probe=sc,lev=1 • thm_part_moments, probe = sc, instr= ['ps?f'], $ • moments = ['density', 'velocity', 't3'], $ • mag_suffix='_peir_magt3', $ • scpot_suffix='_peir_sc_pot';,/median • ; work in gsm • thm_cotrans,'th'+sc+'_ps?f_velocity',in_coord='dsl',out_coord='gsm',out_suffix='_gsm' • ; • ; ESA now • thm_load_esa,probe=sc • ; Interpolate densities • tinterpol_mxn,'th'+sc+'_peer_density','th'+sc+'_peir_density',/overwrite,/nan_extrapolate • tinterpol_mxn,'th'+sc+'_ps?f_density','th'+sc+'_peir_density',/overwrite,/nan_extrapolate • … • ; ...total ion density • totNi = sst_i_n.y + esa_i_n.y Ni Ne Time Series Analysis2

  3. Velocity Correction • Interpolate densities • Add flux • ; • ; • ; ...sst Flux • sstFi = sst_i_v.y*0. • sstFi[*,0] = sst_i_n.y*sst_i_v.y[*,0] • sstFi[*,1] = sst_i_n.y*sst_i_v.y[*,1] • sstFi[*,2] = sst_i_n.y*sst_i_v.y[*,2] • ; ...esa Flux • esaFi = esa_i_v.y*0. • esaFi[*,0] = esa_i_n.y*esa_i_v.y[*,0] • esaFi[*,1] = esa_i_n.y*esa_i_v.y[*,1] • esaFi[*,2] = esa_i_n.y*esa_i_v.y[*,2] • ; ...total ion density • totNi = sst_i_n.y + esa_i_n.y • store_data, 'th'+sc+'_Ni',$data={x:esa_i_n.x, y:totNi} • options, 'th'+sc+'_Ni', 'ytitle', $'Ni !C!C1/cm!U3' • ylim, 'th'+sc+'_Ni', 0.01, 1., 1 • ; ...total ion velocity (GSM) • totVi = esa_i_v.y*0. • totVi[*,0] = (sstFi[*,0]+esaFi[*,0])/totNi • totVi[*,1] = (sstFi[*,1]+esaFi[*,1])/totNi • totVi[*,2] = (sstFi[*,2]+esaFi[*,2])/totNi Time Series Analysis3

  4. Pressure Correction • Remove SST noise • Interpolate pressures • Then add • ; • ; SST now • ; SST now • thm_load_sst,probe=sc,lev=1 • thm_part_moments, probe = sc, instr= ['ps?f'], $ • moments = ['density', 'velocity', 't3'], $ • mag_suffix='_peir_magt3', $ • scpot_suffix='_peir_sc_pot';,/median • ; …interpolate • ; … add • ; ...pressure • ; ...SST: perpendicular temperature only • sst_Tperp = .5*(sst_i_t3.y[*,0]+sst_i_t3.y[*,1]) • sst_i_p_nPa = 0.16*.001*sst_i_n.y * sst_Tperp • ; perp. pressure in nPa • store_data, 'th'+sc+'_psif_p_perp_nPa', $ • data={x:sst_i_n.x, y:sst_i_p_nPa} • options, 'th'+sc+'_psif_p_perp_nPa', $ • 'ytitle', 'sst Pi !C!CnPa' • ; ...ESA: scalar temperature • esa_Ti = total(esa_i_T.y,2)/3. • store_data,'Ti_th'+sc+'_peir', $ • data={x:esa_i_n.x, y:esa_Ti} • ; ...ESA ion pressure: • esa_i_p_nPa = 0.16 *.001 * esa_i_n.y*esa_Ti • ; scalar pressure in nPa • store_data, 'th'+sc+'_peir_p_nPa', $ • data={x:esa_i_n.x, y:esa_i_p_nPa} • options, 'th'+sc+'_peir_p_nPa', $ • 'ytitle', 'esa Pi !C!CnPa' • ; ...Total ion pressure • totPi = sst_i_p_nPa + esa_i_p_nPa • store_data, 'th'+sc+'_i_p_nPa', $ • data={x:esa_i_n.x, y:totPi} • options, 'th'+sc+'_i_p_nPa', 'ytitle', 'Pi !C!CnPa' Time Series Analysis4
