Advanced Clamp Diode for 3.3V PCI System Integrity

DESCRIPTION

The clamp diode is essential for ensuring data integrity in 3.3V PCI systems, as specified in PCI standard 4.2.2.2. It effectively protects 3.3V devices interfacing with 5V PCI systems, managing voltage overshoot up to 11V. Designed for high-speed applications, it supports zero wait-state and boasts the fastest speed grades of -1 and -09, simplifying implementation while ensuring high integration levels. The device is compliant with 5V PCI timing for up to 8 loads, making it a reliable choice for leading companies in reconfigurable computing.

1 / 6

Télécharger la présentation

Advanced Clamp Diode for 3.3V PCI System Integrity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

  1. Reference Slides

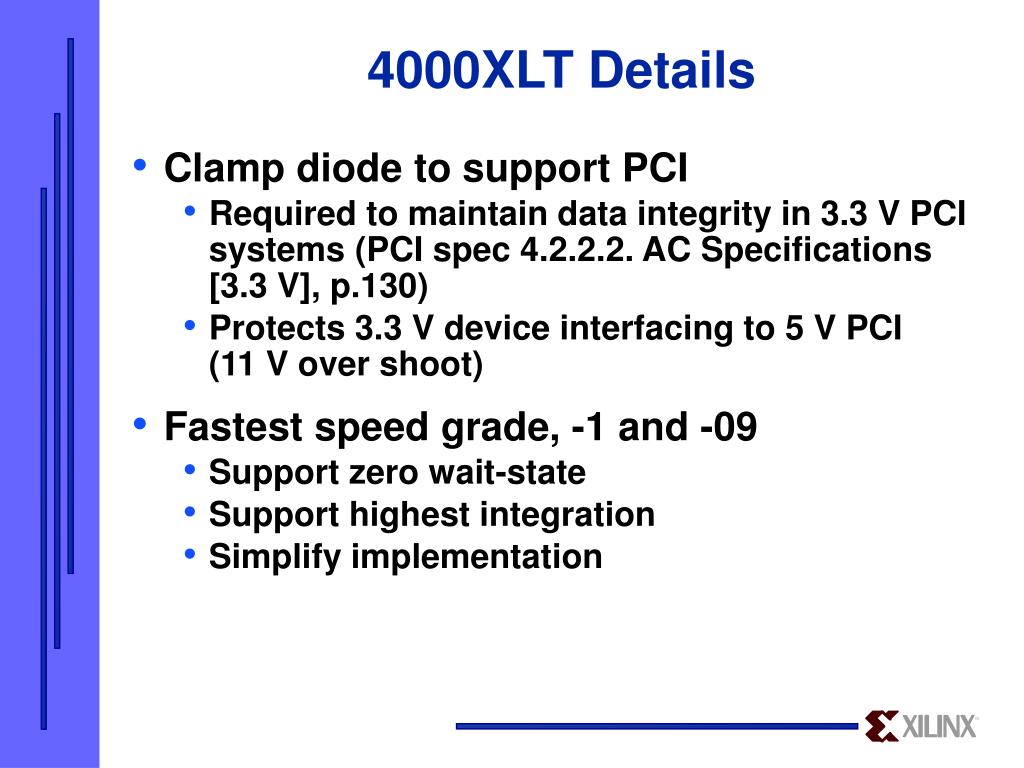

  2. 4000XLT Details • Clamp diode to support PCI • Required to maintain data integrity in 3.3 V PCI systems (PCI spec 4.2.2.2. AC Specifications [3.3 V], p.130) • Protects 3.3 V device interfacing to 5 V PCI (11 V over shoot) • Fastest speed grade, -1 and -09 • Support zero wait-state • Support highest integration • Simplify implementation

  3. 4000XL Roadmap Details • XL • 3.3V • .35u • XLA • Super-shrink • 3.3V • .25/.35u Now 3Q98 • XLT • 8 VTT-pins, clamp-diode • 3.3V PCI compliant* • XLP • 8 VTT-pins, clamp-diode • 3.3 & 5V PCI compliant** * Meets 5V PCI timing for up to 8 loads** Bit-stream programmable

  4. Partnership Details • Leader in reconfigurable computing platforms and FPGA prototype systems • Vireo Software • Leader in Device Driver Tools • 5,000+ customers worldwide • Including Intel, IBM, Hewlett Packard, AMD, PictureTel, 3Com, National Instruments, Lucent, Samsung, Adaptec, Natural Microsystems, Sony, Toshiba, Compaq, Iomega...

  5. Bridge Design Features

  6. Confirmation! When Allen-Bradley needed CompactPCI, they chose Xilinx
