  1. Modern Design Concepts Chapter 10 Second Half Last Lecture of the Semester

  2. Modern Airfoil Design • NASA looked at developing an airfoil for general aviation that combine the high lift of the early 4-digit airfoils and the low drag of the 6- digit airfoils. • The key was the achievement of true laminar flow over a significant portion of the airfoil strictly by the shape. • No external blowing or artificial means of preserving the laminar boundary layer

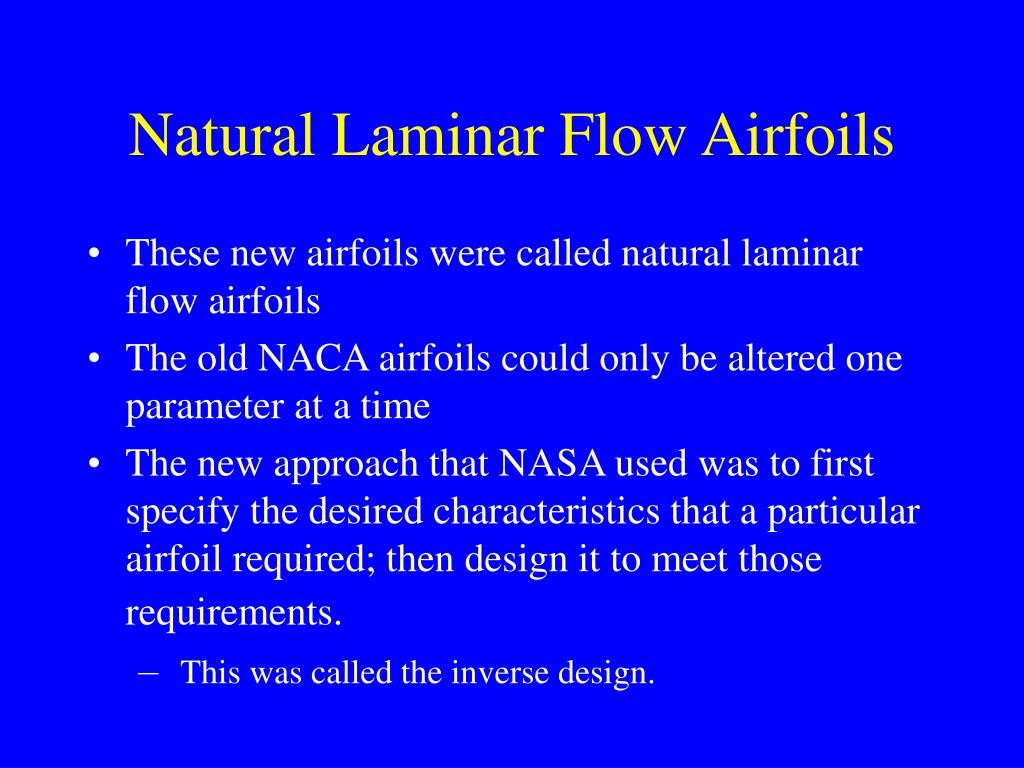

  3. Natural Laminar Flow Airfoils • These new airfoils were called natural laminar flow airfoils • The old NACA airfoils could only be altered one parameter at a time • The new approach that NASA used was to first specify the desired characteristics that a particular airfoil required; then design it to meet those requirements. • This was called the inverse design.

  4. NASA • NASA worked with the Eppler method which began with a prescribed pressure disturbance over the airfoil, and applied various aerodynamic theories to analyze the flow and establish the boundary layer characteristics

  5. Eppler Method • The Eppler method had provisions to account for altitude at gross weight. • This method allowed NASA to account for a variety of considerations

  6. First Airfoil Intended for Light Single Engine Airplanes • The first airfoil intended for light single engine airplanes was the NASA NFL (1)-0416. • The fist two numbers(04) signify a design lift coefficient of 0.4 and the 16 refers to a maximum thickness of 16% of the chord. • The 1 in parenthesis refers to the first generation of such airfoils

  7. Newer Design Details • Swept vertical Fins & T-tail arrangements • Winglets, improved cowl shapes, carefully designed fillets • *** All these aerodynamic refinements are quite beneficial

  8. Potential Airliner Designs • Engine Efficiency/Aerodynamic efficiency • higher aspect ratios • Very Narrow Chord Wings • reducing skin friction drag, increasing favorable pressure gradient; increasing laminar flow at higher speeds • Span Loading • distributing the payload over all of the span

  9. Potential General Aviation Designs • Composite structures • can be molded & bound for very smooth aerodynamic surfaces • boron or carbon fibers give high strength with little weight • composites smoother & stronger

  10. Potential General Aviation Designs • Development in Propulsion systems • Rotary/Wankel engine • an internal combustion engine without pistons • the combustion process drives the rotor in continuous, smooth, rotating manner • can run on a variety of fuels • it does not produce a tremendous amount of power for its weight

  11. Potential General Aviation Designs • Development in Propulsion systems • Turboprops • prime performance for business & commuter planes • single and multi engine • pictures on pages 295-298

  12. Quiz on Chapter 10 Take out a sheet of paper Include today’s date and your name

  13. Quiz on Chapter 10 • How has the study of aerodynamics affected modern aircraft design? Support your answer with an example.
