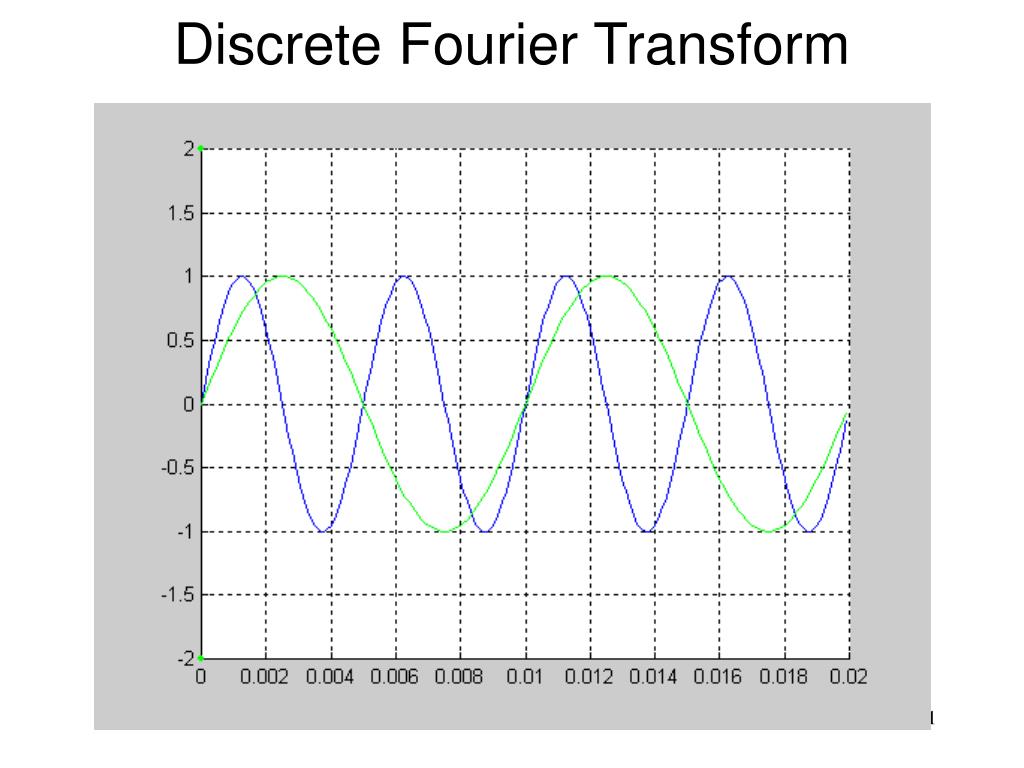

Discrete Fourier Transform. Multiply element-by-element. Cumulative sum shows:. 2 signals of same frequency and phase. Multiply element-by-element. Non-zero cumulative sum. Same frequency but  /2 phase difference. Element-by element product with both sine and cosine waves.

donat
Télécharger la présentation

Discrete Fourier Transform

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Discrete Fourier Transform

  2. Multiply element-by-element

  3. Cumulative sum shows:

  4. 2 signals of same frequency and phase

  5. Multiply element-by-element

  6. Non-zero cumulative sum

  7. Same frequency but /2 phase difference

  8. Element-by element product with both sine and cosine waves

  9. Cumulative sums

  10. Wave: partly sine, partly cosine

  11. Element-by-element multiplication

  12. Cumulative sum

  13. dftsimp2demo(f, fs, timelen, amp) dftsimp2demo(200, 1000, 0.02, 1)

  14. dftsimp2demo(f, fs, timelen, amp) dftsimp2demo(200, 1000, 0.05, 1)

  15. dftsimp2demo(f, fs, timelen, amp) dftsimp2demo(200, 10000, 0.05, 1)

  16. dftcomplex2demo(f1, f2, fs, timelen, a1, a2) dftcomplex2demo(200, 400, 10000, 0.02, 5, 4)

  17. dftcomplex2demo(f1, f2, fs, timelen, a1, a2) dftcomplex2demo(200, 400, 10000, 0.02, 5, 4)

  18. dftspeech2demo(wavfile, timelen) dftspeech2demo('atest.wav', 0.04)

  19. dftspeech2demo(wavfile, timelen) dftspeech2demo('atest.wav', 0.04)

  20. Use dB scale and frequencies to Fs /2

  21. dftspeech2demo(wavfile, timelen) dftspeech2demo(‘itest.wav', 0.04)

  22. dftspeech2demo(wavfile, timelen) dftspeech2demo(‘itest.wav', 0.04)

  23. DFT Procedure • Given the window (frame) length, decide the base frequency • Multiply by sine wave at each multiple of base frequency • Multiply by cosine wave at each multiple of base frequency • Calculate magnitude and phase spectra using

  24. Complex Exponential • Given the window (frame) length, decide the base frequency • Multiply by sine wave at each multiple of base frequency • Multiply by cosine wave at each multiple of base frequency • Calculate magnitude and phase spectra using

  25. Compact Formulae • DFT • IDFT
