  1. Booster Solid-state driver rf upgrade Tom Kubicki

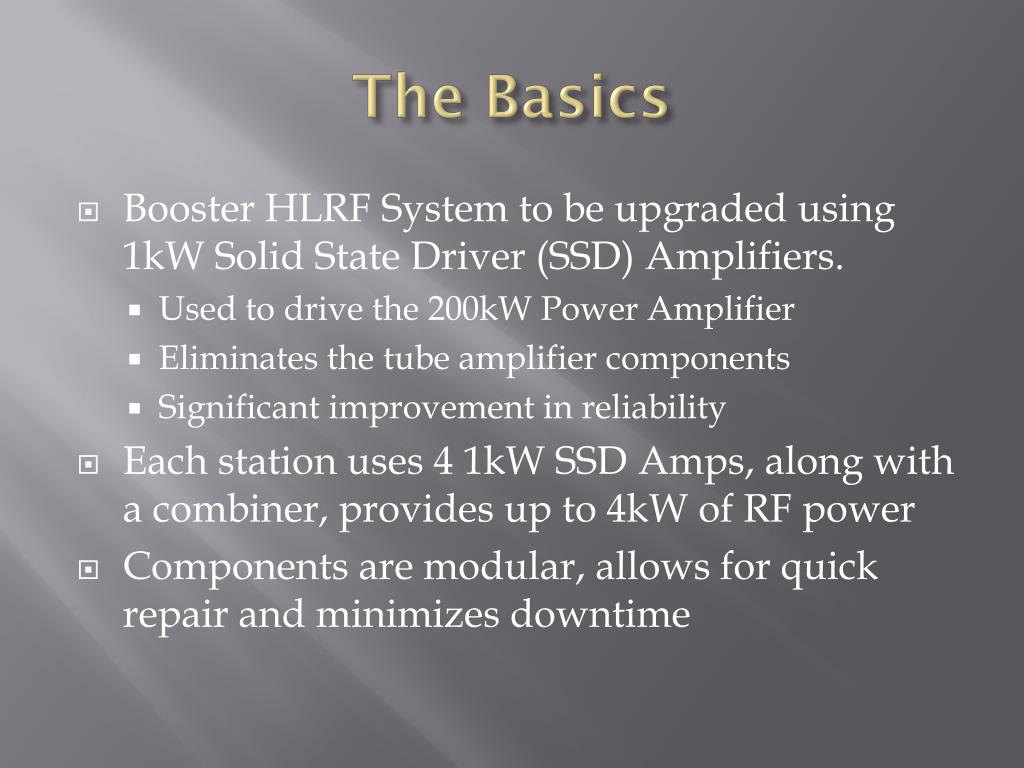

  2. The Basics • Booster HLRF System to be upgraded using 1kW Solid State Driver (SSD) Amplifiers. • Used to drive the 200kW Power Amplifier • Eliminates the tube amplifier components • Significant improvement in reliability • Each station uses 4 1kW SSD Amps, along with a combiner, provides up to 4kW of RF power • Components are modular, allows for quick repair and minimizes downtime

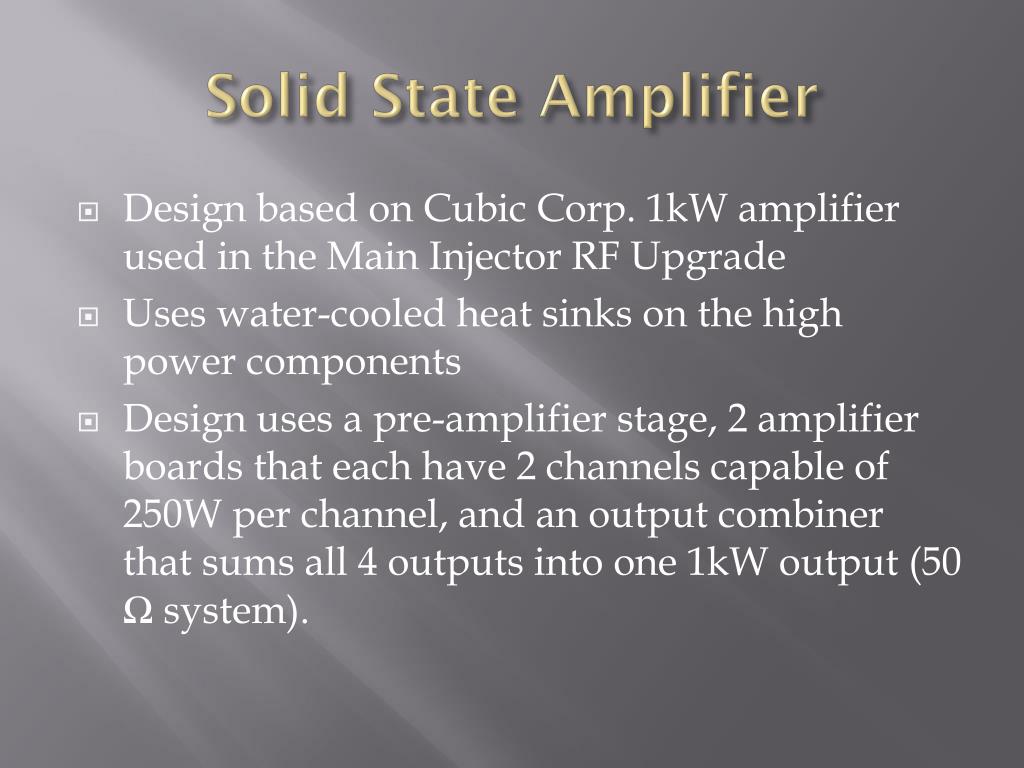

  3. Solid State Amplifier • Design based on Cubic Corp. 1kW amplifier used in the Main Injector RF Upgrade • Uses water-cooled heat sinks on the high power components • Design uses a pre-amplifier stage, 2 amplifier boards that each have 2 channels capable of 250W per channel, and an output combiner that sums all 4 outputs into one 1kW output (50 Ω system).

  4. Solid State Amplifier • Why build them here? • Cost of each amplifier built by Cubic would be ~$12K per amp. • All parts have been ordered, at a cost of ~$1.5K per amp. • Substantial cost savings! • Does not include labor, but that is “free” • 84 Amplifiers to be built.

  5. Solid State Amplifier • Failure rate is essentially 0 • No problem running 15Hz • Possibility to employ feedback for gain and phase regulation (local and global) • Far off into the future on this one, but impossible with current RF system • Plenty of additional drive power for additional beam requirements, and/or to provide beam loading compensation if necessary

  6. Accomplishments • This has been ongoing since 2006, but really ramped up in late 2009. • As stated previously, all major parts have been ordered for the SSD amps. • Main amplifier board is stuffed, ferrites ordered, etc. • SSD control units: 20 have been built and tested. This is complete! • SSD Metering chassis: 10 units have been built and tested. 10 remaining, but have all the parts • Low priority on the remaining 10 • All diode detectors built, 10 need to be calibrated

  7. Accomplishments • To date, NIM modules used in the SSD rack and Modulator have been built and tested. • 20 of each module built, includes spares and possible test station in the future • A few loose ends remaining, but have plenty of modules to complete East Gallery and most of West Gallery. • Booster SSD uses a Low-Level RF chassis, consisting of a phase shifter, variable gain amplifier (VGA), and output amplifier for increased gain.

  8. Accomplishments • The LLRF chassis drives the 1kW SSD amps. • LLRF chassis provides phase adjustment, a linear RF output in proportion to the Solid State Drive Program • 16 of these have been built and tested. • Parts have been ordered to build VGA’s, and the remaining LLRF chassis. • Stations 5 & 6 in the East gallery have been upgraded to solid-state.

  9. Future Plans • In near term, get cables pulled for upgrade to stations 1 & 2. • Cables can be phased-matched during normal operations. • Possible retrofit of Station 19, would get us 4 additional amps for either Station 1 or 2. • Order the rest of the cable needed, Heliax, RG-58, etc. • List of cables required for tunnel and rack, RF engineers have been doing this

  10. Future Plans • Order NIM Power Supplies • Acquired 10 from surplus previously • Need 30 more • At a cost of $2.5K per supply, NIM supplies alone will cost an additional $75K! • One area with a large expenditure required! • Order 15 SSD Racks ($1.2K a rack, $18K) • Order any additional parts for SSD Rack (plumbing, connectors, etc.)

  11. Future Plans • BUILD AMPLIFIERS!! • Requires special jig for brazing heat sinks. • This item should be received shortly • May want to consider outside vendor to assemble the plumbing. • May be costly, but personnel is in short supply currently. • Would allow for more assembly line fabrication • May be necessary to meet future FY goals • Pre-fabrication of as many wires, cables, circuit boards, etc. as can be done

  12. Future Plans • In near term, one Screen Current Power Supply and Grid Bias Power Supply are being built for the Modulator. • Some parts remain to be ordered, but nothing show-stopping at the moment • 20 of each supply will be built

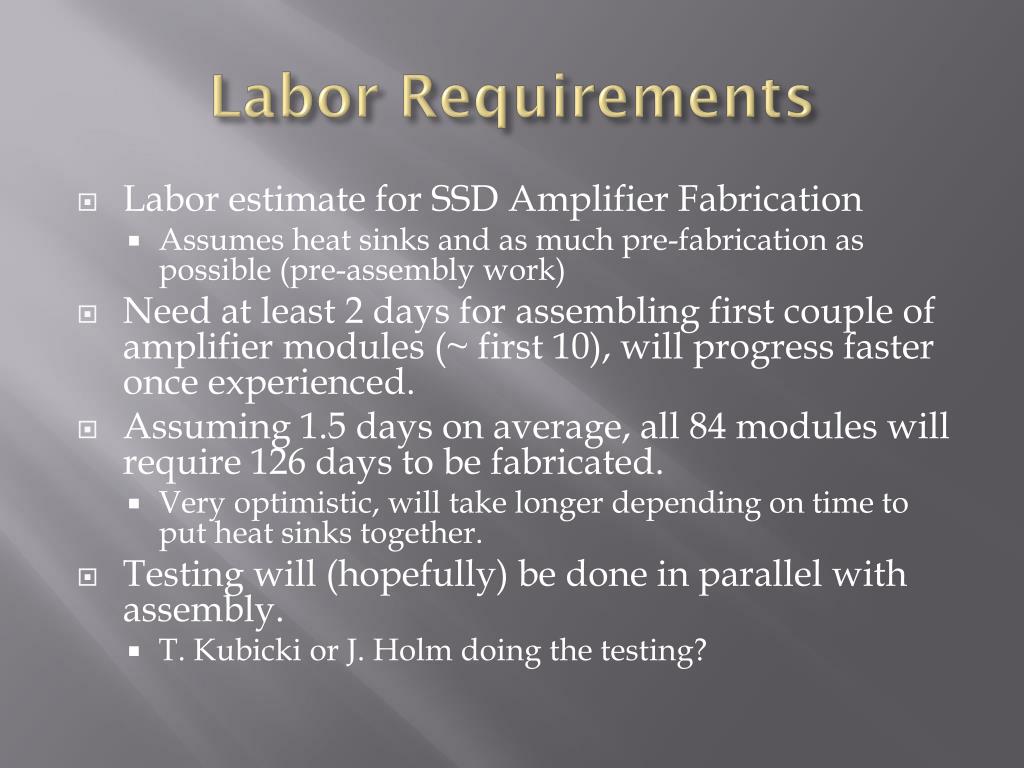

  13. Labor Requirements • Labor estimate for SSD Amplifier Fabrication • Assumes heat sinks and as much pre-fabrication as possible (pre-assembly work) • Need at least 2 days for assembling first couple of amplifier modules (~ first 10), will progress faster once experienced. • Assuming 1.5 days on average, all 84 modules will require 126 days to be fabricated. • Very optimistic, will take longer depending on time to put heat sinks together. • Testing will (hopefully) be done in parallel with assembly. • T. Kubicki or J. Holm doing the testing?

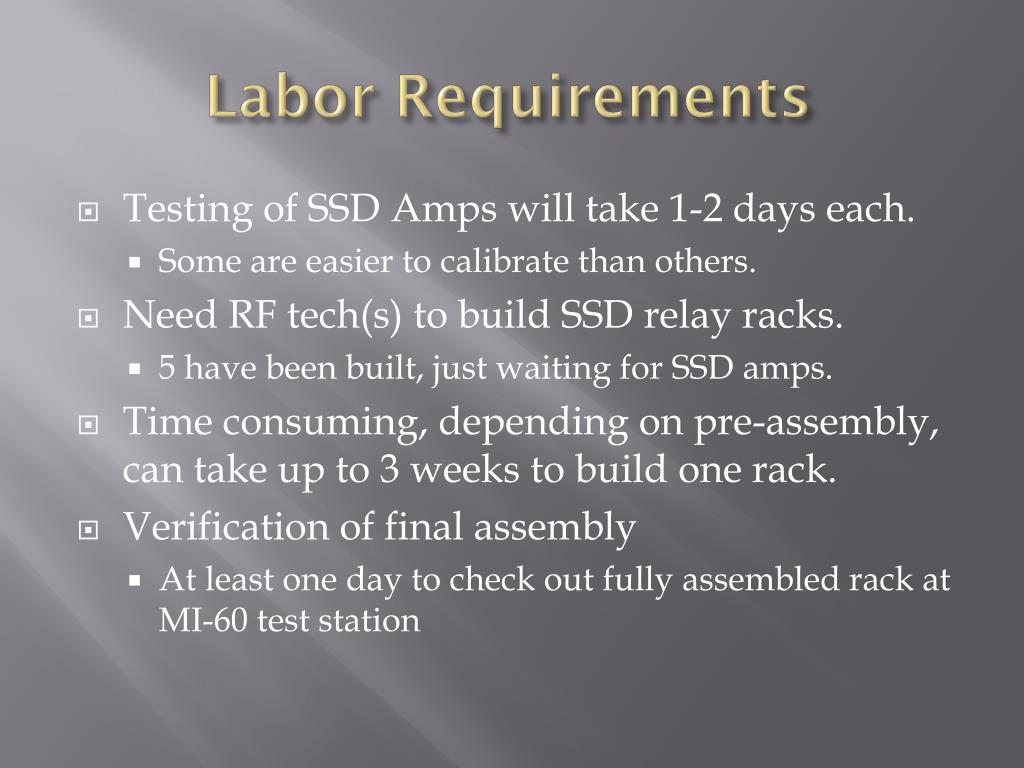

  14. Labor Requirements • Testing of SSD Amps will take 1-2 days each. • Some are easier to calibrate than others. • Need RF tech(s) to build SSD relay racks. • 5 have been built, just waiting for SSD amps. • Time consuming, depending on pre-assembly, can take up to 3 weeks to build one rack. • Verification of final assembly • At least one day to check out fully assembled rack at MI-60 test station

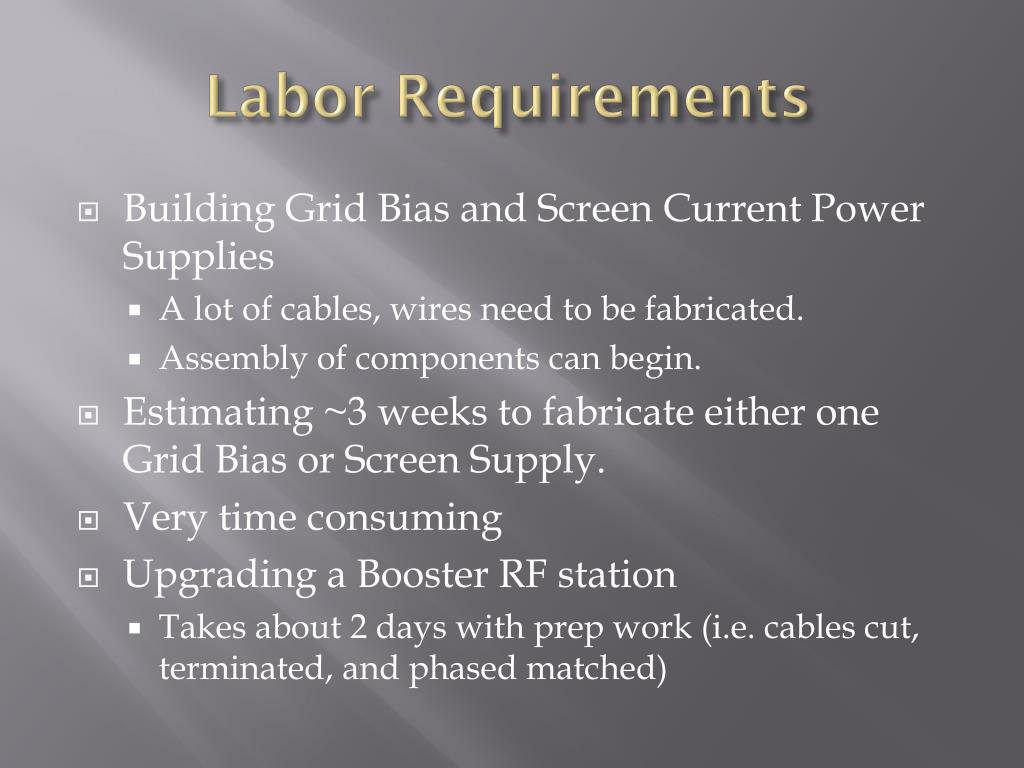

  15. Labor Requirements • Building Grid Bias and Screen Current Power Supplies • A lot of cables, wires need to be fabricated. • Assembly of components can begin. • Estimating ~3 weeks to fabricate either one Grid Bias or Screen Supply. • Very time consuming • Upgrading a Booster RF station • Takes about 2 days with prep work (i.e. cables cut, terminated, and phased matched)

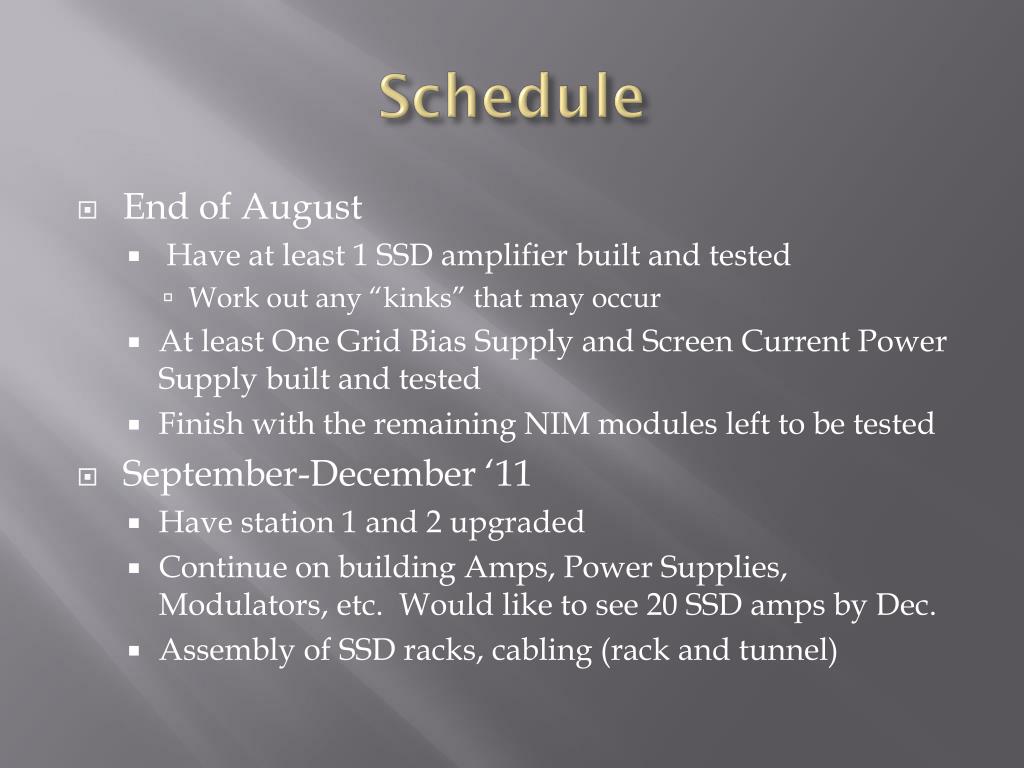

  16. Schedule • End of August • Have at least 1 SSD amplifier built and tested • Work out any “kinks” that may occur • At least One Grid Bias Supply and Screen Current Power Supply built and tested • Finish with the remaining NIM modules left to be tested • September-December ‘11 • Have station 1 and 2 upgraded • Continue on building Amps, Power Supplies, Modulators, etc. Would like to see 20 SSD amps by Dec. • Assembly of SSD racks, cabling (rack and tunnel)

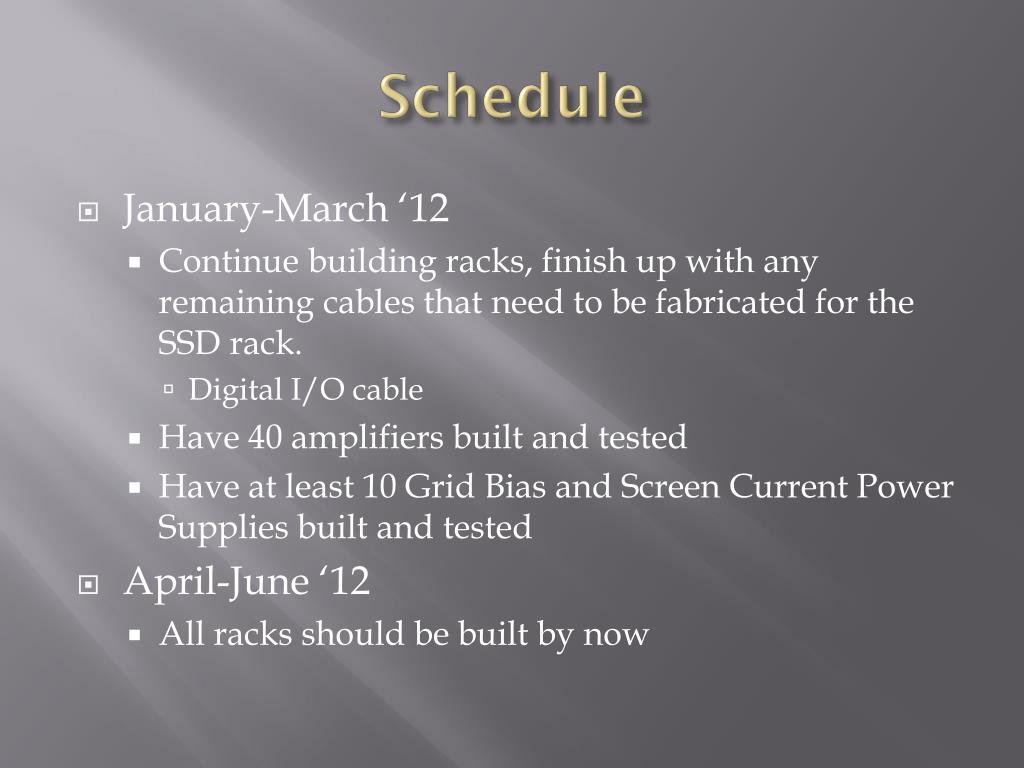

  17. Schedule • January-March ‘12 • Continue building racks, finish up with any remaining cables that need to be fabricated for the SSD rack. • Digital I/O cable • Have 40 amplifiers built and tested • Have at least 10 Grid Bias and Screen Current Power Supplies built and tested • April-June ‘12 • All racks should be built by now

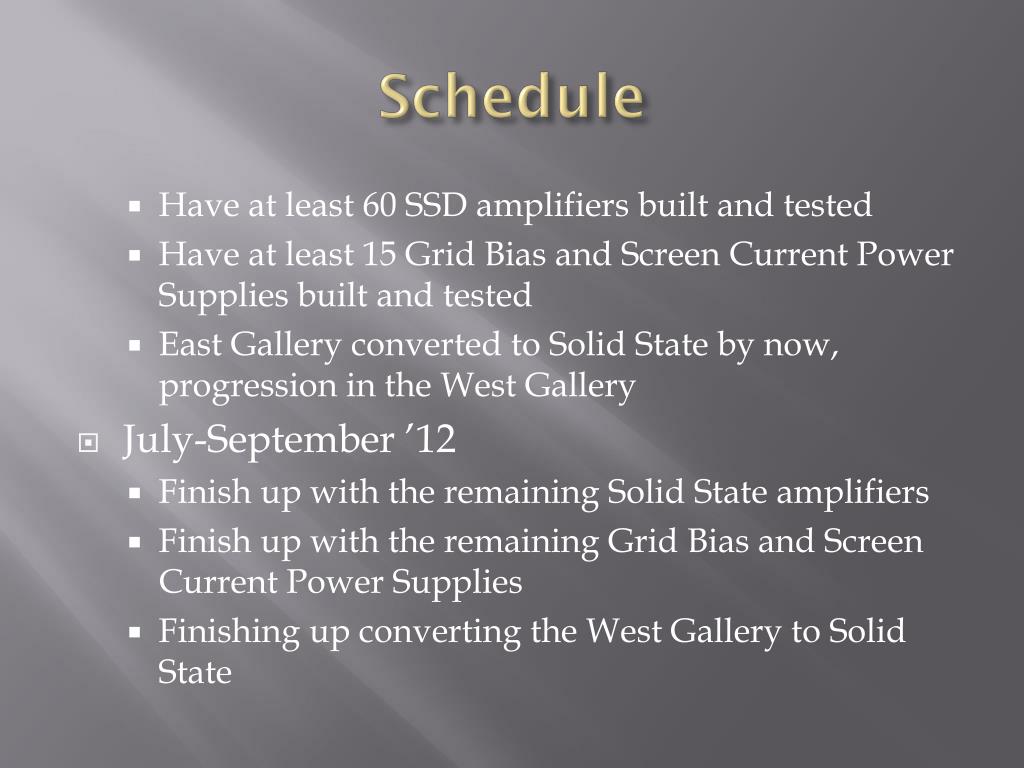

  18. Schedule • Have at least 60 SSD amplifiers built and tested • Have at least 15 Grid Bias and Screen Current Power Supplies built and tested • East Gallery converted to Solid State by now, progression in the West Gallery • July-September ’12 • Finish up with the remaining Solid State amplifiers • Finish up with the remaining Grid Bias and Screen Current Power Supplies • Finishing up converting the West Gallery to Solid State

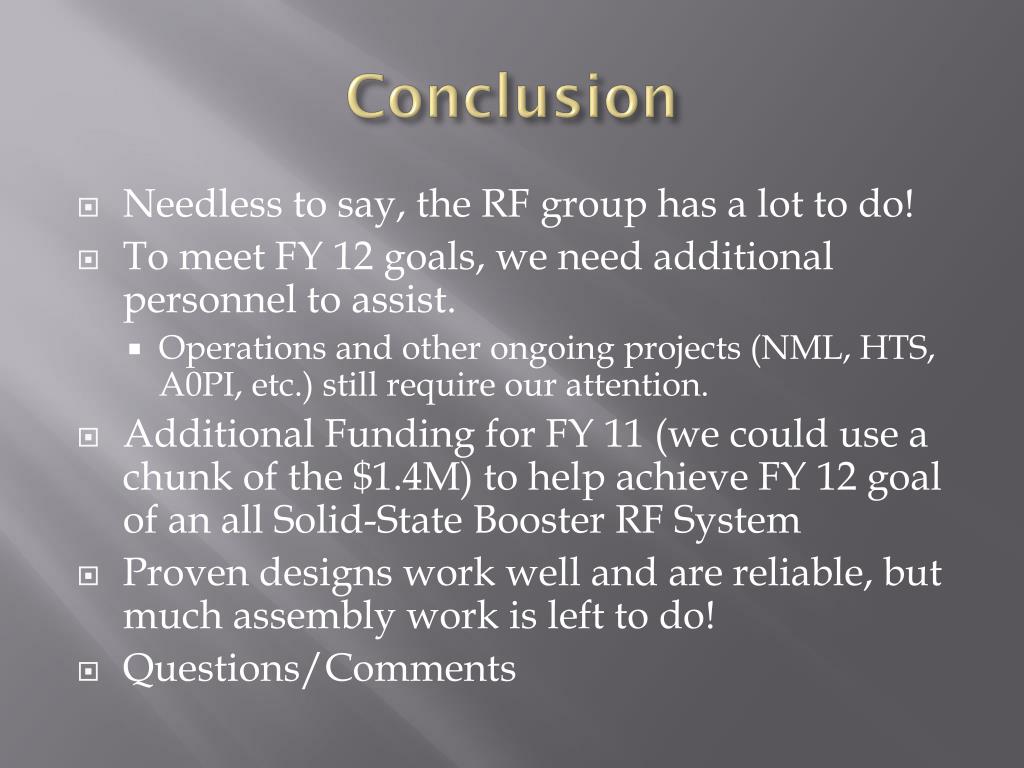

  19. Conclusion • Needless to say, the RF group has a lot to do! • To meet FY 12 goals, we need additional personnel to assist. • Operations and other ongoing projects (NML, HTS, A0PI, etc.) still require our attention. • Additional Funding for FY 11 (we could use a chunk of the $1.4M) to help achieve FY 12 goal of an all Solid-State Booster RF System • Proven designs work well and are reliable, but much assembly work is left to do! • Questions/Comments
