  1. ASTRONOMY Chapter 26 Doubles, Variables, and Clusters

  2. Binary Stars • Most stars that we see are actually contain two or more component stars. • The terms binary stars and double stars are the same • Binary stars are two (or more) stars held together by their gravitational attraction. • There are several different ways to find binary star systems.

  3. Double Stars http://astrobob.areavoices.com/astrobob/images/AlbireoHunterWilson1.jpg

  4. Binary Stars • Optical doubles are two stars that are in the same line of sight but are not near each other. • Since these are not connected by gravity, we will not consider these to be binaries. • Visual binaries are stars that can be seen to be doubles through a telescope with sufficient resolution. • About 5-10% of stars are visual binaries.

  5. Spectroscopic Binaries • Spectroscopic binaries are systems that can be detected by a Doppler shift that varies with time. • As one star orbits the other, its Doppler lines change from red to blue and back again in a periodic manner.

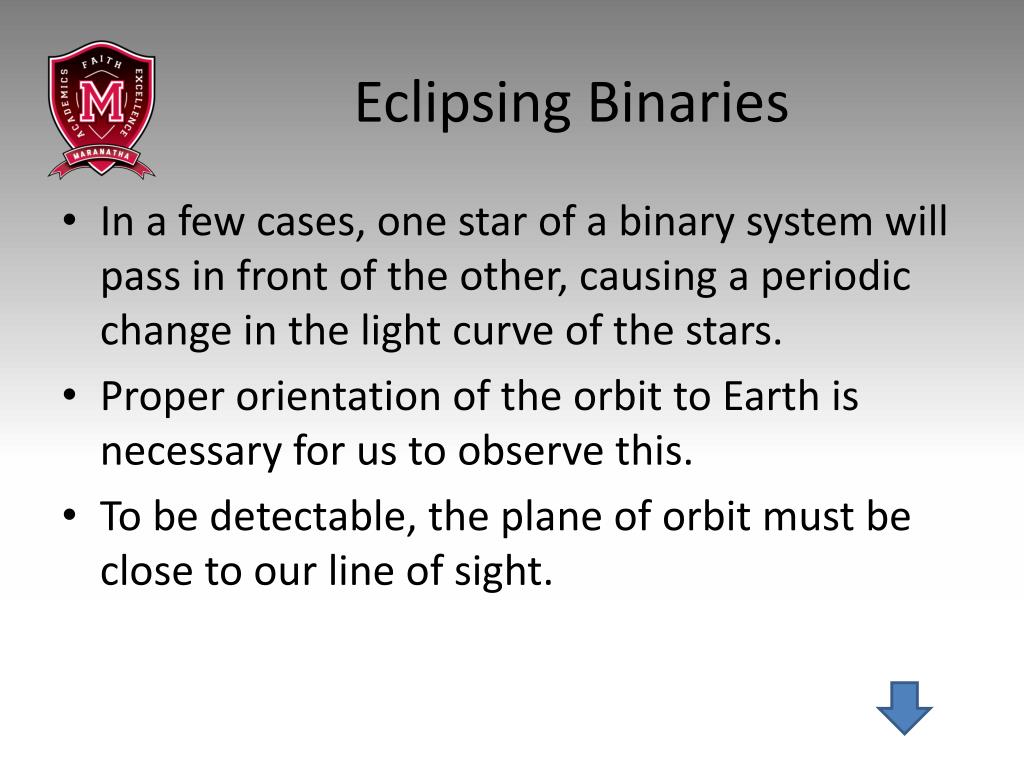

  6. Eclipsing Binaries • In a few cases, one star of a binary system will pass in front of the other, causing a periodic change in the light curve of the stars. • Proper orientation of the orbit to Earth is necessary for us to observe this. • To be detectable, the plane of orbit must be close to our line of sight.

  7. Eclipsing Binaries

  8. Astrometric Binaries • In some cases, the second star of a binary system is only detectable by the “wobble” of the visible star. • These are called astrometric binaries.

  9. Astrometric Binaries

  10. The Mass-Luminosity Relation • Binary stars can be used to determine the masses of stars. • When the luminosity of stars is graphed against their masses an interesting relationship arises. • The mass-luminosity relation is only valid for main sequence stars. • Mass is the primary factor in determining where on the main sequence a star will settle.

  11. The Mass-Luminosity Relation

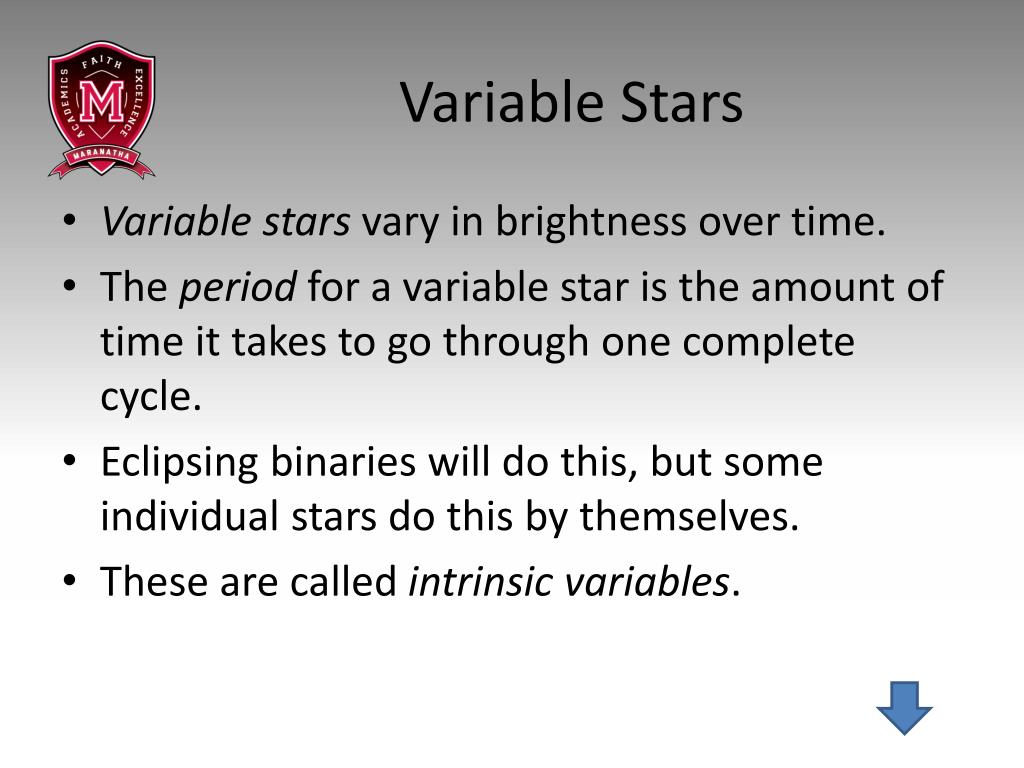

  12. Variable Stars • Variable stars vary in brightness over time. • The period for a variable star is the amount of time it takes to go through one complete cycle. • Eclipsing binaries will do this, but some individual stars do this by themselves. • These are called intrinsic variables.

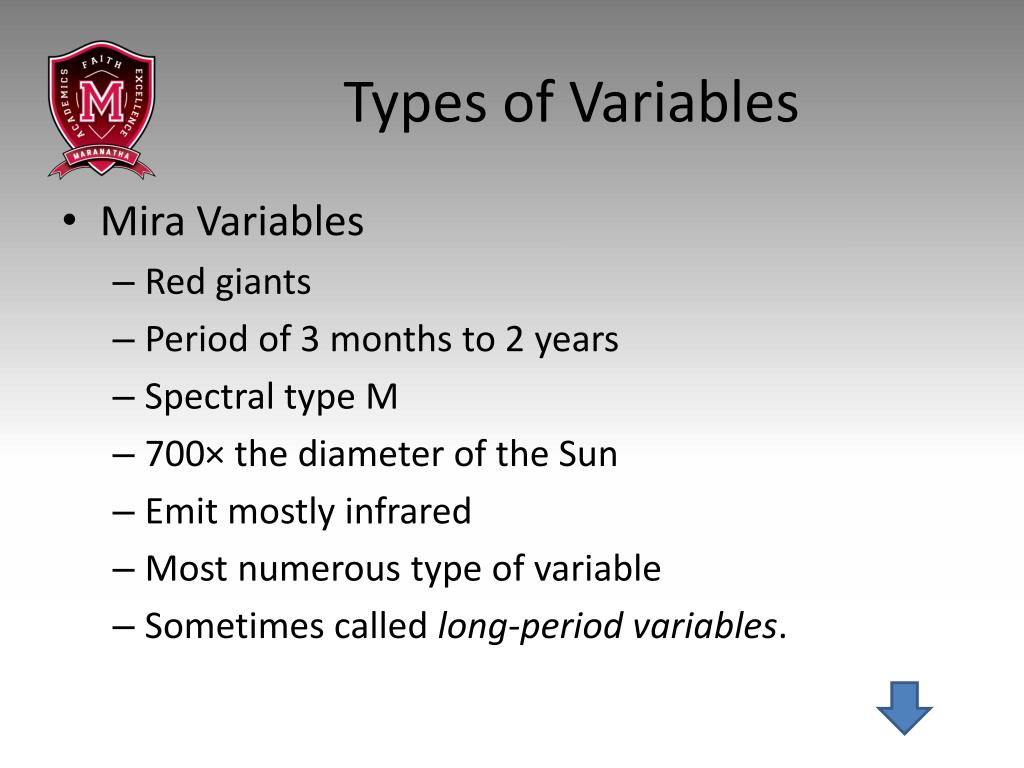

  13. Types of Variables • Mira Variables • Red giants • Period of 3 months to 2 years • Spectral type M • 700× the diameter of the Sun • Emit mostly infrared • Most numerous type of variable • Sometimes called long-period variables.

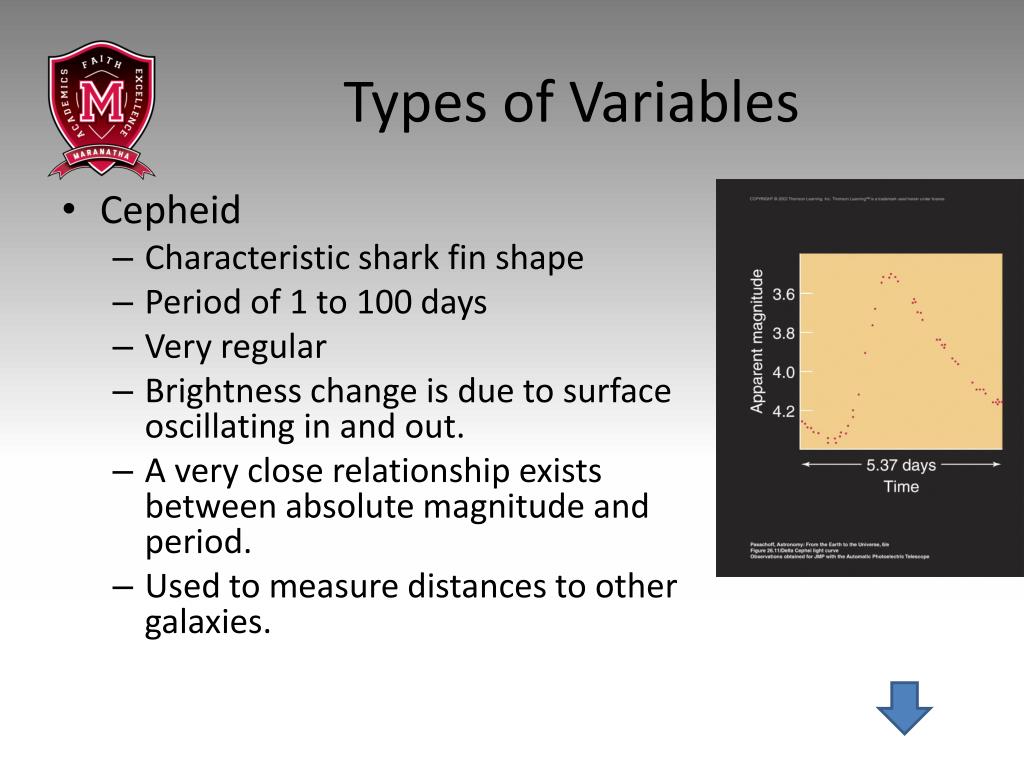

  14. Types of Variables • Cepheid • Characteristic shark fin shape • Period of 1 to 100 days • Very regular • Brightness change is due to surface oscillating in and out. • A very close relationship exists between absolute magnitude and period. • Used to measure distances to other galaxies.

  15. Period-Luminosity Relation • For Cepheid variables. • Average brightness is on vertical axis.

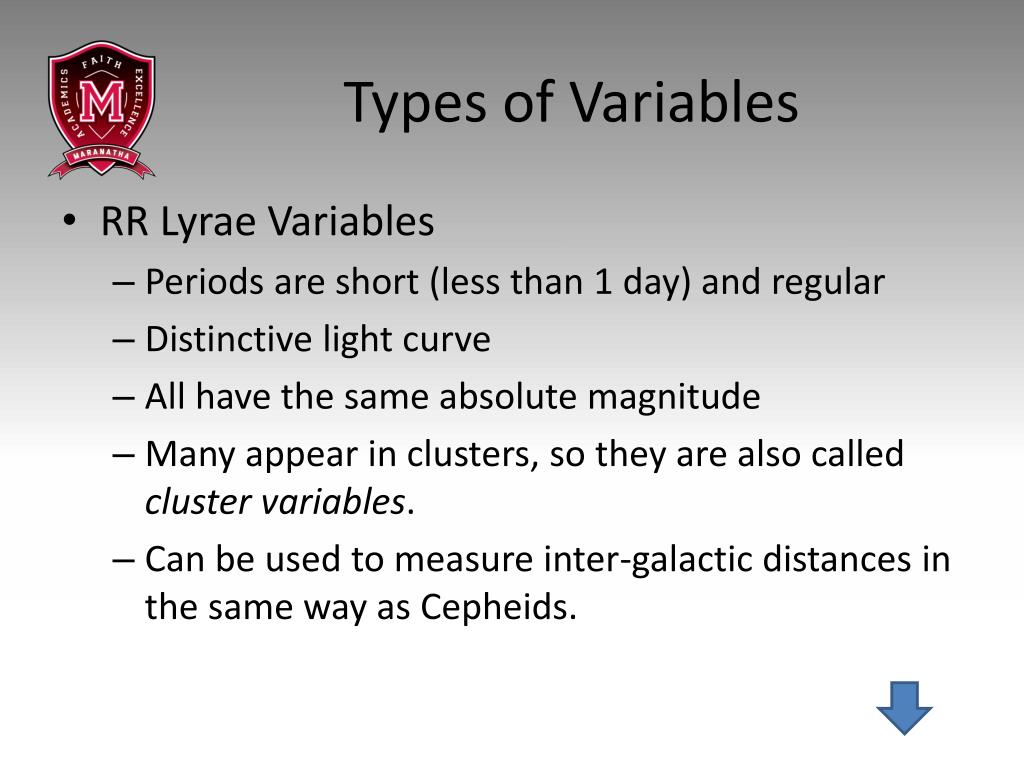

  16. Types of Variables • RR Lyrae Variables • Periods are short (less than 1 day) and regular • Distinctive light curve • All have the same absolute magnitude • Many appear in clusters, so they are also called cluster variables. • Can be used to measure inter-galactic distances in the same way as Cepheids.

  17. Clusters • A cluster is a group of stars that are close (relatively) together • Stars of a cluster are all about the same distance from Earth • Stars of a cluster are all about the same age.

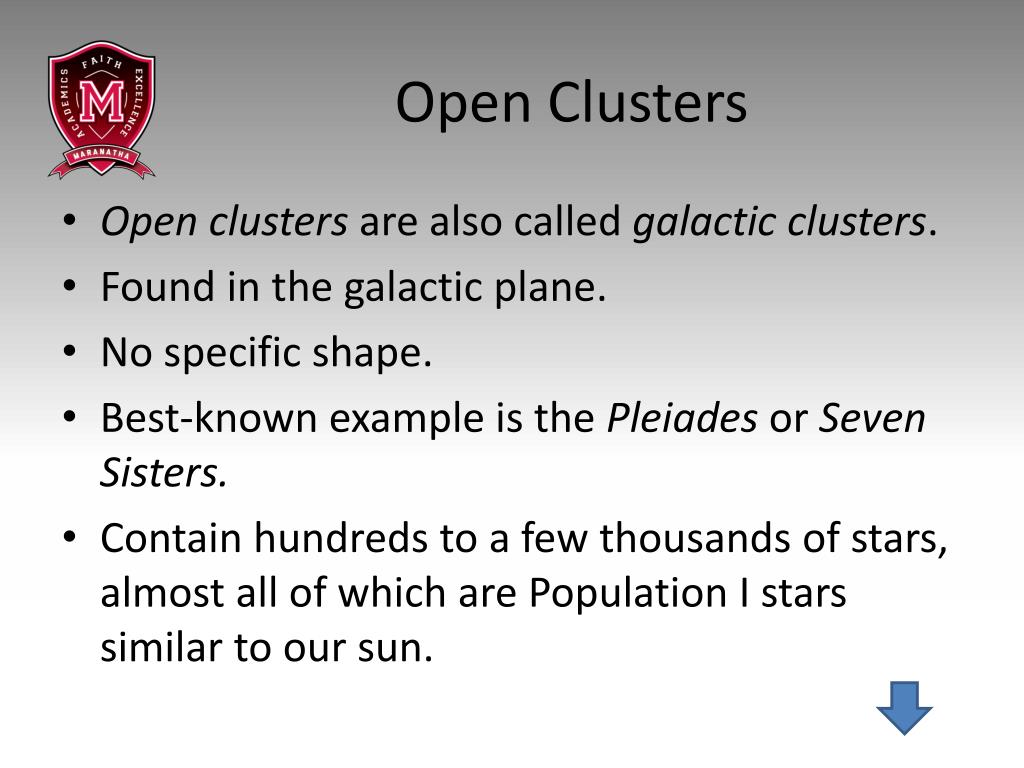

  18. Open Clusters • Open clusters are also called galactic clusters. • Found in the galactic plane. • No specific shape. • Best-known example is the Pleiades or Seven Sisters. • Contain hundreds to a few thousands of stars, almost all of which are Population I stars similar to our sun.

  19. Open Clusters

  20. Globular Clusters • Spherical in shape • Contain ten thousand to a million stars • Most are seen in a halo above and below the galactic disk • Have a relatively low abundance of heavy elements.

  21. Globular Clusters http://www.nasa.gov/mission_pages/hubble/science/ancient-stars.html

  22. Ages of Clusters • The ages of clusters can be determined from the Hertzsprung-Russell diagram for the cluster • The length of the main sequence indicates the age
