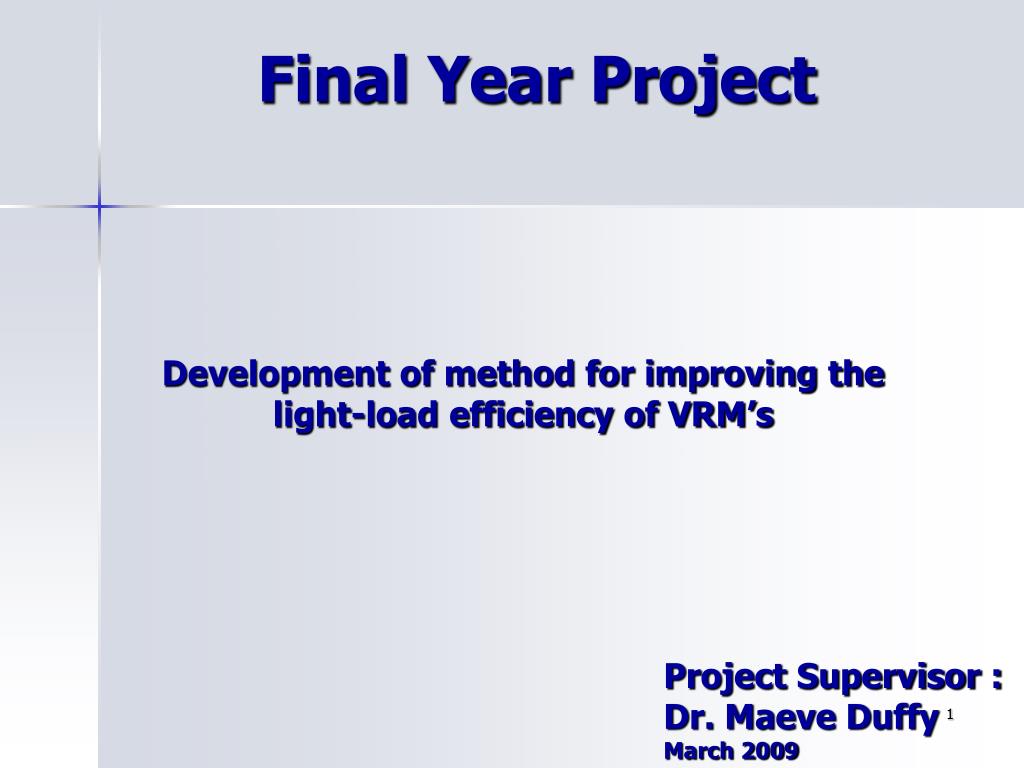

  1. Final Year Project Development of method for improving the light-load efficiency of VRM’s Project Supervisor :Dr. Maeve DuffyMarch 2009

  2. VRM • Voltage Regulator Module • Switching Mode Power Supply for Microprocessor • The most suitable topography for a VRM is a Multiphase Synchronous Buck Converter

  3. Microprocessor Light Load • Power States Optimize the runtime power consumption • Sleep States Idle Power Managements

  4. Trends in VRM Design is Microprocessor Loads • Moore’s Law will apply into the future - Intel • Lower core voltages and higher currents • Analysis of recent VRM guideline from Intel

  5. Synchronous Buck Converter Efficiency Sources of Losses in the power stage • Upper and Lower MOSFET s • Output Inductor • Output Capacitor

  6. Analysis of MOSFET Losses • Conduction for Losses for Upper and Lower MOSFET s • Switching Losses for Upper MOSFET • Lower MOSFET Body Diode conduction losses • Reverse Recovery Losses • Gate Driver Losses

  7. Capacitor and Inductor Losses Inductor Losses • DCR and ACR • Hysteresis Losses • Eddy Current Losses Capacitor Losses • ESR (Equivalent Series Resistance)

  8. SPICE Modelling of Power Losses Objective is to use SPICE to measure MOSFET switching losses from the instantaneous products of current and voltage

  9. Shoot Through during Upper MOSFET Switch On Drain Source Current Upper ON Upper OFF Upper ON Upper OFF

  10. Eliminating Shoot Through • Introduction of dead eliminated shoot though on lower MOSFET switch on but not on upper MOSFET switch on • A possible cause of shoot through on upper MOSFET switch on is Dv/dt induced turn on of lower MOSFET. • Alan Elbanhawy - Fairchild Semiconductor

  11. Dv/dt Induced Turn On of Lower MOSFET

  12. MathCAD Efficiency Calculator • MathCAD displays equation and expression in graphically form, and is aware of SI units.Easier to track calculations in MathCAD • Used a MathCAD worksheet to calculate the efficiency of a single phase of a synchronous buck converter • The original MathCAD worksheet was a supplement to a paper called “What MOSFET Can Do to Boost the Performance of VRM Design” • Alan Miftakhusdinov - Texas Instruments

  13. Generating Rds(0n) from SPICE MOSFET Model Rds (0N) for upper and lower MOSFET s

  14. Distributed Inductors • Paralleling the output inductor • Investigating if losses are reduced if inductor are switched out during periods of light loads • The effective inductance of the output inductor changes when inductors are switched out.

  15. IL Reducing L Io Increasing L Effects of changing inductance of • Output Ripple Current • Output Capacitor ESR Losses

  16. Conclusion Using Distributed Inductor and switching out inductor during periods of light load does improve VRM efficiency

  17. Questions
