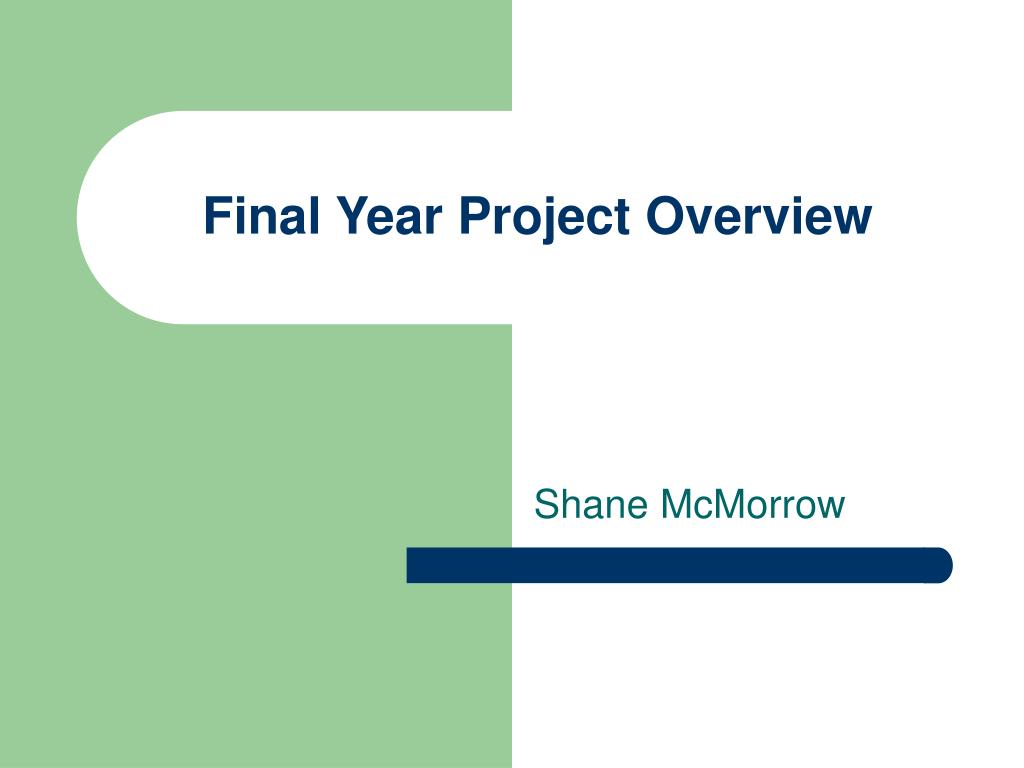

  1. Final Year Project Overview Shane McMorrow

  2. Variable Inductance for Solar Power Applications • PV solar cells provide variable power supply • The maximum power transfer theorem shows for maximum power transfer, load impedance should equal the output impedance of the PV panel

  3. Variable Inductance for Solar Power Applications • How can Load impedance can be matched to the PV panel impedance ? • For this project a buck converter will be used • By varying the duty cycle of the buck converter the PV panel impedance can be matched to the load impedance

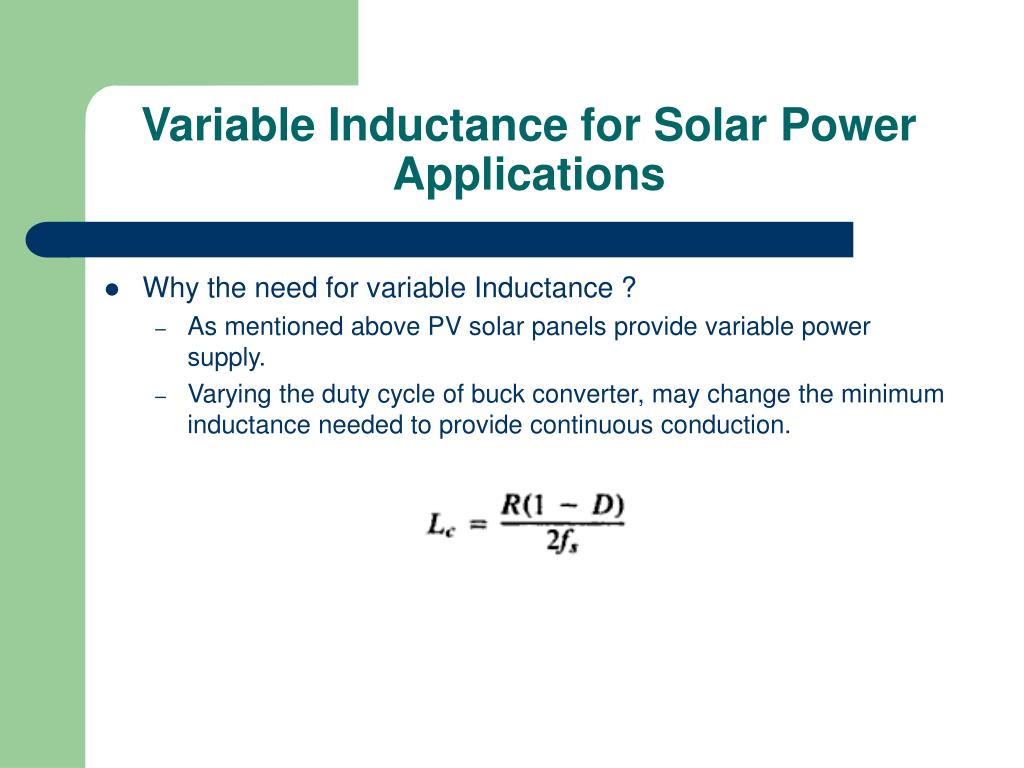

  4. Variable Inductance for Solar Power Applications • Why the need for variable Inductance ? • As mentioned above PV solar panels provide variable power supply. • Varying the duty cycle of buck converter, may change the minimum inductance needed to provide continuous conduction.

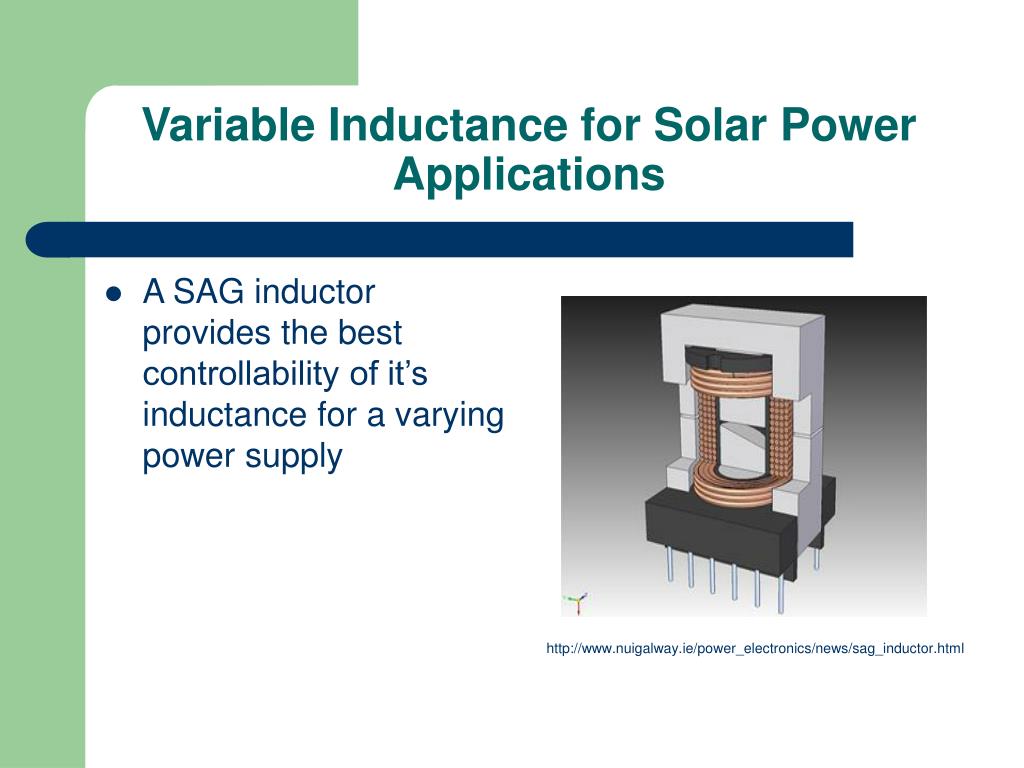

  5. Variable Inductance for Solar Power Applications • A SAG inductor provides the best controllability of it’s inductance for a varying power supply http://www.nuigalway.ie/power_electronics/news/sag_inductor.html

  6. Variable Inductance for Solar Power Applications • Project Goals • Generate SPICE simulations of the buck converter for design purposes (finding out what inductance levels need for varied power supply) • Build and test a Buck Converter that can provide impedance matching, determine ideal L – I characteristics for varied power supply • Simulate a buck converter with SAG inductor using ElectromagneticTransientProgramme (EMTP) for a varied power supply • Using these results design the corresponding Buck converter

  7. Variable Inductance for Solar Power Applications • Progress • Research • Buck Converters • SAG inductor characteristics. • Impedance matching using duty cycle for Buck Converters • Basic SPICE simulations of a Buck converter
