Object Oriented Analysis & Design

1. Object Oriented Analysis & Design Class Design 2

2. Contents

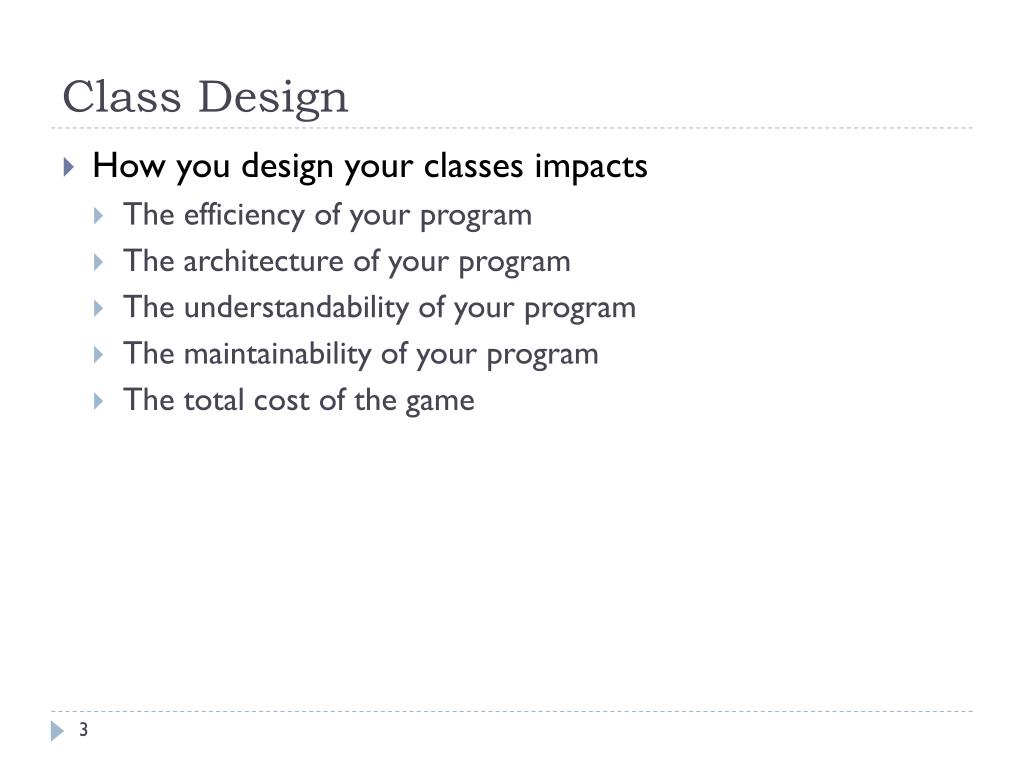

3. Class Design • How you design your classes impacts • The efficiency of your program • The architecture of your program • The understandability of your program • The maintainability of your program • The total cost of the game

4. The Well-Designed Class • A well-designed class can • Be used anywhere in the program • Be used in conjunction with STL containers • Provide all methods that will ever be needed to use the class in any situation • Be serialized if the data needs to be sent across a network or saved on disk • Provide other classes access to the data they need • Protect its data so other classes cannot corrupt it

5. The General Purpose Class • A class which can be used almost anywhere • Defines a parameterless constructor • Allows default instances to be created for making arrays, STL containers and serialization • Defines a copy constructor • Used when copying values to parameter lists and when returning classes from methods • An assignment operator • Allows one object to be copied to another object

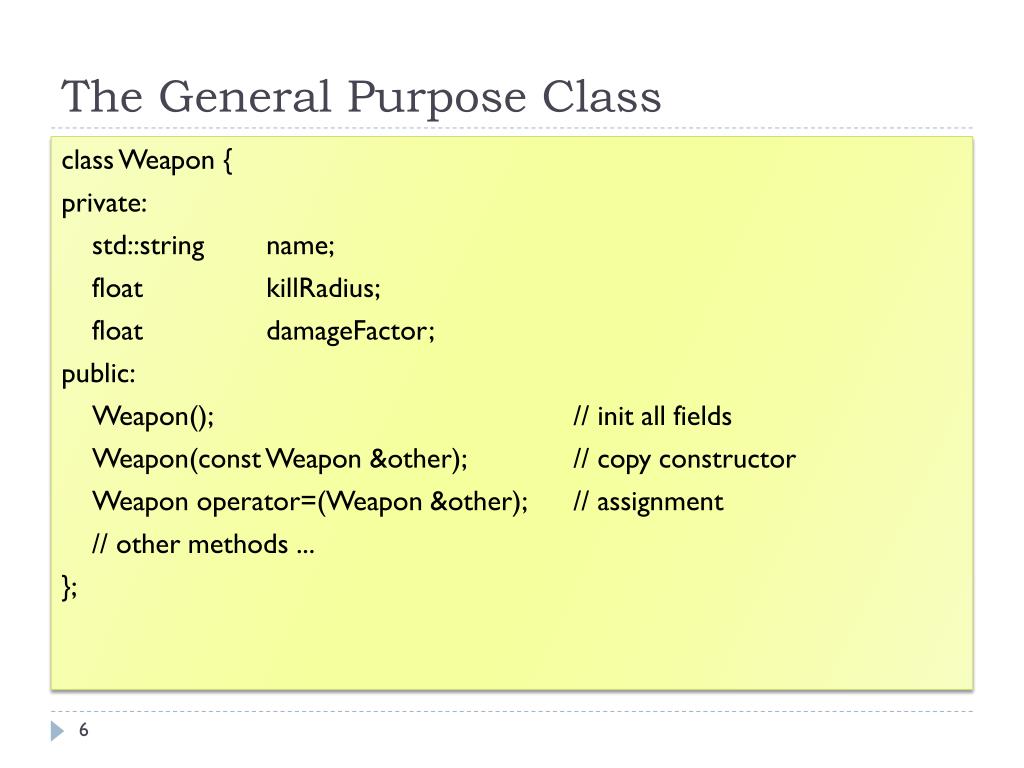

6. The General Purpose Class class Weapon { private: std::string name; float killRadius; float damageFactor; public: Weapon(); // init all fields Weapon(const Weapon &other); // copy constructor Weapon operator=(Weapon &other); // assignment // other methods ... };

7. Classes for Use with STL • Classes used with STL must also define • Operator== • Operator!=

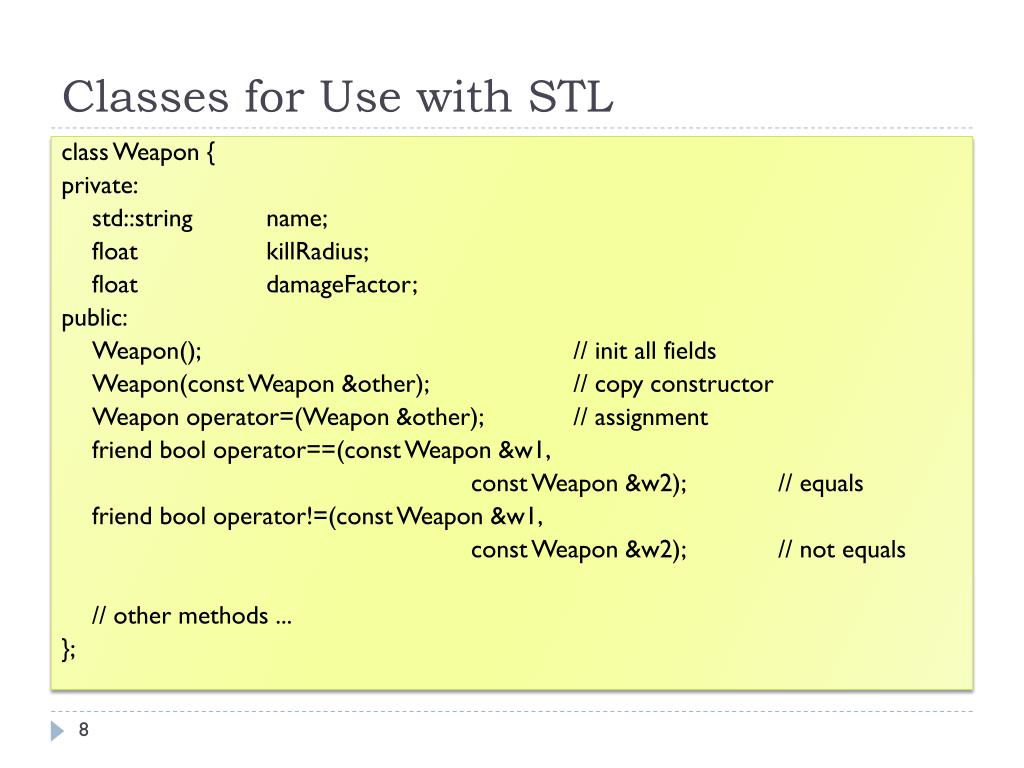

8. Classes for Use with STL class Weapon { private: std::string name; float killRadius; float damageFactor; public: Weapon(); // init all fields Weapon(const Weapon &other); // copy constructor Weapon operator=(Weapon &other); // assignment friend bool operator==(const Weapon &w1, const Weapon &w2); // equals friend bool operator!=(const Weapon &w1, const Weapon &w2); // not equals // other methods ... };

9. Planning for Debugging • You WILL have to debug your game • This will be likely done using a log file • You will MOST LIKELY have a log file for your game • Any class might have to be printed as text • Therefore: • Provide an insertion operator which can print a textual version of the class for debugging purposes

10. Planning for Debugging class Weapon { private: std::string name; float killRadius; float damageFactor; public: Weapon(); // init all fields Weapon(const Weapon &other); // copy constructor Weapon operator=(Weapon &other); // assignment friend bool operator==(const Weapon &w1, const Weapon &w2); // equals friend bool operator!=(const Weapon &w1, const Weapon &w2); // not equals friend std::ostream& operator<<(std::ostream &os, const Weapon &w); // insertion // other methods ... };

11. That Sounds like Too Much Work • Building classes correctly at the start • Becomes automatic and you do not think about it • They are ready for use anytime anywhere • You do not have to go back and do it later

12. Destructors • A class needs a destructor if • It has open files which need to be closed • It has open network connections which need to be closed • It has pointers to other objects which need to be deleted • It accesses any shared resource which needs to be released • It alters global variables to count number of instances or some value that depends on the number instances of each class

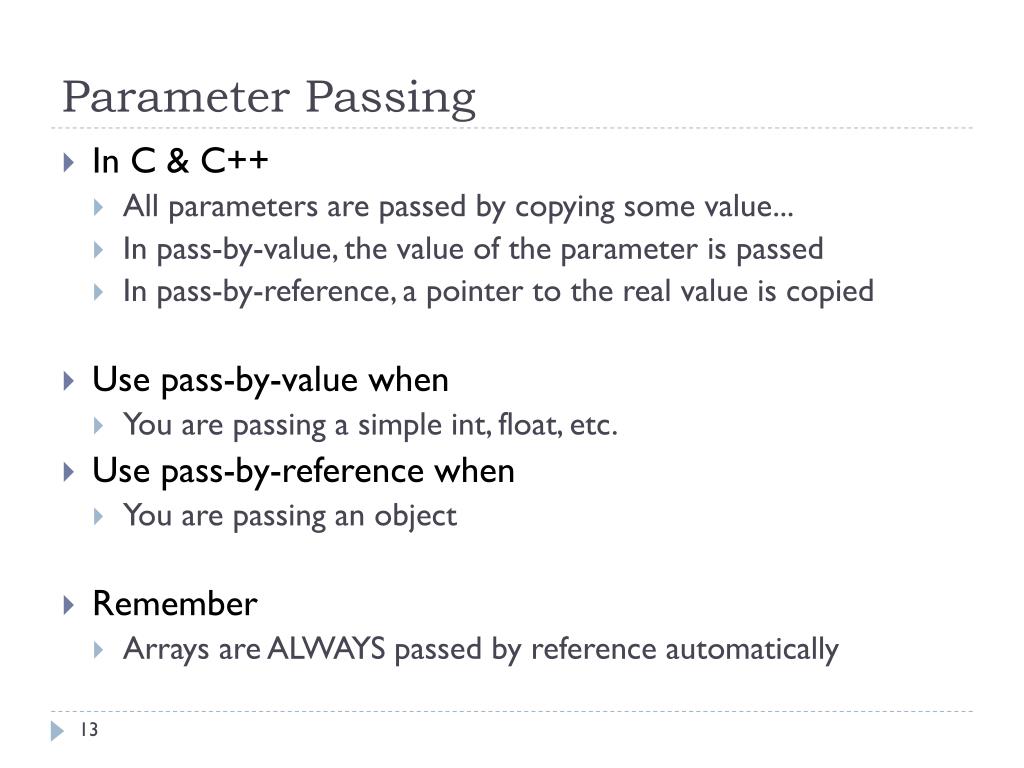

13. Parameter Passing • In C & C++ • All parameters are passed by copying some value... • In pass-by-value, the value of the parameter is passed • In pass-by-reference, a pointer to the real value is copied • Use pass-by-value when • You are passing a simple int, float, etc. • Use pass-by-reference when • You are passing an object • Remember • Arrays are ALWAYS passed by reference automatically

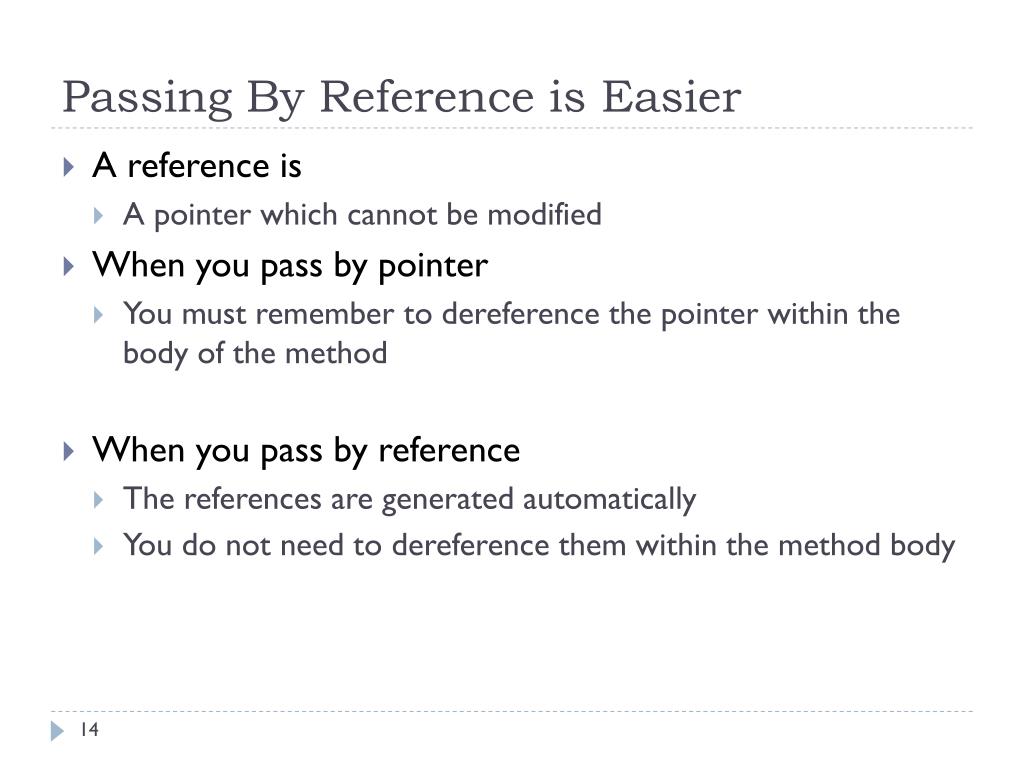

14. Passing By Reference is Easier • A reference is • A pointer which cannot be modified • When you pass by pointer • You must remember to dereference the pointer within the body of the method • When you pass by reference • The references are generated automatically • You do not need to dereference them within the method body

15. Assigning Responsibility • Often, we are faced with the question • “Which class should have this attribute?” • The general answer is • The class who properly owns the attribute • The class to which the attribute belongs

16. Assigning Responsibility • Consider a game board with objects on it • Should the position of the objects be stored • As an attribute of the objects ? • As an attribute of the game board ? • Consider the operations we will perform • Render the game board & objects • Move an object from one location to another • Determine which object was clicked

17. Option 1: Position Stored in Board

18. Option 1: Drawing

19. Option 1: Hit Detection

20. Option 1: Move a Piece

21. Option 2: Position Stored in Piece

22. Option 2: Drawing

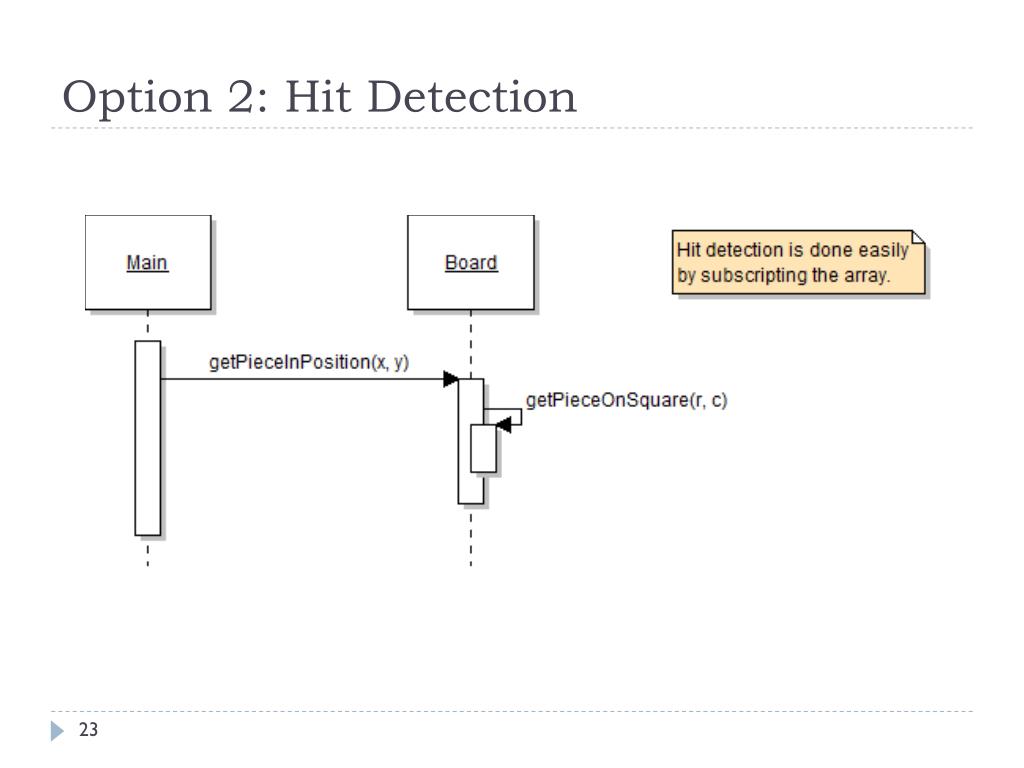

23. Option 2: Hit Detection

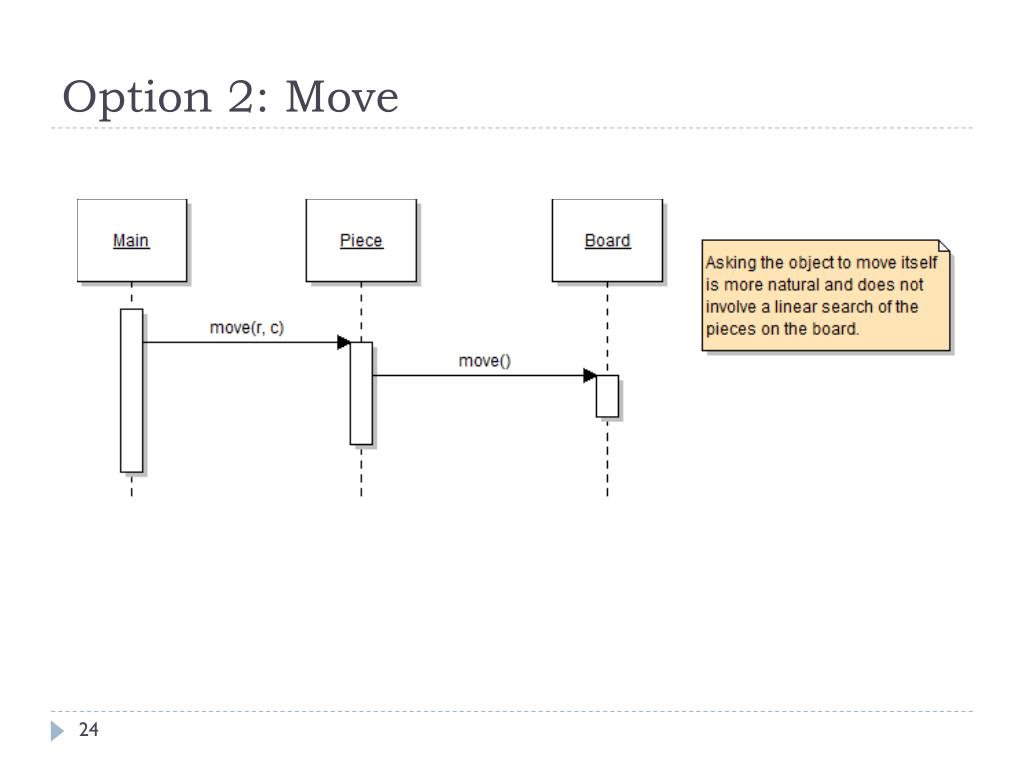

24. Option 2: Move

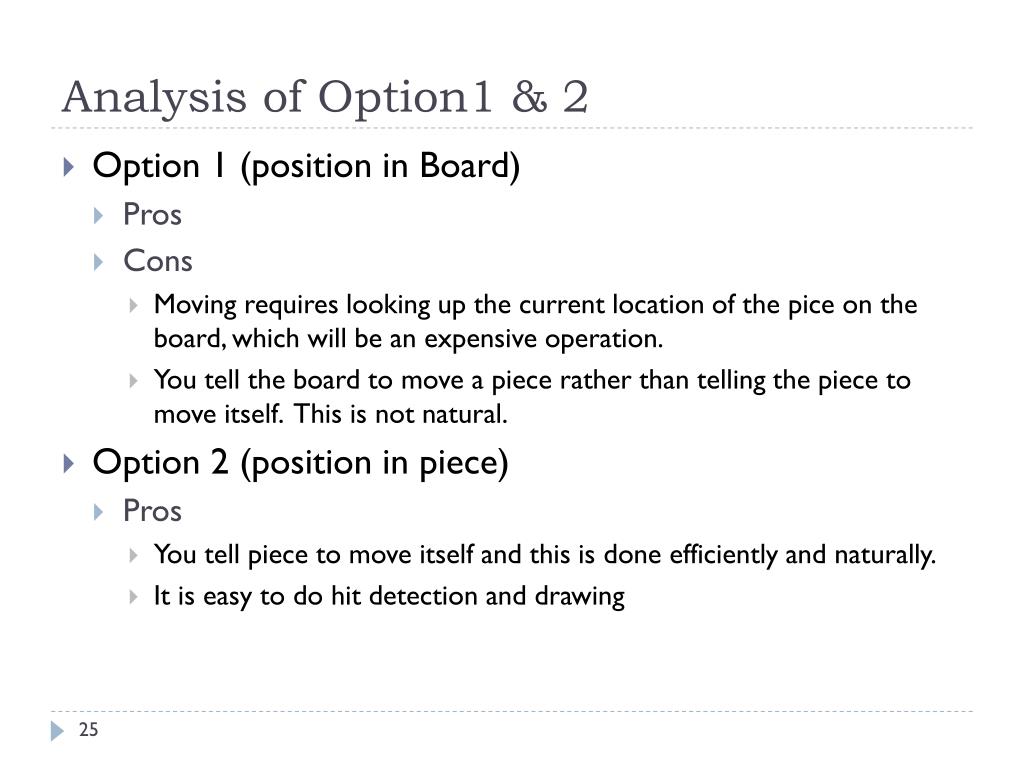

25. Analysis of Option1 & 2 • Option 1 (position in Board) • Pros • Cons • Moving requires looking up the current location of the pice on the board, which will be an expensive operation. • You tell the board to move a piece rather than telling the piece to move itself. This is not natural. • Option 2 (position in piece) • Pros • You tell piece to move itself and this is done efficiently and naturally. • It is easy to do hit detection and drawing

26. Analysis of Option1 & 2 • Option 2 is • slightly easier to implement • More natural and intuitive to use • More efficient • Why? • The position of a piece is a property of the piece, not of the board • The board should simply have a collection of pieces • In this case, the board uses a 2D array as a fast index into the pieces

27. RTTI • Run Time Type Identification • Requires classes to have at least 1 virtual function • Adds to the memory requirements • Can slow the program • Few programs must use RTTI • Proper class design and use of polymorphism can eliminate the need for RTTI • Remember: RTTI was a late addition to C++

28. Virtual Destructors • Destructors, like other methods, can be declared virtual • Consider: • class Parent {private:int *intArray;public: ~Parent() { if(intArray) delete [] intArray; }};

29. Virtual Destructors • class Child: public Parent {private:char *charArray;public:~Child() {if(charArray) delete [] charArray; }}; • Parent *p = new Child(); • delete(p); // invokes parent destructor! • The problem is that the wrong destructor is used

30. Virtual Destructors • This problem can be fixed by declaring the destructor virtual • class Parent {private:int *intArray;public:virtual ~Parent() { if(intArray) delete [] intArray; }};
