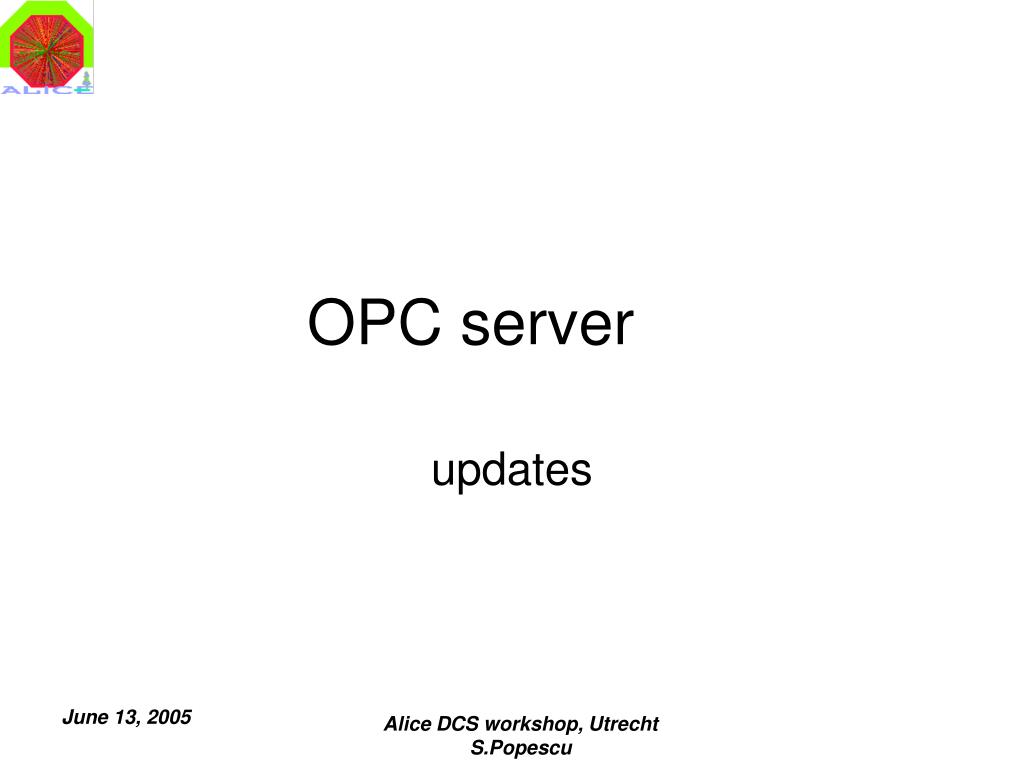

  1. OPC server updates Alice DCS workshop, Utrecht S.Popescu

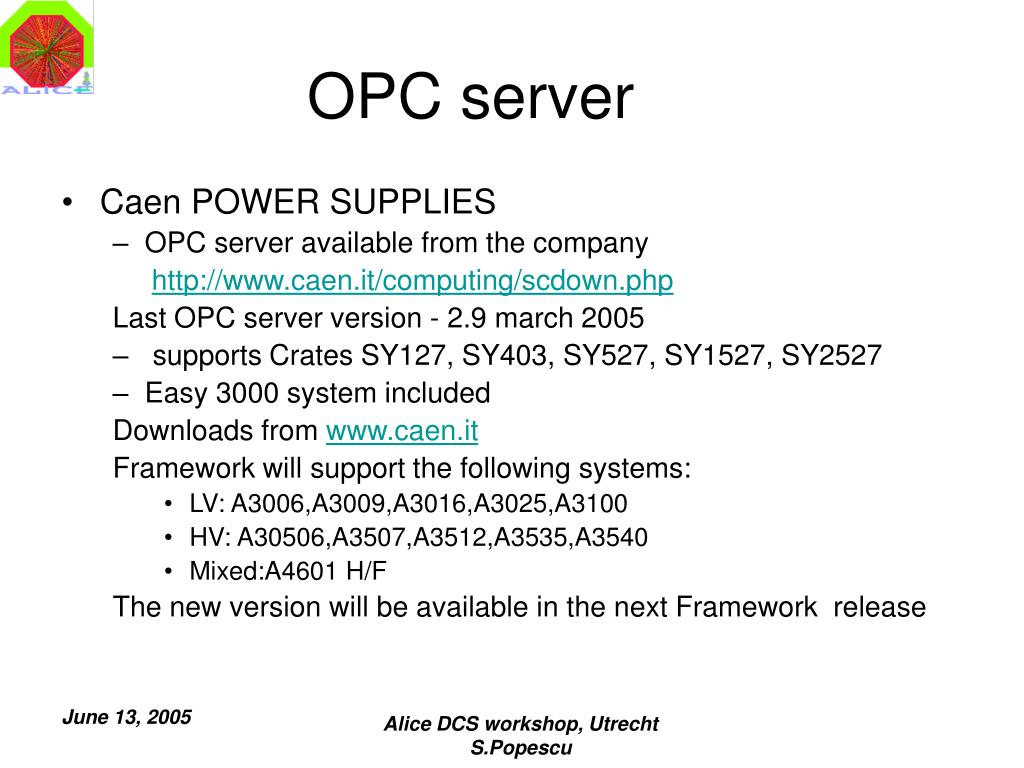

  2. OPC server • Caen POWER SUPPLIES • OPC server available from the company http://www.caen.it/computing/scdown.php Last OPC server version - 2.9 march 2005 • supports Crates SY127, SY403, SY527, SY1527, SY2527 • Easy 3000 system included Downloads from www.caen.it Framework will support the following systems: • LV: A3006,A3009,A3016,A3025,A3100 • HV: A30506,A3507,A3512,A3535,A3540 • Mixed:A4601 H/F The new version will be available in the next Framework release Alice DCS workshop, Utrecht S.Popescu

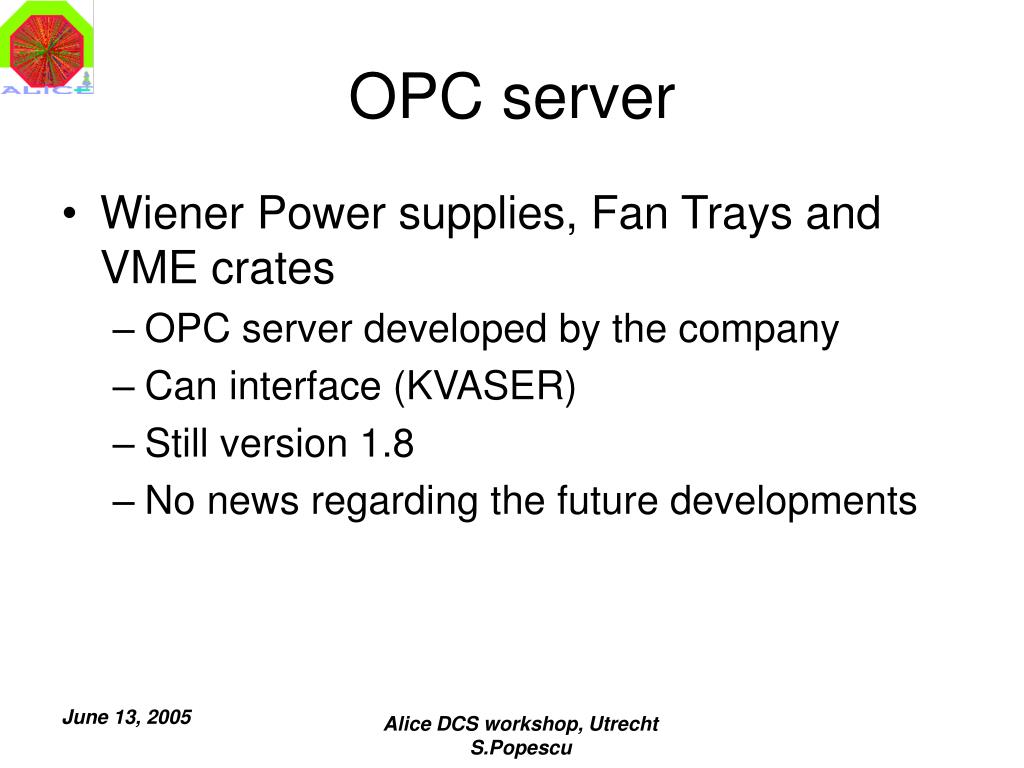

  3. OPC server • Wiener Power supplies, Fan Trays and VME crates • OPC server developed by the company • Can interface (KVASER) • Still version 1.8 • No news regarding the future developments Alice DCS workshop, Utrecht S.Popescu

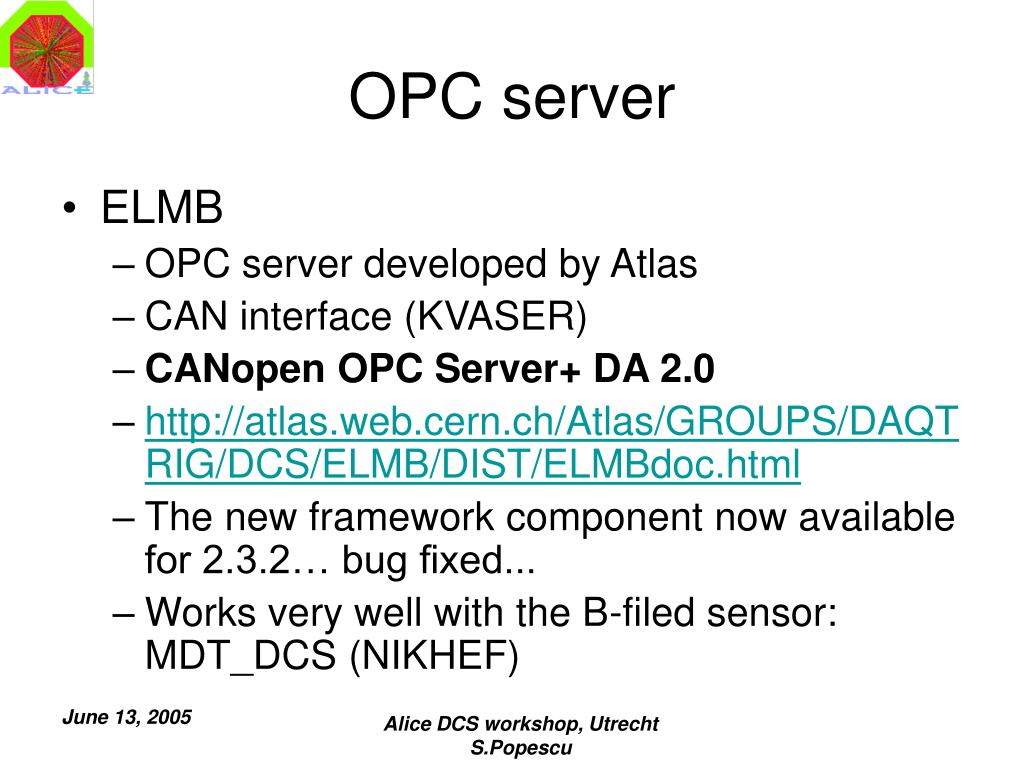

  4. OPC server • ELMB • OPC server developed by Atlas • CAN interface (KVASER) • CANopen OPC Server+ DA 2.0 • http://atlas.web.cern.ch/Atlas/GROUPS/DAQTRIG/DCS/ELMB/DIST/ELMBdoc.html • The new framework component now available for 2.3.2… bug fixed... • Works very well with the B-filed sensor: MDT_DCS (NIKHEF) Alice DCS workshop, Utrecht S.Popescu

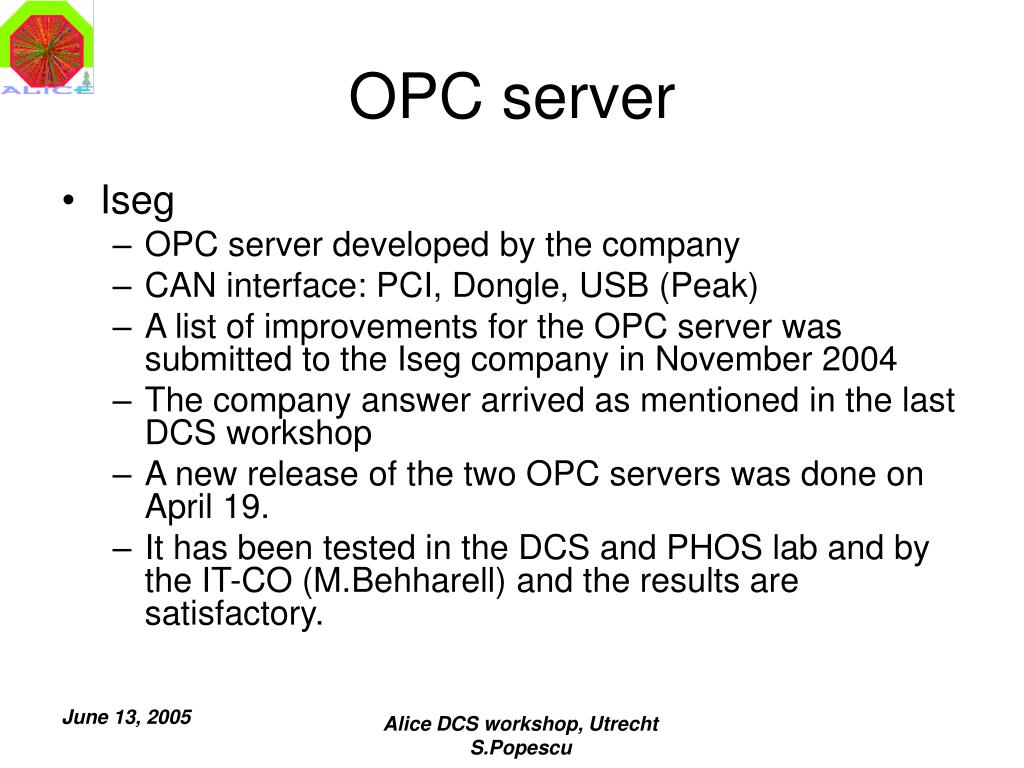

  5. OPC server • Iseg • OPC server developed by the company • CAN interface: PCI, Dongle, USB (Peak) • A list of improvements for the OPC server was submitted to the Iseg company in November 2004 • The company answer arrived as mentioned in the last DCS workshop • A new release of the two OPC servers was done on April 19. • It has been tested in the DCS and PHOS lab and by the IT-CO (M.Behharell) and the results are satisfactory. Alice DCS workshop, Utrecht S.Popescu

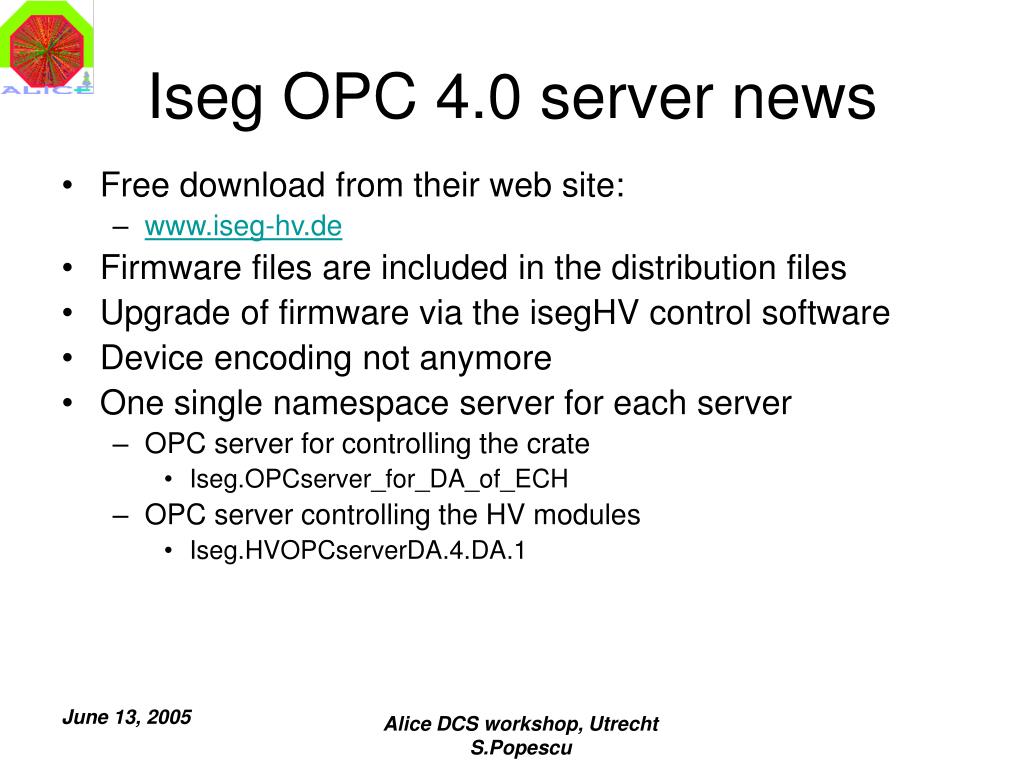

  6. Iseg OPC 4.0 server news • Free download from their web site: • www.iseg-hv.de • Firmware files are included in the distribution files • Upgrade of firmware via the isegHV control software • Device encoding not anymore • One single namespace server for each server • OPC server for controlling the crate • Iseg.OPCserver_for_DA_of_ECH • OPC server controlling the HV modules • Iseg.HVOPCserverDA.4.DA.1 Alice DCS workshop, Utrecht S.Popescu

  7. Iseg OPC server new features • Alarm handling: now only on request • Independent channel manipulation i.e, On/Off, Status reading • 7 types of devices classes • New items in the opc namespace server • Framework component will be release next week • A few test of software performances were done profiting from PHOS. • The main interest was to prove the software performances Alice DCS workshop, Utrecht S.Popescu

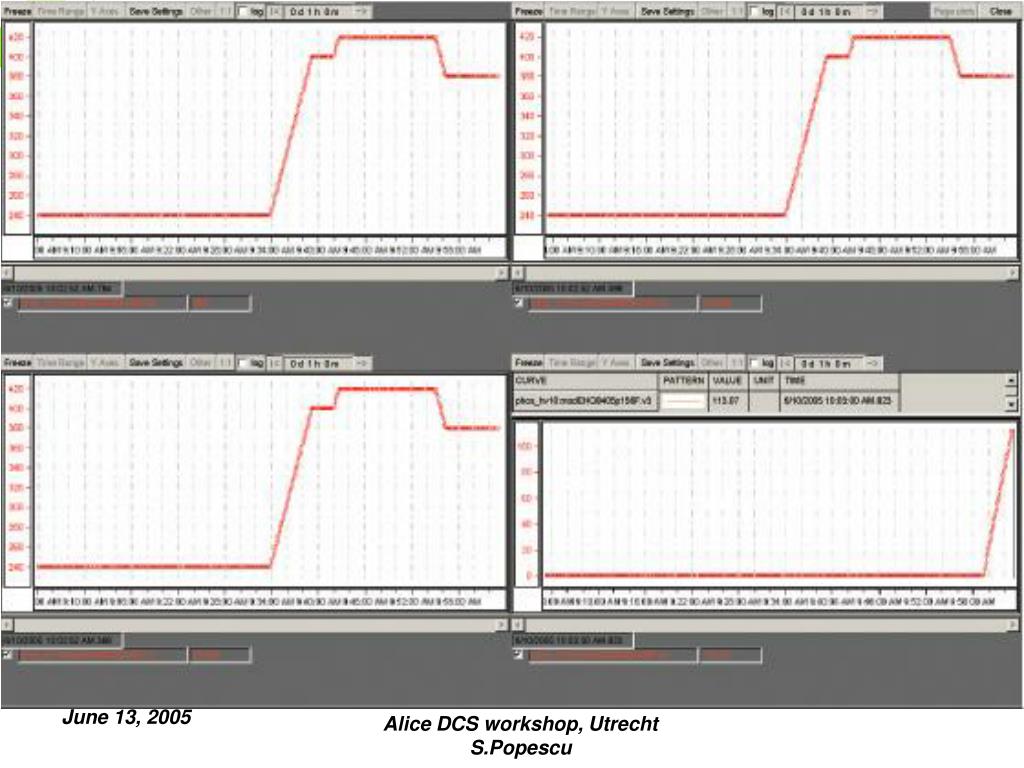

  8. Alice DCS workshop, Utrecht S.Popescu

  9. Alice DCS workshop, Utrecht S.Popescu

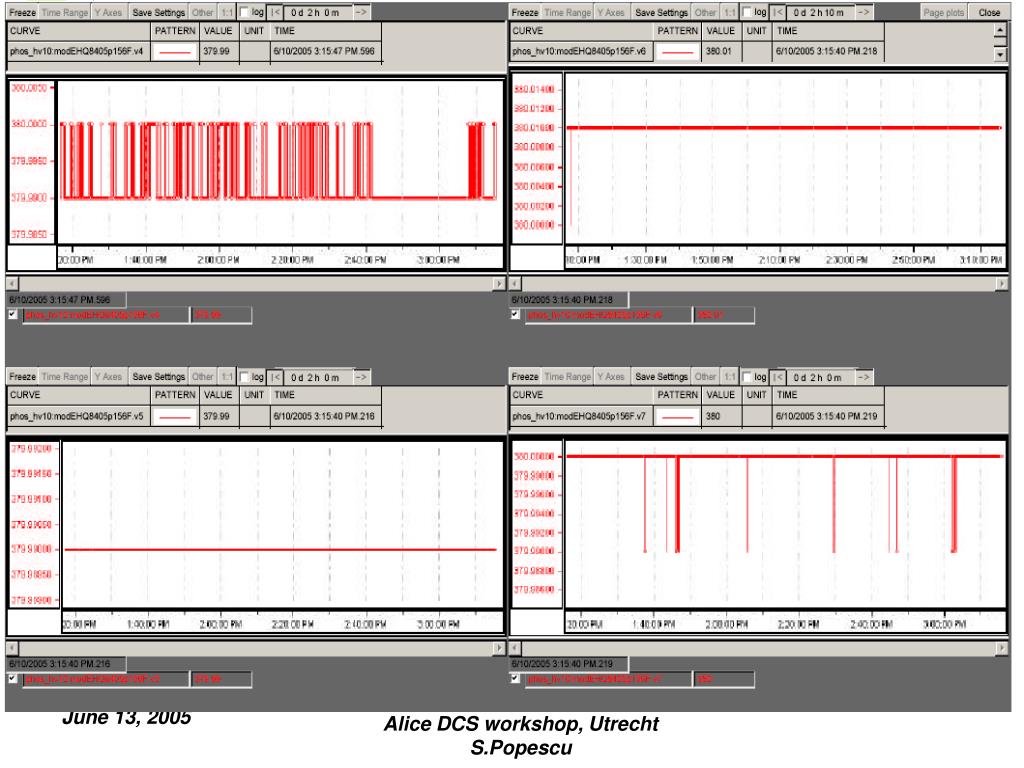

  10. Alice DCS workshop, Utrecht S.Popescu
